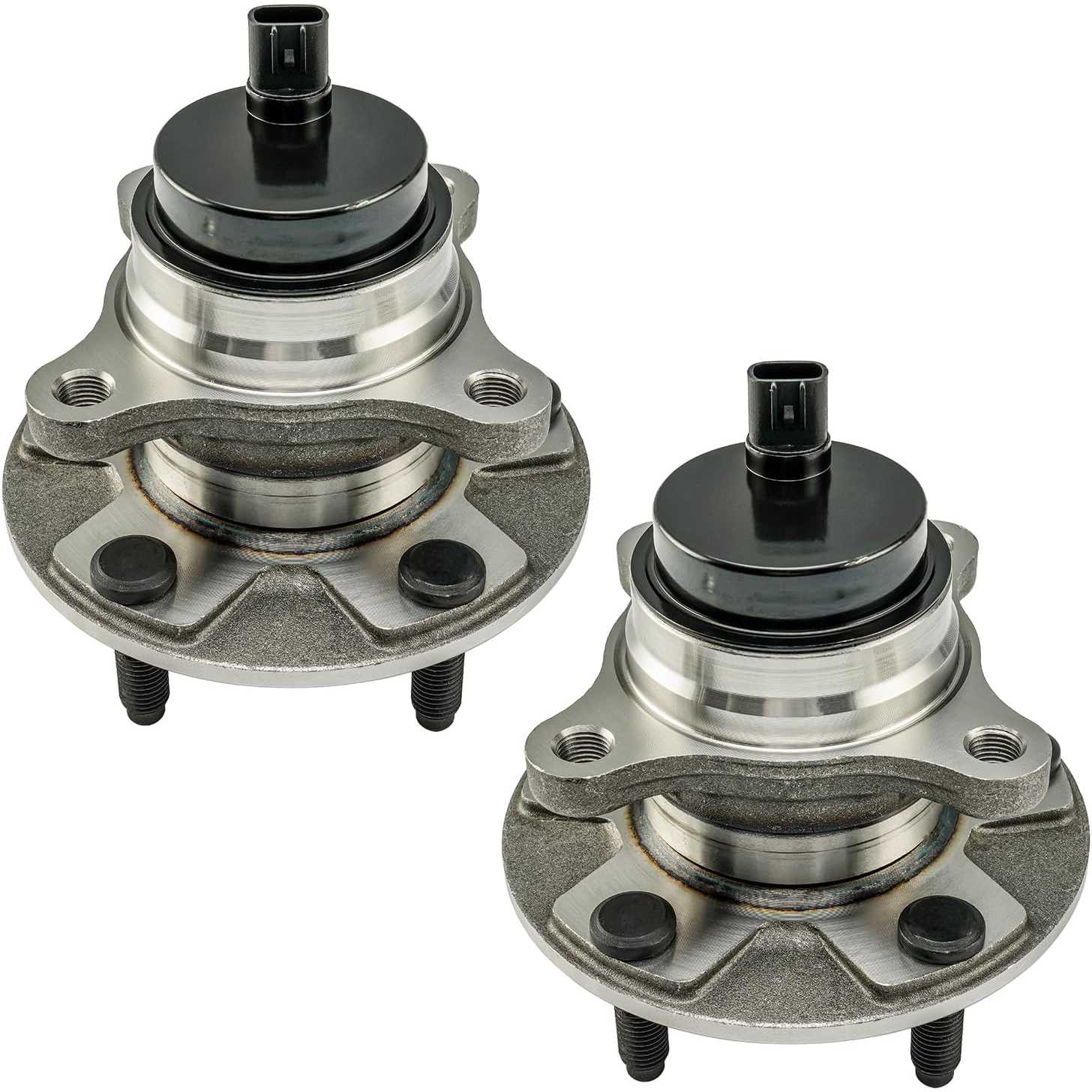

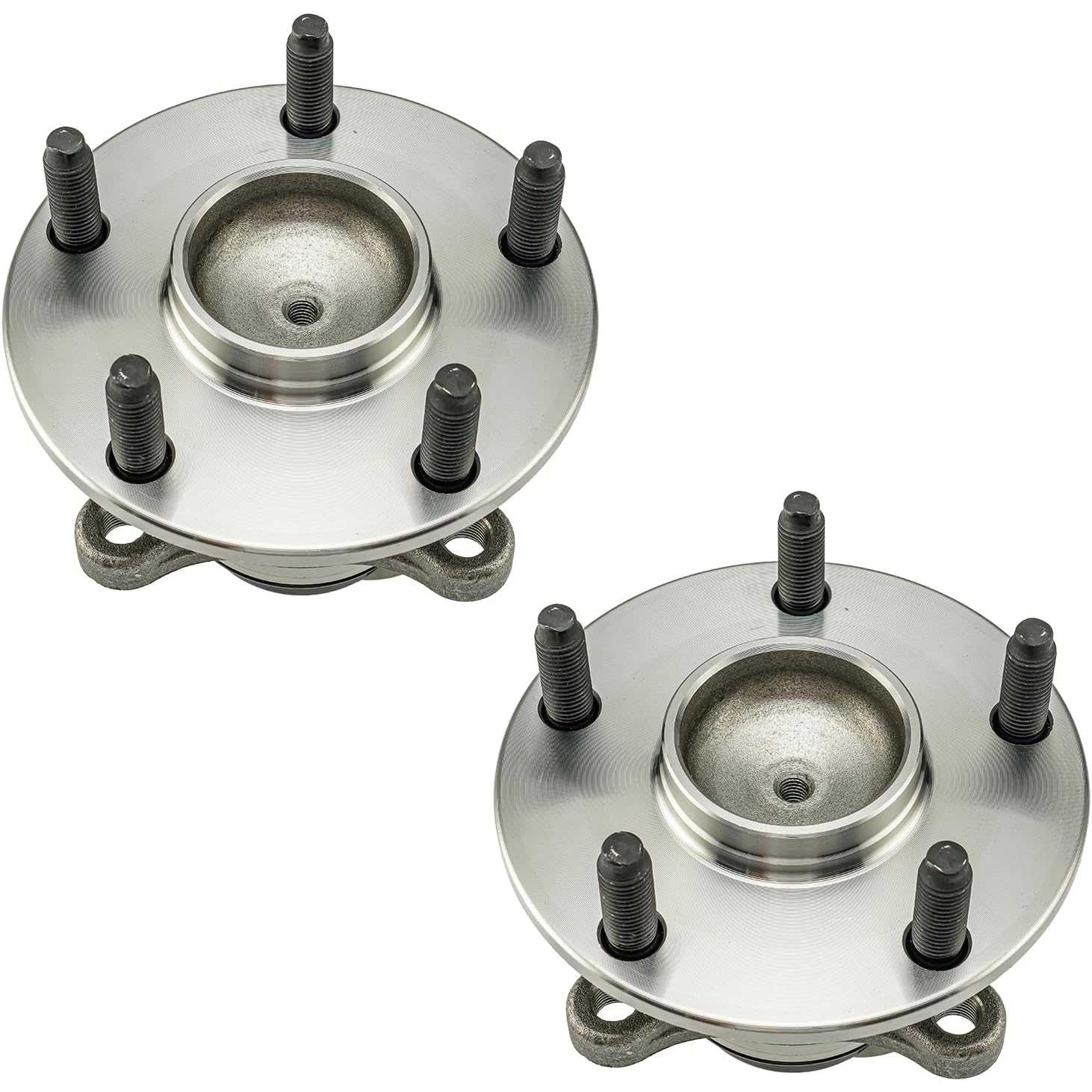

2006-2015 Lexus IS250 2.5L V6 | 2 PC Front Wheel Bearing 4356030020/513284 - PHILTOP

2006-2015 Lexus IS250 2.5L V6 | 2 PC Front Wheel Bearing 4356030020/513284 - PHILTOP

Triple-Lip Seal

Front

AISI 52100

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6627WBR2178US

Specifications

Brand
PHILTOP
ABS Type
Speed Sensor
Lug Count
5
Position
Front
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included
2x Front Wheel Hub and Bearing Assembly - 513284,Installation Instructions
Bolt Pattern
5 X 4.5
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
2.9 in
Wheel Stud Size
M12x1.5
Flange Offset
2.17 in/55 mm
Flange Diameter
5.51 in/139.9 mm
Brake Pilot Diameter
2.44 in/62.0 mm
Warranty Period
2-Year
OE Number
4356030020,4356030011,4356030010
Part Number
513284,HA590138,WE61082,40744031,BR930736,0516398,713284,0516430,3DACF027F9BS,VKBA6954,H513284,WH513284,NT513284,694284,7700034,PT513284,101869,1411248453,40744031E
Quantity
2

Highlights

  • [Exact Replacement] 513284 Front Wheel Bearing and Hub Assembly fit for 2006-2013 Lexus IS250 RWD, 2006-2010 2014-2015 Lexus IS350, 2007-2011 Lexus GS350 RWD, 2006 Lexus GS300 RWD, 2011-2013 Lexus IS350 RWD, 2006-2007 Lexus GS430, 2014-2015 Lexus IS250, 2007-2011 Lexus GS450h, 2008-2011 Lexus GS460
  • [Superior Quality] Our wheel bearing hub assembly are made of high quality materials and have the same performance as the original equipment. In addition, the wheel hubs is vehicle tested to ensure proper fit and excellent performance, thus extending the user's service life.

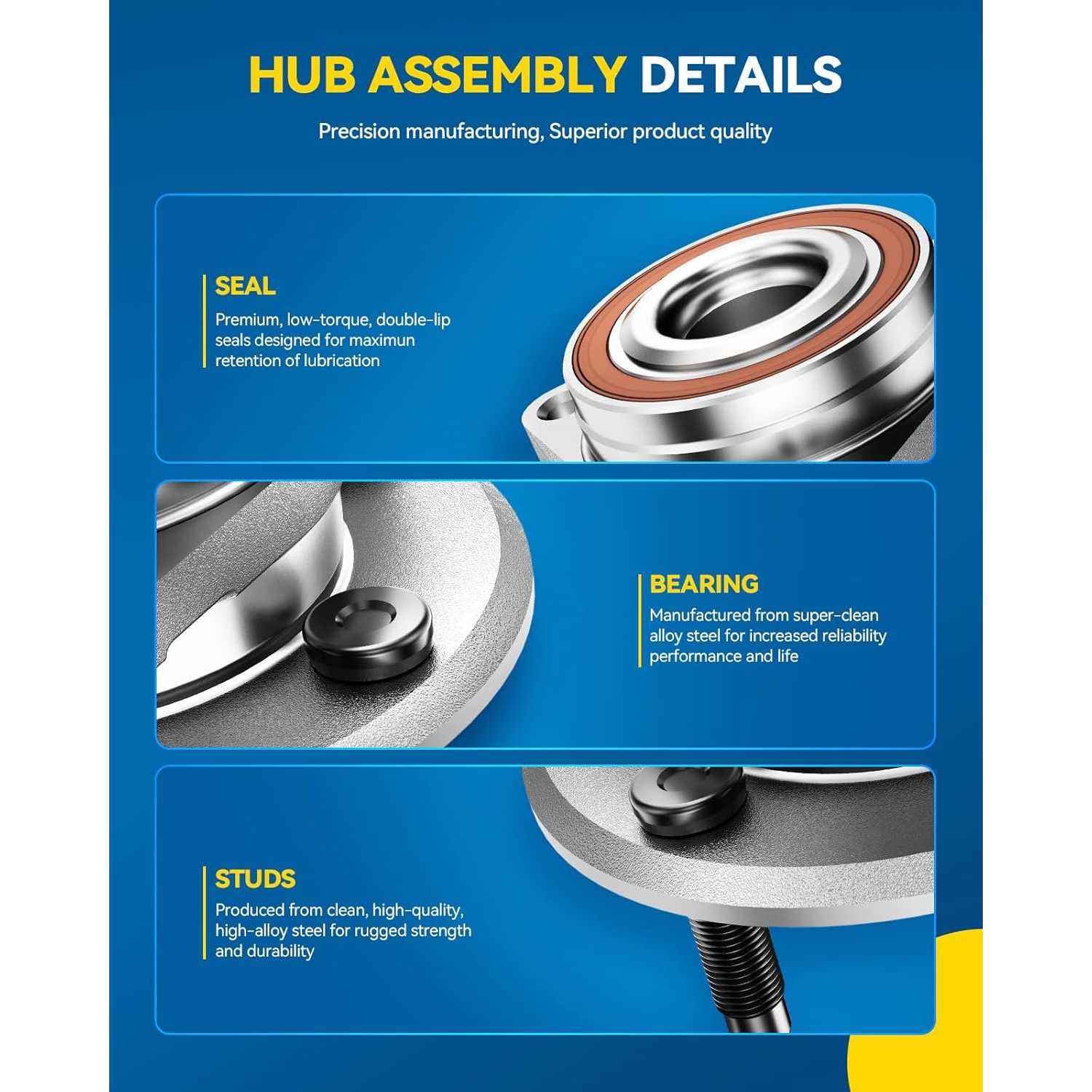

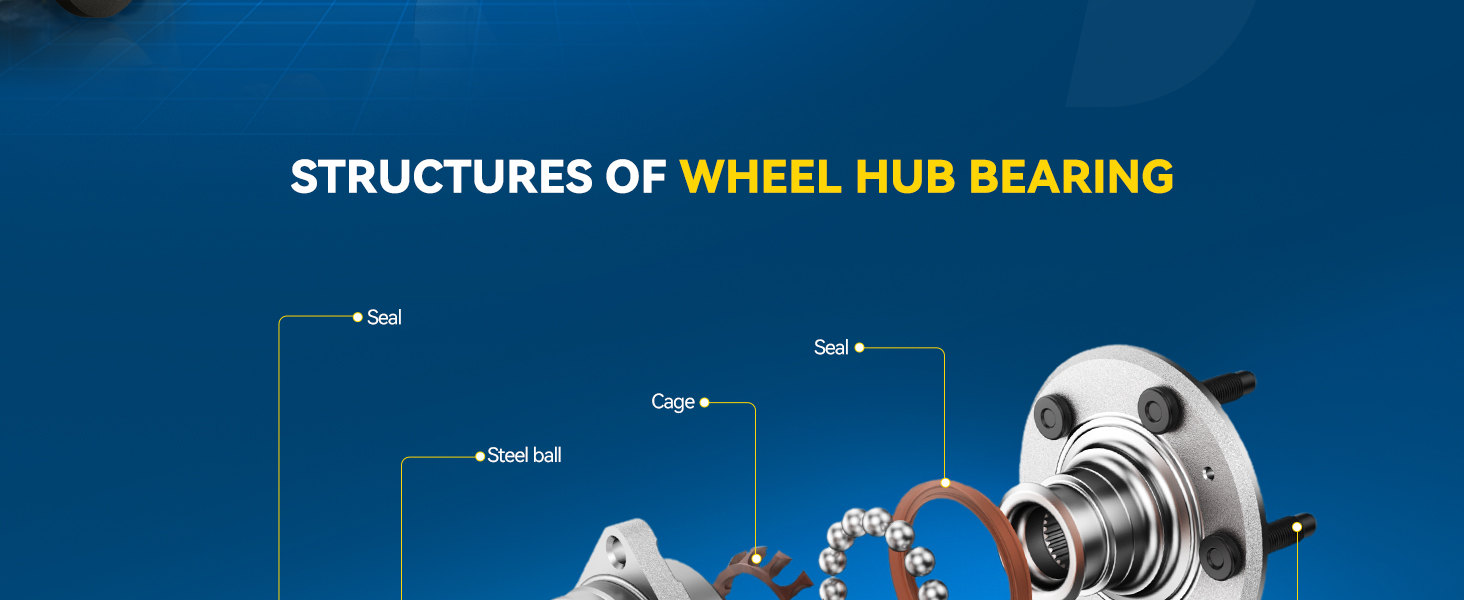

  • [Long lifespan] Brand new wheel hub assemblies and studs with rust and corrosion protected surface finish, making it has longer bearing life. Better seal design and triple oil seal, which lasts and minimizes noise and vibration and vibration also keeping moisture and other contaminants out.
  • [OE Number] 513284, 4356030010, 4356030020, HA590138, 0516398, 4356030011, WE61082, WH513284, NT513284, 694284, 7700034, PT513284, 101869, 1411248453, 40744031E, BR930736, 713284, 0516430, VKBA6954, H513284, 3DACF027F9BS, 40744031
  • [Customer Service] PHILTOP Wheel hub assembly meet OE quality standards and come with a 2 year warranty. If you have any questions about our products, please contact us 24 hours a day.

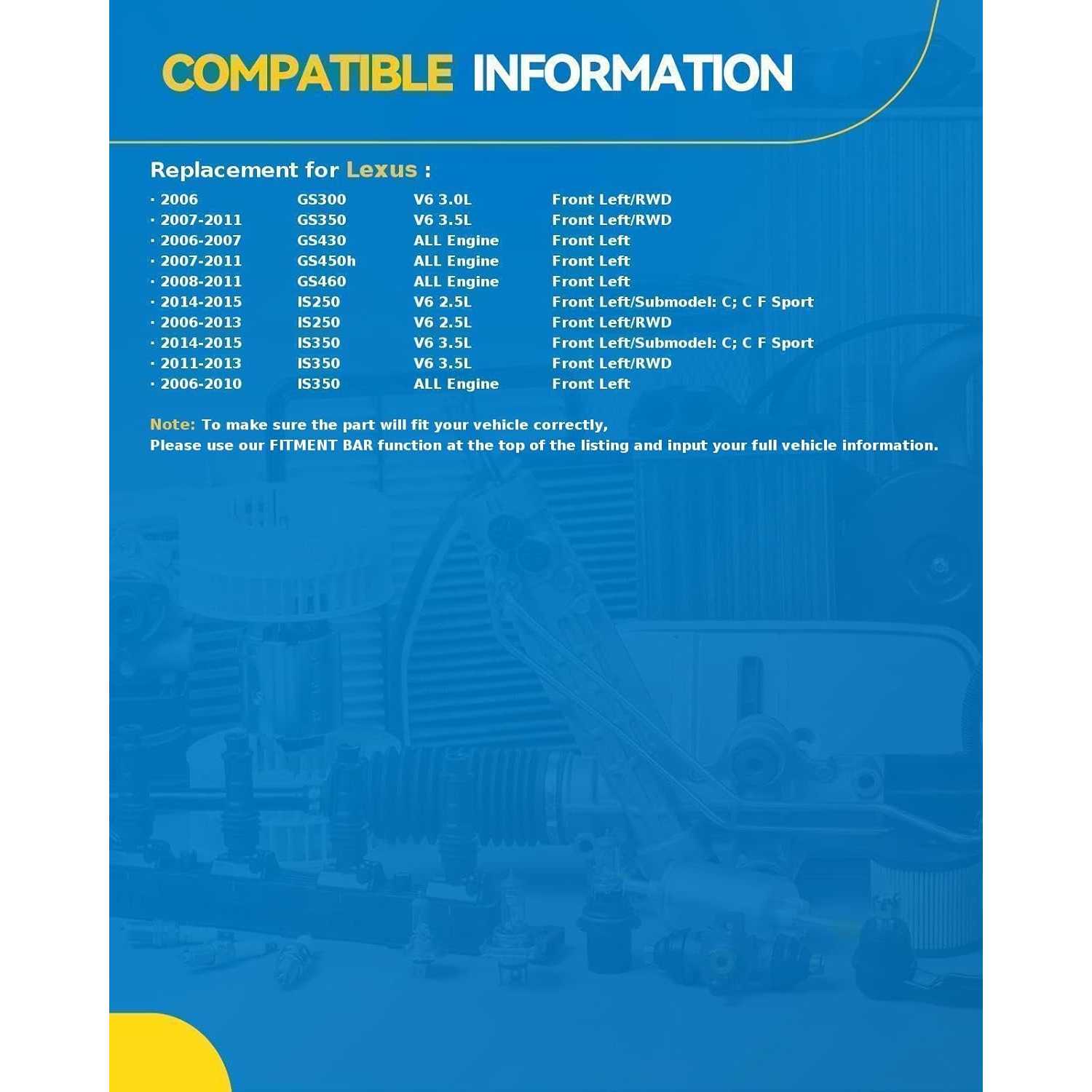

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20062007 - 20112006 - 20072007 - 20112008 - 20112006 - 20132010 - 20132014 - 20152014 - 20152006 - 20132010 - 20132014 - 20152014 - 2015
MakeLexusLexusLexusLexusLexusLexusLexusLexusLexusLexusLexusLexusLexus
ModelGS300GS350GS430GS450hGS460IS250IS250IS250IS250IS350IS350IS350IS350
TrimBaseBaseBaseBaseBaseBaseCCC F SportBaseCCC F Sport
Engine3.0L V63.5L V64.3L V83.5L V64.6L V82.5L V62.5L V62.5L V62.5L V63.5L V63.5L V63.5L V63.5L V6
Note
Rear-Wheel Drive
Rear-Wheel Drive
Rear-Wheel Drive
Rear-Wheel Drive
Rear-Wheel Drive
Rear-Wheel Drive
Rear-Wheel Drive
--
Rear-Wheel Drive
Rear-Wheel Drive
--

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

4.8/5

Based on 5 reviews

580%
420%
30%
20%
10%

CarGuy_John_171

04/05/2026

Came in two days, which was fantastic. Installation was pretty simple, everything lined up and tightened down nicely. No complaints here.

Emma_DailyCommute_261

12/20/2025

That annoying rumble from the front end is completely gone. These bearings fit perfectly and the car rides so much smoother now. Worth every penny.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Package contents vary by part number. Please check the product images and specifications to confirm whether the hub, ABS sensor, axle nut, or other hardware is included.

A single bearing can often be replaced when only one side is worn. The condition of the bearing on the opposite side should also be checked because wear can vary by vehicle and use.
