2008-2013 Nissan Rogue 2.5L L4 | 2 PC Front Wheel Bearing 40202JG000/513298 - PHILTOP

2008-2013 Nissan Rogue 2.5L L4 | 2 PC Front Wheel Bearing 40202JG000/513298 - PHILTOP

Triple-Lip Seal

Front

AISI 52100

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1089WSA3414US

Specifications

Brand
PHILTOP
ABS Type
Magnetic Ring
Lug Count
5
Position
Front
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

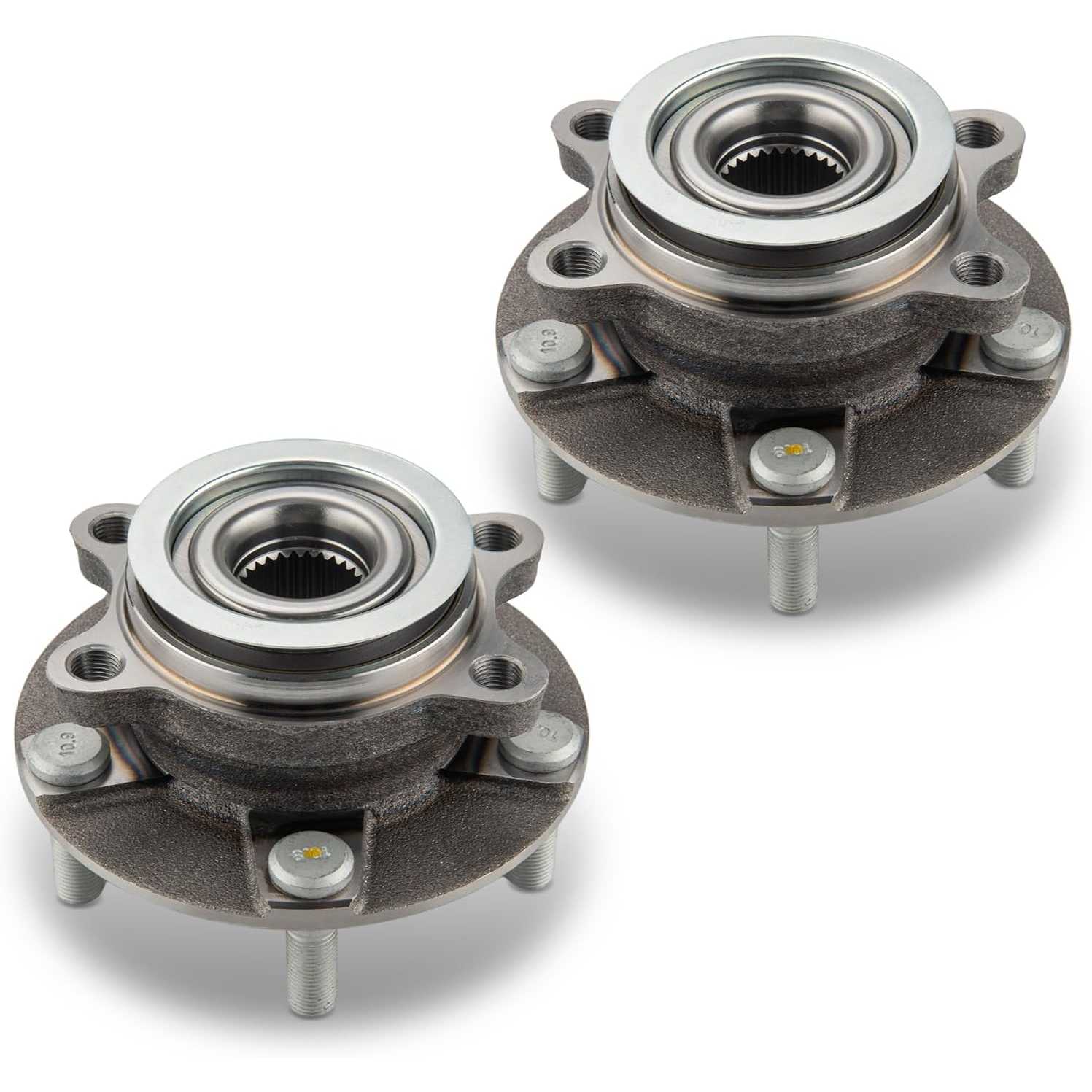

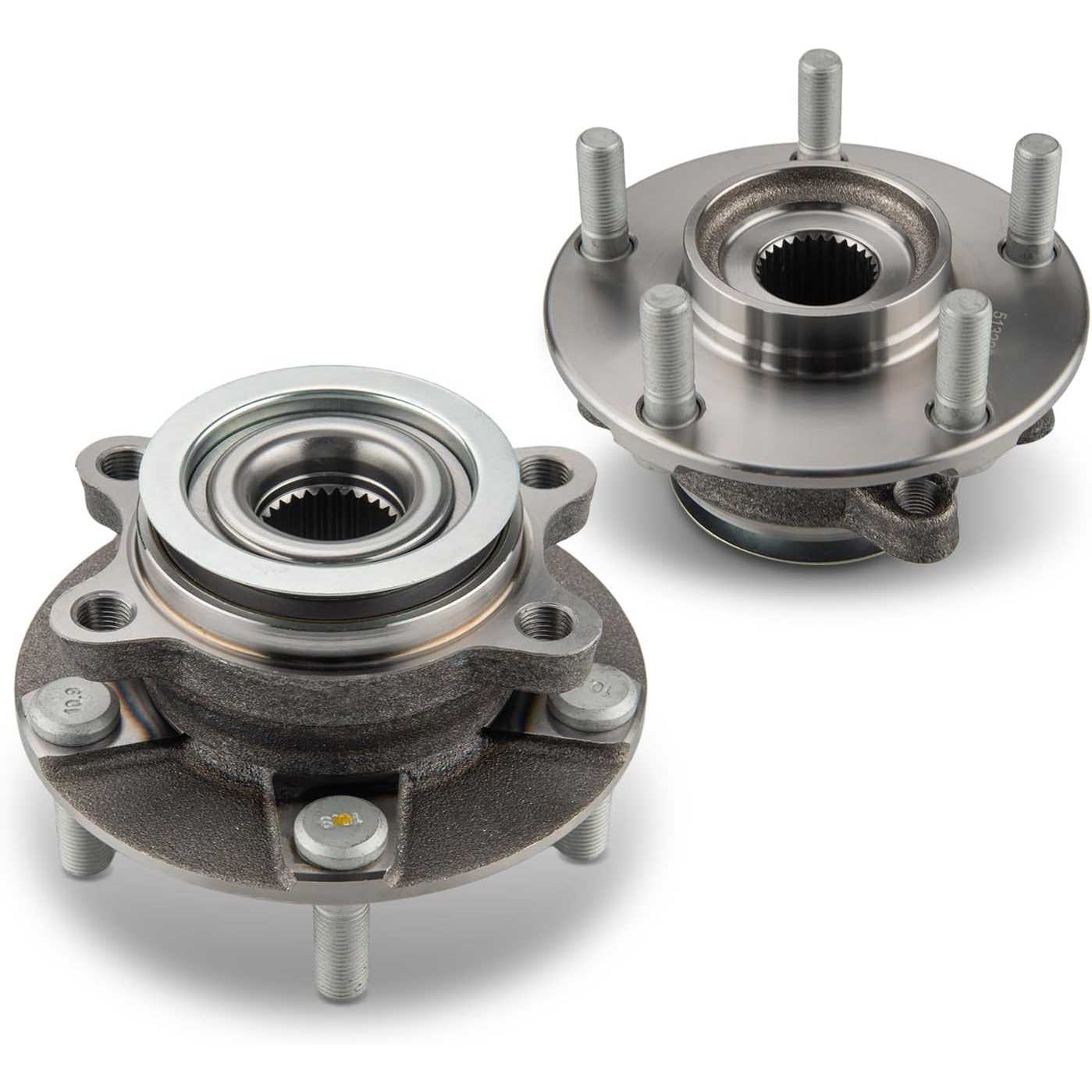

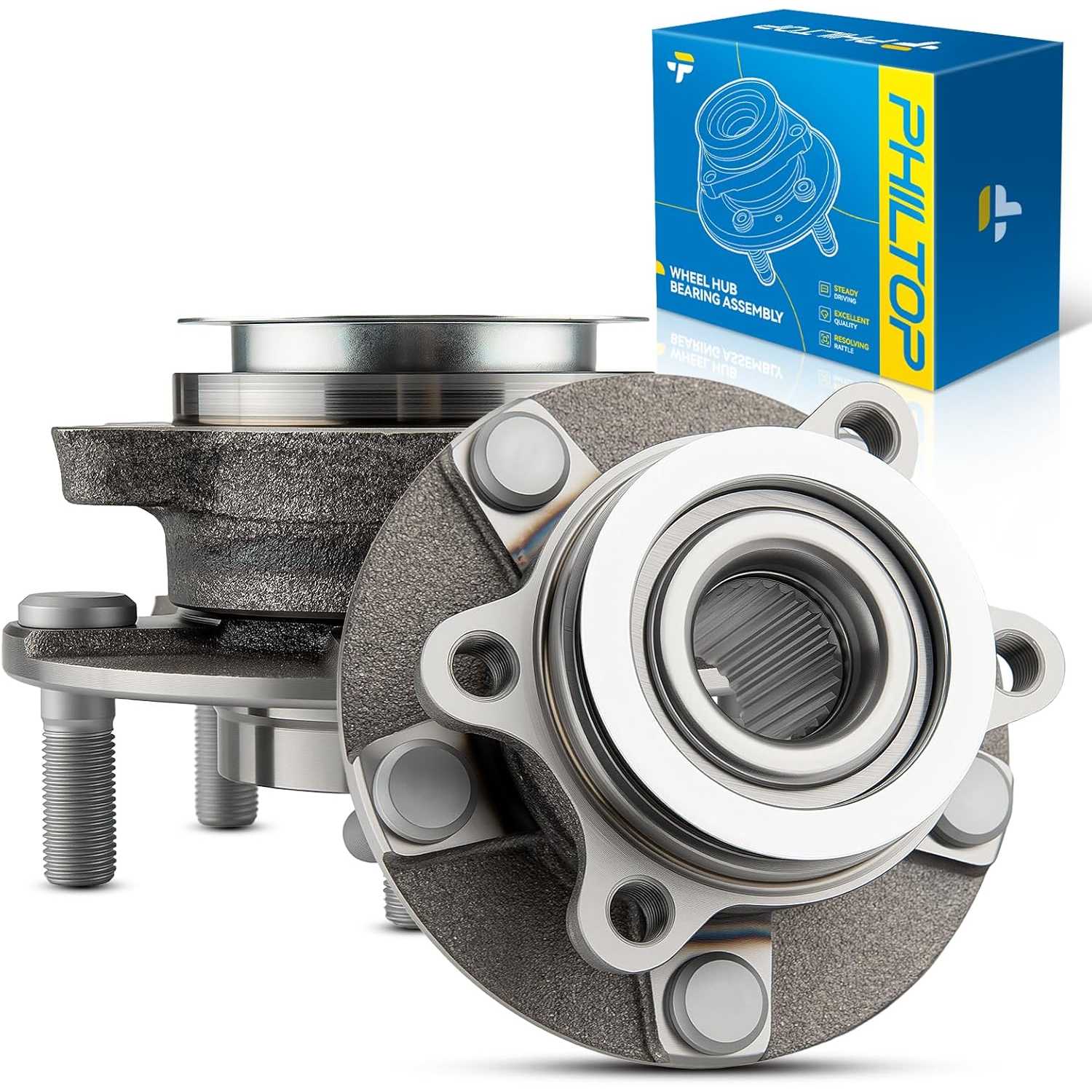

2x Front Wheel Hub and Bearing Assembly - 513298,Installation Instructions
Bolt Pattern
5 X 4.5
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.1 in
Wheel Stud Size
M12x1.25
Flange Offset
1.61 in/40.8 mm
Flange Diameter
5.35 in/136.0 mm
Brake Pilot Diameter
2.68 in/68.0 mm
Warranty Period
2-Year
OE Number
40202JG000,40202JG01B,40202BR00A,40202JG01A,40202EN010
Part Number
513298,WE60491,HA590278,7500021,BR930772,HA590239,WA513298,MB30304,VKBA6996,WH513298,713298,534298,1411425345,101860,29513298,PT513298,G30304,516343,DL513298
Quantity
2

Highlights

  • [Exact Replacement] 513298 Front Wheel Bearing and Hub Assembly fit for 2008-2013 Nissan Rogue, 2014-2015 Nissan Rogue Select, 2007-2012 Nissan Sentra
  • [Premium Quality Materials] Front wheel bearing hub assembly are manufactured with premium quality materials. The outer ring and flange are made of high quality #55 carbon structural steel for high surface hardness and strength.
  • [Long lifespan] Brand new wheel hub assemblies and studs with rust and corrosion protected surface finish, making it has longer bearing life. Better seal design and triple oil seal, which lasts and minimizes noise and vibration and vibration also keeping moisture and other contaminants out.
  • [Specification] ①Position: Front ; ②ABS Included: No; ③Wheel Stud Quantity: 5; ④Flange Bolt Hole Quantity: 4; ⑤Reference Part Number: 513298, WE60491, 40202JG000, 40202JG01A, HA590278. Please refer to the Vehicle menu at the top of the list, select your vehicle's "Year, Make, Model" and click "Confirm" to make sure the wheel bearing fit your car.
  • [Customer Service] PHILTOP Wheel hub assembly meet OE quality standards and come with a 2 year warranty. If you have any questions about our products, please contact us 24 hours a day.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20102008 - 201320112008 - 20102011 - 20132014 - 20152007 - 20122007 - 2012
MakeNissanNissanNissanNissanNissanNissanNissanNissan
ModelRogueRogueRogueRogueRogueRogue SelectSentraSentra
TrimKromSS KromSLSVSSE-RSE-R Spec V
Engine2.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L4
Note--------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

4.8/5

Based on 9 reviews

589%
40%
311%
20%
10%

TARA JOHNSON

08/25/2026

Verified buyer

fit perfectly 2015 Nissan Rogue

Gomez

10/12/2025

Verified buyer

Exelente producto

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Possible signs include humming or grinding that changes with vehicle speed, wheel looseness, vibration, or an ABS warning. Similar symptoms can have other causes, so an inspection is recommended.

Package contents vary by part number. Please check the product images and specifications to confirm whether the hub, ABS sensor, axle nut, or other hardware is included.
