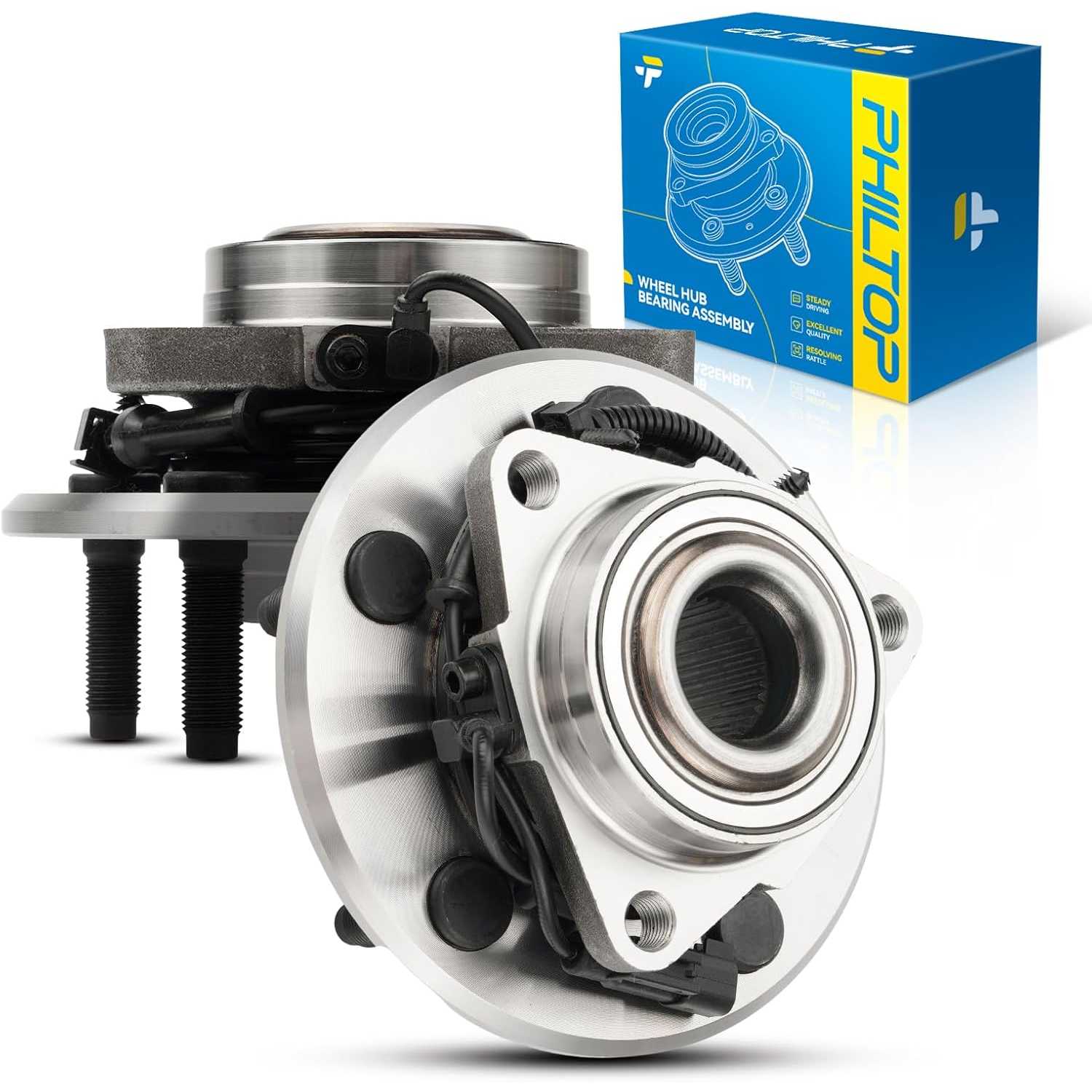

2012-2018 Ram 1500 3.0L V6 | 2 PC Front Wheel Bearing | 68267298AA/515151 - PHILTOP

2012-2018 Ram 1500 3.0L V6 | 2 PC Front Wheel Bearing | 68267298AA/515151 - PHILTOP

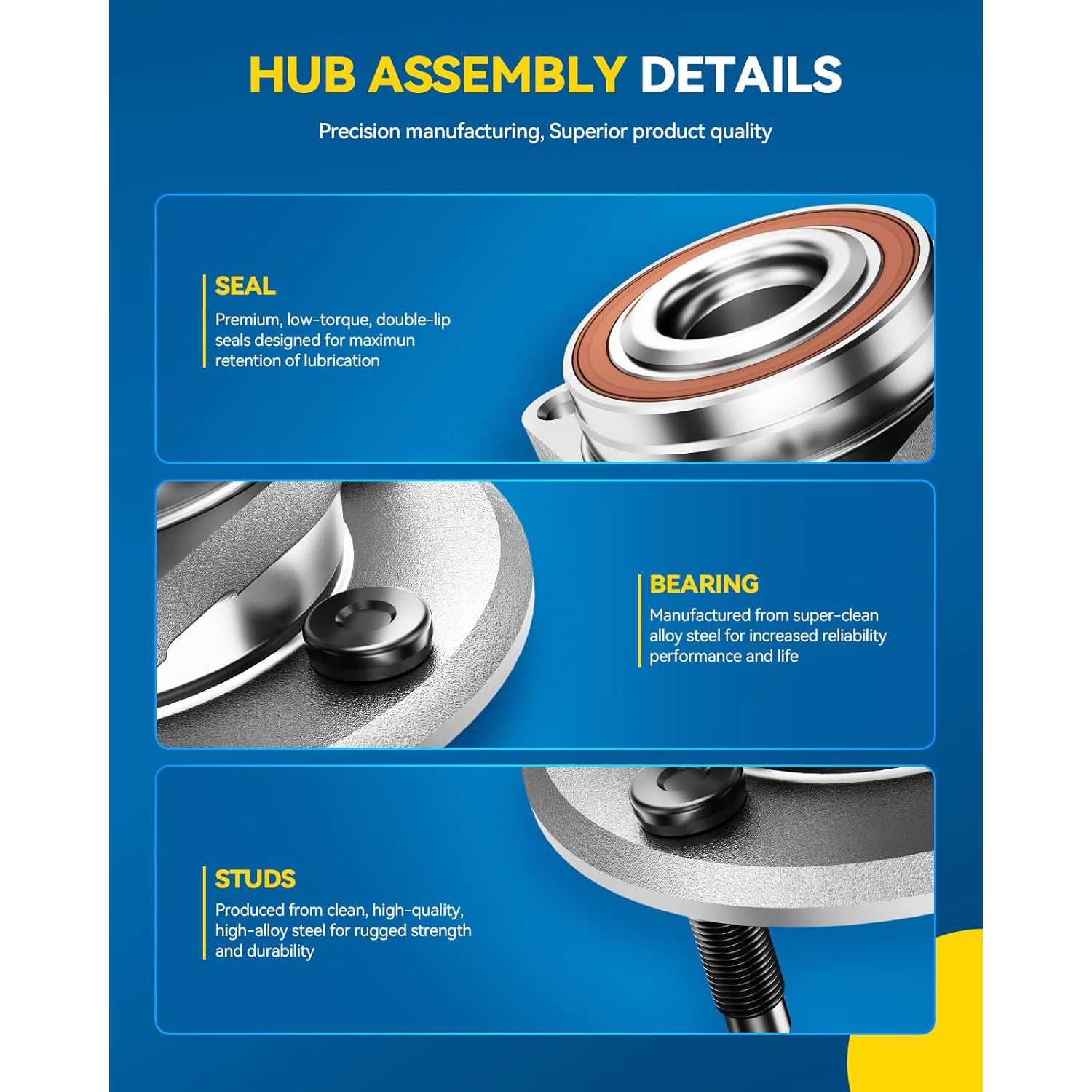

Triple-Lip Seal

Front

AISI 52100

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6036WBK2506US

Specifications

Brand
PHILTOP
ABS Type
Speed Sensor
Lug Count
5
Position
Front
Flange Bolt Hole Count
3
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

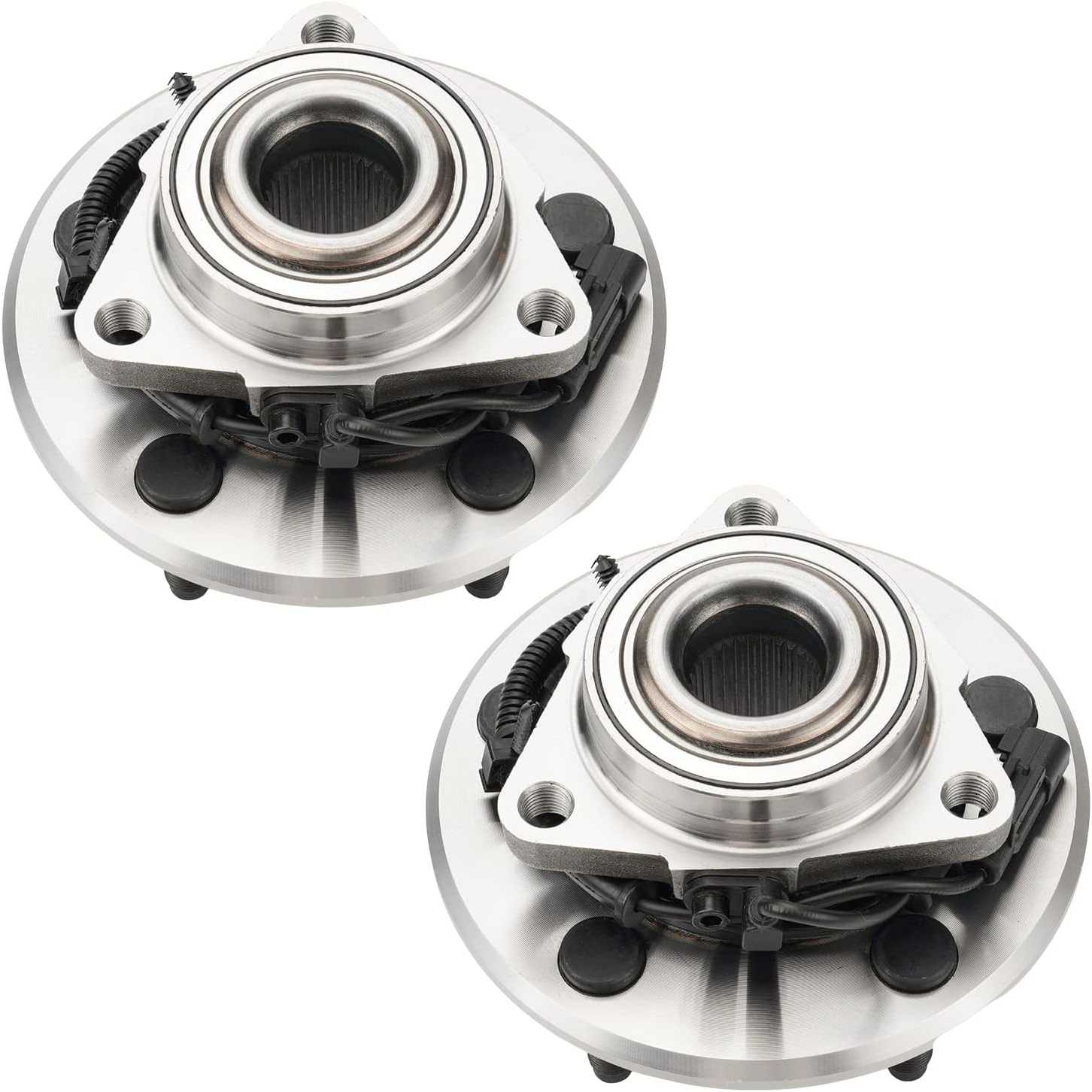

2x Front Wheel Hub and Bearing Assembly - 515151,Installation Instructions
Bolt Pattern
5 X 5.5
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.5 in
Wheel Stud Size
M14x1.5
Flange Offset
1.84 in/46.8 mm
Flange Diameter
7.2 in/183.0 mm
Brake Pilot Diameter
3.09 in/78.4 mm
Warranty Period
2-Year
OE Number
68267298AA,68230055AB,5154171AA,4779829AD,68267298AB,05154171AA,04779829AD,68267298AD,4779829AC,68267298AC,68262093AA,68230055AA,68227354AA,4779829AA
Part Number
515151,HA590515,WE61804,HA590492,40267024,MB25309,951094,103289,126151,7203120,WA515151,G25309,94556388,40267024E
Quantity
2

Highlights

  • Fitment: Front Wheel bearing hub assembly compatible with 2012-2018 1500, 2019-2022 1500 Classic
  • Superior Quality: Our wheel hubs are made of high quality materials and have the same performance as the original equipment. In addition, the wheel bearing hub assembly is vehicle tested to ensure proper fit and excellent performance, thus extending the user's service life.
  • Recovery Performance: PHILTOP Wheel hub bearing enables the wheels and attached components to rotate smoothly and keeps the wheel attached to the car. Bearing can provide you with a smooth and quiet driving environment, enhancing your driving experience.
  • Installation: Wheel hubs excellent assembly performance, precise overall structure, easy and quick installation.
  • Customer Service: PHILTOP Wheel hub assembly meet OE quality standards and come with a 2 year warranty. If you have any questions about our products, please contact us 24 hours a day.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2014 - 20182014 - 201820122013 - 20182014 - 201820122013 - 20182016 - 20182013 - 201620142014 - 20182014 - 201820122013 - 20182014 - 20152014 - 20152014 - 201820122013 - 20182015 - 20182015 - 20182014 - 20182014 - 20182014 - 20182014 - 20162013 - 2016201220122013 - 201620132015 - 20182015 - 20182014 - 20182013 - 20182012201320122013 - 20182012201220122014 - 201820182017 - 201820122013 - 20182014 - 20182013 - 20182012201320122013 - 20182012201920192019 - 20222019 - 202220192019201920192019 - 20222019 - 20222019 - 202220192019 - 20222019 - 20222019 - 20222019 - 2022
MakeRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRam
Model150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic
TrimBig HornBig HornBig HornBig HornExpressExpressExpressHFEHFEHFELaramieLaramieLaramieLaramieLaramie LimitedLaramie LimitedLaramie LonghornLaramie LonghornLaramie LonghornLimitedLimitedLone StarLone StarLone StarOutdoorsmanOutdoorsmanOutdoorsmanOutdoorsmanOutdoorsmanR/TRebelRebelSLTSLTSLTSLTSLTSLTSTSTSTSpecial ServiceSportSportSportSportTradesmanTradesmanTradesmanTradesmanTradesmanTradesmanTradesman HDBig HornBig HornExpressExpressLaramieLone StarLone StarSLTSLTSLTSpecial ServiceTradesmanTradesmanTradesmanWarlockWarlock
Engine3.0L V63.6L V65.7L V85.7L V83.6L V65.7L V85.7L V83.0L V63.6L V65.7L V83.0L V63.6L V65.7L V85.7L V83.0L V65.7L V83.0L V65.7L V85.7L V83.0L V65.7L V83.0L V63.6L V65.7L V83.0L V63.6L V64.7L V85.7L V85.7L V85.7L V83.6L V65.7L V83.0L V63.6L V64.7L V84.7L V85.7L V85.7L V83.7L V64.7L V85.7L V85.7L V83.0L V63.6L V65.7L V85.7L V83.0L V63.6L V64.7L V84.7L V85.7L V85.7L V85.7L V83.6L V65.7L V83.6L V65.7L V83.0L V63.6L V65.7L V83.0L V63.6L V65.7L V85.7L V83.0L V63.6L V65.7L V83.6L V65.7L V8
Note--
Four-Wheel Drive
--
Four-Wheel Drive
------
Four-Wheel Drive
----
Four-Wheel Drive
--------
Four-Wheel Drive
Four-Wheel Drive
------
Four-Wheel Drive
-
Four-Wheel Drive
-
Four-Wheel Drive
Four-Wheel Drive
Four-Wheel Drive
---
Four-Wheel Drive
---
Four-Wheel Drive
-
Four-Wheel Drive
-
Four-Wheel Drive
1500 Classic
1500 Classic
1500 Classic
1500 Classic
1500 Classic
1500 Classic
1500 Classic
1500 Classic
1500 Classic
1500 Classic
1500 Classic
1500 Classic
1500 Classic
1500 Classic
1500 Classic
1500 Classic

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

4.9/5

Based on 9 reviews

589%
411%
30%
20%
10%

MIGUEL CANDELARIA

02/17/2026

Verified buyer

Excelente... . Lo recomiendo al 100%.

darrell

01/25/2025

Verified buyer

Right fit 2018 Ram 1500

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Some bearings have a magnetic encoder or sealing side that must face a particular direction. Follow the vehicle service information and any markings supplied with the part.

Some vehicle manufacturers specify a one-time-use axle nut. Check the service procedure for your vehicle and use new hardware when required.
