2000-2011 Ford Focus 2.0L L4 | 2 PC Front Wheel Bearing | 518510 - PHILTOP

2000-2011 Ford Focus 2.0L L4 | 2 PC Front Wheel Bearing | 518510 - PHILTOP

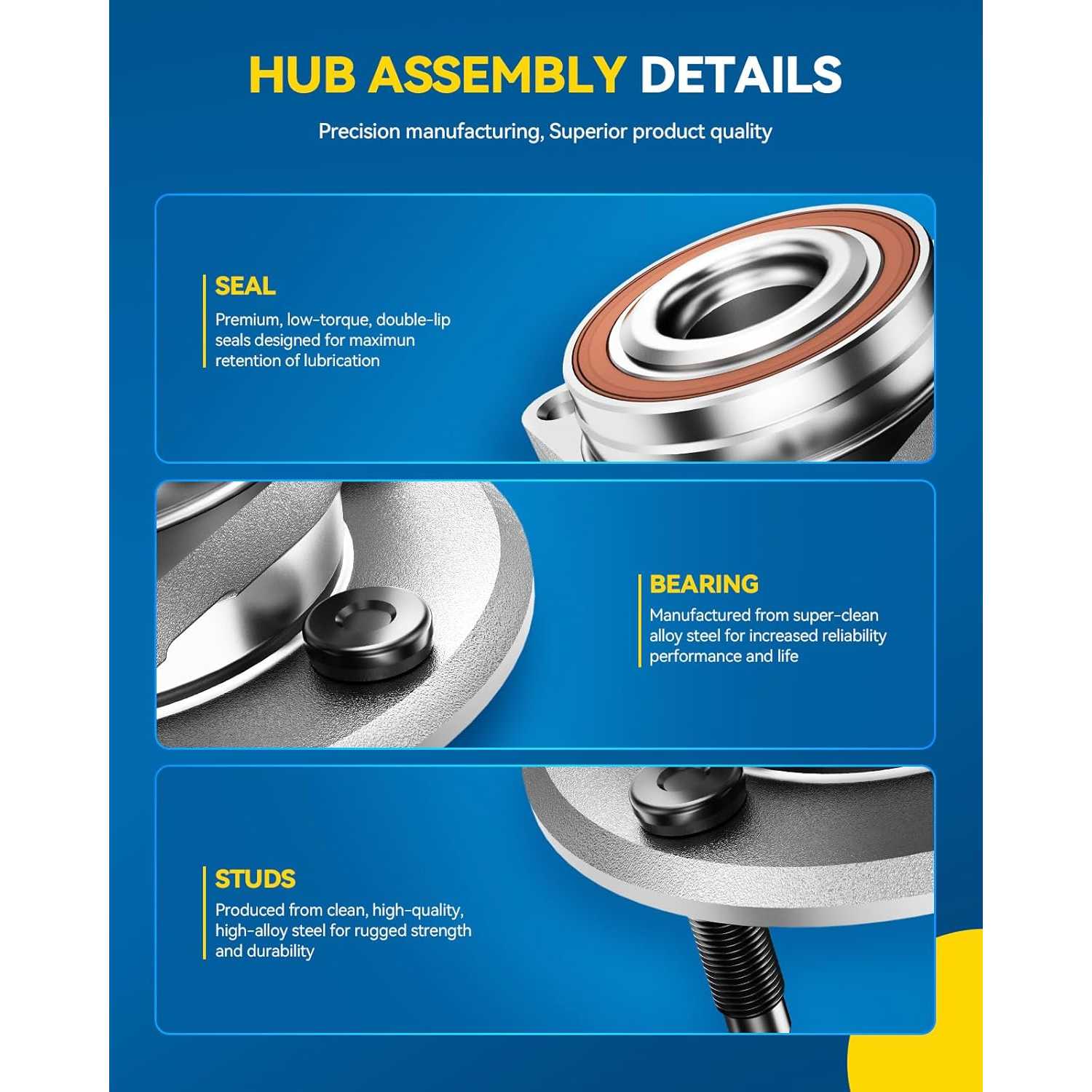

Triple-Lip Seal

Front

AISI 52100

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8284WSA370PUS

Specifications

Brand
PHILTOP
Lug Count
4
Position
Front
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

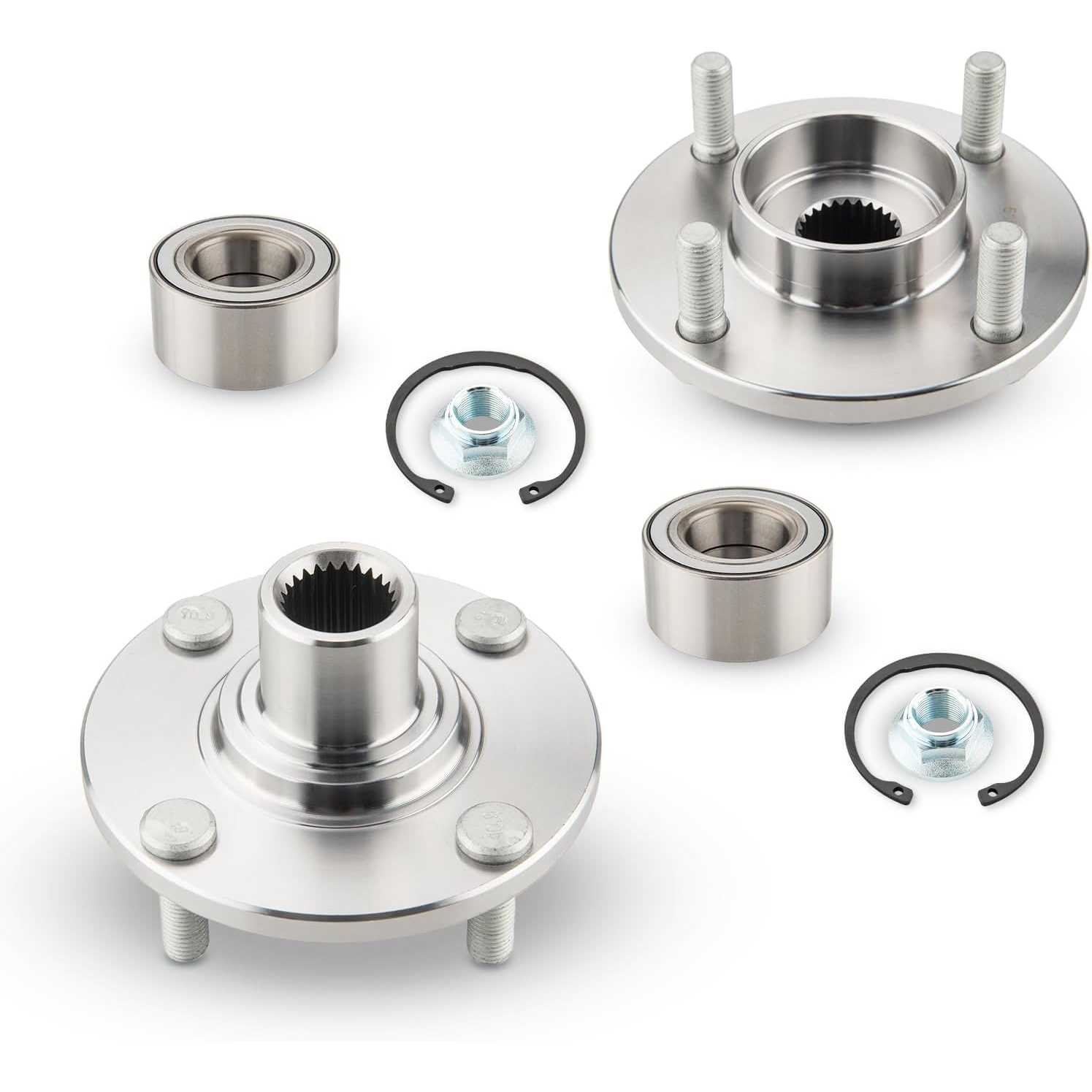

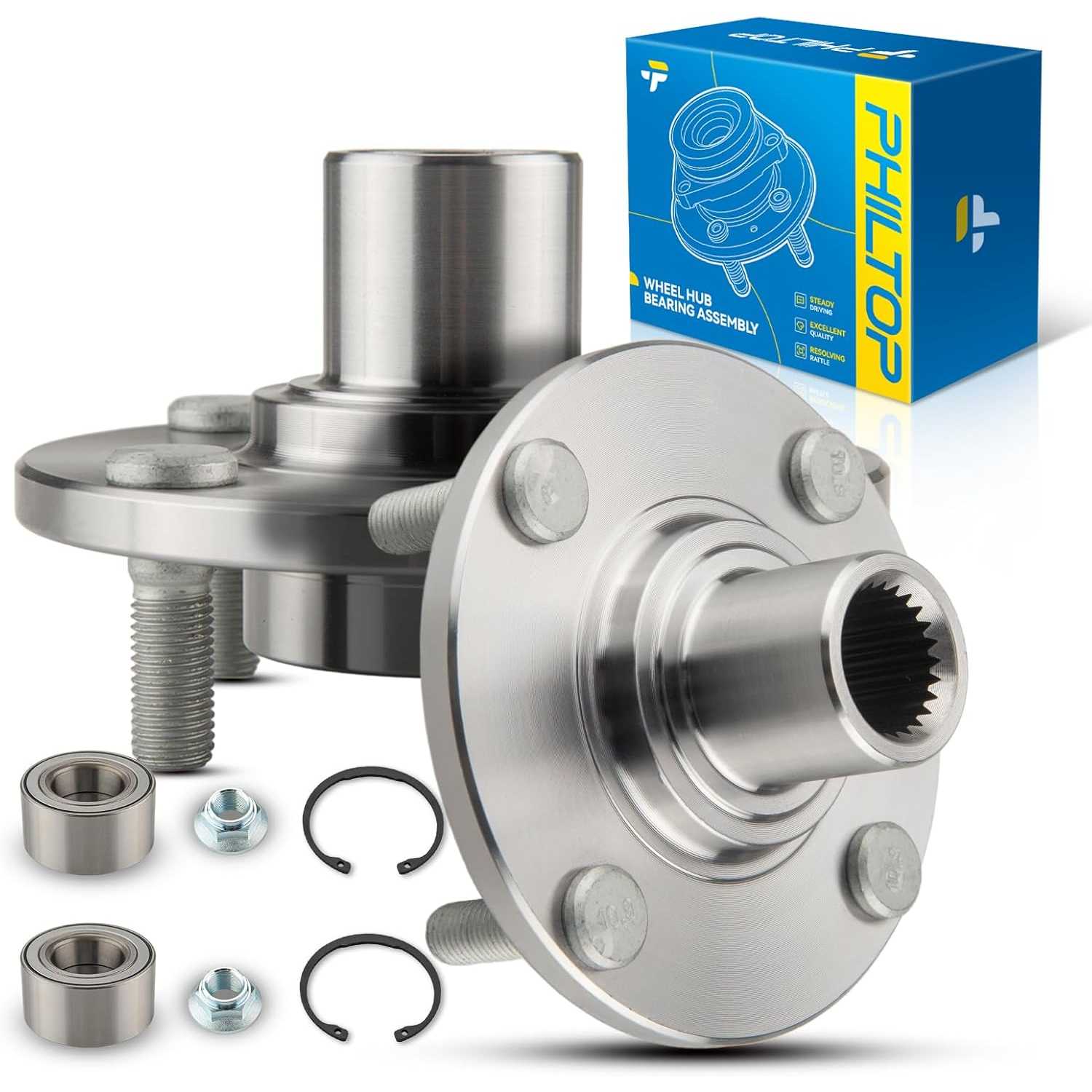

2x Front Wheel Hub and Bearing Assembly - 518510,Installation Instructions
Bolt Pattern
4 X 4.25
Surface Finish
Polished, Rust Protected
Wheel Stud Size
M12x1.5
Warranty Period
2-Year
Part Number
518510,SK518510
Quantity
2

Highlights

  • [Compatibility] 518510 Pair Wheel Hub Bearing Assembly fit for 2000-2011 Ford Focus.
  • [Superior Quality] Front wheel bearing hub assembly are made of high quality materials and have the same performance as the original equipment. In addition, the wheel hubs is vehicle tested to ensure proper fit and excellent performance, thus extending the user's service life.
  • [Recovery Performance] PHILTOP hub bearings enables the wheels and attached components to rotate smoothly and keeps the wheel attached to the car. Bearing assembly can provide you with a smooth and quiet driving environment, enhancing your driving experience.
  • [Installation] Front Wheel hubs excellent assembly performance, precise overall structure, easy and quick installation.
  • [Customer Service] PHILTOP Wheel hub assembly meet OE quality standards and come with a 2 year warranty. If you have any questions about our products, please contact us 24 hours a day.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2000 - 20042003 - 20042007 - 20112000 - 20042007 - 20112003 - 20042009 - 20112007 - 201120072002 - 200420002000 - 20042003 - 20042002 - 20042003 - 20042000 - 20062003 - 20042005 - 20062005 - 20062002 - 20062003 - 20042005 - 2006
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocus
TrimLXLXSSESESESELSESSTSVTSony Limited EditionZTSZTSZTWZTWZX3ZX3ZX4ZX4 STZX5ZX5ZXW
Engine2.0L L42.3L L42.0L L42.0L L42.0L L42.3L L42.0L L42.0L L42.3L L42.0L L42.0L L42.0L L42.3L L42.0L L42.3L L42.0L L42.3L L42.0L L42.3L L42.0L L42.3L L42.0L L4
Note----------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.

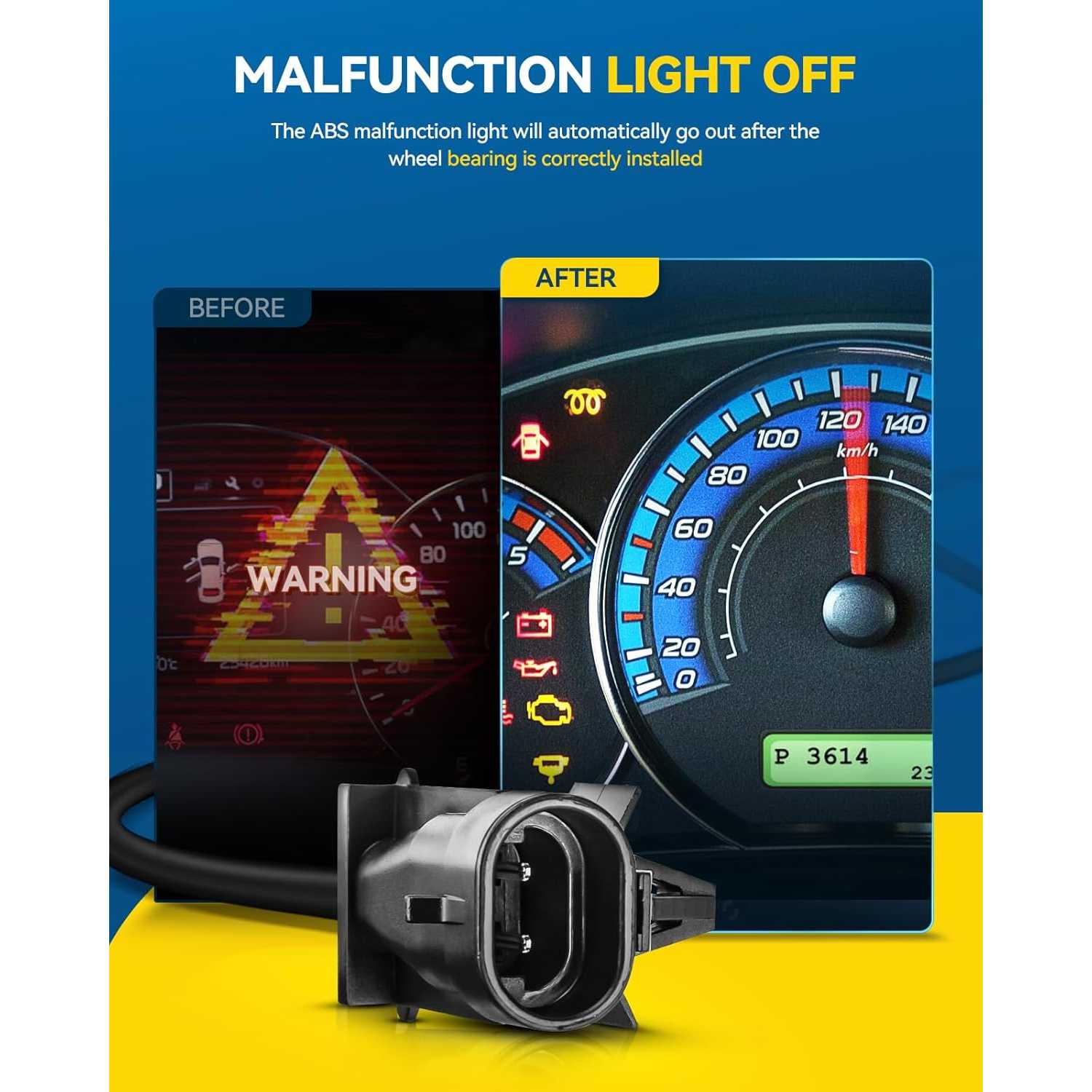

  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

4.5/5

Based on 2 reviews

550%
450%
30%
20%
10%

Nancy_FirstCar_85

04/28/2026

My old bearing was shot, making a constant humming noise. These new ones fixed it right up, and the car drives so much smoother now. Big difference.

Steve_DIYer_56

10/04/2025

The parts seem pretty good quality for the price. They fit well and work as expected. The instructions weren't the clearest, but I managed.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

A single bearing can often be replaced when only one side is worn. The condition of the bearing on the opposite side should also be checked because wear can vary by vehicle and use.

The design depends on the application. Compare the product type and images with the original part before installation; press-in bearings generally require suitable shop tools.
