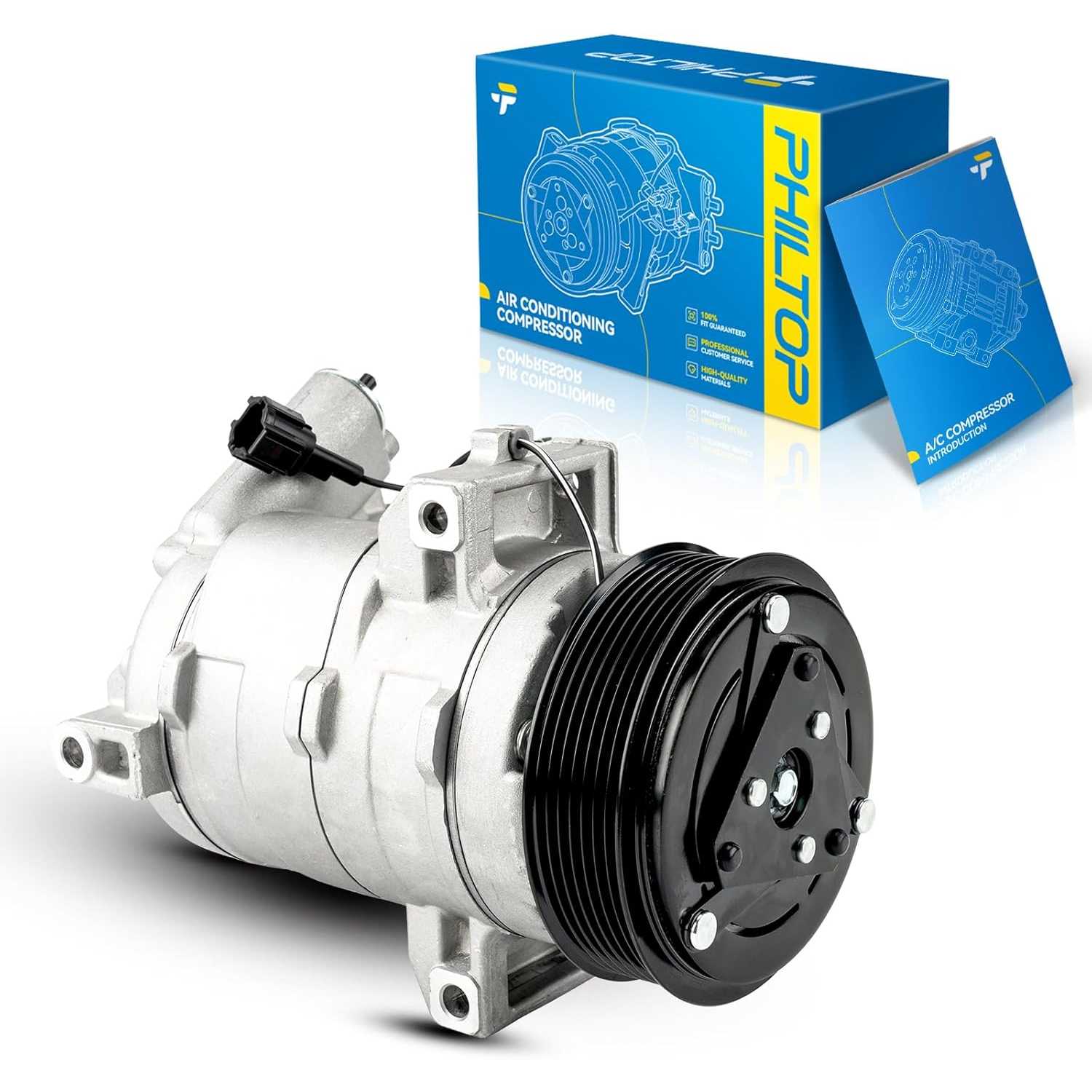

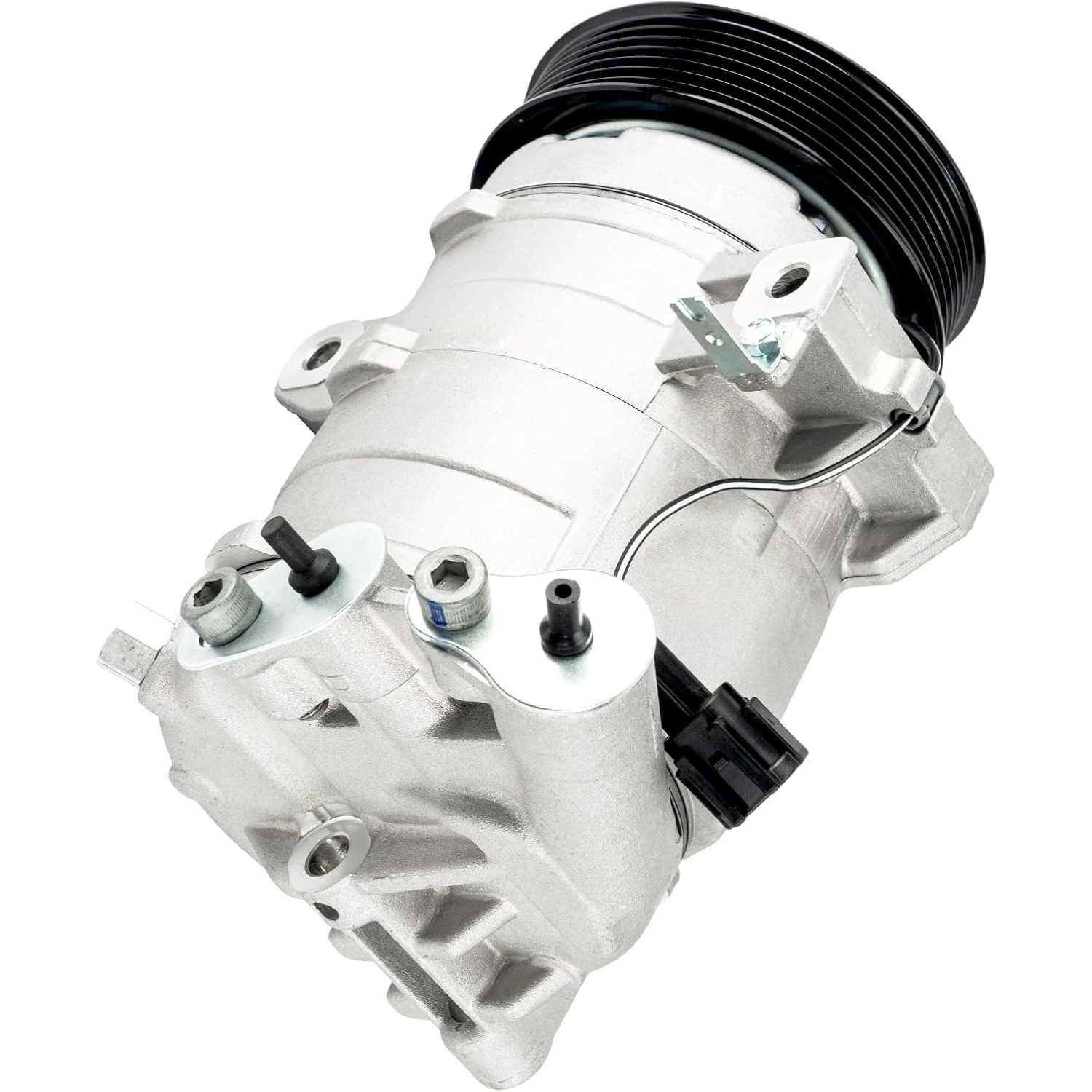

2005-2012 Nissan Pathfinder 4.0L V6 | DKS17D New A/C Compressor | OE#92600EA200/58410 - PHILTOP

2005-2012 Nissan Pathfinder 4.0L V6 | DKS17D New A/C Compressor | OE#92600EA200/58410 - PHILTOP

PAG

DKS17D

R134a

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8942ACC1451US

Specifications

Brand
PHILTOP
Oil Type
Pag 46
Compressor Type
DKS17D
Belt Type
Multi-Groove Serpentine
Refrigerant Type
R134a

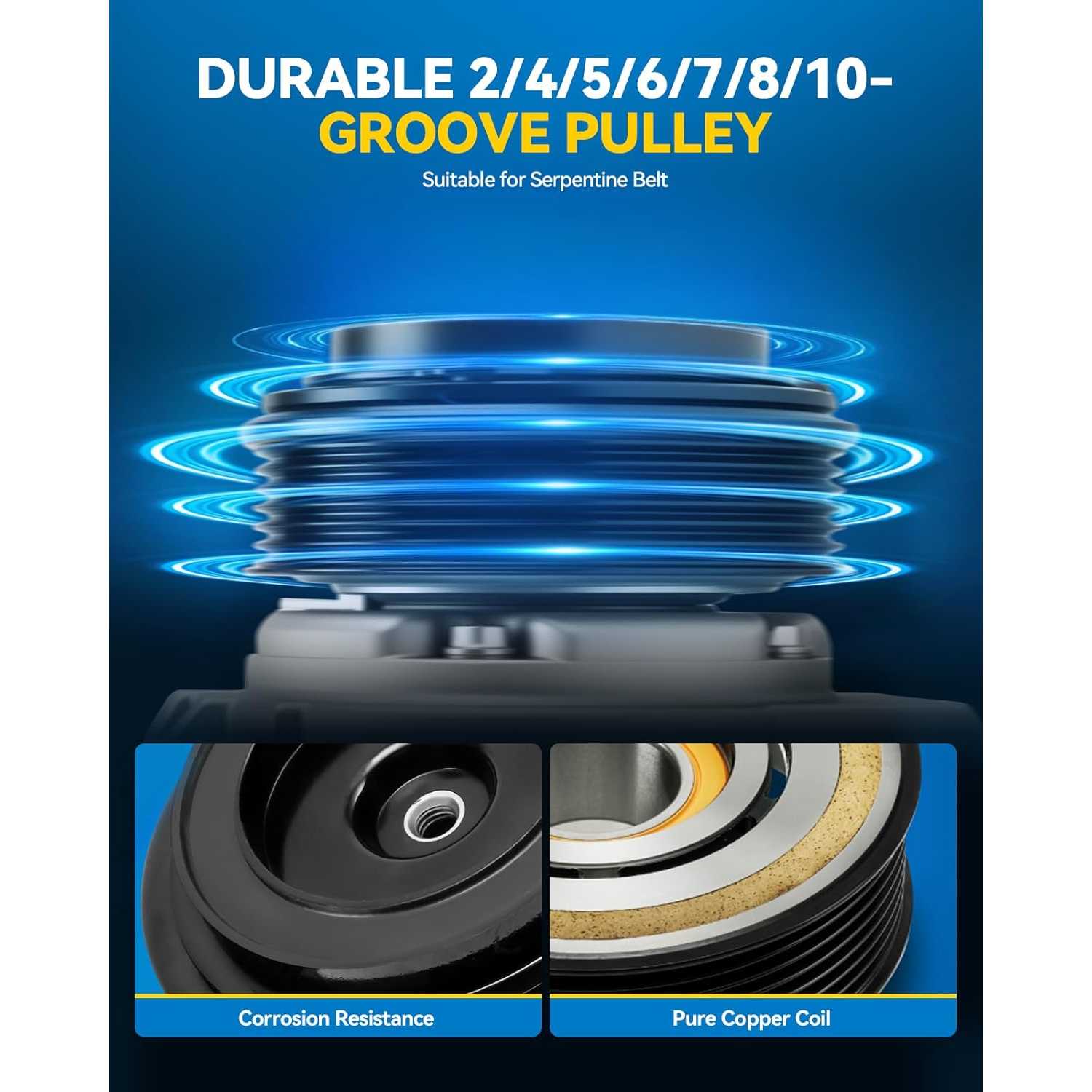

Pulley Groove Count
7
Items Included
1x A/C Compressors & Clutches - 58410,1x Manual

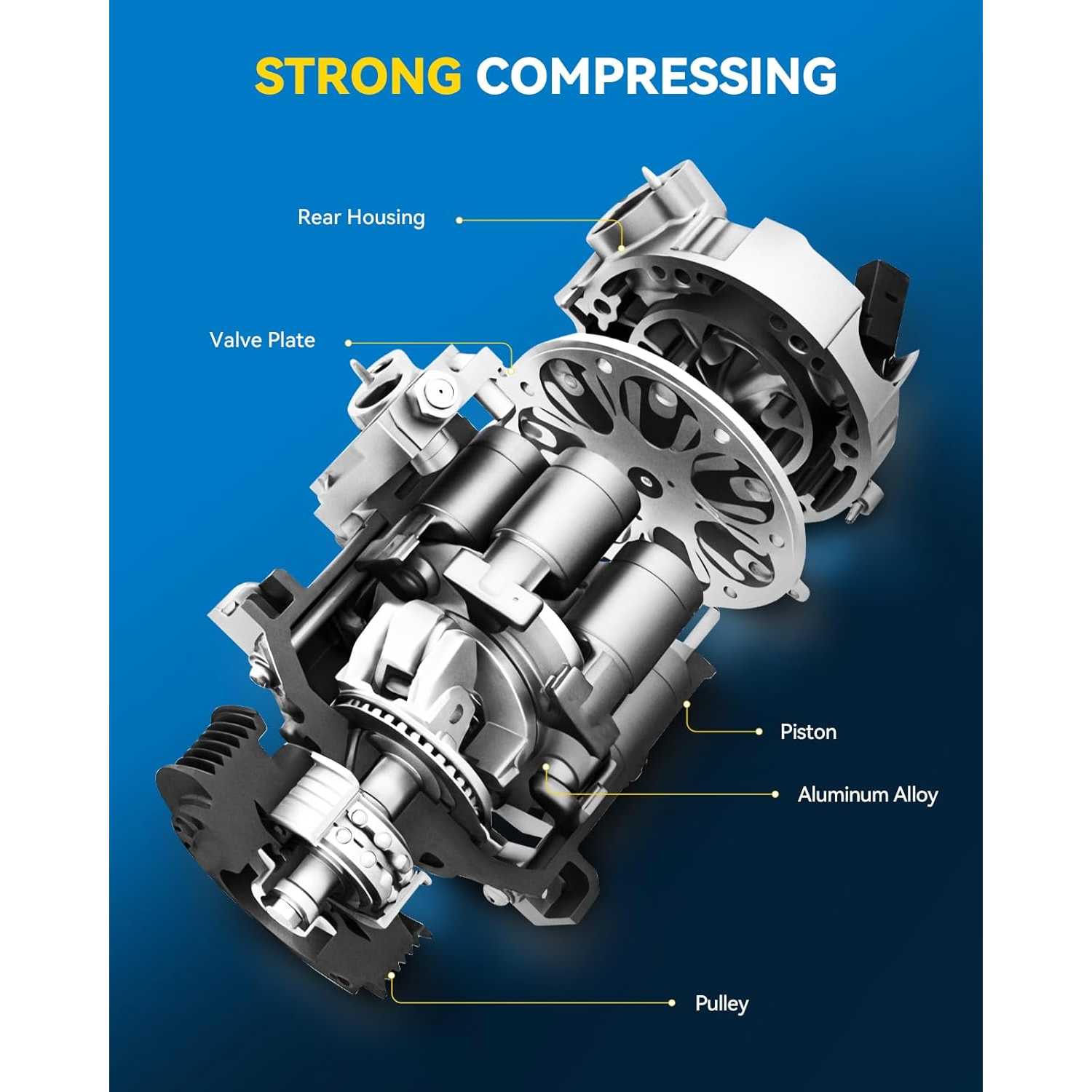

Material
Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Noise Level Range
65-75 dB
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
Tangent Mount
Clutch Diameter
4.5 in/114.30 mm
Mounting Distance
1.5 in/38.1 mm
Maximum Working Pressure
22 bar
Warranty Period
2-Year
OE Number
92600EA200,92600ZL90B,92600ZL90A,92600ZT00B,92600EA20A,92600ZT00A,92600ZP80B,92600ZP80A,92600ZL91A
Part Number
58410,0610156,638782,6512310,10000656,140268NEW,7420745,4715013,2011569,5512310,140268NC,140268C,10000644,C1860,140268,905841,2011569AM,1950X,TEM275633

Highlights

  • #3,409,187 in Automotive (See Top 100 in Automotive)
  • #13,195 in Automotive Replacement Air Conditioning Compressors
  • Ensures Fast Refrigeration And Defogging: ①Oil Type:PAG 46;②R-efrigerant Type:R134a;③Pulley Grooves: 7;④Pulley Diameter:4.50 inch ;⑤Compressor type:DKS17D;⑥Pulley type:Multi-Groove Serpentine;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.
  • Direct Replacement: AC Compressor replacement to 58410, 57410, 92600EA200, 92600EA20A, 92600ZL90A, 92600ZL90B, 92600ZL91A, 92600ZP80A, 92600ZP80B, 92600ZT00A, 92600ZT00B, CO-10865JC. The ac compressor with clutch has been examined and tested carefully before its delivery
  • Vehicle Fitment: PHILTOP Compressor direct replacement for Pathfinder 2008-2012 4.0L, Pathfinder 2005-2007, NV2500 2012-2021 4.0L, NV1500 2012-2021, NV3500 2012-2021 4.0L
  • Professional Manufacturing: The ac air compressor is manufactured in strict accordance with the original standard, stable performance, excellent workmanship, strict factory quality control testing, professional manufacturing, high performance, high reliability
  • Superior Quality: The automotive air conditioning compressor provides sufficient pressure, which increases power and reduces engine load. It is characterized by high efficiency and stability, safety and reliability. Its main body is made of high-strength aluminum material, which is durable, strong and wear-resistant. The ac compressor will not crack, break or leak

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20212012 - 20212012 - 20212015 - 20162018 - 20212012 - 20212012 - 20212012 - 20212005 - 20122006 - 20122005 - 20102005 - 20092011 - 20122011 - 20122005
MakeNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissan
ModelNV1500NV1500NV2500NV2500NV2500NV2500NV3500NV3500PathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinder
TrimSSVSSLSLSVSSVLESSESE Off-RoadSVSilver EditionXE
Engine4.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V6
Note
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

compressorcompressor

Reviews

4.9/5

Based on 8 reviews

588%
413%
30%
20%
10%

Customer

02/25/2025

Verified buyer

Just in time for approaching summer I was glad to tick off this to-do from my list and get that Pathfinder blowing cold AC again. Compressor fits beautifully, and only thing I would note is to evacuate the whole system completely before installing this one - so that old oils and acids don't contaminate and damage the new compressor.

WeBuyEverythingOnAmazon

02/25/2025

Verified buyer

Just in time for approaching summer I was glad to tick off this to-do from my list and get that Pathfinder blowing cold AC again. Compressor fits beautifully, and only thing I would note is to evacuate the whole system completely before installing this one - so that old oils and acids don't contaminate and damage the new compressor.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Some applications may specify rotating the compressor by hand before start-up or using a particular initial operating procedure. Follow the instructions supplied with the part and the vehicle service information.

Confirm that the compressor is the source of the problem and inspect the belt drive, electrical circuit, refrigerant charge, leaks, and other A/C components. Similar symptoms may have different causes.
