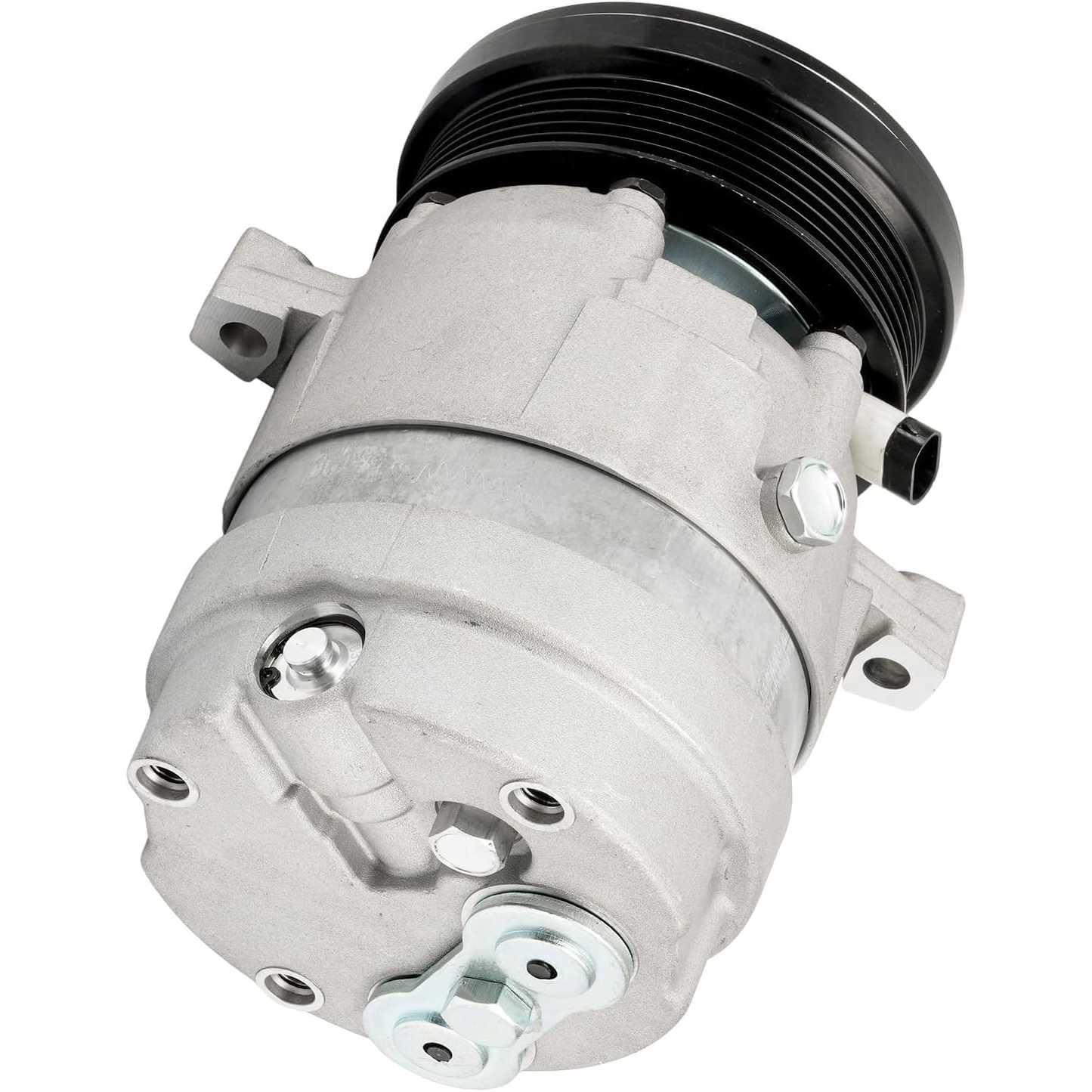

2000-2003 Chevrolet Impala 3.8L V6 | V5 New A/C Compressor | OE#1135283/58987 - PHILTOP

2000-2003 Chevrolet Impala 3.8L V6 | V5 New A/C Compressor | OE#1135283/58987 - PHILTOP

PAG

V5

R134a

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6130ACC130TUS

Specifications

Brand
PHILTOP
Oil Type
Pag 150
Compressor Type
V5
Belt Type
Multi-Groove Serpentine
Refrigerant Type
R134a

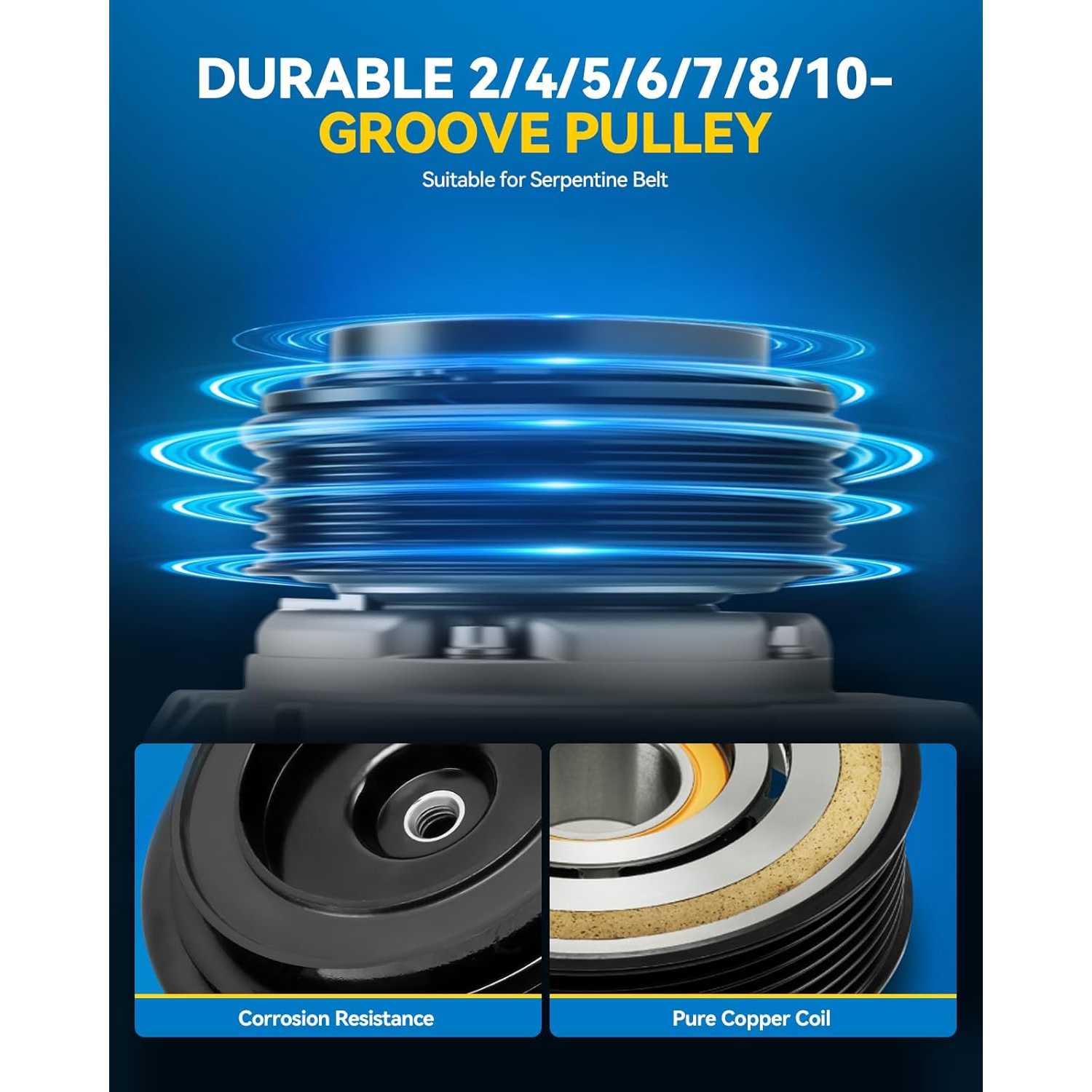

Pulley Groove Count
6
Items Included
1x A/C Compressors & Clutches - 58987,1x Manual
Material

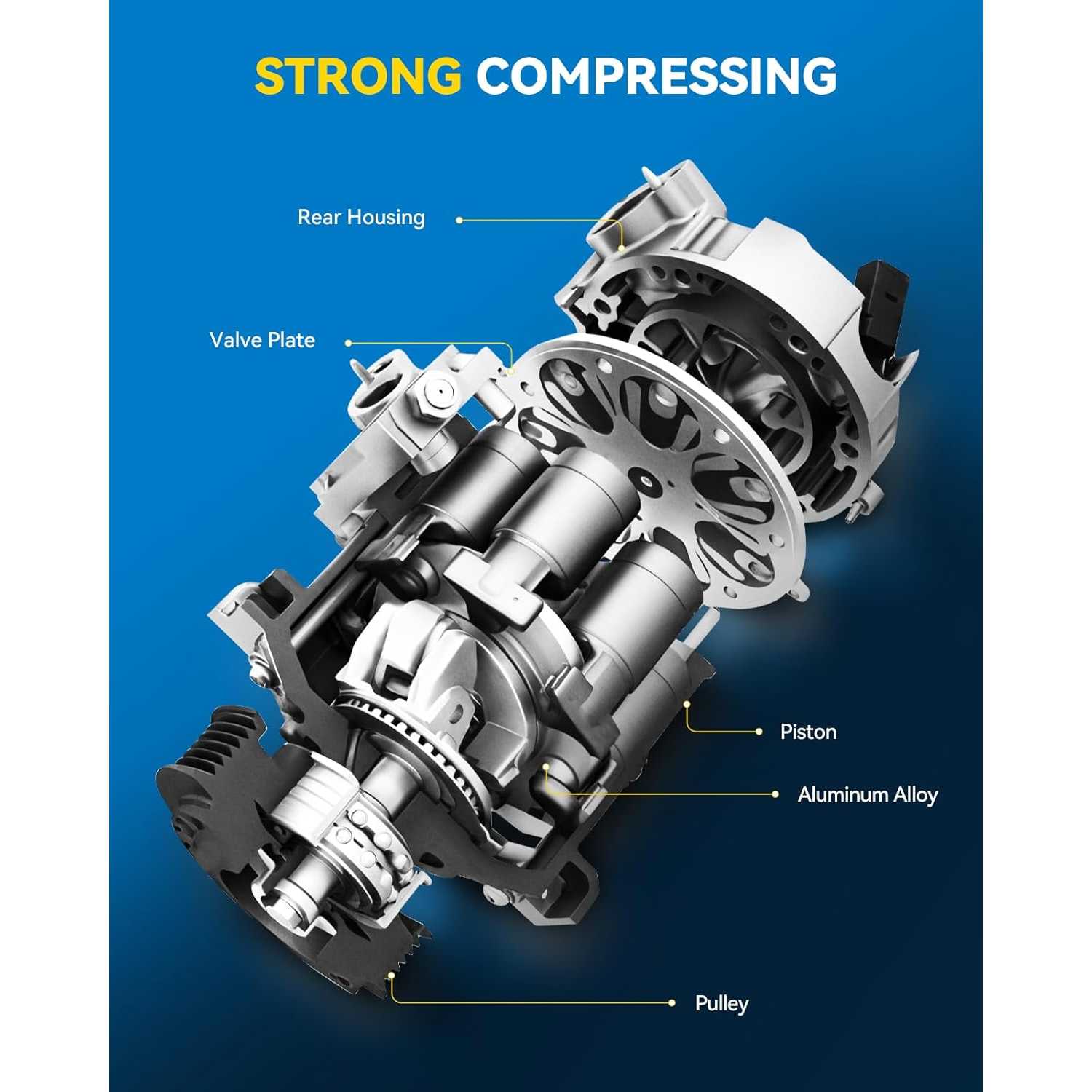

Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Noise Level Range
65-75 dB
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
Ear Mount
Clutch Diameter
4.7 in/119.38 mm
Mounting Distance
1.15 in/29.21 mm
Maximum Working Pressure
20 bar
Warranty Period
2-Year
OE Number
1135283,19253623,1135410,10306017,89018897,1135238,1135281,1135433
Part Number
58987,6511398,620452,1420452NEW,10000438,0658987,CS0061,4719143,2010690AM,1520143,2010690V,TEM274075,2010690R,1890N,000660,1520452,2643,1520345,C261,2426N,2010690,204748,1520450,1420452,2643N,1AMAC00042,ACP010042,271550,20143X,909870,5511398,121662

Highlights

  • #4,249,277 in Automotive (See Top 100 in Automotive)
  • #16,830 in Automotive Replacement Air Conditioning Compressors

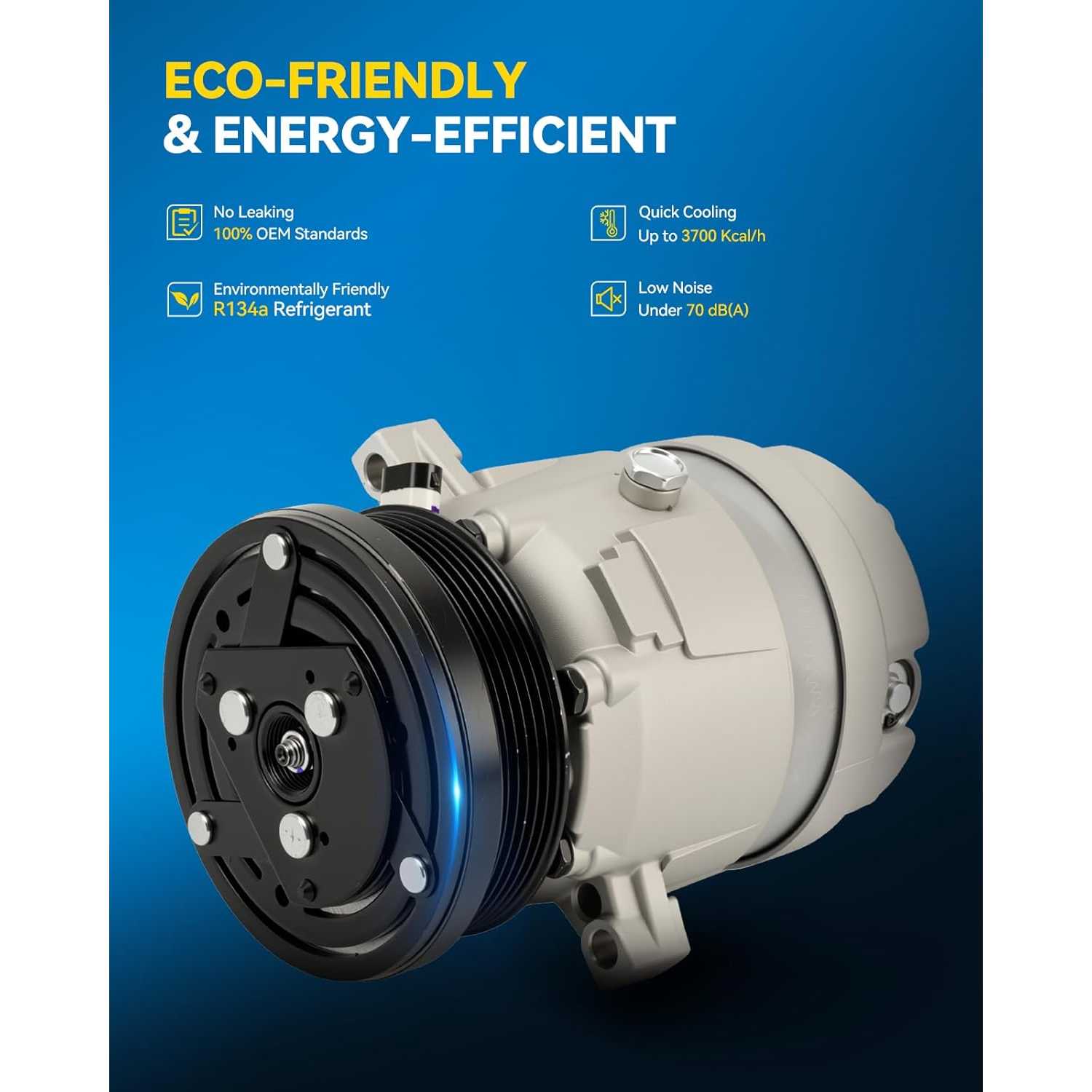

  • Ensures Fast Refrigeration And Defogging: ①Oil Type:PAG 150;②R-efrigerant Type:R134a;③Pulley Grooves: 6;④Pulley Diameter:4.70 inch ;⑤Compressor type:V5;⑥Pulley type:Multi-Groove Serpentine;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.
  • GUARANTEED COMPATIBILITY - AC Compressor replacement to 58987, CO 20452C, 1520143, 1521207, 1521662A, 1020452, 1220452, 6511398, 620452, 4719143, 57987, 58987. The ac compressor with clutch has been examined and tested carefully before its delivery
  • PERFECT FIT - A perfect fit for Regal 1997-2004, Impala 2000-2003 3.8L, Grand Prix 1997-2003 3.8L, Monte Carlo 1998-2003 3.8L, Regal 1996 3.8L, Intrigue 1998, Lumina 1998-1999 3.8L, Intrigue 1999 3.8L
  • ENSURES FAST DEFOGGING AND DEFROSTING - Our air conditioning compressor is crucial for winter visibility. It drives the system to dehumidify the incoming air, quickly clearing frost and condensation from the windshield and windows, ensuring safer driving in cold and wet conditions
  • FULLY TESTED & EASY INSTALLATION - The ac compressor with clutch has been examined and tested carefully before its delivery. Air conditioning compressor is pre-filled with oil upon delivery, therefore, there is no need to add oil during initial use. Excessive oil addition may damage the ac compressor

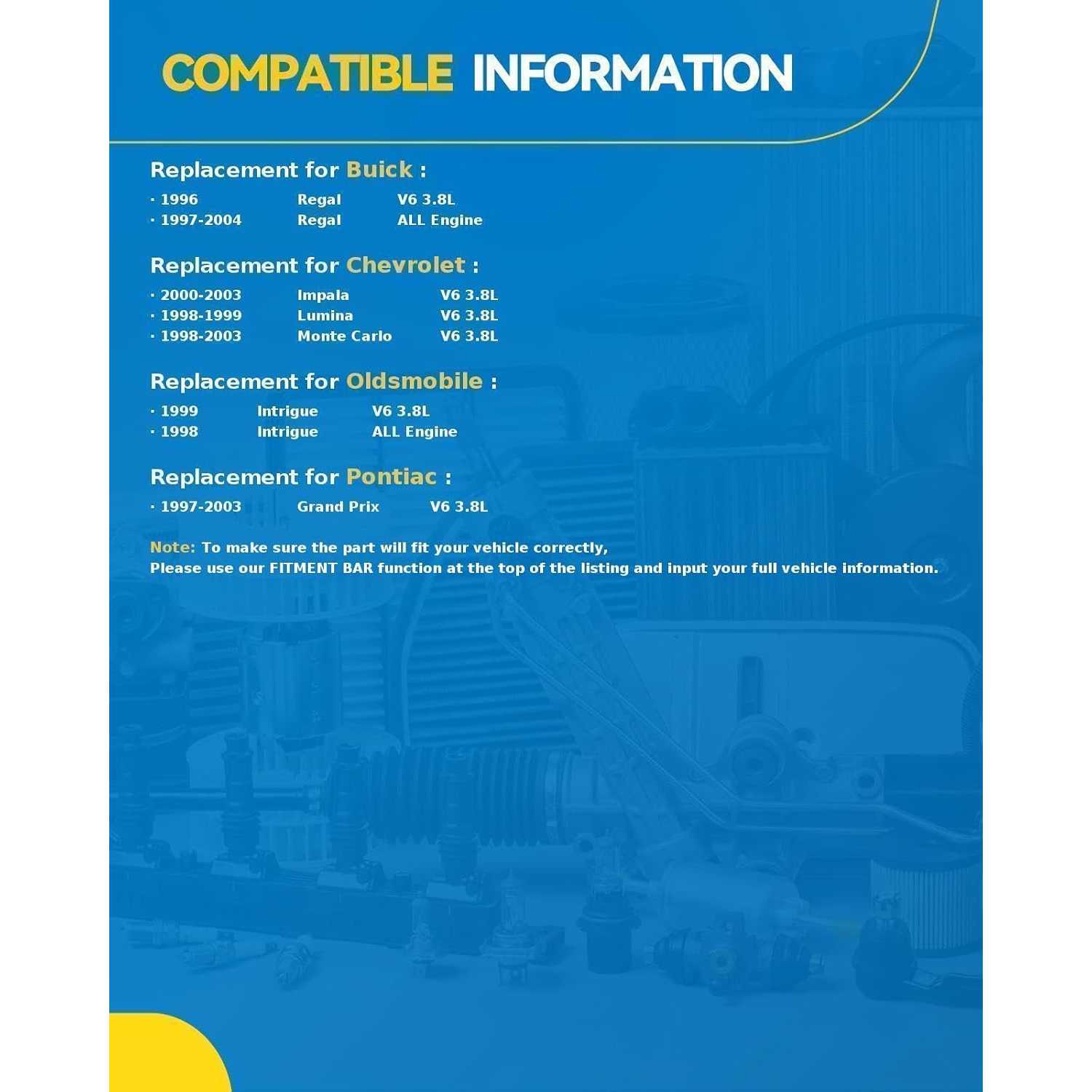

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year199819961997 - 2004200019961997 - 20042000199619962000 - 20032000 - 20032003200319991998 - 19991998 - 1999199919992000 - 200320022002200320031998 - 199919981998 - 1999199819991997 - 20031997 - 20031997 - 2002
MakeBuickBuickBuickBuickBuickBuickBuickBuickBuickChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletOldsmobileOldsmobileOldsmobileOldsmobilePontiacPontiacPontiac
ModelRegalRegalRegalRegalRegalRegalRegalRegalRegalImpalaImpalaImpalaImpalaLuminaLuminaLuminaMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloIntrigueIntrigueIntrigueIntrigueGrand PrixGrand PrixGrand Prix
Trim25th Anniversary EditionCustomGSGSEGran SportLSLSELimitedOlympic Gold EditionBaseLSLS SportPoliceBaseLSLTZIndianapolis 500 Pace CarLSSSSS 35th Anniversary EditionSS Dale Earnhardt Signature EditionSS High SportSS Pace CarZ34BaseGLGLSGXGTGTPSE
Engine3.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V6
Note
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor
w/ V5 Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

compressorcompressor

Reviews

4.6/5

Based on 7 reviews

571%
414%
314%
20%
10%

WeBuyEverythingOnAmazon

02/25/2025

Verified buyer

When cars were cars - and still had big six-cylinders in them, they also had these massive compressors. And this replacement is just a perfect fit - also massive and heavy, and does a great job of cooling. Refrigerant is on the new stuff so no problems there - all sealed up well.

Customer

02/25/2025

Verified buyer

When cars were cars - and still had big six-cylinders in them, they also had these massive compressors. And this replacement is just a perfect fit - also massive and heavy, and does a great job of cooling. Refrigerant is on the new stuff so no problems there - all sealed up well.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Replacement may be recommended after certain compressor failures or when the system has been open. Requirements vary by vehicle and the cause of failure.

The system normally needs to be properly evacuated and leak-tested before charging. A/C service equipment and refrigerant handling should follow local requirements.
