2013-2020 Ford Fusion 2.0L L4 | 5x108 to 5x114mm 73.1mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

2013-2020 Ford Fusion 2.0L L4 | 5x108 to 5x114mm 73.1mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
35ISWSA070007US

Specifications

Brand
PHILTOP
Bolt Pattern
5x108mm To 5x4.5"
Wheel Bolt Pattern
5x4.5"
Vehicle Bolt Pattern
5x108mm
Thread Size
M12x1.5
Center Bore
73.1
Hub-Centric Lip
No
Thickness
1.25inch
Note1
Only for 5x108mm Models with 5x114.3mm Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 5x114.3mm Wheel.
Outside Diameter
150
Inside Diameter
2.88 in/73.1 mm
Lug Patterns
5
Type
Wheel Adapter
Items Included

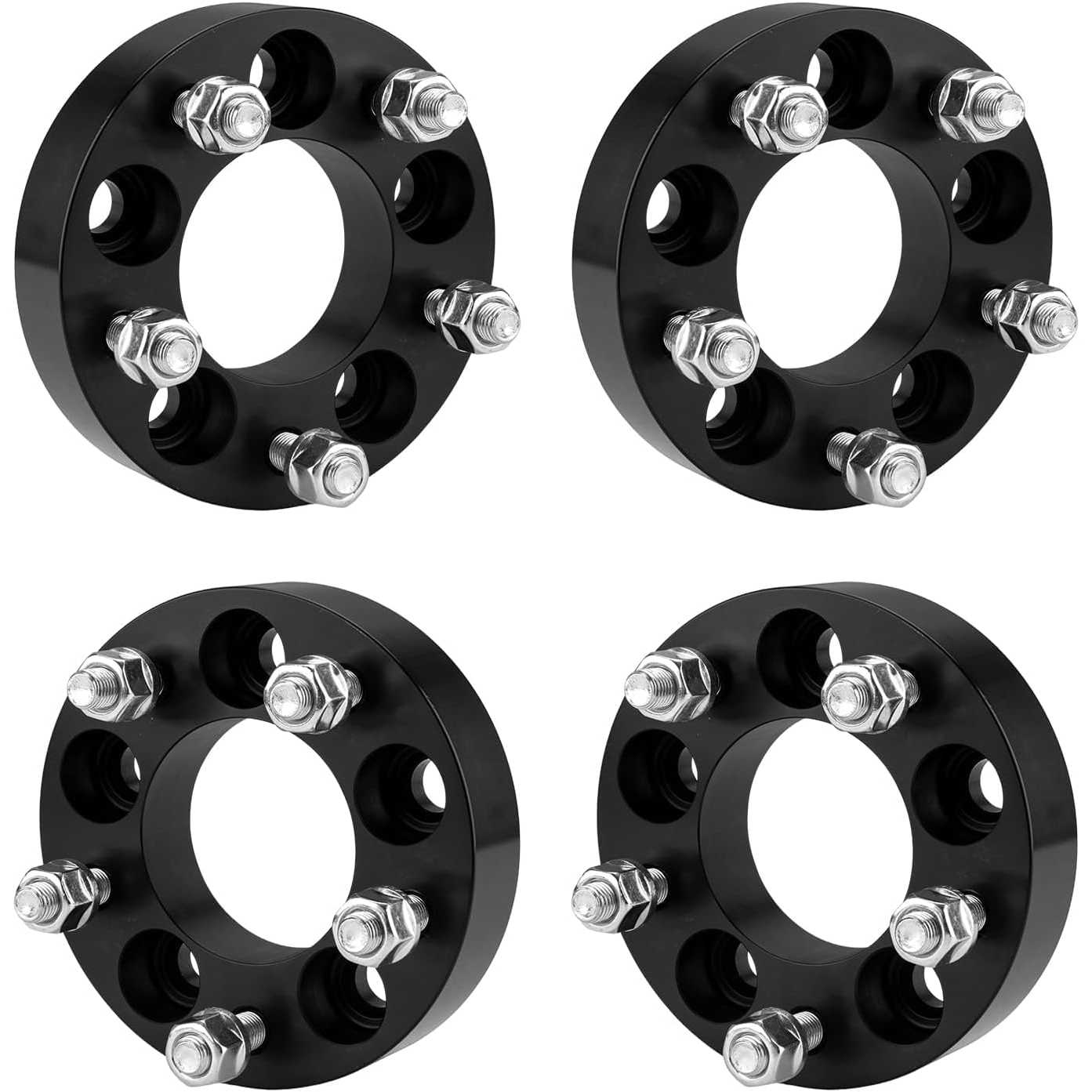

4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Adapters Specification] --- Vehicle Bolt Pattern: 5x108mm ; | Wheel Bolt Pattern: 5x114.3mm(5x4.5") ; | Thickness: 1.25 inch ; | Thread Pitch: M12x1.5 ; | Hub Bore: 73.1mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 5x108mm to 5x114.3mm Wheel Adapters set replacement for 2012-2018 Focus 2.0L 1999cc Naturally Aspirated 122cid DOHC FLEX/GAS L4; 1996-2007 Taurus 3.0L 2986cc Naturally Aspirated 182cid OHV GAS V6; 2015-2020 Fusion 2.0L FWD 1999cc Naturally Aspirated 122cid DOHC FULL HYBRID EV-GAS (FHEV)/PLUG-IN HYBRID EV-GAS (PHEV) L4; 2010-2013 Transit Connect 2.0L 1999cc Naturally Aspirated 122cid DOHC GAS L4;

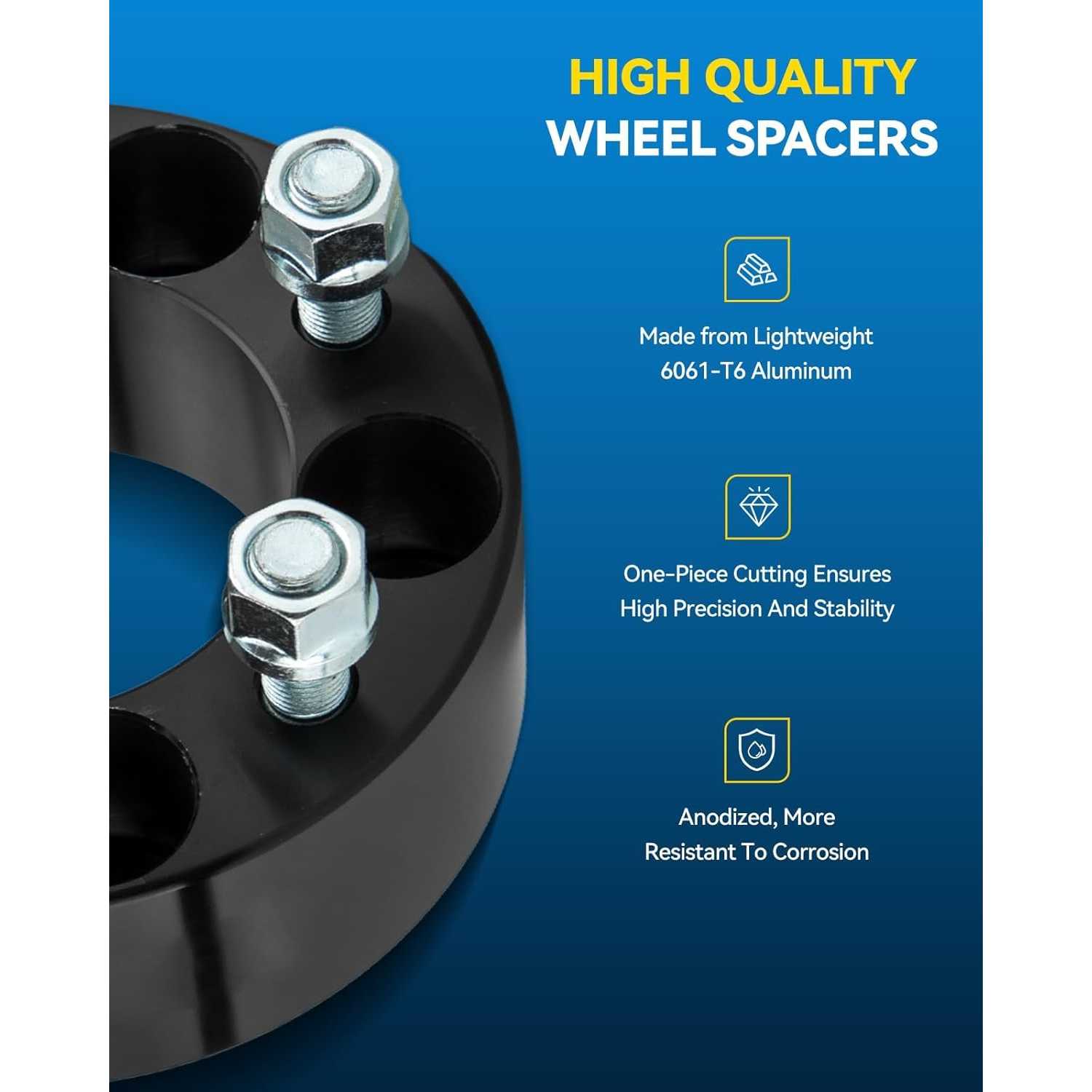

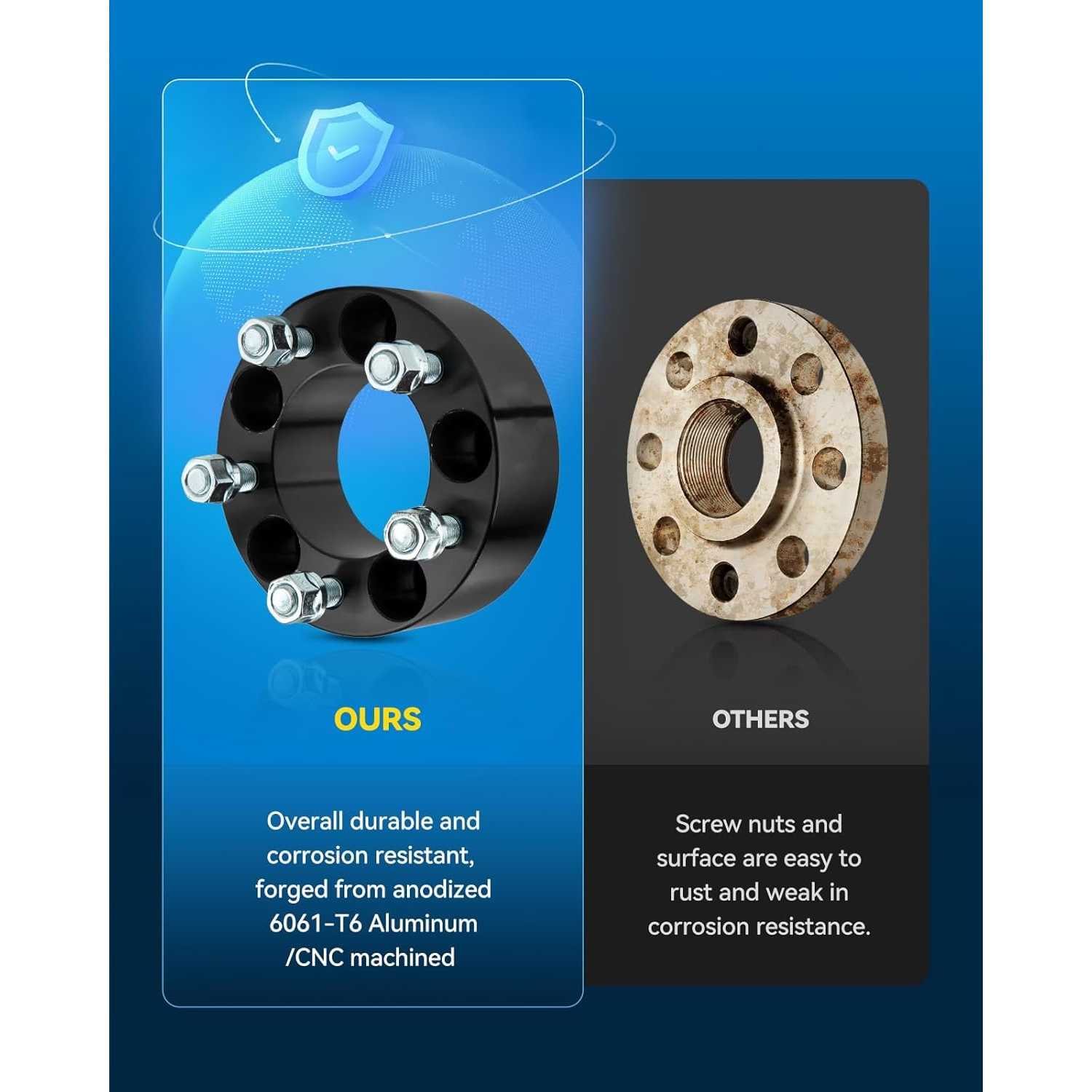

  • [High Quality] --- 5x108mm to 5x114.3mm Wheel Adapter is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving

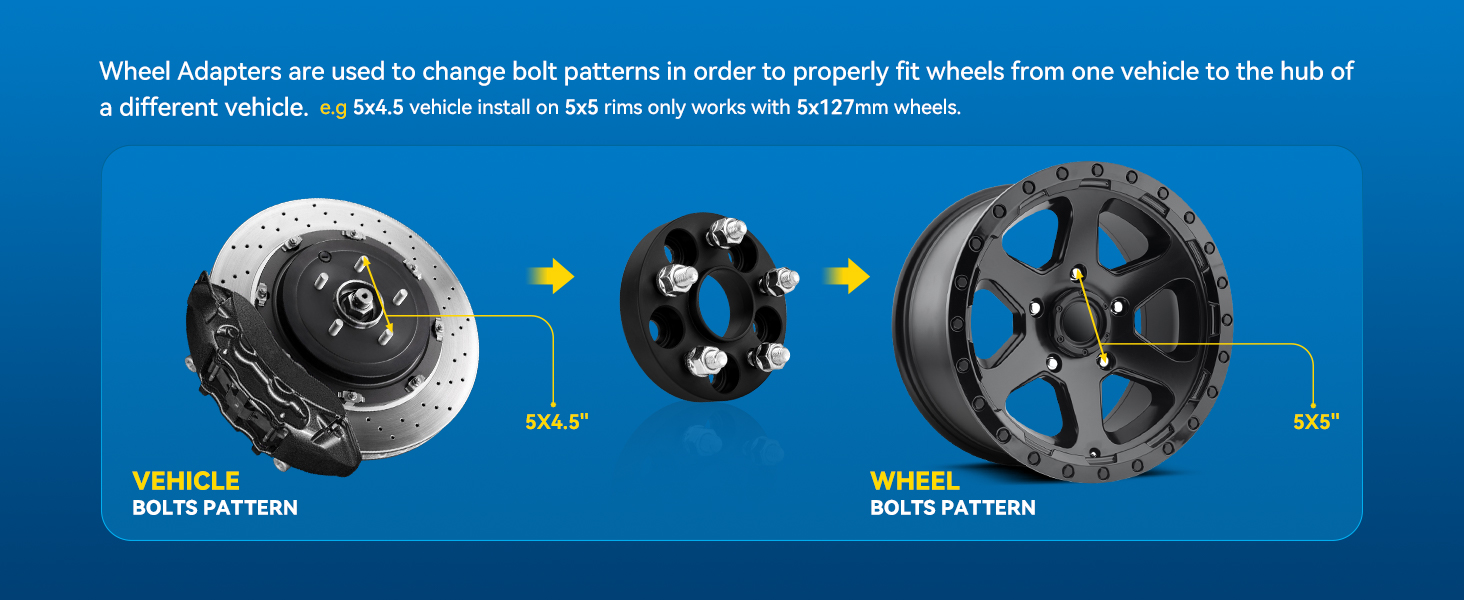

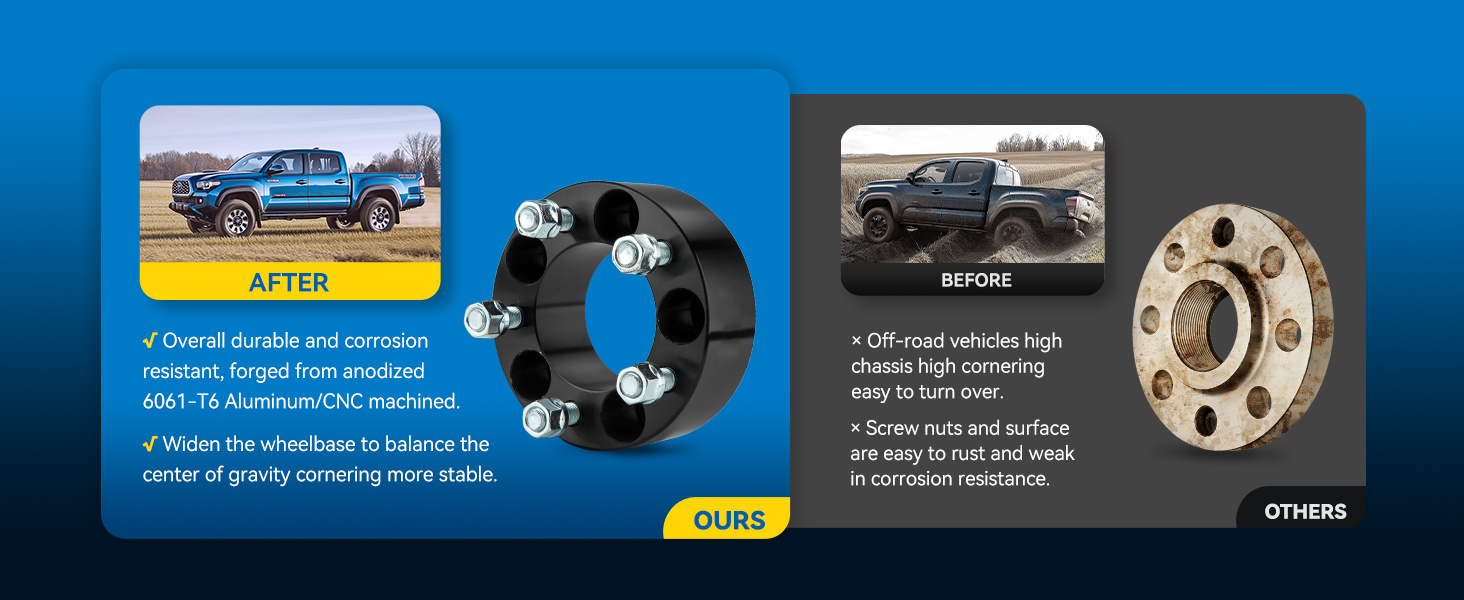

  • [Aggressive Driving Experience] --- These 5x108mm to 5x114.3mm wheel adapters change bolt pattern,it help you to fit the wheel of one factory vehicle to the hub of a different vehicle. The Wheel Adapters can move your wheels further out from the wheel hub, mount larger wheel or tires. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability,giving an aggressive performance to your vehicle
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

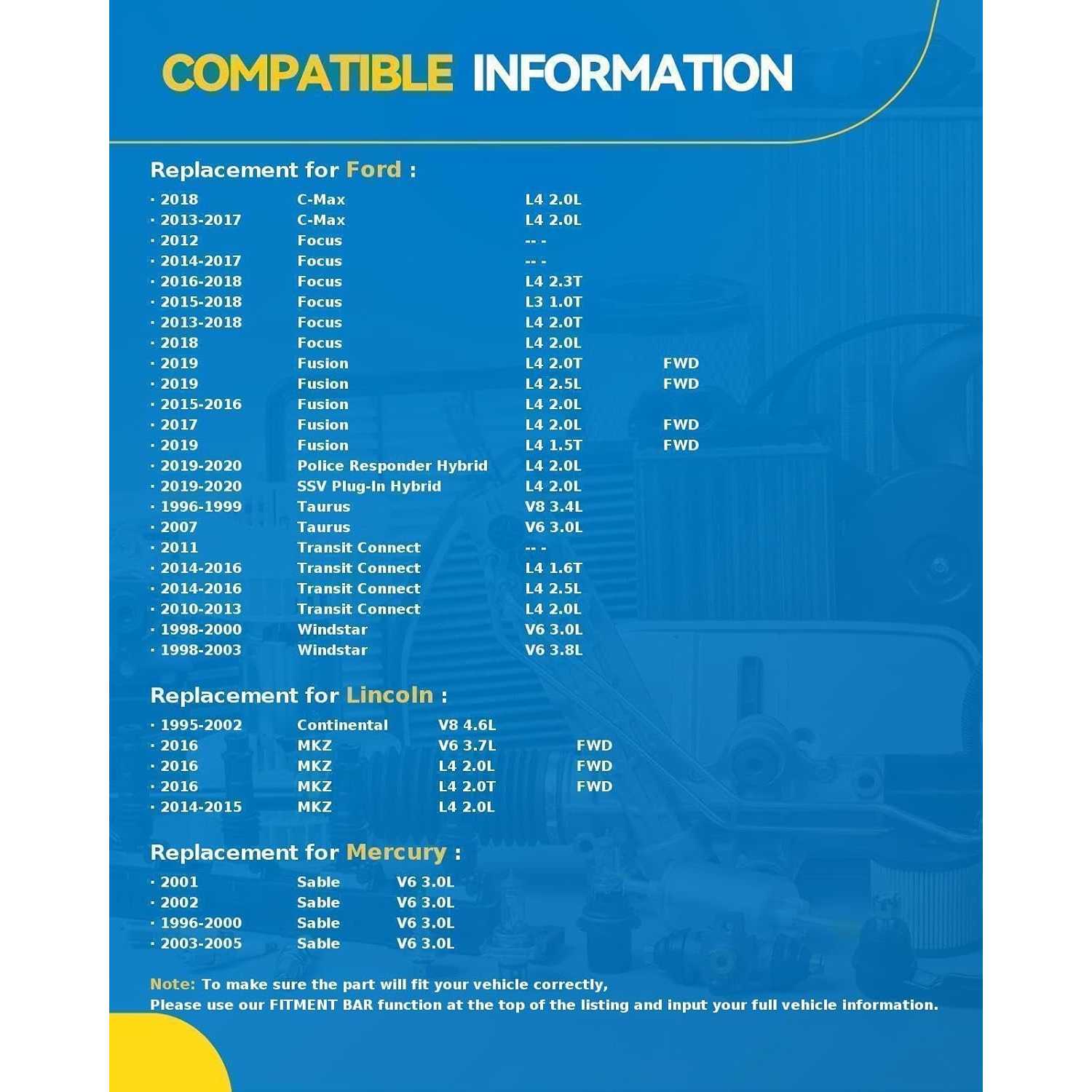

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1990 - 19921990 - 199220172013 - 201620172013 - 20182013 - 20162017 - 20182020 - 20222013 - 20192020 - 20222017 - 20192013 - 20162013 - 20192015 - 20162021 - 20222020 - 202220202020 - 20222018 - 2019201320132018 - 20222021 - 20222020 - 202220172014 - 20162013 - 20222020 - 20222020 - 20222013 - 20182016 - 20182013 - 20182015 - 20182013 - 20182017 - 20182013 - 20182013 - 20182017 - 20182013 - 20182013 - 20202017 - 20182017 - 20182013 - 20202014 - 20182014 - 20202013 - 20142013 - 20202013 - 20202013 - 20202019 - 2020201920192019 - 20202017 - 20192013 - 20202013 - 20201996 - 19971986 - 19911986 - 19971988 - 19951986 - 19901986 - 199219911986 - 20041988 - 19952008 - 20121986 - 198819951998 - 20072009 - 201219951998200020032000 - 20072008 - 20122000 - 20041989 - 19951993 - 19951996 - 19992010 - 2012200020051989 - 19922002 - 20051991 - 199220031989 - 19971994 - 19971991 - 1993200220041989 - 19952011 - 201220142014 - 20182014 - 20162010 - 20132014 - 20182014 - 20162010 - 20132014 - 20182011 - 201320012001200120012001200120182018 - 20212014 - 20202017202020202021201720162015 - 20212018 - 20212014 - 20172017 - 20202014 - 20152000 - 20082000 - 20022003 - 20042006 - 20082003 - 20082005200520062002 - 20052002 - 2008200520062006200520192017 - 2019201720192018 - 201920182017 - 20192017 - 20182017 - 20192017 - 201820202017 - 20192017 - 201820202018 - 201920192013 - 20142013 - 201420192013 - 20142017 - 2018201720102011 - 2012202020092018 - 201920152018201220152017 - 20202016 - 20182010 - 201120092017 - 20202016 - 20182017 - 20182016 - 20182016 - 2020201520182019 - 20202018 - 202020092010 - 20152010 - 20152013 - 20152013 - 20152010 - 20122010 - 20112013 - 20192012 - 20132010 - 20192010 - 201320132016 - 20192010 - 20192010 - 20132019201920092014 - 20172014 - 20172007 - 20092010 - 201520142007 - 20092010 - 20152008 - 20092012 - 201520142020 - 20222021 - 20222021 - 20222020 - 20222020 - 202220042006 - 20072004 - 20052008 - 20092008 - 200919901988198819901990 - 199119901992199219922008 - 20132008 - 20132006 - 20132006 - 20102005 - 200920112010 - 201120052006 - 20102005 - 200920112010 - 20112005
MakeDodgeDodgeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarLincolnLincolnLincolnLincolnLincolnMercuryMercuryMercuryMercuryMercuryVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvo
ModelMonacoMonacoC-MaxC-MaxC-MaxC-MaxC-MaxC-MaxEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeFocusFocusFocusFocusFocusFocusFocusFocusFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectWindstarWindstarWindstarWindstarWindstarWindstarF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeS-TypeS-TypeS-TypeS-TypeS-TypeS-TypeS-TypeS-TypeX-TypeX-TypeX-TypeX-TypeX-TypeX-TypeXEXEXEXEXEXEXEXEXEXEXEXEXEXEXEXEXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFRXFR-SXJXJXJXJXJXJXJXJXJXJXJXJXJXJRXJRXJRXKXKXKXKRXKRXKRXKR-SXKR-SCorsairCorsairCorsairCorsairCorsairMontereyMontereyMontereySableSable760760760760780780940940960C30C30C70S40S40S40S40S40V50V50V50V50V50
TrimESLEEnergi SEEnergi SELEnergi TitaniumHybrid SEHybrid SELHybrid TitaniumSSSESESESESESE HybridSE Plug-In HybridSE Sport HybridSELSELSELSELSELSEL HybridSEL Plug-In HybridTitaniumTitaniumTitaniumTitanium HybridTitanium Plug-In HybridElectricRSSSESESELSTTitaniumEnergi PlatinumEnergi SEEnergi TitaniumPlatinumPlatinum HybridSS HybridSESESESESE HybridSELSELSELSEL HybridSportTitaniumTitanium HybridGGLGLGLLLLLXLXLimitedMT5SESESESESE ComfortSE ComfortSE ComfortSELSELSESSHOSHOSHOSHOSVG50th Anniversary EditionBaseBaseBaseJames Bond EditionLXLXLXNeiman MarcusPacific Coast RoadsterSuper CoupeElectricTitaniumTitaniumXLXLXLXLTXLTXLTXLT PremiumBaseLXLimitedSESE SportSEL400 SportBaseBaseBritish Design EditionCheckered FlagCheckered FlagFirst EditionPremiumProject 7RR-DynamicSSVRV8 SBaseBaseBaseBaseRSportSportVDP EditionBaseBasePremiumSportVDP EditionVanden Plas300 SportBaseFirst EditionLandmark EditionPortfolioPortfolioPremiumPremiumPrestigePrestigeR-Dynamic SR-SportR-SportSSSV Project 83.0L3.0L AWD300 SportBaseBaseBaseBaseBaseCheckered FlagLuxuryPortfolioPortfolioPortfolioPortfolioPremiumPremiumPremiumPremiumPremium LuxuryPrestigePrestigeR-SportR-SportSSportSportbrake First EditionSportbrake PrestigeSportbrake SSuperchargedSuperchargedBaseBaseBaseBaseLL PortfolioL PortfolioL SuperchargedL SupersportL UltimateR-SportSuperchargedSupersportXJ50XJ50BaseBaseLBaseBaseTouringBaseBasePortfolioBaseGTBaseBaseGrand TouringReserveReserveBaseLuxuryPremierBasePremierBaseGLEGLEGLEBaseBaseGLTBaseT5T5 R-DesignT52.4iT5T5T5 R-Designi2.4iT5T5T5 R-Designi
Engine3.0L V63.0L V62.0L L42.0L L42.0L L42.0L L42.0L L42.0L L41.5L L32.5L L41.5L L31.5L L41.6L L42.0L L42.5L L42.5L L42.5L L42.5L L41.5L L31.5L L41.6L L42.0L L42.0L L42.5L L42.5L L41.5L L41.6L L42.0L L42.5L L42.5L L4-2.3L L42.0L L41.0L L32.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.5L L42.0L L41.5L L41.6L L42.0L L42.5L L42.0L L41.5L L42.0L L42.5L L42.0L L42.7L V62.0L L42.0L L43.0L V62.5L L43.0L V63.8L V62.5L L43.0L V63.8L V63.0L V63.8L V63.5L V62.5L L43.0L V63.0L V63.5L V63.8L V63.0L V63.0L V63.0L V63.0L V63.5L V63.0L V63.0L V63.2L V63.4L V83.5L V63.0L V63.9L V83.8L V63.9L V85.0L V83.9L V83.8L V64.6L V85.0L V83.9L V83.9L V83.8L V6-1.6L L42.5L L41.6L L42.0L L42.5L L41.6L L42.0L L42.5L L42.0L L43.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.0L V62.0L L43.0L V63.0L V62.0L L43.0L V62.0L L43.0L V65.0L V85.0L V83.0L V63.0L V65.0L V85.0L V83.0L V64.0L V84.2L V84.2L V84.2L V83.0L V64.2L V84.2L V82.5L V63.0L V63.0L V63.0L V63.0L V63.0L V62.0L L42.0L L43.0L V62.0L L42.0L L43.0L V62.0L L43.0L V62.0L L43.0L V62.0L L42.0L L43.0L V62.0L L43.0L V65.0L V83.0L V63.0L V62.0L L42.0L L42.0L L43.0L V64.2L V85.0L V82.0L L44.2L V82.0L L43.0L V63.0L V65.0L V82.0L L42.0L L43.0L V65.0L V84.2L V82.0L L43.0L V62.0L L43.0L V63.0L V63.0L V63.0L V62.0L L43.0L V64.2L V85.0L V85.0L V85.0L V83.0L V65.0L V85.0L V83.0L V65.0L V85.0L V85.0L V85.0L V83.0L V65.0L V85.0L V83.0L V65.0L V84.2L V85.0L V85.0L V84.2L V85.0L V85.0L V84.2L V85.0L V84.2L V85.0L V85.0L V82.0L L42.3L L42.5L L42.0L L42.3L L44.2L V64.2L V64.2L V63.5L V63.5L V62.3L L42.3L L42.8L V62.8L V62.3L L42.8L V62.3L L42.3L L42.9L L62.5L L52.5L L52.5L L52.4L L52.5L L52.5L L52.5L L52.4L L52.4L L52.5L L52.5L L52.5L L52.4L L5
Note--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

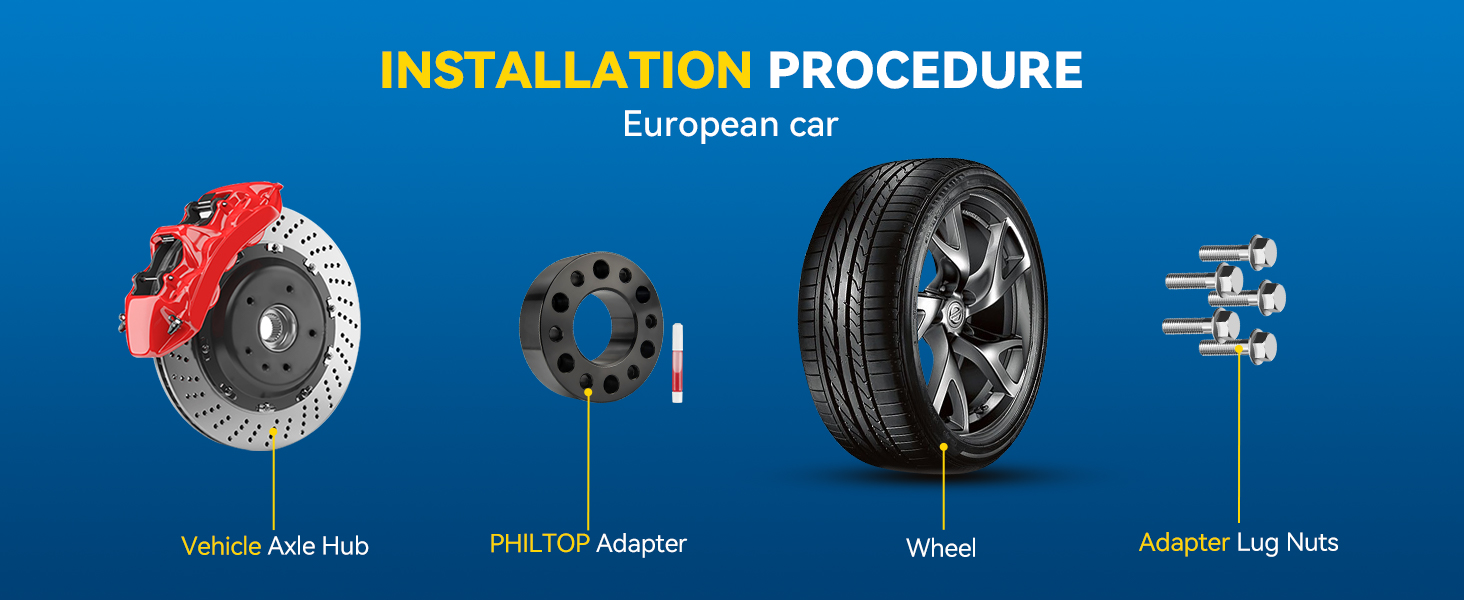

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 7 reviews

5100%
40%
30%
20%
10%

Thao Tran

09/07/2025

Verified buyer

These 1.25”spacers were simple to install and have added an aggressive stance to my 1992 Monaco. No issues so far

Suzy q

09/07/2025

Verified buyer

Heavy duty easy to install perfect fit. Just what I needed

FAQS

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.
