2001-2005 Mercedes-Benz C240 2.6L | 5x112mm 66.6mm Center Bore M12x1.5 Thread Wheel Hub Accessory 4-Pack - PHILTOP

2001-2005 Mercedes-Benz C240 2.6L | 5x112mm 66.6mm Center Bore M12x1.5 Thread Wheel Hub Accessory 4-Pack - PHILTOP

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
61ISWSA4207US

Specifications

Brand
PHILTOP
Bolt Pattern
5x112mm
Wheel Bolt Pattern
5x112mm
Vehicle Bolt Pattern
5x112mm
Thread Size
M12x1.5
Center Bore
66.6
Hub-Centric Lip
Yes
Thickness
15mm+20mm
Outside Diameter
148
Inside Diameter
2.62 in/66.6 mm
Lug Patterns
5
Type
Wheel Spacer
Items Included
4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Spacers Specification] --- Bolt Pattern: 5x112mm ; | Thickness: 15mm +20mm ; | Thread Pitch: M12x1.5 ; | Hub Bore: 66.6mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts

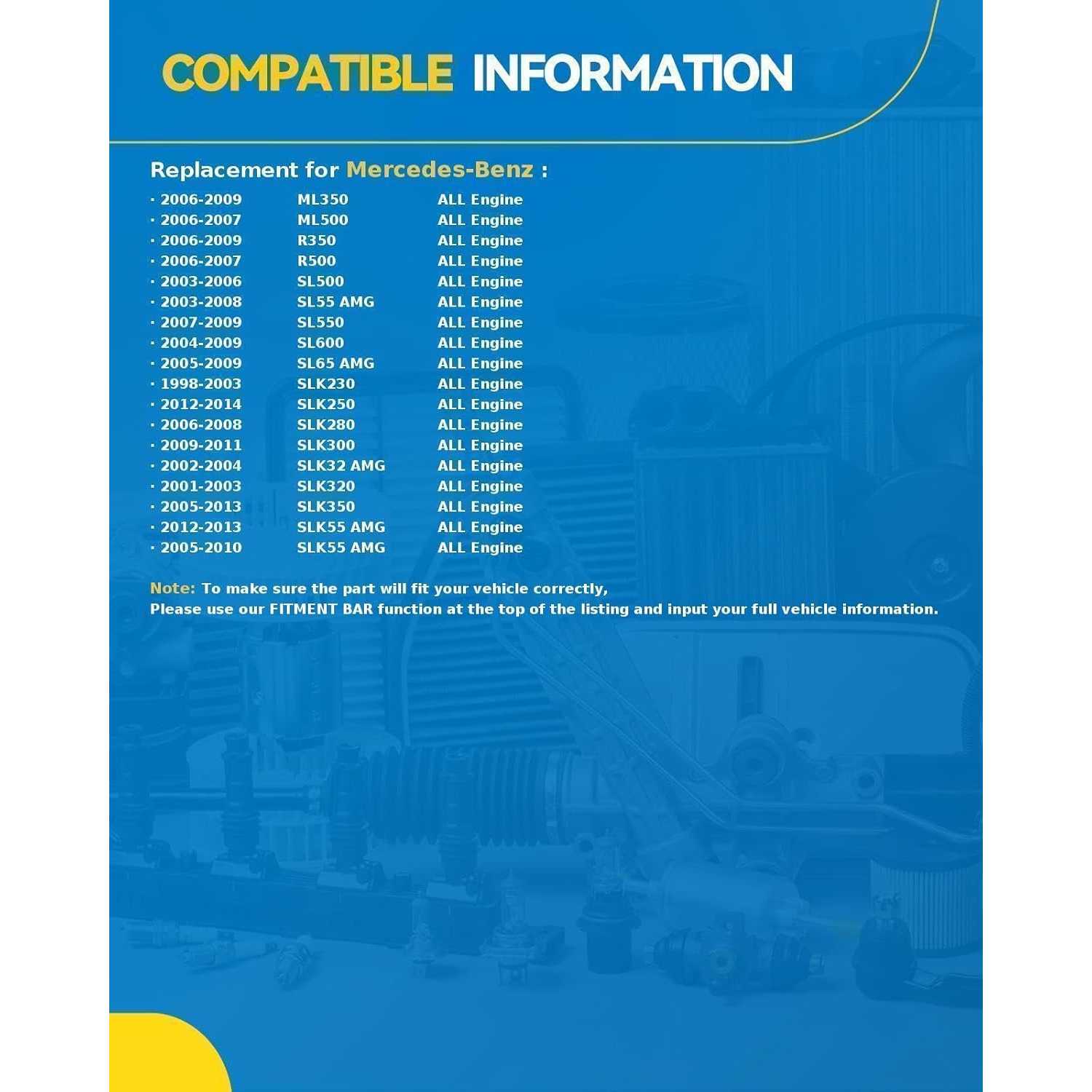

  • [Vehicle Application] --- The 5x112 Wheel Spacer set replacement for 2006-2009 ML350; R350; ML500; 2003-2009 SL500; SL600; 1997-2003 SLK230; 2005-2013 SLK350; SLK55 AMG; 2001-2003 SLK320; 2006-2008 SLK280; R500; 2012-2014 SLK250; 2003-2008 SL55 AMG; 2009-2011 SLK300; 2002-2004 SLK32 AMG; 2005-2009 SL65 AMG

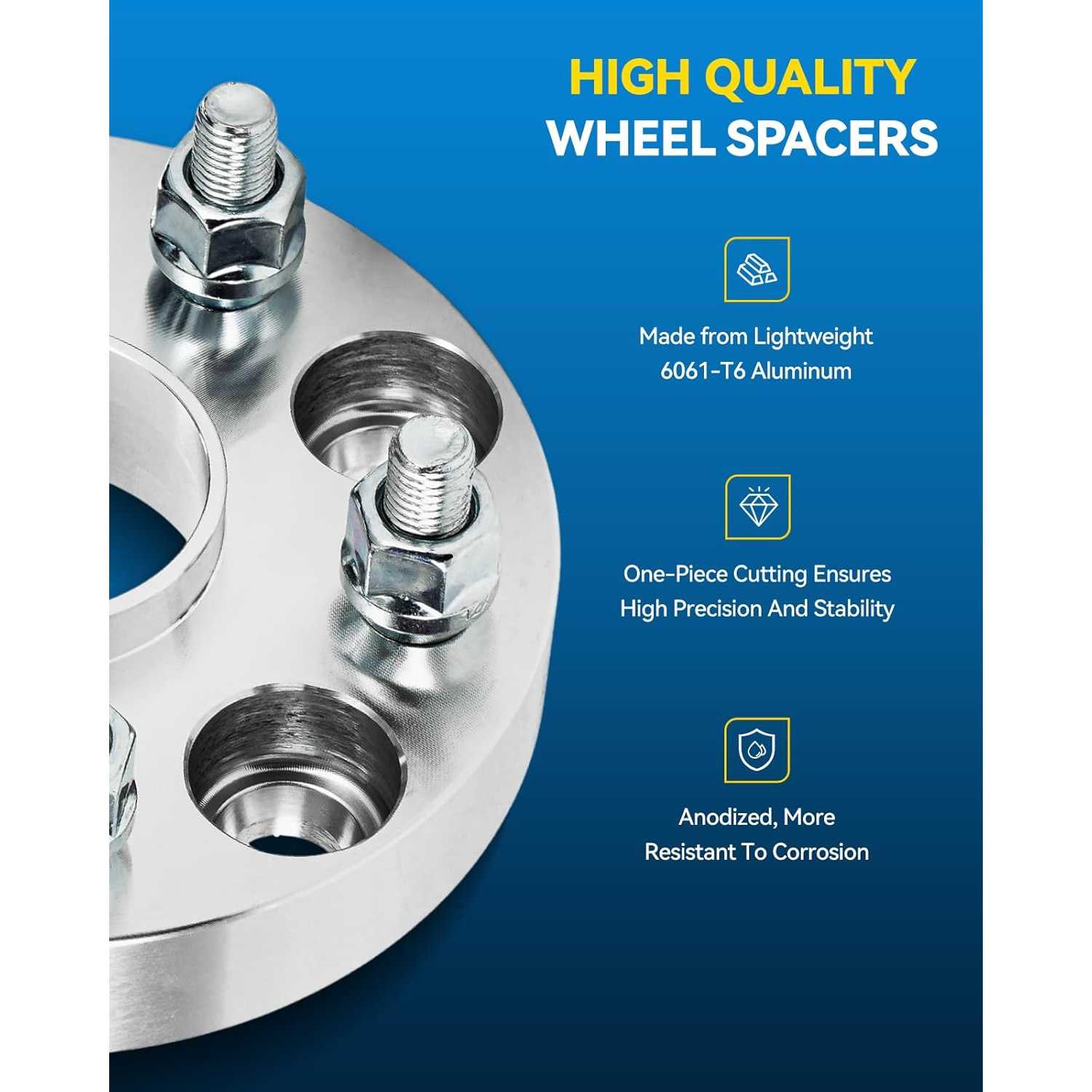

  • [High Quality] ---5x112 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 5x112 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1986 - 19881991 - 19931986 - 19871987 - 19931992 - 19931992 - 19931994 - 19961997 - 19982003 - 20051999 - 200020022006 - 20072003 - 20052001 - 20052002 - 20042003 - 20052001 - 20052006 - 20072006 - 20072006 - 20071995 - 19971998 - 20002005 - 20061998 - 20022003 - 20052006 - 20091999 - 200220032003 - 20062005 - 2006200720071998 - 20031994 - 19951996 - 19971998 - 20031994 - 199519972000 - 20021998 - 200219941999 - 20021994 - 19971994 - 20011994 - 20011998 - 20042006 - 200820092002 - 20042001 - 20042005 - 20092010 - 20112005 - 2009
MakeMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-Benz
Model190E190E190E190E400E500EC220C230C230C230C230C230C240C240C32 AMGC320C320C350C350C350C36 AMGC43 AMGC55 AMGCLK320CLK320CLK350CLK430CLK430CLK500CLK55 AMGCLK550CLK63 AMGE320E320E320E320E420E420E430E430E500E55 AMGSL320SL500SL600SLK230SLK280SLK300SLK32 AMGSLK320SLK350SLK350SLK55 AMG
Trim2.32.32.3-162.6BaseBaseBaseBaseKompressorKompressorKompressorSport4MaticBaseBase4MaticBase4MaticLuxurySportBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase4MaticBaseBaseBaseBaseBase4MaticBaseBaseBaseBaseBaseBaseKompressorBaseBaseBaseBaseBaseBaseBase
Engine2.3L L42.3L L42.3L L42.6L L64.2L V85.0L V82.2L L42.3L L41.8L L42.3L L42.3L L42.5L V62.6L V62.6L V63.2L V63.2L V63.2L V63.5L V63.5L V63.5L V63.6L L64.3L V85.5L V83.2L V63.2L V63.5L V64.3L V84.3L V85.0L V85.5L V85.5L V86.3L V83.2L V63.2L L63.2L L63.2L V64.2L V84.2L V84.3L V84.3L V85.0L V85.5L V83.2L L65.0L V86.0L V122.3L L43.0L V63.0L V63.2L V63.2L V63.5L V63.5L V65.5L V8
Note--------
Rear
-
Rear
Rear
Rear
Rear
Rear
Rear
Rear
AWD;Rear
AWD;Rear
AWD;Rear
--
Rear
-
Rear
Rear
-
Rear
Rear
Rear
----
Rear
---
Rear
Rear
-
Rear
---
Rear
Rear
Rear
Rear
Rear
Rear
-
Rear

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 5 reviews

5100%
40%
30%
20%
10%

Don G.

03/19/2026

Verified buyer

They work. I was able to put them on my 2008 trailblazer and fit 265/70 R17 without cutting anything.

Customer

11/15/2024

Verified buyer

The addition of flanges made the wheel bulge out and look fuller

FAQS

Changing wheel position can reduce clearance to the fender or increase exposure at the wheel opening. Check clearance through the full steering and suspension range before regular driving.

Spacers alone do not always change alignment settings, but an alignment check may be useful if handling changes, uneven tire wear appears, or other suspension work is performed.

Warranty coverage and duration may vary by product. For specific warranty period details by product category, please refer to our Warranty & Returns Policy page. Damage related to incorrect fitment, installation or other vehicle problems may require further review.
