2015-2022 Subaru Outback 2.5L H4/3.6L H6/2.4L H4 | 5x4.5" 56.1mm Center Bore M12x1.25 Thread Wheel Hub Accessory - PHILTOP

2015-2022 Subaru Outback 2.5L H4/3.6L H6/2.4L H4 | 5x4.5" 56.1mm Center Bore M12x1.25 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
12ISWSA4217US

Specifications

Brand
PHILTOP
Bolt Pattern
5x4.5"
Wheel Bolt Pattern
5x4.5"
Vehicle Bolt Pattern
5x4.5"
Thread Size
M12x1.25
Center Bore
56.1
Hub-Centric Lip
Yes
Thickness
15mm
Outside Diameter
150
Inside Diameter
2.21 in/56.1 mm
Lug Patterns
5
Type
Wheel Spacer
Items Included

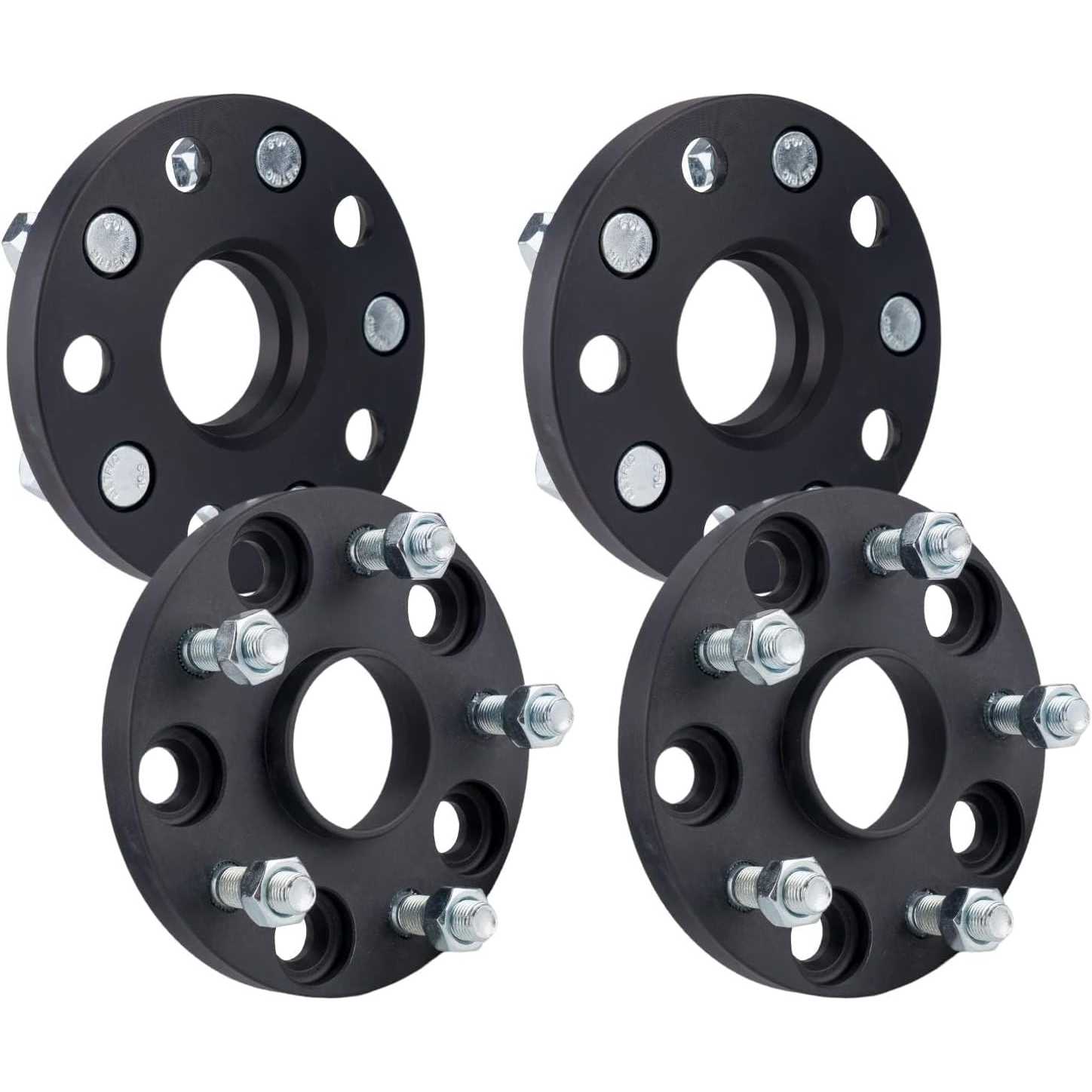

4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Spacers Specification] --- Bolt Pattern: 5x4.5"(5x114.3mm) ; | Thickness: 15mm ; | Thread Pitch: M12x1.25 ; | Hub Bore: 56.1mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 5x4.5 Wheel Spacer set replacement for 2015-2021 Outback 2.5L Naturally Aspirated DOHC H4; Legacy 2.5L Naturally Aspirated DOHC H4; 2019-2021 Ascent 2.4L Turbocharged DOHC H4; 2019 Forester 2.5L Naturally Aspirated DOHC H4; WRX STI 2.5L Turbocharged DOHC H4; 2015-2019 Outback 3.6L Naturally Aspirated DOHC H6; WRX 2.0L Turbocharged DOHC H4; Legacy 3.6L Naturally Aspirated DOHC H6; 2020-2021 Outback 2.4L Turbocharged DOHC H4; Legacy 2.4L Turbocharged DOHC H

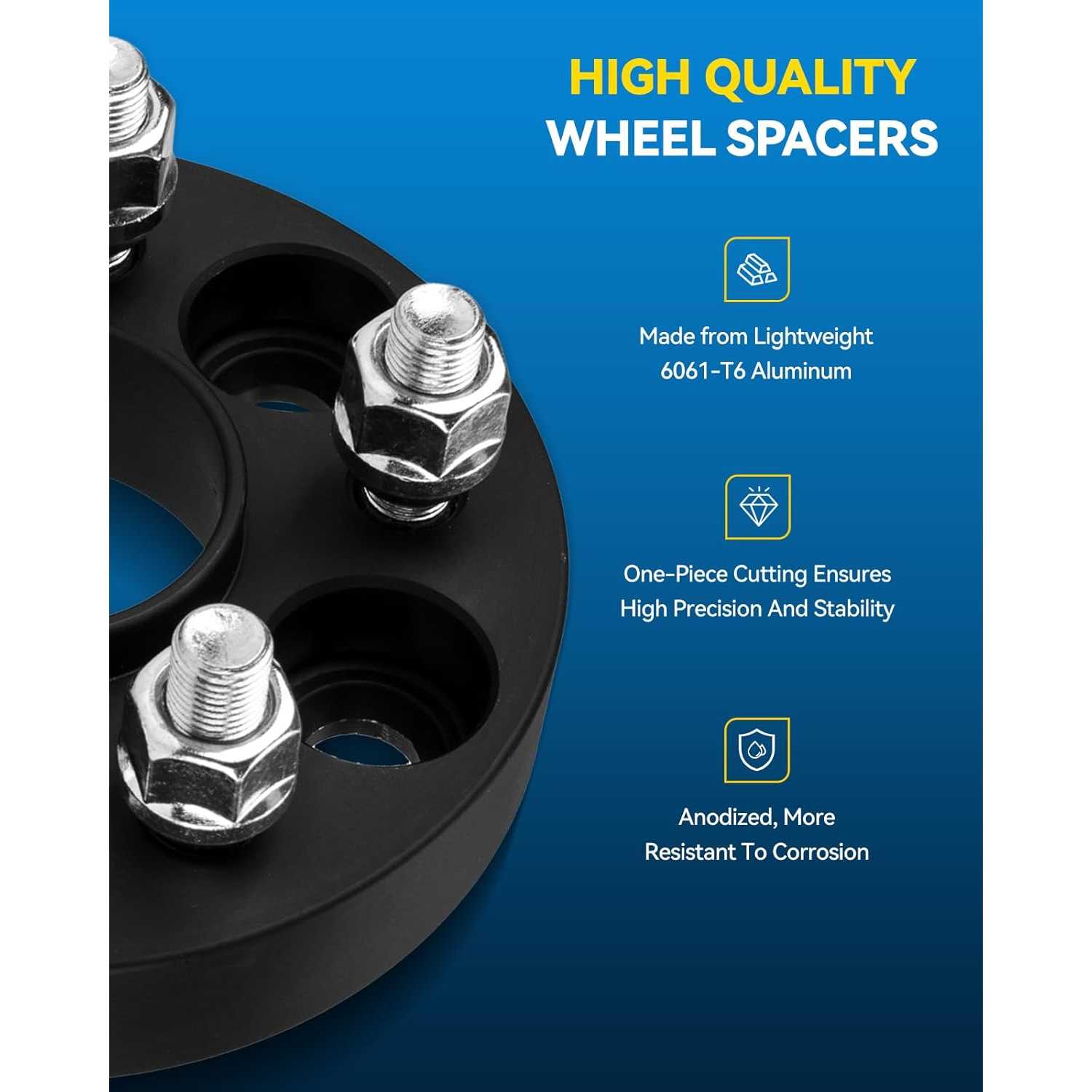

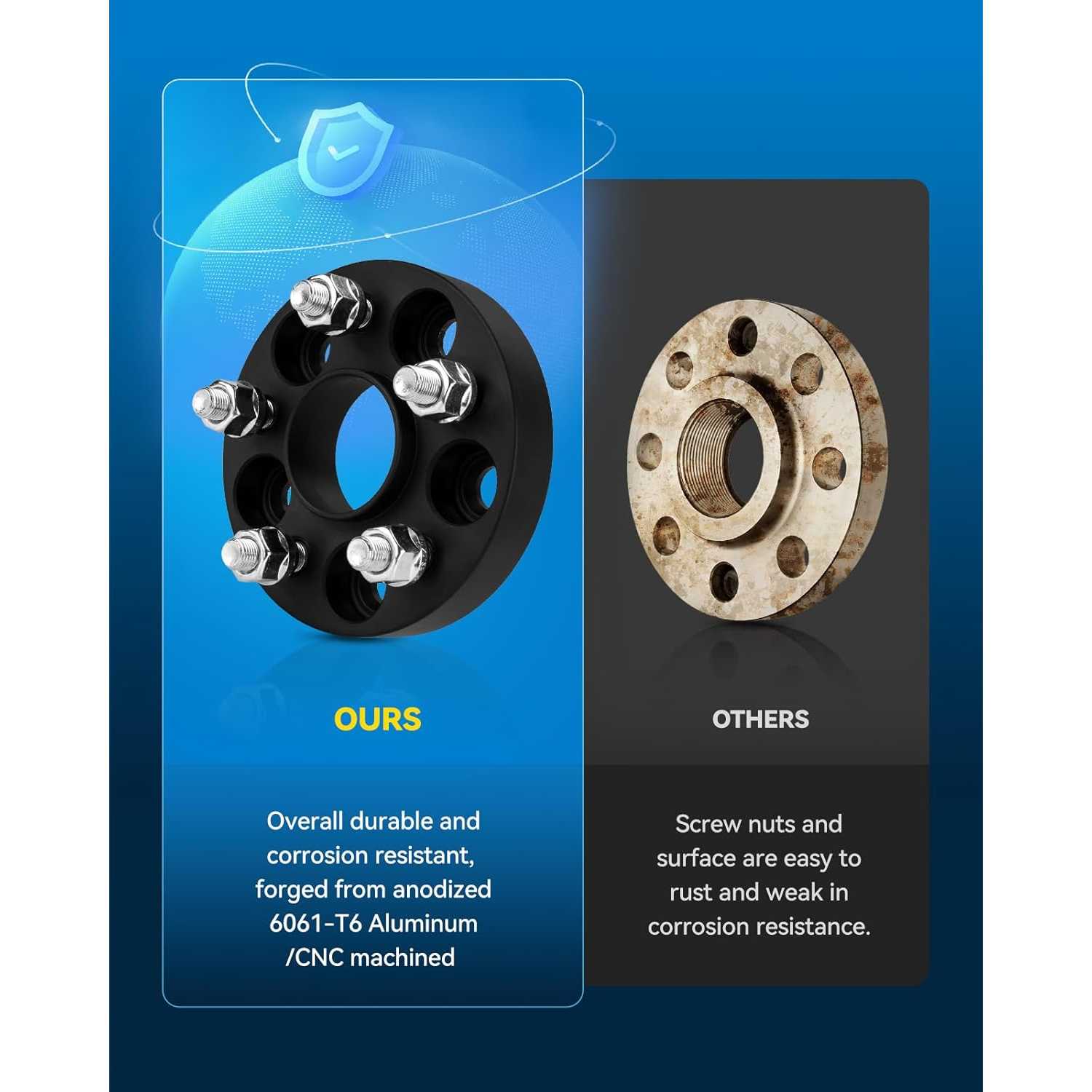

  • [High Quality] ---5x4.5 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 5x4.5 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

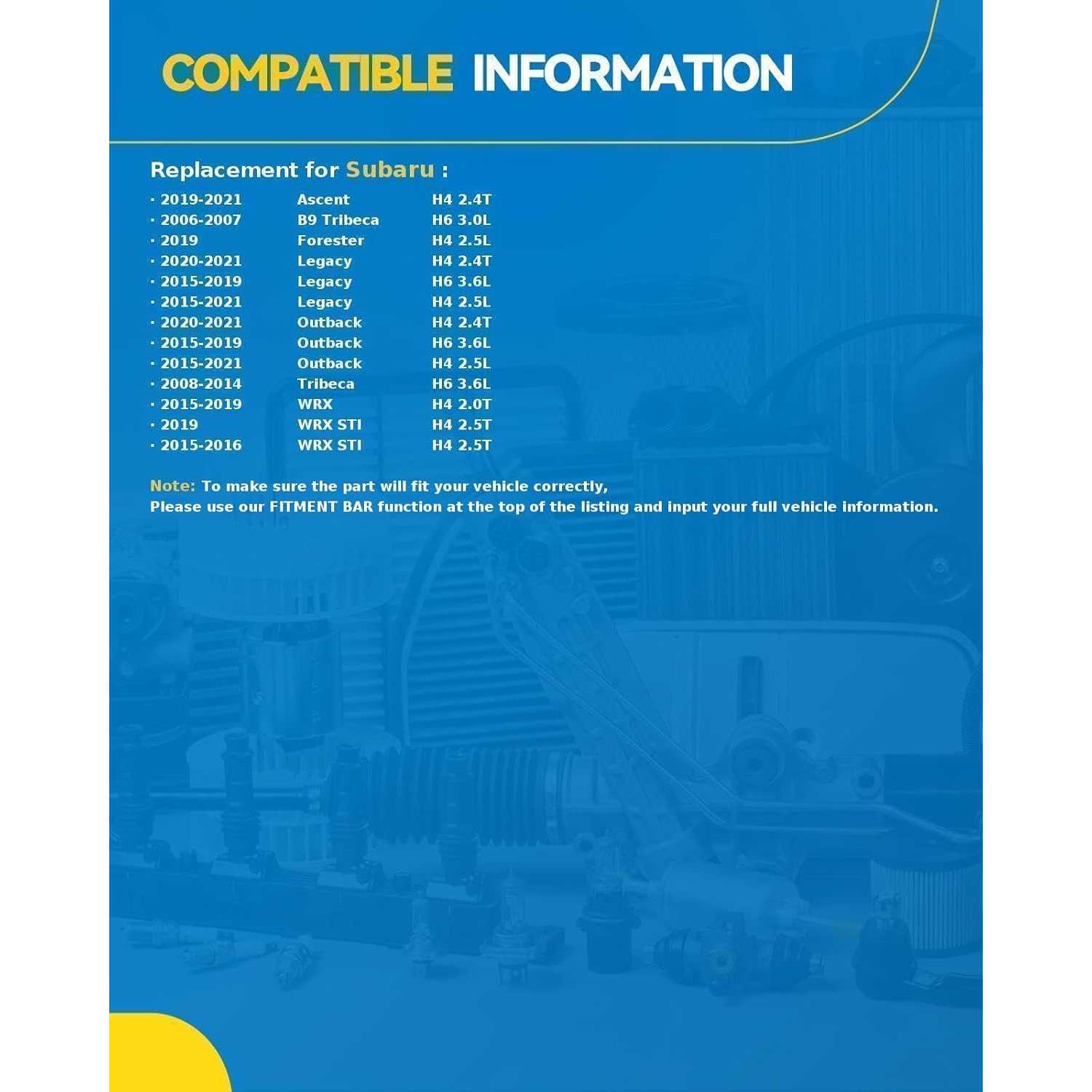

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2019 - 202120222019 - 2021202220222019 - 20212019 - 20212006 - 20072006 - 20072019 - 20212019 - 20212019 - 20222019 - 20212019 - 20222006 - 20142007200420052006 - 201420072011 - 2014201020072015 - 20192015 - 20192015 - 20192017 - 20192015 - 20192020 - 202120222020 - 202120222020 - 202120222020 - 202120222020 - 202120222020 - 202120222015 - 20192015 - 20192015 - 20192017 - 20192015 - 20192017 - 20192020 - 202120222020 - 202120222020 - 202120222020 - 202120222020 - 202120222020 - 202120222020 - 2021202220222008 - 20092008 - 20142010 - 20122010 - 20122015 - 20192020 - 2021202220222015 - 20192020 - 202120222015 - 20192020 - 202120222015 - 20192020 - 202120152015 - 20192020 - 2021201920162018
MakeSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaru
ModelAscentAscentAscentAscentAscentAscentAscentB9 TribecaB9 TribecaForesterForesterForesterForesterForesterImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackTribecaTribecaTribecaTribecaWRXWRXWRXWRXWRXWRXWRXWRXWRXWRXWRX STIWRX STIWRX STIWRX STIWRX STIWRX STIWRX STIWRX STI
TrimBaseBaseLimitedLimitedOnyx EditionPremiumTouringBaseLimitedBaseLimitedPremiumSportTouringWRXWRX LimitedWRX STIWRX STIWRX STIWRX STI LimitedWRX STI LimitedWRX STI Special EditionWRX TR2.5i2.5i Limited2.5i Premium2.5i Sport3.6R LimitedBaseBaseLimitedLimitedLimited XTLimited XTPremiumPremiumSportSportTouring XTTouring XT2.5i2.5i Limited2.5i Premium2.5i Touring3.6R Limited3.6R TouringBaseBaseLimitedLimitedLimited XTLimited XTOnyx Edition XTOnyx Edition XTPremiumPremiumTouringTouringTouring XTTouring XTWildernessBaseLimitedPremiumTouringBaseBaseBaseGTLimitedLimitedLimitedPremiumPremiumPremiumBaseBaseLaunch EditionLimitedLimitedS209Series.HyperBlueType RA
Engine2.4L H42.4L H42.4L H42.4L H42.4L H42.4L H42.4L H43.0L H63.0L H62.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H43.6L H62.5L H42.5L H42.5L H42.5L H42.4L H42.4L H42.5L H42.5L H42.5L H42.5L H42.4L H42.4L H42.5L H42.5L H42.5L H42.5L H43.6L H63.6L H62.5L H42.5L H42.5L H42.5L H42.4L H42.4L H42.4L H42.4L H42.5L H42.5L H42.5L H42.5L H42.4L H42.4L H42.4L H43.6L H63.6L H63.6L H63.6L H62.0L H42.0L H42.4L H42.4L H42.0L H42.0L H42.4L H42.0L H42.0L H42.4L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H4
Note
Front
-
Front
--
Front
Front
Front;Rear
Front;Rear
--------
Front
-----
Front
Front
Front
Front
Front
Front
-
Front
-
Front
-
Front
-
Front
-
Front
-
Front
Front
Front
Front
Front
Front
Front
-
Front
-
Front
-
Front
-
Front
-
Front
-
Front
--
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front
---
Front
--
Front
--
Front
-
Front
Front
-
Front
Front
Front

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Pag Gilbert

08/23/2024

Verified buyer

They fit perfectly and pretty straightforward installing these spacers, make sure you clean the threads off, really recommend the spacers

FAQS

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Compare the spacer specifications with the vehicle hub and wheel, including bolt pattern, center bore, stud or bolt size, and thread pitch. All dimensions should match the intended application.

This depends on spacer type and thickness. Slip-on spacers may require sufficient additional thread engagement, while bolt-on designs may include separate hardware. Follow the product and vehicle requirements.
