1997-2012 Honda CR-V 2.0L L4 | 5x4.5 to 5x3.94 73.1mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

1997-2012 Honda CR-V 2.0L L4 | 5x4.5 to 5x3.94 73.1mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
61ISWSA040007US

Specifications

Brand
PHILTOP
Bolt Pattern
5x4.5" To 5x100mm
Wheel Bolt Pattern
5x100mm
Vehicle Bolt Pattern
5x4.5"
Thread Size
M12x1.5
Center Bore
73.1
Hub-Centric Lip
No
Thickness
1inch
Note1
Only for 5x114.3mm Models with 5x100mm Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 5x100mm Wheel.
Outside Diameter
150
Inside Diameter
2.88 in/73.1 mm
Lug Patterns
5
Type
Wheel Adapter

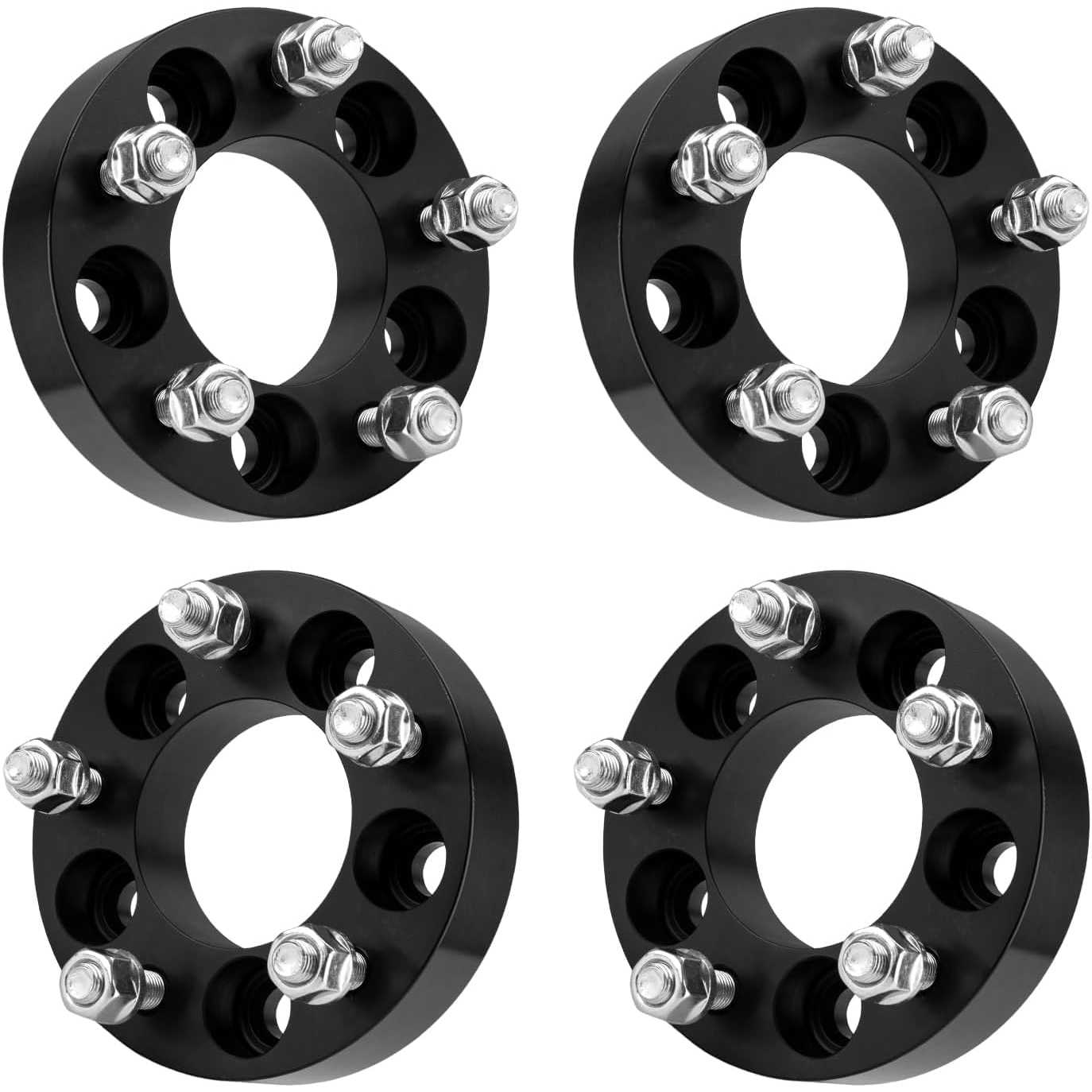

Items Included
4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Adapters Specification] --- Vehicle Bolt Pattern: 5x4.5"(5x114.3mm) ; | Wheel Bolt Pattern: 5x100mm ; | Thickness: 1 inch(25mm) ; | Thread Pitch: M12x1.5 ; | Hub Bore: 73.1mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts

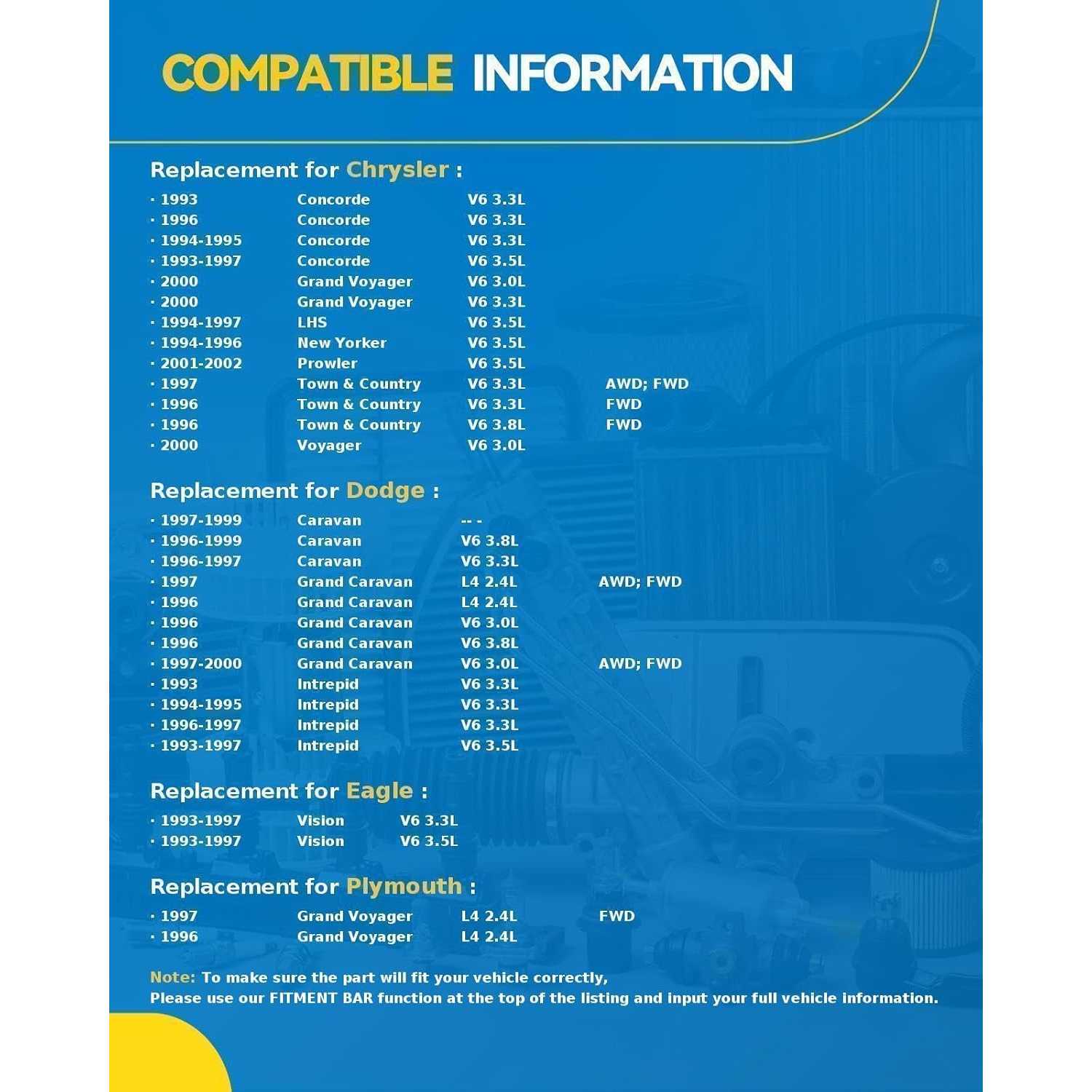

  • [Vehicle Application] --- The 5x114.3mm to 5x100mm Wheel Adapters set replacement for 1996-2007 Grand Caravan 3.3/3.8L FWD Naturally Aspirated 201/231cid GAS V6; Town & Country 3.3/3.8L FWD Naturally Aspirated 201/231cid GAS V6; Caravan 2.4/3.3L Naturally Aspirated 148/201cid GAS L4/V6; 1998-2003 Grand Caravan 3.3L AWD/FWD Naturally Aspirated 201cid FLEX V6; Town & Country 3.3L AWD/FWD Naturally Aspirated 201cid FLEX V6; 1998-2007 Caravan 3.3L Naturally Aspirated 201cid FLEX V6

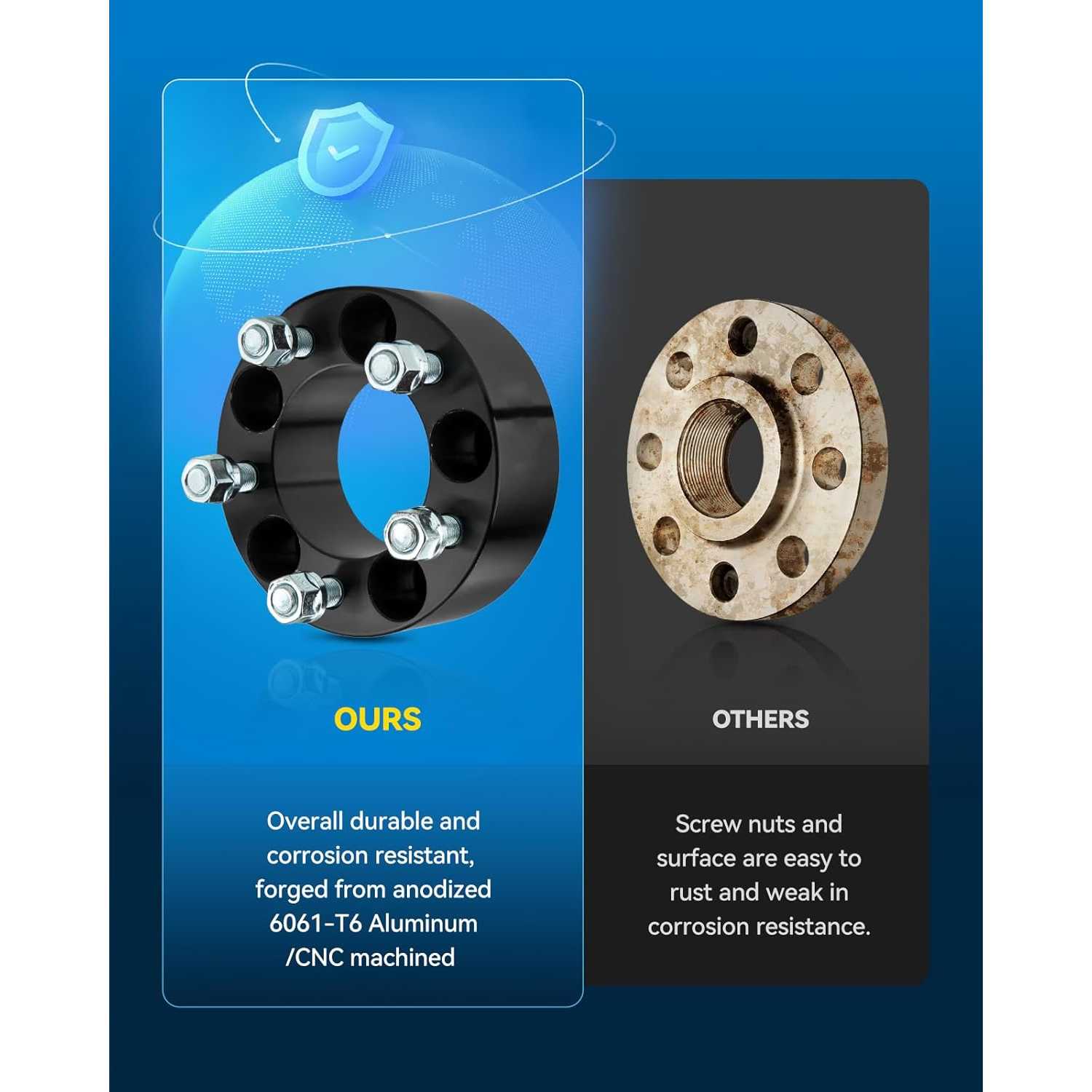

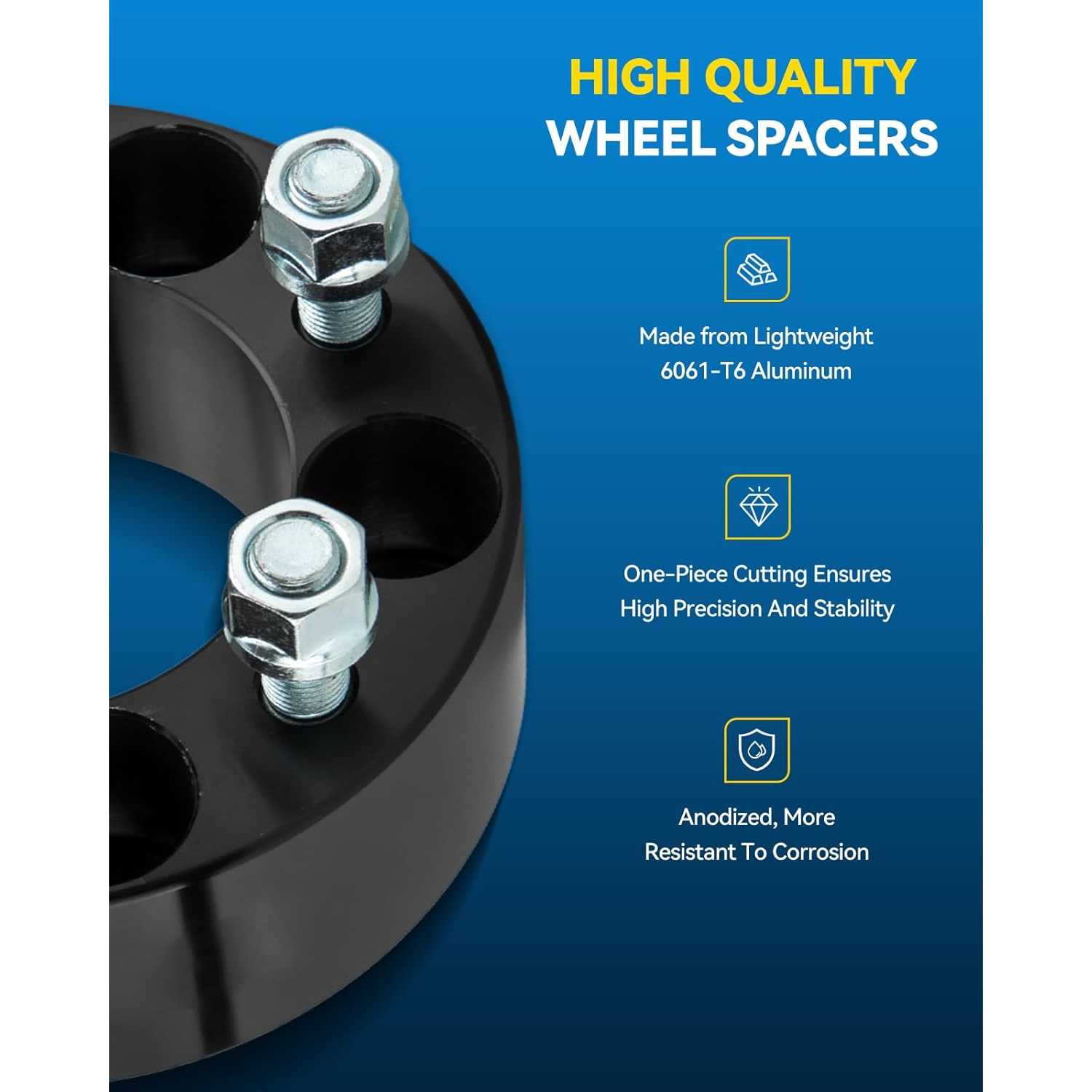

  • [High Quality] --- 5x114.3mm to 5x100mm Wheel Adapter is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving

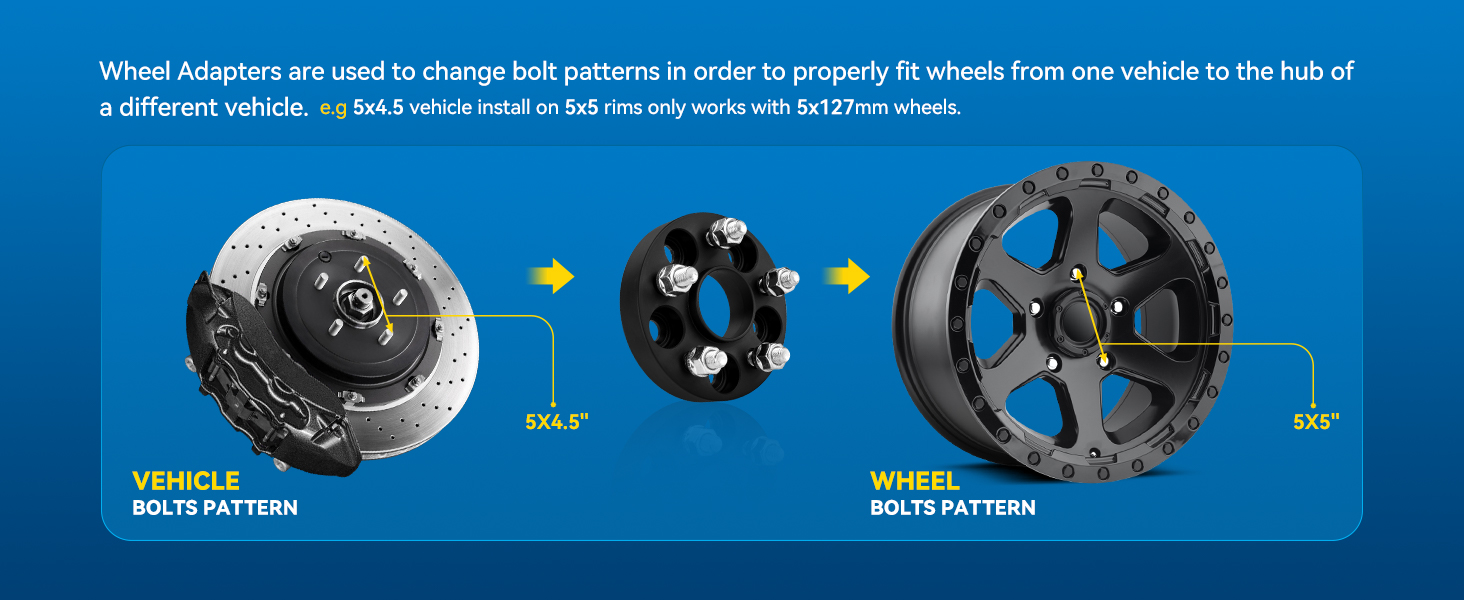

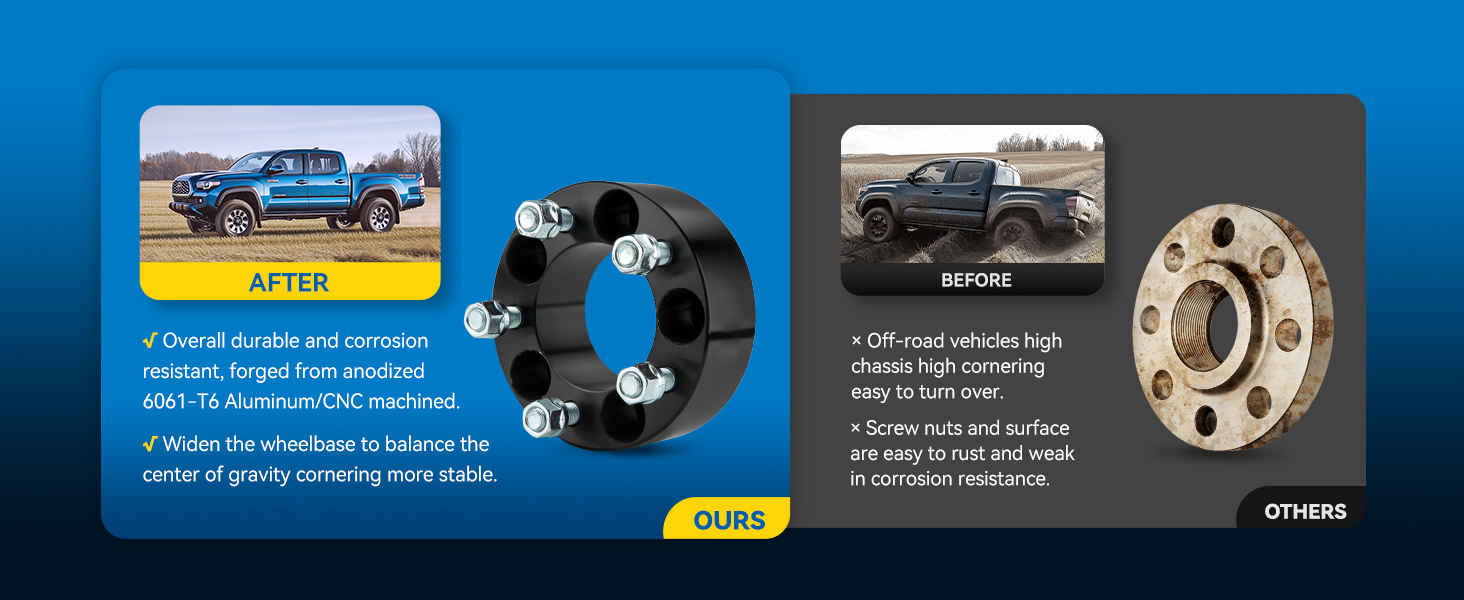

  • [Aggressive Driving Experience] --- These 5x114.3mm to 5x100mm wheel adapters change bolt pattern,it help you to fit the wheel of one factory vehicle to the hub of a different vehicle. The Wheel Adapters can move your wheels further out from the wheel hub, mount larger wheel or tires. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability,giving an aggressive performance to your vehicle
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1998 - 19991998 - 19991998 - 20012002 - 20122007 - 20121997 - 20012002 - 20122000 - 20012005 - 200620111999 - 20021995 - 199719981999 - 20032002 - 20031995 - 199719981999 - 20031997 - 20011997 - 20012000 - 20032004 - 20092008 - 20091996 - 19971998 - 19991996 - 19971998 - 19991993 - 19951993 - 200520061998 - 20002001 - 20072001 - 20052002 - 20051990 - 20002001 - 20061999 - 20031992 - 20001992 - 20002002 - 20101993 - 19981988 - 19921999 - 20011993 - 20021990 - 199119911993 - 20021988 - 19921994 - 20021988 - 198919881988 - 19951990 - 19911998 - 20011998 - 200119991994 - 199620022005 - 20072001 - 20071994 - 19961998 - 20012003 - 2004199820001999 - 20001989 - 1992199119961996 - 19982002 - 200619951995 - 19982002 - 2006200619951989 - 19941989 - 19941993 - 19971988 - 19921988 - 19921989 - 199019911993 - 19971988 - 1992199620011995 - 20011995 - 199820001995 - 200020022002 - 20032002 - 20032002 - 20032002 - 2003198819911993 - 19951988 - 19911988 - 19901989 - 19901988 - 19901988 - 199019931994 - 1995198819881993 - 19951988 - 19912001 - 20022001 - 20042001 - 20042005 - 20062008 - 20112005 - 200620082009 - 2011
MakeHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaIsuzuIsuzuIsuzuIsuzuLexusLexusLexusLexusLexusLexusLexusLexusLexusLexusLexusLexusLexusMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazda
ModelAccordAccordCR-VCR-VCR-VCR-VCR-VCR-VCR-VCR-VOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyPreludePreludeS2000S2000S2000OasisOasisOasisOasisES300GS300GS300GS400GS430IS300IS300LS400LS430RX300SC300SC400SC430626626626626626626626626626626626929929B2500B2500B2500B3000B3000B3000B3000B3000B3000B3000B3000B3000B3000MPVMPVMPVMPVMPVMPVMPVMPVMPVMPVMPVMPVMX-6MX-6MX-6MX-6MX-6MX-6MX-6MX-6MilleniaMilleniaMilleniaMilleniaMilleniaMilleniaProtegeProtegeProtegeProtege5RX-7RX-7RX-7RX-7RX-7RX-7RX-7RX-7RX-7RX-7RX-7RX-7RX-7RX-7TributeTributeTributeTributeTributeTributeTributeTribute
TrimEXLXEXEXEX-LLXLXSESESECargoEXEXEXEX-LLXLXLXBaseType SHBaseBaseCRLSLSSSBaseBaseBaseBaseBaseBaseSportcrossBaseBaseBaseBaseBaseBaseDXDXESESGTLELXLXLXTurboTurbo 4WSBaseSSESXTroy LeeBaseBaseBaseDSSESESESXSXTroy LeeCargoCargoDXESESLLXLXLX-SVLXEPassengerPassengerBaseDXGTGT 4WSLELSLXM EditionBaseBaseLMillennium EditionSSDXESLXBase10th AnniversaryBaseBaseConvertibleGTUGTUsGXLGXL 2+2R1R2SESE 2+2TouringTurboDXESLXSSiii
Engine3.0L V63.0L V62.0L L42.4L L42.4L L42.0L L42.4L L42.0L L42.4L L42.4L L43.5L V62.2L L42.3L L43.5L V63.5L V62.2L L42.3L L43.5L V62.2L L42.2L L42.0L L42.2L L42.2L L42.2L L42.3L L42.2L L42.3L L43.0L V63.0L L63.0L V64.0L V84.3L V83.0L L63.0L L64.0L V84.3L V83.0L V63.0L L64.0L V84.3L V82.0L L42.2L L42.0L L42.5L V62.2L L42.2L L42.0L L42.2L L42.5L V62.2L L42.2L L43.0L V63.0L V62.5L L42.5L L42.5L L43.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V62.6L L43.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V62.6L L43.0L V62.0L L42.2L L42.2L L42.2L L42.2L L42.5L V62.2L L42.5L V62.3L V62.5L V62.5L V62.3L V62.3L V62.3L V62.0L L42.0L L42.0L L42.0L L41.3L R21.3L R21.3L R21.3L R21.3L R21.3L R21.3L R21.3L R21.3L R21.3L R21.3L R21.3L R21.3L R21.3L R23.0L V63.0L V63.0L V63.0L V63.0L V62.3L L42.3L L42.5L L4
Note----------------------------------------------------------------------------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

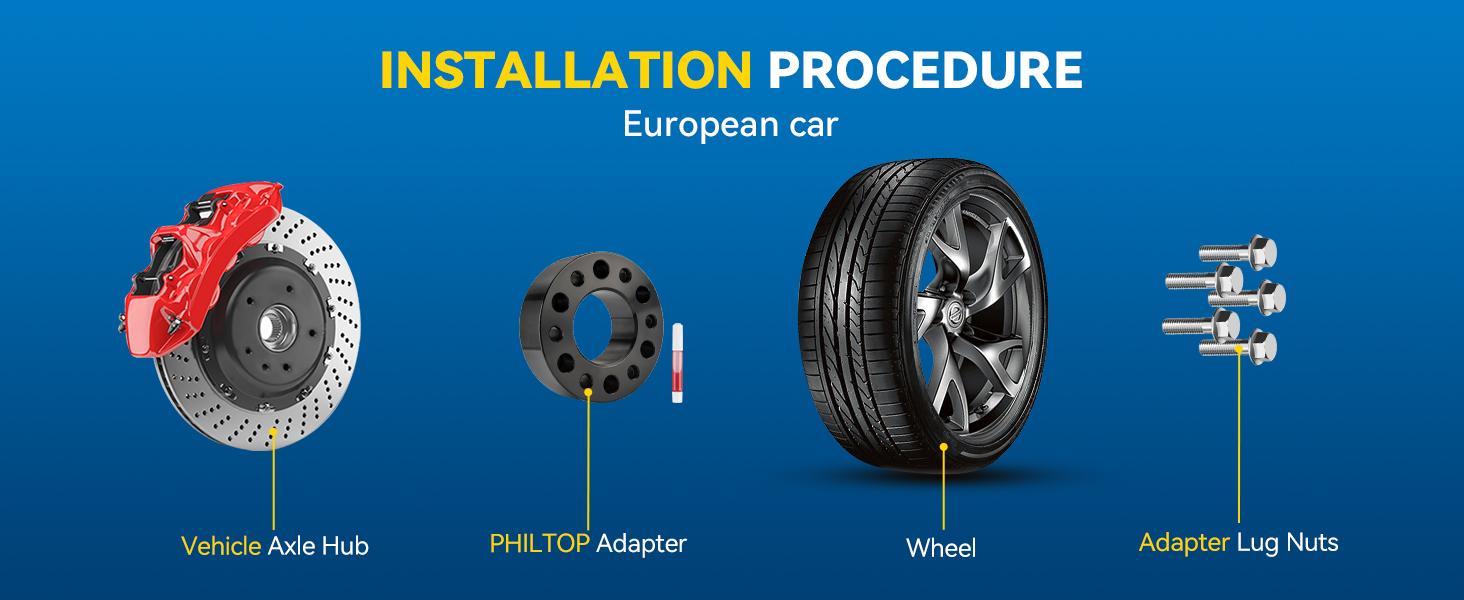

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

Lainey Harbert

11/15/2024

Verified buyer

Fast shipper. Great price. Read more

Customer

11/15/2024

Verified buyer

Nice part for the price quality exceptional for price ,shipping, transaction perfect thankyou. Read more

FAQS

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.
