2007-2021 Toyota Tundra 5.7L V8 | 5x5.91 110mm Center Bore M14x1.5 Thread Wheel Hub Accessory - PHILTOP

2007-2021 Toyota Tundra 5.7L V8 | 5x5.91 110mm Center Bore M14x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
72ISWSA048007US

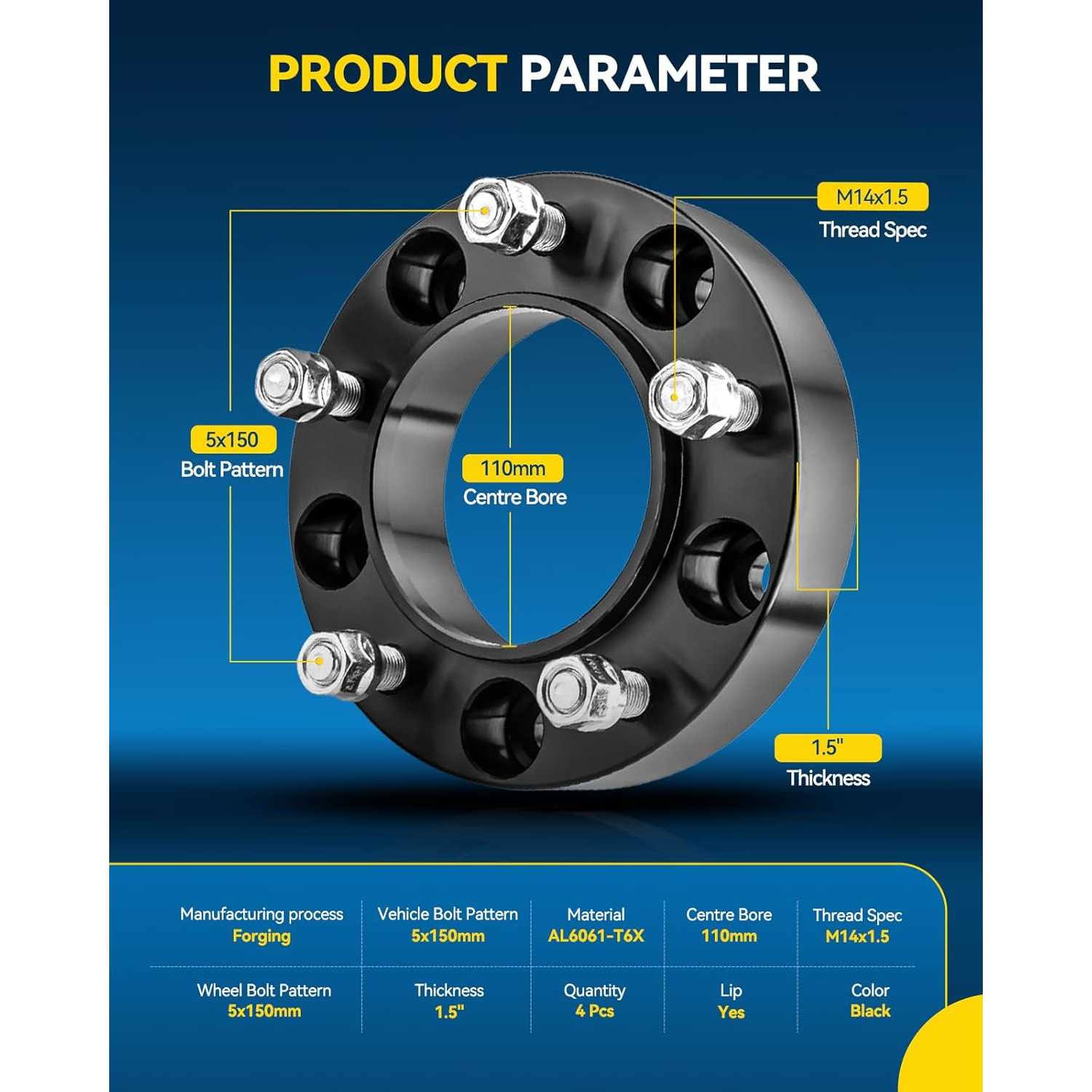

Specifications

Brand
PHILTOP
Bolt Pattern
5x150mm
Wheel Bolt Pattern
5x150mm
Vehicle Bolt Pattern
5x150mm
Thread Size
M14x1.5
Center Bore
110
Hub-Centric Lip
Yes
Thickness
1.5inch
Outside Diameter
186
Inside Diameter
4.33 in/110 mm
Lug Patterns
5
Type
Wheel Spacer
Items Included

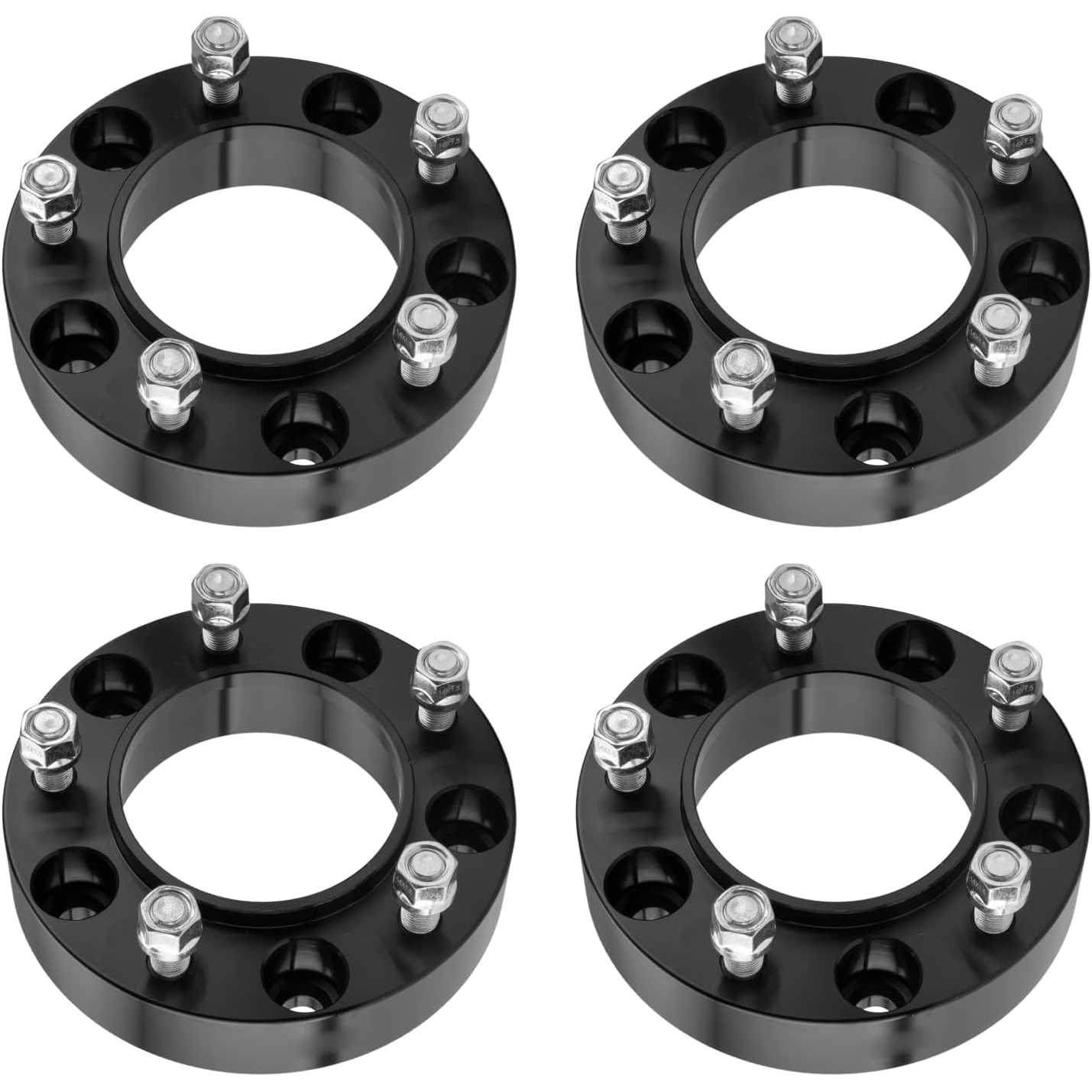

4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
85-90 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Spacers Specification] --- Bolt Pattern: 5x150mm ; | Thickness: 1.5 inch(38mm) ; | Thread Pitch: M14x1.5 ; | Hub Bore: 110mm ; | Recommended torque: 85-90 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 5x150 Wheel Spacer set replacement for 2007-2018 Tundra 5.7L 4WD V8; 2007-2019 Tundra 5.7L RWD V8; 2010-2019 Tundra 4.6L RWD V8; 2008-2018 Sequoia 5.7L 4WD V8; 2010-2018 Tundra 4.6L 4WD V8; 2007-2009 Tundra 4.7L 4WD/RWD V8; 2008-2019 Sequoia 5.7L RWD V8; 2007-2014 Tundra 4.0L 4WD/RWD V6; 2013-2017 LX570 5.7L V8; 2013-2018 Land Cru-iser 5.7L V8; 2009-2011 LX570 5.7L V8; Land Cru-iser 5.7L V8; 2010-2012 Sequoia 4.6L 4WD/RWD V8; 2008-2009 Sequoia 4.7L 4WD V8;

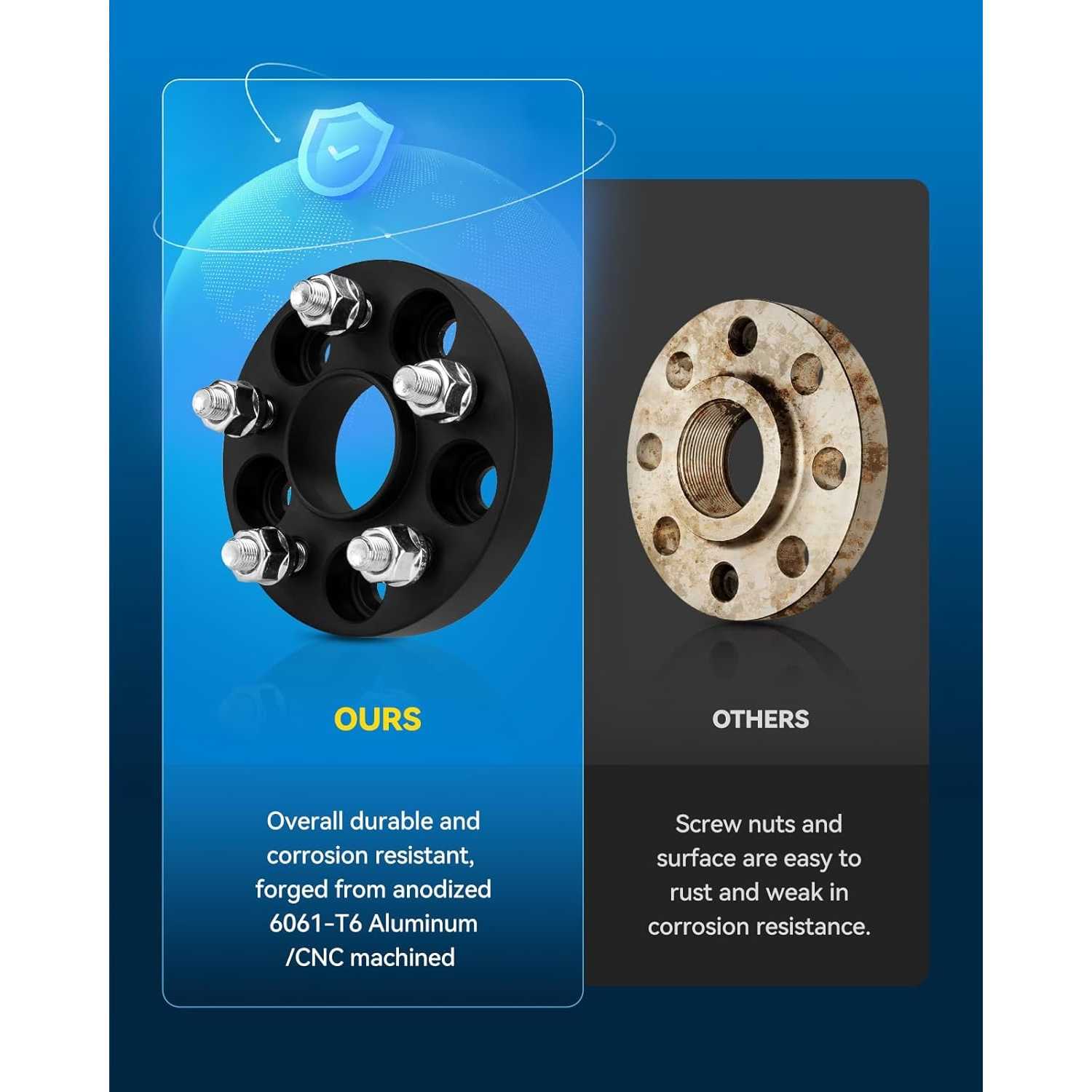

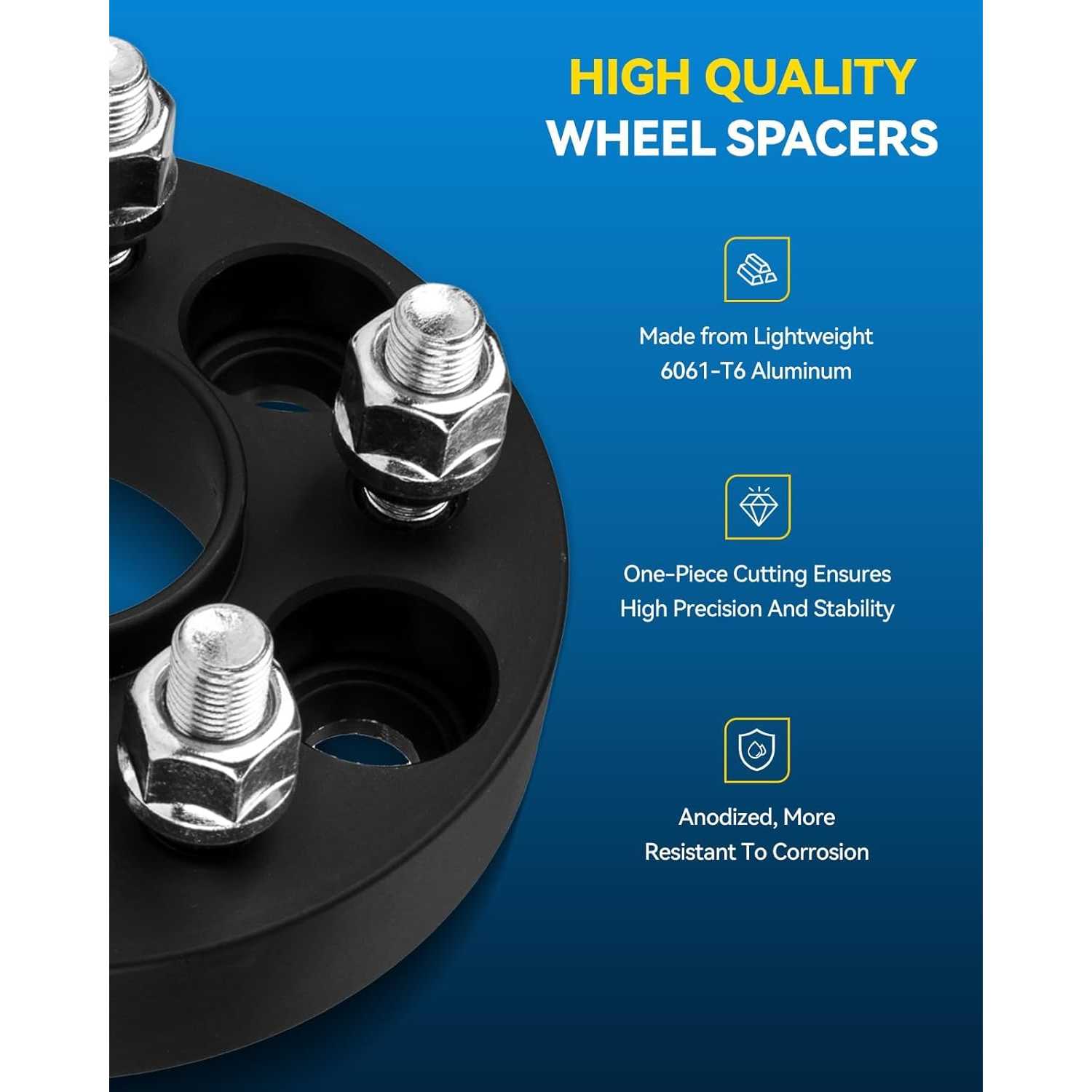

  • [High Quality] ---5x150 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 5x150 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

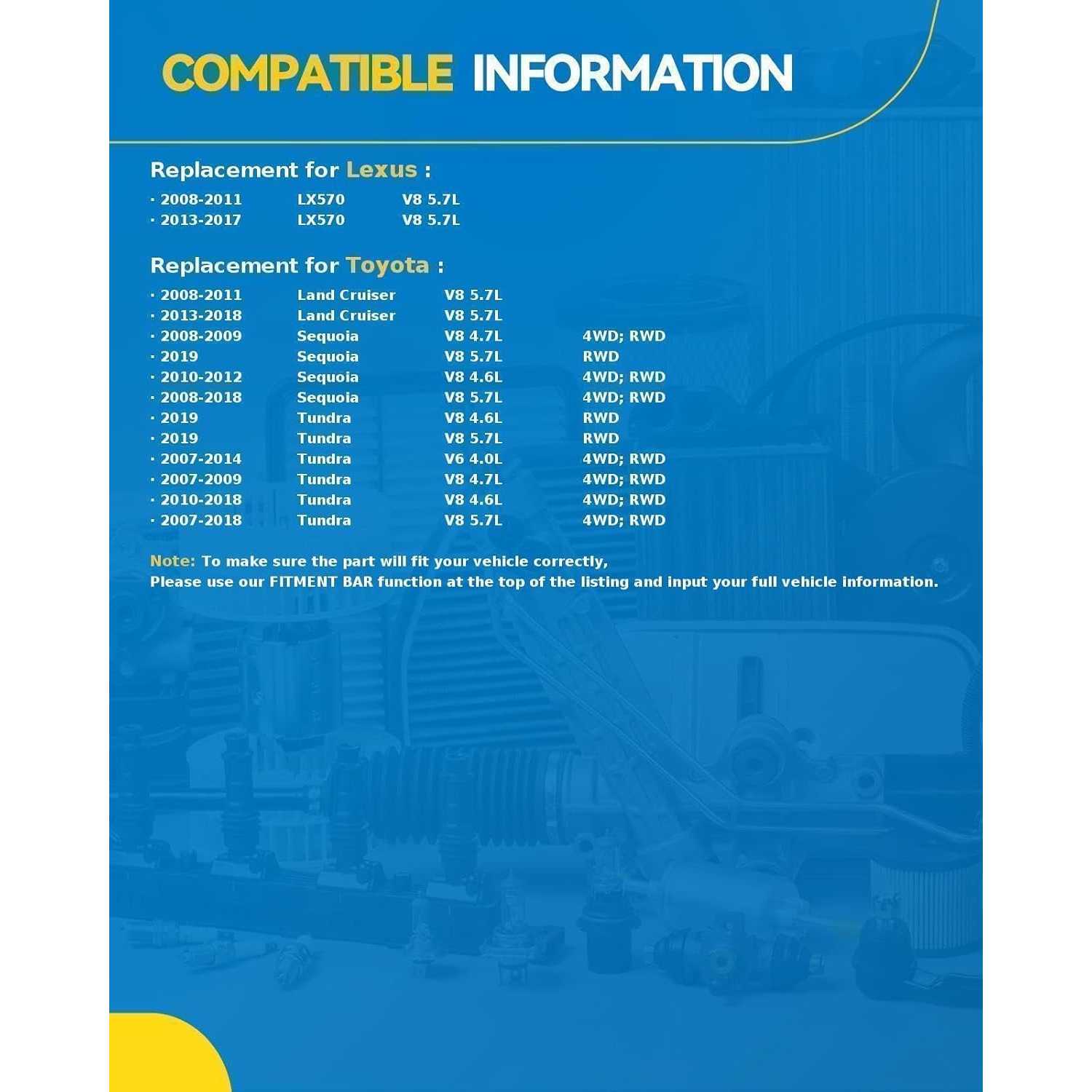

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1998 - 20072008 - 20112013 - 201620172018 - 20211988 - 19921980 - 19871993 - 19971998 - 20072008 - 20112013 - 201720182019 - 20212020 - 20212008 - 20172018 - 20222021 - 20222008 - 20172018 - 20222010 - 20122008 - 20092008 - 20172018 - 20222020 - 20222018 - 20222014 - 20172018 - 202120072008 - 20132010 - 201320072008 - 200920072008 - 2013201020072008 - 200920072008 - 20172018 - 2021202120102010 - 20172018 - 202120142014 - 20172018 - 20192014 - 20172018 - 202120072008 - 20112010 - 20112014 - 20172018 - 201920072008 - 200920072008 - 20112014 - 20172018 - 20212015 - 20172019 - 20212021
MakeLexusLexusLexusLexusLexusToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelLX470LX570LX570LX570LX570Land CruiserLand CruiserLand CruiserLand CruiserLand CruiserLand CruiserLand CruiserLand CruiserLand CruiserSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundra
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseHeritage EditionLimitedLimitedNightshadePlatinumPlatinumSR5SR5SR5SR5TRD ProTRD Sport1794 Edition1794 EditionBaseBaseBaseBaseBaseBaseBaseLimitedLimitedLimitedLimitedLimitedLimitedNightshadePlatinumPlatinumPlatinumSRSRSRSRSRSR5SR5SR5SR5SR5SR5SR5SR5SR5SR5SR5TRD ProTRD ProTrail
Engine4.7L V85.7L V85.7L V85.7L V85.7L V84.0L L64.2L L64.5L L64.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V84.6L V84.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V84.0L V64.0L V64.6L V84.7L V84.7L V85.7L V85.7L V84.6L V84.7L V84.7L V85.7L V85.7L V85.7L V85.7L V84.6L V85.7L V85.7L V84.0L V64.6L V84.6L V85.7L V85.7L V84.0L V64.0L V64.6L V84.6L V84.6L V84.7L V84.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V8
Note
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front
-
Front
----
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front
-
Front
--
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
4WD;Front
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
1.5" 5x150 to 5x150 14x1.5 hubcentric wheel spacers Front;4WD
4WD;Front
4WD;Front

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Customer photos and videos

butsuyoku-man

12/20/2023

Verified buyer

Used in the BMW 5 series (G30). With the effect of A6061-T6 processing, it is quite lightweight at about 340g with a 15mm thick hub! It's black and cool.

FAQS

Unused products may be eligible for return according to the Philtop return policy. Please keep the product and packaging in their original condition and contact us before sending it back.

This depends on spacer type and thickness. Slip-on spacers may require sufficient additional thread engagement, while bolt-on designs may include separate hardware. Follow the product and vehicle requirements.

Stacking spacers is generally not recommended because it may affect seating and fastener engagement. Select a single spacer of the appropriate specification instead.
