2000-2014 Subaru Outback 2.5L H4 | 5x3.94" to 5x4.5" 56.1mm Center Bore M12x1.25 Thread Wheel Hub Accessory - PHILTOP

2000-2014 Subaru Outback 2.5L H4 | 5x3.94" to 5x4.5" 56.1mm Center Bore M12x1.25 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
28ISWSA083007US

Specifications

Brand
PHILTOP
Bolt Pattern
5x100mm To 5x4.5"
Wheel Bolt Pattern
5x4.5"
Vehicle Bolt Pattern
5x100mm
Thread Size
M12x1.25
Center Bore
56.1
Hub-Centric Lip
Yes
Thickness
1inch
Note1
Only for 5x100mm Models with 5x114.3mm Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 5x114.3mm Wheel.
Outside Diameter
150
Inside Diameter
2.21 in/56.1 mm
Lug Patterns
5
Type
Wheel Adapter
Items Included
4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • ?KAX Wheel Adapters Parameter : Changes Bolt Pattern || Vehicle Must Be 5x100mm || Wheels Must Be 5x114.3mm(5x4.5") || M12x1.25 Threaded Studs/Nuts || 1 inch(25mm) Thick || 56.1mm Center Bore with lip || Recommended torque: 70-80 ft/lbs. Package includes 4Pcs wheel adapter, 10.9 class split nuts and professional instruction manual
  • ?Compatibility : 5x100mm to 5x114.3mm Wheel adapters 1 inch are compatible with 1999-2012 Forester 2.5L Naturally Aspirated SOHC GAS H4; 2005-2014 Outback 2.5L Naturally Aspirated SOHC GAS H4; 2011-2014 Forester 2.5L Naturally Aspirated DOHC GAS H4; 2013-2014 Outback 2.5L Naturally Aspirated DOHC GAS H4; XV Crosstrek 2.0L Naturally Aspirated DOHC GAS H4; Legacy 2.5L Naturally Aspirated DOHC GAS H4; 2012-2014 Impreza 2.0L Naturally Aspirated DOHC GAS H4;
  • ?Newest Forging Technology : 5x100mm to 5x114.3mm hub centric wheel adapters are truly forged from aircraft quality 6061-T6 aluminum. You can imagine how exacting the craft of aircraft manufacture is! So it is with adapter. Coupled with SGS certified 10.9 grades high strength bolts, regardless of the cold wind and heat, the adapter will not fall off and break
  • ?Why Install Wheel Adapters: 5x100mm to 5x114.3mm wheel adapters are used to change bolt patterns in order to properly fit wheels from one vehicle to the hub of a different vehicle. And 1 inch wheel adapter can account for offset, push the wheels out further.
  • ?Warm Reminder : Even if a vehicle is listed as being compatible, buyers still need to check: 1) You have more than 2 inch of space between your fender and your wheel/tire; 2) Your factory wheel studs are shorter than 2 inch (NOTE: * When installing a bolt on wheel spacer or adapter, trimming the studs will be necessary when the spacer or adapter plate is thinner than your wheel studs are long.)

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20062005200620052013 - 20162013 - 20202022 - 20232013 - 20192022 - 202320152019201620172018202020032003 - 20062004 - 20062016 - 202320162019 - 202320162016 - 20182019 - 20202021 - 202220232016 - 20232021 - 20232014 - 20182014 - 20182014 - 20182014 - 2018201420152016 - 20182014 - 201819981999 - 20002001 - 20022019 - 202019981999 - 20002001 - 20022019 - 20202019 - 202019981999 - 20002001 - 20022019 - 2020200820082019 - 20202003 - 20082009 - 20132006 - 20082009 - 20132009 - 20132011 - 20132003 - 200520052004 - 200520092006 - 20082009 - 201020052010 - 20132011 - 20132009 - 20102006 - 20112010 - 20111993 - 19952012 - 201320142015 - 20231996 - 199719971993 - 19961995 - 20011993 - 19941995 - 19962012 - 201320142015 - 202319951995 - 20012002 - 20042005 - 20112012 - 201320142015 - 20231998 - 20052017 - 20232012 - 201320142015 - 20162012 - 201320142015 - 20162002 - 20042002 - 20052006 - 20132006 - 20072010 - 20132009 - 20132004 - 201320072011 - 201320102006 - 20072010 - 20122006 - 20142007 - 20142010 - 20142007 - 2009201420092008 - 20092010 - 20132010 - 20142010 - 20121994199019951995 - 1999200019941996 - 200619982000 - 200220052007 - 20092006 - 20091990 - 19992000 - 20041999200420031990 - 19961991 - 19951996 - 19972005199919991995 - 19961996 - 19991997199919941995 - 199819991991 - 19941994199420052006 - 20092010 - 20142007200820062007 - 200820092010 - 201420082010 - 2014200920092010 - 20132010 - 20142010 - 20122000 - 200420082002 - 2004200420042001 - 20042000 - 20052005 - 20062005 - 20062007 - 200820062001 - 200320052005 - 20062005 - 20062007 - 20082009200520152014 - 20152014 - 20152013 - 20152013 - 20152017 - 20202018 - 202020202017201920232022 - 20232022 - 2023
MakeSaabSaabSaabSaabScionSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
Model9-2X9-2X9-2X9-2XFR-SBRZBRZBRZBRZBRZBRZBRZBRZBRZBRZBajaBajaBajaCrosstrekCrosstrekCrosstrekCrosstrekCrosstrekCrosstrekCrosstrekCrosstrekCrosstrekCrosstrekForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackXV CrosstrekXV CrosstrekXV CrosstrekXV CrosstrekXV Crosstrek8686868686GR86GR86GR86
Trim2.5iAeroAeroLinearBaseLimitedLimitedPremiumPremiumSeries.BlueSeries.GraySeries.HyperBlueSeries.YellowTSTSBaseSportTurboBaseHybridHybridHybrid TouringLimitedLimitedLimitedLimitedPremiumSport2.0XT Premium2.0XT Touring2.5i2.5i Limited2.5i Premium2.5i Premium2.5i Premium2.5i TouringBaseBaseBaseBaseLLLLimitedPremiumSSSSportSports 2.5 XSports 2.5 XTTouringXXX L.L. Bean EditionX LimitedX PremiumX TouringXSXS L.L. Bean EditionXTXTXT LimitedXT LimitedXT PremiumXT PremiumXT Touring2.5 GT2.5i2.5i PremiumBaseBaseBaseBaseBrightonBrightonLLLSLXLimitedLimitedLimitedOutbackOutbackOutbackOutback SportPremiumPremiumPremiumRSSportSport LimitedSport LimitedSport LimitedSport PremiumSport PremiumSport PremiumTSWRXWRXWRX LimitedWRX LimitedWRX PremiumWRX STIWRX STI LimitedWRX STI LimitedWRX STI Special EditionWRX TR2.5GT2.5i2.5i Limited2.5i Premium2.5i Special Edition2.5i Sport3.0 R3.0 R Limited3.6R3.6R Limited3.6R PremiumAlpine SportBaseBaseBrightonBrightonGTGTGT LimitedGT LimitedGT LimitedGT LimitedGT spec.BLLL 30th AnniversaryL 35th AnniversaryL SELSLSiLSiLimitedLimited 30th AnniversaryLimited 30th AnniversaryOutbackOutbackOutback LimitedOutback LimitedOutdoorPostalSUS 30th AnniversarySportSun SportTouringi2.5i2.5i2.5i Basic2.5i L.L. Bean Edition2.5i Limited2.5i Limited2.5i Limited2.5i Limited2.5i Limited L.L. Bean Edition2.5i Premium2.5i Special Edition3.0 R Limited3.6R3.6R Limited3.6R PremiumBaseBaseH6H6 35th Anniversary EditionH6 VDCL.L. BeanLimitedRR L.L. Bean EditionR L.L. Bean EditionR VDC LimitedVDCVDC LimitedXTXT LimitedXT LimitedXT LimitediBaseHybridHybrid TouringLimitedPremiumBaseGTHakone EditionSpecial EditionTRD Special Edition10th Anniversary Special EditionBasePremium
Engine2.5L H42.0L H42.5L H42.5L H42.0L H42.0L H42.4L H42.0L H42.4L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.5L H42.5L H42.5L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.5L H42.5L H42.0L H42.5L H42.0L H42.0L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H41.8L H42.0L H42.0L H42.0L H41.8L H42.2L H41.8L H42.2L H41.8L H42.2L H42.0L H42.0L H42.0L H41.8L H42.2L H42.5L H42.5L H42.0L H42.0L H42.0L H42.5L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.5L H42.0L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H43.0L H63.0L H63.6L H63.6L H63.6L H62.2L H42.2L H42.2L H42.2L H42.5L H42.2L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.2L H42.5L H42.2L H42.5L H42.5L H42.2L H42.2L H42.5L H42.5L H42.2L H42.5L H42.2L H42.5L H42.5L H42.5L H42.2L H42.2L H42.5L H42.2L H42.2L H42.2L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H43.0L H63.6L H63.6L H63.6L H62.5L H42.5L H43.0L H63.0L H63.0L H63.0L H62.5L H43.0L H63.0L H63.0L H63.0L H63.0L H63.0L H62.5L H42.5L H42.5L H42.5L H42.5L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.4L H42.4L H42.4L H4
Note-----------------------
ONLY 5X100 mm
ONLY 5X100 mm
--------
2019-2020 only fit SJ Models
---
5x100mm ONLY
2019-2020 only fit SJ Models
--
5x100mm ONLY
2019-2020 only fit SJ Models
---
5x100mm ONLY
2019-2020 only fit SJ Models
-
2019-2020 only fit SJ Models
2019-2020 only fit SJ Models
-
2019-2020 only fit SJ Models
-
2019-2020 only fit SJ Models
---
2019-2020 only fit SJ Models
2019-2020 only fit SJ Models
2019-2020 only fit SJ Models
-
2019-2020 only fit SJ Models
-
2019-2020 only fit SJ Models
-------
ONLY 5X100 mm
--------
ONLY 5X100 mm
------
ONLY 5X100 mm
--
2014-2023 will NOT fit WRX Models
-
ONLY 5X100 mm
--
ONLY 5X100 mm
---------------------------------------------------------
2014 only fit BR Models
---
2014 only fit BR Models
-
2014 only fit BR Models
---
2014 only fit BR Models
2014 only fit BR Models
---
2014 only fit BR Models
-
2014 only fit BR Models
2014 only fit BR Models
2014 only fit BR Models
2014 only fit BR Models
2014 only fit BR Models
2014 only fit BR Models
2014 only fit BR Models
-
2014 only fit BR Models
2014 only fit BR Models
2014 only fit BR Models
2014 only fit BR Models
2014 only fit BR Models
-
2014 only fit BR Models
2014 only fit BR Models
-------------

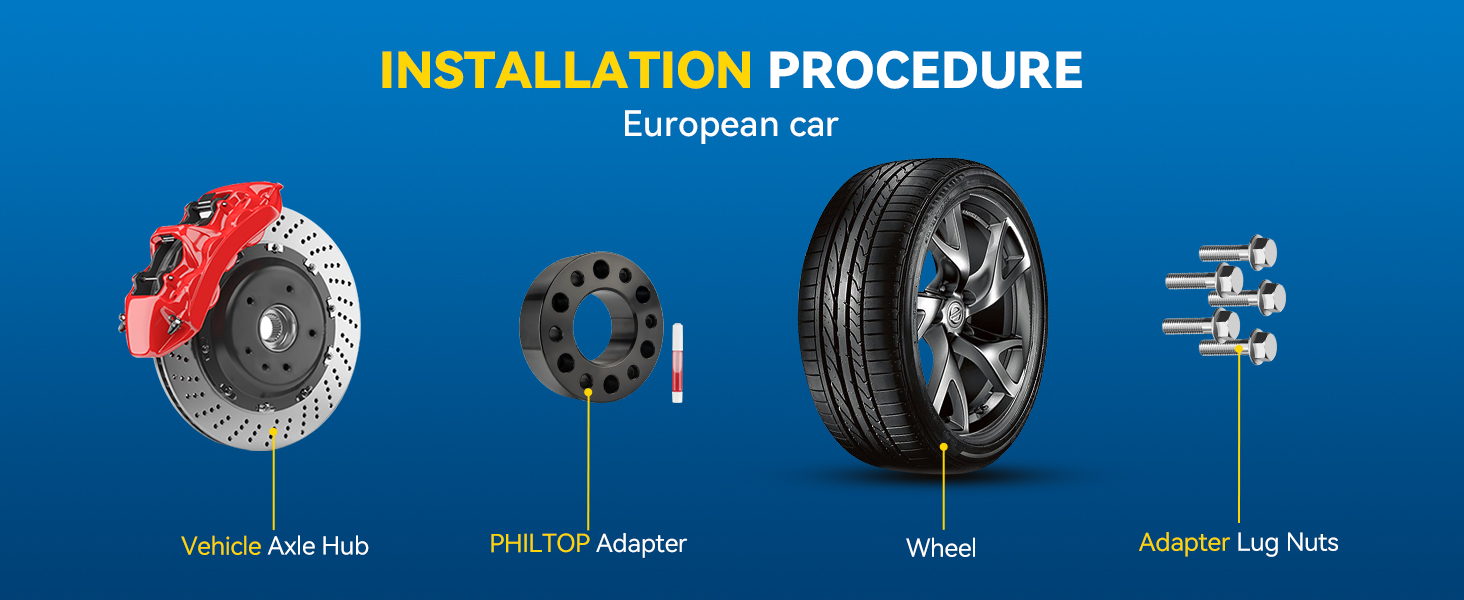

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.
