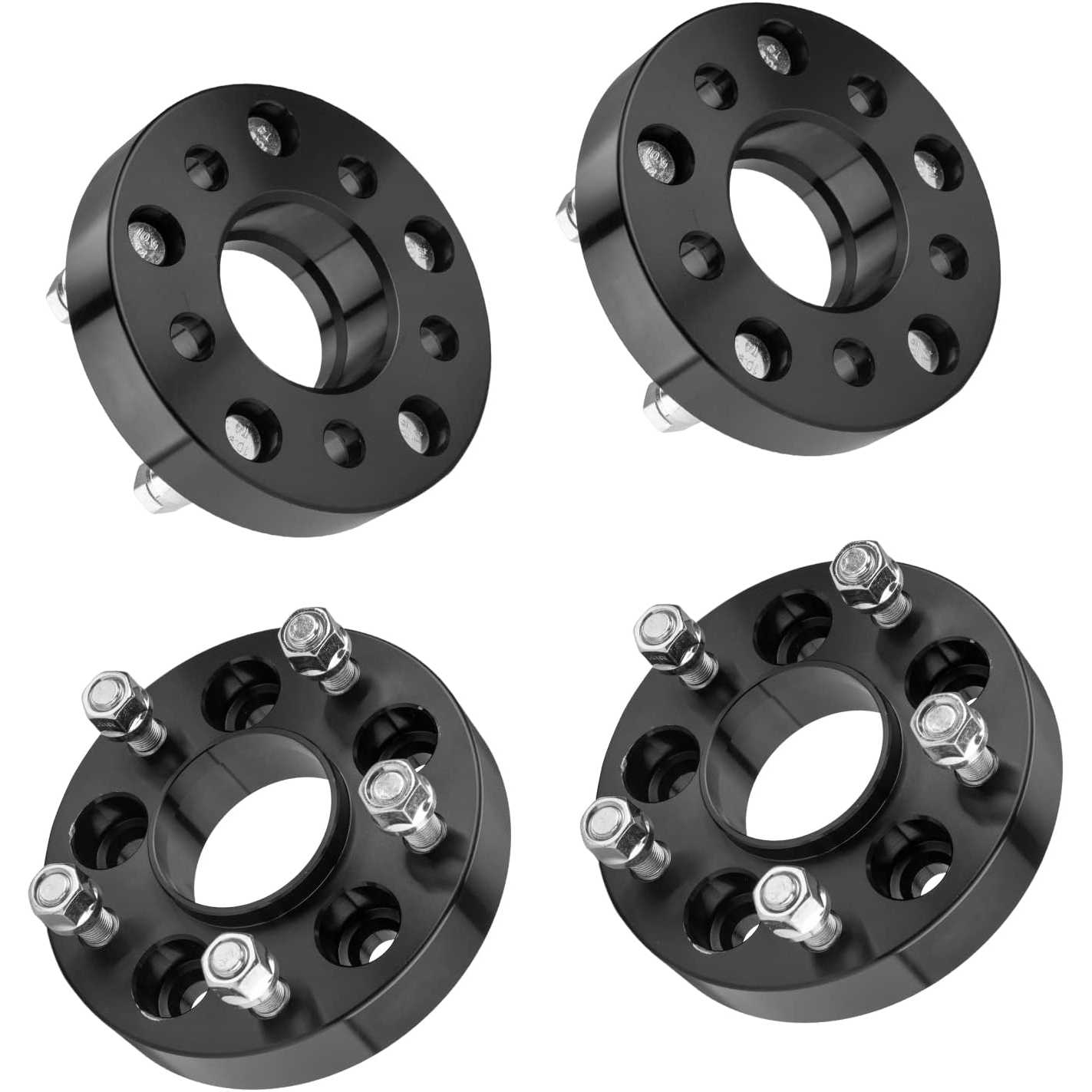

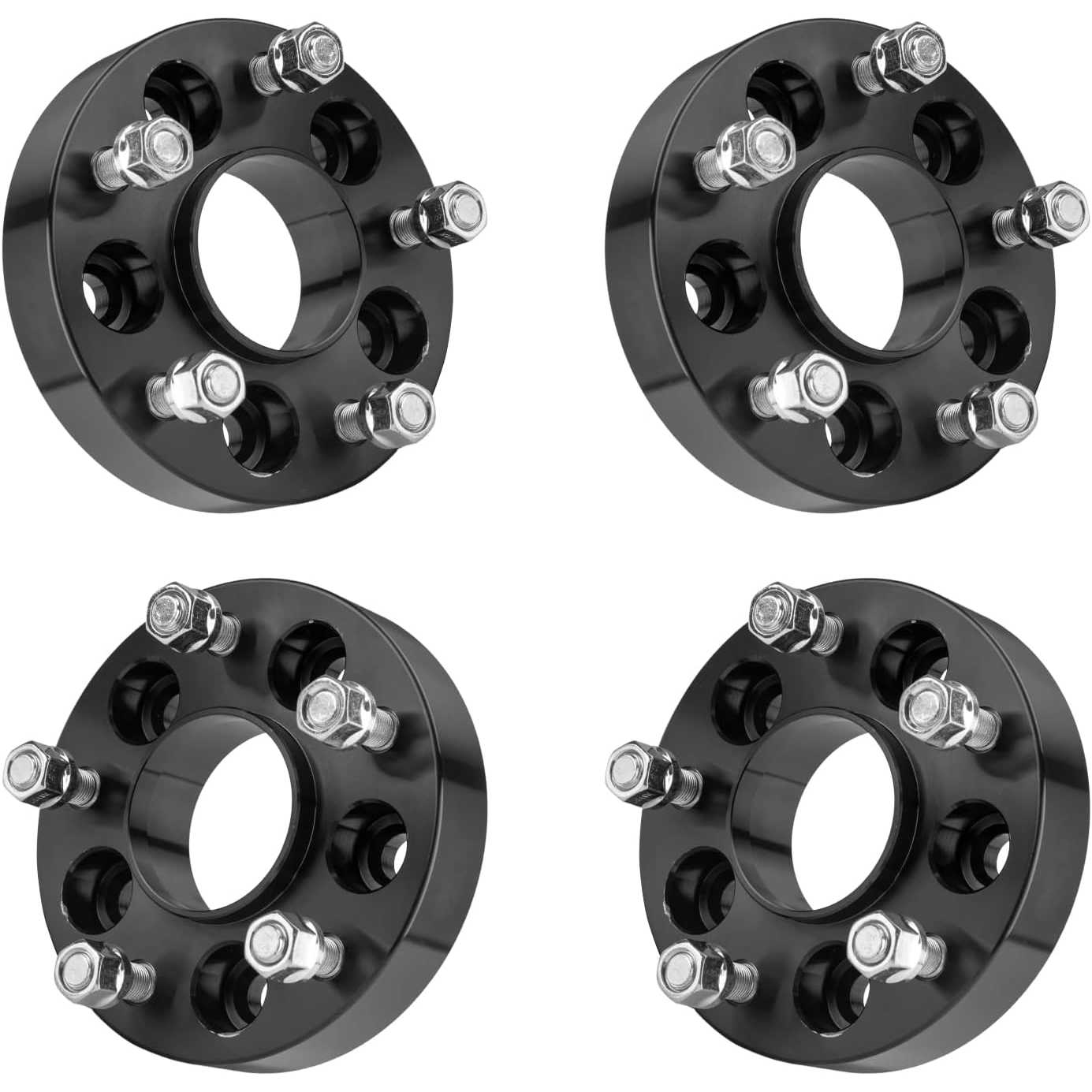

1987-2006 Jeep Wrangler 4.0L L6 | 5x4.5 to 5x5 71.5mm Center Bore 1/2"x20 Thread Wheel Hub Accessory - PHILTOP

1987-2006 Jeep Wrangler 4.0L L6 | 5x4.5 to 5x5 71.5mm Center Bore 1/2"x20 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
94ISWSA028007US

Specifications

Brand
PHILTOP
Bolt Pattern
5x4.5" To 5x5"
Wheel Bolt Pattern
5x5"
Vehicle Bolt Pattern
5x4.5"
Thread Size
1/2"x20
Center Bore
71.5
Hub-Centric Lip
Yes
Thickness
1.25inch
Note1
Only for 5x4.5" Models with 5x5" Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 5x5" Wheel.
Outside Diameter
164
Inside Diameter
2.81 in/71.5 mm
Lug Patterns
5
Type
Wheel Adapter

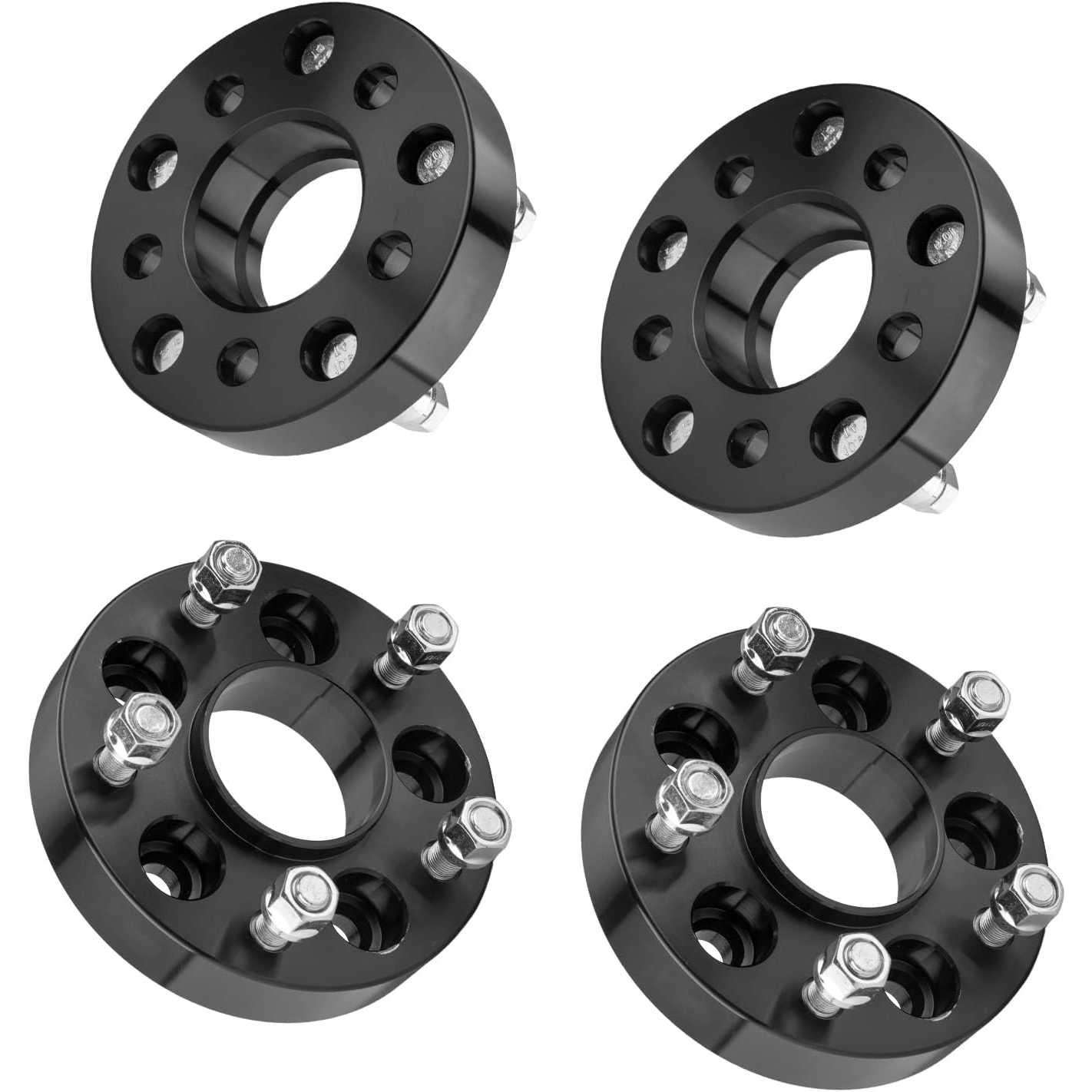

Items Included
4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
75-85 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • [Vehicle Application] --- The 5x4.5 to 5x5 Wheel Adapters set replacement for 1993-1998 Grand Chero-kee 4.0/5.2L 4WD N-Aturally Aspirated 242/318cid GAS L6/V8; 1990-1993 Cherokee 2.5/4.0L 4WD N-Aturally Aspirated 150/242cid GAS L4/L6; 1998 Grand Chero-kee 5.9L 4WD/AWD N-Aturally Aspirated 360cid GAS V8; 1996-1998 Grand Chero-kee 4.0/5.2L AWD N-Aturally Aspirated 242/318cid GAS L6/V8; 1990-1992 Comanche 2.5/4.0L 4WD N-Aturally Aspirated 150/242cid GAS L4/L6
  • [Wheel Adapters Specification] --- Vehicle Bolt Pattern: 5x4.5"(5x114.3mm) ; | Wheel Bolt Pattern: 5x5"(5x127mm) ; | Thickness: 1.25 inch ; | Thread Pitch: 1/2"x20 ; | Hub Bore: 71.5mm ; | Recommended torque: 75-85 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts

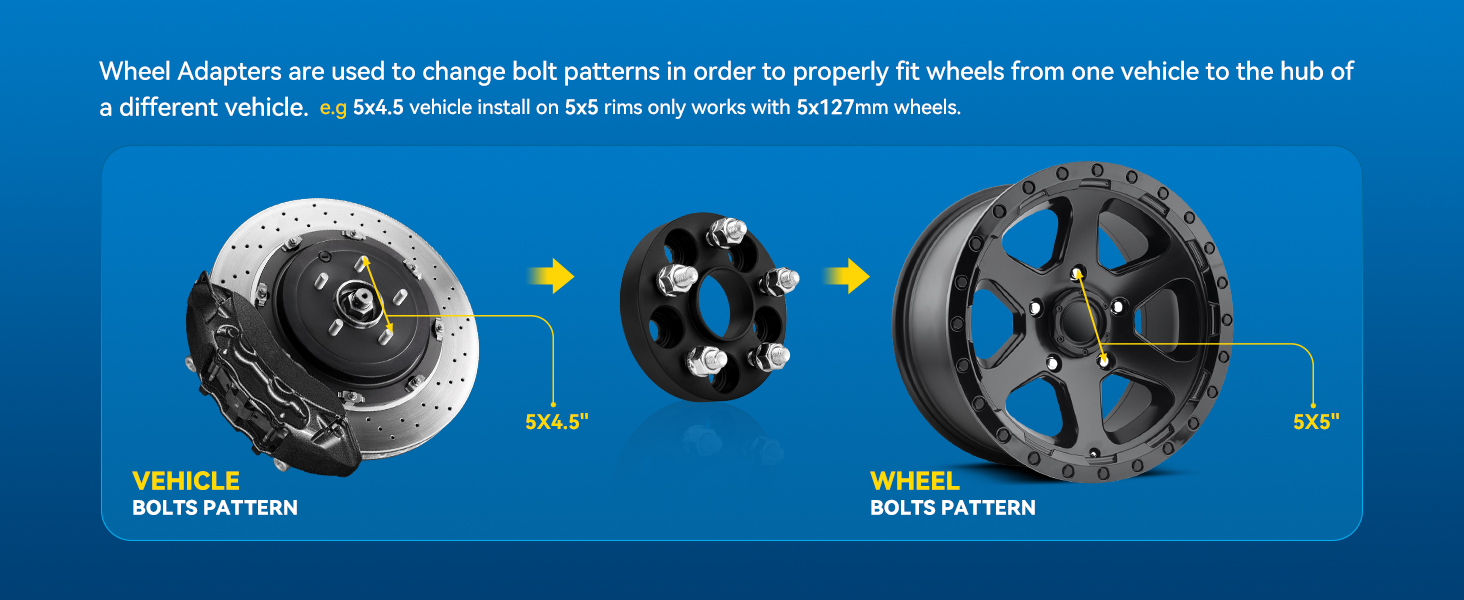

  • [Enhance Driving Experience] --- These 5x4.5 to 5x5 wheel adapters change bolt pattern,it help you to fit the wheel of one factory vehicle to the hub of a different vehicle. The Wheel Adapters can move your wheels further out from the wheel hub, mount larger wheel or tires. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability,giving an aggressive performance to your vehicle

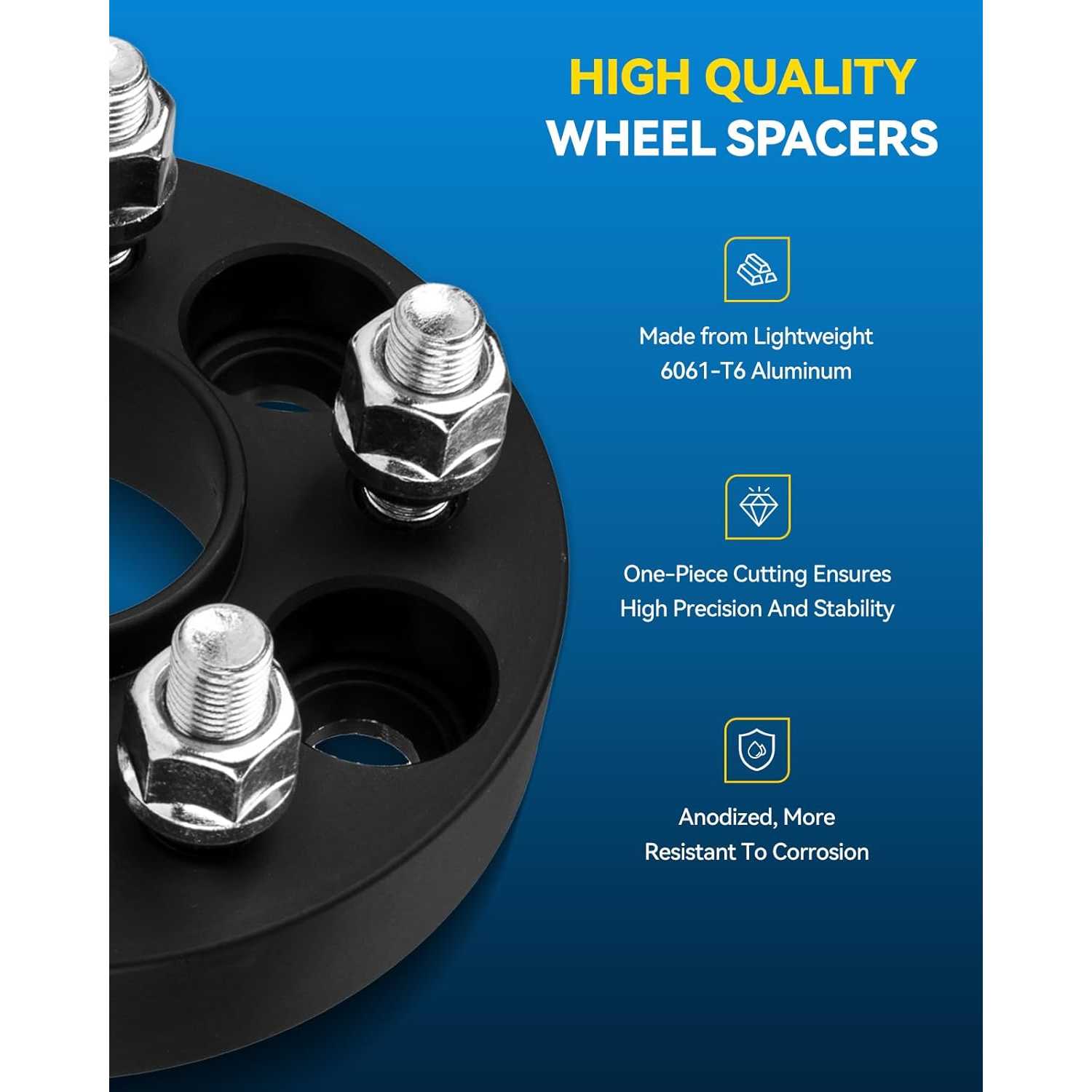

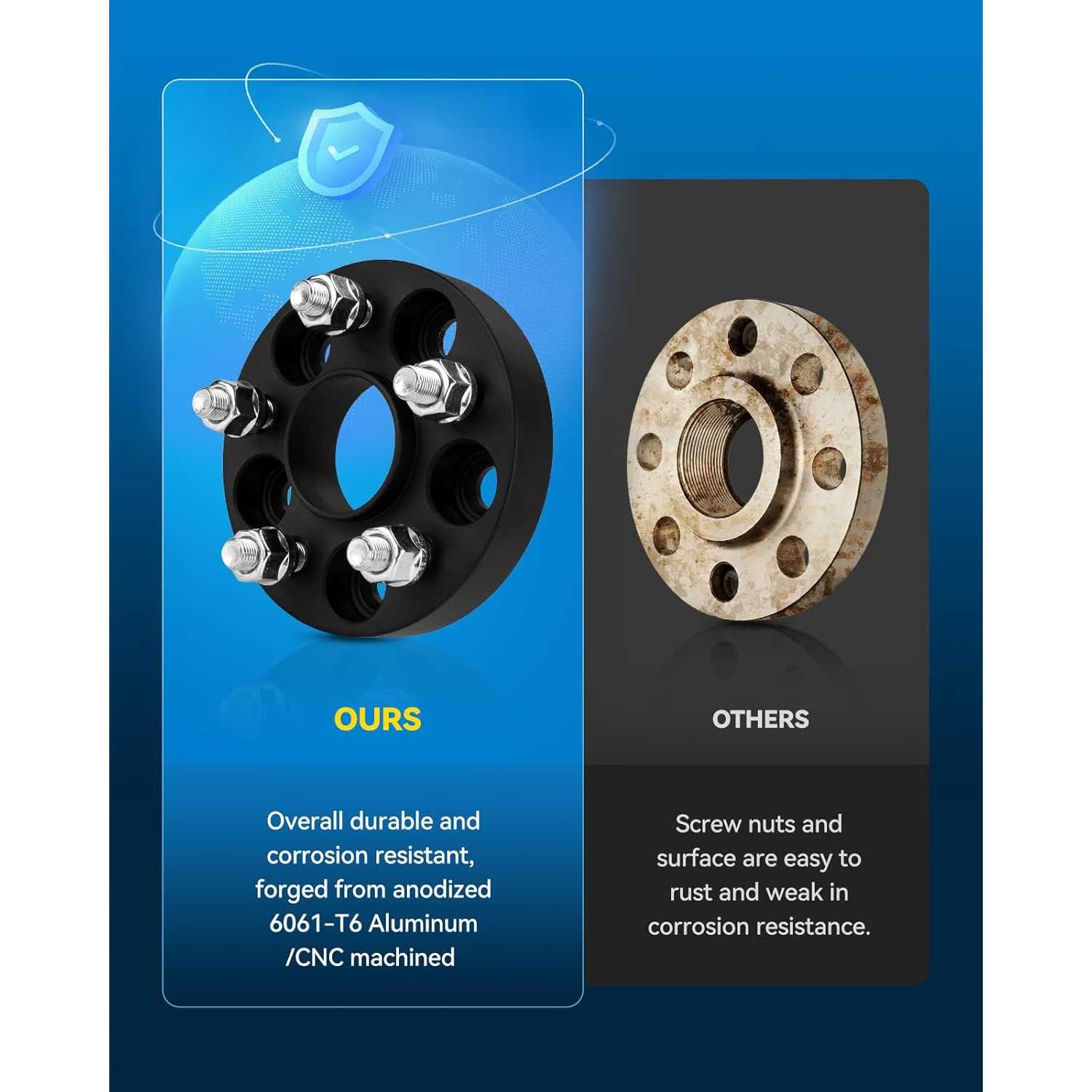

  • [Unsurpassed Quality] --- 5x4.5 to 5x5 Wheel Adapter is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 10.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Please Confirm] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1987 - 19881989 - 19901987 - 199019901987 - 19881989 - 19901987 - 19901990199019901987 - 19881989 - 19901987 - 199019901989198819891988 - 19901986 - 198719861986 - 19971990 - 19971988 - 19911990 - 19941986 - 198719861986 - 19941990 - 19941989 - 19941990 - 19941991 - 19941991 - 19941986 - 198719861986 - 19971990 - 19971989 - 19971990 - 19971991 - 19971991 - 19971985 - 19861984 - 198519861985 - 19861984 - 19851986 - 19901987 - 19901988 - 199019851984 - 19851985 - 19861984 - 19851986 - 19901989 - 19901992 - 20082010 - 20112006 - 20092002 - 20091992 - 20112004 - 20061993 - 20111992 - 2005200519922012 - 20142008 - 20142012 - 20142007 - 20142012 - 20142007 - 201420072009 - 20102011 - 20142012 - 20152016 - 20182011 - 20181991 - 20102002 - 20101996 - 200119952012 - 20152016 - 20182011 - 20181993 - 20102002 - 20101996 - 2001200420042016 - 20182000 - 20032013 - 20181991 - 20001991 - 19992000 - 20011999 - 200619992004 - 20052012 - 20152016 - 20182011 - 20181991 - 20102002 - 20101996 - 20012004 - 20052004 - 2005200520012007 - 20102007 - 201020022003 - 20052003 - 20052007 - 20102007 - 20102005 - 20072005 - 20062005 - 20072009 - 20182009 - 20182009 - 20182011 - 20122004 - 20072004 - 20072004 - 20052004 - 200720072004 - 20072004 - 20052011 - 20141994 - 200420042005 - 20102012 - 20132008 - 20091996 - 20101994 - 19952011 - 2014200119952003 - 20041996 - 199920012003 - 20041994 - 19952003200019952007 - 20082007 - 20122013 - 20142008 - 200919831985198319831985 - 19861983198519861987 - 19921987 - 19921991 - 19921990 - 19921998 - 20022001 - 20052001 - 20052005 - 20091988 - 1989200219841986 - 19881984198419861988 - 199219841991 - 19921990 - 1992199019901986 - 19901993 - 199520071986 - 19921991 - 19972005 - 20071990 - 19972006 - 20071993 - 199719981993 - 19981993 - 19981991 - 1993199720091991 - 19921991 - 199319972006 - 20081991 - 199319972006 - 2011200420041983 - 19851983 - 19841983 - 19861993 - 19972001 - 20111998 - 20011983 - 198519861993 - 20081993 - 19961998 - 20032005 - 20111995199519951983 - 19851983 - 19841983 - 19851983 - 19851983 - 19851983 - 19841983 - 19972001 - 20111998 - 20011983 - 19851986 - 19921991 - 20081990 - 20112013 - 20172008 - 20182013 - 20172009 - 20182013 - 20172008 - 20182010 - 20181985 - 19871984 - 19931984 - 19861987 - 19931991 - 19921985 - 19871985 - 19881985 - 19861987 - 198819961998 - 20011993 - 19971985 - 19871985 - 19891985 - 19861987 - 19921987 - 19921998 - 20011985 - 19871985 - 19891985 - 19861987 - 19901994 - 20001994 - 200119891989 - 20011998199319931993 - 19981993 - 19981993 - 19981993 - 199819951997199519971994 - 19951994 - 19951997 - 19981997 - 1998200620122005 - 20062002 - 20122002 - 20062010 - 201120052002 - 20052005 - 20062002 - 201220061987 - 19931991 - 19931987 - 19901989 - 19911991 - 19921988 - 19901987 - 19881987 - 19901991 - 199419952003 - 200619881991 - 199419882003 - 20061997 - 20021994 - 19952005 - 20061988 - 19911991 - 19951997 - 20041988 - 19901987 - 19881997 - 20061987 - 19882004 - 20062005 - 20062002 - 200619961991 - 19991982 - 19901991 - 20031982 - 19902001 - 20031991 - 199519902006 - 20071991 - 201019902001 - 2011200319932004 - 20061991 - 20071982 - 19902005 - 20112005 - 201119891991 - 199519971990199420042004
MakeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincoln
ModelDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarAerostarBronco IIBronco IIBronco IIBronco IIBronco IIBronco IIBronco IIBronco IIBronco IIBronco IIBronco IIBronco IIBronco IIBronco IICrown VictoriaCrown VictoriaCrown VictoriaCrown VictoriaCrown VictoriaCrown VictoriaCrown VictoriaCrown VictoriaCrown VictoriaCrown VictoriaEdgeEdgeEdgeEdgeEdgeEdgeEdgeEdgeEdgeExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorer Sport TracExplorer Sport TracExplorer Sport TracExplorer Sport TracExplorer Sport TracExplorer Sport TracExplorer Sport TracExplorer Sport TracExplorer Sport TracFive HundredFive HundredFive HundredFlexFlexFlexFlexFreestarFreestarFreestarFreestarFreestarFreestarFreestarMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerTaurusTaurusTaurusTaurusTaurusTaurusTaurusCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeLibertyLibertyLibertyLibertyLibertyLibertyLibertyLibertyLibertyLibertyWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown Car
TrimBaseBaseBaseBaseLELELELESSSESESESEShelbySportSportSportBaseBaseBaseBaseEddie BauerEddie BauerXLXLXLXLXL PlusXL PlusXL SportXL SportXLTXLTXLTXLTXLT PlusXLT PlusXLT SportXLT SportBaseBaseBaseEddie BauerEddie BauerEddie BauerXLXL SportXLSXLSXLTXLTXLTXLT PlusBaseBaseFleetLWBLXLX SportPolice InterceptorSSpecial EditionTouring SedanLimitedLimitedSESESELSELSEL PlusSportSportBaseBaseBaseEddie BauerEddie BauerEddie BauerExpeditionLimitedLimitedLimitedLimitedLimitedLimitedNBXNBXPlatinumPostalSportSportXLXL FleetXLSXLSXLS SportXLTXLTXLTXLTXLTXLTXLT SportXLT SportAdrenalinBaseLimitedLimitedXLXLSXLTXLTXLTLimitedSESELLimitedSESELTitaniumBaseLimitedSSESESELSESBaseBaseBaseBaseBoss 302BullittGTGTGTGT BullittGTSMach 1SVT CobraSVT CobraSVT CobraSVT CobraSVT Cobra 10th AnniversarySVT Cobra RSVT Cobra RShelby GTShelby GT500Shelby GT500Shelby GT500KRBaseBaseBaseBaseBaseBaseBaseBaseCustomCustomCustomCustomEVEdgeEdgeFX4GTPostalSSSSSSSSSS PlusS PlusSTXSTXSTXSTXSTXSTXSTXSTXSplashSplashSplashSplashSportSportSportSportSportSportSportSportSportSportTremorTremorXLXLXLXLXLXLXLXLXLXLXLXLXL SportXL SportXL SportXLSXLSXLSXLSXLTXLTXLTXLTXLTXLTXLTXLTXLTLimitedLimitedSESESELSELSHOBaseBaseBaseBaseBriarwoodChiefChiefChiefChiefClassicClassicCountryLaredoLaredoLaredoLaredoLimitedLimitedPioneerPioneerPioneerPioneerSESESportSport5.9 LimitedBaseBaseLaredoLaredoLimitedLimitedOrvisOrvisOrvisOrvisSESETSiTSi65th Anniversary EditionJetLimitedLimitedRenegadeRenegadeRocky Mountain EditionSportSportSport65th Anniversary EditionBaseBaseBaseIslanderIslanderIslanderLaredoLaredoRenegadeRio GrandeRubiconSSSSESESESESaharaSaharaSaharaSaharaSportSportSportUnlimitedUnlimited RubiconXAnniversaryBaseBaseCartierCartierCartier LCypressCypressDesigner SeriesExecutiveExecutiveExecutive LExecutive Protection SeriesJack NicklausProtection SeriesSignatureSignatureSignature LSignature LimitedSignature SETouring EditionTouring EditionTouring EditionTournament EditionUltimateUltimate L
Engine2.2L L42.5L L43.9L V65.2L V82.2L L42.5L L43.9L V65.2L V82.5L L43.9L V62.2L L42.5L L43.9L V65.2L V85.2L V82.2L L42.5L L43.9L V62.3L L42.8L V63.0L V64.0L V63.0L V64.0L V62.3L L42.8L V63.0L V64.0L V63.0L V64.0L V63.0L V64.0L V62.3L L42.8L V63.0L V64.0L V63.0L V64.0L V63.0L V64.0L V62.3L L42.8L V62.9L V62.3L L42.8L V62.9L V62.9L V62.9L V62.3L L42.8L V62.3L L42.8L V62.9L V62.9L V64.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V82.0L L43.5L V62.0L L43.5L V62.0L L43.5L V63.5L V63.5L V63.7L V62.0L L42.3L L43.5L V64.0L V64.6L V85.0L V84.0L V62.0L L42.3L L43.5L V64.0L V64.6L V85.0L V84.0L V64.6L V83.5L V64.0L V63.5L V64.0L V64.0L V64.0L V64.0L V65.0L V84.0L V62.0L L42.3L L43.5L V64.0L V64.6L V85.0L V84.0L V64.6L V84.0L V64.0L V64.0L V64.6L V84.0L V64.0L V64.0L V64.0L V64.6L V83.0L V63.0L V63.0L V63.5L V63.5L V63.5L V63.5L V63.9L V64.2L V63.9L V63.9L V64.2L V64.2L V63.9L V63.7L V63.8L V63.9L V64.0L V65.0L V84.6L V84.6L V85.0L V85.0L V84.6L V85.0L V84.6L V84.6L V84.6L V84.6L V85.0L V84.6L V85.4L V85.8L V84.6L V85.4L V85.8L V85.4L V82.0L L42.0L L42.2L L42.3L L42.3L L42.8L V62.8L V62.9L V62.3L L42.9L V63.0L V64.0L V6-3.0L V64.0L V64.0L V62.9L V6-2.0L L42.0L L42.2L L42.3L L42.3L L42.3L L42.8L V63.0L V64.0L V62.3L L44.0L V62.3L L42.3L L42.3L L42.9L V63.0L V63.0L V64.0L V64.0L V62.3L L42.5L L43.0L V64.0L V62.3L L42.3L L42.3L L42.9L V63.0L V63.0L V63.0L V64.0L V64.0L V64.0L V63.0L V64.0L V62.0L L42.2L L42.3L L42.3L L42.3L L42.5L L42.8L V62.9L V63.0L V64.0L V64.0L V64.0L V62.3L L43.0L V64.0L V62.0L L42.2L L42.3L L42.8L V62.0L L42.2L L42.3L L42.3L L42.5L L42.8L V62.9L V63.0L V64.0L V62.0L L43.5L V62.0L L43.5L V62.0L L43.5L V63.5L V62.1L L42.5L L42.8L V64.0L L64.0L L62.1L L42.5L L42.8L V64.0L L64.0L L64.0L L64.0L L62.1L L42.5L L42.8L V64.0L L64.0L L64.0L L62.1L L42.5L L42.8L V64.0L L62.5L L44.0L L62.5L L44.0L L65.9L V84.0L L65.2L V84.0L L65.2L V84.0L L65.2L V84.0L L64.0L L65.2L V85.2L V84.0L L65.2L V84.0L L65.2L V83.7L V63.7L V62.8L L43.7L V63.7L V63.7L V63.7L V62.4L L42.8L L43.7L V64.0L L62.5L L44.0L L64.2L L62.5L L44.0L L64.2L L62.5L L44.2L L64.0L L62.5L L44.0L L62.5L L42.5L L44.2L L62.4L L42.5L L44.0L L64.0L L62.5L L44.0L L64.0L L64.2L L62.5L L44.0L L64.2L L64.0L L64.0L L64.0L L64.6L V84.6L V85.0L V84.6L V85.0L V84.6L V84.6L V85.0L V84.6L V84.6L V85.0L V84.6L V84.6L V84.6L V84.6L V84.6L V85.0L V84.6L V84.6L V85.0L V84.6L V84.6L V85.0L V84.6L V84.6L V84.6L V8
Note---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

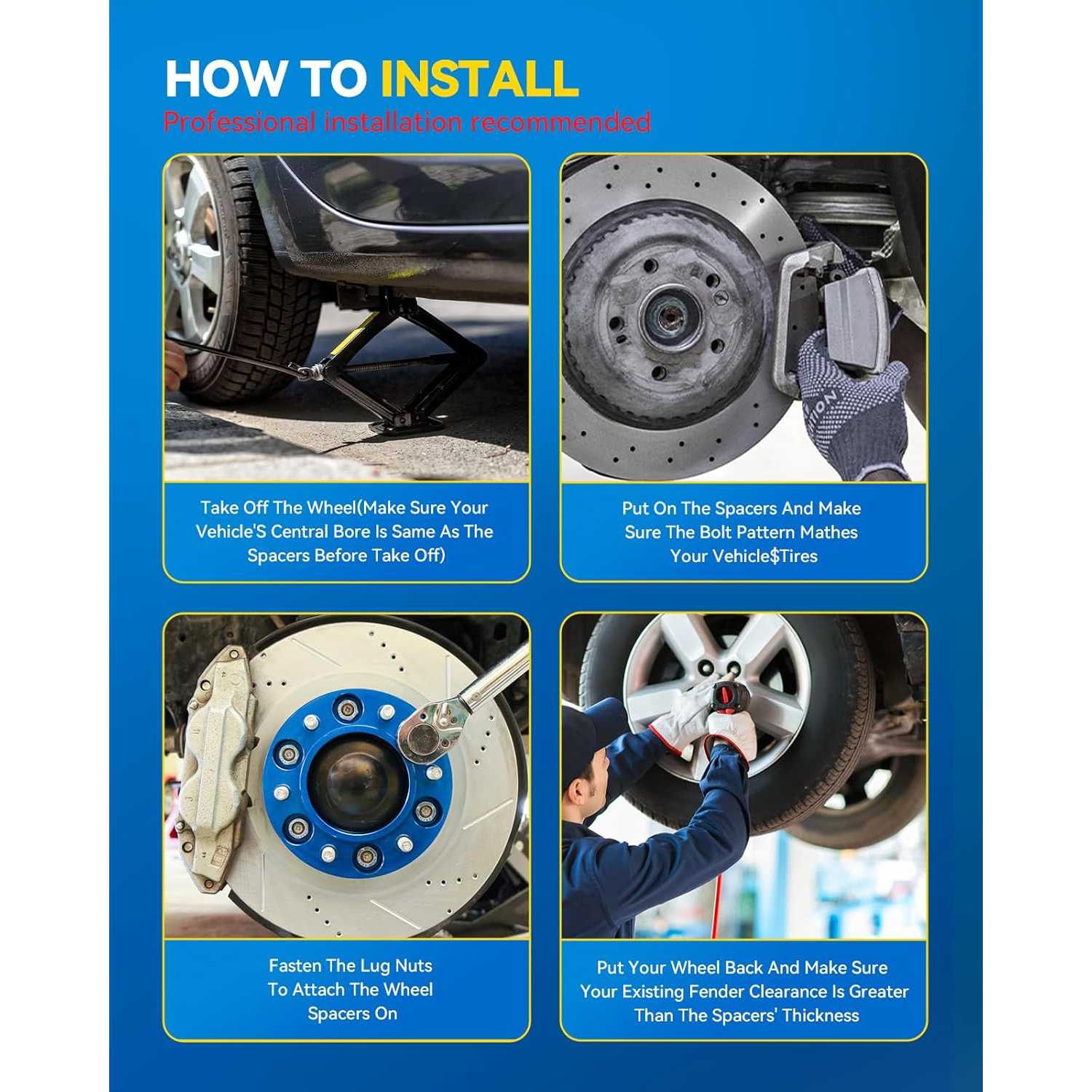

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

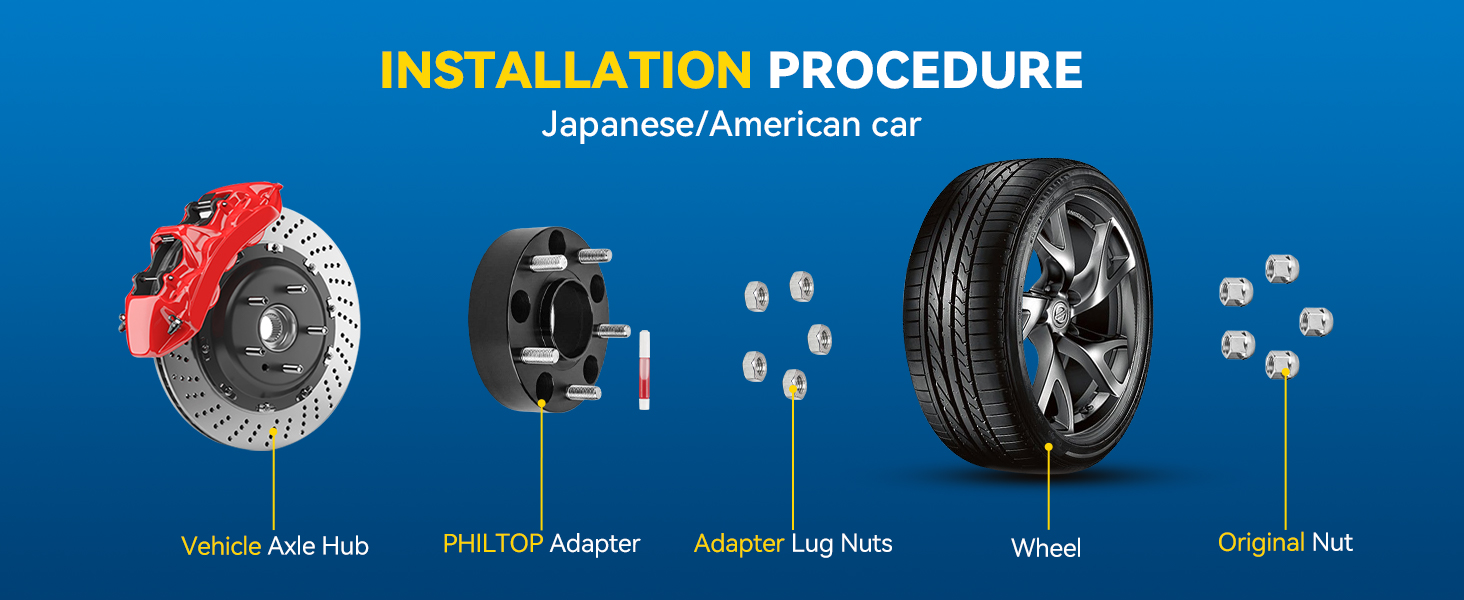

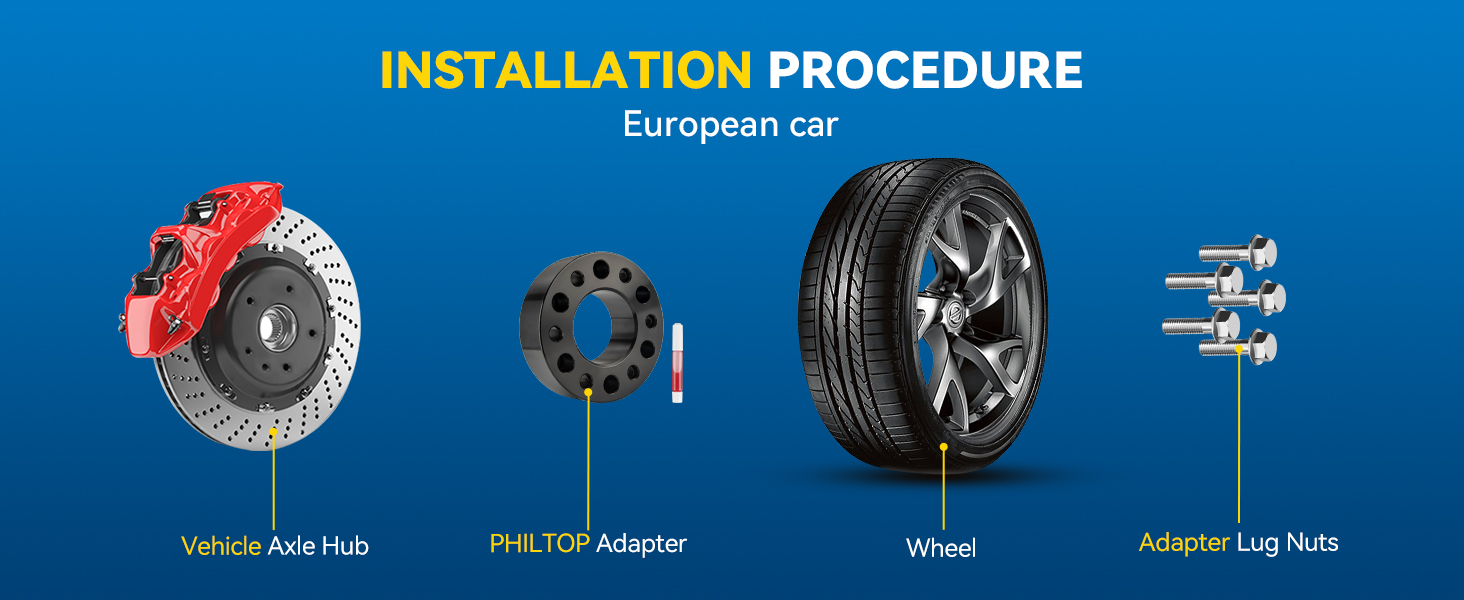

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

4.7/5

Based on 10 reviews

570%
430%
30%
20%
10%

Kcc

01/22/2025

I purchased these for my 1997 Jeep Cherokee XJ. I run a high pinion Dana 30 and a Chrysler 8.25 rear. Stock I have 3/4” of stud showing on both axles. I was able to get about 7/16” of the new nut over the stud with spacer in place. I wish it was more but I think they will work. Haven’t run them on the car yet. My old Dana 35 axle also shows 3/4” stud so it should work on that axle too.

Newt C.

04/08/2025

Everything going well low mileage

FAQS

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
