1987-1995 Jeep Wrangler 4.0L L6 | 5x4.5" to 5x5" 71.5mm Center Bore 1/2 Thread Wheel Hub Accessory - PHILTOP

1987-1995 Jeep Wrangler 4.0L L6 | 5x4.5" to 5x5" 71.5mm Center Bore 1/2 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
11ISWSA078007US

Specifications

Brand
PHILTOP
Bolt Pattern
5x4.5 To 5x5"
Wheel Bolt Pattern
5x5
Vehicle Bolt Pattern
5x4.5
Thread Size
1/2
Center Bore
71.5
Hub-Centric Lip
Yes
Thickness
2inch
Note1
Only for 5x4.5
Note2
Not for Original Wheel,Only Work with 5x5
Outside Diameter
164
Inside Diameter
2.81 in/71.5 mm
Lug Patterns
5
Type
Wheel Adapter
Items Included
4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
75-85 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

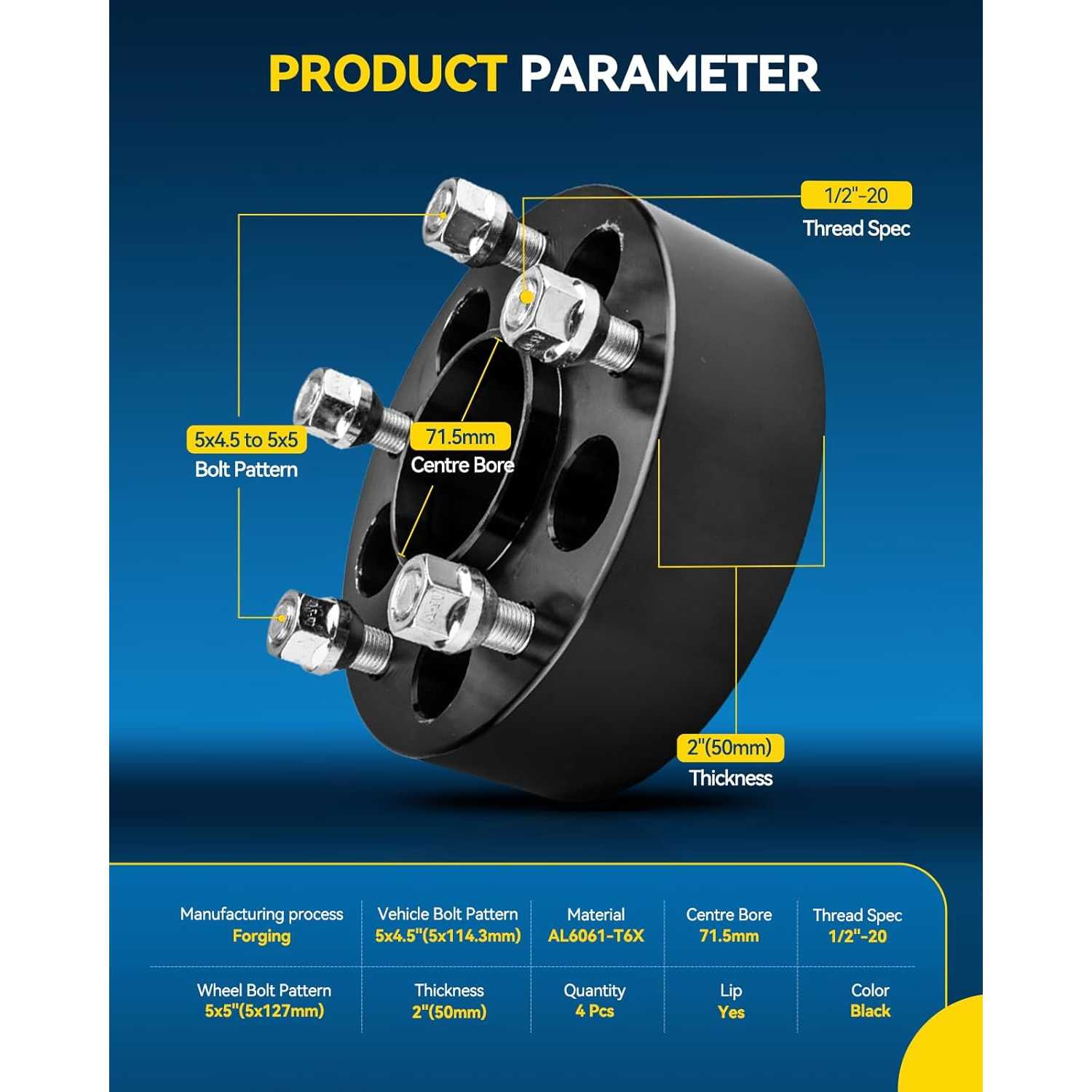

  • [Wheel Adapters Specification] --- Vehicle Bolt Pattern: 5x4.5"(5x114.3mm) ; | Wheel Bolt Pattern: 5x5"(5x127mm) ; | Thickness: 2 inch(50.8mm) ; | Thread Pitch: 1/2"x20 ; | Hub Bore: 71.5mm ; | Recommended torque: 75-85 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 5x4.5 to 5x5 Wheel Adapters set replacement for ALL For:; 1990-1993 Cherokee 2.5/4.0L 4WD Naturally Aspirated 150/242cid GAS L4/L6; 1989 Cherokee 2.5/4.0L RWD Naturally Aspirated 150/242cid GAS L4/L6; Front For:; 1993-1998 Grand Cherokee 4.0/5.2L 4WD Naturally Aspirated 242/318cid GAS L6/V8; 1998 Grand Cherokee 5.9L 4WD/AWD Naturally Aspirated 360cid GAS V8; 1996-1998 Grand Cherokee 4.0/5.2L AWD Naturally Aspirated 242/318cid GAS L6/V8; 1990-1992 Comanche 2.5/4.0L

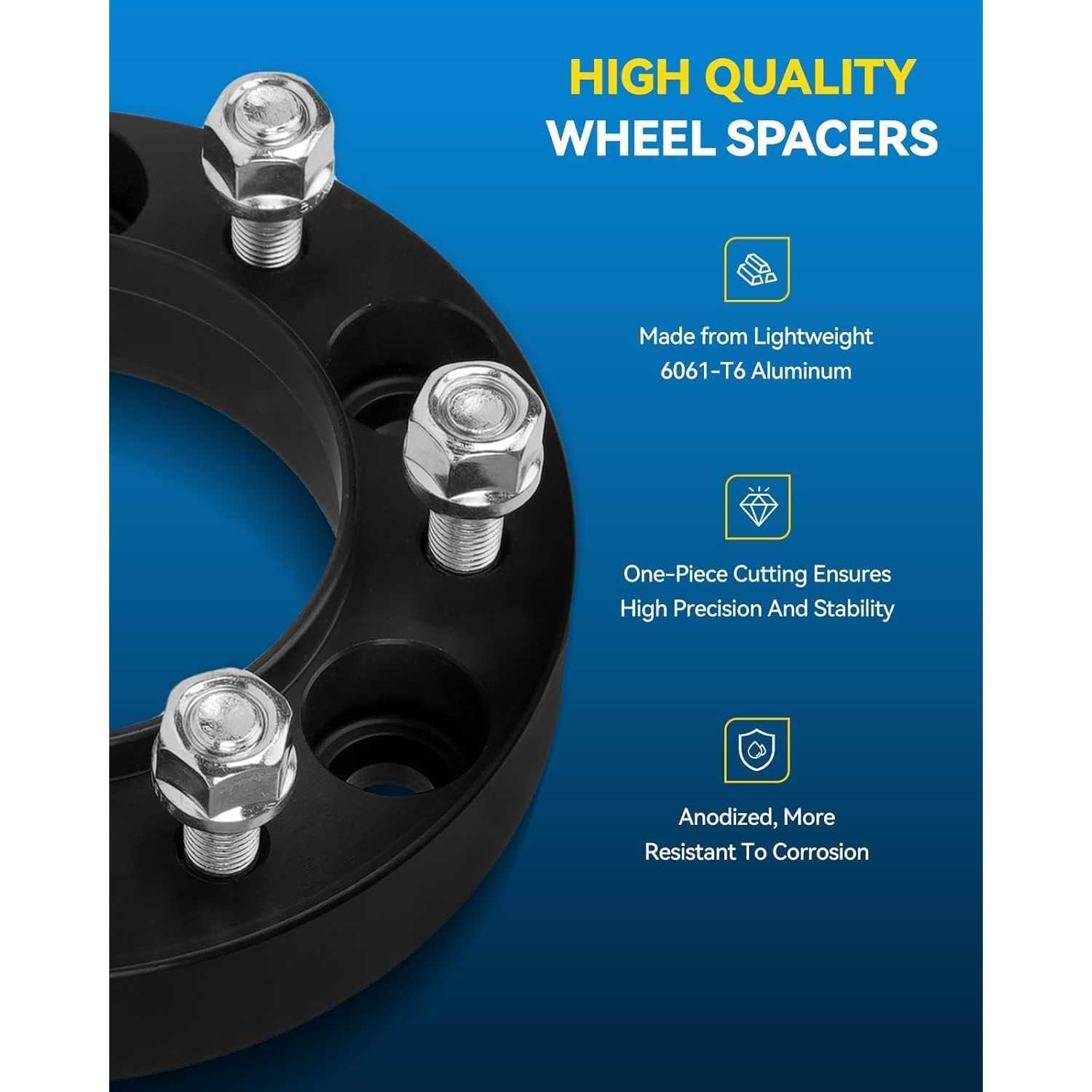

  • [High Quality] --- 5x4.5 to 5x5 Wheel Adapter is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving

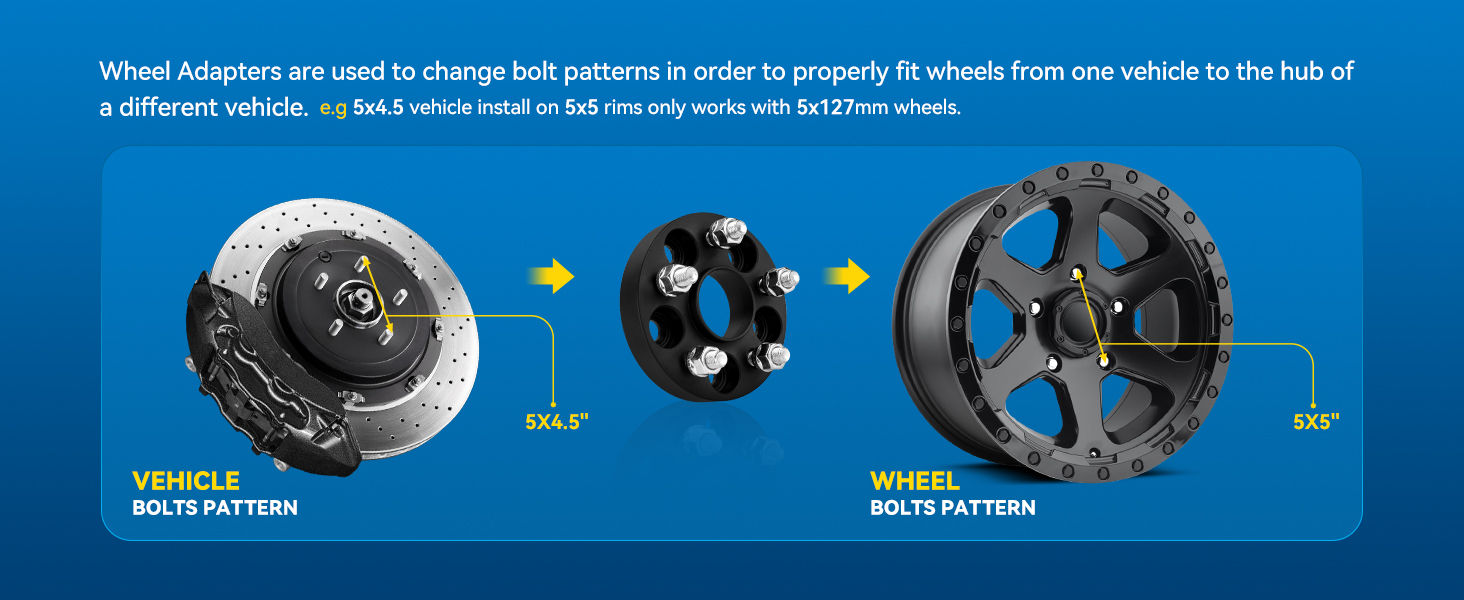

  • [Aggressive Driving Experience] --- These 5x4.5 to 5x5 wheel adapters change bolt pattern,it help you to fit the wheel of one factory vehicle to the hub of a different vehicle. The Wheel Adapters can move your wheels further out from the wheel hub, mount larger wheel or tires. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability,giving an aggressive performance to your vehicle
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

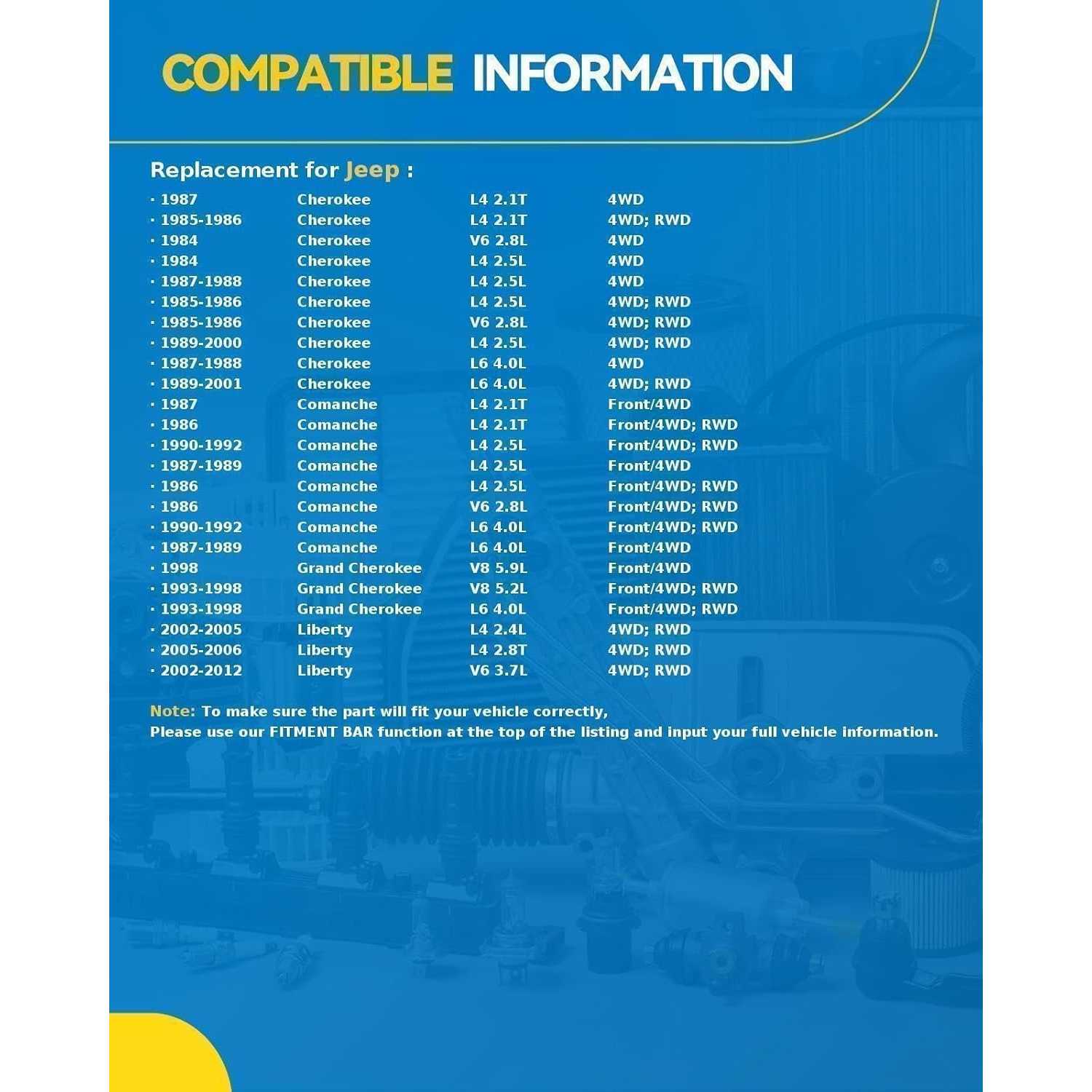

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1985 - 19871984 - 19931984 - 19861987 - 19931991 - 19921985 - 19871985 - 19881985 - 19861987 - 198819961998 - 20011993 - 19971985 - 19871985 - 19891985 - 19861987 - 19921987 - 19921998 - 20011985 - 19871985 - 19891985 - 19861987 - 19901994 - 20001994 - 200119891989 - 2001200620122005 - 20062002 - 20122002 - 20062010 - 201120052002 - 20052005 - 20062002 - 201220061987 - 19931991 - 19931987 - 19901989 - 19911991 - 19921988 - 19901987 - 19881987 - 19901991 - 199419952003 - 200619881991 - 199419882003 - 20061997 - 20021994 - 19952005 - 20061988 - 19911991 - 19951997 - 20041988 - 19901987 - 19881997 - 20061987 - 19882004 - 20062005 - 20062002 - 2006
MakeJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeLibertyLibertyLibertyLibertyLibertyLibertyLibertyLibertyLibertyLibertyWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWrangler
TrimBaseBaseBaseBaseBriarwoodChiefChiefChiefChiefClassicClassicCountryLaredoLaredoLaredoLaredoLimitedLimitedPioneerPioneerPioneerPioneerSESESportSport65th Anniversary EditionJetLimitedLimitedRenegadeRenegadeRocky Mountain EditionSportSportSport65th Anniversary EditionBaseBaseBaseIslanderIslanderIslanderLaredoLaredoRenegadeRio GrandeRubiconSSSSESESESESaharaSaharaSaharaSaharaSportSportSportUnlimitedUnlimited RubiconX
Engine2.1L L42.5L L42.8L V64.0L L64.0L L62.1L L42.5L L42.8L V64.0L L64.0L L64.0L L64.0L L62.1L L42.5L L42.8L V64.0L L64.0L L64.0L L62.1L L42.5L L42.8L V64.0L L62.5L L44.0L L62.5L L44.0L L63.7L V63.7L V62.8L L43.7L V63.7L V63.7L V63.7L V62.4L L42.8L L43.7L V64.0L L62.5L L44.0L L64.2L L62.5L L44.0L L64.2L L62.5L L44.2L L64.0L L62.5L L44.0L L62.5L L42.5L L44.2L L62.4L L42.5L L44.0L L64.0L L62.5L L44.0L L64.0L L64.2L L62.5L L44.0L L64.2L L64.0L L64.0L L64.0L L6
Note-----------------------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

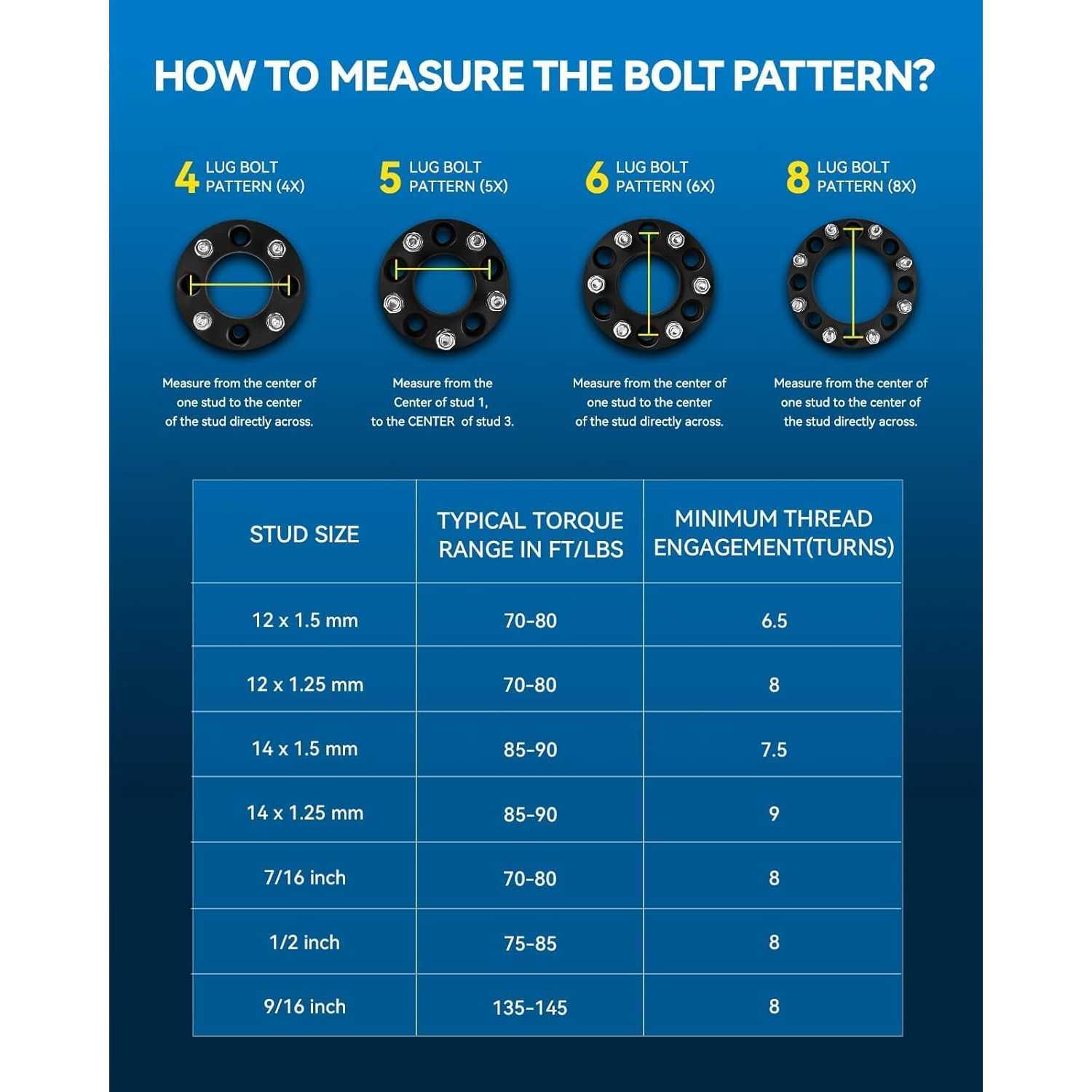

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

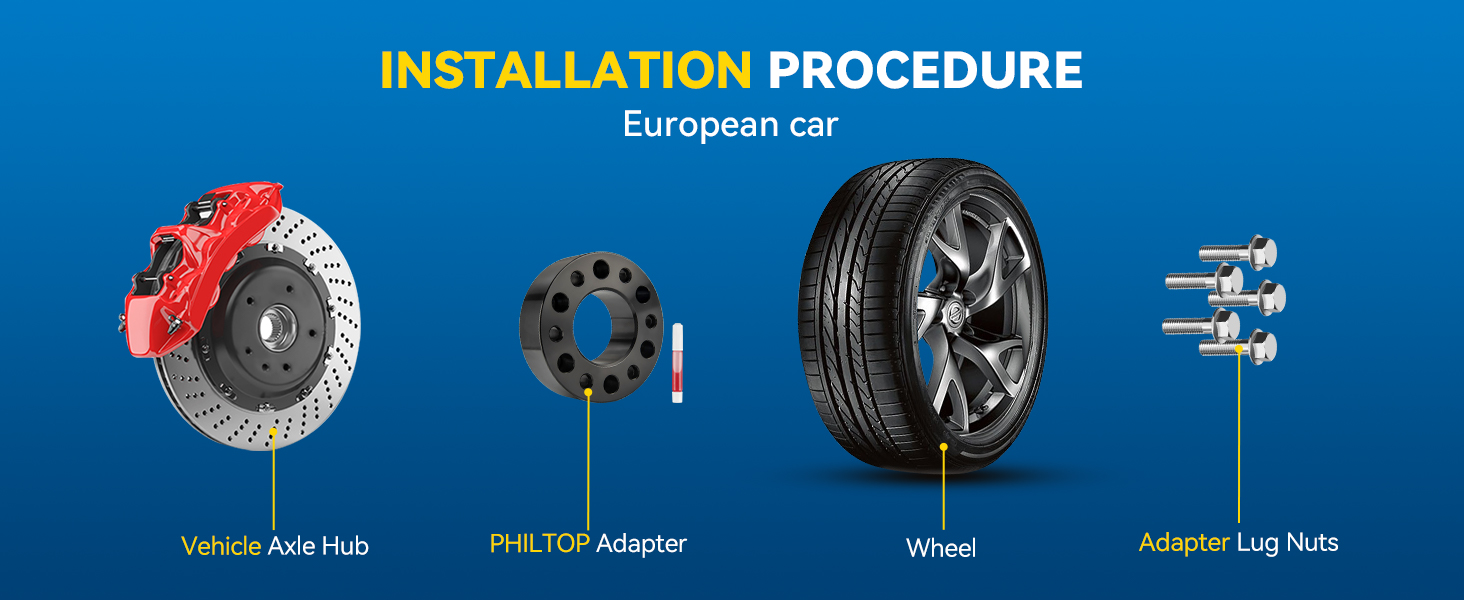

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

4.9/5

Based on 69 reviews

588%
49%
33%
20%
10%

Customer photos and videos

Charlie McCulloughCharlie McCullough

01/16/2026

Verified buyer

I have already installed them and they did give me a lot more clearance but I am going to have to trim some of the front fender wells to prevent scrubbing. I kind of expected that though so no fault to the manufacturer.

manny v

09/14/2025

Verified buyer

Very quick shipment, easy to install. Nice fit and finish .Seem to be very nice quality

FAQS

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.
