2002-2024 Nissan Altima 2.5L L4 | 5x4.5" 66.1mm Center Bore M12x1.25 Thread Wheel Hub Accessory - PHILTOP

2002-2024 Nissan Altima 2.5L L4 | 5x4.5" 66.1mm Center Bore M12x1.25 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
71ISWSA019007US

Specifications

Brand
PHILTOP
Bolt Pattern
5x4.5"
Wheel Bolt Pattern
5x4.5"
Vehicle Bolt Pattern
5x4.5"
Thread Size
M12x1.25
Center Bore
66.1
Hub-Centric Lip
Yes
Thickness
25mm
Outside Diameter
150
Inside Diameter
2.6 in/66.1 mm
Lug Patterns
5
Type
Wheel Spacer
Items Included
4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Vehicle Application] --- The 5x4.5 Wheel Spacer set replacement for 2002-2019 Altima; 2008-2019 Rogue; 2013-2019 Sentra; Pathfinder; NV200; 2009-2019 Murano; 37-0Z; GT-R; 1989-2014 Maxima; 2014-2019 QX60; Q50; Q70; 2008-2013 G37; 2003-2008 G35; FX45; 2011-2017 Juke; Quest; 2016-2018 Maxima; 2003-2007 Murano; 2017-2018 Rogue Sport; 2011-2019 LEAF; 2014-2015 Rogue Select; Q60; 2003-2009 350Z; 2003-2012 FX35; 2004-2009 Quest; 2014-2017 QX50; QX70; 1993-2002 Quest; 2013 JX35; 2019 QX50; 1
  • [Wheel Spacers Specification] --- Bolt Pattern: 5x4.5"(5x114.3mm) ; | Thickness: 25mm(1 inch) ; | Thread Pitch: M12x1.25 ; | Hub Bore: 66.1mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Enhance Driving Experience] --- These 5x4.5 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance

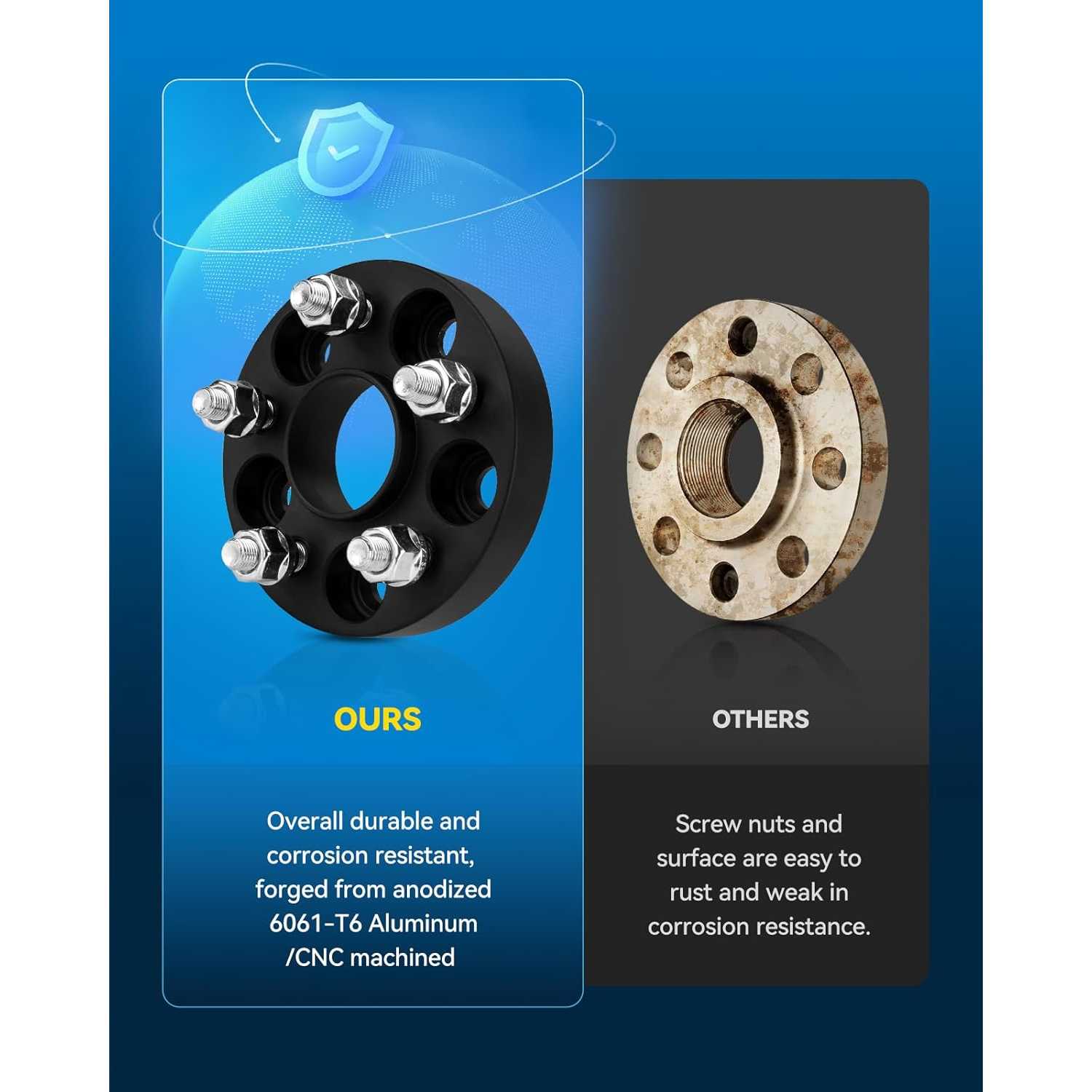

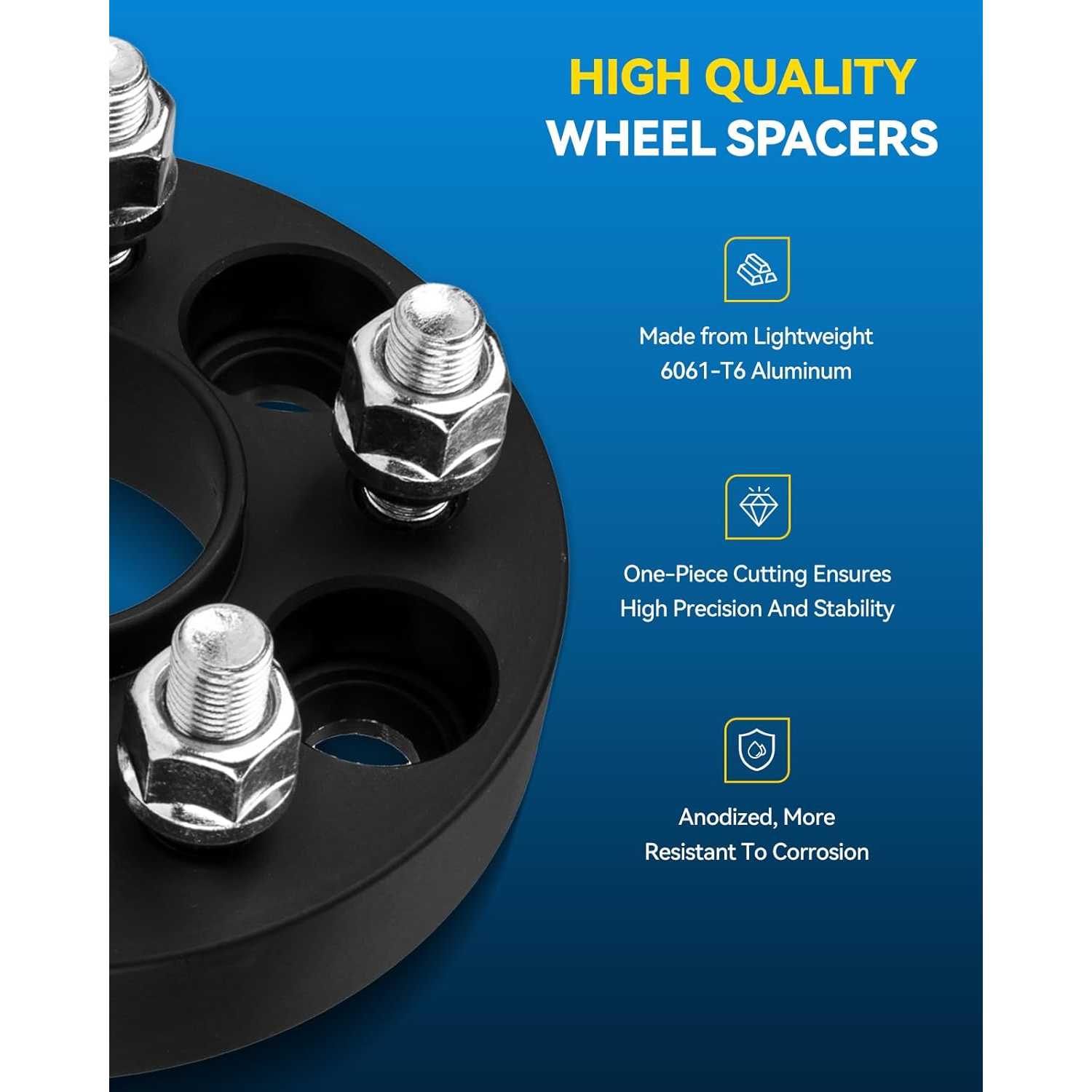

  • [Unsurpassed Quality] ---5x4.5 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Please Confirm] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2015 - 20182015 - 20182008 - 20122008 - 2012201320132003 - 201220132003 - 20082009 - 20132011 - 20122011 - 20122011 - 201220032004 - 20062007200820072008200720082004 - 20062007200820082009 - 20132011 - 201320082009 - 201320082009 - 20132009 - 20131996 - 20011996 - 20012002 - 20041993 - 19971993 - 199720131990 - 19922006 - 20102006 - 20072006 - 2010201220132011 - 201220132011 - 201220132003 - 20042006 - 20072008 - 20102006 - 20072008 - 20102011 - 201220132011 - 2012201320151991 - 199620001997 - 20011990 - 19962002 - 20061997 - 20011994 - 19962016 - 20172014 - 2015202020182014 - 20172014 - 20152018201920182019 - 20222023 - 20242016 - 20172016 - 20172014 - 2015201820192020 - 20212016 - 20182019 - 20222023 - 20242021 - 20222023 - 20242019202120172016 - 20182019 - 20202014 - 201520172014 - 20152014 - 20152014 - 2015201820182019 - 20222017201720182019 - 20222017 - 20182019 - 20222014 - 201520152017 - 20182014 - 201720182014 - 2017201820192014 - 201820192015 - 2017201820192015 - 20172018201920202021 - 20242014 - 20172019 - 20202021 - 20222014 - 20152019 - 20202021 - 20242019 - 20202021 - 202420202021 - 20242023 - 20242022 - 20242022 - 20242022 - 20242022 - 20242014 - 20152016 - 20182014 - 20152016 - 20172019 - 20202022 - 20242019 - 20202022 - 20242022 - 20242014 - 201720141999 - 20021999 - 20021993 - 19961997 - 19981993 - 19961997 - 19981994 - 19961997 - 19981999 - 20021995 - 19981997 - 19981995 - 19981984 - 19961984 - 19961984 - 199620052003 - 20082003 - 20092005 - 20092007 - 20082003 - 20052003 - 20092003 - 200620102009 - 20202018 - 20192009 - 20172019 - 20202015 - 20182015 - 20202015 - 20182019 - 20202009 - 20192015 - 20182023 - 20242023 - 20242023 - 20242023 - 20242023 - 20242023 - 20242002 - 2004200620072008 - 20122013 - 2017201920072008 - 20112019 - 20202019 - 20222002 - 200620072008 - 20122013 - 20182019 - 20242013 - 20152002 - 200620072008 - 20092005 - 20062002 - 20062010 - 20122013 - 20182019 - 20242005 - 200620072008 - 20092013 - 20182019 - 20242016 - 20182019 - 20242010 - 20122016 - 20172013 - 20182019 - 20242013 - 20152009 - 20122009 - 20112009 - 20142009 - 201420202009 - 20102012 - 20162015 - 20182009 - 20182019 - 20212023 - 2024201820192014 - 20152018201320142015 - 201720142015 - 20172011 - 201320142015 - 20172011 - 201320142015 - 20172011 - 201320142015 - 20172019 - 20222019 - 20222019 - 20222013 - 20172018 - 20222019 - 20222011 - 20172018 - 20192019 - 20222011 - 20172018 - 20222019 - 202220211995 - 20012002 - 20031989 - 19941995 - 20012002 - 20032016 - 2019202020212022 - 202320202009 - 20142016 - 201920201989 - 19941995 - 20012002 - 20032004 - 200820012004 - 20082016 - 201920202016 - 2019202020212022 - 20232009 - 20142016 - 2019202020212022 - 20232011 - 20142009 - 201420222015 - 20182019 - 202420162005 - 20072009 - 20142015 - 20182019 - 20232003 - 20072003 - 20072009 - 20142015 - 20182019 - 202420162011 - 20142015 - 20182019 - 20242013 - 201520162017 - 20212013 - 201520162017 - 20212014 - 201520162017 - 20192013 - 20152016 - 2020202220142013 - 20152016 - 202020222013 - 20152016 - 2020202220142013 - 20152016 - 2020202220142005 - 20091999 - 20021993 - 19961997 - 19981999 - 20022011 - 20142015 - 20172004 - 20092011 - 20171999 - 20022004 - 20092004 - 20092011 - 20172011 - 20171993 - 19961997 - 1998201020232021 - 202420212021 - 20242008 - 200920102011 - 20132014 - 2020202120112021 - 20242008 - 200920102014 - 202020212017 - 20192021 - 20242011 - 20132014 - 202020212017 - 20192014 - 20152017 - 20202021 - 20222017 - 20202021 - 20222017 - 20202021 - 20222007 - 201120122013 - 20162013 - 20142017 - 20192013 - 20192007 - 201120122020 - 20242007 - 201120122007 - 201120122013 - 20192007 - 201120122013 - 20192009 - 201120122020 - 20242017 - 20192013 - 20192020 - 202420242023 - 202420232023 - 2024
MakeChevroletChevroletINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIINFINITIMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissan
ModelCity ExpressCity ExpressEX35EX35EX37EX37FX35FX37FX45FX50G25G25G25G35G35G35G35G35G35G35G35G35G35G35G37G37G37G37G37G37G37G37I30I30I35J30J30JX35M30M35M35M35M35hM35hM37M37M37M37M45M45M45M45M45M56M56M56M56Q40Q45Q45Q45Q45Q45Q45Q45Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q50Q60Q60Q60Q60Q60Q60Q60Q60Q60Q60Q60Q60Q60Q60Q60Q60Q70Q70Q70Q70Q70Q70Q70Q70LQ70LQ70LQ70LQ70LQ70LQX50QX50QX50QX50QX50QX50QX50QX50QX50QX50QX50QX50QX50QX55QX55QX55QX60QX60QX60QX60QX60QX60QX60QX60QX60QX60QX70QX70VillagerVillagerVillagerVillagerVillagerVillagerVillagerVillagerVillager240SX240SX240SX300ZX300ZX300ZX350Z350Z350Z350Z350Z350Z350Z350Z370Z370Z370Z370Z370Z370Z370Z370Z370Z370Z370ZARIYAARIYAARIYAARIYAARIYAARIYAAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaCubeCubeCubeCubeGT-RGT-RGT-RGT-RGT-RGT-RGT-RGT-RGT-RGT-RGT-RJukeJukeJukeJukeJukeJukeJukeJukeJukeJukeJukeJukeJukeJukeKicksKicksKicksLEAFLEAFLEAFLEAFLEAFLEAFLEAFLEAFLEAFMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMaximaMuranoMuranoMuranoMuranoMuranoMuranoMuranoMuranoMuranoMuranoMuranoMuranoMuranoMuranoMuranoMuranoMuranoMuranoMuranoNV200NV200NV200NV200NV200NV200NV200NV200NV200PathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderQuestQuestQuestQuestQuestQuestQuestQuestQuestQuestQuestQuestQuestQuestQuestQuestRogueRogueRogueRogueRogueRogueRogueRogueRogueRogueRogueRogueRogueRogueRogueRogueRogueRogueRogueRogueRogueRogueRogue SelectRogue SportRogue SportRogue SportRogue SportRogue SportRogue SportSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraSentraZZZZ
TrimLSLTBaseJourneyBaseJourneyBaseBaseBaseBaseBaseJourneyXBaseBaseBaseBaseJourneyJourneySportSportXXXBaseBaseIPLJourneyJourneySportSportXBaseTBaseBaseTBaseBaseBaseSportXBaseBaseBaseBaseXXBaseBaseBaseSportXBaseBaseXXBaseAAnniversary EditionBaseBaseBaseTTBaseBaseEdition 30Hybrid LuxeHybrid PremiumHybrid SportLuxeLuxeLuxeLuxeLuxePremiumPremiumPremiumPurePurePureRed Sport 400Red Sport 400Red Sport 400SensorySensorySignature EditionSignature EditionSportSportSportSportBaseBaseIPLJourneyLuxeLuxeLuxePremiumPremiumPurePureRed Sport 400Red Sport 400SS LimitedSport3.73.7 Luxe5.65.6 Luxe5.6 LuxeHybridLuxe3.73.7 Luxe3.7 Luxe5.65.6 Luxe5.6 LuxeAutographAutographBaseEssentialEssentialJourneyLuxeLuxePurePureSensorySensorySportEssentialLuxeSensoryAutographBaseBaseHybridHybridLuxeLuxePurePureSensoryBaseBaseBaseEstateGSGSLSLSNauticaNauticaSportBaseLESE2+2BaseTurbo35th Anniversary EditionBaseEnthusiastGrand TouringNismoPerformanceTouringTrack40th Anniversary EditionBaseHeritage EditionNismoNismoNismo TechSportSport TechSport TouringTouringTouring SportEmpower+EngageEngage+Evolve+Platinum+Venture+BaseBaseBaseBaseBaseEdition ONEHybridHybridPlatinumPlatinumSSSSSSSESESESE-RSLSLSLSLSLSLSLSLSRSRSRSRSRSVSVSVBaseKromSSL50th Anniversary EditionBaseBlack EditionNismoPremiumPremiumPremiumPurePureTrack EditionTrack EditionNismoNismoNismoNismo RSNismo RSSSSSLSLSLSVSVSVSSRSVSSS PlusSLSLSL PlusSVSVSV Plus40th Anniversary EditionGLEGLEGXEGXEGXEPlatinumPlatinumPlatinumPlatinumPlatinum ReserveSSSSESESESESE 20th Anniversary EditionSLSLSLSRSRSRSRSVSVSVSVSVCrossCabrioletLEMidnight EditionPlatinumPlatinumPlatinum HybridSSSSSESLSLSLSLSL HybridSVSVSVSSSSVSVSVTaxiTaxiTaxiPlatinumPlatinumPlatinumPlatinum HybridSSSSLSLSLSL HybridSVSVSVSV HybridBaseGLEGXEGXEGXELEPlatinumSSSESESLSLSVXEXEKromMidnight EditionPlatinumPlatinumSSSSSSS KromSLSLSLSLSLSL HybridSVSVSVSVSV HybridSSSSLSLSVSVBaseBaseFE+SFE+SVNismoSSSSSE-RSE-RSE-R Spec VSE-R Spec VSLSLSLSRSRSRSRSR TurboSVSVNismoPerformanceProto SpecSport
Engine2.0L L42.0L L43.5L V63.5L V63.7L V63.7L V63.5L V63.7L V64.5L V85.0L V82.5L V62.5L V62.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.7L V63.7L V63.7L V63.7L V63.7L V63.7L V63.7L V63.7L V63.0L V63.0L V63.5L V63.0L V63.0L V63.5L V63.0L V63.5L V63.5L V63.5L V63.5L V63.5L V63.7L V63.7L V63.7L V63.7L V64.5L V84.5L V84.5L V84.5L V84.5L V85.6L V85.6L V85.6L V85.6L V83.7L V64.5L V84.1L V84.1L V84.5L V84.5L V84.1L V84.5L V82.0L L43.7L V63.0L V63.5L V63.5L V63.5L V62.0L L42.0L L43.0L V63.0L V63.0L V62.0L L43.0L V63.7L V62.0L L42.0L L43.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V62.0L L43.0L V63.0L V63.7L V62.0L L43.7L V63.7L V63.7L V62.0L L43.0L V63.0L V62.0L L43.0L V62.0L L43.0L V63.0L V63.0L V63.7L V63.7L V63.0L V63.7L V63.7L V65.6L V85.6L V85.6L V83.5L V63.7L V63.7L V63.7L V63.7L V65.6L V85.6L V85.6L V82.0L L42.0L L43.7L V62.0L L42.0L L43.7L V62.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L43.5L V63.5L V63.5L V62.5L L42.5L L43.5L V63.5L V63.5L V63.5L V63.5L V63.7L V65.0L V83.3L V63.3L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.3L V62.4L L42.4L L42.4L L43.0L V63.0L V63.0L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.7L V63.7L V63.7L V63.7L V63.7L V63.7L V63.7L V63.7L V63.7L V63.7L V63.7L V6------2.5L L42.5L L42.5L L42.5L L42.5L L42.0L L42.5L L42.5L L42.0L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L43.5L V63.5L V63.5L V63.5L V63.5L V62.5L L42.5L L42.5L L42.5L L43.5L V63.5L V63.5L V63.5L V62.0L L42.5L L42.5L L43.5L V63.5L V62.5L L42.5L L43.5L V61.8L L41.8L L41.8L L41.8L L43.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V61.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L4---------3.5L V63.0L V63.5L V63.0L V63.0L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.0L V63.0L V63.5L V63.5L V63.0L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V62.5L L43.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V62.5L L43.5L V63.5L V63.5L V62.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L43.5L V63.5L V63.5L V62.5L L43.5L V63.5L V63.5L V63.5L V63.5L V63.5L V62.5L L43.5L V63.5L V63.5L V62.5L L43.5L V63.3L V63.0L V63.0L V63.3L V63.5L V63.5L V63.5L V63.5L V63.3L V63.5L V63.5L V63.5L V63.5L V63.0L V63.0L V62.5L L41.5L L31.5L L32.5L L41.5L L32.5L L42.5L L42.5L L42.5L L42.5L L42.5L L41.5L L32.5L L42.5L L42.5L L42.5L L42.0L L41.5L L32.5L L42.5L L42.5L L42.0L L42.5L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L41.8L L41.8L L41.6L L41.8L L42.0L L42.0L L42.0L L42.5L L42.5L L42.5L L42.5L L41.8L L42.0L L42.0L L41.8L L42.0L L42.0L L42.0L L41.6L L41.8L L42.0L L43.0L V63.0L V63.0L V63.0L V6
Note
Front
Front
AWD;Front;Rear
AWD;Front;Rear
Front;RWD;Rear
Front;RWD;Rear
AWD;Front;Rear
Front;RWD
Front
Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
Front;Rear
Front;RWD;Rear
AWD;Front
AWD;Front;Rear
AWD;Front
AWD;Front;Rear
AWD;Front
AWD;Front;Rear
Front;RWD;Rear
AWD;Front
AWD;Front;Rear
Front;Rear
AWD;Front;Rear
AWD;Front;Rear
Front;Rear
AWD;Front;Rear
Front;Rear
AWD;Front;Rear
AWD;Front;Rear
Front
Front
Front
--
FWD;Front;Rear;with 32 Spline Teeth
-
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
Front;Rear
Rear
Front;RWD;Rear
From 032013;Front;RWD;Rear
Front;RWD;Rear
From 032013;Front;RWD;Rear
-
Front;Rear
AWD;Front;Rear
Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;From 032013;Front;Rear
AWD;Front;Rear
AWD;From 032013;Front;Rear
-----
Front
--
AWD;Front;Rear
AWD;Front;Rear
AWD;Front
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;Front
AWD;Front;Rear
AWD;Front
-
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;Front
AWD;Front
AWD;Front;Rear
AWD;Front
-
AWD;Front
-
AWD;Front
AWD;Front
AWD;Front;Rear
AWD;Front;Rear
AWD;Front
AWD;Front;Rear
-
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
--
AWD;Front
---
AWD;Front
-
AWD;Front
AWD;Front;Rear
AWD;Front;Rear
-
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;Front
AWD;Front;Rear
AWD;Front
AWD;Front;Rear
AWD;Front;Rear
AWD;Front
AWD;Front;Rear
AWD;Front;Rear
AWD;Front
Front
-
AWD;Front;Rear
Front
-
AWD;Front;Rear
Front
-
Front
-
Front
------
FWD;Front;Rear;with 32 Spline Teeth
FWD;Front;Rear
FWD;Front;Rear;with 32 Spline Teeth
FWD;Front;Rear
FWD;Front;Rear
-
FWD;Front;Rear
--
AWD;Front;Rear
AWD;Front;Rear
Fits Front or Rear;Rear
Fits Front or Rear;Rear
-
Rear
-
Rear
-
Rear
Fits Front or Rear;Rear
Not fit Base Models
Not fit Base Models
Not fit Base Models
---
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
------
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Improved Design;Rear;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Improved Design;Rear;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;with 29 Splines
29 Spline Quantity;Front;Rear;with 29 Splines
32 Spline Quantity;Front;Rear;with 32 Spline Teeth
-
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;with 29 Splines
29 Spline Quantity;Front;Rear;with 29 Splines
--
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Improved Design;Rear;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;with 29 Splines
29 Spline Quantity;Front;Rear;with 29 Splines
32 Spline Quantity;Front;Rear;with 32 Spline Teeth
-
32 Spline Quantity;Front;Rear;with 32 Spline Teeth
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Improved Design;Rear;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;with 29 Splines
29 Spline Quantity;Front;Rear;with 29 Splines
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Improved Design;Rear;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Improved Design;Rear;wo Anti-lock Brakes
29 Spline Quantity;Front;Rear;with 29 Splines
32 Spline Quantity;Front;Rear;with 32 Spline Teeth
-
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Improved Design;Rear;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;with 29 Splines
29 Spline Quantity;Front;Rear;with 29 Splines
32 Spline Quantity;Front;Rear;with 32 Spline Teeth
-
32 Spline Quantity;Front;Rear;with 32 Spline Teeth
-
29 Spline Quantity;Front;Rear;with 29 Splines
32 Spline Quantity;Front;Rear;with 32 Spline Teeth
32 Spline Quantity;Front;Rear;with 32 Spline Teeth
-
32 Spline Quantity;Front;Rear;with 32 Spline Teeth
Rear
Rear
Rear
Rear
-
Rear
Rear
Rear
Rear
-
Except Ceramic Composite Brakes
Rear
-
Rear
Rear
AWD;Front;Rear
AWD;From 10012014;Front;Rear;Thru 042014
Front
AWD;From 10012014;Front;Rear;Thru 042014
Front
AWD;Front;Rear
AWD;From 10012014;Front;Rear;Thru 042014
Front
AWD;Front;Rear
AWD;From 10012014;Front;Rear;Thru 042014
Front
AWD;Front;Rear
AWD;From 10012014;Front;Rear;Thru 042014
Front
---
Front;Rear
--
Front;Rear
--
Front;Rear
--
To 102020
Front
Front
-
Front
Front
Front;Rear
-
To 102020
--
Front;Rear;with 32 Spline Teeth
Front;Rear
--
Front
Front
Front;Improved Design;Rear
Front
Front;Improved Design;Rear
Front;Rear
-
Front;Rear
-
To 102020
-
Front;Rear;with 32 Spline Teeth
Front;Rear
-
To 102020
----
Front
-
Front
AWD;Front;Rear
-
Front
-
AWD;Front;Rear
AWD;Front;Rear
-
Front
-
Front
-
Front
-
Front
Front;with 32 Spline Shaft
-
Front
Front;with 32 Spline Shaft
-
Front
Front;with 32 Spline Shaft
-
FWD;Front;Rear;with 32 Spline Teeth
FWD;Front;Rear
-
FWD;Front;Rear;with 32 Spline Teeth
FWD;Front;Rear;with 32 Spline Teeth
FWD;Front;Rear
-
FWD;Front;Rear;with 32 Spline Teeth
FWD;Front;Rear
-
FWD;Front;Rear;with 32 Spline Teeth
FWD;Front;Rear;with 32 Spline Teeth
FWD;Front;Rear
-
FWD;Front;Rear;with 32 Spline Teeth
Front;Improved Design;Rear
Front;Rear
Front
Front;Rear
Front;Rear
--
Front;Improved Design;Rear
-
Front;Rear
Front;Improved Design;Rear
Front;Improved Design;Rear
--
Front
Front;Rear
4WD or AWD;Front;Rear
Except Japan Built
Except Japan Built
Except Japan Built
Except Japan Built
AWD;Front;Rear
4WD or AWD;Front;Rear
Front
AWD;Rear
Except Japan Built
Front
Except Japan Built
AWD;Front;Rear
4WD or AWD;Front;Rear
AWD;Rear
Except Japan Built
AWD;Rear
Except Japan Built
Front
AWD;Rear
Except Japan Built
AWD;Rear
AWD;Front;Rear
AWD;Rear
-
AWD;Rear
-
AWD;Rear
-
Front SE-Ramp;SE-R Spec V ONLY
Front
Front
Front
Front
Front
Front SE-Ramp;SE-R Spec V ONLY
Front
-
Front SE-Ramp;SE-R Spec V ONLY
Front
Front SE-Ramp;SE-R Spec V ONLY
Front
Front
Front SE-Ramp;SE-R Spec V ONLY
Front
Front
Front SE-Ramp;SE-R Spec V ONLY
Front
-
Front
Front
-----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

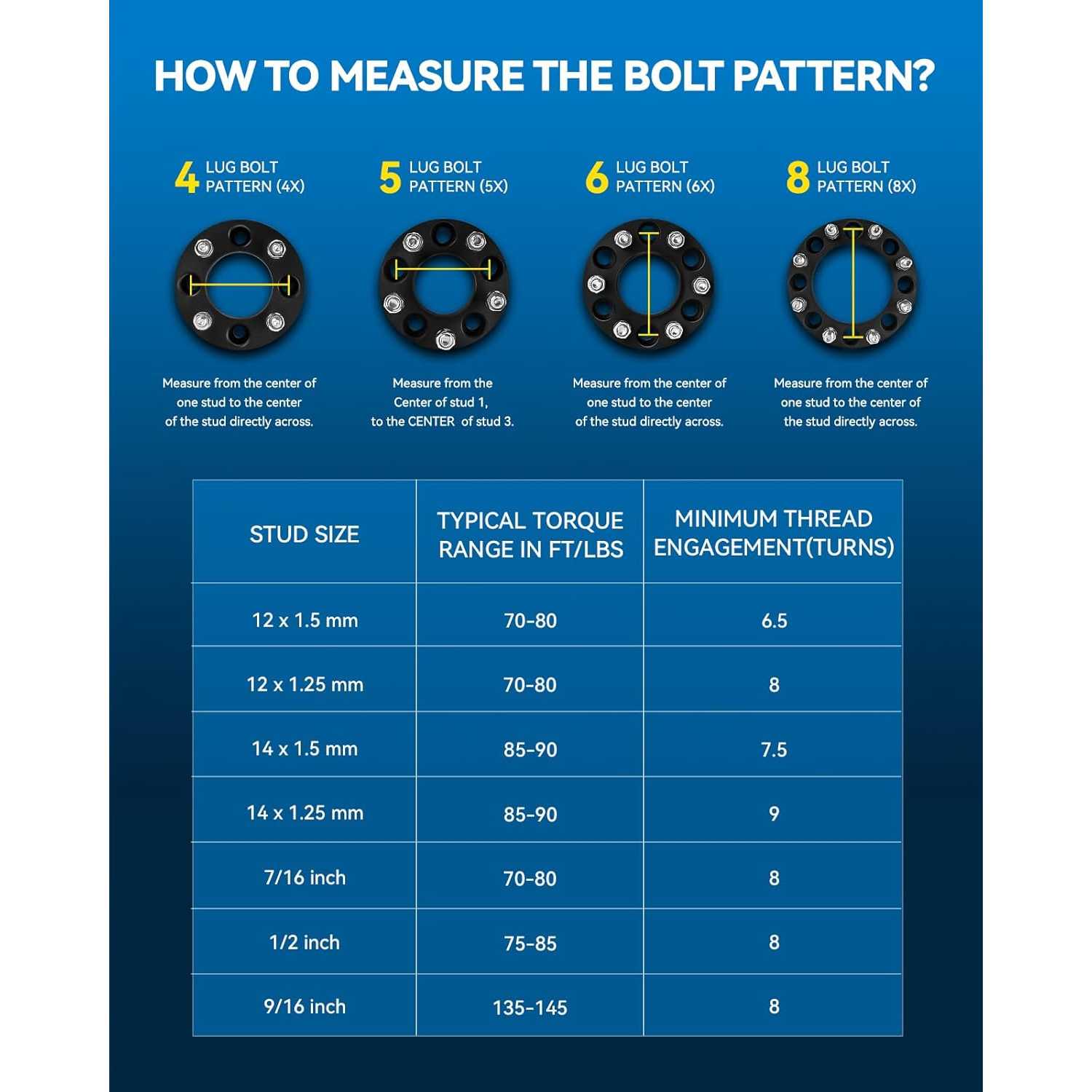

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

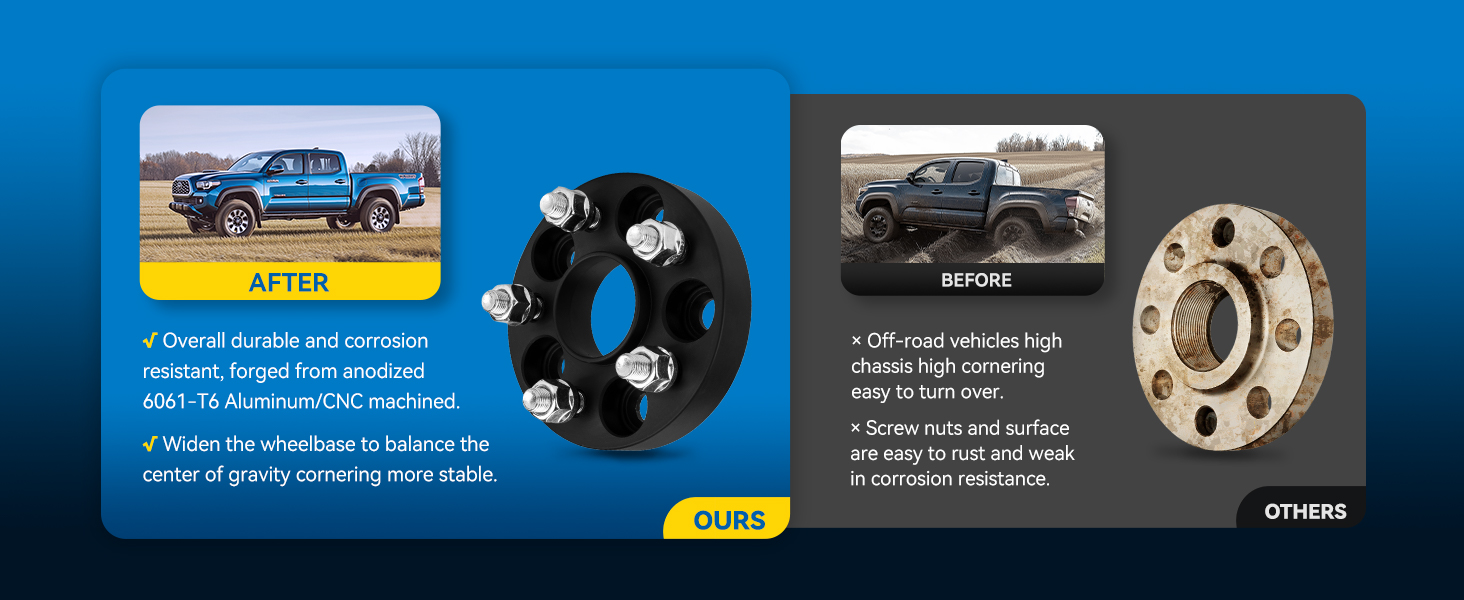

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

4.8/5

Based on 16 reviews

575%
425%
30%
20%
10%

Customer

03/13/2025

The 1” were just perfect, didn’t have to shorten my studs. Quality made. Will update after further use

90swildchild

01/21/2025

They fit my 350z perfect and I didnt need new lugs. They're a bit on the cheaper side so I would get massive vibrations at speeds above 70mph. I went ahead and had them balanced with my rims and torqued down to 100ftlbs on my hub before mounting my rims. I never had another issue since. Watch out tho! ALL wheel spacers will add premature wear on your wheel bearings.

FAQS

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Use the torque specified by the vehicle or spacer instructions for the applicable fasteners. Tighten in a star pattern with a calibrated torque wrench.

Changing wheel position can reduce clearance to the fender or increase exposure at the wheel opening. Check clearance through the full steering and suspension range before regular driving.

2002-2024 Nissan Altima Wheel Hub Accessory 5x4.5" 66.1mm Center Bore M12x1.25 Thread | PHILTOP
