1991-2001 GMC Jimmy 4.3L V6/5.7L V8 | 5x4.75" to 5x4.5" 87.1mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

1991-2001 GMC Jimmy 4.3L V6/5.7L V8 | 5x4.75" to 5x4.5" 87.1mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
87ISWSA4267US

Specifications

Brand
PHILTOP
Bolt Pattern
5x4.75" To 5x4.5"
Wheel Bolt Pattern
5x4.5"
Vehicle Bolt Pattern
5x4.75"
Thread Size
M12x1.5
Center Bore
87.1
Hub-Centric Lip
No
Thickness
1inch
Note1
Only for 5x4.75" Models with 5x4.5" Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 5x4.5" Wheel.
Outside Diameter
164
Inside Diameter
3.43 in/87.1 mm
Lug Patterns
5
Type
Wheel Adapter
Items Included
4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

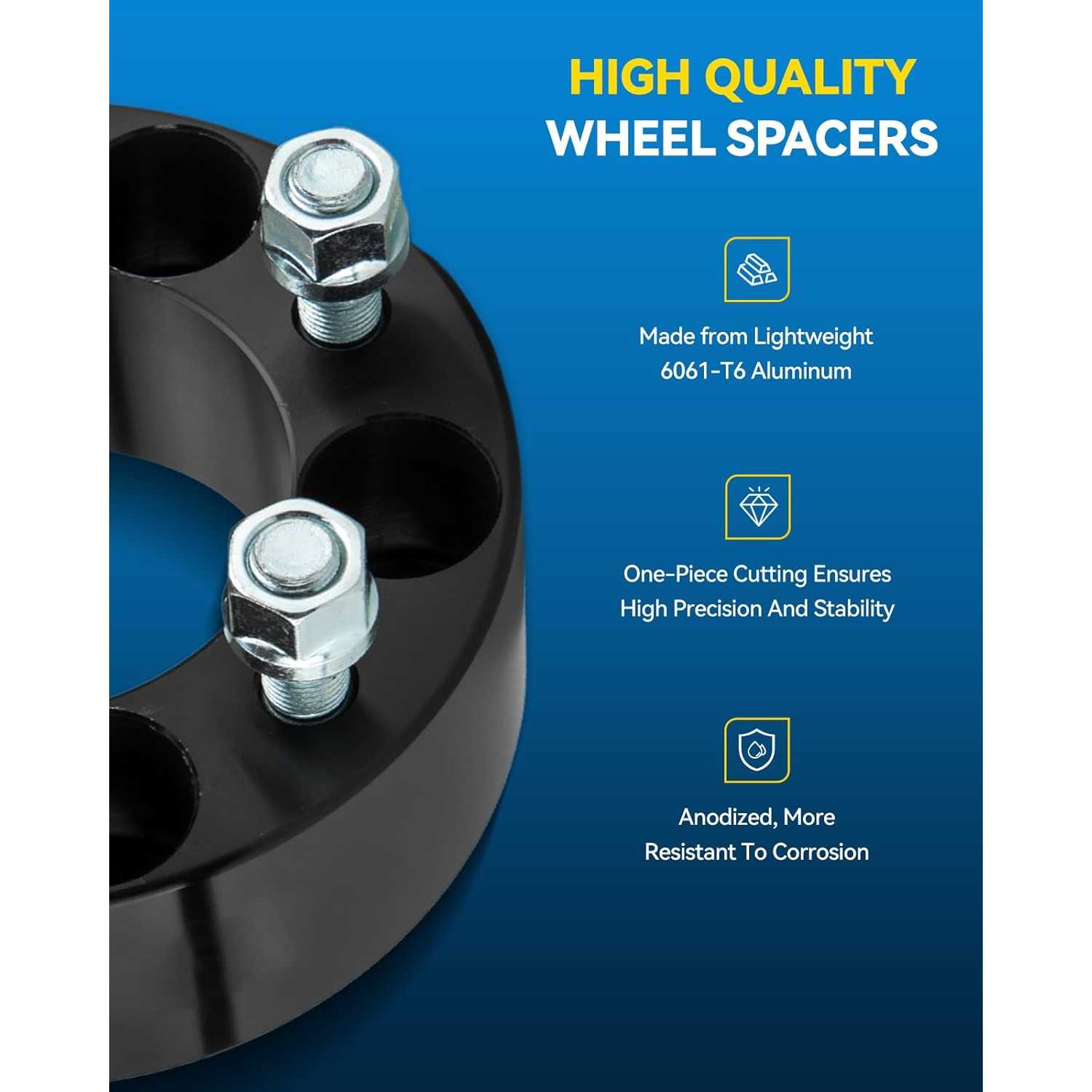

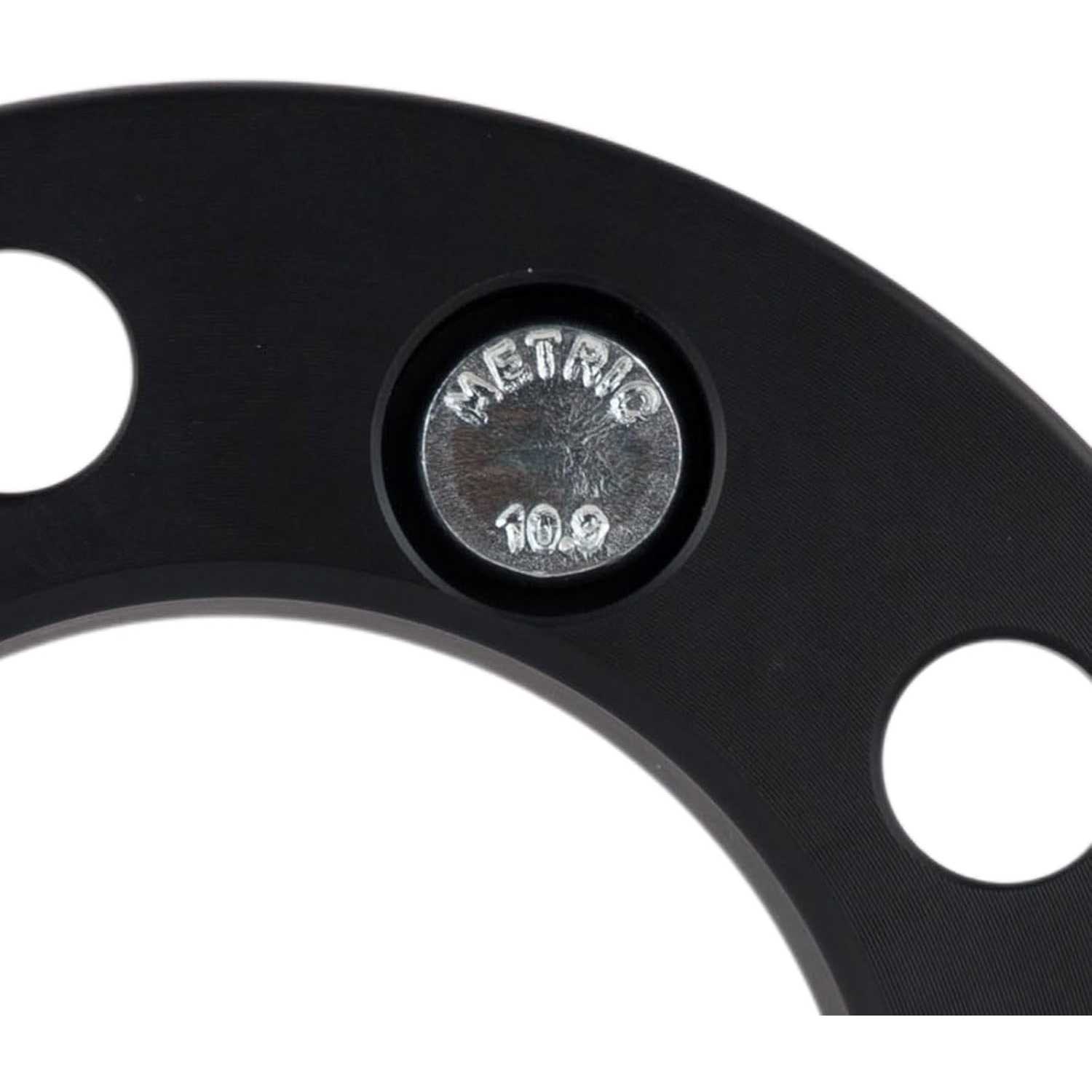

  • Safety-5x4.75 to 5x4.5 wheel spacers forged from anodized 6061-T6 aluminum, for stronger, more durable and corrosion resistance. Heat treated and hardened 10.9 grade geomet bolts, are not easy to break or strip.

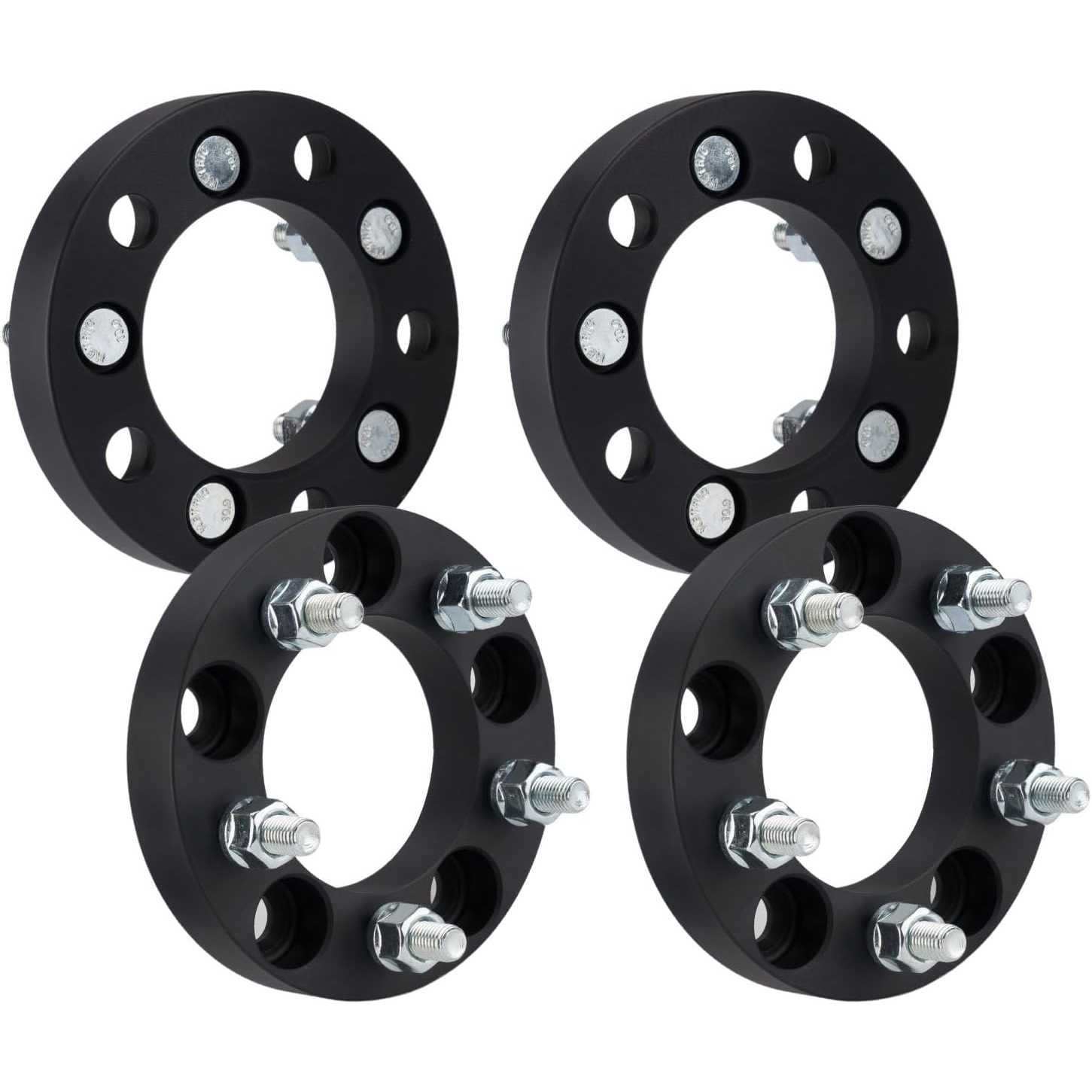

  • Specs - 4PC 1"(25mm) Thickness | 5x4.75 to 5x4.5 Bolt Pattern | 87.1mm Hub Bore | M12X1.5 Thread Pitch | Black
  • Fitment - The wheel spacers with M12X1.5 studs fit for S10 1982-2004, Corvette 1984-2019, Blazer 1987-2005, Camaro 1982-2002, Sonoma 1995-2004, Firebird 1982-2002, Jimmy 1995-2001, S10 Blazer 1983-1994, XLR 2004-2009
  • Appearance - The Adapters are designed to move the wheel further out from the hub,fixes clearance issues and wheels that look tucked in the fenders, gives your car an aggressive stance.
  • Services - The kit Includes 4PC wheel spacers and instruction manual. Before selling, We have testd and used them. For any question, please be free to contact us and we will reply within 24h.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1980 - 19811984 - 19851981 - 19841980 - 19851979 - 19851982198219821984 - 19851983 - 19841983 - 19851983 - 19851979 - 198019801979 - 19801981 - 1985198119811983198319831981 - 19821982 - 19851979 - 19851980 - 19811981 - 19821982 - 19851979 - 19831980 - 19811981198119811981 - 19821982 - 19851979 - 19851980 - 198119821982 - 19851982 - 19852004 - 20082008 - 20092006 - 20091998 - 199920051998 - 19992001 - 20041998 - 19992001199920012001 - 20052003 - 200519881993 - 19951995 - 200219881983 - 19861983 - 198619931985 - 19901987 - 19901987198719891990 - 19921996 - 19971989 - 1992199219921983 - 19861983 - 19871983 - 19871983 - 19871991 - 19921991 - 2002199219921998 - 20021988199320132008200320031984 - 20042005 - 20072008 - 2013199619962010 - 20132017 - 20191986199519982014 - 20192001 - 20042015 - 20192006 - 201320111990 - 19952009 - 20132019199119911982 - 19851983 - 19841983 - 19851994 - 20031985 - 19931982 - 19931988 - 20031982 - 19851983 - 19841983 - 19851985 - 19901982 - 19901988 - 19901992 - 19931992 - 19931992 - 19931994 - 20031994 - 20041994 - 19981982 - 19851983 - 19841983 - 19851985 - 19891982 - 19891988 - 19891982 - 19851983 - 19841983 - 19851985 - 19921982 - 19921988 - 19921999 - 20031999 - 20031994 - 20032002 - 20041983 - 19841983 - 198419841985 - 19881983 - 19891988 - 19941987 - 19881987 - 19891988 - 198919941983 - 19841983 - 198419841985 - 19881983 - 19891988 - 199019921983 - 19841983 - 198419841985 - 19881983 - 198819881990 - 19941991 - 19941992 - 1996199119912000 - 20011998 - 20001995 - 199920011992 - 20011993 - 20011992 - 20011982 - 19851983 - 19841984 - 19851985 - 19901982 - 19901988 - 199019871987198319831986 - 198819831986 - 198819881982 - 19851983 - 19841984 - 19851985 - 19901982 - 19901988 - 19901982 - 19851983 - 19841984 - 19851985 - 19901982 - 19901988 - 1990198219821991 - 19931991 - 19931991 - 199319921994 - 20031994 - 20041994 - 20011991 - 19931991 - 19931991 - 20011994 - 2003199319931993 - 20041982 - 19861982 - 19891990 - 19921993 - 19951995 - 20021982 - 19921987 - 19881989 - 19921989 - 20021982 - 19841982 - 19861982 - 198619891982 - 19921987 - 200219941989 - 19921989 - 19921989
MakeBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiac
ModelRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoXLRXLRXLRBlazerBlazerBlazerBlazerBlazerBlazerBlazerBlazerBlazerBlazerCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteS10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyS15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15SonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebird
TrimBaseBaseBaseBaseBaseLimited EditionLimited EditionLimited EditionLuxuryLuxuryLuxuryLuxurySSST-TypeT-TypeT-TypeXX Anniversary EditionXX Anniversary EditionXX Anniversary EditionBaseBaseBaseBaseBiarritzBiarritzBiarritzBiarritzBrougham d'EleganceBrougham d'EleganceBrougham d'EleganceCabrioletCabrioletCabrioletCabrioletTouringTouringTouringBasePlatinumVBaseBaseLSLSLTLTTrailblazerTrailblazerXtremeZR2BaseBaseBaseBaseBerlinettaBerlinettaIndianapolis 500 Pace CarIroc-ZIroc-ZLTLTRSRSRSRSRS Heritage EditionRS Heritage EditionSportSportSportZ28Z28Z28Z28 Heritage EditionZ28 Heritage EditionZ28 SS35th Anniversary Edition40th Anniversary Edition427427 Limited Edition Z0650th Anniversary Edition50th Anniversary Edition Pace CarBaseBaseBaseCollector's EditionGrand SportGrand SportGrand SportIndianapolis 500 Pace CarIndianapolis 500 Pace CarIndianapolis 500 Pace CarStingrayZ06Z06Z06Z06 CarbonZR-1ZR1ZR1BajaBajaBaseBaseBaseBaseBaseBaseBaseDurangoDurangoDurangoDurangoDurangoDurangoELELELLSLSSSSportSportSportSportSportSportTahoeTahoeTahoeTahoeTahoeTahoeXtremeXtremeZR2ZR5BaseBaseBaseBaseBaseBaseHigh CountryHigh CountryHigh CountryLTSportSportSportSportSportSportSportTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoe LTBaseBaseBaseDiamond EditionEnvoySLSLSLESLSSLTBaseBaseBaseBaseBaseBaseELELGypsyGypsyGypsyGypsyGypsyGypsyHigh SierraHigh SierraHigh SierraHigh SierraHigh SierraHigh SierraSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra GrandeSierra GrandeBaseBaseBaseGTSLSLSLESLESLESLESLSSLSSLSSLSBaseBaseBaseBaseBaseBaseBaseFormulaFormulaS/ES/ES/ETrans AmTrans AmTrans AmTrans Am GTTrans Am GTATrans Am GTATrans Am GTA SE
Engine3.8L V63.8L V64.1L V65.0L V85.7L V84.1L V65.0L V85.7L V83.8L V64.1L V65.0L V85.7L V83.8L V65.0L V85.7L V83.8L V64.1L V65.0L V84.1L V65.0L V85.7L V84.1L V64.1L V85.7L V86.0L V84.1L V64.1L V85.7L V86.0L V84.1L V65.7L V86.0L V84.1L V64.1L V85.7L V86.0L V84.1L V64.1L V85.7L V84.6L V84.6L V84.4L V84.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V62.8L V63.4L V63.8L V65.0L V82.8L V65.0L V85.7L V85.0L V85.7L V82.8L V65.0L V82.8L V63.1L V63.8L V65.0L V83.1L V65.0L V82.5L L42.8L V65.0L V85.0L V85.0L V85.7L V85.0L V85.7L V85.7L V85.7L V85.7L V87.0L V87.0L V85.7L V85.7L V85.7L V86.0L V86.2L V85.7L V85.7L V86.2L V86.2L V85.7L V85.7L V85.7L V86.2L V85.7L V86.2L V87.0L V87.0L V85.7L V86.2L V86.2L V82.8L V64.3L V61.9L L42.0L L42.2L L42.2L L42.5L L42.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V62.5L L42.8L V64.3L V62.2L L44.3L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V62.2L L44.3L V64.3L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V62.5L L42.8L V64.3L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V64.3L V64.3L V64.3L V65.7L V86.2L V84.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V62.5L L42.8L V61.9L L42.0L L42.5L L42.8L V62.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V61.9L L42.8L V62.5L L42.8L V64.3L V64.3L V62.2L L44.3L V62.2L L42.5L L42.8L V64.3L V62.2L L42.5L L42.8L V64.3L V62.5L L42.8L V63.1L V63.4L V63.8L V65.0L V85.7L V85.0L V85.7L V82.5L L42.8L V65.0L V83.8L V65.0L V85.7L V85.7L V85.0L V85.7L V83.8L V6
Note-------------------------------------------
fits Models w/ M12x1.5 Threads Only
-
fits Models w/ M12x1.5 Threads Only
-
fits Models w/ M12x1.5 Threads Only
fits Models w/ M12x1.5 Threads Only
-
fits Models w/ M12x1.5 Threads Only
fits Models w/ M12x1.5 Threads Only
--------------------------------------------------
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
--------------------------------------
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
does NOT FIT front hub of 2WD
-------------------

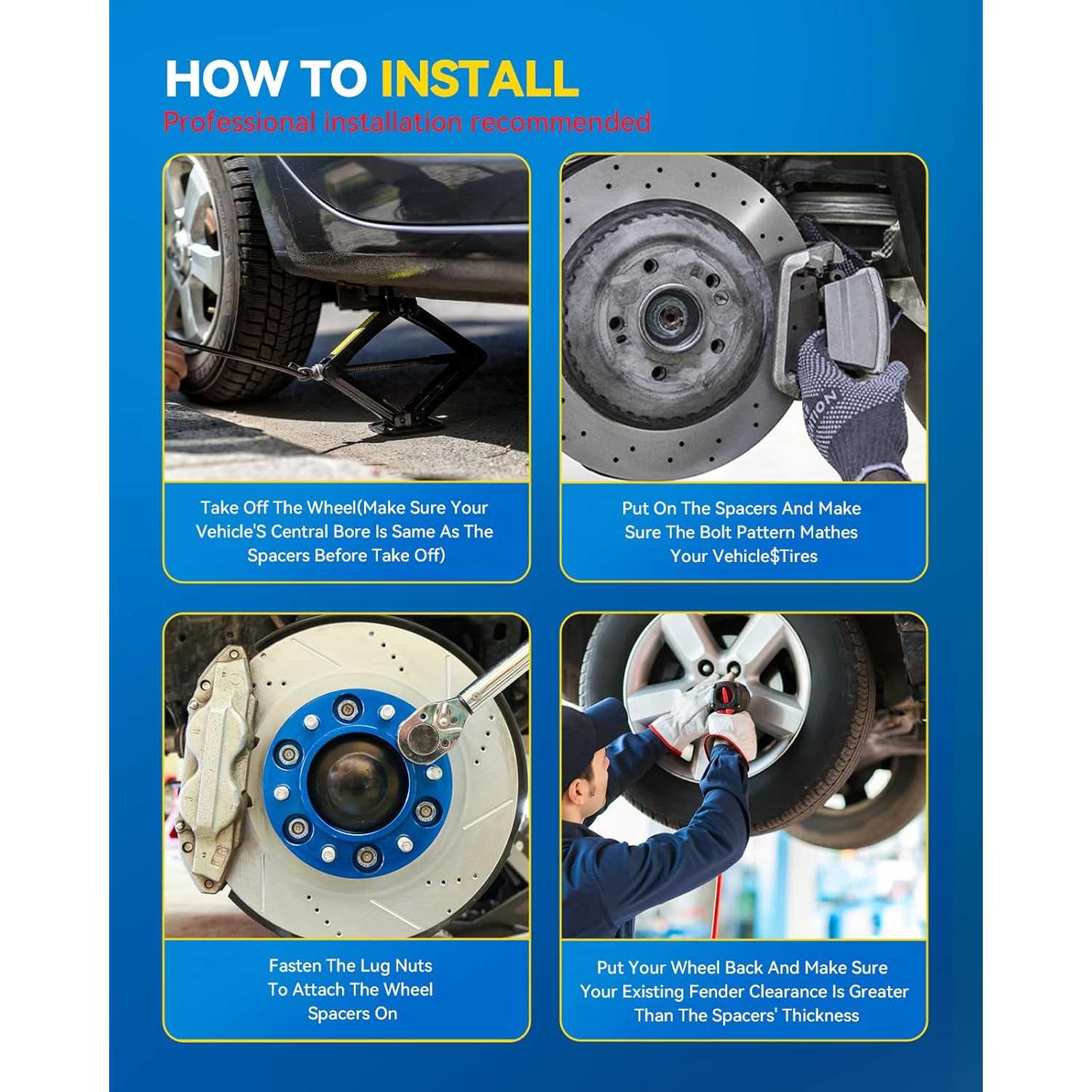

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

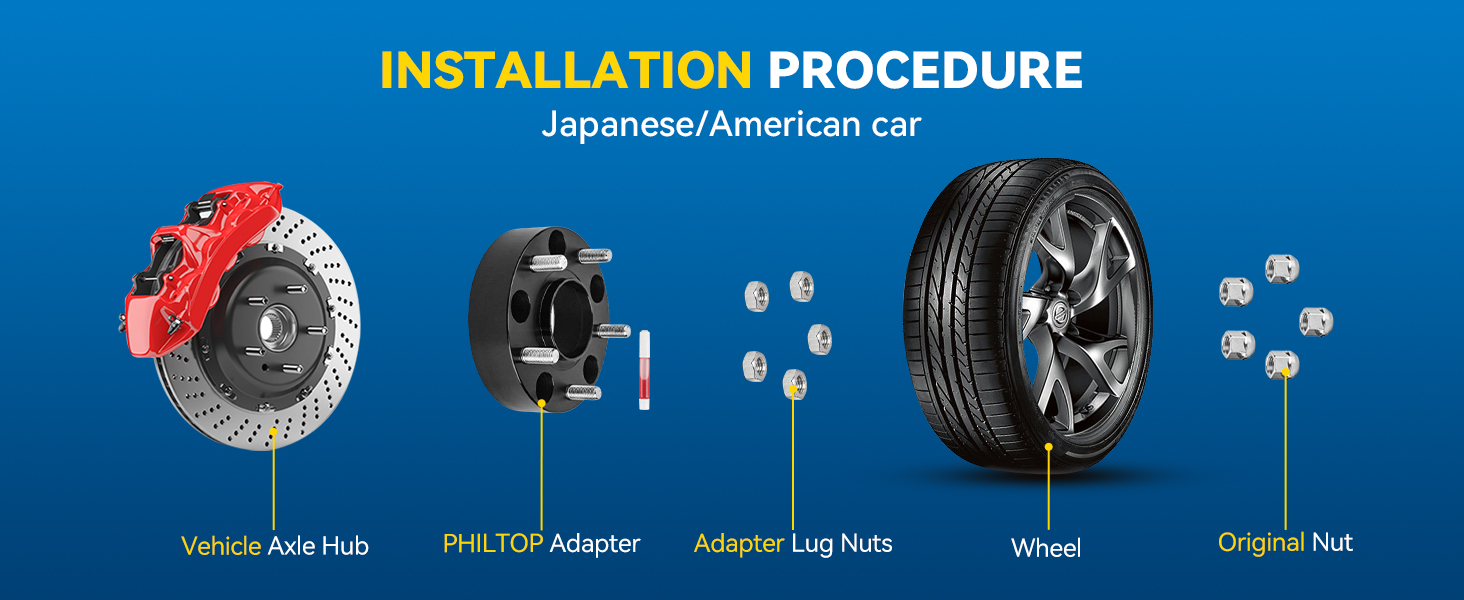

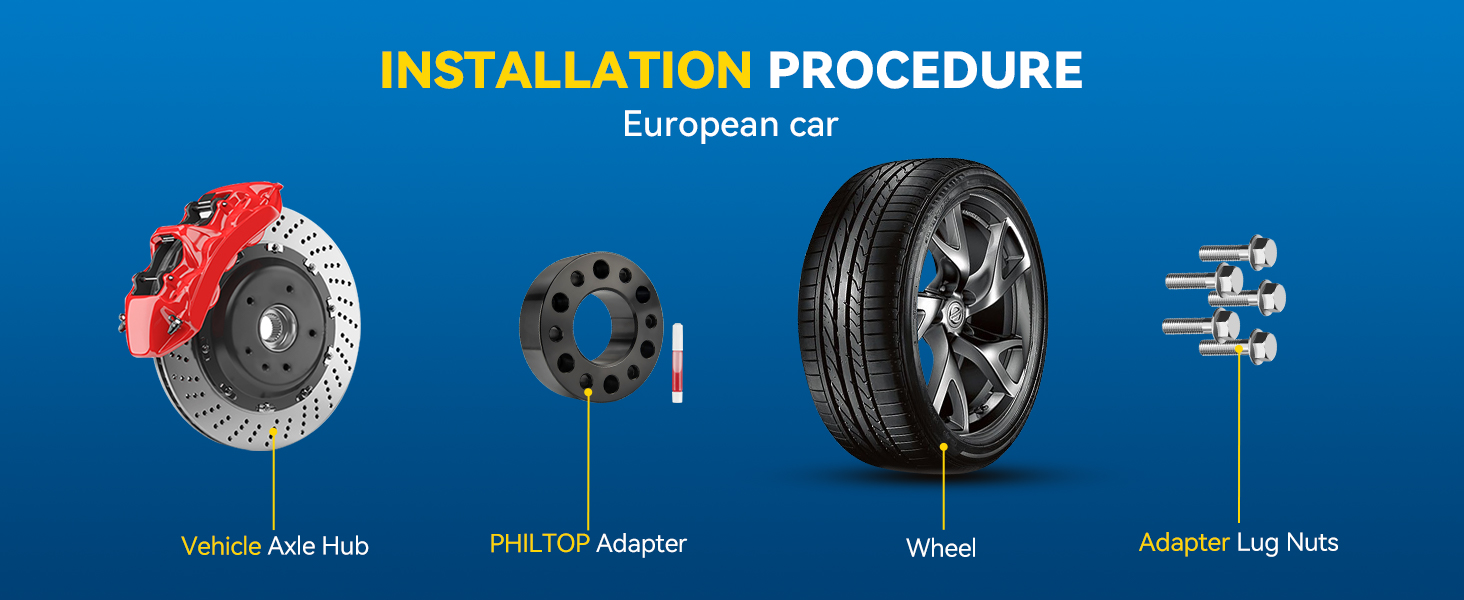

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

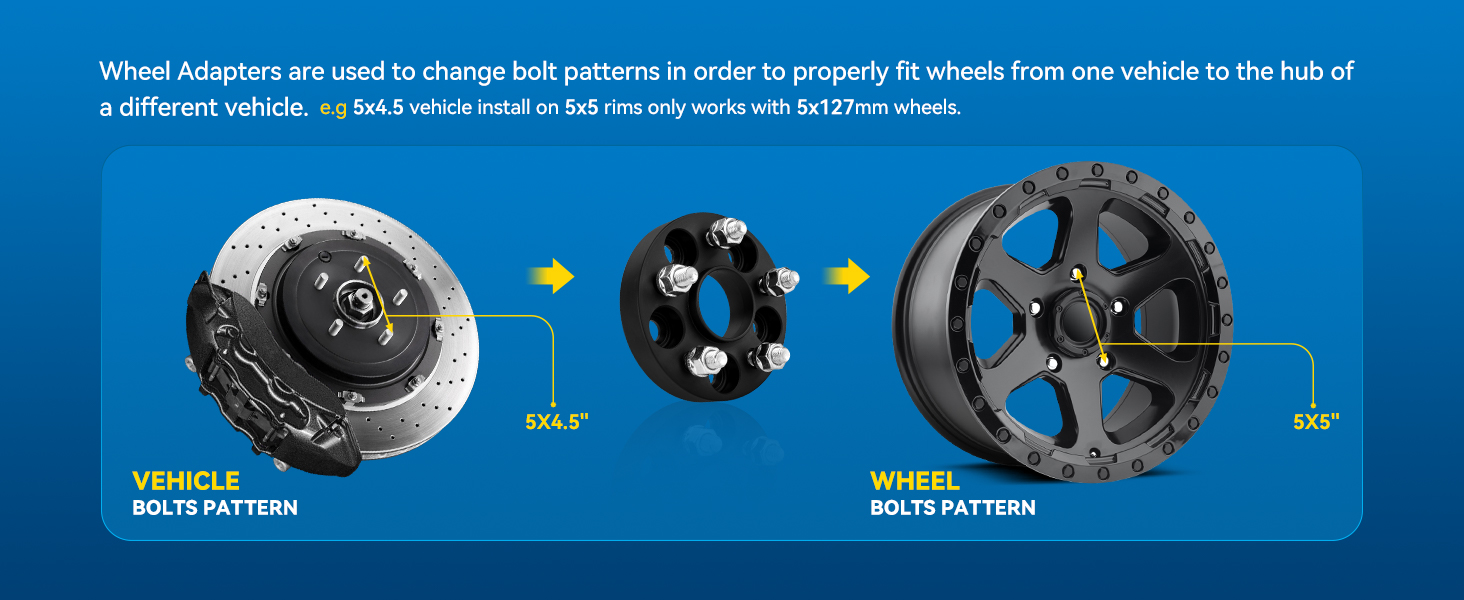

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 20 reviews

595%
45%
30%
20%
10%

Customer photos and videos

Charlie McCullough

01/16/2026

Verified buyer

I have already installed them and they did give me a lot more clearance but I am going to have to trim some of the front fender wells to prevent scrubbing. I kind of expected that though so no fault to the manufacturer.

Miguel

08/11/2026

Verified buyer

Nice

FAQS

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
