2008-2016 Chrysler Town & Country 3.6L V6 | 5x5" to 5x4.5" 82.5mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

2008-2016 Chrysler Town & Country 3.6L V6 | 5x5" to 5x4.5" 82.5mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
96ISWSA024007US

Specifications

Brand
PHILTOP
Bolt Pattern
5x5" To 5x4.5"
Wheel Bolt Pattern
5x4.5"
Vehicle Bolt Pattern
5x5"
Thread Size
M12x1.5
Center Bore
82.5
Hub-Centric Lip
No
Thickness
1inch
Note1
Only for 5x5" Models with 5x4.5" Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 5x4.5" Wheel.
Outside Diameter
164
Inside Diameter
3.25 in/82.5 mm
Lug Patterns
5
Type
Wheel Adapter
Items Included
4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Adapters Specification] --- Vehicle Bolt Pattern: 5x5"(5x127mm) ; | Wheel Bolt Pattern: 5x4.5"(5x114.3mm) ; | Thickness: 1 inch(25mm) ; | Thread Pitch: M12x1.5 ; | Hub Bore: 82.5mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts

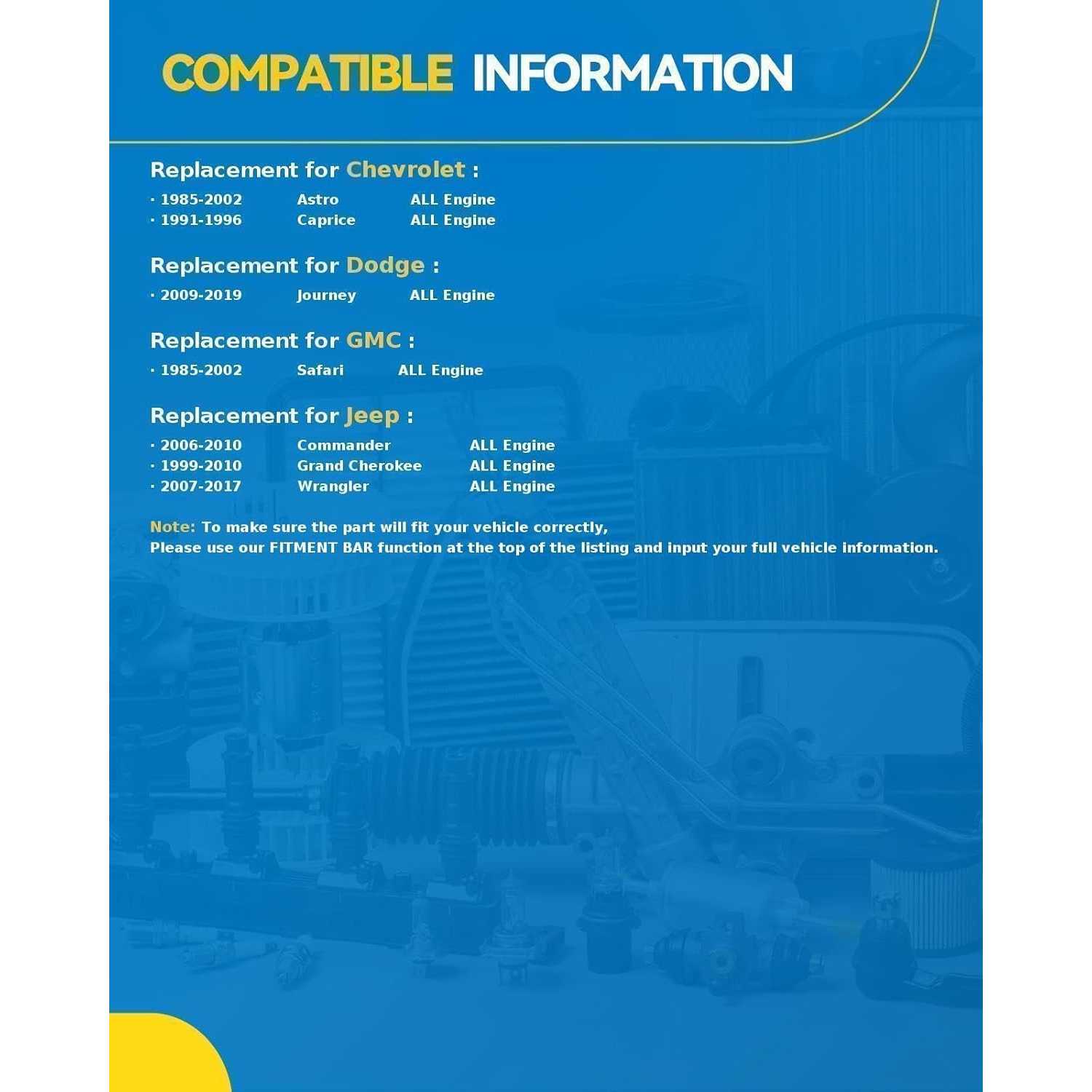

  • [Vehicle Application] --- The 5x5to 5x4.5 Wheel Adapters set replacement for 2007-2017 Wrangler; 2009-2019 Journey; 1999-2010 Grand Cherokee; 1985-2002 Astro; Safari; 2006-2010 Commander; 1991-1996 Caprice

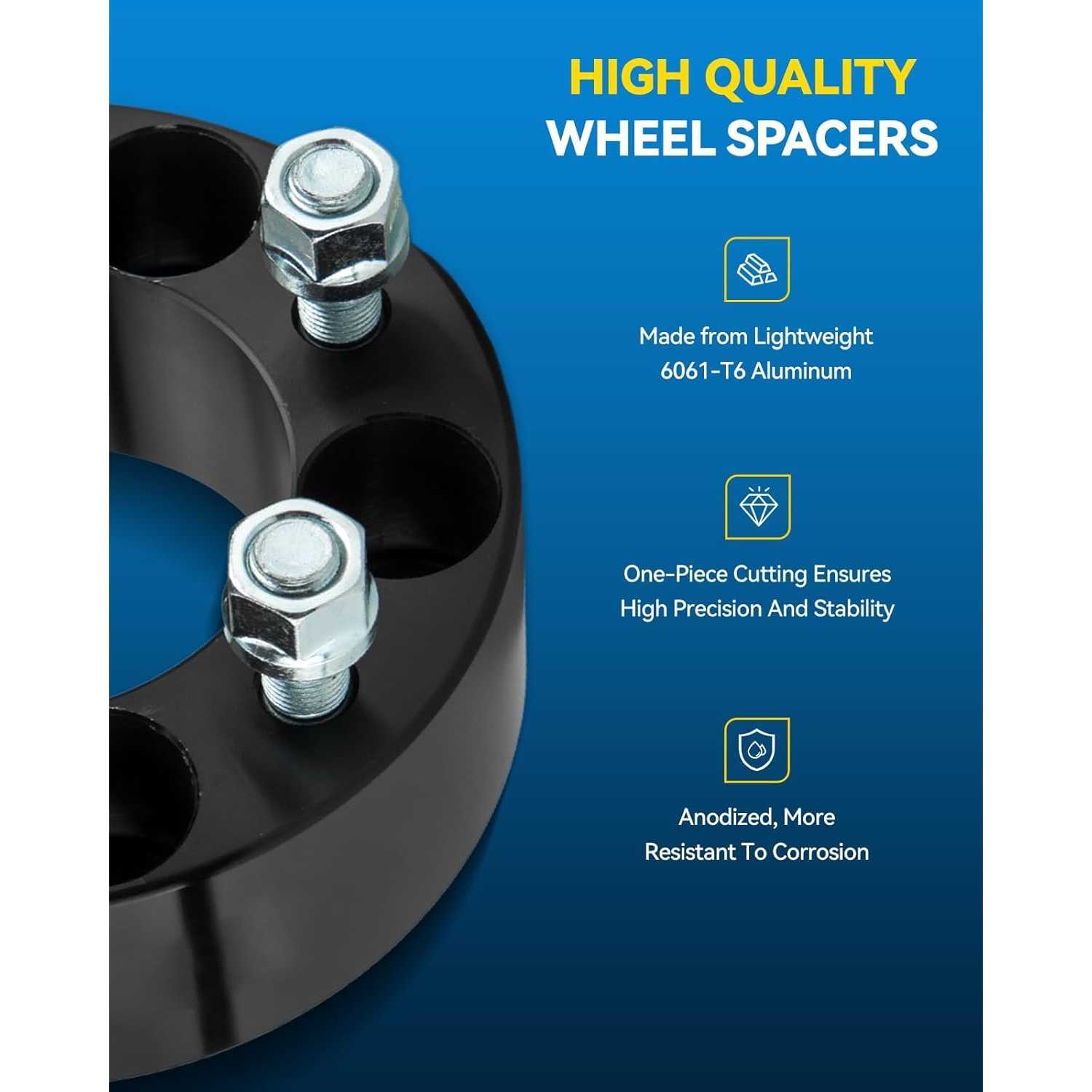

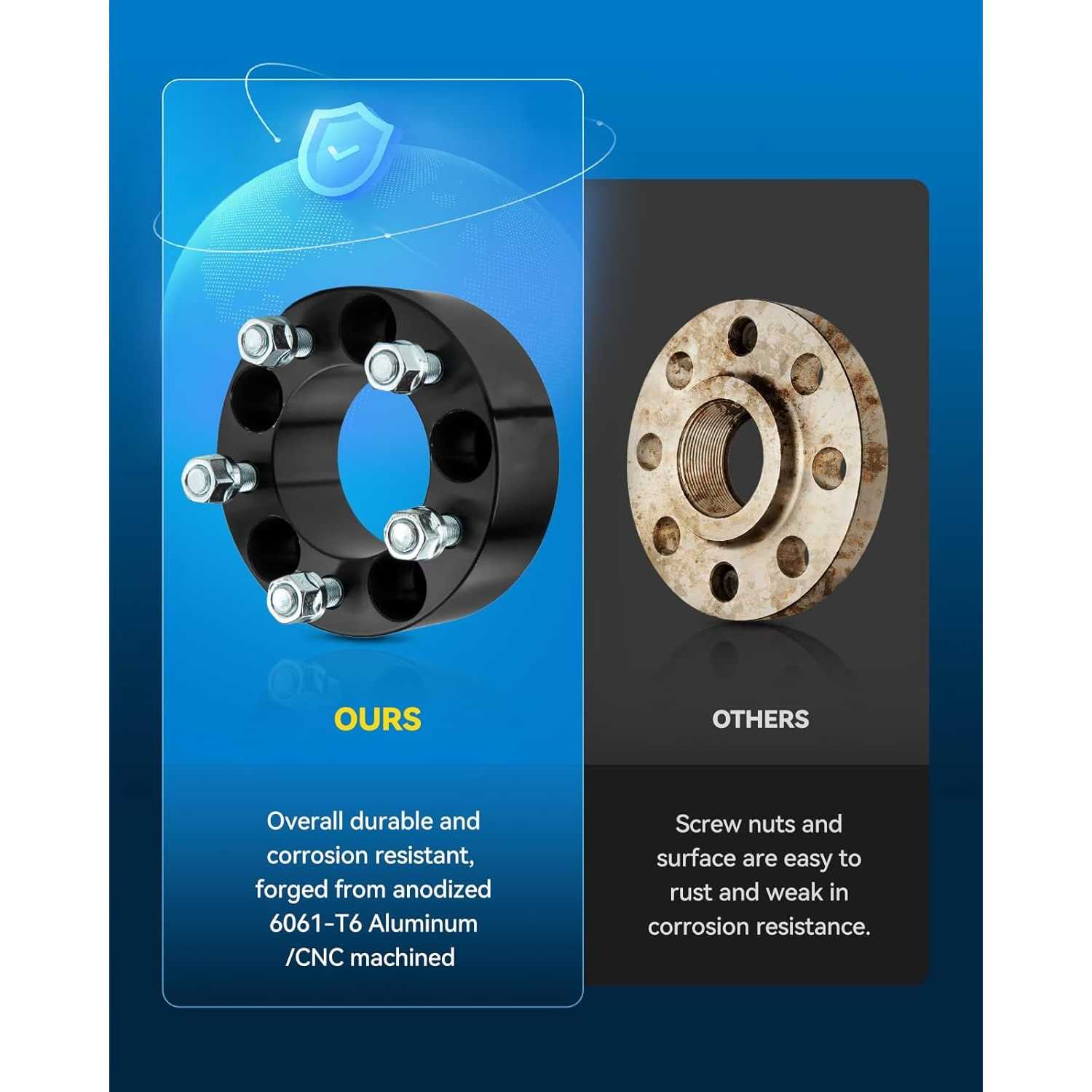

  • [High Quality] --- 5x5to 5x4.5 Wheel Adapter is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 5x5to 5x4.5 wheel adapters change bolt pattern,it help you to fit the wheel of one factory vehicle to the hub of a different vehicle. The Wheel Adapters can move your wheels further out from the wheel hub, mount larger wheel or tires. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability,giving an aggressive performance to your vehicle
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year19911992 - 19961992 - 1995199619911992 - 199519961992 - 199519961991 - 19921991 - 19921991 - 19921991 - 19921994 - 199619921993 - 19961993 - 19961993 - 199619921991 - 19921991 - 199219931994 - 19961991 - 19931991 - 19961994199319941991 - 19921991 - 199319921991 - 19921991 - 19941994 - 199620202004 - 20062005 - 2006200720072018 - 201920202017201720202018 - 201920202018 - 20192018 - 20192017 - 2019200820082005 - 20062017 - 201920202007 - 20082005 - 20062017 - 201920202007 - 20082017 - 201920202017 - 201920202018 - 201920142008 - 20102015 - 20162009 - 201020112012 - 20162008 - 20102015 - 20162013 - 201620112012 - 20162008 - 20102009 - 201020112012 - 20162010201020102014 - 20162008 - 2010201120112012 - 201320112017 - 2020201120112012 - 20162008 - 20102012 - 202020142016 - 201820202012 - 20202008 - 20102008 - 201020141991 - 199219922012 - 20152015201120122013 - 20142009 - 2010201120122013 - 20142009 - 2010201120122009 - 2010201120122013 - 20142010
MakeBuickBuickBuickBuickBuickBuickBuickBuickBuickCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeOldsmobileOldsmobileRamRamVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagen
ModelCommercial ChassisCommercial ChassisRoadmasterRoadmasterRoadmasterRoadmasterRoadmasterRoadmasterRoadmasterBroughamBroughamBroughamBroughamCommercial ChassisCommercial ChassisCommercial ChassisFleetwoodFleetwoodCapriceCapriceCapriceCapriceCapriceCapriceCapriceCapriceCapriceCapriceCapriceCapriceCommercial ChassisCommercial ChassisCommercial ChassisImpalaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaPacificaTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryTown & CountryGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanGrand CaravanCustom CruiserCustom CruiserC/VC/VRoutanRoutanRoutanRoutanRoutanRoutanRoutanRoutanRoutanRoutanRoutanRoutanRoutanRoutanRoutan
TrimBaseBaseBaseCollector's EditionEstate WagonEstate WagonEstate Wagon Collector's EditionLimitedLimited Collector's EditionBaseBased'Eleganced'EleganceBaseBroughamBroughamBaseBroughamBaseBaseBaseClassicClassicClassicClassicClassic LSClassic LSClassic LSClassic LTZClassic LTZBaseBaseBaseSSAWD Launch EditionBaseBaseBaseBaseHybrid LimitedHybrid LimitedHybrid PlatinumHybrid PremiumHybrid TouringHybrid Touring LHybrid Touring LHybrid Touring PlusLLXLXLXLimitedLimitedLimitedLimitedTouringTouringTouringTouringTouring LTouring LTouring L PlusTouring L PlusTouring Plus30th Anniversary EditionLXLXLXLimitedLimitedLimitedLimited PlatinumSTouringTouringTouringTouringTouring LTouring LTouring PlusTouring PlusWalter P. Chrysler Signature SeriesAmerican Value PackageC/VC/VCrewCrewExpressGTMainstreetR/TR/TSESESE 30th Anniversary EditionSE PlusSE PlusSXTSXTSXTSXT 30th Anniversary EditionBaseBaseBaseTradesmanSSSSSESESESESELSELSELSEL PremiumSEL PremiumSEL PremiumSEL Premium
Engine5.0L V85.7L V85.7L V85.7L V85.0L V85.7L V85.7L V85.7L V85.7L V85.0L V85.7L V85.0L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V84.3L V65.0L V85.7L V84.3L V64.3L V85.0L V85.7L V84.3L V85.0L V85.7L V85.0L V85.7L V84.3L V65.0L V85.7L V85.7L V83.6L V63.5L V63.8L V63.8L V64.0L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.8L V64.0L V63.5L V63.6L V63.6L V64.0L V63.5L V63.6L V63.6L V64.0L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.3L V63.6L V63.8L V63.6L V63.6L V64.0L V63.6L V63.6L V63.6L V63.6L V63.8L V64.0L V63.6L V63.6L V63.8L V64.0L V63.8L V63.6L V63.3L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.3L V63.6L V63.6L V63.6L V63.6L V63.6L V63.8L V64.0L V63.6L V65.0L V85.7L V83.6L V63.6L V63.6L V63.6L V63.6L V63.8L V63.6L V63.6L V63.6L V63.8L V63.6L V63.6L V64.0L V63.6L V63.6L V63.6L V64.0L V6
Note
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
GM Brake Code JM4;Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
GM Brake Code JM4;Replaces 1056128;Replaces 56128RGS
GM Brake Code JM4;Replaces 1056128;Replaces 56128RGS
GM Brake Code JM4;Replaces 1056128;Replaces 56128RGS
Please check sizes before ordering, the wrong size will not match Replaces 1056128;Replaces 56128RGS
Please check sizes before ordering, the wrong size will not match Replaces 1056128;Replaces 56128RGS
Please check sizes before ordering, the wrong size will not match Replaces 1056128;Replaces 56128RGS
Please check sizes before ordering, the wrong size will not match Replaces 1056128;Replaces 56128RGS
Please check sizes before ordering, the wrong size will not match Replaces 1056128;Replaces 56128RGS
Please check sizes before ordering, the wrong size will not match Replaces 1056128;Replaces 56128RGS
Please check sizes before ordering, the wrong size will not match Replaces 1056128;Replaces 56128RGS
Please check sizes before ordering, the wrong size will not match Replaces 1056128;Replaces 56128RGS
Please check sizes before ordering, the wrong size will not match Replaces 1056128;Replaces 56128RGS
Please check sizes before ordering, the wrong size will not match Replaces 1056128;Replaces 56128RGS
Please check sizes before ordering, the wrong size will not match Replaces 1056128;Replaces 56128RGS
Please check sizes before ordering, the wrong size will not match Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
---
Improved Design;Rear
Improved Design;Rear
without Adaptive Cruise Control
-
without Adaptive Cruise Control
without Adaptive Cruise Control
-
without Adaptive Cruise Control
-
without Adaptive Cruise Control
without Adaptive Cruise Control
without Adaptive Cruise Control
Improved Design;Rear
Improved Design;Rear
-
without Adaptive Cruise Control
-
Improved Design;Rear
-
without Adaptive Cruise Control
-
Improved Design;Rear
without Adaptive Cruise Control
-
without Adaptive Cruise Control
-
without Adaptive Cruise Control
-
Improved Design
-
Improved Design
Improved Design
-
Improved Design
--
Improved Design
-
Improved Design
Improved Design
Improved Design
-
Improved Design
Improved Design
Improved Design
-
Improved Design
Improved Design
Improved Design
-
Improved Design
-
Improved Design
Improved Design
-
Improved Design
-----
Improved Design
Improved Design
-
Replaces 1056128;Replaces 56128RGS
Replaces 1056128;Replaces 56128RGS
--
Always install a new hub nut. The original hub nut is one-time use only and must be discarded when removed.;Front;Improved Design;Rear
Improved Design
-
Always install a new hub nut. The original hub nut is one-time use only and must be discarded when removed.;Improved Design;Rear
Always install a new hub nut. The original hub nut is one-time use only and must be discarded when removed.;Front;Improved Design;Rear
Improved Design
-
Always install a new hub nut. The original hub nut is one-time use only and must be discarded when removed.;Improved Design;Rear
Always install a new hub nut. The original hub nut is one-time use only and must be discarded when removed.;Front;Improved Design;Rear
Improved Design
Always install a new hub nut. The original hub nut is one-time use only and must be discarded when removed.;Improved Design;Rear
Always install a new hub nut. The original hub nut is one-time use only and must be discarded when removed.;Front;Improved Design;Rear
Improved Design
-
Always install a new hub nut. The original hub nut is one-time use only and must be discarded when removed.;Improved Design;Rear

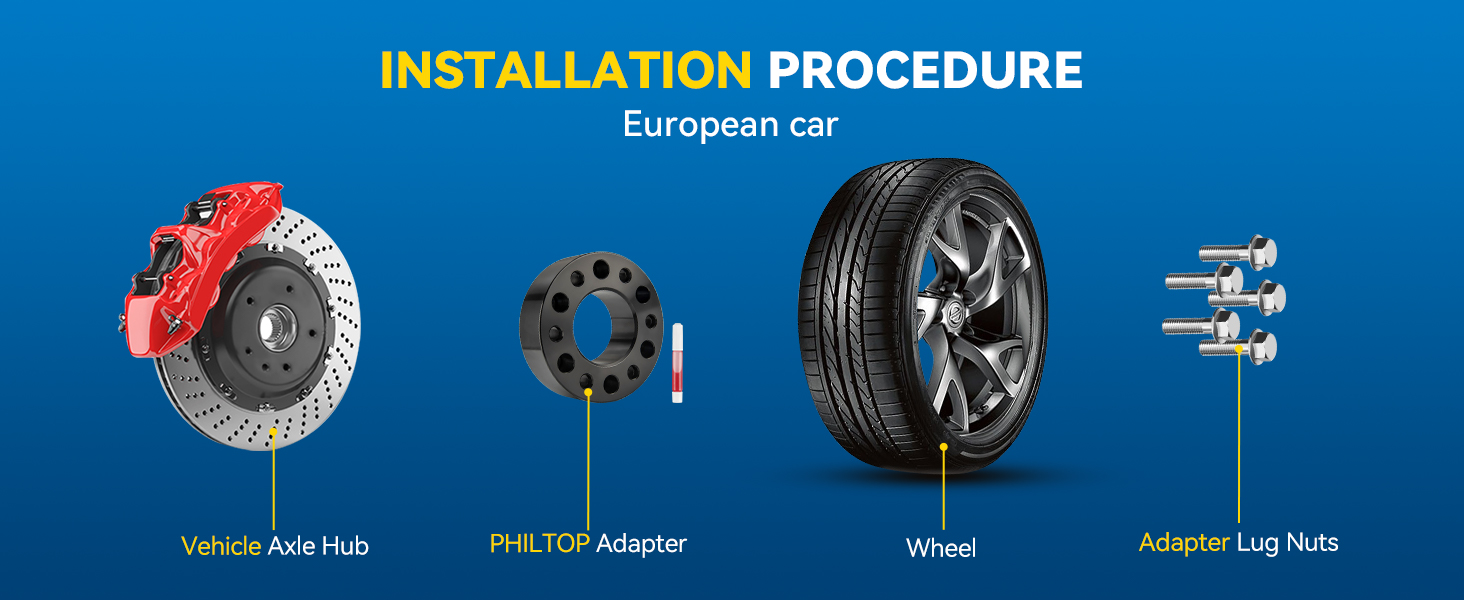

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

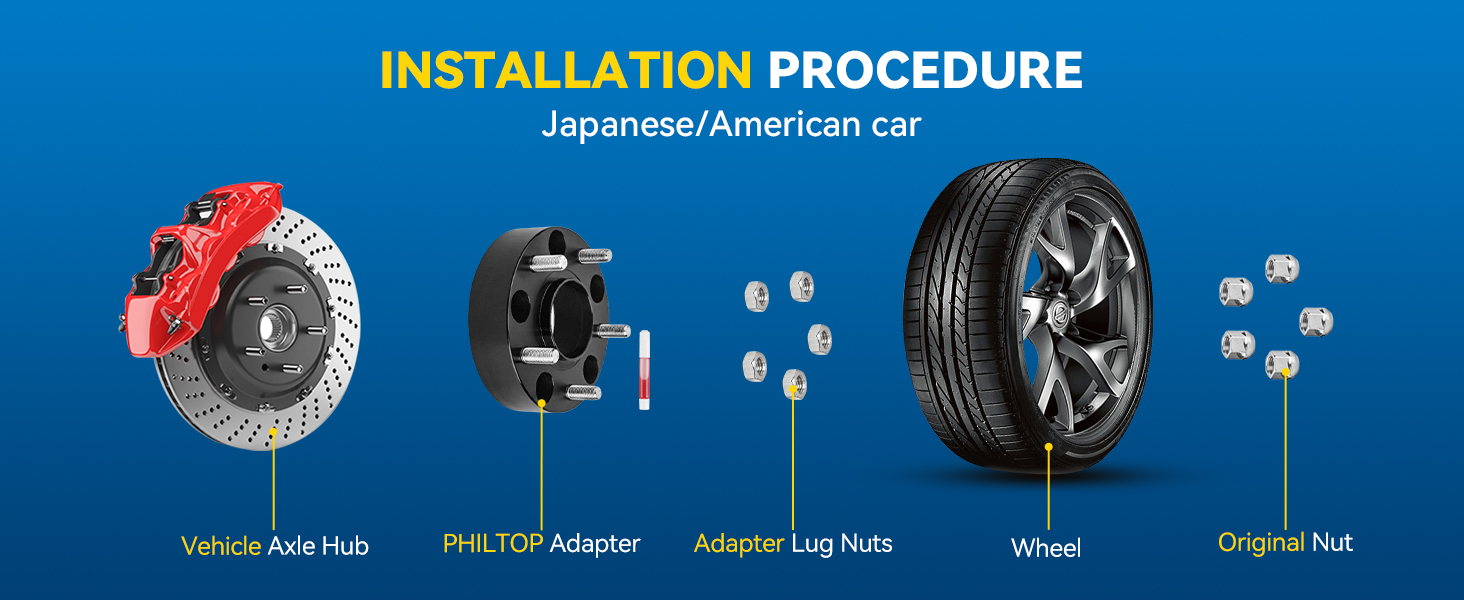

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

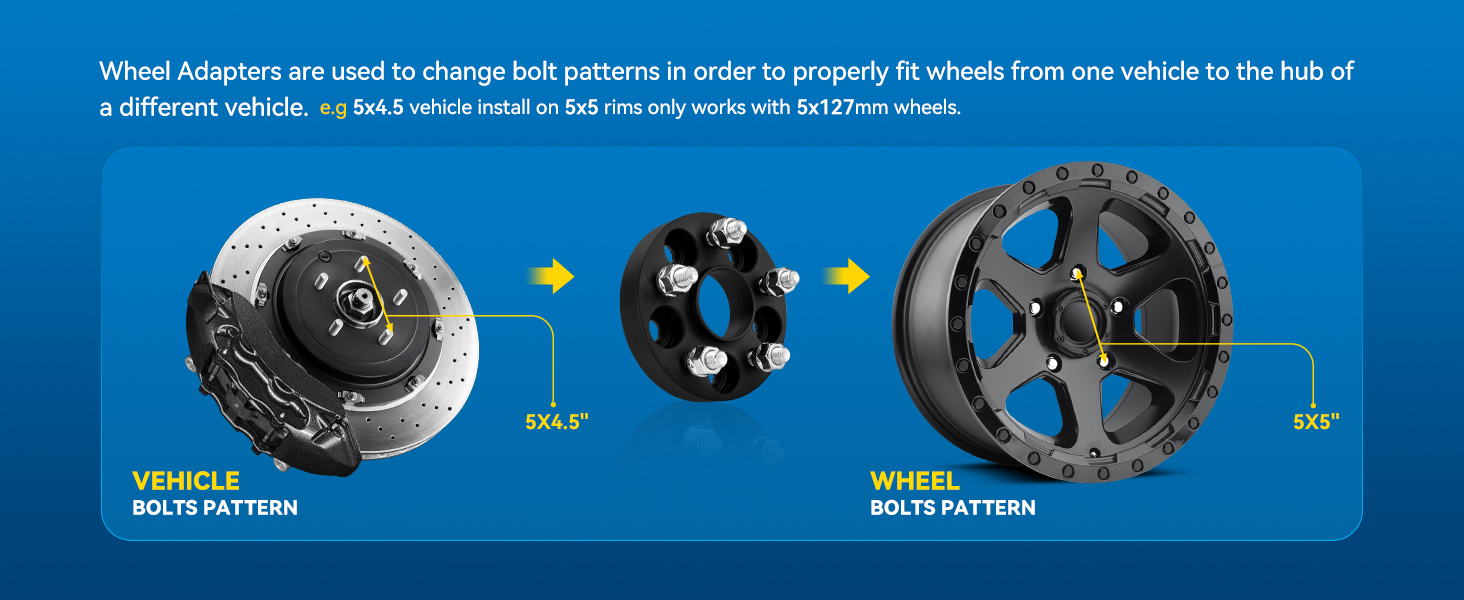

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

4.9/5

Based on 13 reviews

592%
48%
30%
20%
10%

Matt Davidson

01/26/2025

Verified buyer

5x5 to 5x4.5 wheel spacer,easy to install. On 3 months of running then no issues yet. No vibrations or noise from them.

Thomas Smith

01/26/2025

Verified buyer

Great seller quick response if u do have a problem they will make it right 5x5 to 5x4.5 wheel spacer I highly recommend

FAQS

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Please do not install the product. Take photos of the item, packaging and shipping label, then contact Philtop customer support as soon as possible for assistance.
