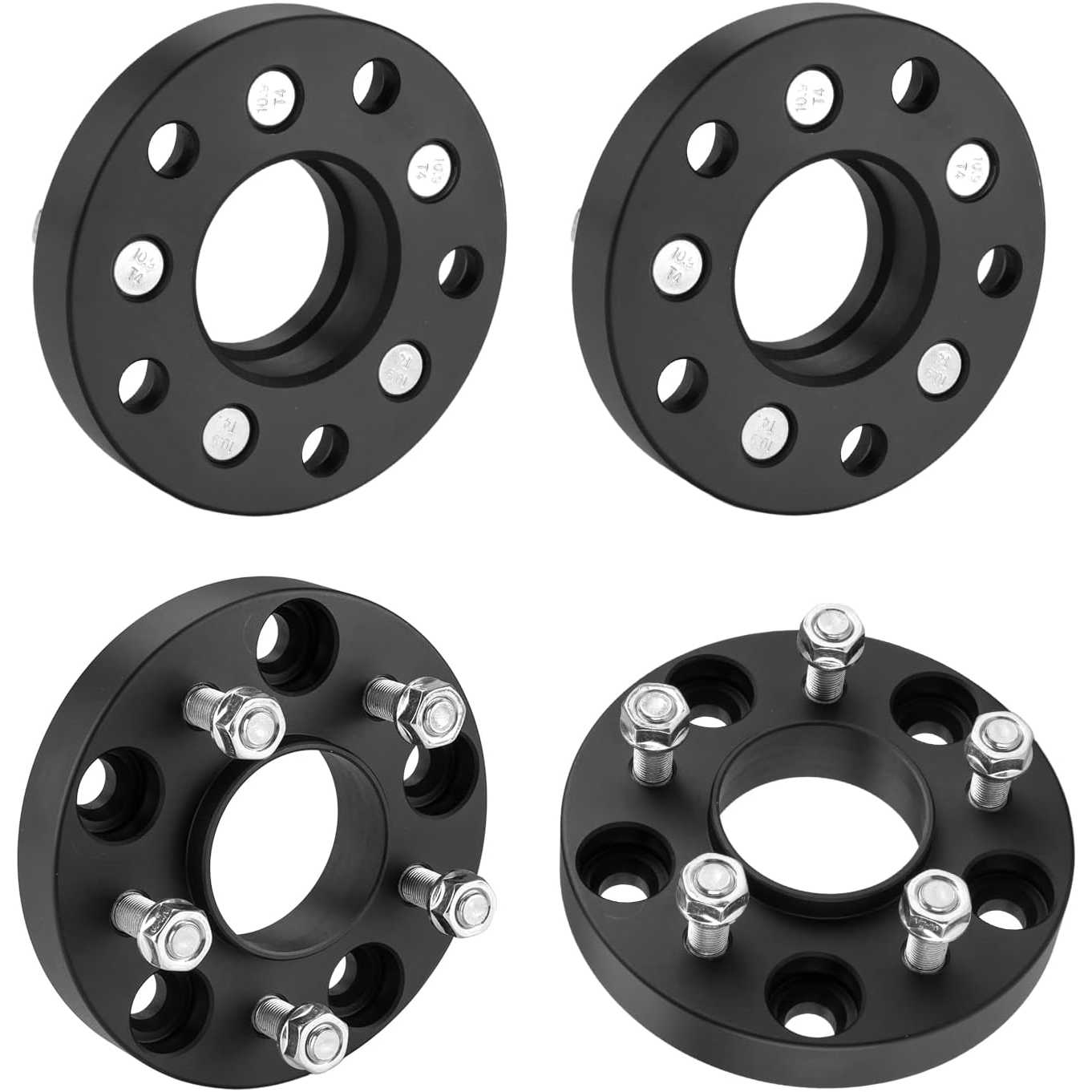

2007-2018 Jeep Wrangler 3.8L V6 | 5x5 to 5x4.5 71.5mm Center Bore 1/2"x20 Thread Wheel Hub Accessory - PHILTOP

2007-2018 Jeep Wrangler 3.8L V6 | 5x5 to 5x4.5 71.5mm Center Bore 1/2"x20 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
41ISWSA032007US

Specifications

Brand
PHILTOP
Bolt Pattern
5x5" To 5x4.5"
Wheel Bolt Pattern
5x4.5"
Vehicle Bolt Pattern
5x5"
Thread Size
1/2"x20
Center Bore
71.5
Hub-Centric Lip
Yes
Thickness
1inch
Note1
Only for 5x5" Models with 5x4.5" Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 5x4.5" Wheel.
Outside Diameter
164
Inside Diameter
2.81 in/71.5 mm
Lug Patterns
5
Type
Wheel Adapter
Items Included
4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
75-85 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • Compatible Vehicles: Commander 2006-2010 Cherokee 1999-2010 Wrangler 2007-2018
  • Applications Specs: Bolt Pattern: 5x5" to 5x4.5" ; Hub Bore: 71.5mm; Thickness: 1" ; Thread pitch: 1/2" x20
  • What it is for: These wheel spacers are designed to move the wheel away from the hub, more aggressive stance & better handling characteristics & increasingly driving stability. Easily mounting larger wheels or tires, eliminating rubbing instantly
  • High-quality materials: Made of aircraft aluminum billet, the anodized surface provides additional resistance to corrosion, ensuring high precision and stability, not easy to break/crack or rustproof.
  • Brand Guarantee: We provide a "1-year replacement and 24 hours online" service for free. If you have any questions about this product, please contact us at any time. Content: wheel spacers X4, install instruction X1

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year200620062006 - 20072006 - 20072006 - 20092006 - 20102007 - 20092007 - 20102007 - 20092010200620062007 - 20092005 - 200920101999 - 20041999 - 200920102007 - 2009200920101999 - 20041999 - 20092005 - 200920102007 - 20092002 - 20042006 - 20092006 - 2009201020042004200220022011201620182012 - 20182007 - 20082009 - 20112012 - 20172007 - 20082009 - 201120182012 - 20182010 - 201120182016201820112016201820182012 - 20182007 - 20082009 - 201120182012 - 20182007 - 20082009 - 201120182012 - 20182010 - 20112018201620182007 - 20082009 - 20102007 - 20082009 - 2010
MakeJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelCommanderCommanderCommanderCommanderCommanderCommanderCommanderCommanderCommanderCommanderGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWrangler
Trim65th Anniversary Edition65th Anniversary EditionBaseBaseLimitedLimitedOverlandSportSportSport65th Anniversary Edition65th Anniversary EditionLaredoLaredoLaredoLaredoLaredoLaredoLimitedLimitedLimitedLimitedLimitedLimitedLimitedOverlandOverlandOverlandSRT8SRT8Special EditionSpecial EditionSportSport70th Anniversary75th AnniversaryRubiconRubiconRubiconRubiconSaharaSaharaSaharaSportSportSportSport SSport SSport SUnlimited 70th AnniversaryUnlimited 75th AnniversaryUnlimited MoabUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited SaharaUnlimited SaharaUnlimited SaharaUnlimited SaharaUnlimited SportUnlimited SportUnlimited SportUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited XUnlimited XXX
Engine3.7L V64.7L V83.7L V64.7L V84.7L V85.7L V85.7L V83.7L V64.7L V85.7L V83.7L V64.7L V83.0L V63.7L V63.7L V64.0L L64.7L V85.7L V83.0L V63.7L V63.7L V64.0L L64.7L V85.7L V85.7L V83.0L V64.7L V85.7L V86.1L V86.1L V84.0L L64.7L V84.0L L64.7L V83.8L V63.6L V62.0L L43.6L V63.8L V63.8L V63.6L V63.8L V63.8L V62.0L L43.6L V63.8L V62.0L L43.6L V63.6L V63.8L V63.6L V63.6L V62.0L L43.6L V63.8L V63.8L V62.0L L43.6L V63.8L V63.8L V62.0L L43.6L V63.8L V62.0L L43.6L V63.6L V63.8L V63.8L V63.8L V63.8L V6
Note
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
-
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
-
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
-
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
-
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
-
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
----
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
--
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
------------
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
---
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
-------
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
-
PCD: 5x5 inch to 5x4.5 inch, Thread Size: 1/2 inch-20, Thickness: 1 inch, Center Bore: 71.5mm
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

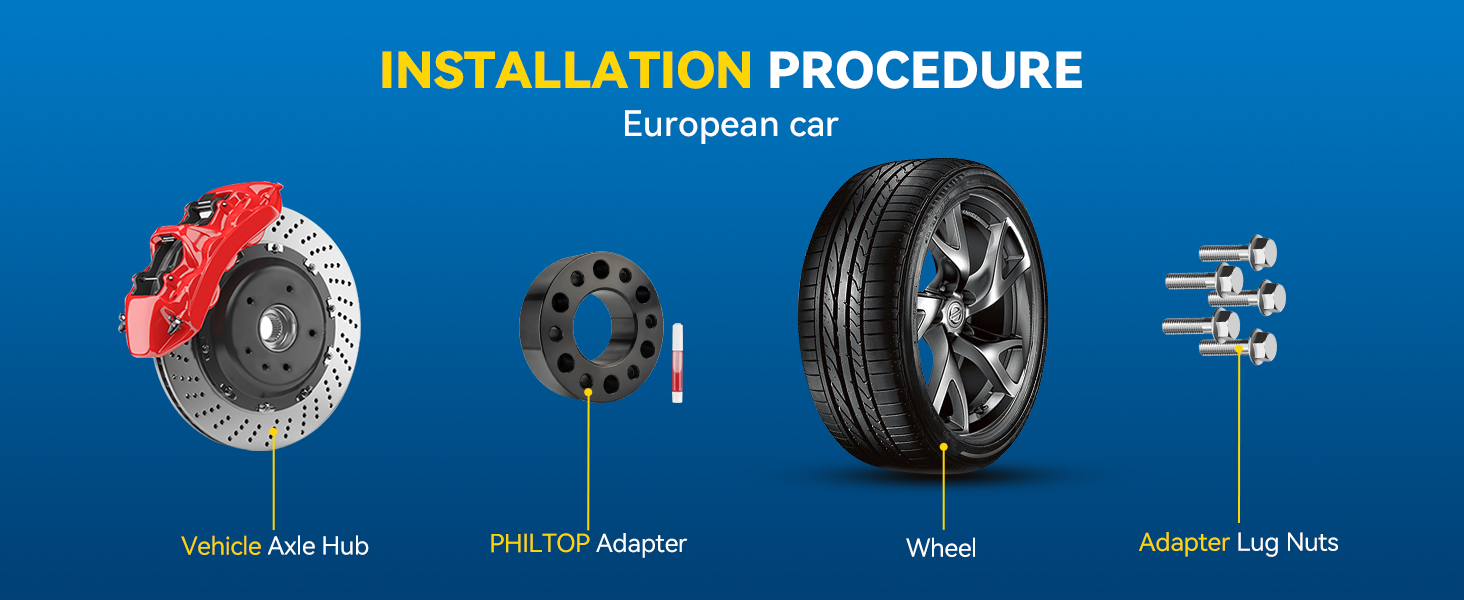

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

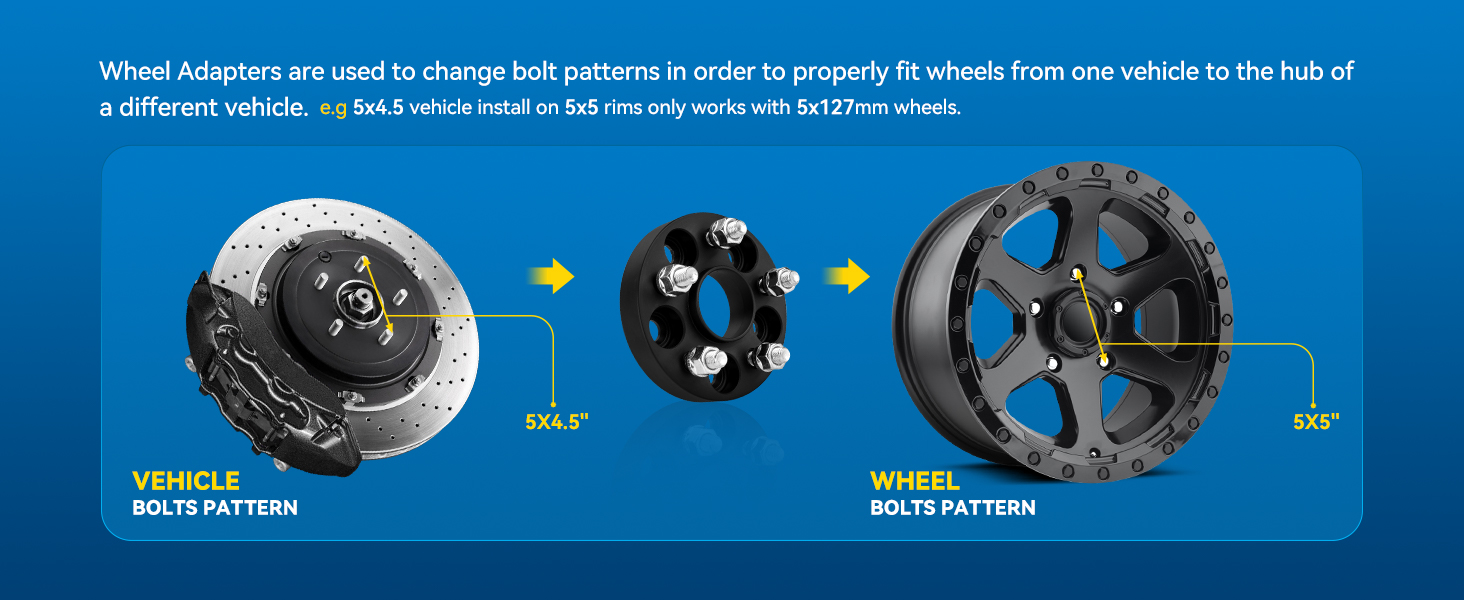

Wheel Adapters & SpacersWheel Adapters & Spacers
