2007-2024 Jeep Wrangler 3.8L V6/3.6L V6/2.0L L4/3.0L V6/6.4L V8 | 5x5" to 6x5.5" 78.1mm Center Bore M14x1.5 Thread Wheel Hub Acc

2007-2024 Jeep Wrangler 3.8L V6/3.6L V6/2.0L L4/3.0L V6/6.4L V8 | 5x5" to 6x5.5" 78.1mm Center Bore M14x1.5 Thread Wheel Hub Acc

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
47ISWSA197147US

Specifications

Brand
PHILTOP
Bolt Pattern
5x5" To 6x5.5"
Wheel Bolt Pattern
6x5.5"
Vehicle Bolt Pattern
5x5"
Thread Size
M14x1.5
Center Bore
78.1
Hub-Centric Lip
No
Thickness
2inch
Note1
Only for 5x5" Models with 6x5.5" Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 6x5.5" Wheel.
Outside Diameter
176
Inside Diameter
3.07 in/78.1 mm
Type
Wheel Adapter
Items Included
4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
85-90 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

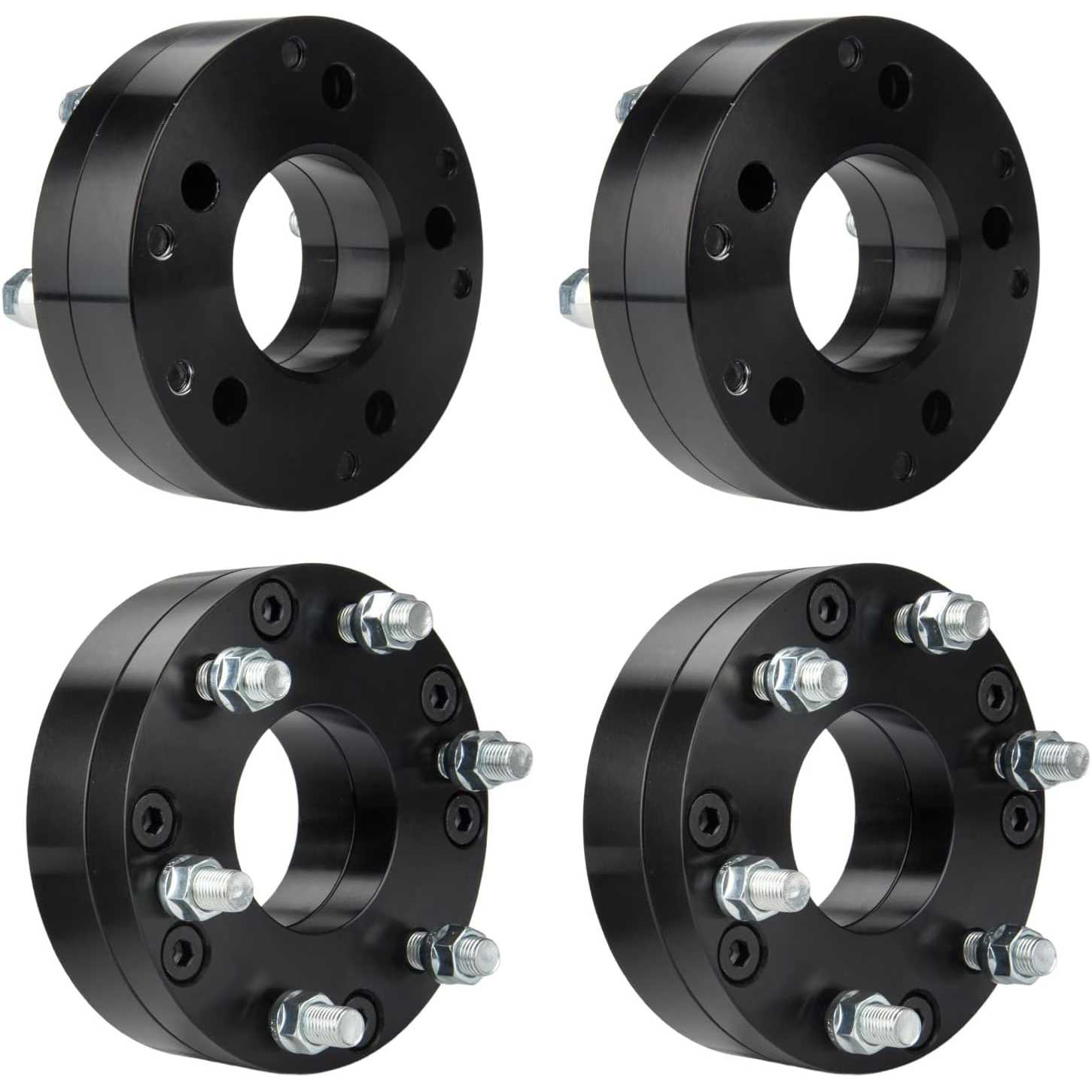

  • [Wheel Adapters Specification] --- Vehicle Bolt Pattern: 5x5"(5x127mm) ; | Wheel Bolt Pattern: 6x5.5"(6x139.7mm) ; | Thickness: 2 inch(50.8mm) ; | Thread Pitch: M14x1.5 ; | Hub Bore: 78.1mm ; | Recommended torque: 85-90 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts

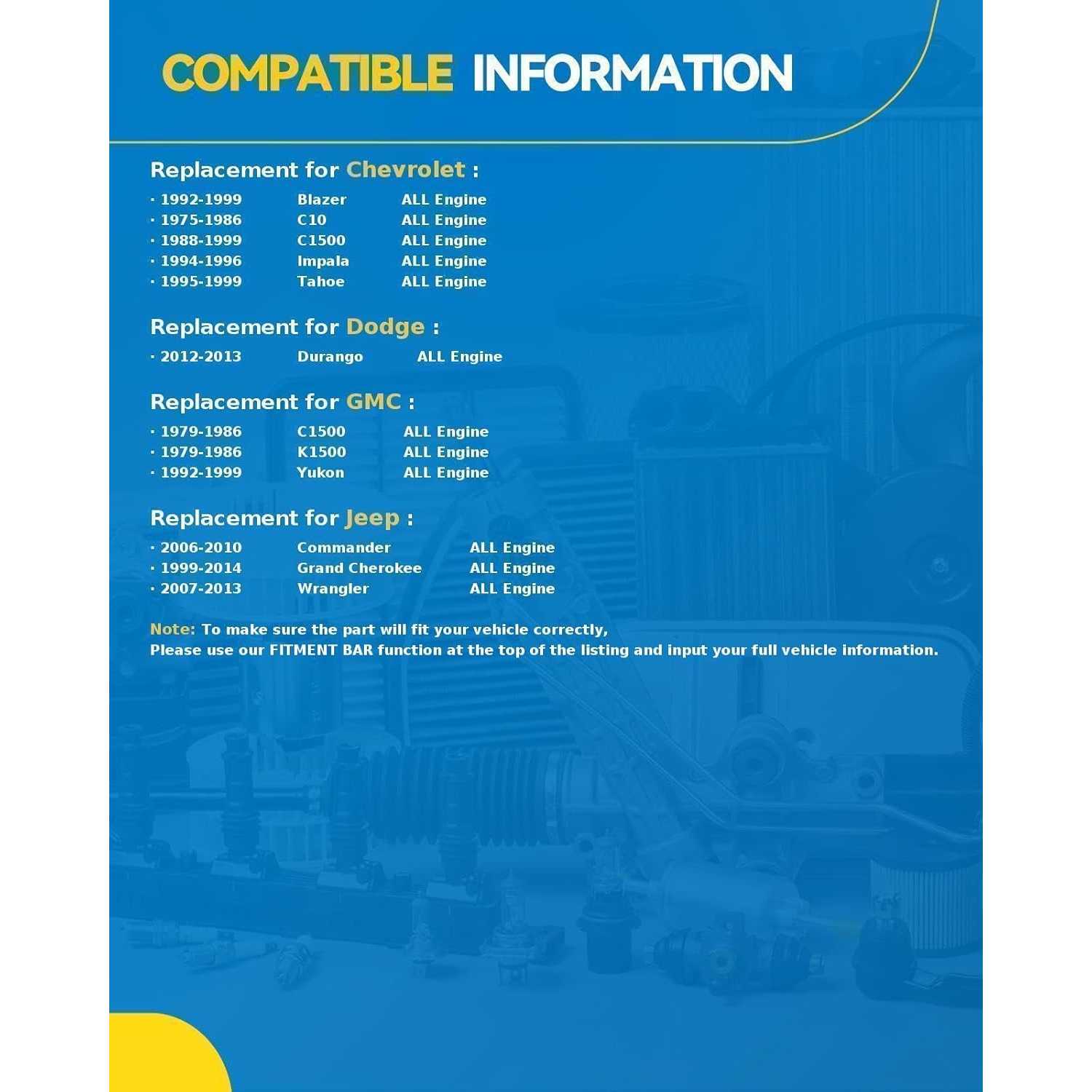

  • [Vehicle Application] --- The 5x5 to 6x5.5 Wheel Adapters set replacement for 1999-2014 Grand Cherokee; 2007-2013 Wrangler; 1988-1999 C1500; 1995-1999 Tahoe; 1975-1986 C10; 2006-2010 Commander; 1992-1999 Blazer; Yukon; 2012-2013 Durango; 1979-1986 C1500; K1500; 1994-1996 Impala

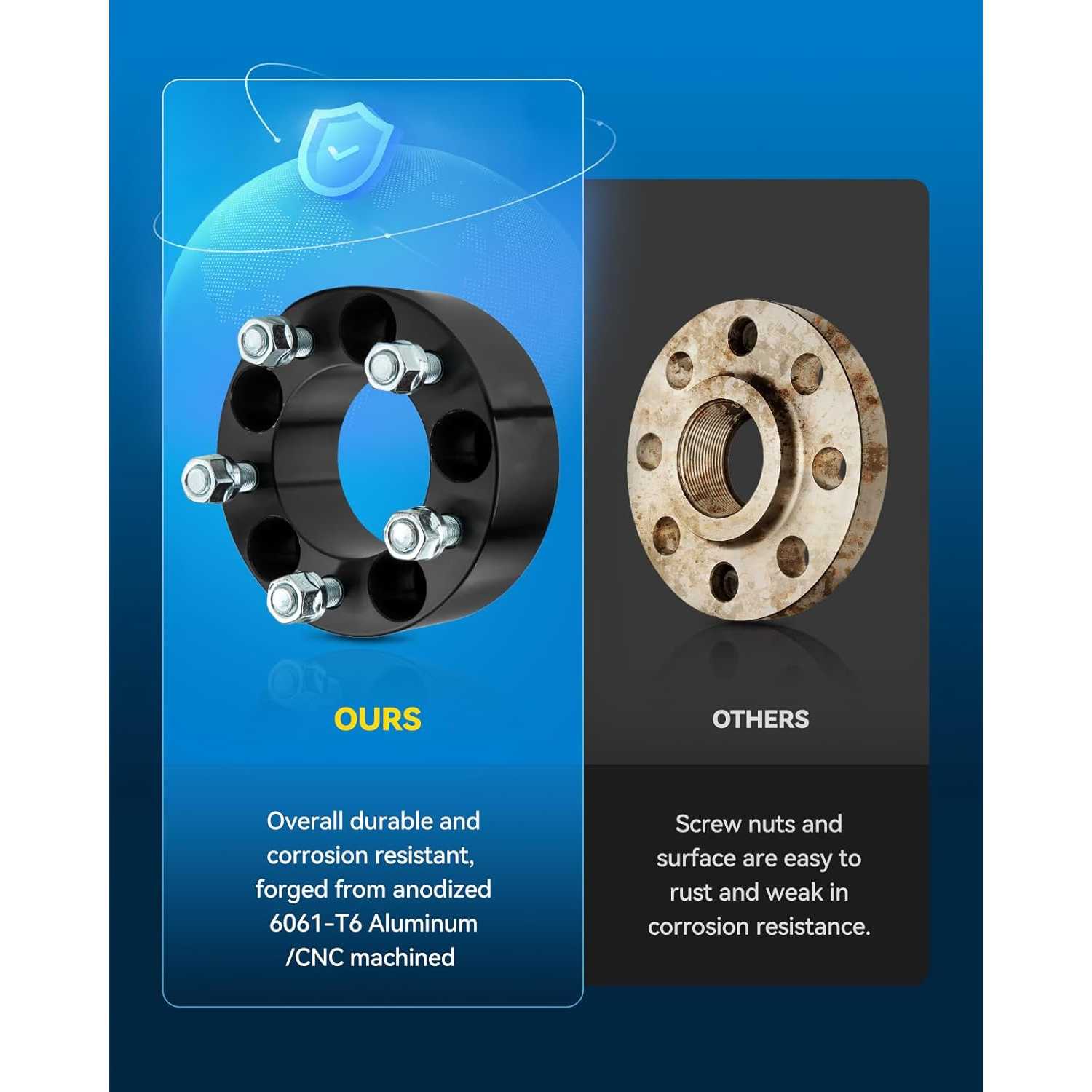

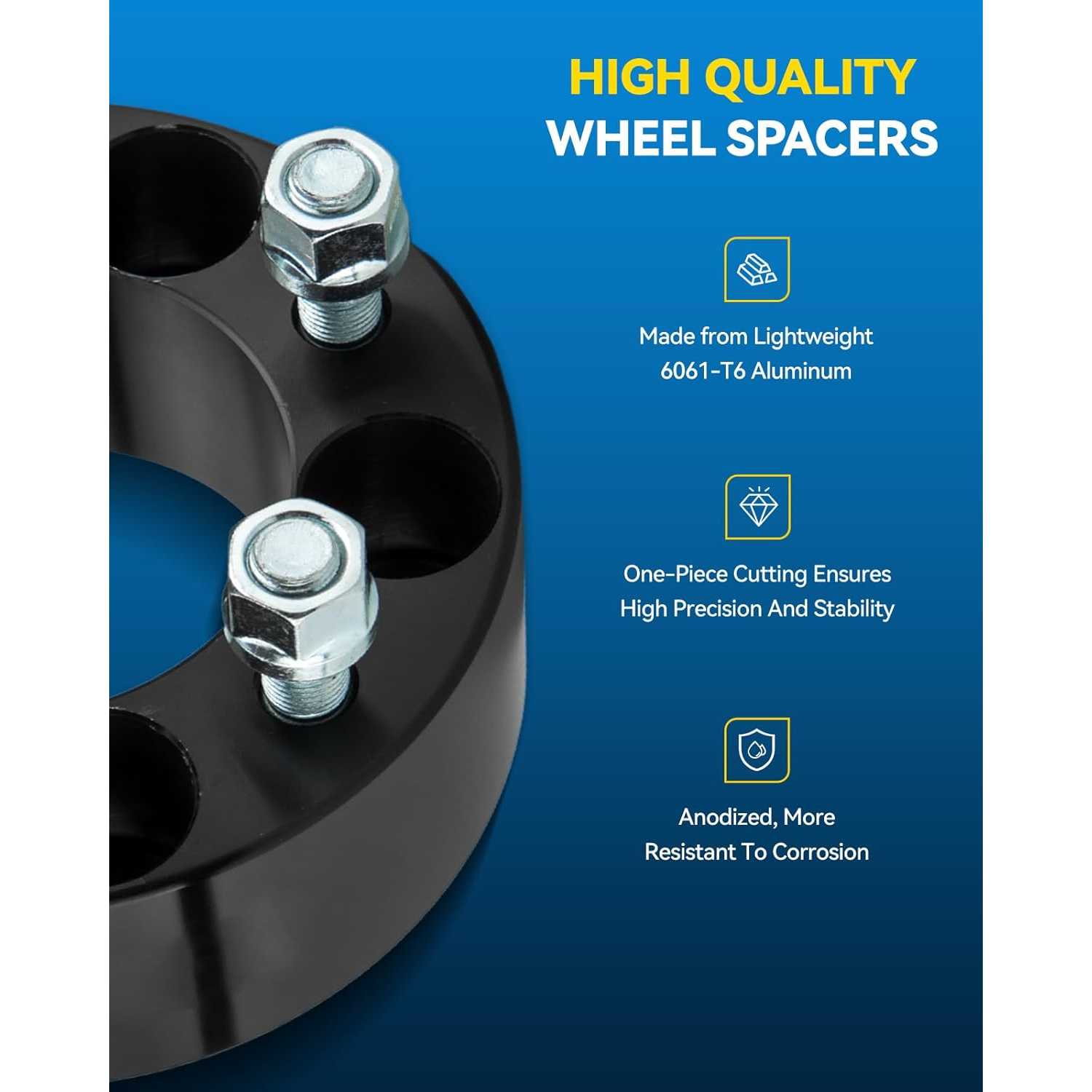

  • [High Quality] --- 5x5 to 6x5.5 Wheel Adapter is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving

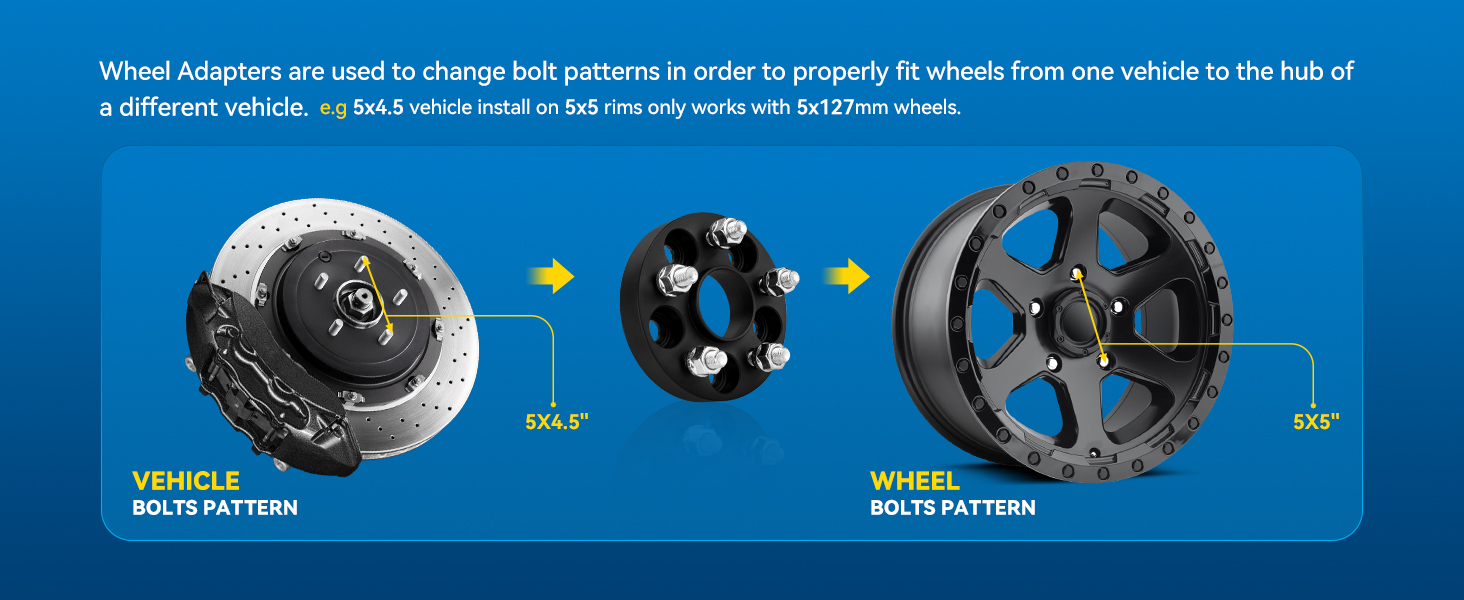

  • [Aggressive Driving Experience] --- These 5x5 to 6x5.5 wheel adapters change bolt pattern,it help you to fit the wheel of one factory vehicle to the hub of a different vehicle. The Wheel Adapters can move your wheels further out from the wheel hub, mount larger wheel or tires. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability,giving an aggressive performance to your vehicle
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1978 - 1980197819801978 - 19801978 - 198019801978 - 19801975 - 19811975 - 19801977 - 19811975 - 19811976 - 19801975 - 19801981 - 19841985 - 19861981 - 19861981 - 19861982 - 19861975 - 19801975 - 19801977 - 19801975 - 19801976 - 19801975 - 19801981198119811975 - 19841985 - 19861975 - 19801977 - 19861975 - 19861982 - 19861976 - 19801975 - 19801975 - 19841985 - 19861975 - 19801977 - 19861975 - 19861982 - 19861976 - 19801975 - 19801990 - 19911988 - 19911988 - 19911988 - 19911988 - 19911990 - 19911988 - 19911988 - 19911988 - 19911988 - 199119901988 - 19911988 - 19911988 - 19911988 - 19911990 - 19911990 - 19911990 - 19911990 - 19911990 - 19911990 - 19912000 - 20022000 - 20022000 - 20022000 - 20022000 - 20022000 - 20022001 - 20022001 - 20022001 - 20022012 - 20132012 - 20132012 - 20132012 - 20132012 - 20132012 - 20132012 - 20132012 - 20131979 - 19841985 - 198619801981 - 19861979 - 19861982 - 19861979 - 198019801979 - 19841985 - 198619801981 - 19861979 - 19861982 - 19861979 - 198019801979 - 19841985 - 198619801981 - 19861979 - 19861982 - 19861979 - 198019801979 - 198219801981 - 19821979 - 198219821979 - 198019802000 - 20022000 - 20022000 - 20022000200020002001 - 20022001 - 20022001 - 2002200620062006 - 20072006 - 20072006 - 20092006 - 20102007 - 20092007 - 20102007 - 200920102021202120222020202220232021 - 20232021 - 202320202020 - 20232021 - 20232020 - 20232021 - 20232020 - 20232021 - 20222020 - 20232021 - 20232020 - 202320212021 - 20232021 - 20232021 - 20232021 - 20232021 - 202320232022 - 2024200620062016202120182019 - 20202022 - 20242023 - 2024201820182019 - 202120182019 - 20202007 - 2009201120122013 - 20182019 - 20202022 - 20242005 - 200920102000 - 20042000 - 20092010 - 201120122013202120212023 - 20242007 - 20092014 - 201820192011 - 20182019 - 20212022 - 2024200920102000 - 20042000 - 20092005 - 20092010 - 20182019 - 20212019 - 20212019 - 20212007 - 20092014 - 201820192011 - 20182019 - 20212022 - 20242002 - 20042006 - 20092011 - 20182019 - 20212022 - 20232022 - 2024201220122014 - 20182019 - 20212006 - 200920102012 - 201320042004200220022014 - 201820192014 - 20182019 - 20212022 - 20242014 - 20182019 - 20212022 - 20232022 - 20242022 - 20242022 - 20232022 - 202420182019 - 20212017 - 201820192017 - 20182019 - 202120222017 - 20182019 - 202120222022 - 20242019 - 20202021 - 20222021 - 20222021 - 20222021 - 20222021 - 20222021 - 20222021 - 202220212021 - 202220112016202120212021202320212023202120212018 - 2019202020212022 - 20242012 - 2019202020212022 - 20242007 - 20082009 - 2011202420242012 - 20172007 - 20082009 - 20112018 - 2019202020212022 - 20242012 - 2019202020212022 - 20242010 - 20112018 - 2019202020212022 - 202420162018 - 2019202020212022 - 2024201120162021202120212021202120212021202220212022202120222021202220222021202120212018 - 20192018 - 20192020202120222020202120222012 - 20192020202120222007 - 20082009 - 201120212022202120222018 - 20192020 - 20212020 - 20222012 - 20192020 - 20222007 - 20082009 - 2011202120222021202220212022202120222018 - 20192020202120222020202120222012 - 20192020202120222010 - 20112021202220212022202120222018 - 201920202021202220202021202220162018 - 20192020202120222021202220212022202120222021202220212022202120222007 - 20082009 - 201020212022 - 202420212022 - 202420212022 - 202420212022 - 20242007 - 20082009 - 2010
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelC10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C10C1500C1500C1500C1500C1500C1500C1500C1500C1500C1500C1500C1500C1500C1500C1500C1500C1500C1500C1500C1500C1500Express 1500Express 1500Express 1500Express 1500Express 1500Express 1500Express 1500Express 1500Express 1500DurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoK1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500K1500Savana 1500Savana 1500Savana 1500Savana 1500Savana 1500Savana 1500Savana 1500Savana 1500Savana 1500CommanderCommanderCommanderCommanderCommanderCommanderCommanderCommanderCommanderCommanderGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWrangler
TrimBig TenBig TenBig TenBig TenBig TenBig TenBig TenCheyenneCheyenneCheyenneCheyenneCheyenneCheyenneCustomCustomCustomCustomCustomCustom DeluxeCustom DeluxeCustom DeluxeCustom DeluxeCustom DeluxeCustom DeluxeDeluxeDeluxeDeluxeScottsdaleScottsdaleScottsdaleScottsdaleScottsdaleScottsdaleScottsdaleScottsdaleSilveradoSilveradoSilveradoSilveradoSilveradoSilveradoSilveradoSilverado454 SSCheyenneCheyenneCheyenneCheyenneCheyenneScottsdaleScottsdaleScottsdaleScottsdaleScottsdaleSilveradoSilveradoSilveradoSilveradoSilveradoWTWTWTWTWTBaseBaseBaseLSLSLSLTLTLTCitadelCitadelCrewCrewR/TSXTSpecial ServiceSpecial ServiceBaseBaseBaseBaseBaseBaseBaseBaseHigh SierraHigh SierraHigh SierraHigh SierraHigh SierraHigh SierraHigh SierraHigh SierraSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra GrandeSierra GrandeSierra GrandeSierra GrandeSierra GrandeSierra GrandeSierra GrandeBaseBaseBaseSLESLESLESLTSLTSLT65th Anniversary Edition65th Anniversary EditionBaseBaseLimitedLimitedOverlandSportSportSport80th Anniversary80th AnniversaryAltitudeAltitudeAltitudeFreedomHigh AltitudeHigh AltitudeLaunch EditionMojaveOverlandOverlandRubiconRubiconSportSportSport SSport STexas TrailTexas TrailWillysWillysWillys SportWillys Sport30th Anniversary 4xe4xe65th Anniversary Edition65th Anniversary Edition75th Anniversary80th AnniversaryAltitudeAltitudeAltitudeAltitude XHigh AltitudeHigh AltitudeHigh AltitudeHigh AltitudeHigh AltitudeLaredoLaredoLaredoLaredoLaredoLaredoLaredoLaredoLaredoLaredoLaredoLaredoLaredoLaredo ELaredo XLaredo XLimitedLimitedLimitedLimitedLimitedLimitedLimitedLimitedLimitedLimitedLimitedLimitedLimitedLimited XLimited XOverlandOverlandOverlandOverlandOverlandOverlandOverlandOverlandOverlandOverlandOverlandOverland 4xeOverland SummitOverland SummitSRTSRTSRT8SRT8SRT8Special EditionSpecial EditionSportSportSummitSummitSummitSummitSummitSummitSummitSummitSummit 4xeSummit ReserveSummit ReserveSummit Reserve 4xeTrackhawkTrackhawkTrailhawkTrailhawkTrailhawkTrailhawkTrailhawkTrailhawkTrailhawkTrailhawkTrailhawk 4xeUplandAltitudeLaredoLimitedOverlandOverlandSummitSummitSummit ReserveSummit Reserve70th Anniversary75th Anniversary80th Anniversary80th AnniversaryFreedomFreedomFreedomFreedomIslanderIslanderRubiconRubiconRubiconRubiconRubiconRubiconRubiconRubiconRubiconRubiconRubicon XRubicon XSaharaSaharaSaharaSportSportSportSportSportSportSportSportSportSport SSport SSport SSport SSport SSport SSport SSport SSport SUnlimited 70th AnniversaryUnlimited 75th AnniversaryUnlimited 80th AnniversaryUnlimited 80th AnniversaryUnlimited 80th AnniversaryUnlimited FreedomUnlimited FreedomUnlimited FreedomUnlimited High AltitudeUnlimited High AltitudeUnlimited High AltitudeUnlimited High AltitudeUnlimited High AltitudeUnlimited High AltitudeUnlimited High Altitude 4xeUnlimited High Altitude 4xeUnlimited High TideUnlimited IslanderUnlimited IslanderUnlimited IslanderUnlimited MoabUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited Rubicon 392Unlimited Rubicon 392Unlimited Rubicon 4xeUnlimited Rubicon 4xeUnlimited SaharaUnlimited SaharaUnlimited SaharaUnlimited SaharaUnlimited SaharaUnlimited SaharaUnlimited SaharaUnlimited Sahara 4xeUnlimited Sahara 4xeUnlimited Sahara AltitudeUnlimited Sahara AltitudeUnlimited Sahara AltitudeUnlimited Sahara AltitudeUnlimited Sahara AltitudeUnlimited Sahara AltitudeUnlimited SportUnlimited SportUnlimited SportUnlimited SportUnlimited SportUnlimited SportUnlimited SportUnlimited SportUnlimited SportUnlimited SportUnlimited SportUnlimited SportUnlimited Sport AltitudeUnlimited Sport AltitudeUnlimited Sport AltitudeUnlimited Sport AltitudeUnlimited Sport AltitudeUnlimited Sport AltitudeUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited WillysUnlimited WillysUnlimited WillysUnlimited WillysUnlimited WillysUnlimited WillysUnlimited Willys SportUnlimited Willys SportUnlimited Willys SportUnlimited Willys SportUnlimited Willys SportUnlimited Willys SportUnlimited XUnlimited XWillysWillysWillysWillysWillys SportWillys SportWillys SportWillys SportXX
Engine4.1L L64.8L L64.8L L65.0L V85.7L V86.6L V87.4L V84.1L L64.8L L65.0L V85.7L V86.6L V87.4L V84.1L L64.3L V65.0L V85.7L V86.2L V84.1L L64.8L L65.0L V85.7L V86.6L V87.4L V84.1L L65.0L V85.7L V84.1L L64.3L V64.8L L65.0L V85.7L V86.2L V86.6L V87.4L V84.1L L64.3L V64.8L L65.0L V85.7L V86.2L V86.6L V87.4L V87.4L V84.3L V65.0L V85.7L V86.2L V87.4L V84.3L V65.0L V85.7L V86.2L V87.4L V84.3L V65.0L V85.7L V86.2L V87.4L V84.3L V65.0L V85.7L V86.2L V87.4L V84.3L V65.0L V85.7L V84.3L V65.0L V85.7L V84.3L V65.0L V85.7L V83.6L V65.7L V83.6L V65.7L V85.7L V83.6L V63.6L V65.7L V84.1L L64.3L V64.8L L65.0L V85.7L V86.2L V86.6L V87.4L V84.1L L64.3L V64.8L L65.0L V85.7L V86.2L V86.6L V87.4L V84.1L L64.3L V64.8L L65.0L V85.7L V86.2L V86.6L V87.4L V84.1L L64.8L L65.0L V85.7L V86.2L V86.6L V87.4L V84.3L V65.0L V85.7L V84.3L V65.0L V85.7L V84.3L V65.0L V85.7L V83.7L V64.7L V83.7L V64.7L V84.7L V85.7L V85.7L V83.7L V64.7L V85.7L V83.0L V63.6L V63.0L V63.6L V63.6L V63.6L V63.0L V63.6L V63.6L V63.6L V63.0L V63.6L V63.0L V63.6L V63.0L V63.6L V63.0L V63.6L V63.0L V63.6L V63.0L V63.6L V63.0L V63.6L V62.0L L42.0L L43.7L V64.7L V83.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.0L V63.6L V63.6L V65.7L V85.7L V83.0L V63.6L V63.6L V63.6L V63.6L V63.6L V63.7L V63.7L V64.0L L64.7L V85.7L V85.7L V85.7L V83.6L V63.6L V63.6L V63.0L V63.0L V63.0L V63.6L V63.6L V63.6L V63.7L V63.7L V64.0L L64.7L V85.7L V85.7L V85.7L V83.6L V65.7L V83.0L V63.0L V63.0L V63.6L V63.6L V63.6L V64.7L V85.7L V85.7L V85.7L V85.7L V82.0L L43.6L V65.7L V86.4L V86.4L V86.1L V86.1L V86.4L V84.0L L64.7L V84.0L L64.7L V83.0L V63.0L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V82.0L L43.6L V65.7L V82.0L L46.2L V86.2L V83.0L V63.0L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V82.0L L43.6L V63.6L V63.6L V63.6L V63.6L V65.7L V83.6L V65.7L V83.6L V65.7L V83.8L V63.6L V62.0L L43.6L V62.0L L42.0L L43.6L V63.6L V62.0L L43.6L V62.0L L42.0L L42.0L L42.0L L43.6L V63.6L V63.6L V63.6L V63.8L V63.8L V62.0L L43.6L V63.6L V63.8L V63.8L V62.0L L42.0L L42.0L L42.0L L43.6L V63.6L V63.6L V63.6L V63.8L V62.0L L42.0L L42.0L L42.0L L43.6L V63.6L V63.6L V63.6L V63.6L V63.8L V63.6L V62.0L L43.0L V63.6L V62.0L L43.0L V63.6L V62.0L L42.0L L43.0L V63.0L V63.6L V63.6L V62.0L L42.0L L43.6L V62.0L L43.0L V63.6L V63.6L V62.0L L42.0L L42.0L L42.0L L43.0L V63.0L V63.0L V63.6L V63.6L V63.6L V63.6L V63.8L V63.8L V66.4L V86.4L V82.0L L42.0L L42.0L L42.0L L43.0L V63.6L V63.6L V63.8L V63.8L V62.0L L42.0L L42.0L L42.0L L43.0L V63.0L V63.6L V63.6L V62.0L L42.0L L42.0L L42.0L L43.0L V63.0L V63.0L V63.6L V63.6L V63.6L V63.6L V63.8L V62.0L L42.0L L43.0L V63.0L V63.6L V63.6L V62.0L L42.0L L42.0L L42.0L L43.0L V63.0L V63.0L V63.6L V63.6L V63.6L V63.6L V63.6L V62.0L L42.0L L43.0L V63.0L V63.6L V63.6L V62.0L L42.0L L43.0L V63.0L V63.6L V63.6L V63.8L V63.8L V62.0L L42.0L L43.6L V63.6L V62.0L L42.0L L43.6L V63.6L V63.8L V63.8L V6
Note-------------------------------------------------------------------------------------------------------------------------
XK
XK
XK
XK
XK
XK
XK
XK
XK
XK
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
JT
--
WJ WK WK2 WL
WJ WK WK2 WL
-
WJ WK WK2 WL
-
WJ WK WK2 WL
----
WJ WK WK2 WL
-
WJ WK WK2 WL
WJ WK WK2 WL
-
WJ WK WK2 WL
-
WJ WK WK2 WL
-
WJ WK WK2 WL
-
WJ WK WK2 WL
WJ WK WK2 WL
-
WJ WK WK2 WL
-
WJ WK WK2 WL
WJ WK WK2 WL
-
WJ WK WK2 WL
-
WJ WK WK2 WL
-
WJ WK WK2 WL
-
WJ WK WK2 WL
-
WJ WK WK2 WL
WJ WK WK2 WL
WJ WK WK2 WL
-
WJ WK WK2 WL
WJ WK WK2 WL
WJ WK WK2 WL
WJ WK WK2 WL
-
WJ WK WK2 WL
-
WJ WK WK2 WL
-
WJ WK WK2 WL
WJ WK WK2 WL
-
WJ WK WK2 WL
-----
WJ WK WK2 WL
WJ WK WK2 WL
--
WJ WK WK2 WL
WJ WK WK2 WL
WJ WK WK2 WL
WJ WK WK2 WL
-
WJ WK WK2 WL
-
WJ WK WK2 WL
--
WJ WK WK2 WL
------
WJ WK WK2 WL
-
WJ WK WK2 WL
-
WJ WK WK2 WL
--
WJ WK WK2 WL
--
WJ WK WK2 WL
WL
WL
WL
WL
WL
WL
WL
WL
WL
-----
JK JL
-
JK JL
---
JK JL
-
JK JL
-
JK JL
-
JK JL
JK JL
-
JK JL
JK JL
-
JK JL
--
JK JL
-
JK JL
-
JK JL
-
JK JL
--
JK JL
-
JK JL
--
JK JL
-
JK JL
---------
JK JL
-
JK JL
-
JK JL
-
JK JL
JK JL
-----
JK JL
-
JK JL
JK JL
-
JK JL
-
JK JL
-
JK JL
JK JL
--
JK JL
-
JK JL
-
JK JL
JK JL
-
JK JL
JK JL
--
JK JL
-
JK JL
-
JK JL
-
JK JL
-
JK JL
-
JK JL
JK JL
-
JK JL
-
JK JL
-
JK JL
--
JK JL
-
JK JL
-
JK JL
-
JK JL
-
JK JL
JK JL
-
JK JL
--
JK JL
-
JK JL
-
JK JL
-
JK JL
-
JK JL
-
JK JL
-
JK JL
-
JK JL
JK JL
--
JK JL
-
JK JL
-
JK JL
-
JK JL
JK JL
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

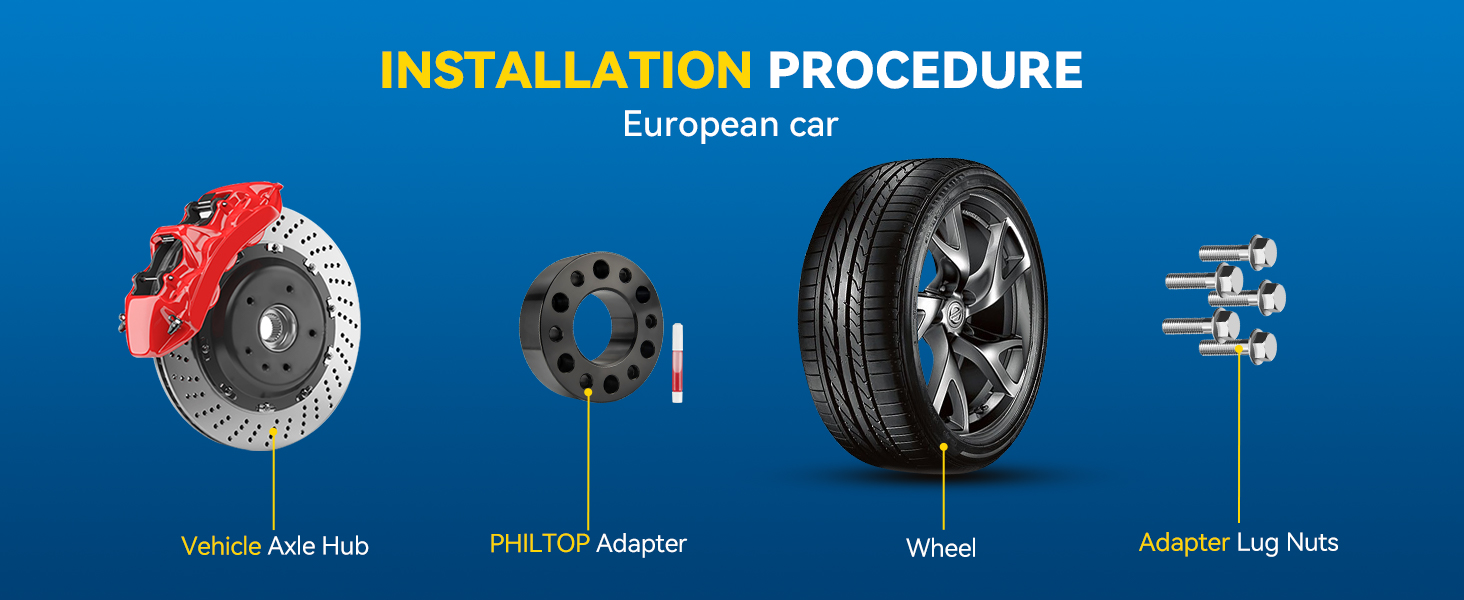

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.
