2020-2025 Jeep Gladiator 3.6L V6 | 5x5" 71.5mm Center Bore M14x1.5 Thread Wheel Hub Accessory - PHILTOP

2020-2025 Jeep Gladiator 3.6L V6 | 5x5" 71.5mm Center Bore M14x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
84ISWSA107007US

Specifications

Brand
PHILTOP
Bolt Pattern
5x5"
Wheel Bolt Pattern
5x5"
Vehicle Bolt Pattern
5x5"
Thread Size
M14x1.5
Center Bore
71.5
Hub-Centric Lip
Yes
Thickness
1.5inch
Outside Diameter
164
Inside Diameter
2.81 in/71.5 mm
Lug Patterns
5
Type
Wheel Spacer
Items Included
4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge

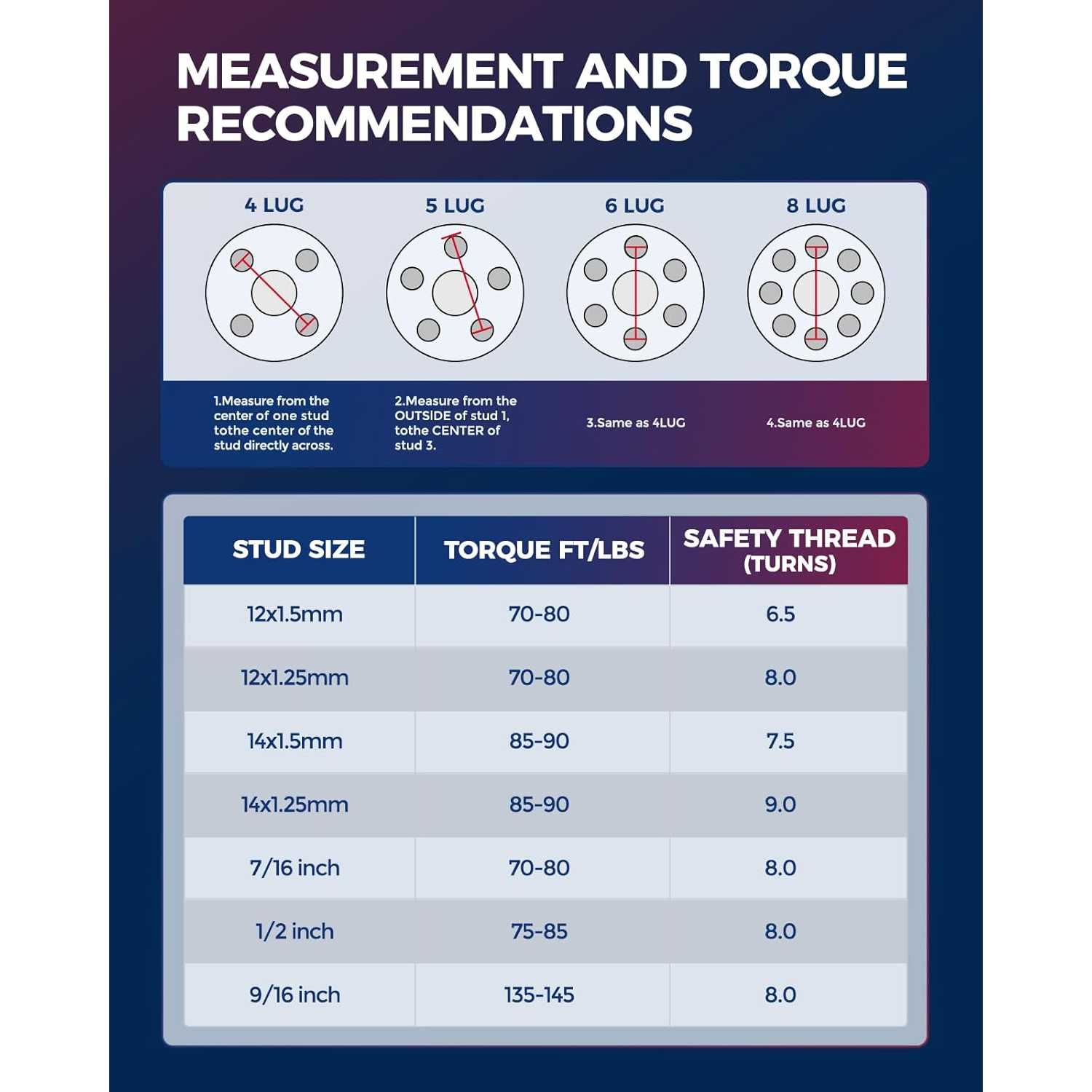

Recommended Torque
85-90 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

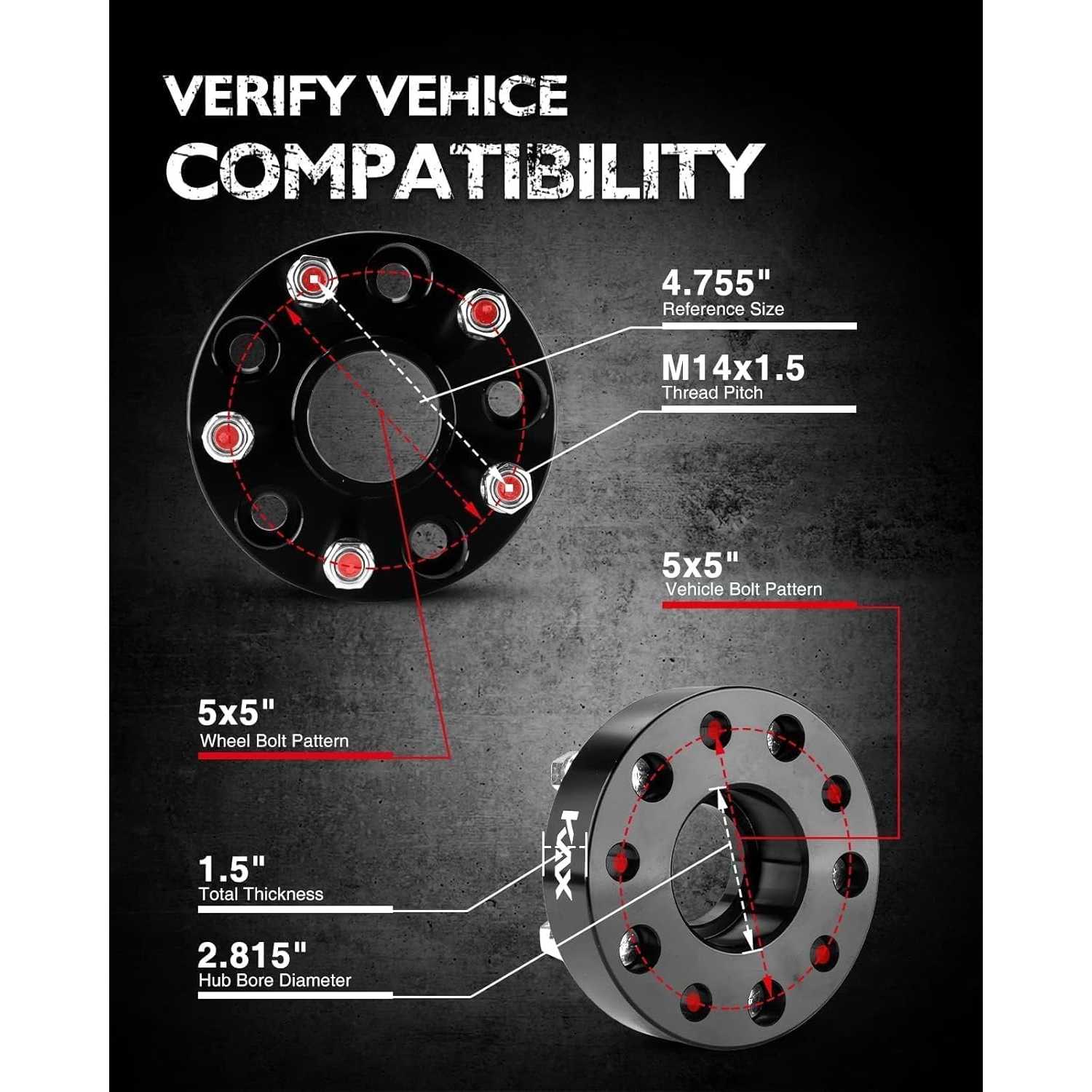

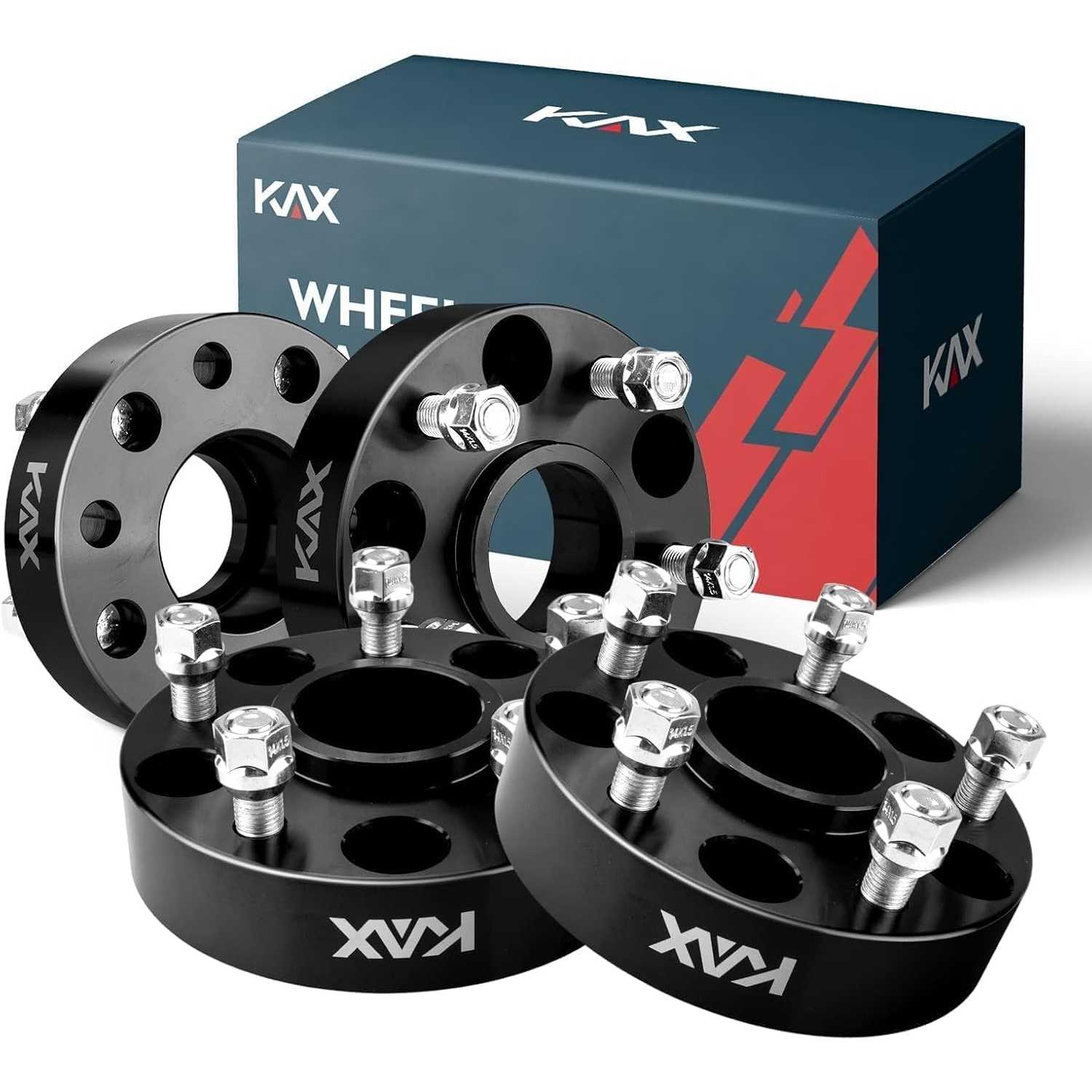

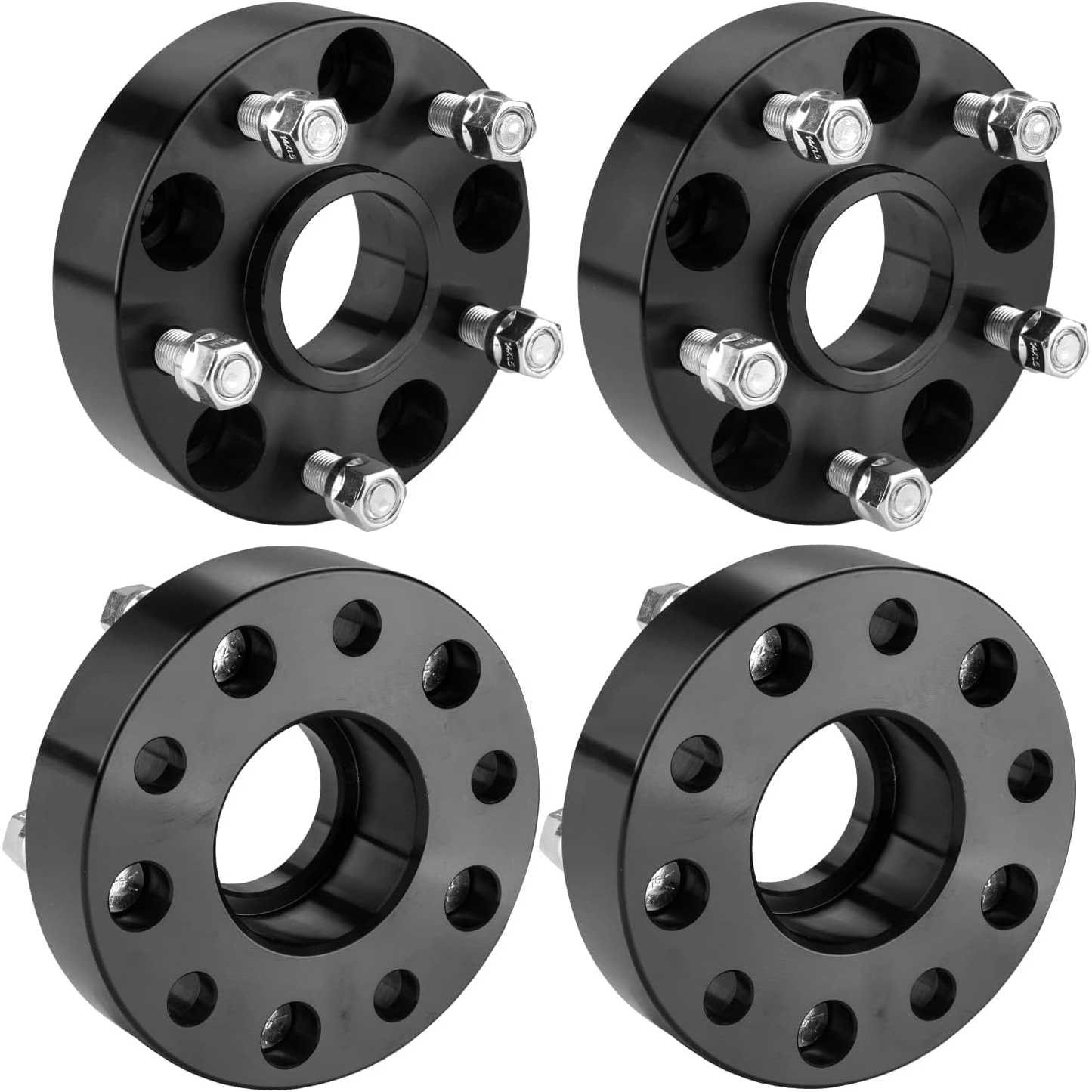

  • ?KAX Bolt On Wheel Spacers Parameter : Vehicle & Wheels Bolt Pattern Must Be 5x5"(5x127mm) || 1.5 inch(38mm) Thick || M14x1.5 Threaded Studs/Nuts || 71.5mm Center Bore with lip || Recommended torque: 85-90 ft/lbs. Package includes 4pcs wheel spacers, 10.9 class split nuts and professional instruction manual

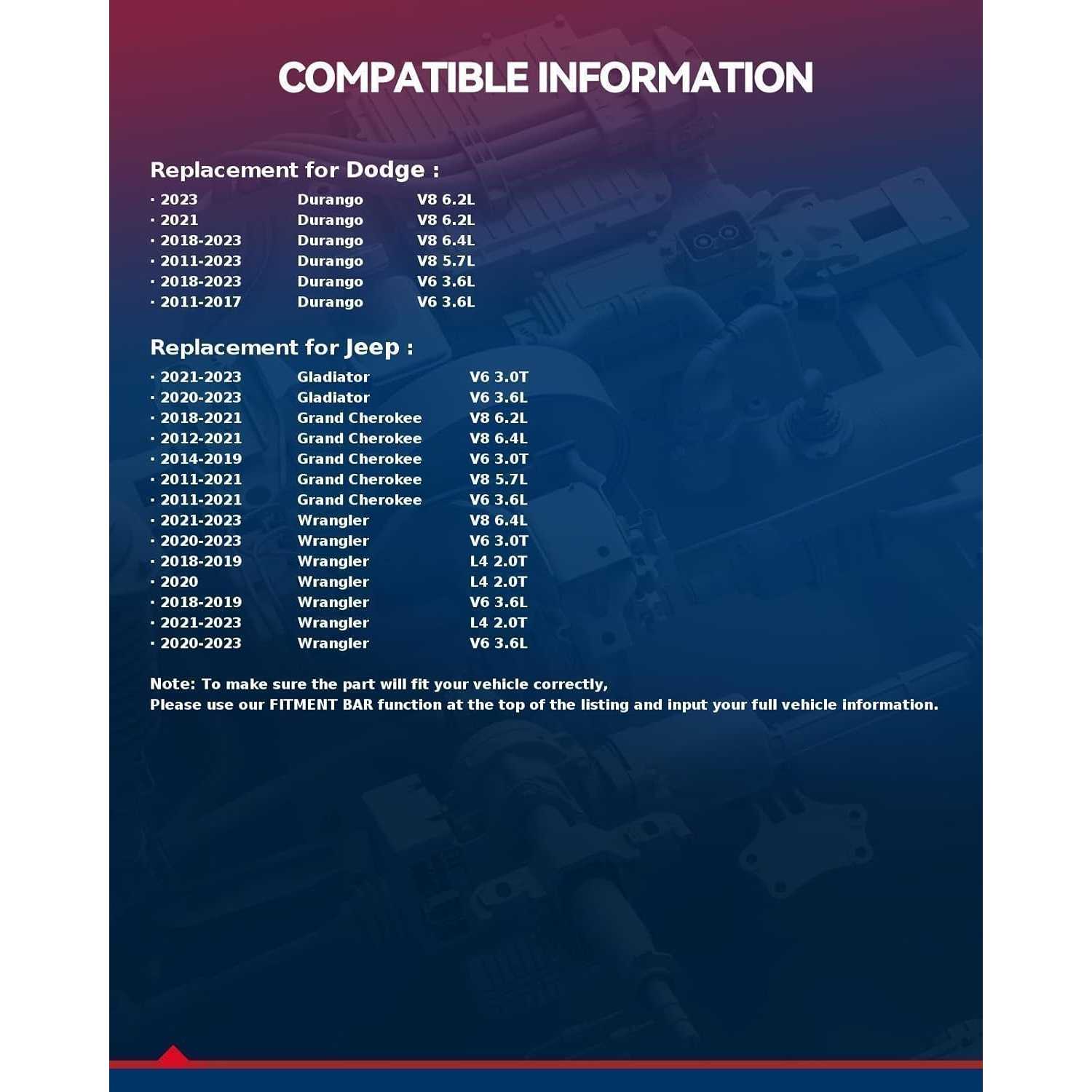

  • ?Compatibility : 5x5 wheel spacers 1.5 inch are compatible with 2011-2021 Grand Cherokee 3.6/5.7L Naturally Aspirated FLEX/GAS V6/V8; 2018-2023 Wrangler 3.6L Naturally Aspirated GAS V6; Durango 3.6/6.4L Naturally Aspirated GAS V6/V8; 2020-2023 Gladiator 3.6L Naturally Aspirated GAS V6; Wrangler 2.0/3.0/3.6L Naturally Aspirated/Turbocharged DIESEL/GAS/MILD HYBRID EV-GAS (MHEV) L4/V6; 2011-2017 Durango 3.6L Naturally Aspirated FLEX V6; 2011-2023 Durango 5.7L Naturally Aspirated GAS

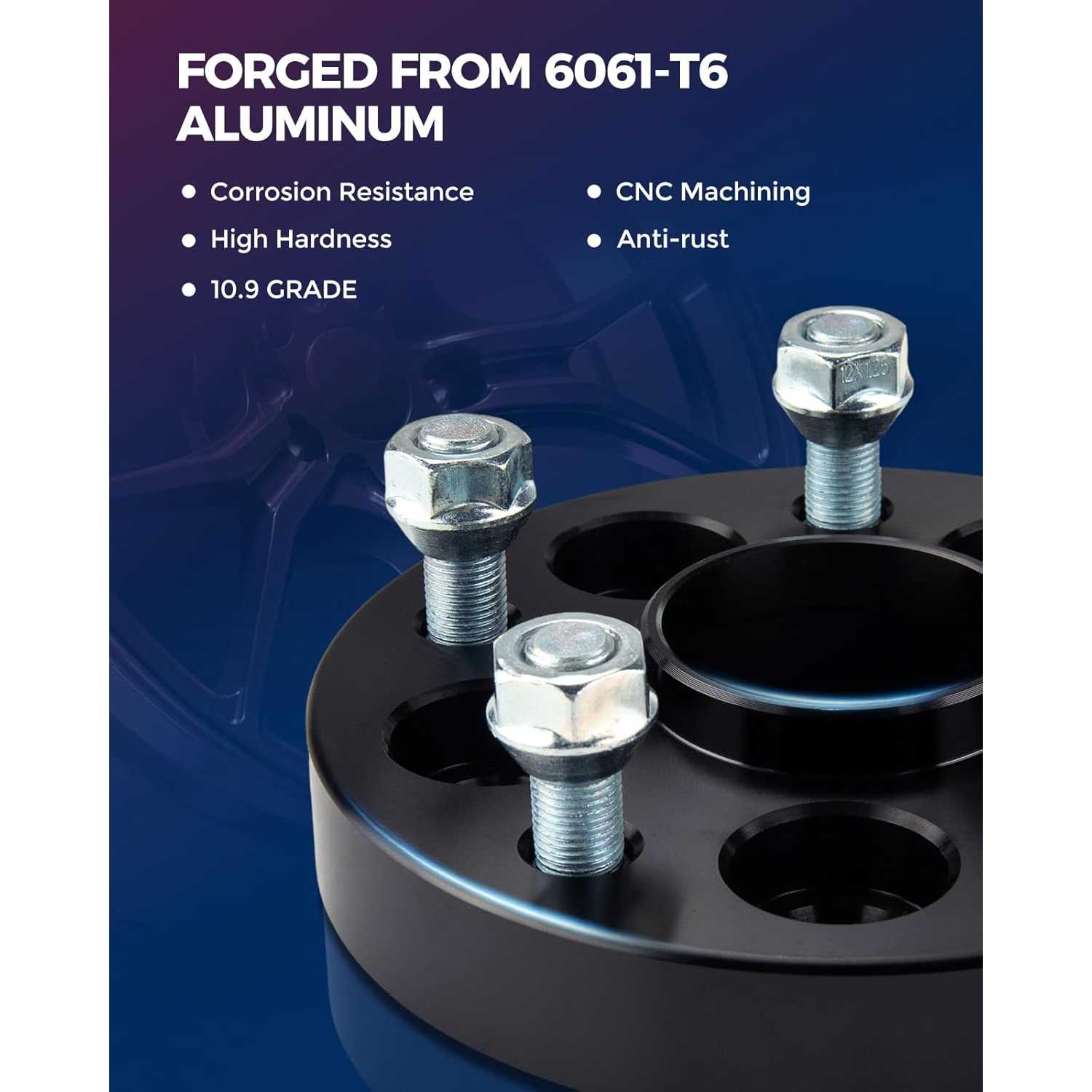

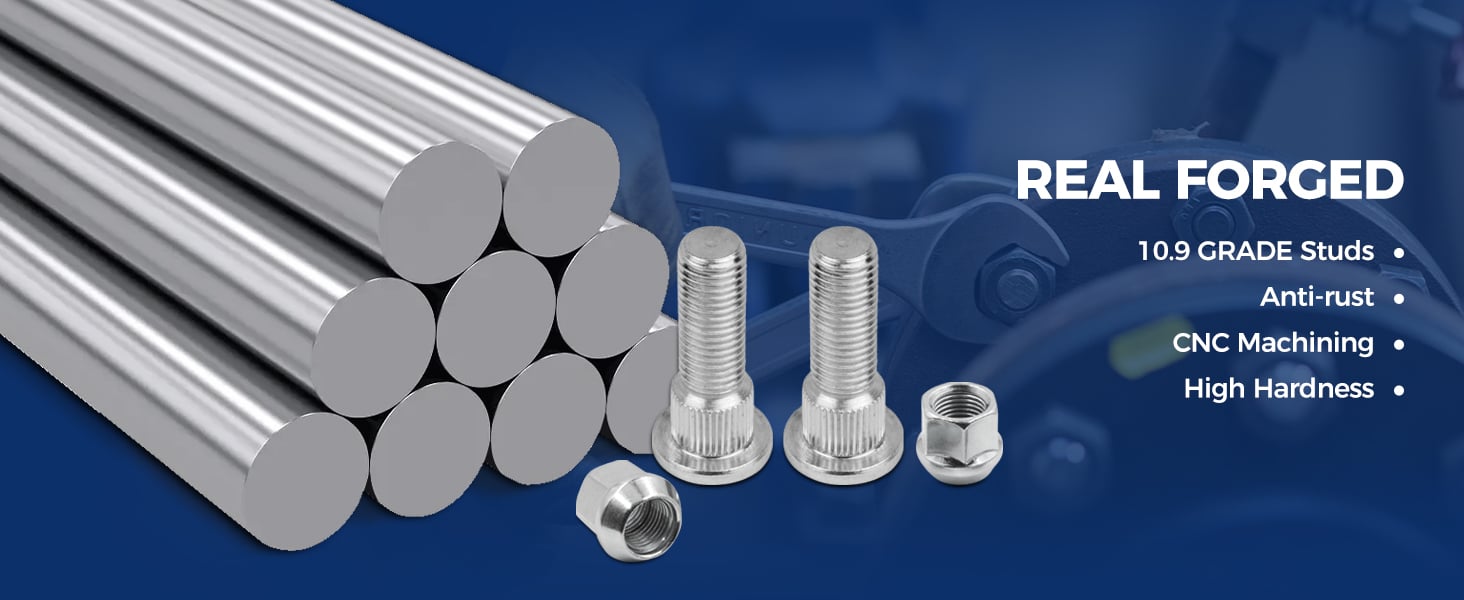

  • ?Newest Forging Technology : 5x5 hub centric wheel spacers are truly forged from aircraft quality 6061-T6 aluminum. You can imagine how exacting the craft of aircraft manufacture is! So it is with spacer. Coupled with SGS certified 10.9 grades high strength bolts, regardless of the cold wind and heat, the adapter will not fall off and break
  • ?Why Install Wheel Spacers : 1.5 inch wheel spacers can widen the vehicles track, fix clearance & offset issues from aftermarket wheels,allow you to travel safely in the outdoors such as mountains and wilderness

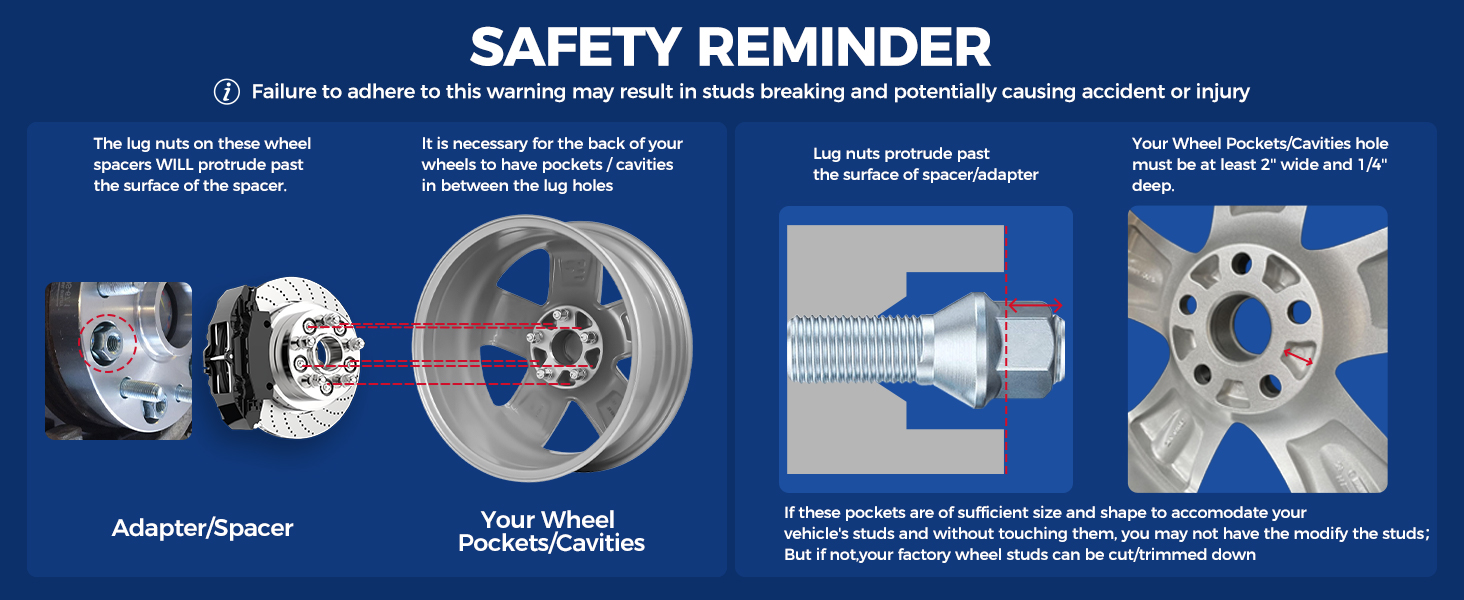

  • ?Warm Reminder : Even if a vehicle is listed as being compatible, buyers still need to check: 1) You have more than 2 inch of space between your fender and your wheel/tire; 2) Your factory wheel studs are shorter than 2 inch (NOTE: * When installing a bolt on wheel spacer or adapter, trimming the studs will be necessary when the spacer or adapter plate is thinner than your wheel studs are long.)

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20222023 - 20242011 - 20222023 - 20242011 - 20132011 - 201320112017 - 20222023 - 202520182020 - 20222023 - 20252023 - 202420112014 - 20162014 - 20152019 - 20222023 - 20252018 - 20222023 - 20252011 - 20222023 - 20252022202320222023 - 20252023 - 20252014 - 20152018 - 202120222023 - 20242023 - 20242023 - 202420212023 - 202420252023 - 20252023 - 202520252012 - 20222023 - 202420182018 - 20212023 - 20242012 - 20202012 - 20222023 - 20252021202120222020202220232021 - 20232021 - 20232024202420202020 - 20252024 - 20252024 - 20252021 - 20232020 - 20232021 - 20232020 - 202520242021 - 20222020 - 20252021 - 20232020 - 202520212021 - 20252021 - 20232021 - 20252021 - 20232021 - 2023202320222023 - 2024201620212018 - 202020222023 - 20242023 - 202420182018 - 20212018 - 20202011 - 202020222023 - 20242011 - 20132024202120212023 - 20242014 - 20192011 - 202120222023 - 20242011 - 20212019 - 20212019 - 20212014 - 20192011 - 202120222023 - 20242011 - 20212022202320222023 - 2024201220122014 - 20212012 - 20132014 - 20192014 - 202120222023 - 20242014 - 20212022202320222023 - 202420222023 - 20242022202320222023 - 20242018 - 20212017 - 20192017 - 202120222017 - 2021202220222023 - 20242019 - 20202021 - 202420242021 - 202420242021 - 20242021 - 20242021 - 20242021 - 20242021 - 202420212023 - 20242022 - 20242022202220222021202120212023202120232021202120182019 - 202420182019 - 20242024202420182019 - 202420182019 - 202420182019 - 202420182019 - 20242021202120212021202120212021 - 20222021 - 20222021 - 20222021 - 202320222021202120212018201920182019 - 20222020 - 202220182019 - 20222021 - 20222021 - 202320182019 - 20212020 - 202220182019 - 20222021 - 20222021 - 20222021 - 20222021 - 202220182019 - 20222020 - 202220182019 - 20222021 - 20222021 - 20222021 - 202220182019 - 20222020 - 202220182019 - 20222021 - 20222021 - 20222021 - 202220232021 - 20222021 - 20222021 - 20222021 - 20242021 - 20242021 - 20242021 - 2024
MakeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGladiatorGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee LGrand Cherokee WKGrand Cherokee WKGrand Cherokee WKWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWrangler
TrimCitadelCitadelCitadelCitadelCrewCrewExpressGTGTGTGT PlusGT PlusGT PremiumHeatLimitedLimitedPursuitPursuitPursuitPursuitR/TR/TR/T Hemi OrangeR/T Hemi OrangeR/T PlusR/T PlusR/T PremiumRallyeSRTSRT 392SRT 392SRT 392 PlusSRT 392 PremiumSRT HellcatSRT HellcatSRT Hellcat HammerheadSRT Hellcat PlusSRT Hellcat PremiumSRT Hellcat Silver BulletSXTSXTSXTSXT PlusSXT PlusSpecial ServiceSpecial ServiceSpecial Service80th Anniversary80th AnniversaryAltitudeAltitudeAltitudeFreedomHigh AltitudeHigh AltitudeHigh TideJeep BeachLaunch EditionMojaveMojave XNightHawkOverlandOverlandRubiconRubiconRubicon XSportSportSport SSport STexas TrailTexas TrailWillysWillysWillys SportWillys Sport30th Anniversary 4xe4xe4xe75th Anniversary80th AnniversaryAltitudeAltitudeAltitudeAltitude XHigh AltitudeHigh AltitudeHigh AltitudeLaredoLaredoLaredoLaredoLaredo ALaredo ELaredo XLaredo XLimitedLimitedLimitedLimitedLimitedLimited XLimited XOverlandOverlandOverlandOverlandOverlandOverlandOverlandOverland 4xeOverland 4xeOverland SummitOverland SummitSRTSRT8SummitSummitSummitSummitSummitSummitSummitSummit 4xeSummit 4xeSummit ReserveSummit ReserveSummit ReserveSummit ReserveSummit Reserve 4xeSummit Reserve 4xeTrackhawkTrailhawkTrailhawkTrailhawkTrailhawkTrailhawkTrailhawk 4xeTrailhawk 4xeUplandAltitudeAltitude XLaredoLaredo XLimitedOverlandOverlandSummitSummitSummit ReserveSummit ReserveSummit ReserveLaredo ELaredo XLimited80th Anniversary80th AnniversaryFreedomFreedomFreedomFreedomIslanderIslanderRubiconRubiconRubiconRubiconRubicon XRubicon XSportSportSportSportSport SSport SSport SSport SUnlimited 80th AnniversaryUnlimited 80th AnniversaryUnlimited 80th AnniversaryUnlimited FreedomUnlimited FreedomUnlimited FreedomUnlimited High AltitudeUnlimited High AltitudeUnlimited High AltitudeUnlimited High Altitude 4xeUnlimited High TideUnlimited IslanderUnlimited IslanderUnlimited IslanderUnlimited MoabUnlimited MoabUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited Rubicon 392Unlimited Rubicon 4xeUnlimited SaharaUnlimited SaharaUnlimited SaharaUnlimited SaharaUnlimited SaharaUnlimited Sahara 4xeUnlimited Sahara AltitudeUnlimited Sahara AltitudeUnlimited Sahara AltitudeUnlimited SportUnlimited SportUnlimited SportUnlimited SportUnlimited SportUnlimited Sport AltitudeUnlimited Sport AltitudeUnlimited Sport AltitudeUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited WillysUnlimited WillysUnlimited WillysUnlimited Willys 4xeUnlimited Willys SportUnlimited Willys SportUnlimited Willys SportWillysWillysWillys SportWillys Sport
Engine3.6L V63.6L V65.7L V85.7L V83.6L V65.7L V83.6L V63.6L V63.6L V65.7L V83.6L V63.6L V63.6L V63.6L V63.6L V65.7L V83.6L V63.6L V65.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V83.6L V66.4L V86.4L V86.4L V86.4L V86.4L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V83.6L V63.6L V65.7L V83.6L V63.6L V63.6L V65.7L V85.7L V83.0L V63.6L V63.0L V63.6L V63.6L V63.6L V63.0L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.0L V63.6L V63.0L V63.6L V63.6L V63.0L V63.6L V63.0L V63.6L V63.0L V63.6L V63.0L V63.6L V63.0L V63.6L V62.0L L42.0L L42.0L L43.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.0L V63.6L V65.7L V83.6L V63.6L V63.6L V65.7L V83.6L V63.6L V63.6L V63.6L V63.0L V63.6L V63.6L V63.6L V65.7L V83.6L V65.7L V83.0L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V82.0L L42.0L L43.6L V65.7L V86.4L V86.4L V83.0L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V82.0L L42.0L L43.6L V63.6L V65.7L V85.7L V82.0L L42.0L L46.2L V83.0L V63.6L V63.6L V65.7L V85.7L V82.0L L42.0L L43.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V65.7L V83.6L V65.7L V83.6L V63.6L V65.7L V83.6L V63.6L V63.6L V62.0L L43.6L V62.0L L42.0L L43.6L V63.6L V62.0L L43.6L V62.0L L42.0L L43.6L V63.6L V62.0L L43.6L V62.0L L42.0L L43.6L V63.6L V62.0L L42.0L L43.6L V63.6L V62.0L L43.0L V63.6L V62.0L L43.0L V63.6L V62.0L L43.0L V63.6L V62.0L L43.6L V62.0L L43.0L V63.6L V63.6L V63.6L V62.0L L42.0L L43.0L V63.6L V63.6L V66.4L V82.0L L42.0L L42.0L L43.0L V63.6L V63.6L V62.0L L42.0L L43.0L V63.6L V62.0L L42.0L L43.0L V63.6L V63.6L V62.0L L43.0L V63.6L V62.0L L42.0L L43.0L V63.6L V63.6L V62.0L L43.0L V63.6L V62.0L L42.0L L43.0L V63.6L V62.0L L43.6L V62.0L L43.6L V6
Note
Front
-
Front
-
Front
Front
Front
Front
-
Front
Front
--
Front
Front
Front
Front
-
Front
-
Front
-
Front
-
Front
--
Front
Front
Front
---
Front
-----
Front
-
Front
Front
-
Front
Front
------------------------------
WK2
-
WK2
Front
Front
Front
-
WK2
WK2
Front
Front
Front
Front
-
WK2
Front
WK2
Front
Front
WK2
Front
Front
-
WK2
Front
Front
Front
Front
Front
-
WK2
Front
-
WK2
-
WK2
Front
Front
Front
Front
Front
Front
-
WK2
Front
-
WK2
-
WK2
-
WK2
-
WK2
-
WK2
Front
Front
Front
-
Front
--
WK2
Front
-----------------------
JL Model
-
JL Model
---
JL Model
-
JL Model
-
JL Model
-
JL Model
---------------
JL Model
-
JL Model
--
JL Model
---
JL Model
--
JL Model
-----
JL Model
--
JL Model
----
JL Model
--
JL Model
------------

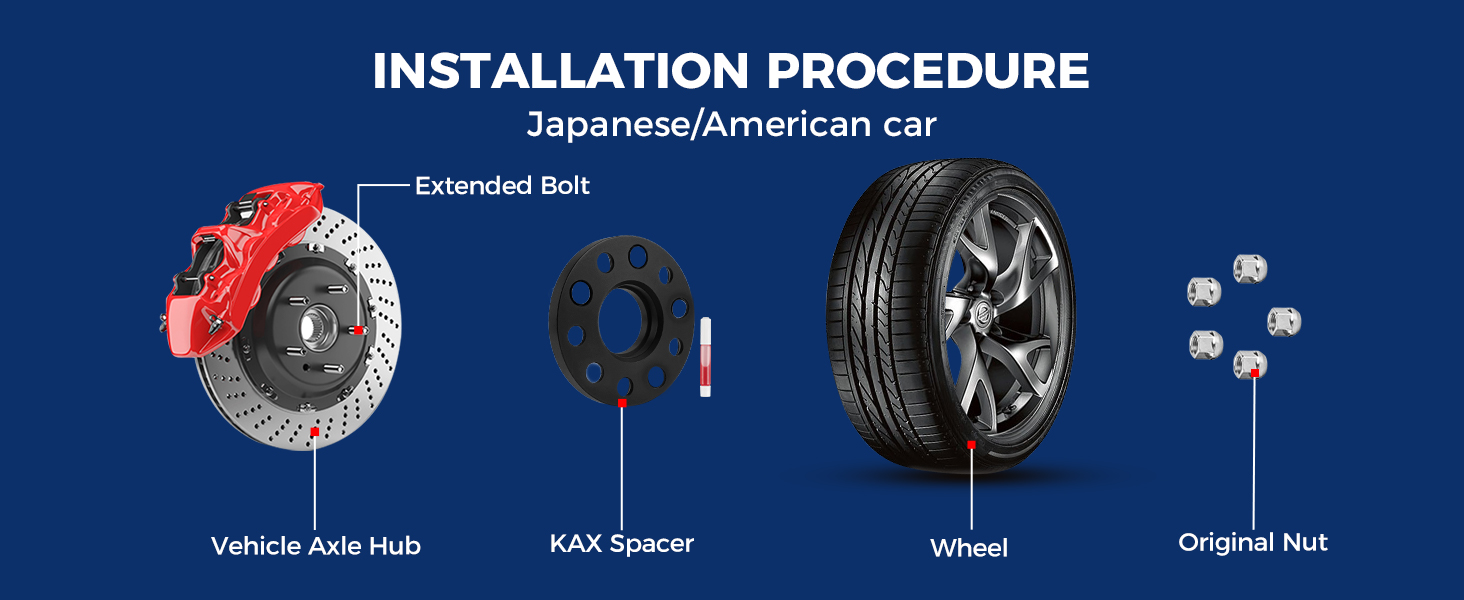

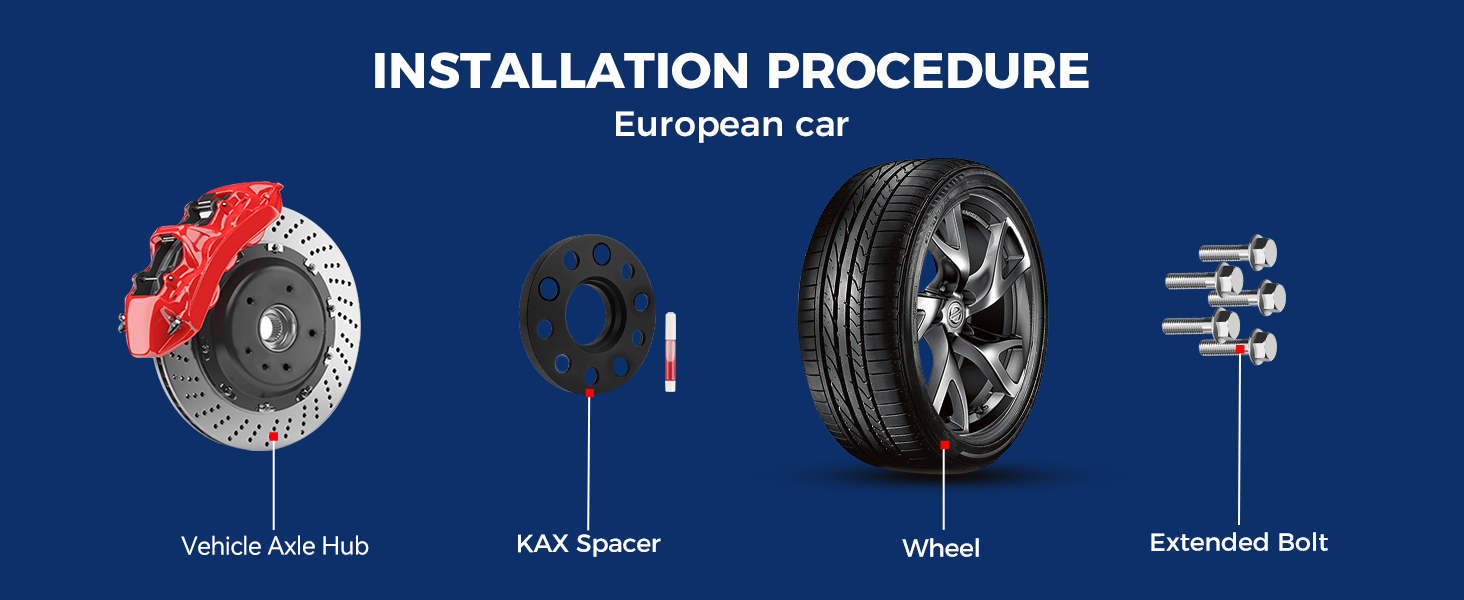

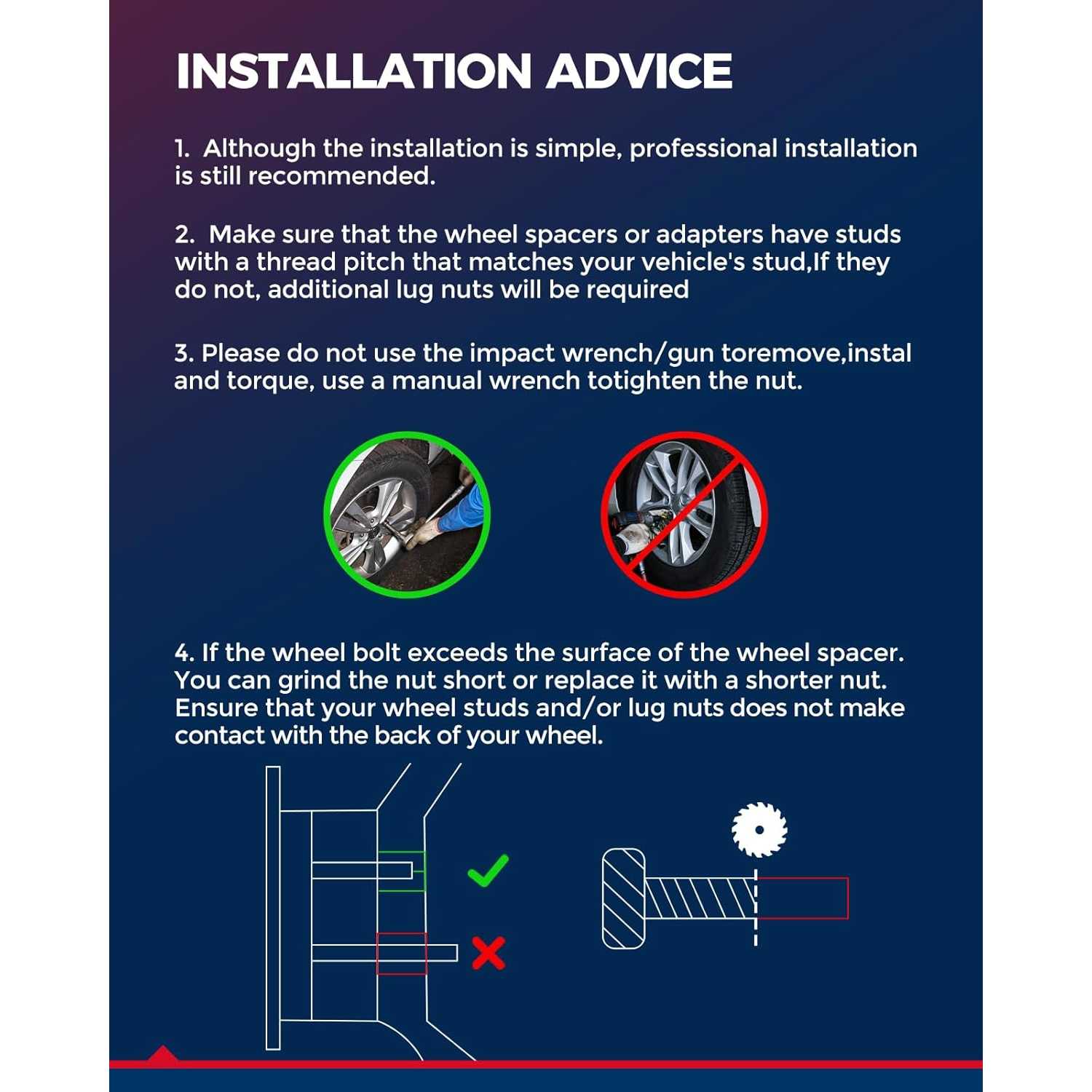

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

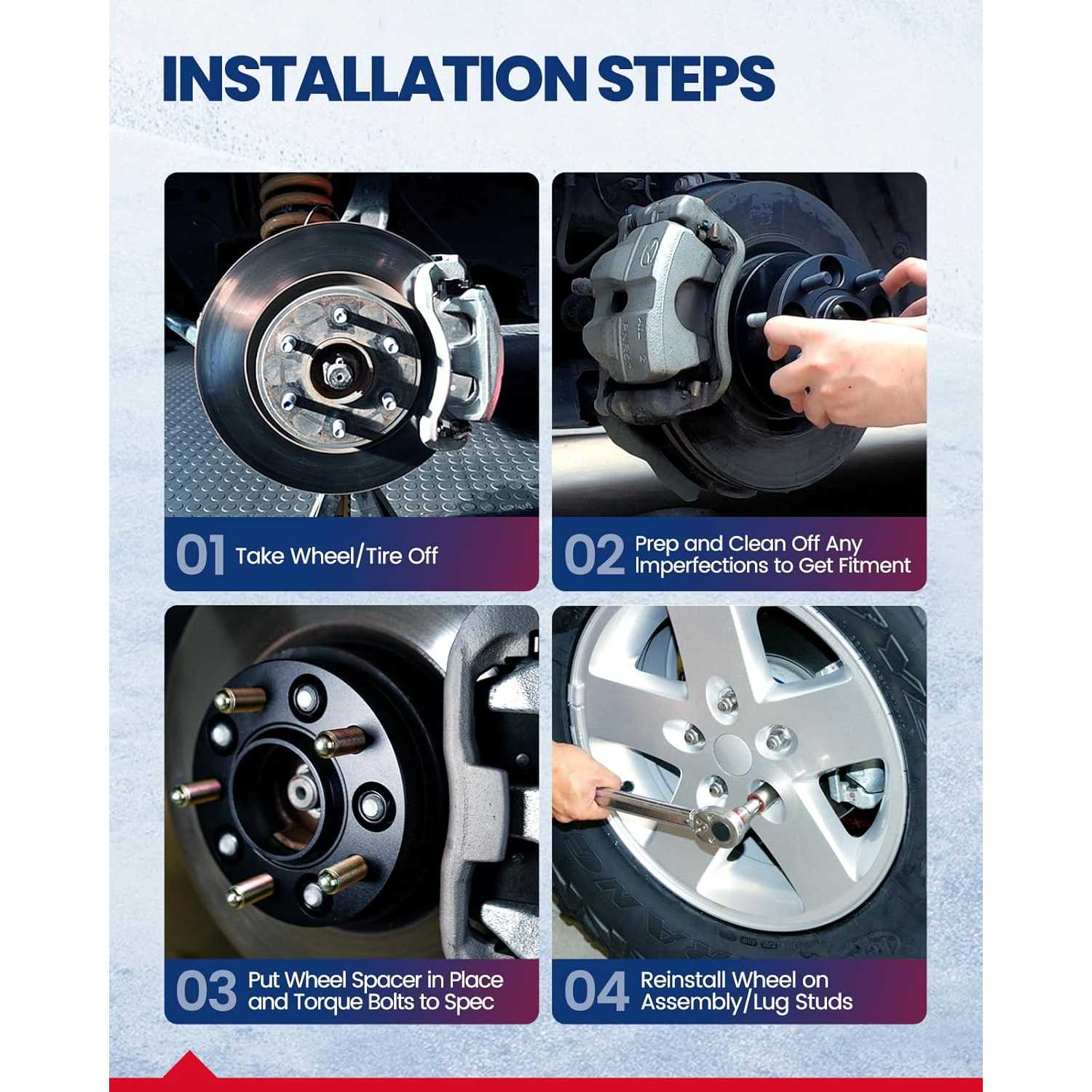

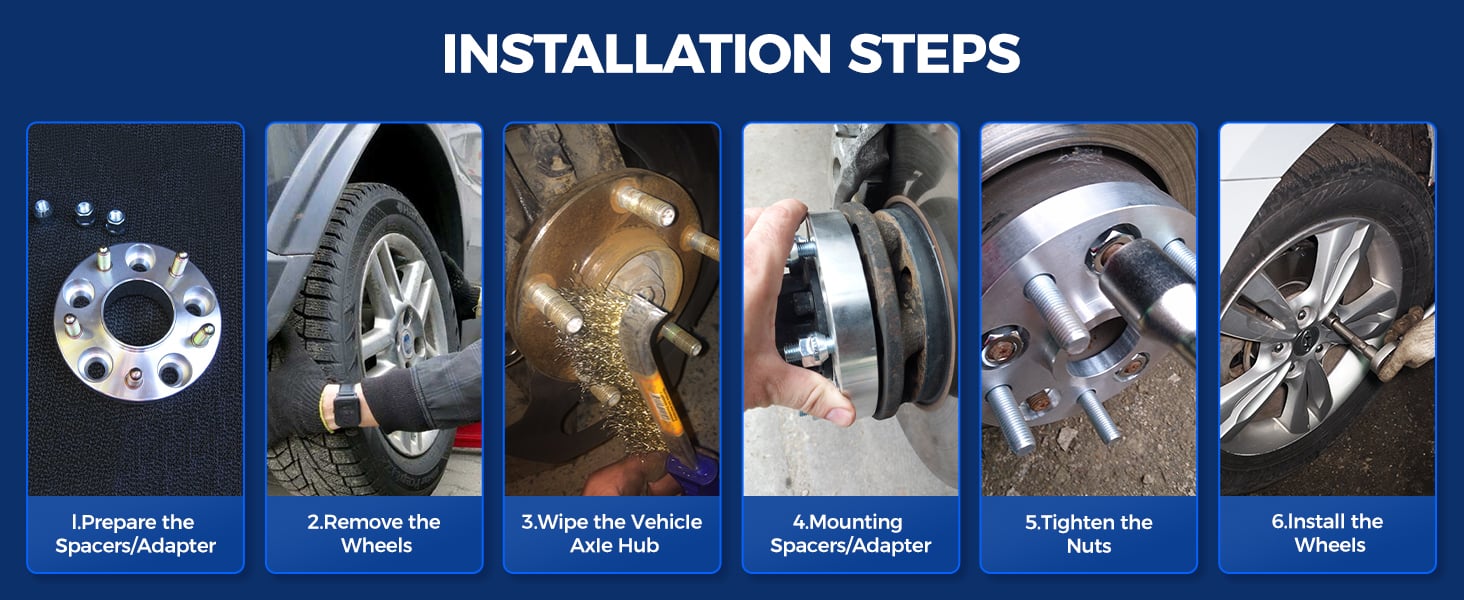

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).

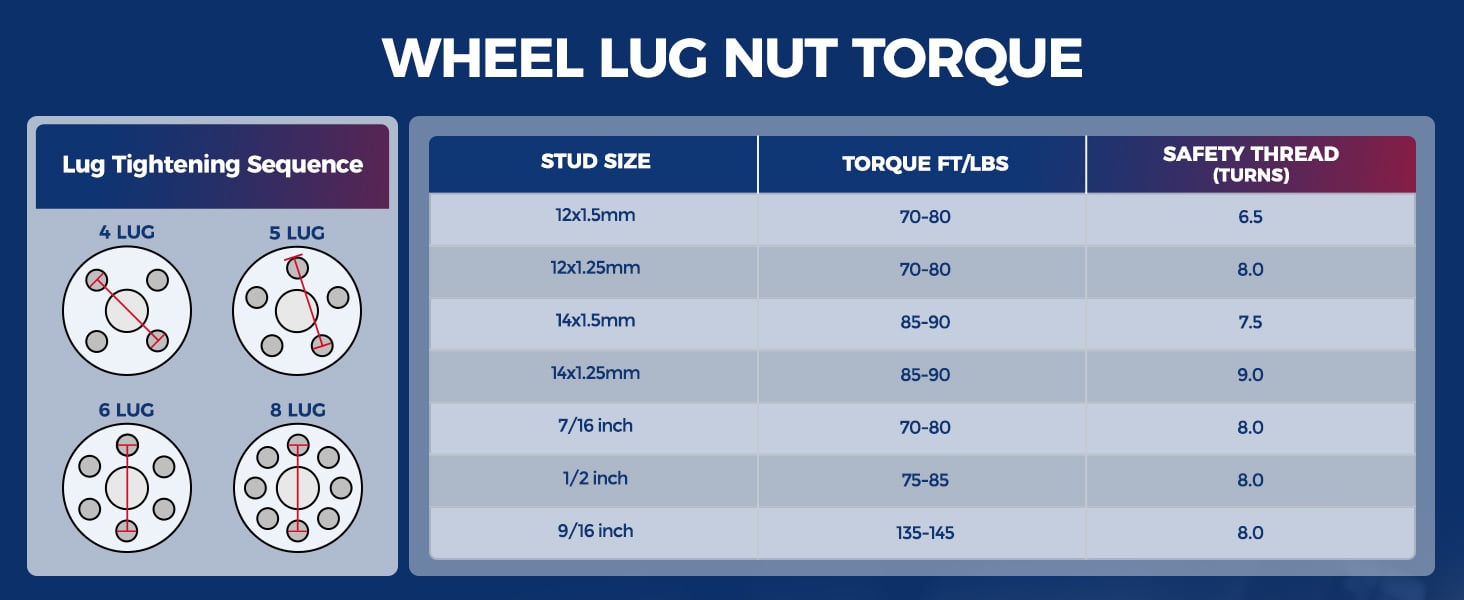

  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

wheel spacer & adapterspacer

Reviews

4.9/5

Based on 26 reviews

592%
48%
30%
20%
10%

Brian Spinks

09/18/2026

Verified buyer

Perfect fit 2024 Durango R/T

Marlene

10/21/2024

Verified buyer

Good fit, no wheel balance problems

FAQS

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Hub-centric spacers use a center bore or lip to help center the wheel on the hub, while lug-centric designs rely mainly on the wheel fasteners. Use the design specified for your application.

Compare the spacer specifications with the vehicle hub and wheel, including bolt pattern, center bore, stud or bolt size, and thread pitch. All dimensions should match the intended application.
