2012-2019 Ram 1500 3.0L V6/3.6L V6/5.7L V8 | 5x5.5" 108mm Center Bore M14x1.5 Thread Wheel Hub Accessory - PHILTOP

2012-2019 Ram 1500 3.0L V6/3.6L V6/5.7L V8 | 5x5.5" 108mm Center Bore M14x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
19ISWSA052007US

Specifications

Brand
PHILTOP
Bolt Pattern
5x5.5"
Wheel Bolt Pattern
5x5.5"
Vehicle Bolt Pattern
5x5.5"
Thread Size
M14X1.5
Center Bore
108
Hub-Centric Lip
No
Thickness
2inch
Outside Diameter
176
Inside Diameter
4.25 in/108 mm
Lug Patterns
5
Type
Wheel Spacer
Items Included
4x Lug-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
85-90 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

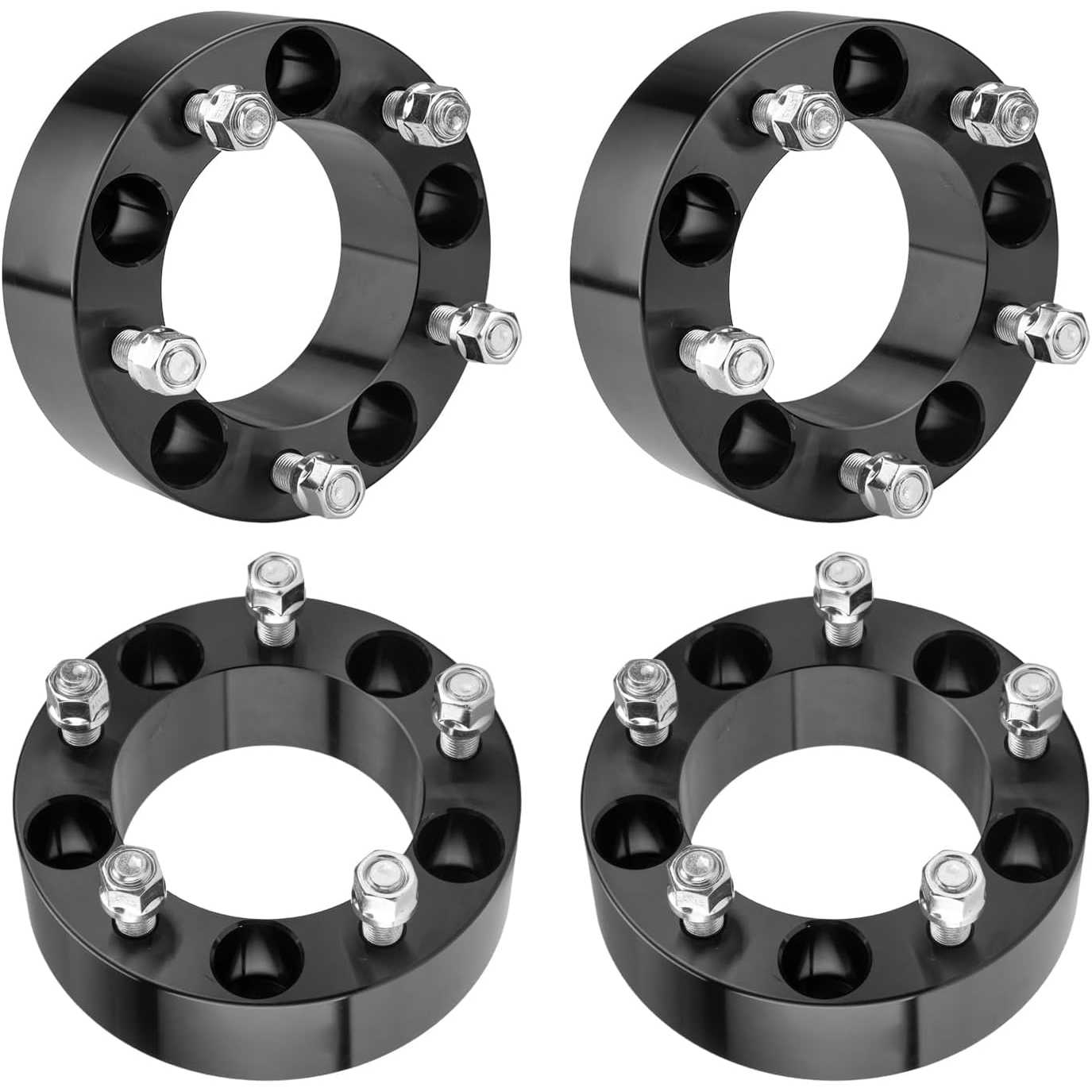

  • [Wheel Spacers Specification] --- Bolt Pattern: 5x5.5"(5x139.7mm) ; | Thickness: 2 inch(50.8mm) ; | Thread Pitch: M14X1.5 ; | Hub Bore: 108mm ; | Recommended torque: 85-90 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 5x5.5 Wheel Spacer set replacement for Front For:; 2012-2015 1500 5.7L Naturally Aspirated GAS V8; 2017-2018 1500 3.0/3.6/5.7L Naturally Aspirated/Turbocharged DIESEL/FLEX/GAS V6/V8; 2013-2015 1500 3.6L Naturally Aspirated FLEX V6; 2014-2015 1500 3.0/3.6L Naturally Aspirated/Turbocharged DIESEL/GAS V6; 2012-2013 1500 4.7L Naturally Aspirated FLEX V8; 2012 1500 3.7L Naturally Aspirated GAS V6

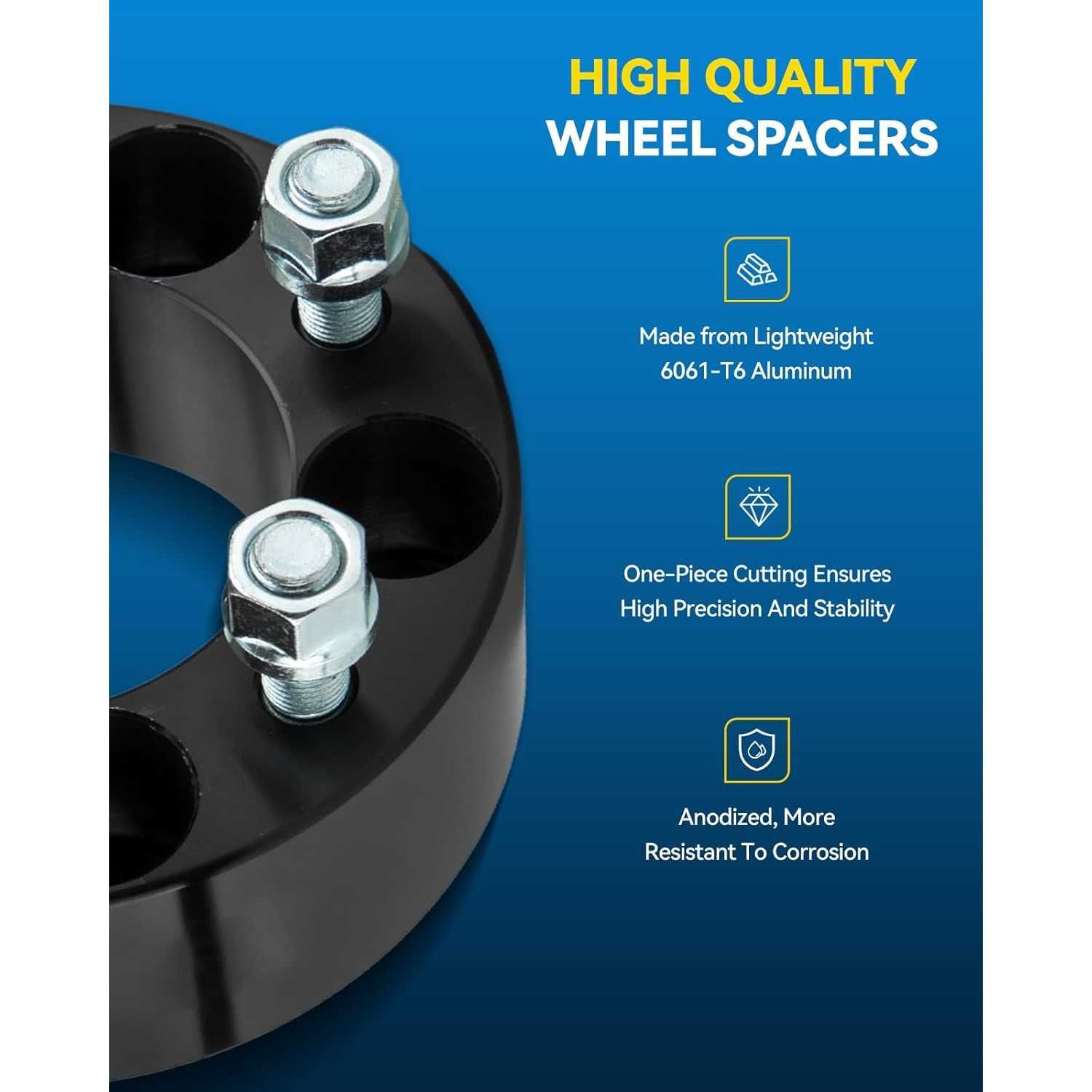

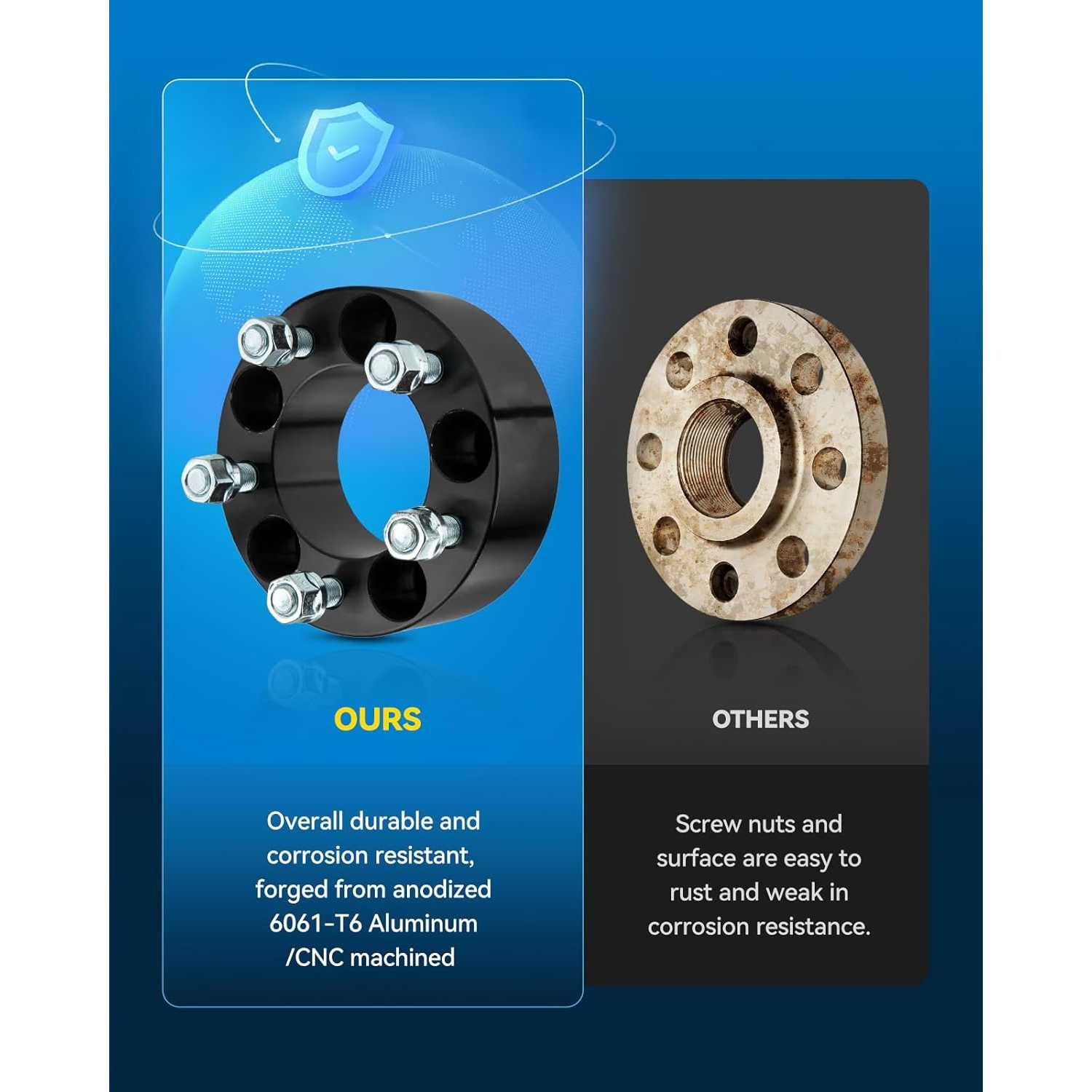

  • [High Quality] ---5x5.5 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 10.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 5x5.5 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2000 - 20012000 - 20012000 - 2001200120012000 - 20012000 - 20012000 - 20012000 - 20012000 - 20012000 - 20012014 - 20182014 - 201820192012 - 201820192014 - 20182012 - 20182016 - 20182013 - 2016201920142014 - 20182014 - 201820192012 - 201820192014 - 20152014 - 20152014 - 201820192012 - 201820192015 - 201820192015 - 201820192014 - 20182014 - 201820192014 - 201820192014 - 20162013 - 201620122012 - 201620132015 - 201820192015 - 201820192014 - 20182013 - 20182012 - 20132012 - 20182012201220122014 - 201820182017 - 20182012 - 20182014 - 20182013 - 201820192012 - 20132012 - 201820192012201920192019 - 20222019 - 202220192019201920192019 - 20222019 - 20222019 - 2022202320192019 - 202220232019 - 202220232019 - 202220232019 - 20222023
MakeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRam
ModelRam 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic
TrimLaramieLaramieLaramieSLTSLTSTSTSTSportSportSportBig HornBig HornBig HornBig HornBig HornExpressExpressHFEHFEHFEHFELaramieLaramieLaramieLaramieLaramieLaramie LimitedLaramie LimitedLaramie LonghornLaramie LonghornLaramie LonghornLaramie LonghornLimitedLimitedLimitedLimitedLone StarLone StarLone StarLone StarLone StarOutdoorsmanOutdoorsmanOutdoorsmanOutdoorsmanR/TRebelRebelRebelRebelSLTSLTSLTSLTSTSTSTSpecial ServiceSportSportSportTradesmanTradesmanTradesmanTradesmanTradesmanTradesmanTradesman HDBig HornBig HornExpressExpressLaramieLone StarLone StarSLTSLTSLTSpecial ServiceSpecial ServiceTradesmanTradesmanTradesmanTradesmanTradesmanWarlockWarlockWarlockWarlock
Engine3.9L V65.2L V85.9L V85.2L V85.9L V83.9L V65.2L V85.9L V83.9L V65.2L V85.9L V83.0L V63.6L V63.6L V65.7L V85.7L V83.6L V65.7L V83.0L V63.6L V63.6L V65.7L V83.0L V63.6L V63.6L V65.7L V85.7L V83.0L V65.7L V83.0L V63.6L V65.7L V85.7L V83.0L V63.6L V65.7L V85.7L V83.0L V63.6L V63.6L V65.7L V85.7L V83.0L V63.6L V64.7L V85.7L V85.7L V83.6L V63.6L V65.7L V85.7L V83.0L V63.6L V64.7L V85.7L V83.7L V64.7L V85.7L V85.7L V83.0L V63.6L V65.7L V83.0L V63.6L V63.6L V64.7L V85.7L V85.7L V85.7L V83.6L V65.7L V83.6L V65.7L V83.0L V63.6L V65.7L V83.0L V63.6L V65.7L V85.7L V85.7L V83.0L V63.6L V63.6L V65.7L V85.7L V83.6L V63.6L V65.7L V85.7L V8
Note
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
--
5 stud
-
5 stud
----
5 stud
---
5 stud
-
5 stud
---
5 stud
-
5 stud
-
5 stud
-
5 stud
--
5 stud
-
5 stud
------
5 stud
-
5 stud
-------------
5 stud
--
5 stud
------------
5 stud
--
5 stud
-
5 stud
-
5 stud
-
5 stud

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

4.9/5

Based on 24 reviews

592%
48%
30%
20%
10%

Michelle

11/15/2024

Verified buyer

It's great. The brakes are definitely more confident. The changes are obvious Read more

Ann Kavanaugh

11/15/2024

Verified buyer

Good. Now that the spacers are flush with the body, the wheels are bigger Read more

FAQS

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Changing wheel position can reduce clearance to the fender or increase exposure at the wheel opening. Check clearance through the full steering and suspension range before regular driving.

Spacers alone do not always change alignment settings, but an alignment check may be useful if handling changes, uneven tire wear appears, or other suspension work is performed.
