2004-2009 Dodge Durango 4.7L/5.7L/3.7L | 5x5.5" 77.8mm Center Bore 9/16"x18 Thread Wheel Hub Accessory - PHILTOP

2004-2009 Dodge Durango 4.7L/5.7L/3.7L | 5x5.5" 77.8mm Center Bore 9/16"x18 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
21ISWSA093007US

Specifications

Brand
PHILTOP
Bolt Pattern
5x5.5"
Wheel Bolt Pattern
5x5.5"
Vehicle Bolt Pattern
5x5.5"
Thread Size
9/16"x18
Center Bore
77.8
Hub-Centric Lip
Yes
Thickness
1.5inch
Outside Diameter
176
Inside Diameter
3.06 in/77.8 mm
Lug Patterns
5
Type
Wheel Spacer
Items Included

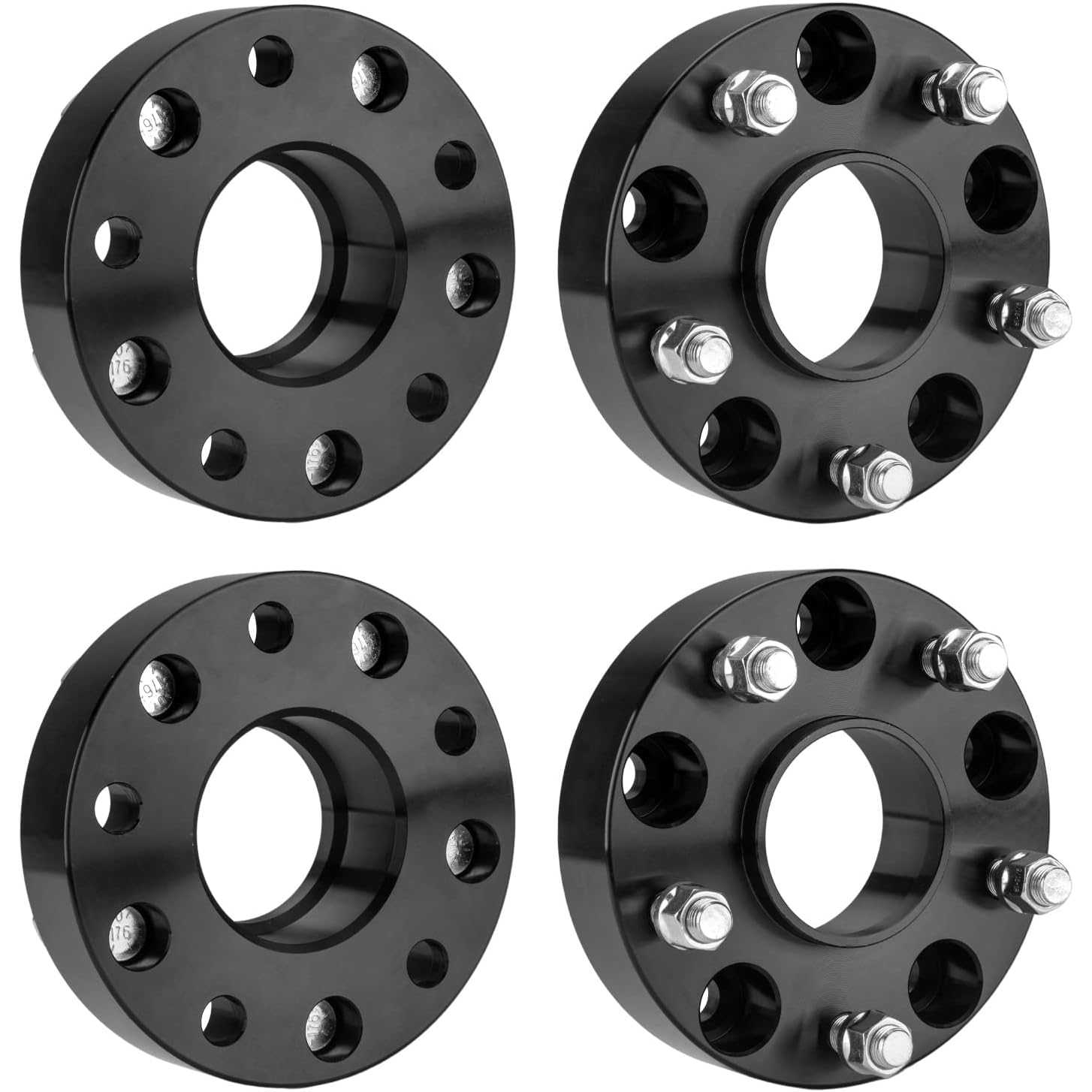

4x Hub-Centric Wheel Spacers
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
135-145 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • [Vehicle Application] --- The 5x5.5 Wheel Spacer set replacement for 2003-2010 Ram 1500 5.7L GAS V8; 2002-2009 Ram 1500 4.7L GAS V8; 2005-2010 Dakota 3.7L GAS V6; 2002-2010 Ram 1500 3.7L GAS V6; 2004-2010 Ram 1500 4.7L FLEX V8; 2004-2008 Durango 4.7L GAS V8; 2005-2007 Dakota 4.7L GAS V8; 2004-2009 Durango 3.7/5.7L GAS V6/V8; 2002-2003 Ram 1500 5.9L GAS V8; 2007-2010 Dakota 4.7L FLEX V8; 2006-2009 Durango 4.7L FLEX V8; 2011 Dakota 3.7/4.7L FLEX/GAS V6/V8; 2002 Ram 1500 3.9L GAS V6; 200
  • [Wheel Spacers Specification] --- Bolt Pattern: 5x5.5"(5x139.7mm) ; | Thickness: 1.5 inch(38mm) ; | Thread Pitch: 9/16"x18 ; | Hub Bore: 77.8mm ; | Recommended torque: 135-145 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Enhance Driving Experience] --- These 5x5.5 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Unsurpassed Quality] ---5x5.5 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 10.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Please Confirm] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 200820092007 - 2008200920092009 - 20102009 - 20102005 - 20072009 - 20102005 - 20082009 - 20102009 - 20102009 - 20102005 - 20082005 - 20082005 - 20082009 - 20102005 - 20072010200820082005200820052008200820082008200920082009 - 20102006 - 20082006 - 2008200420052006 - 2009200420052006 - 20092009200920092009200420052006 - 2009200420052006 - 2009200420052006 - 20092004200520042005200520052006 - 200820052006 - 200820072003200320042006200720032004 - 20052006200720082009201020032002 - 20032002 - 20032004 - 20052006200720082009201020032004 - 2005200620072008200920102002 - 20032004 - 200520062002 - 20032004 - 2005200620072008200920102002 - 20032004 - 20052006200720082009201020032004 - 2005200620072008200920102002 - 200320082008200820062007200920102009201020092010200620072009201020062007200920102006 - 200720062006 - 20082009200720072006201120112012 - 20132012 - 2013201320112012 - 201320112012 - 201320132011201220112012 - 20132013201320112012 - 201320112012 - 201320112012201120122011201220112012 - 201320132012 - 201320112012 - 201320122011201120112011201120112011
MakeChryslerChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRam
ModelAspenAspenAspenAspenAspenDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoRam 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500RaiderRaiderRaiderRaiderRaiderRaiderRaider150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500DakotaDakotaDakotaDakotaDakotaDakotaDakota
TrimLimitedLimitedLimitedLimitedLimited HybridBig HornBig HornLaramieLaramieLaramieLaramieLone StarLone StarSLTSLTSTSTSTSTSXTSXTSportSportSportSportTRXTRXTRX4TRX4TRX4TRX4AdventurerAdventurerLimitedLimitedLimitedLimitedLimitedLimitedLimited HybridSESESESLTSLTSLTSLTSLTSLTSLTSLTSLTSTSTSTSTSTSXTSXTSXTSXTSXTLaramieLaramieLaramieLaramieLaramieLaramieLaramieLaramieLaramieLaramieLaramieLaramieLaramieSLTSLTSLTSLTSLTSLTSLTSLTSLTSLTSLTSLTSLTSLTSLTSLTSRT-10SRT-10STSTSTSTSTSTSTSTSTSTSTSTSTSTSTSTSTSTSTSTSTSTSXTSXTSXTSportSportSportSportTRXTRXTRXTRXTRX4TRX4TRX4TRX4TRX4TRX4TRX4TRX4DuroCrossDuroCrossLSLSLSSEXLSBig HornBig HornBig HornExpressHFELaramieLaramieLaramie LonghornLaramie LonghornOutdoorsmanOutdoorsmanOutdoorsmanOutdoorsmanOutdoorsmanR/TSLTSLTSLTSLTSLTSTSTSTSTSTSTSportSportTradesmanTradesmanTradesmanTradesmanTradesman HDBig HornBig HornLaramieLaramieSTTRXTRX
Engine4.7L V84.7L V85.7L V85.7L V85.7L V83.7L V64.7L V83.7L V63.7L V64.7L V84.7L V83.7L V64.7L V83.7L V64.7L V83.7L V63.7L V64.7L V84.7L V83.7L V64.7L V83.7L V63.7L V64.7L V84.7L V83.7L V64.7L V83.7L V63.7L V64.7L V84.7L V84.7L V85.7L V84.7L V84.7L V84.7L V85.7L V85.7L V85.7L V85.7L V83.7L V64.7L V85.7L V83.7L V63.7L V63.7L V64.7L V84.7L V84.7L V85.7L V85.7L V85.7L V83.7L V63.7L V64.7L V84.7L V85.7L V83.7L V63.7L V64.7L V84.7L V85.7L V83.7L V64.7L V84.7L V84.7L V84.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.9L V83.7L V64.7L V84.7L V84.7L V84.7L V84.7L V84.7L V84.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.9L V88.3L V108.3L V103.7L V63.7L V63.7L V63.7L V63.7L V63.7L V63.7L V64.7L V84.7L V84.7L V84.7L V84.7L V84.7L V84.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.9L V83.7L V64.7L V85.7L V85.7L V85.7L V85.7L V85.7L V84.7L V84.7L V85.7L V85.7L V84.7L V84.7L V84.7L V84.7L V85.7L V85.7L V85.7L V85.7L V83.7L V64.7L V83.7L V63.7L V64.7L V84.7L V84.7L V84.7L V85.7L V85.7L V85.7L V83.6L V65.7L V85.7L V85.7L V85.7L V83.6L V64.7L V84.7L V85.7L V85.7L V85.7L V83.6L V64.7L V84.7L V85.7L V85.7L V83.7L V63.7L V64.7L V84.7L V85.7L V85.7L V85.7L V85.7L V83.6L V64.7L V85.7L V85.7L V85.7L V83.7L V64.7L V83.7L V64.7L V83.7L V63.7L V64.7L V8
Note
9/16" studs Front
Front
9/16" studs Front
Front
Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);Front
9/16" studs Front
9/16" studs Front
9/16" studs Front
Front
9/16" studs Front
9/16" studs Front
Front
9/16" studs Front
9/16" studs Front
9/16" studs Front
9/16" studs Front
9/16" studs Front
9/16" studs Front
Front
9/16" studs Front
9/16" studs Front
Front
9/16" studs Front
9/16" studs Front
Front
9/16" studs Front
9/16" studs Front
Front
9/16" studs Front
Front
Front
Front
9/16" studs Front
Front
9/16" studs Front
9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;5 Stud Wheel;Front;with ABS Sensor;without ABS Sensor
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;5 Stud Wheel;Front;with ABS Sensor;without ABS Sensor
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;4-Wheel ABS (ABS Sensors on all 4 Wheels) or Front Left;5 Stud Wheel;Fits Front;with ABS Sensor;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;Front;without ABS Sensor
5 Stud Wheel;without ABS Sensor 9/16" studs
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;5 Stud Wheel;Front;with ABS Sensor;without ABS Sensor
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;4-Wheel ABS (ABS Sensors on all 4 Wheels) or Front Left;5 Stud Wheel;Fits Front;with ABS Sensor;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;Front;without ABS Sensor
5 Stud Wheel;without ABS Sensor 9/16" studs
5 Stud 9/16" studs;5 Stud Wheel;From 12808;Front;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;From 12082008;Front;To 12072008
5 Stud Wheel;Front 9/16" studs
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;5 Stud Wheel;Front;with ABS Sensor;without ABS Sensor
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;5 Stud Wheel;Front;with ABS Sensor;without ABS Sensor
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;5 Stud Wheel;Front;with ABS Sensor;without ABS Sensor
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;4-Wheel ABS (ABS Sensors on all 4 Wheels) or Front Left;5 Stud Wheel;Fits Front;with ABS Sensor;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;Front;without ABS Sensor
5 Stud Wheel;without ABS Sensor 9/16" studs
5 Stud 9/16" studs;5 Stud Wheel;From 12808;Front;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;From 12082008;Front;To 12072008
5 Stud Wheel;Front 9/16" studs
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;5 Stud Wheel;Front;with ABS Sensor;without ABS Sensor
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;4-Wheel ABS (ABS Sensors on all 4 Wheels) or Front Left;5 Stud Wheel;Fits Front;with ABS Sensor;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;Front;without ABS Sensor
5 Stud Wheel;without ABS Sensor 9/16" studs
5 Stud 9/16" studs;5 Stud Wheel;From 12808;Front;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;From 12082008;Front;To 12072008
5 Stud Wheel;Front 9/16" studs
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;5 Stud Wheel;Front;with ABS Sensor;without ABS Sensor
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;4-Wheel ABS (ABS Sensors on all 4 Wheels) or Front Left;5 Stud Wheel;Fits Front;with ABS Sensor;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;Front;without ABS Sensor
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;5 Stud Wheel;Front;with ABS Sensor;without ABS Sensor
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;4-Wheel ABS (ABS Sensors on all 4 Wheels) or Front Left;5 Stud Wheel;Fits Front;with ABS Sensor;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;Front;without ABS Sensor
5 Stud Wheel;without ABS Sensor 9/16" studs
5 Stud 9/16" studs;5 Stud Wheel;From 12808;Front;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;From 12082008;Front;To 12072008
5 Stud Wheel;Front 9/16" studs
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;5 Stud Wheel;Front;with ABS Sensor;without ABS Sensor
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;4-Wheel ABS (ABS Sensors on all 4 Wheels) or Front Left;5 Stud Wheel;Fits Front;with ABS Sensor;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;Front;without ABS Sensor
5 Stud Wheel;without ABS Sensor 9/16" studs
5 Stud 9/16" studs;5 Stud Wheel;From 12808;Front;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;From 12082008;Front;To 12072008
5 Stud Wheel;Front 9/16" studs
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;5 Stud Wheel;Front;with ABS Sensor;without ABS Sensor
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;4-Wheel ABS (ABS Sensors on all 4 Wheels) or Front Left;5 Stud Wheel;Fits Front;with ABS Sensor;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;Front;without ABS Sensor
5 Stud Wheel;without ABS Sensor 9/16" studs
5 Stud 9/16" studs;5 Stud Wheel;From 12808;Front;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;From 12082008;Front;To 12072008
5 Stud Wheel;Front 9/16" studs
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels) 9/16" studs;5 Stud Wheel;Front;with ABS Sensor;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;From 12808;Front;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;From 12808;Front;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;From 12808;Front;without ABS Sensor
5 Stud 9/16" studs;5 Stud Wheel;Front;without ABS Sensor
5 Stud Wheel;without ABS Sensor 9/16" studs
5 Stud 9/16" studs;5 Stud Wheel;From 12082008;Front;To 12072008
5 Stud Wheel;Front 9/16" studs
5 Stud 9/16" studs;5 Stud Wheel;From 12082008;Front;To 12072008
5 Stud Wheel;Front 9/16" studs
5 Stud 9/16" studs;5 Stud Wheel;From 12082008;Front;To 12072008
5 Stud Wheel;Front 9/16" studs
5 Stud 9/16" studs;5 Stud Wheel;Front;without ABS Sensor
5 Stud Wheel;without ABS Sensor 9/16" studs
5 Stud 9/16" studs;5 Stud Wheel;From 12082008;Front;To 12072008
5 Stud Wheel;Front 9/16" studs
5 Stud 9/16" studs;5 Stud Wheel;Front;without ABS Sensor
5 Stud Wheel;without ABS Sensor 9/16" studs
5 Stud 9/16" studs;5 Stud Wheel;From 12082008;Front;To 12072008
5 Stud Wheel;Front 9/16" studs
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
2-Wheel ABS (ABS Sensors on 2 of 4 Wheels);9/16" studs Front
5 Stud Wheel;Front 9/16" studs
5 Stud Wheel;Front 9/16" studs
9/16" studs
9/16" studs
9/16" studs
5 Stud Wheel;Front 9/16" studs
9/16" studs
5 Stud Wheel;Front 9/16" studs
9/16" studs
9/16" studs
5 Stud Wheel;Front 9/16" studs
9/16" studs
5 Stud Wheel;Front 9/16" studs
9/16" studs
9/16" studs
9/16" studs
5 Stud Wheel;Front 9/16" studs
9/16" studs
5 Stud Wheel;Front 9/16" studs
9/16" studs
5 Stud Wheel;Front 9/16" studs
9/16" studs
5 Stud Wheel;Front 9/16" studs
9/16" studs
5 Stud Wheel;Front 9/16" studs
9/16" studs
5 Stud Wheel;Front 9/16" studs
9/16" studs
9/16" studs
9/16" studs
5 Stud Wheel;Front 9/16" studs
9/16" studs
9/16" studs
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front

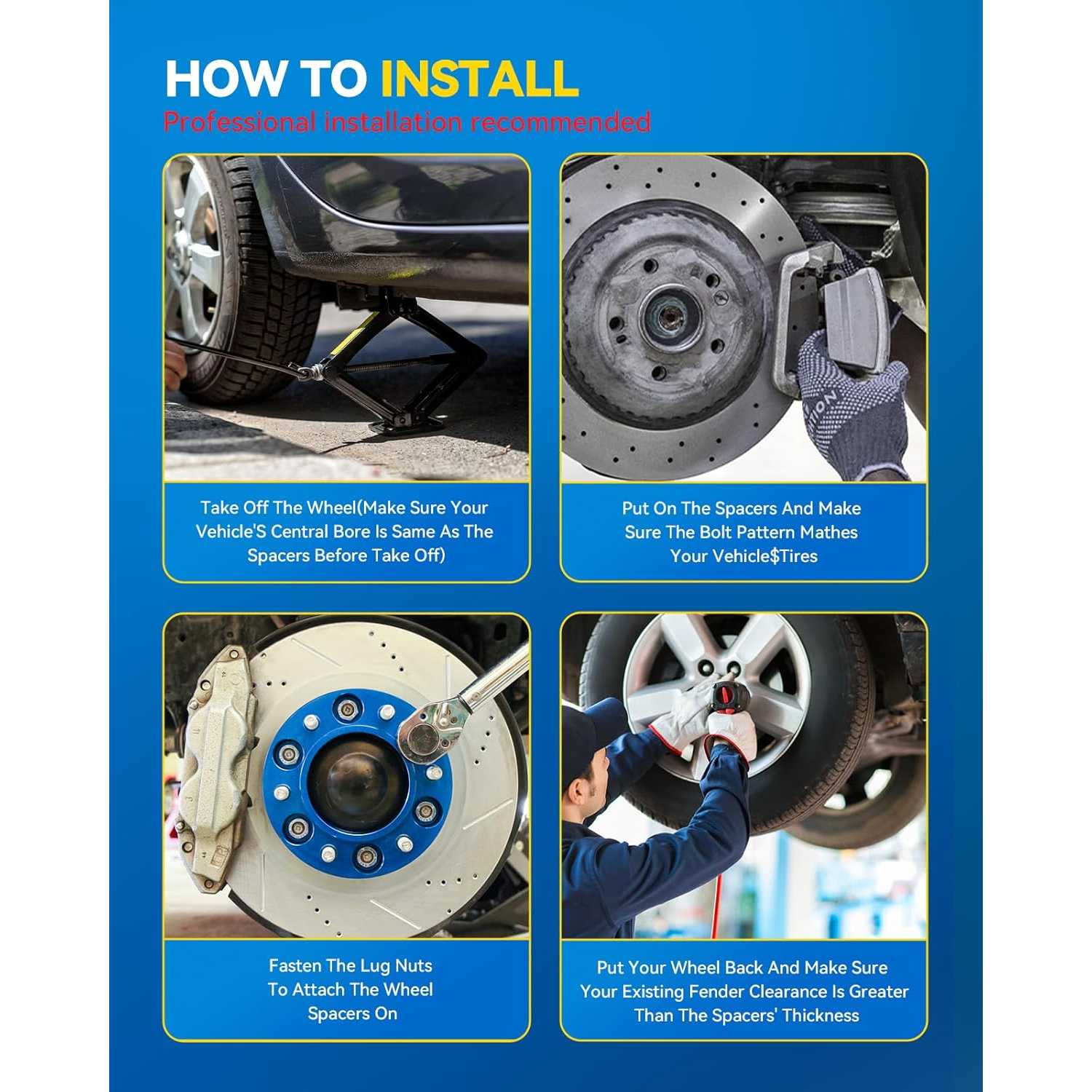

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 12 reviews

5100%
40%
30%
20%
10%

Purchaser

02/25/2025

arrived on time. no damage. will update more once I have them installed.4 month update: spacers are still going strong. have not had any issues!6 month update: spacers still holding up strong! no issues! and i drive my truck HARD and FAST! i love to race and go fast on the freeway. they have held up under whatever i throw at them! i have had them checked again at the tire shop that originally installed them. they said the spacers are good to go and safe to continue driving on.10 month update- just came in to provide another positive update. The spacers are STILL going strong and holding up! Not one issue with them at all!THANK YOU RICHEER FOR AN A+ PRODUCT!

Rebecca A. Rice

03/19/2025

I installed these spacers on my truck last night. They look great. They are hub centric which gives me some piece of mind. I have not notice any vibrations.The 1.5" spacers will get your stock Ram wheels flush with the fender flares. Ram should've offer wheel with more offset, so we wouldn't need to buy these.The install could be tricky for some folks without the right tools. I have really nice Snap-On torque wrenches, so it was easy for me. What you want to do is make sure the mounting surface is as clean as you can get them. Then torque the spacers to 125 and the wheels to 120, going up from 50, 75, 100, 110, then the final torque in a star pattern. Don't use the included red lock tight, else you're going to have a hard time removing the lugs. Blue is good enough.

FAQS

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Stacking spacers is generally not recommended because it may affect seating and fastener engagement. Select a single spacer of the appropriate specification instead.

Use the torque specified by the vehicle or spacer instructions for the applicable fasteners. Tighten in a star pattern with a calibrated torque wrench.
