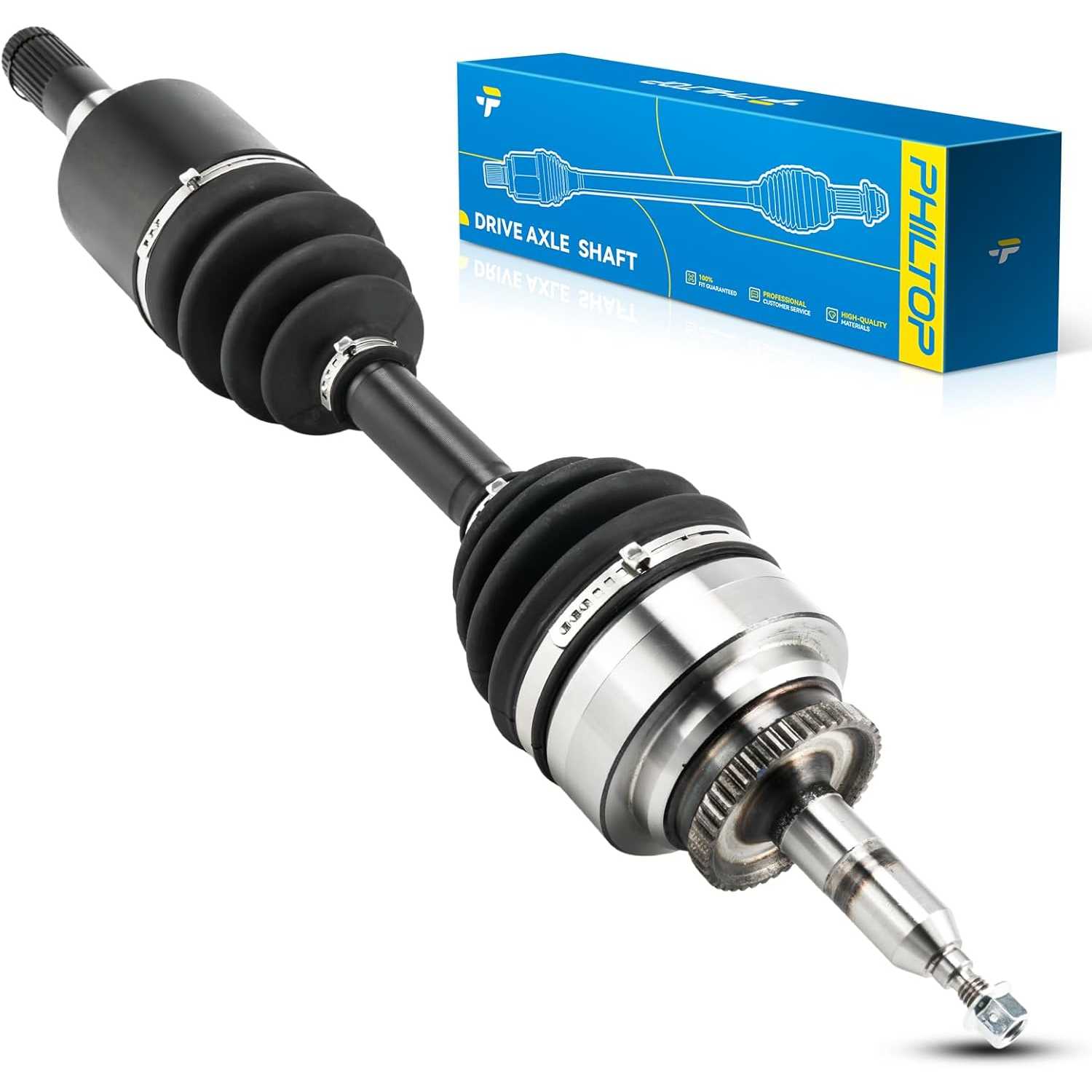

2009-2014 Ford F-150 3.5L V6/5.0L V8/5.4L V8/6.2L V8/3.7L V6/4.6L V8 | Front Driver Side CV Axle Shaft | 662191 - PHILTOP

2009-2014 Ford F-150 3.5L V6/5.0L V8/5.4L V8/6.2L V8/3.7L V6/4.6L V8 | Front Driver Side CV Axle Shaft | 662191 - PHILTOP

Front Left

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8191SHA9221US

Specifications

Brand
PHILTOP
Position
Front Left
ABS Ring Included
Yes
Quantity
1
Input Shaft Spline Count
31
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
45
Items Included
1x Front Left Cv Axle Shaft - 662191
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
662191

Highlights

  • Compatible Model: Front Left Half Shaft for 2009-2014 F-150 FX4/King Ranch/Lariat/Platinum/STX/XL/XLT 4WD, 2011 F-150 Lariat Limited 4WD, 2013-2014 F-150 Limited 4WD, 2007-2015 Expedition 4WD, 2007-2015 Navigator 4WD.
  • Easy to Install: Our constant velocity joint shafts strictly adhere to OEM specifications to ensure vehicle compatibility. Their precise dimensions enable quick replacement of old or damaged components. No special skills are required to install our half shafts.
  • Perfect Spline Engagement: The precision broached splines on the half-shaft ensure perfect and secure engagement with the hub and transmission/differential, guaranteeing safe and reliable power transmission.
  • Premium CV Boots: The vehicle drive shaft is equipped with a high-quality flexible rubber boot that resists cracking, ozone exposure, and extreme temperatures. This ensures the CV joint grease remains permanently sealed and prevents contaminants from entering.
  • Strict Quality Standards: The CV shaft surface is coated with a protective layer that effectively prevents corrosion and rust, extending the service life of the axle. It is particularly suitable for harsh weather conditions.

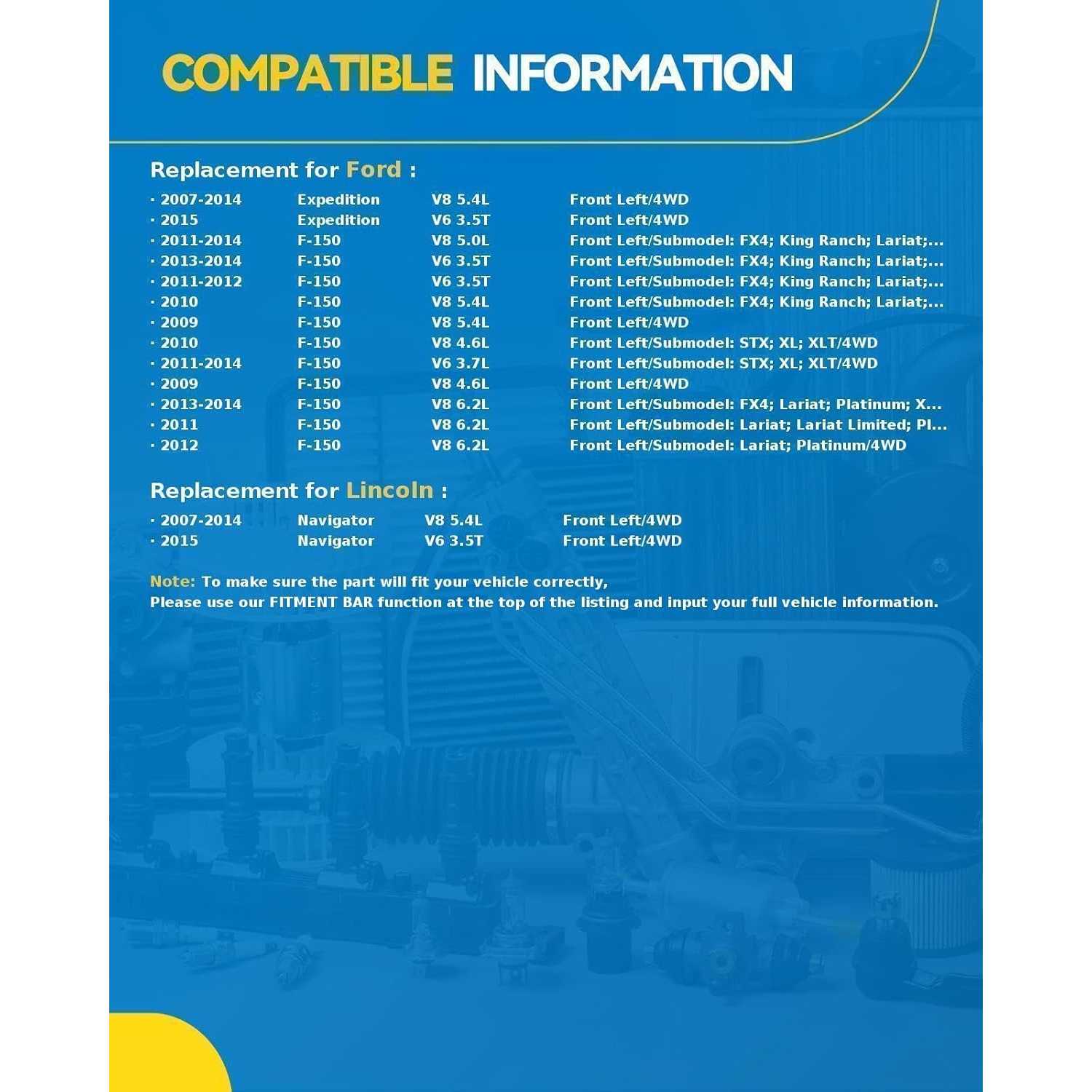

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 201020152008 - 201420152007 - 2014201520152011 - 201420152007 - 20142007 - 2010200820152008 - 201420152007 - 2014201520152011 - 201420152007 - 20142011 - 20142011 - 20142009 - 20102013 - 20142011 - 20142011 - 20142009 - 20102011 - 20142011 - 20142009 - 20102011 - 201420112013 - 20142011 - 20142011 - 20142009 - 20102011 - 20142011 - 20142009 - 20102011 - 20142011 - 20142011 - 20142009 - 20102011 - 20142009 - 20102011 - 20142011 - 20142009 - 20102011 - 20142009 - 20102013 - 201420152008 - 201420152008 - 20142007200720072007
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincoln
ModelExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150NavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigator
TrimEL Eddie BauerEL King RanchEL King RanchEL LimitedEL LimitedEL PlatinumEL XLEL XLEL XLTEL XLTEddie BauerFunkmaster Flex EditionKing RanchKing RanchLimitedLimitedPlatinumXLXLXLTXLTFX4FX4FX4FX4King RanchKing RanchKing RanchLariatLariatLariatLariatLariat LimitedLimitedPlatinumPlatinumPlatinumPlatinumSTXSTXSTXXLXLXLXLXLXLTXLTXLTXLTXLTXLTBaseBaseLLL LuxuryL UltimateLuxuryUltimate
Engine5.4L V83.5L V65.4L V83.5L V65.4L V83.5L V63.5L V65.4L V83.5L V65.4L V85.4L V85.4L V83.5L V65.4L V83.5L V65.4L V83.5L V63.5L V65.4L V83.5L V65.4L V83.5L V65.0L V85.4L V86.2L V83.5L V65.0L V85.4L V83.5L V65.0L V85.4L V86.2L V86.2L V83.5L V63.5L V65.0L V85.4L V86.2L V83.7L V64.6L V85.0L V83.5L V63.7L V64.6L V85.0L V85.4L V83.5L V63.7L V64.6L V85.0L V85.4L V86.2L V83.5L V65.4L V83.5L V65.4L V85.4L V85.4L V85.4L V85.4L V8
Note------------------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

13

Reviews

4.7/5

Based on 7 reviews

571%
429%
30%
20%
10%

Gerardo

10/01/2026

Verified buyer

Buen producto

Tom_Handy_378

11/07/2025

The grinding noise is completely gone after installing this. My truck drives smooth as butter now, like it's brand new again. Big difference.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
