2004-2014 Ford F-150 3.5L V6 | 6x135 to 6x140mm 87.1mm Center Bore M14x2 Thread Wheel Hub Accessory - PHILTOP

2004-2014 Ford F-150 3.5L V6 | 6x135 to 6x140mm 87.1mm Center Bore M14x2 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
28ISWSA071007US

Specifications

Brand
PHILTOP
Bolt Pattern
6x135mm To 6x5.5"
Wheel Bolt Pattern
6x5.5"
Vehicle Bolt Pattern
6x135mm
Thread Size
M14x2
Center Bore
87.1
Hub-Centric Lip
No
Thickness
1.5inch
Note1
Only for 6x135mm Models with 6x139.7mm Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 6x139.7mm Wheel.
Outside Diameter
176
Inside Diameter
3.43 in/87.1 mm
Lug Patterns
6
Type

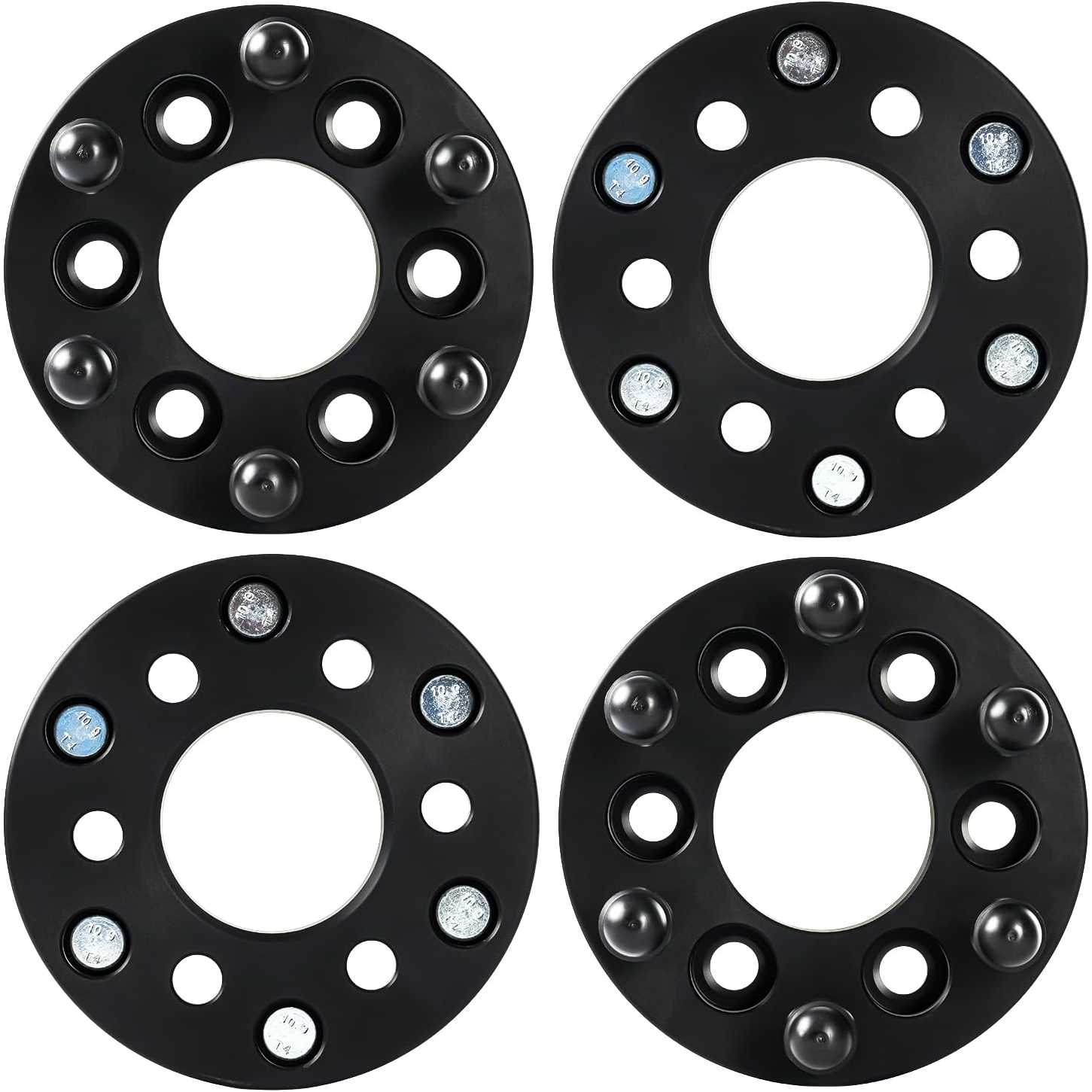

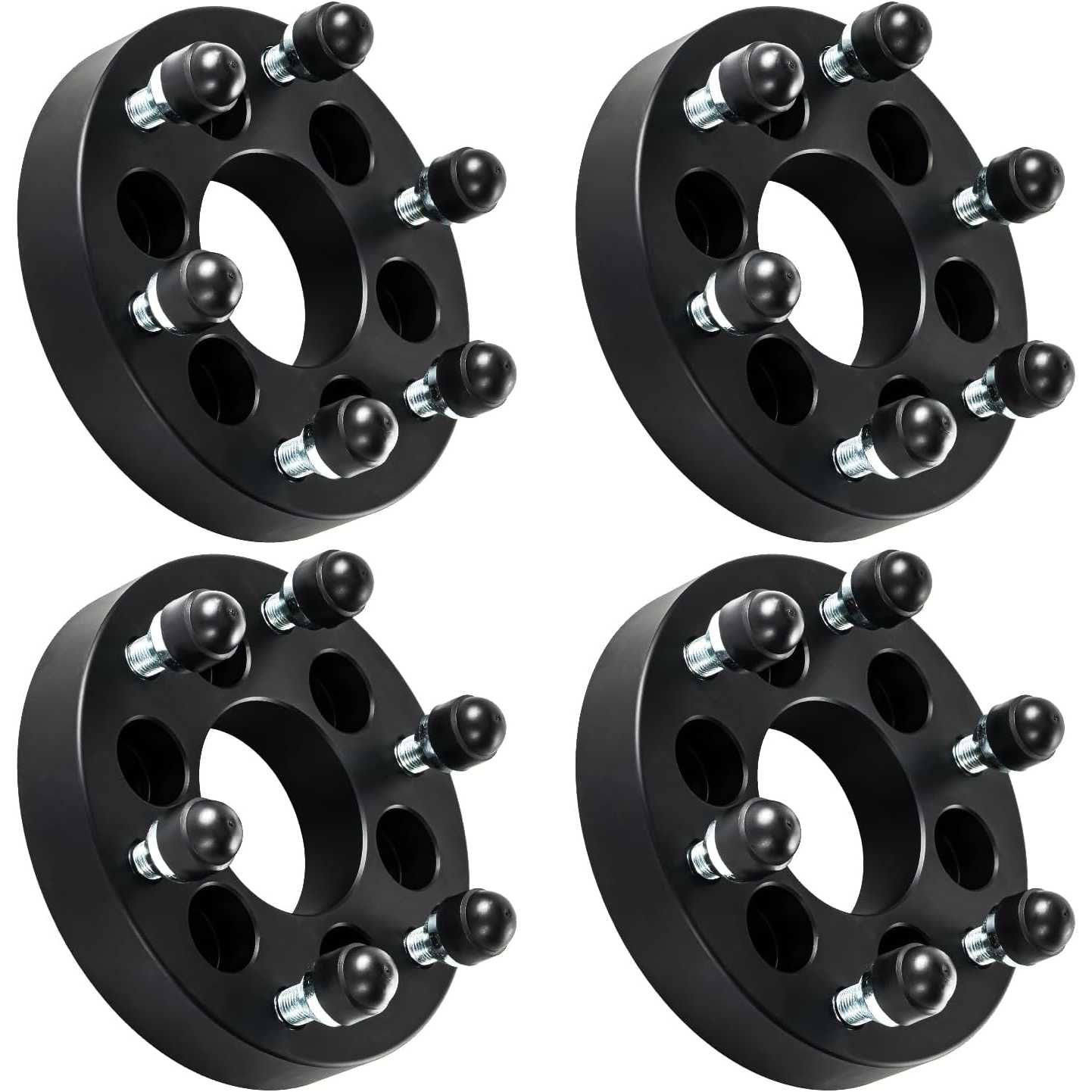

Wheel Adapter
Items Included
4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
90-100 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Vehicle Application] --- The 6x4.5 to 6x5.5 Wheel Adapters set replacement for 1991-2004 Dakota; 1998-2003 Durango; 2015-2017 Viper; 2013-2014 Viper

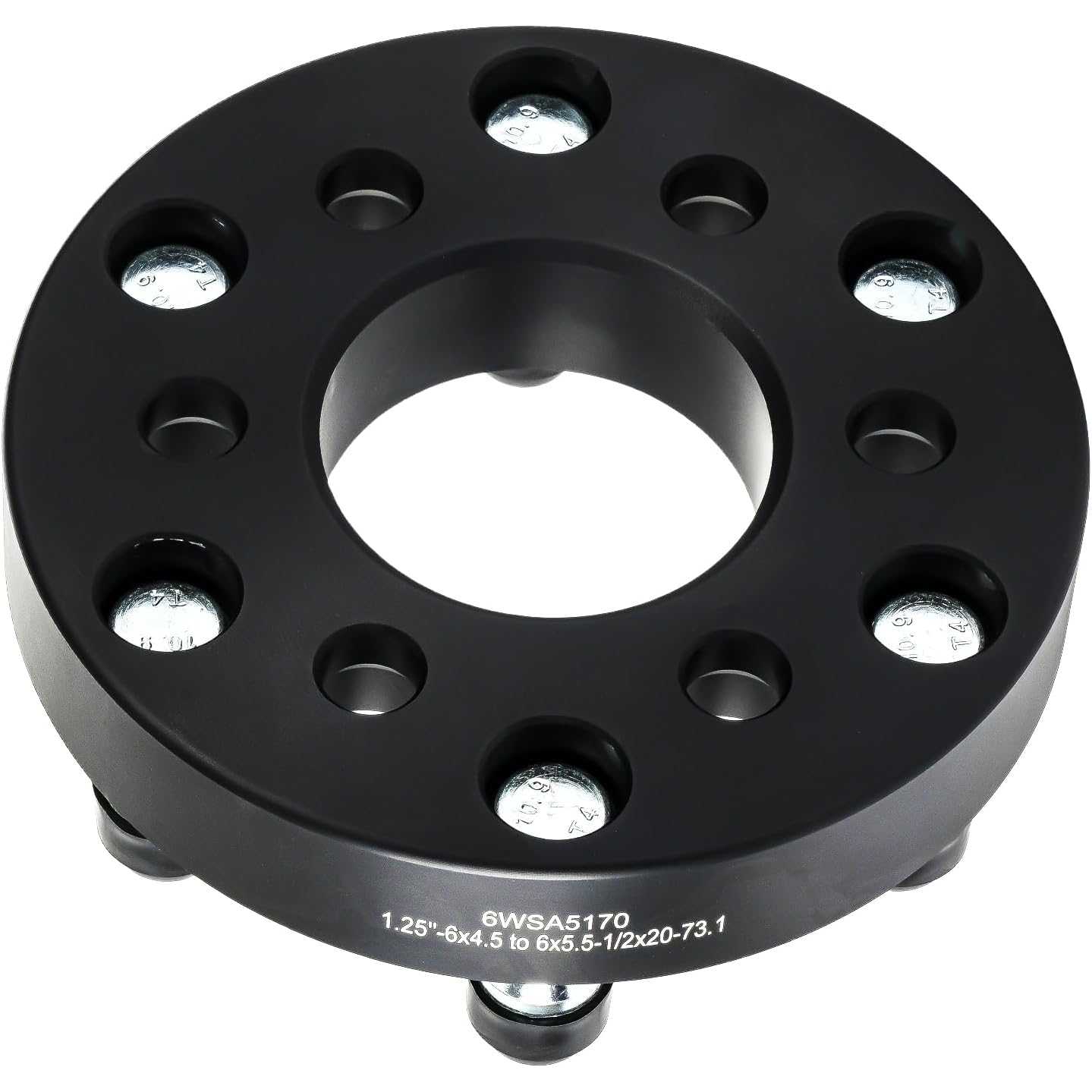

  • [Wheel Adapters Specification] --- Vehicle Bolt Pattern: 6x4.5"(6x114.3mm) ; | Wheel Bolt Pattern: 6x5.5"(6x139.7mm) ; | Thickness: 1.25 inch ; | Thread Pitch: 1/2"x20 ; | Hub Bore: 73.1mm ; | Recommended torque: 75-85 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts

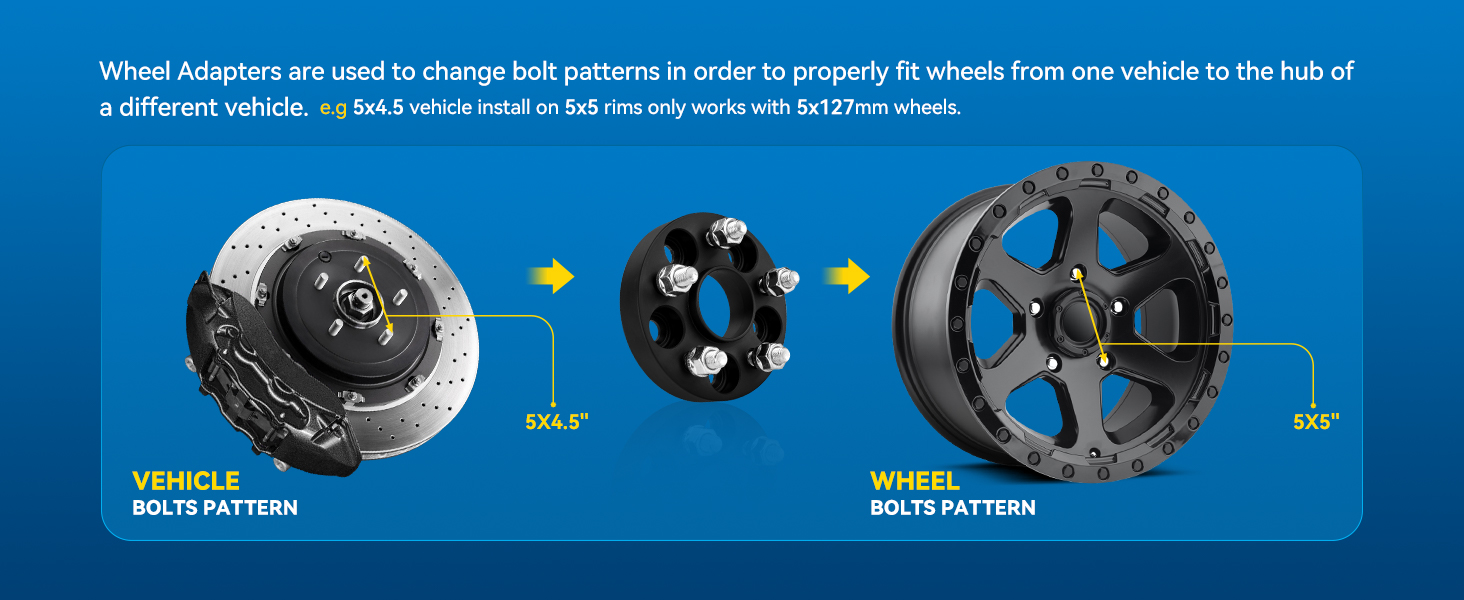

  • [Enhance Driving Experience] --- These 6x4.5 to 6x5.5 wheel adapters change bolt pattern,it help you to fit the wheel of one factory vehicle to the hub of a different vehicle. The Wheel Adapters can move your wheels further out from the wheel hub, mount larger wheel or tires. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability,giving an aggressive performance to your vehicle

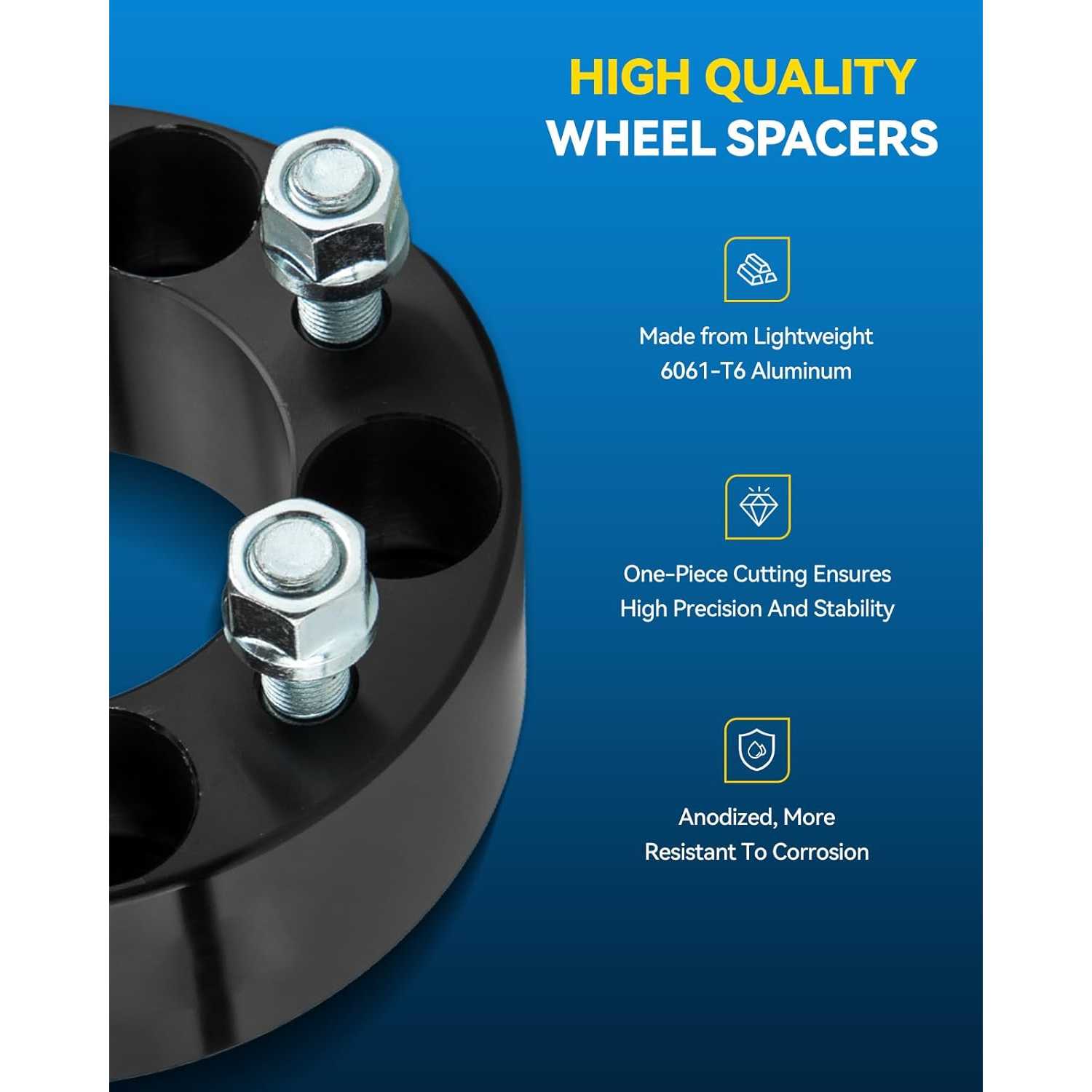

  • [Unsurpassed Quality] --- 6x4.5 to 6x5.5 Wheel Adapter is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Please Confirm] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20102008 - 20142007 - 20142011 - 201420072008 - 20142003200420032004 - 20102008200620082009 - 20122013 - 20142005 - 20062007 - 2014200420042011 - 20122013 - 201420042005 - 20062003200420032004 - 20062007 - 20142004200420062011 - 2014200820102011 - 20142007200820102013 - 20142011 - 20142011 - 20142004 - 20072008 - 20102013 - 20142006 - 2007200820102011 - 20122011 - 20142011 - 20142005 - 20082009 - 20102011 - 20142011 - 20142004 - 20072008 - 20102011 - 201420112013 - 201420082011 - 20142011 - 20142009 - 20102011 - 20142011 - 20142005 - 200720082004 - 20072008 - 20102011 - 201420102010 - 2014200820082011 - 20142011 - 20142005 - 200720082004 - 20072008 - 20102011 - 20142004 - 20072008 - 20102011 - 20142011 - 20142005 - 200720082004 - 20072008 - 20102011 - 20142004 - 20072008 - 20102013 - 20142006 - 20082003 - 20052008 - 20142008 - 2014200720072006 - 20072006 - 2007
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincoln
ModelExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150Mark LTNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigator
TrimEL Eddie BauerEL King RanchEL LimitedEL XLEL XLTEL XLTEddie BauerEddie BauerEddie BauerEddie BauerFunkmaster Flex EditionKing RanchKing RanchKing RanchKing RanchLimitedLimitedNBXNBXXLXLXLSXLSXLTXLTXLTXLTXLTXLT SportXLT SportXLT SportFX2FX2FX2FX2FX2FX2FX2FX2FX4FX4FX4FX4FX4Harley-Davidson EditionHarley-Davidson EditionHarley-Davidson EditionHarley-Davidson EditionKing RanchKing RanchKing RanchKing RanchLariatLariatLariatLariatLariatLariat LimitedLimitedLimitedPlatinumPlatinumPlatinumPlatinumSTXSTXSTXSTXSTXSTXSVT RaptorSVT RaptorTHE 60TH ANNIVERSARY EDITIONTHE 60TH ANNIVERSARY EDITIONXLXLXLXLXLXLXLXLXLXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTBaseBaseBaseLL LuxuryL UltimateLuxuryUltimate
Engine5.4L V85.4L V85.4L V85.4L V85.4L V85.4L V84.6L V84.6L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V84.6L V85.4L V85.4L V85.4L V84.6L V85.4L V84.6L V84.6L V85.4L V85.4L V85.4L V84.6L V85.4L V85.4L V83.5L V64.6L V84.6L V85.0L V85.4L V85.4L V85.4L V86.2L V83.5L V65.0L V85.4L V85.4L V86.2L V85.4L V85.4L V85.4L V86.2L V83.5L V65.0L V85.4L V85.4L V83.5L V65.0L V85.4L V85.4L V86.2L V86.2L V83.5L V65.4L V83.5L V65.0L V85.4L V86.2L V83.7L V64.2L V64.2L V64.6L V84.6L V85.0L V85.4L V86.2L V84.6L V85.4L V83.5L V63.7L V64.2L V64.2L V64.6L V84.6L V85.0L V85.4L V85.4L V83.5L V63.7L V64.2L V64.2L V64.6L V84.6L V85.0L V85.4L V85.4L V86.2L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V8
Note----
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
--
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
----
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-----
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
--
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-----
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
---
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
----------
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
--------
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
--
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
---
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
-
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
--
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
--
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black
Lug Centric, Fit 6-Lug Only, PCD: 6X135 mm to 6X5.5 Inch, Thread Size: 14X2.0 Inch, Thickness: 1.5 Inch, Bore Size: 87.1mm, Black

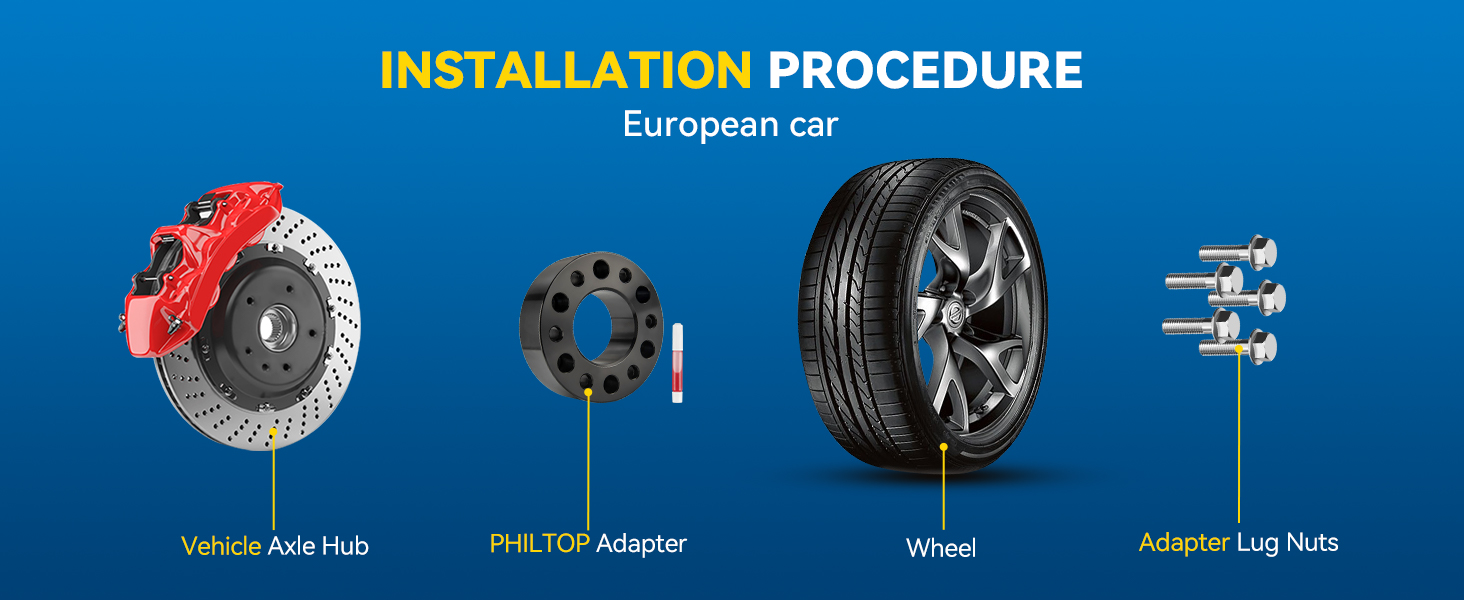

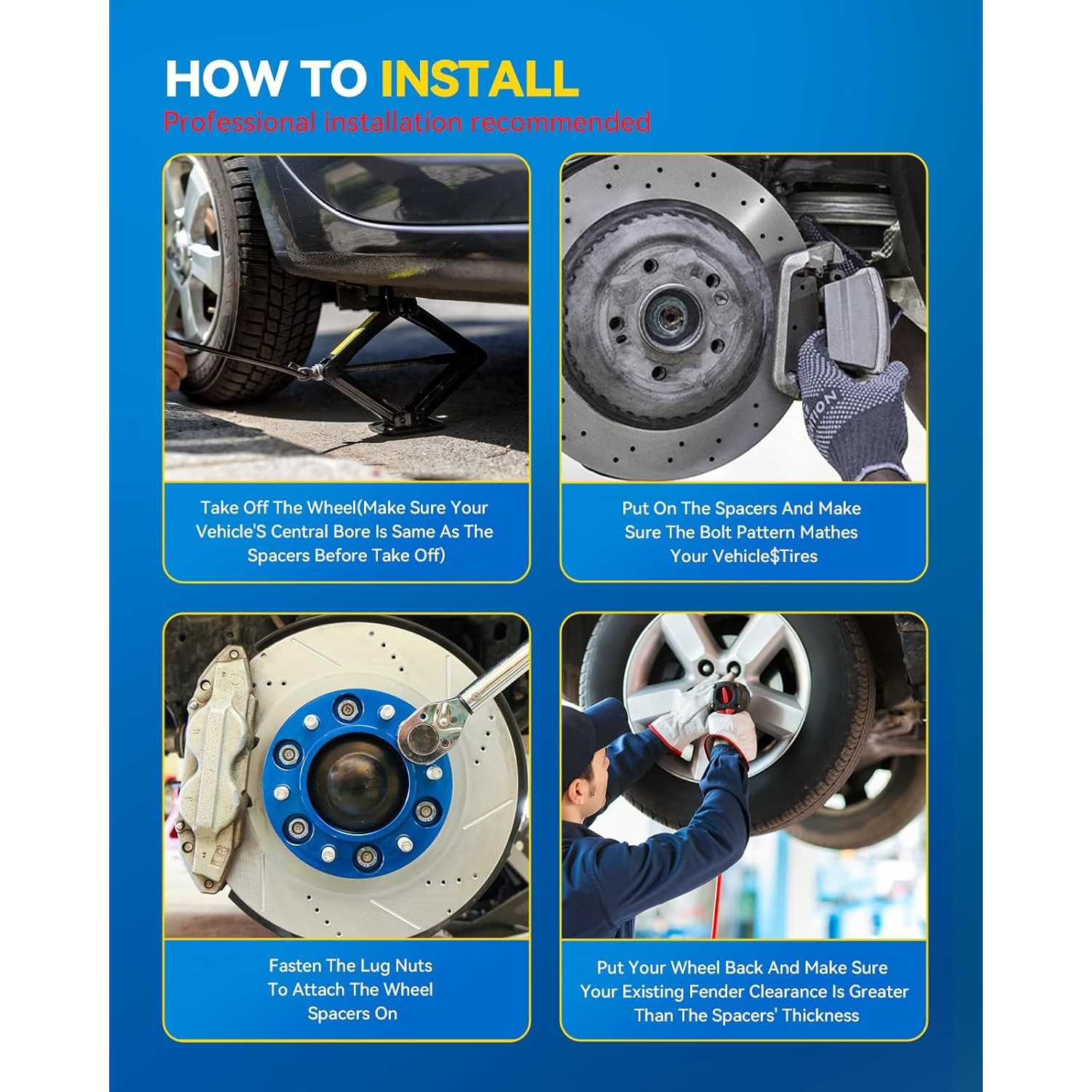

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

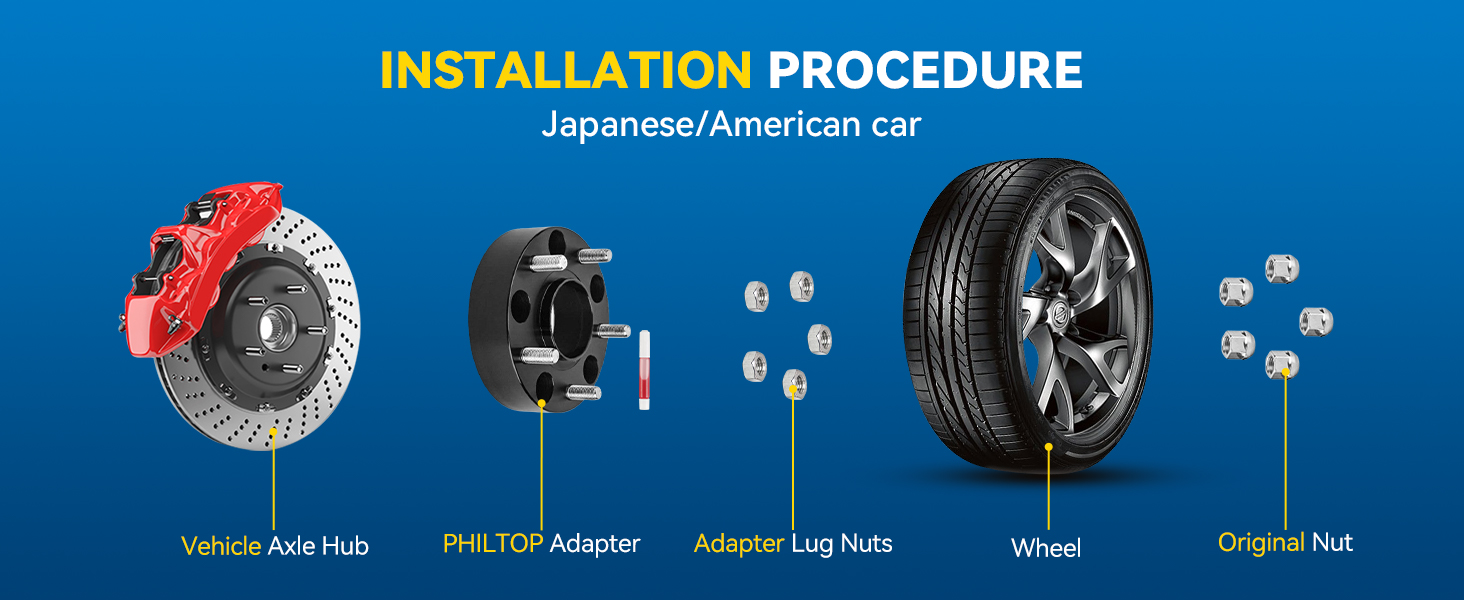

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 13 reviews

5100%
40%
30%
20%
10%

Customer

01/26/2025

Verified buyer

Perfect fit, great craftsmanship, quality product. I would buy these again.

Jdckck

05/08/2025

Super easy to install, took me about 30-45 minutes in my driveway. Gave me just a little wider stance and room for my 33 x 12.5 on the factory wheels. I will update on durability after I have had them for a while.

FAQS

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.
