2015-2025 Ford F-150 3.0L/3.5L/5.0L | 6x5.31" 87mm Center Bore M14x1.5 Thread Wheel Hub Accessory - PHILTOP

2015-2025 Ford F-150 3.0L/3.5L/5.0L | 6x5.31" 87mm Center Bore M14x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

0.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
61ISWSA4427US

Specifications

Brand
PHILTOP
Bolt Pattern
6x135mm
Wheel Bolt Pattern
6x135mm
Vehicle Bolt Pattern
6x135mm
Thread Size
M14x1.5
Center Bore
87
Hub-Centric Lip
Yes
Thickness
1.25inch
Outside Diameter
176
Inside Diameter
3.43 in/87 mm
Lug Patterns
6
Type
Wheel Spacer
Items Included
4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
85-90 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • (Vehicle Fitment)PHILTOP 6x135mm Wheel Spacer Fit for Expedition 2015-2022, F150 2015-2022, Navigator 2015-2022

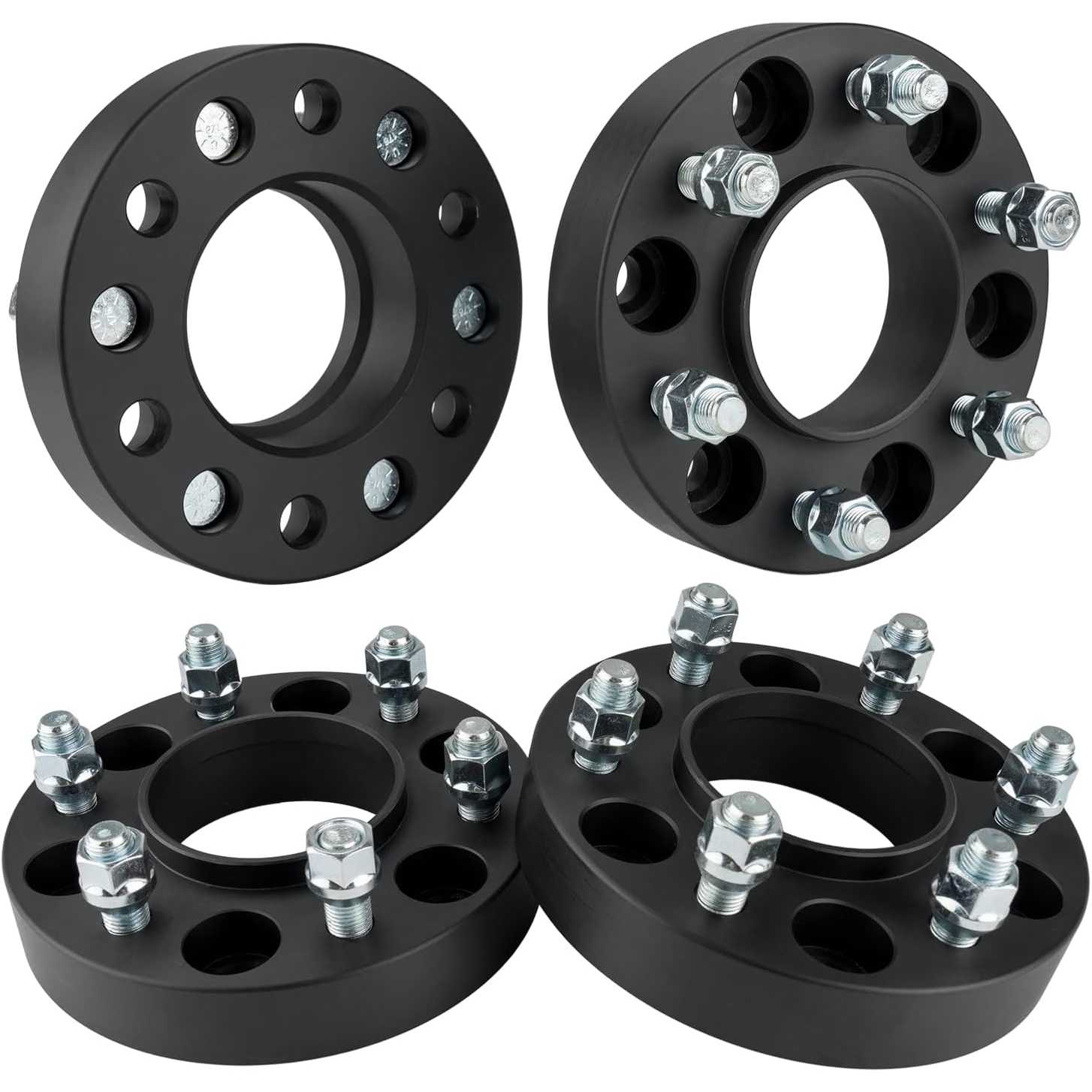

  • (Specification)6x135mmHub Centric Wheel Spacers 1.25" Thickness M14x1.5 Thread Pitch 87mm Hub Bore 4Pcs
  • (High Quality) The Wheel Spacers is truly forged from lightweight anodized black 6061-T6 aluminum alloy. Professionally tested for durability and lifetime that meets or exceeds OEM and ISO quality standards. After thousands of cycles, extensive tests are carried out in practice to ensure a long trouble-free service life
  • (Aggressive Driving Experience)The Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • (Professional Services)If there is a problem with the product, PHILTOP provide you with a free return/exchange service. You can use the Fitment Guide to check the suitability of your model before purchase. Please feel free to contact us with any questions regarding our products and services

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2015 - 20172015 - 20172015 - 20172016 - 20172015 - 20172015 - 20172015 - 20172020 - 20242015 - 20242020 - 20242018 - 20242018 - 20242018 - 20242018 - 201920222018 - 20242015 - 20242016 - 20242022 - 20242015 - 201920222023 - 20242015 - 20242018 - 20212015 - 20172018 - 20252015 - 20172018 - 20232015 - 20172018 - 20232018 - 20212015 - 20172018 - 20252015 - 20172018 - 20252016 - 20172018 - 20232018 - 20212015 - 20172018 - 20252015 - 20172018 - 20232018 - 202520172018 - 20252023 - 20252016 - 20172018 - 20252016 - 20172018 - 20252024 - 20252024 - 20252021 - 20252023 - 20252015 - 20172018 - 20252018 - 20212018 - 20232015 - 20172018 - 20252015 - 20172018 - 20252015 - 20172018 - 20252018 - 20212018 - 20232015 - 20172018 - 20252015 - 20172018 - 202520152019 - 20242018 - 2024201520222018 - 20242020 - 20242016 - 20242016 - 201920182016 - 20242016 - 2019
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincoln
ModelExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150NavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigator
TrimEL King RanchEL LimitedEL PlatinumEL SSVEL XLEL XLTKing RanchKing RanchLimitedMax King RanchMax LimitedMax PlatinumMax SSVMax XLMax XLMax XLTPlatinumSSVTimberlineXLXLXL STXXLTKing RanchKing RanchKing RanchKing RanchKing RanchLariatLariatLariatLariatLariatLariatLariatLimitedLimitedPlatinumPlatinumPlatinumPlatinumPlatinumPolice ResponderRaptorRaptorRaptor RSSVSSVSSVSSVSTXSTXTremorTremorXLXLXLXLXLXLXLXLXLTXLTXLTXLTXLTXLTXLTXLTBaseBaseBlack LabelLL BaseL Black LabelL LiveryL ReserveL SelectPremiereReserveSelect
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.0L V63.5L V63.5L V65.0L V85.0L V82.7L V62.7L V63.0L V63.5L V63.5L V65.0L V85.0L V83.5L V63.5L V63.0L V63.5L V63.5L V65.0L V85.0L V83.5L V63.5L V63.5L V65.2L V83.5L V63.5L V65.0L V85.0L V82.7L V65.0L V83.5L V65.0L V82.7L V62.7L V63.0L V63.3L V63.5L V63.5L V65.0L V85.0L V82.7L V62.7L V63.0L V63.3L V63.5L V63.5L V65.0L V85.0L V83.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note------------------------
4WD;Front
-
4WD;Front
-
4WD;Front
--
4WD;Front
-
4WD;Front
-
4WD;Front
--
4WD;Front
-
4WD;Front
--
4WD;Front
--
4WD;Front
-
4WD;Front
-----
4WD;Front
---
4WD;Front
-
4WD;Front
-
4WD;Front
---
4WD;Front
-
4WD;Front
-------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

0.0/5

Based on 0 reviews

50%
40%
30%
20%
10%

No reviews match these filters.

FAQS

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Thickness depends on the desired clearance and the available space around the tire, fender, and suspension. Measure carefully and confirm that the selected size is permitted for your vehicle setup.

Hub-centric spacers use a center bore or lip to help center the wheel on the hub, while lug-centric designs rely mainly on the wheel fasteners. Use the design specified for your application.
