2004-2014 Ford F-150 3.5L V6 | 6x135mm 87mm Center Bore M14x2 Thread Wheel Hub Accessory - PHILTOP

2004-2014 Ford F-150 3.5L V6 | 6x135mm 87mm Center Bore M14x2 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
10ISWSA100007US

Specifications

Brand
PHILTOP
Bolt Pattern
6x135mm
Wheel Bolt Pattern
6x135mm
Vehicle Bolt Pattern
6x135mm
Thread Size
M14x2
Center Bore
87
Hub-Centric Lip
Yes
Thickness
2inch
Outside Diameter
176
Inside Diameter
3.43 in/87 mm
Lug Patterns
6
Type
Wheel Spacer
Items Included

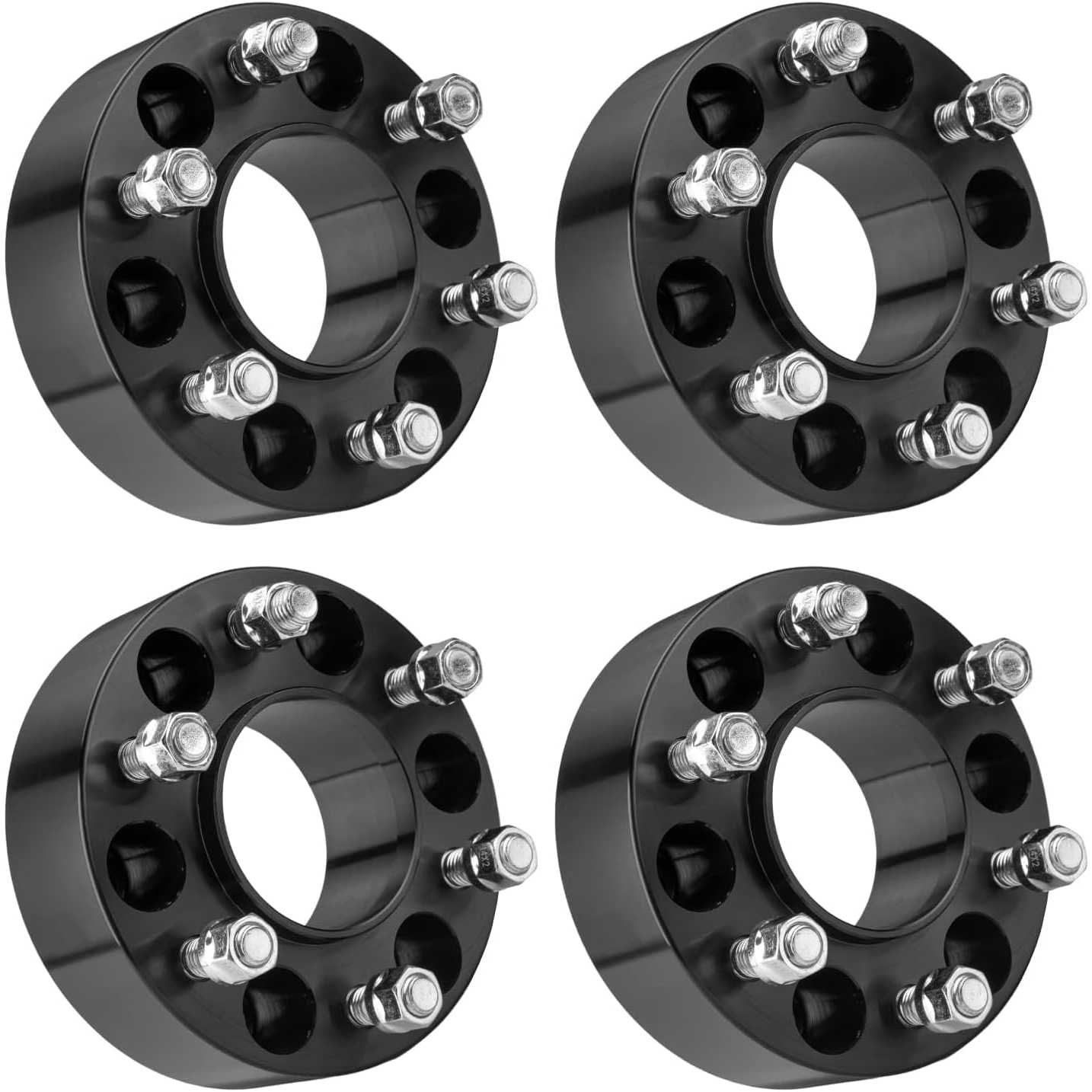

4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
90-100 lb-ft

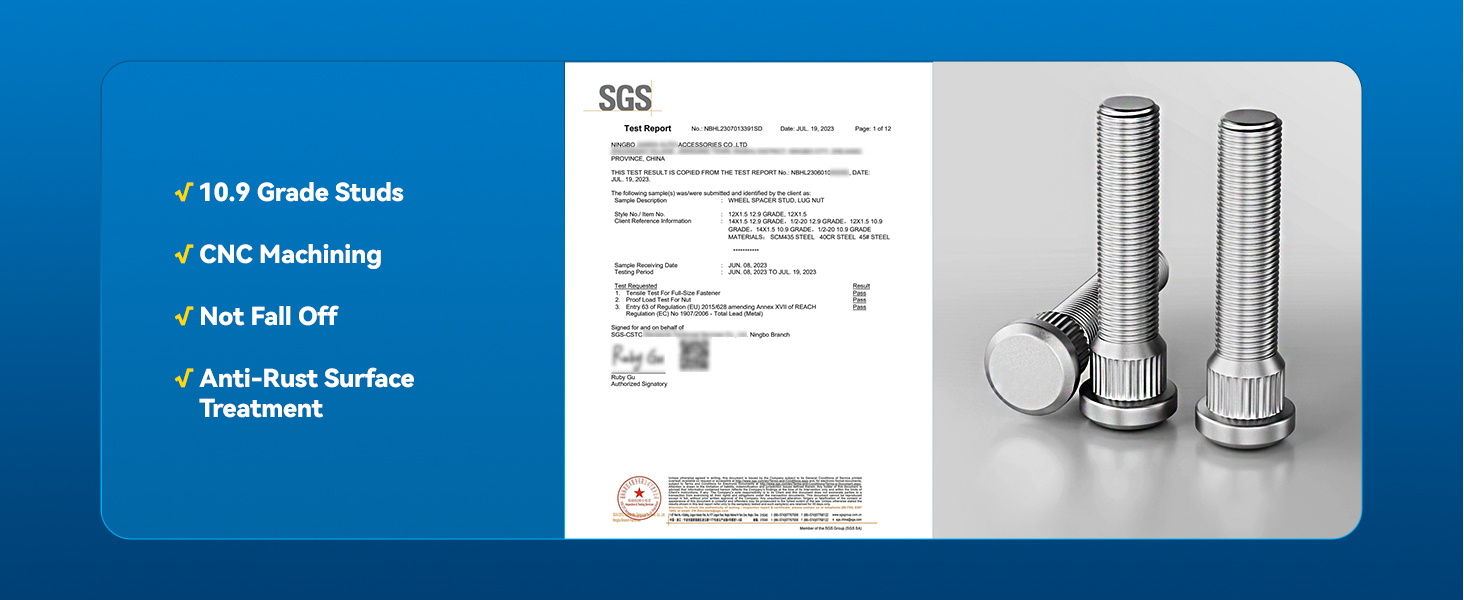

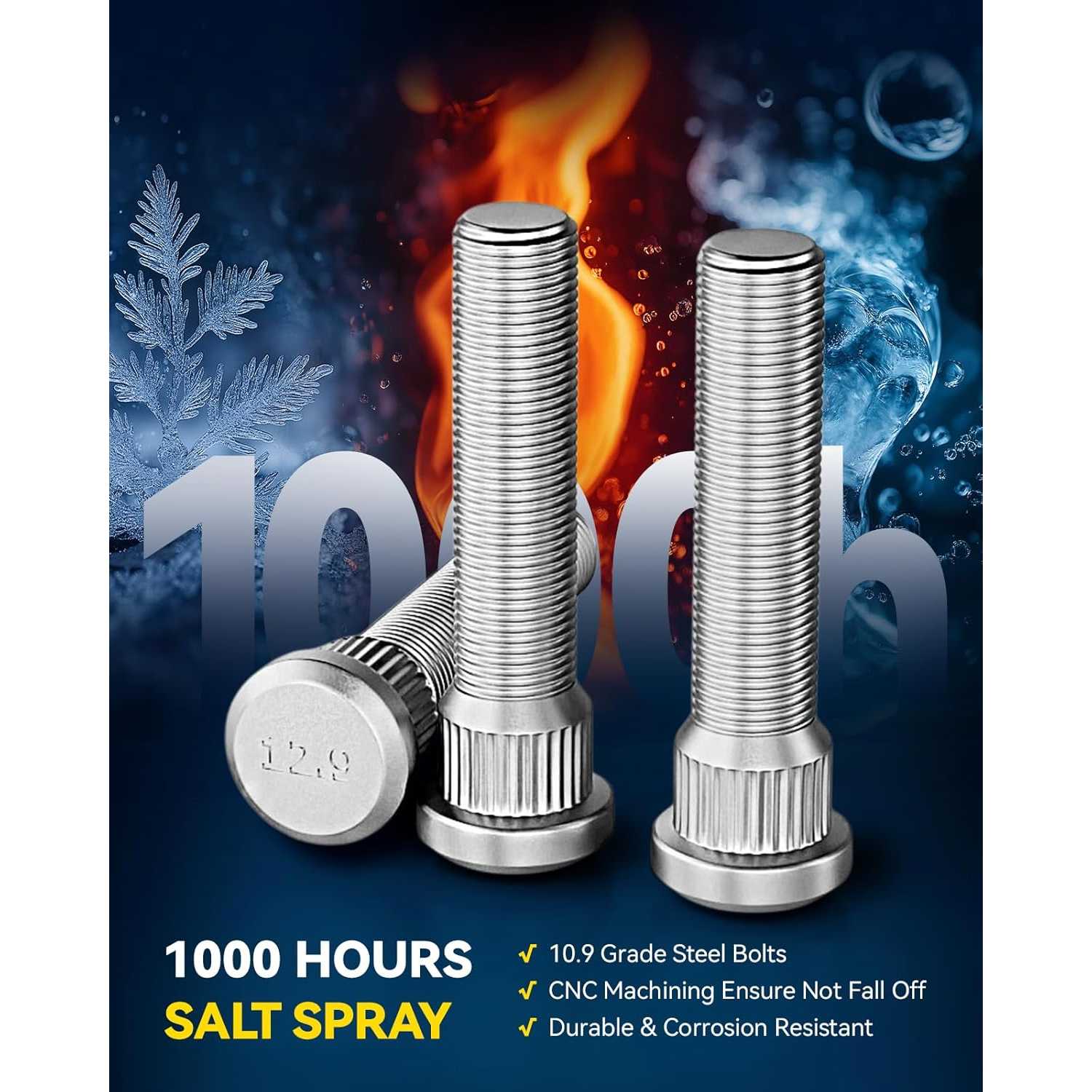

Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • Specification - 6x135mm Bolt Pattern 2" Thickness M14x2 Thread Pitch 87mm Hub Bore
  • Fitment - The Wheel Spacers fit for Expedition 2003-2014, F150 2004-2014, Navigator 2003-2014

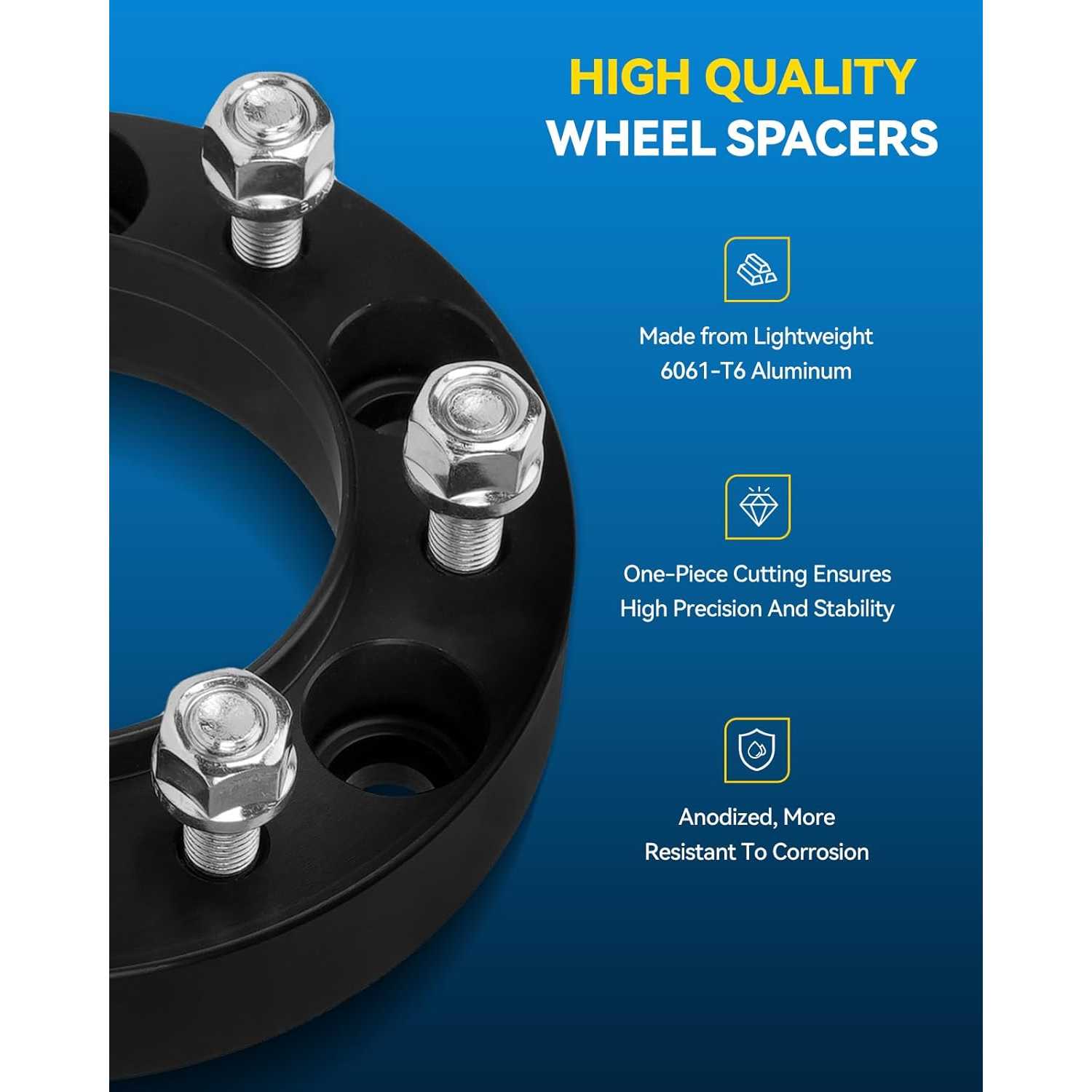

  • High Quality - PHILTOP Wheel Spacers are CNC machined to a precise standard to make the installation fit more better, so as to prevent wheel vibration and maintain the stock driving. They are forged from anodized 6061-T6 Aluminum Alloy, making them more durable and corrosion resistant
  • Aggressive Driving Experience -The Wheel Spacers Adapters can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • Professional Services -If there is a problem with the product, PHILTOP provide you with a free return/exchange service. You can use the Fitment Guide to check the suitability of your model before purchase. Please feel free to contact us with any questions regarding our products and services

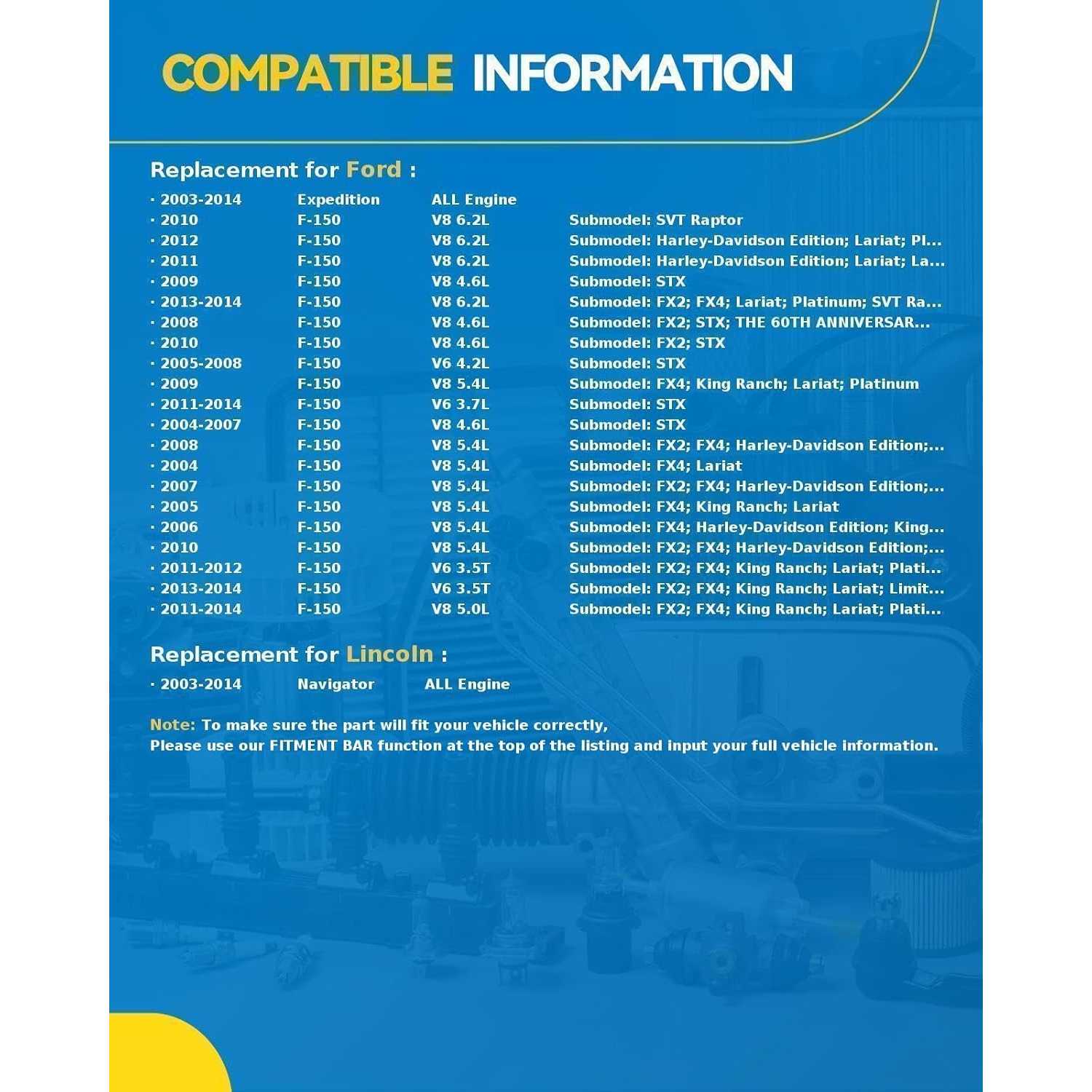

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20102008 - 20102011 - 20142007 - 20102011 - 20142011 - 20142007 - 20102011 - 201420002001 - 20022003 - 200420002001 - 20022003 - 2010200820062008 - 20102011 - 20142005 - 20102011 - 2014200420042011 - 201420042005 - 200620002001 - 20022003 - 200420002001 - 20022003 - 20102011 - 2014200420042006201120122013 - 201420082010201120122013 - 20142007200820102013 - 2014201120122013 - 2014201120122013 - 2014200420052006 - 20072008200920102013 - 20142006 - 20072008201020112012201120122013 - 2014201120122013 - 201420052006 - 2007200820092010201120122013 - 2014201120122013 - 2014200420052006 - 2007200820092010201120122013 - 201420112013 - 20142008201120122013 - 2014201120122013 - 201420092010201120122013 - 2014201120122013 - 201420052006 - 20072008200420052006 - 2007200820092010201120122013 - 201420102010201120122013 - 201420082008201120122013 - 2014201120122013 - 201420052006 - 20072008200420052006 - 2007200820092010201120122013 - 2014200420052006 - 2007200820092010201120122013 - 2014201120122013 - 201420052006 - 20072008200420052006 - 2007200820092010201120122013 - 2014200420052006 - 20072008200920102013 - 201420042004200420042004200420042006 - 200820002001 - 20022003 - 200520082009 - 20102011 - 201420082009 - 20102011 - 2014200720072006 - 20072006 - 2007
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincoln
ModelExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageMark LTNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigatorNavigator
TrimEL Eddie BauerEL King RanchEL King RanchEL LimitedEL LimitedEL XLEL XLTEL XLTEddie BauerEddie BauerEddie BauerEddie BauerEddie BauerEddie BauerFunkmaster Flex EditionKing RanchKing RanchKing RanchLimitedLimitedNBXNBXXLXLSXLSXLTXLTXLTXLTXLTXLTXLTXLT SportXLT SportXLT SportFX2FX2FX2FX2FX2FX2FX2FX2FX2FX2FX2FX2FX4FX4FX4FX4FX4FX4FX4FX4FX4FX4FX4FX4FX4Harley-Davidson EditionHarley-Davidson EditionHarley-Davidson EditionHarley-Davidson EditionHarley-Davidson EditionKing RanchKing RanchKing RanchKing RanchKing RanchKing RanchKing RanchKing RanchKing RanchKing RanchKing RanchLariatLariatLariatLariatLariatLariatLariatLariatLariatLariatLariatLariatLariatLariatLariatLariat LimitedLimitedLimitedPlatinumPlatinumPlatinumPlatinumPlatinumPlatinumPlatinumPlatinumPlatinumPlatinumPlatinumSTXSTXSTXSTXSTXSTXSTXSTXSTXSTXSTXSTXSTXSTXSTXSVT RaptorSVT RaptorSVT RaptorSVT RaptorSVT RaptorTHE 60TH ANNIVERSARY EDITIONTHE 60TH ANNIVERSARY EDITIONXLXLXLXLXLXLXLXLXLXLXLXLXLXLXLXLXLXLXLXLXLXLXLXLXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTXLTSVT LightningXLXLXLXLTXLTXLTBaseBaseBaseBaseBaseBaseBaseLLLL LuxuryL UltimateLuxuryUltimate
Engine5.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V84.6L V84.6L V84.6L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V84.6L V85.4L V85.4L V84.6L V85.4L V84.6L V84.6L V84.6L V85.4L V85.4L V85.4L V85.4L V84.6L V85.4L V85.4L V83.5L V63.5L V63.5L V64.6L V84.6L V85.0L V85.0L V85.0L V85.4L V85.4L V85.4L V86.2L V83.5L V63.5L V63.5L V65.0L V85.0L V85.0L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V86.2L V85.4L V85.4L V85.4L V86.2L V86.2L V83.5L V63.5L V63.5L V65.0L V85.0L V85.0L V85.4L V85.4L V85.4L V85.4L V85.4L V83.5L V63.5L V63.5L V65.0L V85.0L V85.0L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V86.2L V86.2L V86.2L V86.2L V83.5L V65.4L V83.5L V63.5L V63.5L V65.0L V85.0L V85.0L V85.4L V85.4L V86.2L V86.2L V86.2L V83.7L V63.7L V63.7L V64.2L V64.2L V64.2L V64.6L V84.6L V84.6L V84.6L V84.6L V84.6L V85.0L V85.0L V85.0L V85.4L V86.2L V86.2L V86.2L V86.2L V84.6L V85.4L V83.5L V63.5L V63.5L V63.7L V63.7L V63.7L V64.2L V64.2L V64.2L V64.6L V84.6L V84.6L V84.6L V84.6L V84.6L V85.0L V85.0L V85.0L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V83.5L V63.5L V63.5L V63.7L V63.7L V63.7L V64.2L V64.2L V64.2L V64.6L V84.6L V84.6L V84.6L V84.6L V84.6L V85.0L V85.0L V85.0L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V86.2L V85.4L V84.2L V64.6L V85.4L V84.2L V64.6L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V8
Note
4WD;Front;Rear
4WD;Front;Rear
4WD;Front;Rear;with 6 Stud Hub
4WD;Front;Rear
4WD;Front;Rear;with 6 Stud Hub
4WD;Front;Rear;with 6 Stud Hub
4WD;Front;Rear
4WD;Front;Rear;with 6 Stud Hub
From 11291999
-
4WD;Front;Rear
From 11291999
-
4WD;Front;Rear
4WD;Front;Rear
4WD;Front;Rear
4WD;Front;Rear
4WD;Front;Rear;with 6 Stud Hub
4WD;Front;Rear
4WD;Front;Rear;with 6 Stud Hub
4WD;Front;Rear
4WD;Front;Rear
4WD;Front;Rear;with 6 Stud Hub
4WD;Front;Rear
4WD;Front;Rear
From 11291999
-
4WD;Front;Rear
From 11291999
-
4WD;Front;Rear
4WD;Front;Rear;with 6 Stud Hub
4WD;Front;Rear
4WD;Front;Rear
4WD;Front;Rear
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
6 Stud;Front;with 6 Stud Hub
4WD or AWD;6 Stud;Front
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD;6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
4WD or AWD;6 Stud;Front
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD;6 Stud;From 112904;Front;To 112804;with 6 Stud Hub
4WD;6 Stud;From 11292004;Front;Thru 11282004;with 6 Stud Hub
4WD;6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
6 Stud;Front;RWD;with 6 Stud Hub
4WD or AWD;6 Stud;Front
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD;6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
4WD or AWD;6 Stud;Front
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD;6 Stud;From 11292004;Front;Thru 11282004;with 6 Stud Hub
4WD;6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
6 Stud;Front;RWD;with 6 Stud Hub
4WD or AWD;6 Stud;Front
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD;6 Stud;From 112904;Front;To 112804;with 6 Stud Hub
4WD;6 Stud;From 11292004;Front;Thru 11282004;with 6 Stud Hub
4WD;6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
6 Stud;Front;RWD;with 6 Stud Hub
4WD or AWD;6 Stud;Front
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD;6 Stud;Front;except Heavy Duty Payload Package
6 Stud;Front;with 6 Stud Hub
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
6 Stud;Front;RWD;with 6 Stud Hub
4WD or AWD;6 Stud;Front
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD;6 Stud;From 11292004;Front;Thru 11282004;with 6 Stud Hub
4WD;6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
4WD;6 Stud;From 112904;Front;To 112804;with 6 Stud Hub
4WD;6 Stud;From 11292004;Front;Thru 11282004;with 6 Stud Hub
4WD;6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
6 Stud;Front;RWD;with 6 Stud Hub
4WD or AWD;6 Stud;Front
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Front
4WD or AWD;6 Stud;Front
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD;6 Stud;From 11292004;Front;Thru 11282004;with 6 Stud Hub
4WD;6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
4WD;6 Stud;From 112904;Front;To 112804;with 6 Stud Hub
4WD;6 Stud;From 11292004;Front;Thru 11282004;with 6 Stud Hub
4WD;6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
6 Stud;Front;RWD;with 6 Stud Hub
4WD or AWD;6 Stud;Front
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD;6 Stud;From 112904;Front;To 112804;with 6 Stud Hub
4WD;6 Stud;From 11292004;Front;Thru 11282004;with 6 Stud Hub
4WD;6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
6 Stud;Front;RWD;with 6 Stud Hub
4WD or AWD;6 Stud;Front
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD;6 Stud;From 11292004;Front;Thru 11282004;with 6 Stud Hub
4WD;6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
4WD;6 Stud;From 112904;Front;To 112804;with 6 Stud Hub
4WD;6 Stud;From 11292004;Front;Thru 11282004;with 6 Stud Hub
4WD;6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
6 Stud;Front;RWD;with 6 Stud Hub
4WD or AWD;6 Stud;Front
4WD or AWD;6 Stud;Front;except Heavy Duty Payload Package
4WD or AWD;6 Stud;Except SVT RaptorRaptor;Front;except Heavy Duty Payload Package;with 6 Stud Hub
4WD;6 Stud;Front;except Heavy Duty Payload Package
4WD;6 Stud;From 112904;Front;To 112804;with 6 Stud Hub
4WD;6 Stud;From 11292004;Front;Thru 11282004;with 6 Stud Hub
4WD;6 Stud;Front;with 6 Stud Hub
6 Stud;Front;with 6 Stud Hub
6 Stud;Front;RWD;with 6 Stud Hub
4WD or AWD;6 Stud;Front
4WD;6 Stud;Front;except Heavy Duty Payload Package
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
4WD;6 Stud;Front
From 11291999
-
4WD;Front;Rear
4WD or AWD;Front;Rear
Front;RWD;Rear
4WD or AWD;Front;Rear;with 6 Stud Hub
4WD or AWD;Front;Rear
Front;RWD;Rear
4WD or AWD;Front;Rear;with 6 Stud Hub
4WD or AWD;Front;Rear
4WD or AWD;Front;Rear
4WD or AWD;Front;Rear
4WD or AWD;Front;Rear

How to Install?

Installation Manual Download

User manual (PDF)
Download

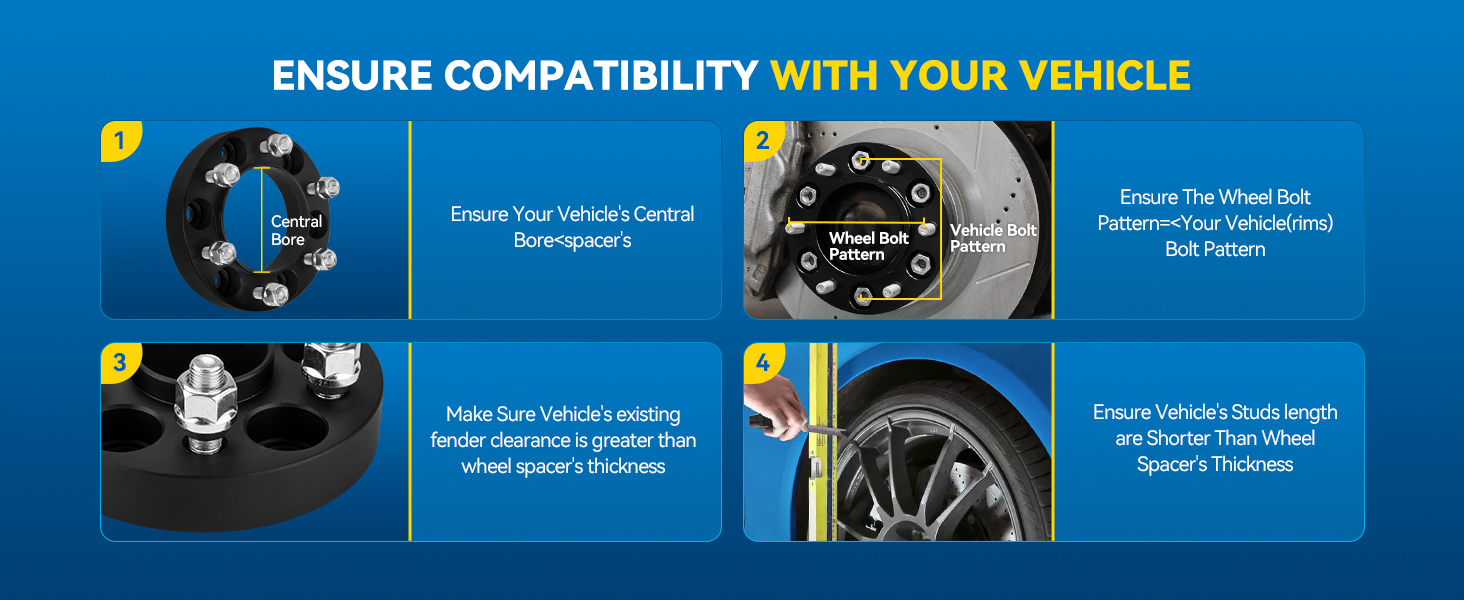

Checks Before Installation

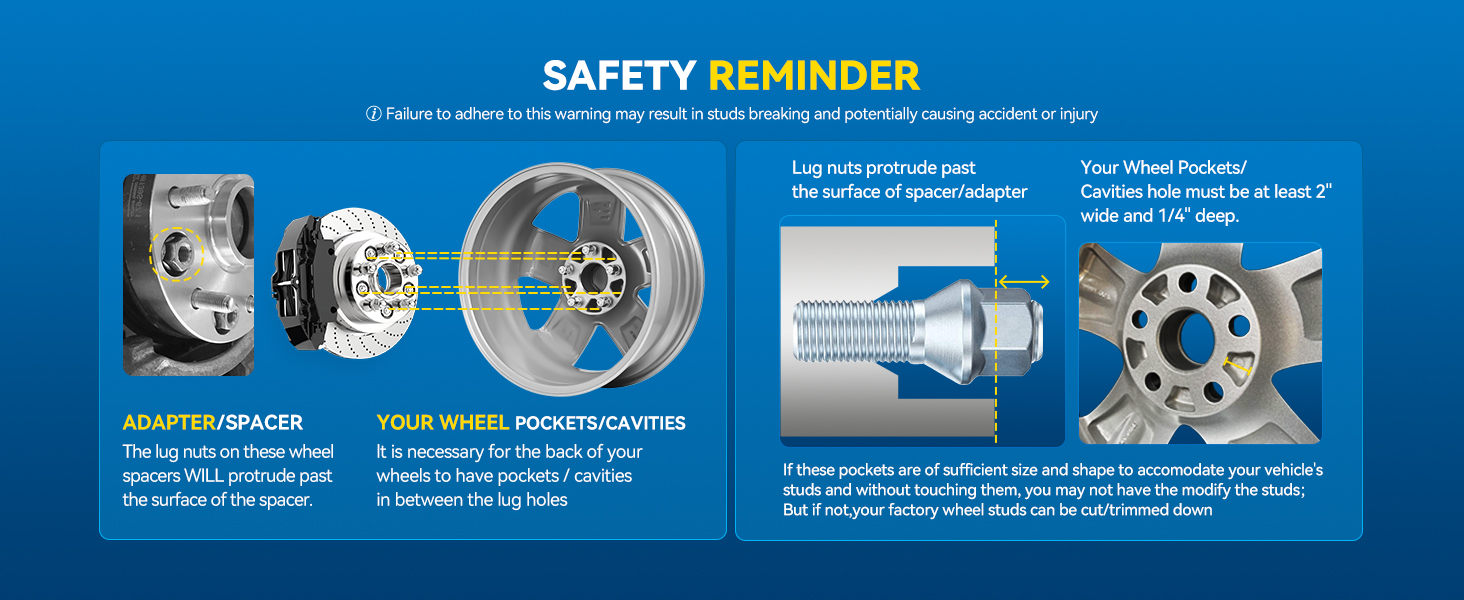

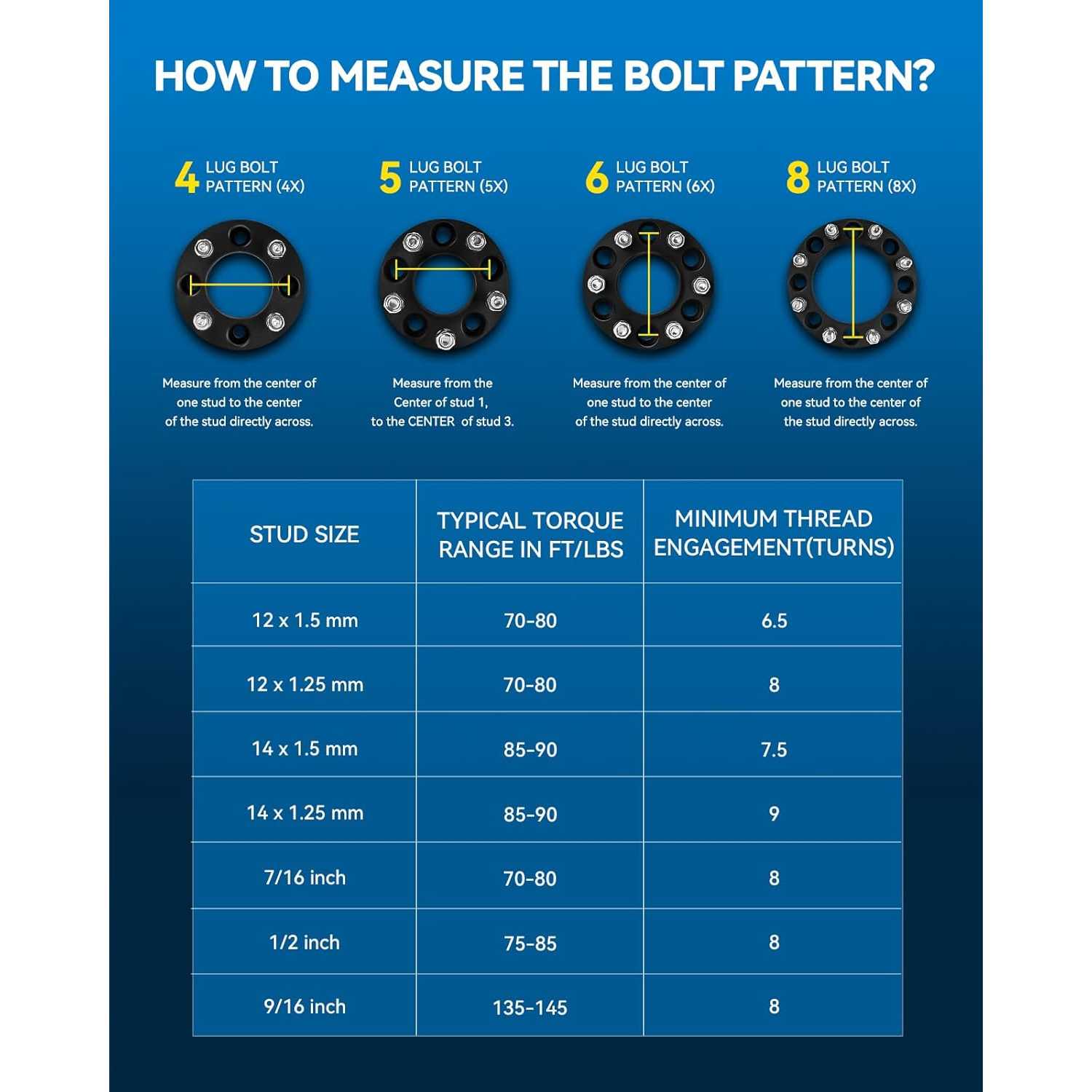

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

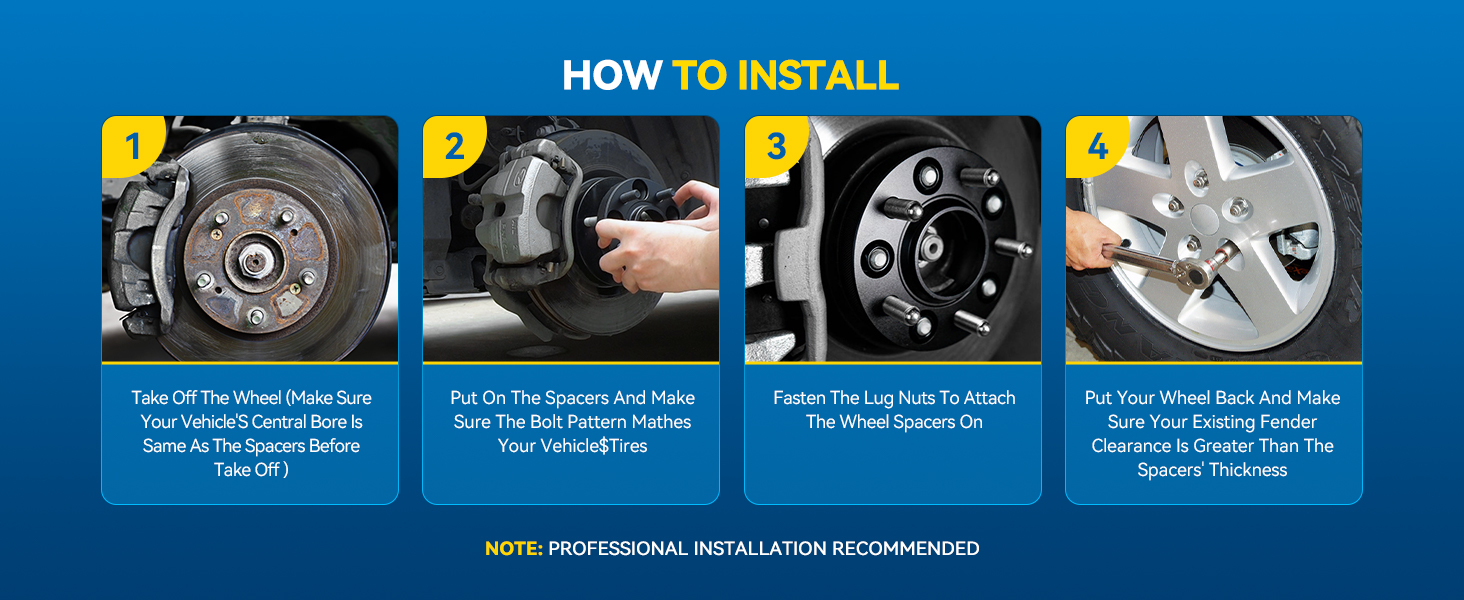

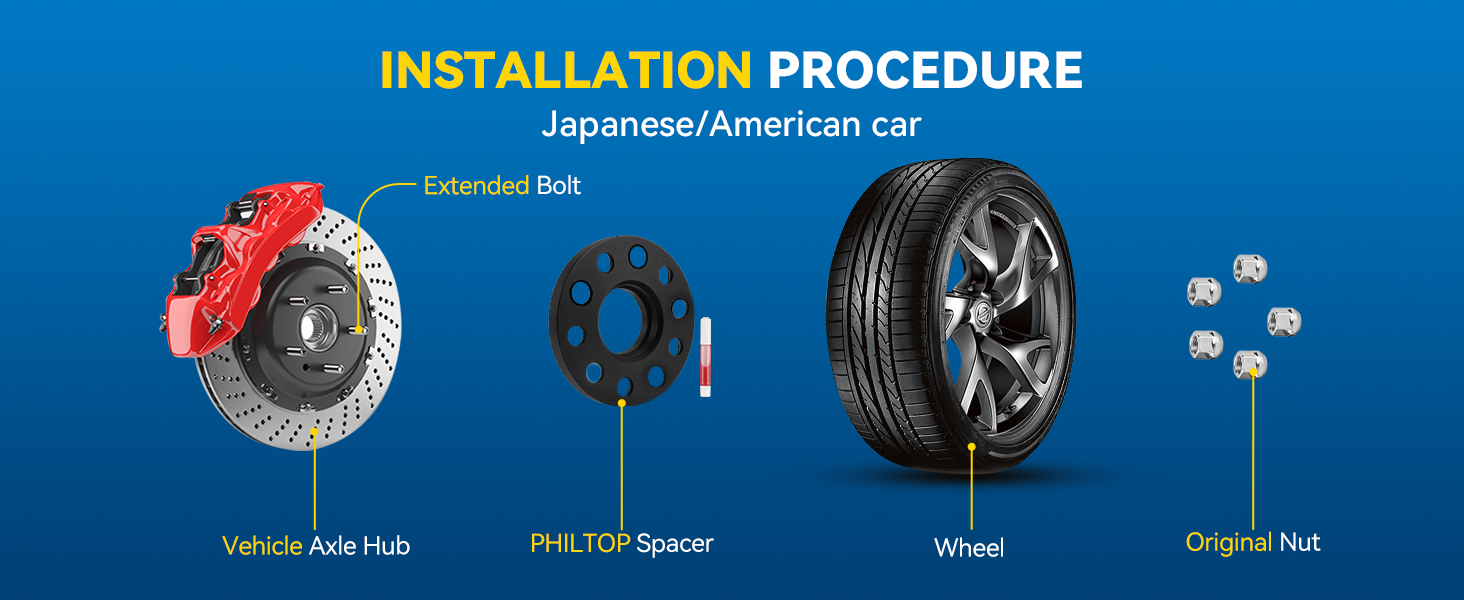

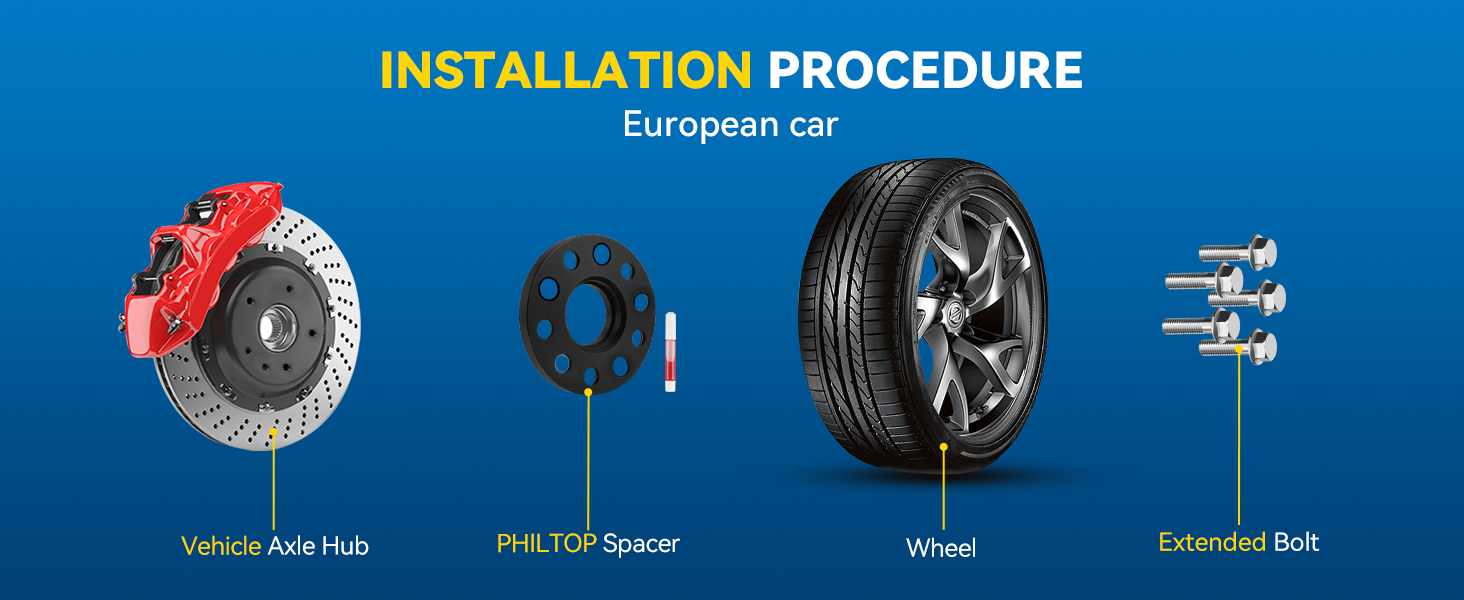

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Niles W.

09/28/2023

Verified buyer

They looks and feel really nice and has stayed working strong would buy again.

FAQS

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

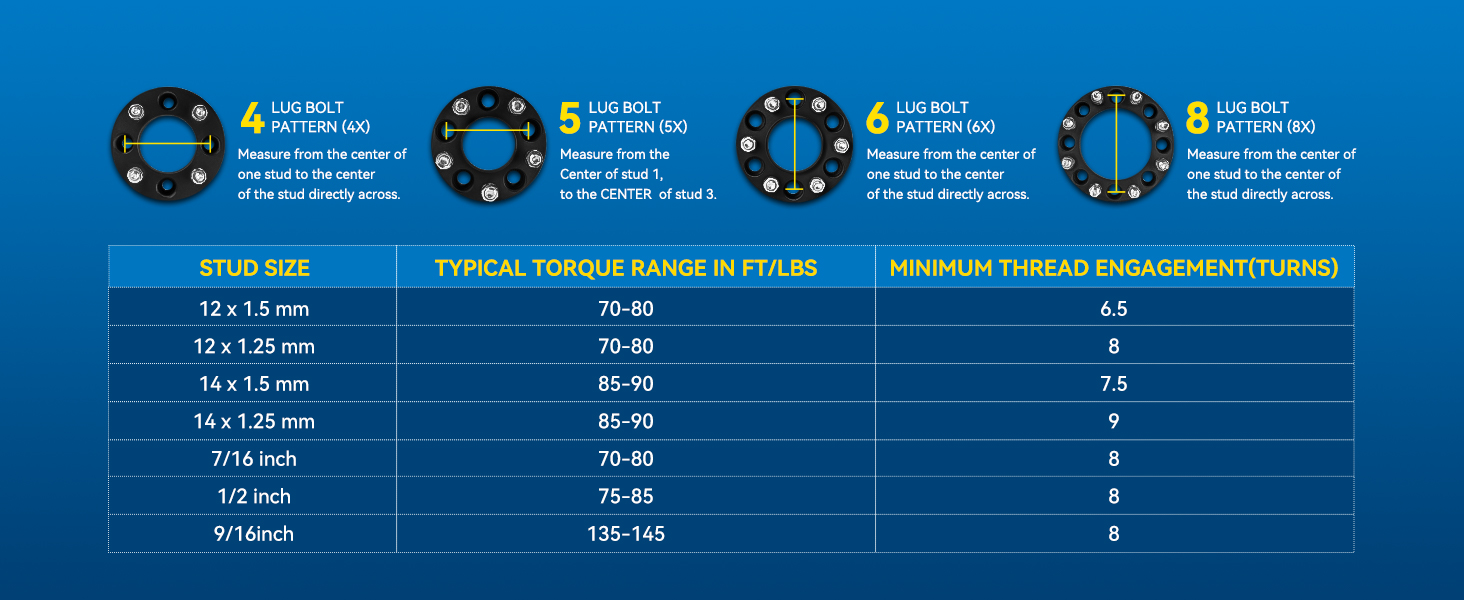

Use the torque specified by the vehicle or spacer instructions for the applicable fasteners. Tighten in a star pattern with a calibrated torque wrench.

Changing wheel position can reduce clearance to the fender or increase exposure at the wheel opening. Check clearance through the full steering and suspension range before regular driving.
