2005-2024 Nissan Frontier 4.0L V6 | 6x114mm 66.1mm Center Bore M12x1.25 Thread Wheel Hub Accessory - PHILTOP

2005-2024 Nissan Frontier 4.0L V6 | 6x114mm 66.1mm Center Bore M12x1.25 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
56ISWSA085007US

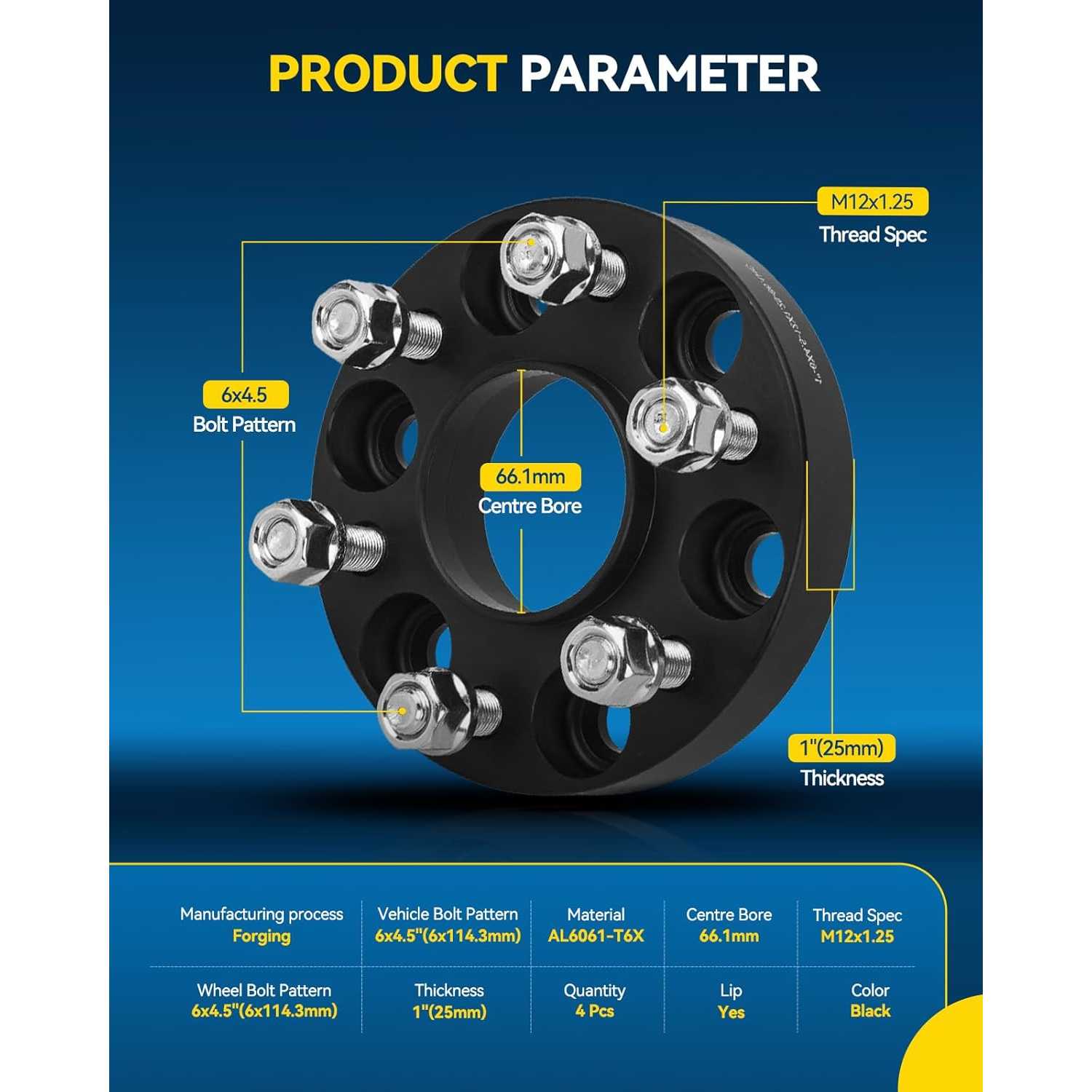

Specifications

Brand
PHILTOP
Bolt Pattern
6x4.5"
Wheel Bolt Pattern
6x4.5"
Vehicle Bolt Pattern
6x4.5"
Thread Size
M12x1.25
Center Bore
66.1
Hub-Centric Lip
Yes
Thickness
1inch
Outside Diameter
150
Inside Diameter
2.6 in/66.1 mm
Lug Patterns
6
Type
Wheel Spacer
Items Included
4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • Specification - 6x4.5 Bolt Pattern 1" Thickness M12x1.25 Thread Pitch 66.1mm Hub Bore
  • Fitment - The Wheel Spacers fit for Pathfinder 2005-2012, Xterra 2005-2015, Frontier 2005-2022

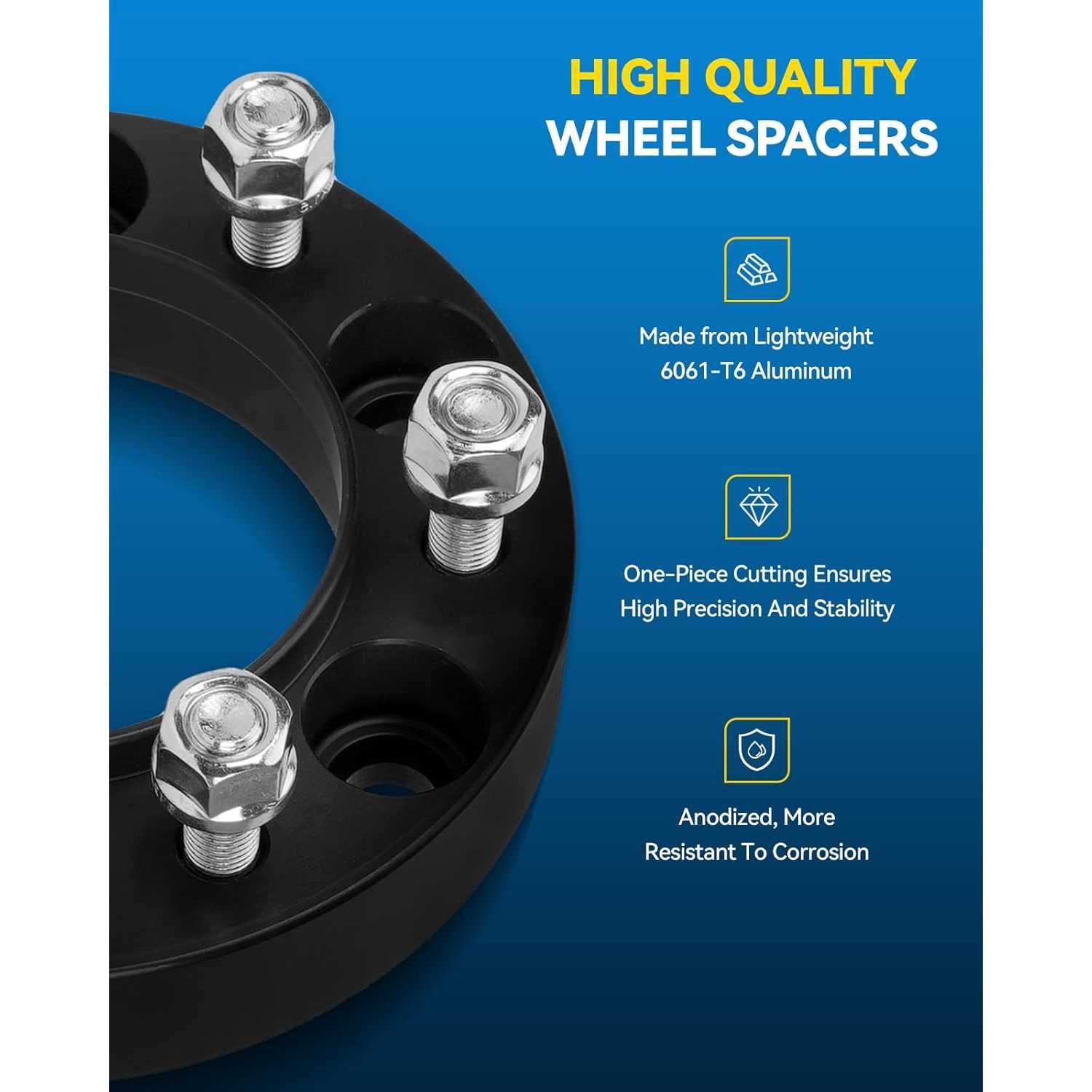

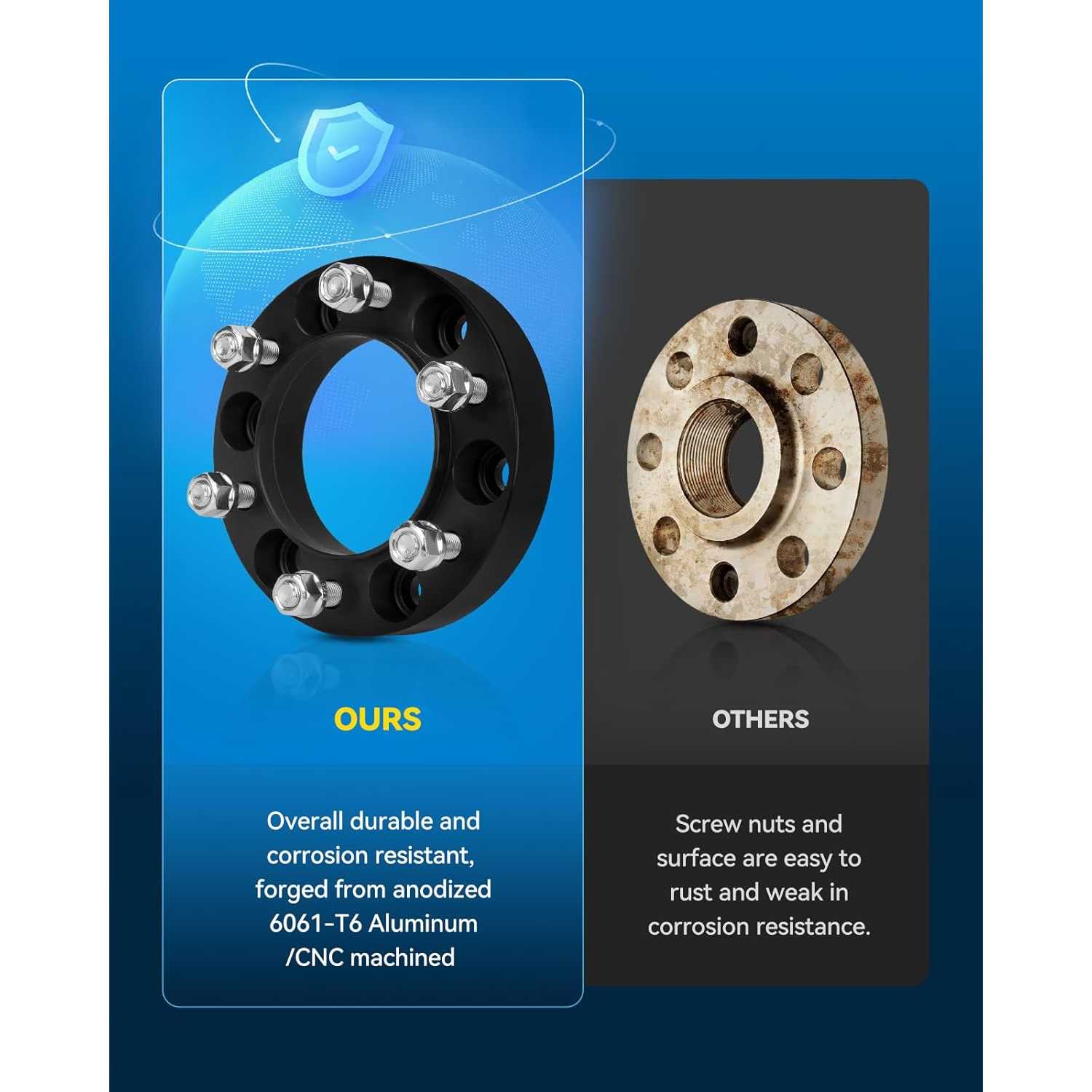

  • High Quality - PHILTOP Wheel Spacers are CNC machined to a precise standard to make the installation fit more better, so as to prevent wheel vibration and maintain the stock driving. They are forged from anodized 6061-T6 Aluminum Alloy, making them more durable and corrosion resistant
  • Aggressive Driving Experience -The Wheel Spacers Adapters can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • Professional Services -If there is a problem with the product, PHILTOP provide you with a free return/exchange service. You can use the Fitment Guide to check the suitability of your model before purchase. Please feel free to contact us with any questions regarding our products and services

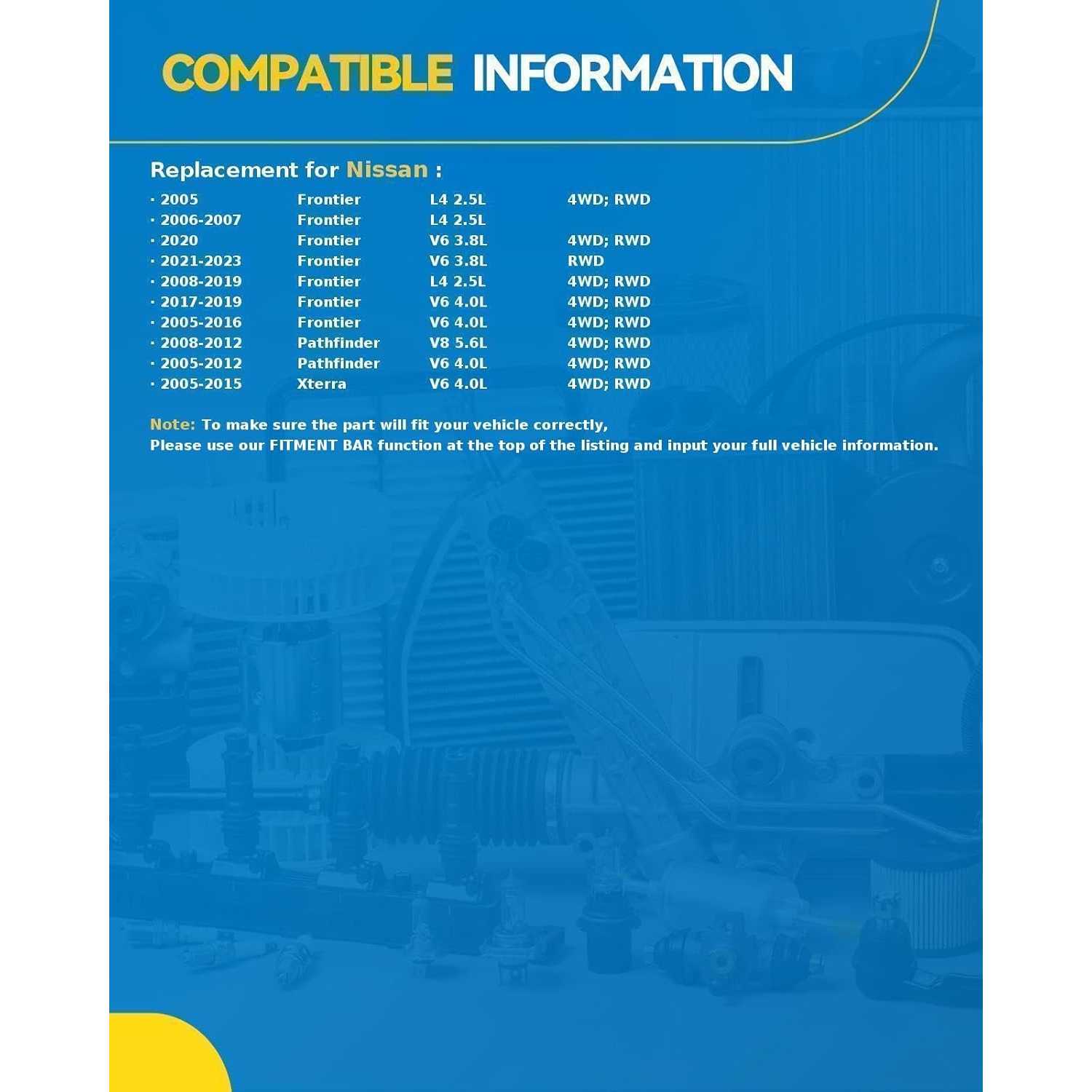

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20082005 - 20082005 - 20062013 - 201920052006 - 20072008 - 2009201020052006 - 2007200820202021 - 202420092010 - 20112012 - 20192022 - 202420112012 - 201920202021 - 202420112012 - 20192008 - 2009201020052006 - 20072008 - 20092010202420112012 - 201920112012 - 201920202021 - 202420112012 - 201920052006 - 20072008 - 200920102005 - 20082009 - 201220082009 - 20122006 - 20082009 - 20122005 - 20082009 - 201020082005 - 200820092011 - 20122011 - 201220052005 - 20102011 - 20152005 - 20152005 - 20102006 - 201520092010 - 2012200920092010 - 201220092010 - 201220092010 - 2012
MakeNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzuki
ModelArmadaArmadaArmadaFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderXterraXterraXterraXterraXterraEquatorEquatorEquatorEquatorEquatorEquatorEquatorEquatorEquator
TrimLESESE Off-RoadDesert RunnerLELELELENismo Off-RoadNismo Off-RoadNismo Off-RoadPRO-4XPRO-4XPRO-4XPRO-4XPRO-4XPRO-XSSSSSSSESESESESESESLSLSLSVSVSVSVSVSVXEXEXEXELELELELESSSESESESE Off-RoadSE Off-RoadSVSilver EditionXEOff-RoadPRO-4XSSEXBaseBaseBasePremiumPremiumRMZ-4RMZ-4SportSport
Engine5.6L V85.6L V85.6L V84.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V63.8L V63.8L V64.0L V64.0L V64.0L V63.8L V62.5L L42.5L L43.8L V63.8L V64.0L V64.0L V62.5L L42.5L L44.0L V64.0L V64.0L V64.0L V63.8L V64.0L V64.0L V62.5L L42.5L L43.8L V63.8L V64.0L V64.0L V62.5L L42.5L L42.5L L42.5L L44.0L V64.0L V65.6L V85.6L V84.0L V64.0L V64.0L V64.0L V65.6L V84.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V62.5L L42.5L L44.0L V62.5L L42.5L L44.0L V64.0L V64.0L V64.0L V6
Note
INTERNAL ABS Style;Mexico Built
INTERNAL ABS Style;Mexico Built
INTERNAL ABS Style;Mexico Built
4WD;Front
4WD;Front
Front
4WD;Front
4WD or AWD;Front
4WD;Front
Front
4WD;Front
4WD;Front
-
4WD;Front
4WD or AWD;Front
4WD;Front
-
4WD or AWD;Front
4WD;Front
4WD;Front
-
4WD or AWD;Front
4WD;Front
4WD;Front
4WD or AWD;Front
4WD;Front
Front
4WD;Front
4WD or AWD;Front
-
4WD or AWD;Front
4WD;Front
4WD or AWD;Front
4WD;Front
4WD;Front
-
4WD or AWD;Front
4WD;Front
4WD;Front
Front
4WD;Front
4WD or AWD;Front
4WD or AWD;Front;Rear
4WD;Front;Rear
4WD or AWD;Front;Rear
4WD;Front;Rear
4WD or AWD;Front;Rear
4WD;Front;Rear
4WD or AWD;Front;Rear
4WD;Front;Rear
4WD or AWD;Front;Rear
4WD or AWD;Front;Rear
4WD;Front;Rear
4WD;Front;Rear
4WD;Front;Rear
4WD or AWD;Front;Rear
4WD;Front
4WD;Front
4WD;Front
4WD;Front
4WD;Front
4WD;Front
-
4WD;Front
4WD;Front
-
4WD;Front
-
4WD;Front
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

EnriqueDlc

01/07/2025

Verified buyer

Tienen buen acabado y funcionan bien

FAQS

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Use the torque specified by the vehicle or spacer instructions for the applicable fasteners. Tighten in a star pattern with a calibrated torque wrench.

Changing wheel position can reduce clearance to the fender or increase exposure at the wheel opening. Check clearance through the full steering and suspension range before regular driving.
