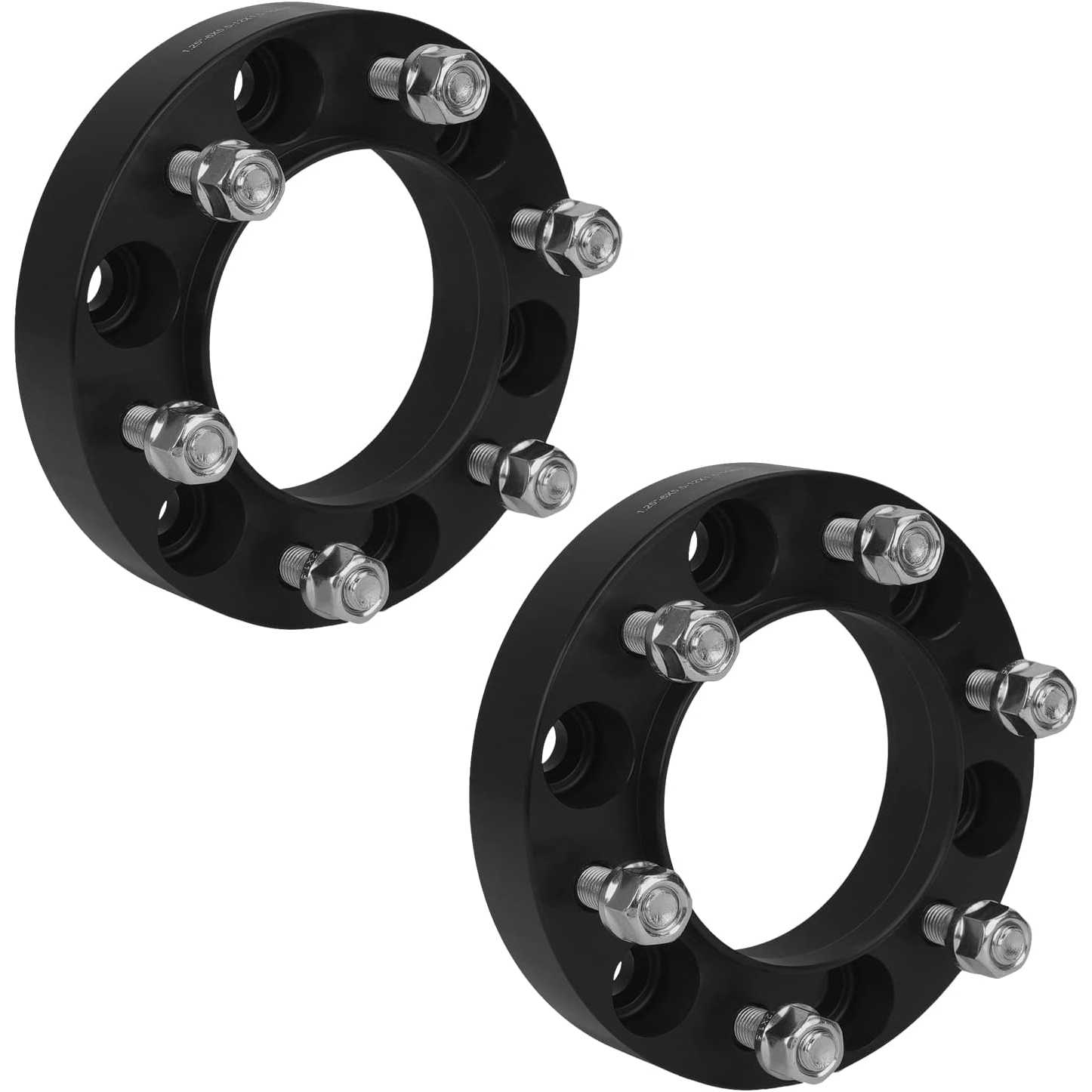

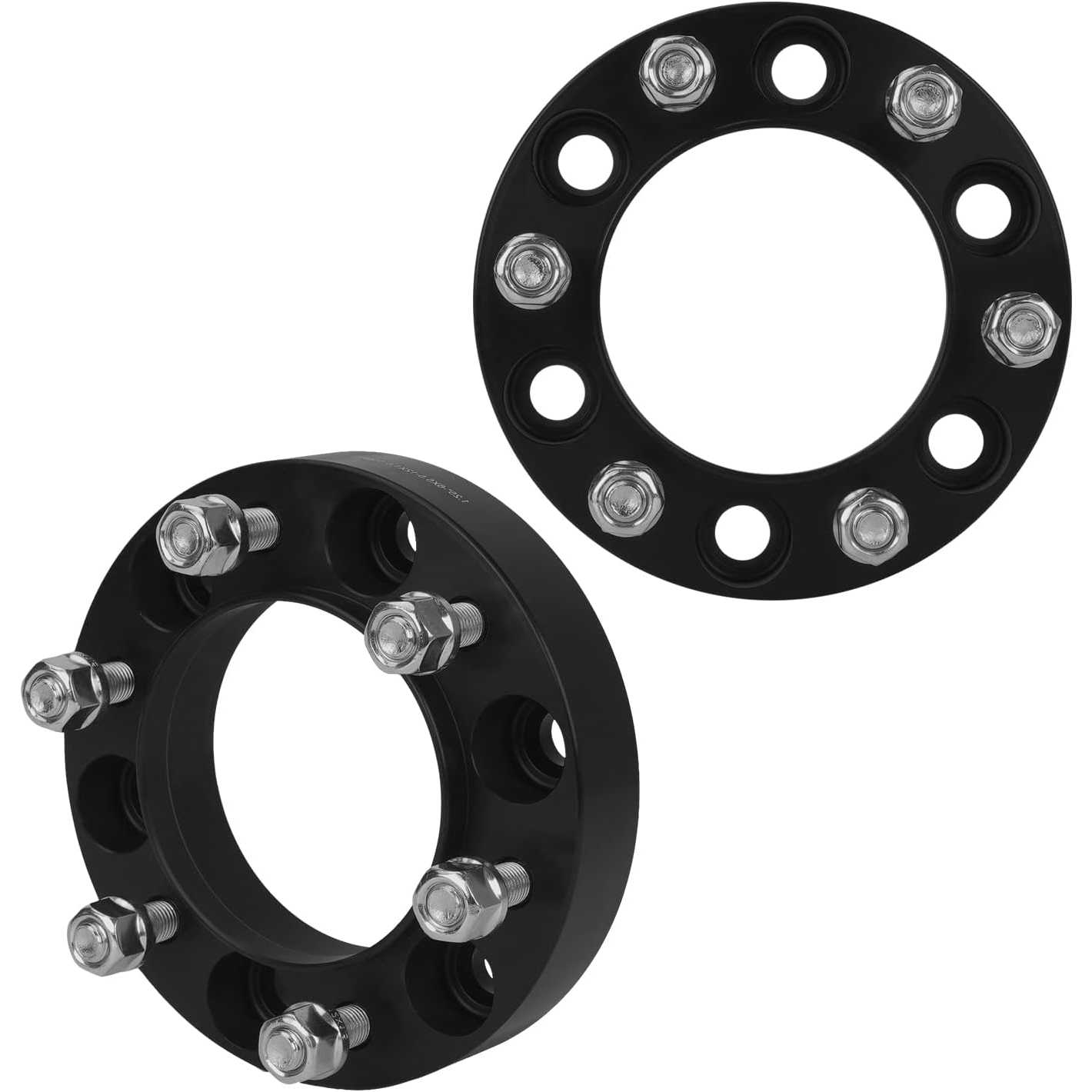

1989-2024 Toyota 4Runner 4.0L V6/2.7L L4/3.4L V6/2.4L L4/3.0L V6/4.7L V8 | 6x5.5 inch 106mm Center Bore M12x1.5 Thread Wheel Hub

1989-2024 Toyota 4Runner 4.0L V6/2.7L L4/3.4L V6/2.4L L4/3.0L V6/4.7L V8 | 6x5.5 inch 106mm Center Bore M12x1.5 Thread Wheel Hub

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
86ISWSA004007US

Specifications

Brand
PHILTOP
Bolt Pattern
6x5.5"
Wheel Bolt Pattern
6x5.5"
Vehicle Bolt Pattern
6x5.5"
Thread Size
M12x1.5
Center Bore
106
Hub-Centric Lip
Yes
Thickness
1.25inch
Outside Diameter
176
Inside Diameter
4.17 in/106 mm
Lug Patterns
6
Type
Wheel Spacer
Items Included
2x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Spacers Specification] --- Bolt Pattern: 6x5.5"(6x139.7mm) ; | Thickness: 1.25 inch ; | Thread Pitch: M12x1.5 ; | Hub Bore: 106mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 6x5.5 Wheel Spacer set replacement for Front For:; 2005-2015 Tacoma 4.0L 4WD/RWD V6; Hilux 2.7L L4; 2003-2021 4Runner 4.0L 4WD V6; 2016-2021 Tacoma 3.5L 4WD V6; 2005-2019 Tacoma 2.7L RWD L4; 1996-2002 4Runner 3.4L 4WD/RWD V6; 2003-2019 4Runner 4.0L RWD V6; 1995-2021 Tacoma 2.7L 4WD L4; 2000-2006 Tundra 4.7L 4WD V8; 2010-2021 GX460 4.6L V8; 1995-2004 Tacoma 2.4/3.4L 4WD L4/V6; 2016-2019 Tacoma 3.5L RWD V6; 2007-2014 FJ CRUI-SER 4.0L 4WD V6; 2003-2006 Tundra

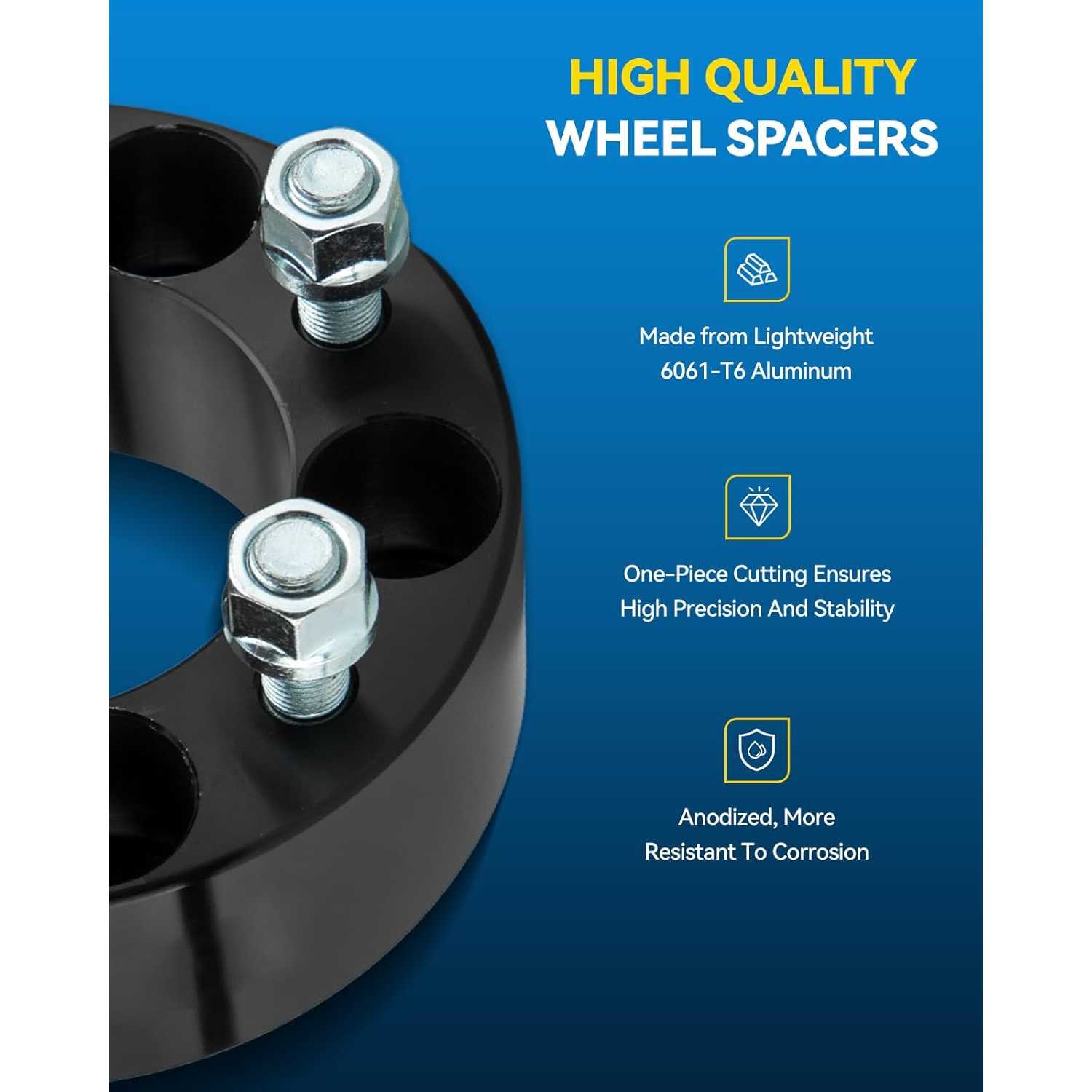

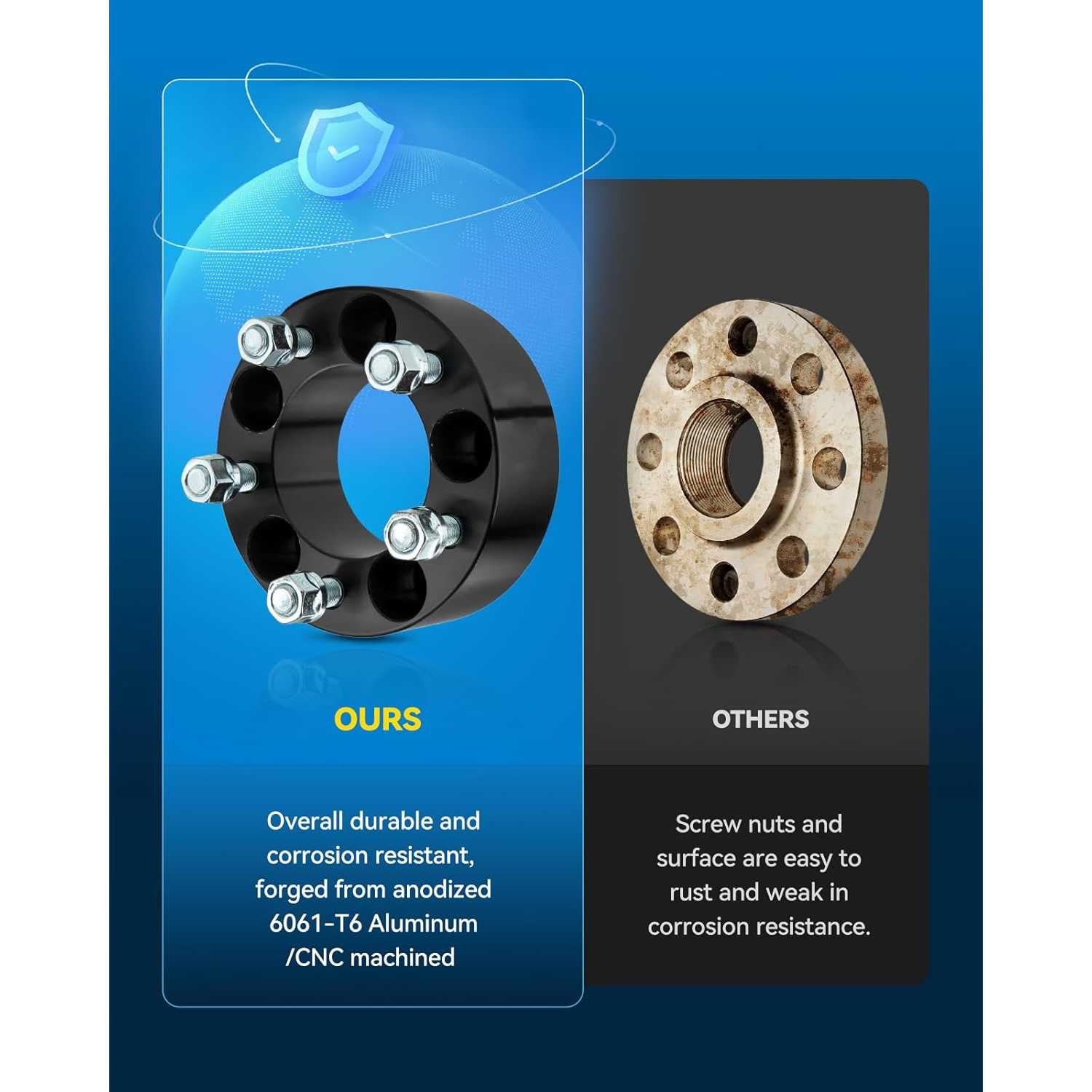

  • [High Quality] ---6x5.5 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 6x5.5 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

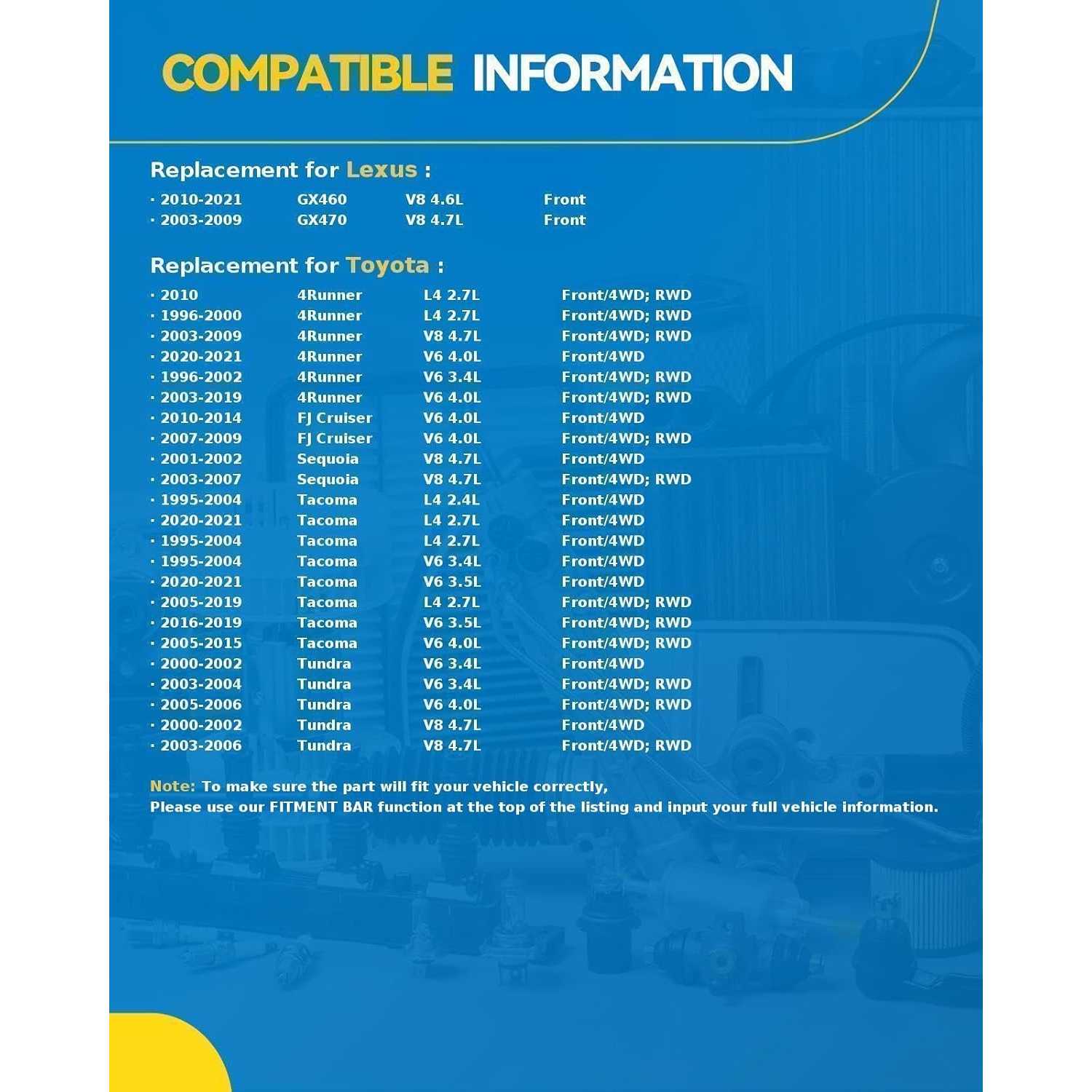

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2010 - 2022202320232014 - 202220232010 - 202220232003 - 20091996 - 199720231996 - 20002001198919891996 - 20022003 - 202320242003 - 20092020 - 20211989 - 199520101989 - 19951996 - 20022003 - 202320242003 - 20092018 - 202320242003 - 20092003 - 20092017 - 202320242018 - 202320242015 - 202320242022 - 202320242010 - 20162021 - 20222020 - 20212007 - 20092010 - 2014200720081988 - 199219801982 - 19871993 - 19971984 - 198819881986 - 19871980 - 19831981 - 19951988 - 1995198519831981 - 19901988 - 19951986 - 19872001 - 20022003 - 20072001 - 20022003 - 20071994 - 19981993199519981996 - 199719941995199319951993 - 19941995 - 19981995 - 19971998 - 20002001 - 200320041995 - 19971998 - 20002001 - 200320042005 - 20151995 - 19971998 - 20002001 - 200320042005 - 20151998199819981998 - 20002016 - 20231998 - 20002001 - 200320042005 - 20151998 - 20002001 - 200320042005 - 20152001 - 200320042016 - 20232016 - 20231998 - 20001998 - 20002016 - 20231995 - 19971998 - 20002016 - 20232016 - 20232017 - 202320152016 - 2023202120232005 - 20132000 - 20022003 - 20042005 - 20062005 - 20062000 - 20022003 - 20062000 - 20022003 - 20042005 - 20062000 - 20022003 - 2006
MakeLexusLexusLexusLexusLexusLexusLexusLexusLexusToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelGX460GX460GX460GX460GX460GX460GX460GX470LX4504Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4RunnerFJ CruiserFJ CruiserFJ CruiserFJ CruiserLand CruiserLand CruiserLand CruiserLand CruiserPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupSequoiaSequoiaSequoiaSequoiaT100T100T100T100T100T100T100T100T100T100T100TacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundra
TrimBaseBaseBlack Line EditionLuxuryLuxuryPremiumPremiumBaseBase40th Anniversary EditionBaseBaseDLXDLXLimitedLimitedLimitedLimitedNightshadeSR5SR5SR5SR5SR5SR5SR5SR5 PremiumSR5 PremiumSportSportTRD Off-RoadTRD Off-RoadTRD Off-Road PremiumTRD Off-Road PremiumTRD ProTRD ProTRD SportTRD SportTrailTrailVentureBaseBaseTRD Special EditionTrail Teams Special EditionBaseBaseBaseBaseBaseBaseBase TurboDLXDLXDLXDLX TurboSR5SR5SR5SR5 TurboLimitedLimitedSR5SR5BaseBaseBaseBaseDLXDXDXOne-TonOne-Ton DLXSR5SR5BaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseDLXDLXDLXLimitedLimitedPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerS-RunnerS-RunnerSRSRSR5SR5SR5SR5SR5SR5TRD Off-RoadTRD ProTRD ProTRD SportTrailTrail Special EditionX-RunnerBaseBaseBaseBaseLimitedLimitedSR5SR5SR5SR5SR5
Engine4.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.7L V84.5L L64.0L V62.7L L43.4L V62.4L L43.0L V63.4L V64.0L V64.0L V64.7L V84.0L V62.4L L42.7L L43.0L V63.4L V64.0L V64.0L V64.7L V84.0L V64.0L V64.0L V64.7L V84.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L L64.2L L64.2L L64.5L L62.4L L43.0L V62.4L L42.2L L42.4L L43.0L V62.4L L42.2L L42.4L L43.0L V62.4L L44.7L V84.7L V84.7L V84.7L V82.7L L43.0L V63.4L V63.4L V63.4L V63.0L V63.4L V63.0L V63.4L V63.0L V63.4L V62.4L L42.4L L42.4L L42.4L L42.7L L42.7L L42.7L L42.7L L42.7L L43.4L V63.4L V63.4L V63.4L V64.0L V62.4L L42.7L L43.4L V63.4L V63.5L V62.7L L42.7L L42.7L L42.7L L43.4L V63.4L V63.4L V64.0L V63.4L V63.4L V62.7L L43.5L V62.4L L42.7L L42.7L L43.4L V63.4L V63.5L V63.5L V63.5L V64.0L V63.5L V63.5L V63.5L V64.0L V63.4L V63.4L V64.0L V64.7L V84.7L V84.7L V83.4L V63.4L V64.0L V64.7L V84.7L V8
Note
Front PCD
Front
Front
Front PCD
Front
Front PCD
Front
Front PCD
-
4WD;Front
4WD;Front
4WD;Front
--
4WD;Front
4WD;Front
-
4WD;Front
4WD;Front
-
4WD;Front
-
4WD;Front
4WD;Front
-
4WD;Front
4WD;Front
-
4WD;Front
4WD;Front
4WD;Front
-
4WD;Front
-
4WD;Front
-
4WD;Front
-
4WD;Front
4WD;Front
4WD;Front
Front;RWD
4WD;Front
Front;RWD
Front;RWD
----
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
4WD;Front
Front;RWD
4WD;Front
Front;RWD
-----------
4WD;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
Front;Pre Runner
6 stud
4WD;6 Lug Trucks Only Front;Automatic Disconnecting Differential
4WD;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
Front;Pre Runner
6 stud
4WD;6 Lug Trucks Only Front;Automatic Disconnecting Differential
4WD;6 Lug Trucks Only Front
4WD;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
Front;Pre Runner
6 stud
4WD;6 Lug Trucks Only Front;Automatic Disconnecting Differential
4WD;6 Lug Trucks Only Front
Front;Pre Runner
Front;Pre Runner
Front;Pre Runner
Front;Pre Runner
4WD;Front
Front;Pre Runner
6 stud
4WD;6 Lug Trucks Only Front;Automatic Disconnecting Differential
4WD;6 Lug Trucks Only Front
Front;Pre Runner
6 stud
4WD;6 Lug Trucks Only Front;Automatic Disconnecting Differential
4WD;6 Lug Trucks Only Front
6 stud
4WD;6 Lug Trucks Only Front;Automatic Disconnecting Differential
4WD;Front
4WD;Front
Front;Pre Runner
Front;Pre Runner
4WD;Front
4WD;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
Front;Pre Runner
4WD;Front
4WD;Front
4WD;Front
4WD;6 Lug Trucks Only Front
4WD;Front
4WD;Front
4WD;Front
4WD;6 Lug Trucks Only Front
4WD;Front
Front;RWD
Front;RWD
Front;RWD
4WD;Front
Front;RWD
4WD;Front
Front;RWD
Front;RWD
4WD;Front
Front;RWD

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 4 reviews

5100%
40%
30%
20%
10%

Ijeoma

01/26/2025

Verified buyer

Installed on my truck for over a year now. Holding strong. For people looking to buy, please please install per instructions and torque all fasteners properly.

Shawn

01/26/2025

Verified buyer

6x5.5 wheel spacer seems good and wheel hasn't fallen off yet. Simple install

FAQS

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Stacking spacers is generally not recommended because it may affect seating and fastener engagement. Select a single spacer of the appropriate specification instead.

Use the torque specified by the vehicle or spacer instructions for the applicable fasteners. Tighten in a star pattern with a calibrated torque wrench.
