2006-2010 Hummer H3 3.7L | 6x5.5 108mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

2006-2010 Hummer H3 3.7L | 6x5.5 108mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
14ISWSA030007US

Specifications

Brand
PHILTOP
Bolt Pattern
6x5.5
Wheel Bolt Pattern
6x5.5
Vehicle Bolt Pattern
6x5.5
Thread Size
M12x1.5
Center Bore
108
Hub-Centric Lip
No
Thickness
1.5inch
Outside Diameter
176
Inside Diameter
4.25 in/108 mm
Lug Patterns
6
Type
Wheel Spacer
Items Included
4x Lug-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Spacers Specification] --- Bolt Pattern: 6x5.5"(6x139.7mm) ; | Thickness: 1.5 inch(38mm) ; | Thread Pitch: M12x1.5 ; | Hub Bore: 108mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 6x5.5 Wheel Spacer set replacement for 2005-2015 Tacoma 2.7/4.0L 4WD/RWD L4/V6; 2003-2015 4Runner 4.0L 4WD/RWD V6; 1996-2002 4Runner 3.4L 4WD/RWD V6; 2000-2006 Tundra 4.7L 4WD V8; 2007-2014 FJ CRUI-SER 4.0L 4WD V6; 2003-2006 Tundra 4.7L RWD V8; 2001-2015 Tacoma 2.7L 4WD L4; 2001-2004 Tacoma 2.4/3.4L 4WD L4/V6; 2003-2009 4Runner 4.7L 4WD/RWD V8; 2005-2006 Tundra 4.0L 4WD/RWD V6; 1996-2000 4Runner 2.7L 4WD/RWD L4; 2003-2004 Tundra 3.4L RWD V6; 2007-2009 FJ C

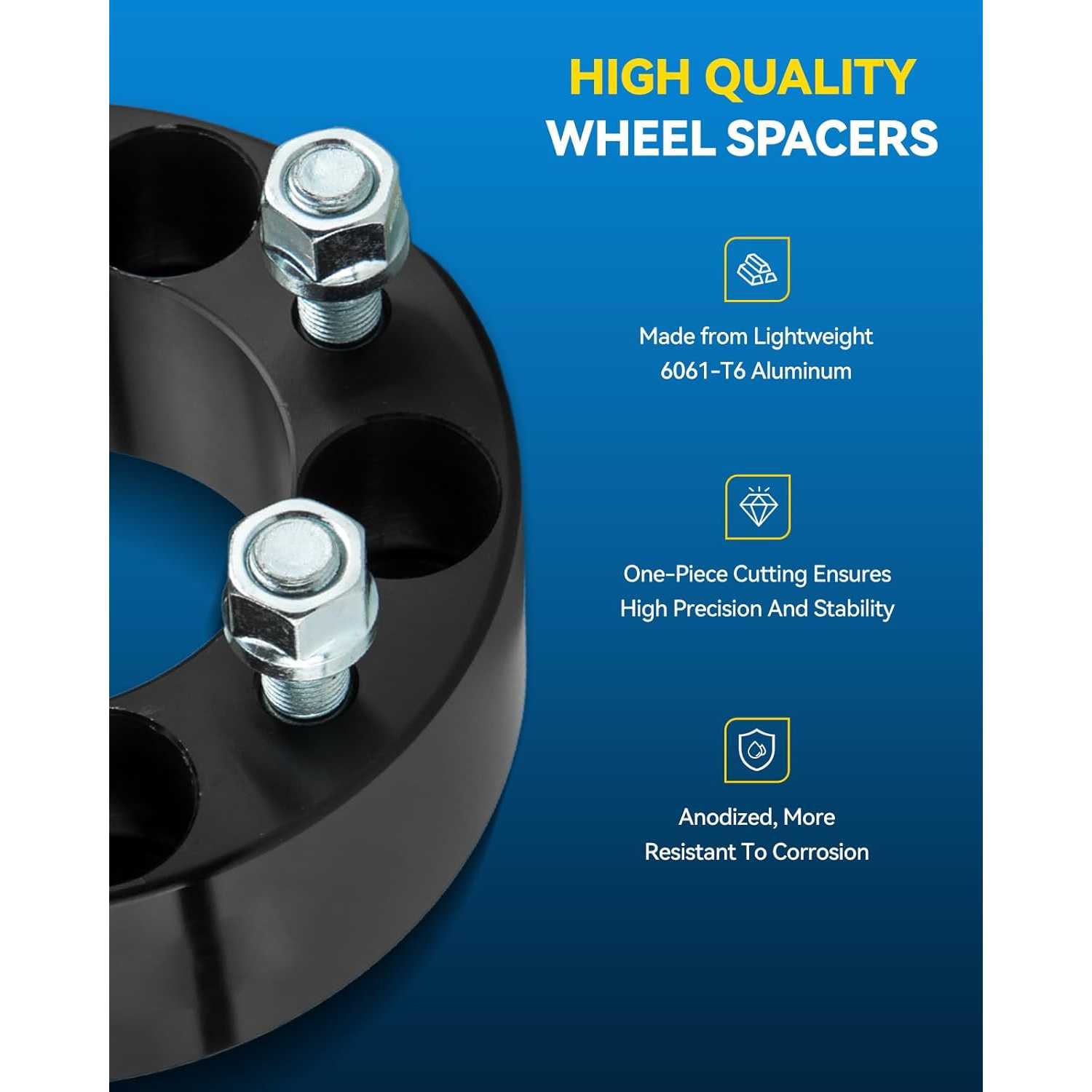

  • [High Quality] ---6x5.5 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 6x5.5 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

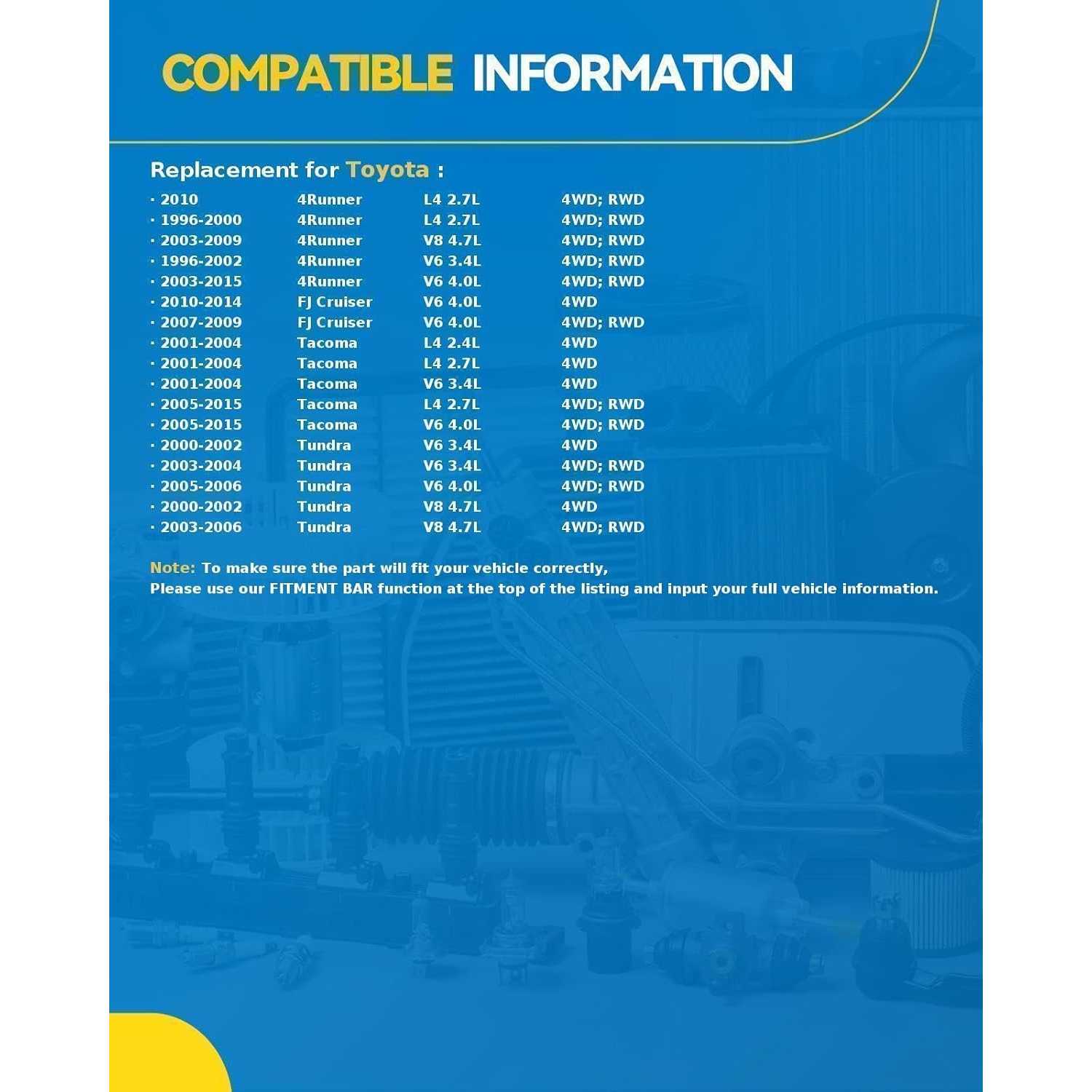

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1996 - 19971996 - 19971998199920042004200420062007 - 200820042007 - 200820062007 - 20082009 - 20102011 - 201220062007 - 20082009 - 20102011 - 20122009 - 20102011 - 20122004 - 20052004 - 20052004 - 20052004 - 200520062007 - 20082009 - 20102011 - 201220062007 - 20082009 - 20102011 - 20122004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20051979 - 19801981 - 198219821981 - 19821979 - 198219871988 - 19891990 - 199319871988 - 19891990 - 19911985 - 1987198519871988 - 19891990 - 19911990 - 1991198519851990 - 19931990 - 19911985 - 19871988 - 19892019 - 20222019 - 20222019 - 2022200420062007 - 20082004200420062007 - 20112012200420062007 - 201120122009 - 201120122008 - 2009201220062007 - 201120122009 - 2011201220062007 - 2011201220062007 - 20112012200420052004200520042005200420052004200520042005200420052004200520042005200420051994 - 19961994 - 20021994 - 20022008 - 20092008 - 201020062007 - 201020092008 - 20092007 - 20092009 - 20102009 - 20102007 - 20082007 - 200820071998 - 20001989 - 19901991 - 19931989 - 19901991 - 199319941998 - 20001989 - 199019911989 - 19901991 - 19931994200220042002200420031991 - 19921993 - 19941995 - 19971991 - 19921993 - 19941995 - 20031999 - 200020031999 - 20031998 - 20031991 - 19921993 - 19941995 - 19971991 - 19921993 - 19941995 - 2000200420042001 - 200319921991 - 19922001 - 20032001 - 20031984 - 19851984198619871986198719861987198619871988 - 19891989 - 19911992 - 19972000 - 20021986198619952000 - 200219971989 - 19901993 - 19951988 - 19911989 - 19911992 - 19971998 - 2002199119961988 - 19891990 - 1991200620072007 - 200820062007 - 20082007 - 20082009 - 20102011 - 201220142006 - 20082009 - 20102011 - 201220142006 - 20082009 - 20102010 - 202320232014 - 20232010 - 20232003 - 20042005 - 20091993198619891989 - 19931998 - 20001989 - 199619972001 - 20022003 - 20042005 - 20061990 - 199319891989 - 19901992 - 19931994 - 19971989 - 19902001 - 20022003 - 20041997 - 199920002001 - 20031997 - 20002001 - 200320041999 - 20002001 - 20031997 - 200020012002 - 2004200120231996 - 200020011984 - 19851987 - 198919891996 - 20002001 - 20022003 - 20092010 - 20112012 - 20242003 - 20092020 - 20211984 - 19851987 - 19901991 - 19931994 - 199520101988 - 19901991 - 19931994 - 19951996 - 20002001 - 20022003 - 20092010 - 20112012 - 20242003 - 20092018 - 20242003 - 20092003 - 20092017 - 20242018 - 20242015 - 20242022 - 20242010 - 20112012 - 20162021 - 20222020 - 20212007 - 2009201020112012 - 2014200720081988 - 199219761980 - 19821983 - 19851986 - 19871993 - 199719801981 - 19931994 - 19951988 - 19931986 - 19871980 - 19831981 - 19931994 - 19951988 - 19931994 - 19951985198019831981 - 19901988 - 19931994 - 19951985 - 19882001 - 2002200320042005 - 20072001 - 2002200320042005 - 200719941995 - 199719981993199519981996 - 199719941995199319951993 - 19941995 - 1997199819951996 - 19971998 - 199920002001 - 2003200419951996 - 19971998 - 199920002001 - 200320042005 - 20062007 - 20092010 - 20112012 - 201519951996 - 19971998 - 199920002001 - 200320042005 - 20062007 - 20092010 - 20112012 - 20151998199819981998 - 199920002016 - 20231998 - 199920002001 - 200320042005 - 20062007 - 20092010 - 20112012 - 20151998 - 199920002001 - 200320042005 - 20062007 - 20092010 - 20112012 - 20152001 - 200320042016 - 20232016 - 20231998 - 199920001998 - 199920002016 - 202319951996 - 19971998 - 199920002016 - 20232016 - 20232017 - 202320152016 - 2023202120232005 - 20062007 - 20092010 - 20112012 - 20132000 - 200120022003 - 20042005 - 20062005 - 20062000 - 200120022003 - 20062000 - 200120022003 - 20042005 - 20062000 - 200120022003 - 2006
MakeAcuraAcuraAcuraAcuraChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeFordFordFordGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCHondaHondaHondaHummerHummerHummerHummerHummerHummerHummerHummerHummerHyundaiHyundaiHyundaiIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaLexusLexusLexusLexusLexusLexusMazdaMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelSLXSLXSLXSLXColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoD50D50D50D50D50Ram 50Ram 50Ram 50Ram 50Ram 50Ram 50Ram 50Ram 50Ram 50Ram 50Ram 50Ram 50Ram 50Ram 50Ram 50Ram 50Ram 50Ram 50RangerRangerRangerCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonPassportPassportPassportH3H3H3H3H3H3H3H3TH3TEntourageEntourageEntourageAmigoAmigoAmigoAmigoAmigoAmigoAmigoAmigoAmigoAmigoAmigoAmigoAxiomAxiomAxiomAxiomRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeoRodeo SportRodeo SportTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperTrooperi-280i-290i-290i-350i-370SedonaSedonaSedonaSedonaSedonaSedonaSedonaSedonaSedonaSedonaGX460GX460GX460GX460GX470GX470B2200MonteroMonteroMonteroMonteroMonteroMonteroMonteroMonteroMonteroMonteroMonteroMonteroMonteroMonteroMonteroMonteroMonteroMontero SportMontero SportMontero SportMontero SportMontero SportMontero SportMontero SportMontero SportMontero SportMontero SportMontero SportMontero Sport4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4RunnerFJ CruiserFJ CruiserFJ CruiserFJ CruiserFJ CruiserFJ CruiserLand CruiserLand CruiserLand CruiserLand CruiserLand CruiserLand CruiserPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaT100T100T100T100T100T100T100T100T100T100T100T100T100T100TacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundra
TrimBasePremiumPremiumPremiumBaseBaseLSLSLSLSLSLTLTLTLTLTLTLTLTLTLTSportSportSport LSSport LSWTWTWTWTWTWTWTWTZ71Z71Z71 LSZ71 LSZ85Z85Z85 LSZ85 LSBaseCustomCustomRoyalSportBaseBaseBaseBaseBaseBaseCustomCustomCustomCustomLELERoyalRoyalSESESportSportLariatXLXLTSLSLSLSLSLESLESLESLESLESLESLESLESLESLESLTSLTSLTSLTSLTSLTSLTWTWTWTWTWTWTZ71 FleetZ71 FleetZ71 FleetZ71 FleetZ71 SLZ71 SLZ71 SLZ71 SLZ71 SLEZ71 SLEZ71 SLEZ71 SLEZ85 SLZ85 SLZ85 SLZ85 SLZ85 SLEZ85 SLEZ85 SLEZ85 SLEDXEXLXAdventureAlphaBaseBaseChampionship SeriesLuxuryXAlphaBaseGLSLimitedSESSSSSSSXSXSXSXSXSBaseSXSXSLSLSLSLSLSLSLSLSELSELSESSSSSSSSSS V6XSXSSS V6BaseBaseDLXDLXDLXDLXLSLSLSLSLSLSLSLSLXLXLimitedLimitedLtdRSRSSSSSSESEXSXSBaseLSSBaseLSBaseBaseEXEXEXEXLXLXLXLXBaseBlack Line EditionLuxuryPremiumBaseBaseBaseBaseBaseBaseBaseLSLSLimitedLimitedLimitedRSSPSPSRSRSportXLSXLSESESESLSLSLSLimitedLimitedXLSXLSXLSXS40th Anniversary EditionBaseBaseDLXDLXDLXLimitedLimitedLimitedLimitedLimitedLimitedNightshadeSR5SR5SR5SR5SR5SR5SR5SR5SR5SR5SR5SR5SR5SR5SR5 PremiumSportSportTRD Off-RoadTRD Off-Road PremiumTRD ProTRD SportTrailTrailTrailVentureBaseBaseBaseBaseTRD Special EditionTrail Teams Special EditionBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase TurboDLXDLXDLXDLXDLXDLX TurboSR5SR5SR5SR5SR5SR5 TurboLimitedLimitedLimitedLimitedSR5SR5SR5SR5BaseBaseBaseBaseBaseBaseDLXDXDXOne-TonOne-Ton DLXSR5SR5SR5BaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseDLXDLXDLXLimitedLimitedLimitedPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerS-RunnerS-RunnerSRSRSR5SR5SR5SR5SR5SR5SR5SR5SR5SR5TRD Off-RoadTRD ProTRD ProTRD SportTrailTrail Special EditionX-RunnerX-RunnerX-RunnerX-RunnerBaseBaseBaseBaseBaseLimitedLimitedLimitedSR5SR5SR5SR5SR5SR5SR5
Engine3.2L V63.2L V63.5L V63.5L V62.8L L43.5L L52.8L L42.8L L42.9L L43.5L L53.7L L52.8L L42.9L L42.9L L42.9L L43.5L L53.7L L53.7L L53.7L L55.3L V85.3L V82.8L L43.5L L52.8L L43.5L L52.8L L42.9L L42.9L L42.9L L43.5L L53.7L L53.7L L53.7L L52.8L L43.5L L52.8L L43.5L L52.8L L43.5L L52.8L L43.5L L52.0L L42.0L L42.6L L42.6L L42.6L L42.0L L42.0L L42.4L L42.6L L42.6L L43.0L V62.0L L42.6L L42.6L L42.6L L42.4L L43.0L V62.3L L42.6L L42.4L L43.0L V62.6L L42.6L L42.3L L42.3L L42.3L L42.8L L42.8L L42.9L L43.5L L52.8L L42.8L L42.9L L42.9L L43.5L L53.5L L53.7L L53.7L L55.3L V85.3L V82.9L L42.9L L43.5L L53.7L L53.7L L55.3L V85.3L V82.8L L42.9L L42.9L L43.5L L53.7L L53.7L L52.8L L42.8L L43.5L L53.5L L52.8L L42.8L L43.5L L53.5L L52.8L L42.8L L43.5L L53.5L L52.8L L42.8L L43.5L L53.5L L52.8L L42.8L L43.5L L53.5L L52.6L L43.2L V63.2L V63.7L L55.3L V83.5L L53.7L L55.3L V83.7L L53.7L L55.3L V83.7L L53.8L V63.8L V63.8L V62.2L L42.3L L42.3L L42.6L L42.6L L42.6L L43.2L V62.3L L42.3L L42.6L L42.6L L42.6L L43.5L V63.5L V63.5L V63.5L V62.2L L42.6L L42.6L L42.6L L43.1L V63.2L V63.2L V62.2L L42.2L L43.2L V62.2L L42.6L L42.6L L42.6L L43.1L V63.2L V63.2L V63.2L V63.5L V63.2L V62.6L L43.1L V62.2L L43.2L V61.9L L42.2L L42.2L L42.2L L42.3L L42.3L L42.2L L42.2L L42.3L L42.3L L42.6L L42.8L V63.2L V63.5L V62.2L L42.3L L43.2L V63.5L V63.2L V62.6L L43.2L V62.6L L42.8L V63.2L V63.5L V62.8L V63.2L V62.6L L42.8L V62.8L L42.9L L42.9L L43.5L L53.7L L53.8L V63.8L V63.5L V63.5L V63.8L V63.8L V63.5L V63.5L V63.8L V63.8L V64.6L V84.6L V84.6L V84.6L V84.7L V84.7L V82.2L L42.6L L42.6L L43.0L V63.5L V63.0L V63.5L V63.5L V63.8L V63.8L V63.0L V62.6L L43.0L V63.0L V63.5L V63.0L V63.5L V63.8L V62.4L L43.0L V63.0L V63.0L V63.0L V63.5L V63.5L V63.5L V63.0L V63.0L V63.5L V63.5L V64.0L V62.7L L43.4L V62.4L L42.4L L43.0L V63.4L V63.4L V64.0L V64.0L V64.0L V64.7L V84.0L V62.4L L42.4L L42.4L L42.4L L42.7L L43.0L V63.0L V63.0L V63.4L V63.4L V64.0L V64.0L V64.0L V64.7L V84.0L V64.0L V64.7L V84.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L L64.2L L64.2L L64.2L L64.2L L64.5L L62.2L L42.4L L42.4L L43.0L V62.4L L42.2L L42.4L L42.4L L43.0L V63.0L V62.4L L42.2L L42.2L L42.4L L43.0L V63.0L V62.4L L44.7L V84.7L V84.7L V84.7L V84.7L V84.7L V84.7L V84.7L V82.7L L42.7L L42.7L L43.0L V63.4L V63.4L V63.4L V63.0L V63.4L V63.0L V63.4L V63.0L V63.4L V63.4L V62.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.7L L42.7L L42.7L L42.7L L42.7L L42.7L L42.7L L42.7L L42.7L L42.7L L43.4L V63.4L V63.4L V63.4L V63.4L V63.4L V64.0L V64.0L V64.0L V64.0L V62.4L L42.7L L43.4L V63.4L V63.4L V63.5L V62.7L L42.7L L42.7L L42.7L L42.7L L42.7L L42.7L L42.7L L43.4L V63.4L V63.4L V63.4L V64.0L V64.0L V64.0L V64.0L V63.4L V63.4L V62.7L L43.5L V62.4L L42.4L L42.7L L42.7L L42.7L L43.4L V63.4L V63.4L V63.4L V63.5L V63.5L V63.5L V64.0L V63.5L V63.5L V63.5L V64.0L V64.0L V64.0L V64.0L V63.4L V63.4L V63.4L V64.0L V64.7L V84.7L V84.7L V84.7L V83.4L V63.4L V63.4L V64.0L V64.7L V84.7L V84.7L V8
Note---
6 Lug Models Only
---------
Only for 6x5.5
---
Only for 6x5.5
-
Only for 6x5.5
-------
Only for 6x5.5
---
Only for 6x5.5
---------------
6 LUG MODELS ONLY
--
6 LUG MODELS ONLY
----
6 LUG MODELS ONLY
-------
6 LUG MODELS ONLY
---
6 LUG MODELS ONLY
--
6 LUG MODELS ONLY
6 LUG MODELS ONLY
--
6 LUG MODELS ONLY
6 LUG MODELS ONLY
--
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
--
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
--
6 LUG MODELS ONLY
--
6 LUG MODELS ONLY
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
------
Only for 6x5.5
-----------
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
---
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
---
6 LUG MODELS ONLY
--
6 LUG MODELS ONLY
------
6 LUG MODELS ONLY
--
6 LUG MODELS ONLY
----------
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-----
6 LUG MODELS ONLY
6 LUG MODELS ONLY
-------------
6 LUG MODELS ONLY
6 LUG MODELS ONLY
6 LUG MODELS ONLY
---
6 LUG MODELS ONLY
---
6 LUG MODELS ONLY
---
6 LUG MODELS ONLY
Front
Front
Front
Front
Front
6 LUG MODELS ONLY Front
only fit rear
-------
6 LUG MODELS ONLY
--------
6 LUG MODELS ONLY
6 LUG MODELS ONLY
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
--
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
----
Front;RWD
----
Front;RWD
--
4WD;6 LUG MODELS ONLY Front
-----
6 LUG MODELS ONLY
-
4WD;6 LUG MODELS ONLY Front
-
6 LUG MODELS ONLY
-
Front;RWD
--
4WD;6 LUG MODELS ONLY Front
---------
4WD;6 LUG MODELS ONLY Front
---
Front;RWD
4WD;Front
4WD;6 LUG MODELS ONLY Front
-
Front;RWD
Front;RWD
---
6 LUG MODELS ONLY
----
6 LUG MODELS ONLY
----
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-----
6 LUG MODELS ONLY
-
4WD;Front
-
Front;RWD
4WD;6 LUG MODELS ONLY Front
4WD;Front
-
Front;RWD
4WD;6 LUG MODELS ONLY Front
-
6 LUG MODELS ONLY
--
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
6 LUG MODELS ONLY
-
4WD;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
4WD;6 LUG MODELS ONLY Front;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
6 LUG MODELS ONLY Front;Pre Runner
-
4WD;Automatic Disconnecting Differential;Front
4WD;6 LUG MODELS ONLY Front;Automatic Disconnecting Differential
4WD;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
4WD;6 LUG MODELS ONLY Front;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
6 LUG MODELS ONLY Front;Pre Runner
-
4WD;Automatic Disconnecting Differential;Front
4WD;6 LUG MODELS ONLY Front;Automatic Disconnecting Differential
4WD;6 LUG MODELS ONLY Front
-
4WD;Front
Front;Pre Runner
4WD;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
4WD;6 LUG MODELS ONLY Front;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
6 LUG MODELS ONLY Front;Pre Runner
-
4WD;Automatic Disconnecting Differential;Front
4WD;6 LUG MODELS ONLY Front;Automatic Disconnecting Differential
4WD;6 LUG MODELS ONLY Front
-
4WD;Front
Front;Pre Runner
6 LUG MODELS ONLY Front;Pre Runner
6 LUG MODELS ONLY Front;Pre Runner
6 LUG MODELS ONLY Front;Pre Runner
6 LUG MODELS ONLY Front;Pre Runner
-
Front;RWD
6 LUG MODELS ONLY Front;Pre Runner
-
4WD;Automatic Disconnecting Differential;Front
4WD;6 LUG MODELS ONLY Front;Automatic Disconnecting Differential
4WD;6 LUG MODELS ONLY Front
-
4WD;Front
Front;Pre Runner
6 LUG MODELS ONLY Front;Pre Runner
-
4WD;Automatic Disconnecting Differential;Front
4WD;6 LUG MODELS ONLY Front;Automatic Disconnecting Differential
4WD;6 LUG MODELS ONLY Front
-
4WD;Front
Front;Pre Runner
4WD;Automatic Disconnecting Differential;Front
4WD;6 LUG MODELS ONLY Front;Automatic Disconnecting Differential
Front;RWD
Front;RWD
6 LUG MODELS ONLY Front;Pre Runner
-
6 LUG MODELS ONLY Front;Pre Runner
-
Front;RWD
4WD;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
4WD;6 LUG MODELS ONLY Front;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
6 LUG MODELS ONLY Front;Pre Runner
-
Front;RWD
Front;RWD
Front;RWD
Front;Pre Runner
Front;RWD
Front;RWD
Front;RWD
4WD;6 LUG MODELS ONLY Front
-
4WD;Front
Front;Pre Runner
4WD;6 LUG MODELS ONLY Front
4WD;Front
Front;RWD
Front;RWD
Front;RWD
4WD;6 LUG MODELS ONLY Front
4WD;Front
Front;RWD
4WD;6 LUG MODELS ONLY Front
4WD;Front
Front;RWD
Front;RWD
4WD;6 LUG MODELS ONLY Front
4WD;Front
Front;RWD

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 20 reviews

5100%
40%
30%
20%
10%

alexandra

01/26/2025

Verified buyer

Not sure you could actually nake them any better. Would definitely buy again

Kevin

01/26/2025

Verified buyer

Worked perfect. Will buy another set in 2 weeks. 6x5.5 wheel spacer I highly recommend

FAQS

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Spacers alone do not always change alignment settings, but an alignment check may be useful if handling changes, uneven tire wear appears, or other suspension work is performed.

Remove rust, dirt, and raised debris so the spacer can sit flat against the hub. The mating surfaces should be clean and undamaged before the fasteners are tightened.
