1989-2024 Toyota 4Runner 4.0L V6 | 6x5.5 106mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

1989-2024 Toyota 4Runner 4.0L V6 | 6x5.5 106mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
41ISWSA039007US

Specifications

Brand
PHILTOP
Bolt Pattern
6x5.5"
Wheel Bolt Pattern
6x5.5"
Vehicle Bolt Pattern
6x5.5"
Thread Size
M12x1.5
Center Bore
106
Hub-Centric Lip
Yes
Thickness
2inch
Outside Diameter
176
Inside Diameter
4.17 in/106 mm
Lug Patterns
6
Type
Wheel Spacer
Items Included

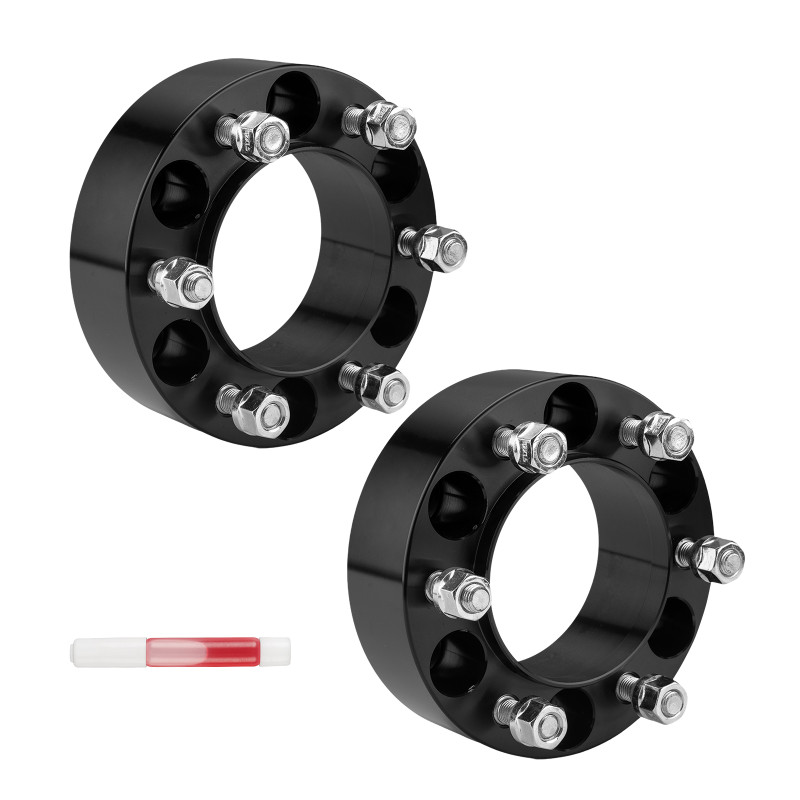

2x Hub-Centric Wheel Spacers
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

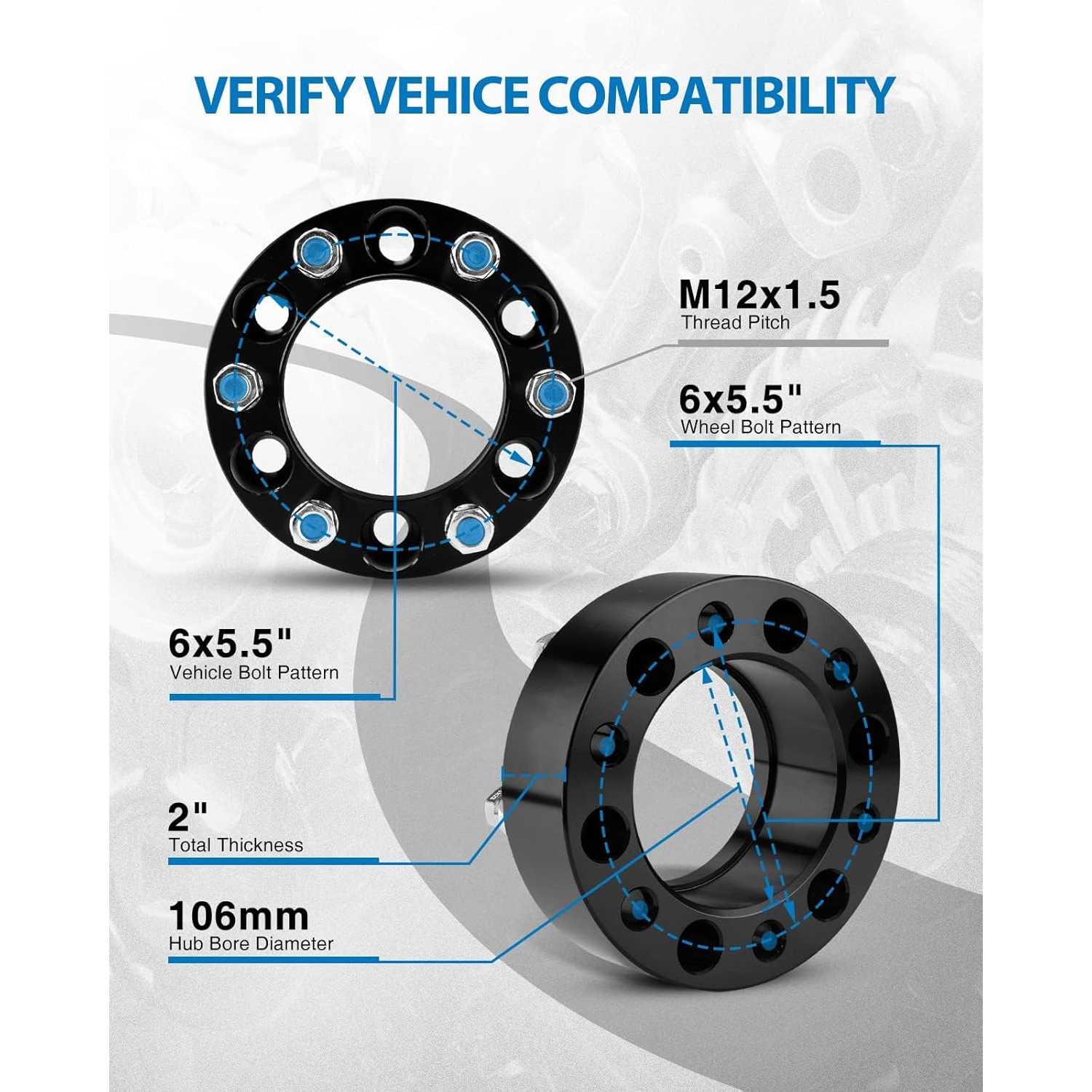

  • [Wheel Spacers Specification] --- Bolt Pattern: 6x5.5"(6x139.7mm) ; | Thickness: 2 inch(50.8mm) ; | Thread Pitch: M12x1.5 ; | Hub Bore: 106mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 6x5.5 Wheel Spacer set replacement for Front For:; 2005-2015 Tacoma 4.0L 4WD/RWD V6; Hilux 2.7L L4; 2003-2021 4Runner 4.0L 4WD V6; 2016-2021 Tacoma 3.5L 4WD V6; 2005-2019 Tacoma 2.7L RWD L4; 1996-2002 4Runner 3.4L 4WD/RWD V6; 2003-2019 4Runner 4.0L RWD V6; 1995-2021 Tacoma 2.7L 4WD L4; 2000-2006 Tundra 4.7L 4WD V8; 2010-2021 GX460 4.6L V8; 1995-2004 Tacoma 2.4/3.4L 4WD L4/V6; 2016-2019 Tacoma 3.5L RWD V6; 2007-2014 FJ CRUI-SER 4.0L 4WD V6; 2003-2006 Tundra

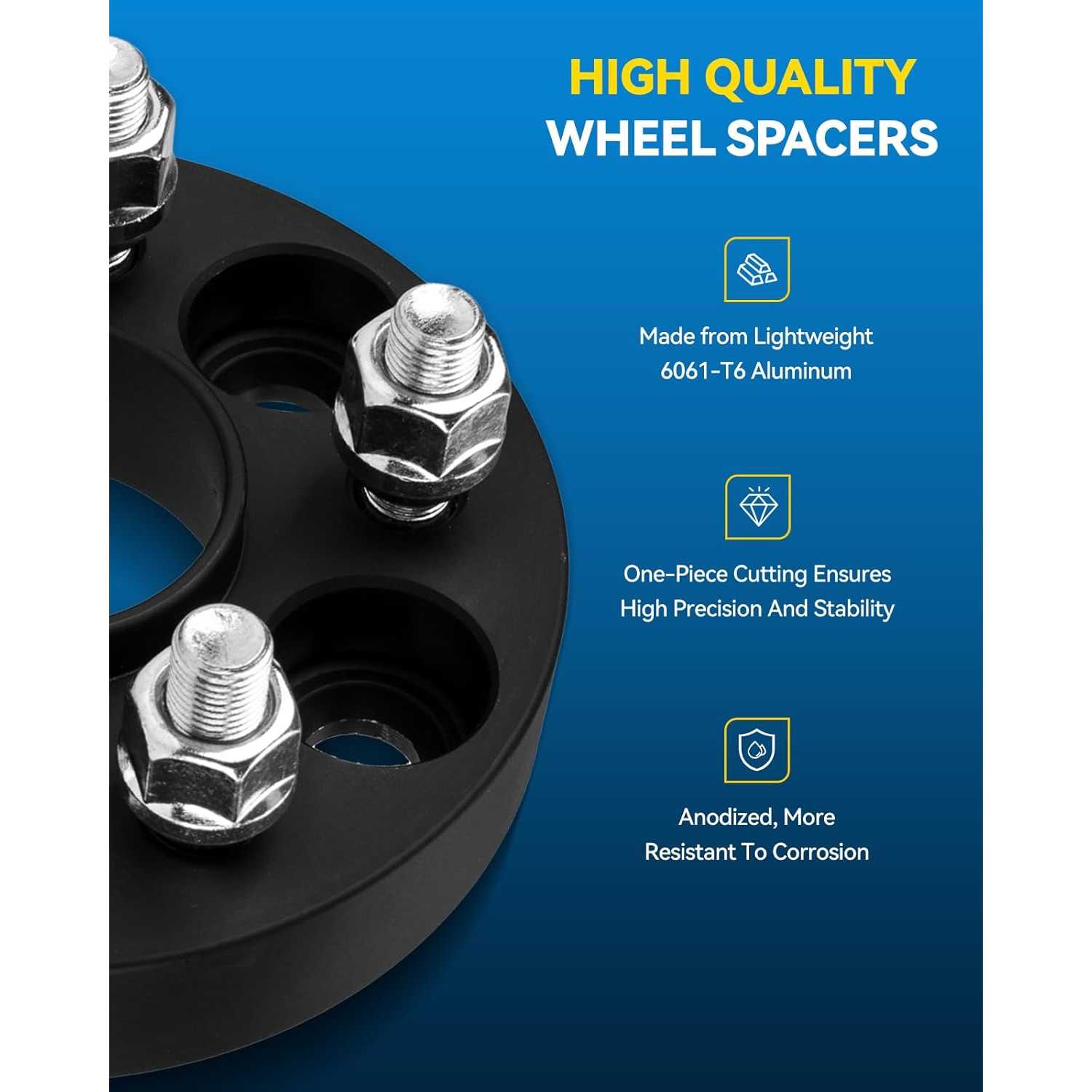

  • [High Quality] ---6x5.5 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 10.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 6x5.5 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20042004200420042004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052010 - 202320232014 - 20232010 - 20232003 - 20091996 - 199720231996 - 20002001198919891996 - 20022003 - 202320242003 - 20092020 - 20211989 - 199520101989 - 19951996 - 20022003 - 202320242003 - 20092018 - 202320242003 - 20092003 - 20092017 - 202320242018 - 202320242015 - 202320242022 - 202320242010 - 20162021 - 20222020 - 20212007 - 20092010 - 2014200720081988 - 199219801982 - 19871993 - 19971984 - 198819881986 - 19871980 - 19831981 - 19951988 - 1995198519831981 - 19901988 - 19951986 - 19872001 - 20022003 - 20072001 - 20022003 - 20071994 - 19981993199519981996 - 199719941995199319951993 - 19941995 - 19981995 - 19971998 - 200020012002 - 20041995 - 19971998 - 200020012002 - 20042005 - 20151995 - 19971998 - 200020012002 - 20042005 - 20151998199819981998 - 20002016 - 202220231998 - 200020012002 - 20042005 - 20151998 - 200020012002 - 20042005 - 201520012002 - 20042016 - 202220232016 - 202220231998 - 20001998 - 20002016 - 202220231995 - 19971998 - 20002016 - 202220232016 - 202220232017 - 2022202320152016 - 20222023202120232005 - 20132000 - 20022003 - 20042005 - 20062005 - 20062000 - 20022003 - 20062000 - 20022003 - 20042005 - 20062000 - 20022003 - 2006
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletLexusLexusLexusLexusLexusLexusToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoGX460GX460GX460GX460GX470LX4504Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4RunnerFJ CruiserFJ CruiserFJ CruiserFJ CruiserLand CruiserLand CruiserLand CruiserLand CruiserPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupSequoiaSequoiaSequoiaSequoiaT100T100T100T100T100T100T100T100T100T100T100TacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundra
TrimBaseBaseLSLSSportSportSport LSSport LSZ71Z71Z71 LSZ71 LSZ85Z85Z85 LSZ85 LSBaseBlack Line EditionLuxuryPremiumBaseBase40th Anniversary EditionBaseBaseDLXDLXLimitedLimitedLimitedLimitedNightshadeSR5SR5SR5SR5SR5SR5SR5SR5 PremiumSR5 PremiumSportSportTRD Off-RoadTRD Off-RoadTRD Off-Road PremiumTRD Off-Road PremiumTRD ProTRD ProTRD SportTRD SportTrailTrailVentureBaseBaseTRD Special EditionTrail Teams Special EditionBaseBaseBaseBaseBaseBaseBase TurboDLXDLXDLXDLX TurboSR5SR5SR5SR5 TurboLimitedLimitedSR5SR5BaseBaseBaseBaseDLXDXDXOne-TonOne-Ton DLXSR5SR5BaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseDLXDLXDLXLimitedLimitedLimitedPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerS-RunnerS-RunnerSRSRSRSRSR5SR5SR5SR5SR5SR5SR5SR5TRD Off-RoadTRD Off-RoadTRD ProTRD ProTRD ProTRD SportTRD SportTrailTrail Special EditionX-RunnerBaseBaseBaseBaseLimitedLimitedSR5SR5SR5SR5SR5
Engine2.8L L43.5L L52.8L L43.5L L52.8L L43.5L L52.8L L43.5L L52.8L L43.5L L52.8L L43.5L L52.8L L43.5L L52.8L L43.5L L54.6L V84.6L V84.6L V84.6L V84.7L V84.5L L64.0L V62.7L L43.4L V62.4L L43.0L V63.4L V64.0L V64.0L V64.7L V84.0L V62.4L L42.7L L43.0L V63.4L V64.0L V64.0L V64.7L V84.0L V64.0L V64.0L V64.7L V84.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L L64.2L L64.2L L64.5L L62.4L L43.0L V62.4L L42.2L L42.4L L43.0L V62.4L L42.2L L42.4L L43.0L V62.4L L44.7L V84.7L V84.7L V84.7L V82.7L L43.0L V63.4L V63.4L V63.4L V63.0L V63.4L V63.0L V63.4L V63.0L V63.4L V62.4L L42.4L L42.4L L42.4L L42.7L L42.7L L42.7L L42.7L L42.7L L43.4L V63.4L V63.4L V63.4L V64.0L V62.4L L42.7L L43.4L V63.4L V63.5L V63.5L V62.7L L42.7L L42.7L L42.7L L43.4L V63.4L V63.4L V64.0L V63.4L V63.4L V62.7L L42.7L L43.5L V63.5L V62.4L L42.7L L42.7L L42.7L L43.4L V63.4L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V64.0L V63.5L V63.5L V63.5L V63.5L V64.0L V63.4L V63.4L V64.0L V64.7L V84.7L V84.7L V83.4L V63.4L V64.0L V64.7L V84.7L V8
Note----------------
6 lug models only Front
6 lug models only Front
6 lug models only Front
6 lug models only Front
6 lug models only Front
6 lug models only
4WD;6 lug models only Front
4WD;6 lug models only Front
4WD;6 lug models only Front
6 lug models only
6 lug models only
4WD;6 lug models only Front
4WD;6 lug models only Front
-
4WD;6 lug models only Front
4WD;6 lug models only Front
6 lug models only
4WD;6 lug models only Front
6 lug models only
4WD;6 lug models only Front
4WD;6 lug models only Front
-
4WD;6 lug models only Front
4WD;6 lug models only Front
-
4WD;6 lug models only Front
4WD;6 lug models only Front
4WD;6 lug models only Front
-
4WD;6 lug models only Front
-
4WD;6 lug models only Front
-
4WD;6 lug models only Front
-
4WD;6 lug models only Front
4WD;6 lug models only Front
4WD;6 lug models only Front
6 lug models only Front;RWD
6 lug models only
6 lug models only Front;RWD
6 lug models only Front;RWD
6 lug models only
-
6 lug models only
6 lug models only
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 lug models only
6 lug models only Front;RWD
6 lug models only
6 lug models only Front;RWD
6 lug models only
6 lug models only
6 lug models only
6 lug models only
6 lug models only
6 lug models only
6 lug models only
6 lug models only
6 lug models only
6 lug models only
6 lug models only
4WD;6 lug models only Front;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
6 lug models only Front;Pre Runner
4WD;6 lug models only Front;Automatic Disconnecting Differential
4WD;6 lug models only Front;Automatic Disconnecting Differential Not fit 2WD S-Runner or X-Runner
4WD;6 lug models only Front;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
6 lug models only Front;Pre Runner
4WD;6 lug models only Front;Automatic Disconnecting Differential
4WD;6 lug models only Front;Automatic Disconnecting Differential Not fit 2WD S-Runner or X-Runner
6 lug models only Front;Pre Runner Not fit 2WD S-Runner or X-Runner
4WD;6 lug models only Front;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
6 lug models only Front;Pre Runner
4WD;6 lug models only Front;Automatic Disconnecting Differential
4WD;6 lug models only Front;Automatic Disconnecting Differential Not fit 2WD S-Runner or X-Runner
6 lug models only Front;Pre Runner Not fit 2WD S-Runner or X-Runner
6 lug models only Front;Pre Runner
6 lug models only Front;Pre Runner
6 lug models only Front;Pre Runner
6 lug models only Front;Pre Runner
6 lug models only Front;RWD Not fit 2WD S-Runner or X-Runner
4WD;6 lug models only Front
6 lug models only Front;Pre Runner
4WD;6 lug models only Front;Automatic Disconnecting Differential
4WD;6 lug models only Front;Automatic Disconnecting Differential Not fit 2WD S-Runner or X-Runner
6 lug models only Front;Pre Runner Not fit 2WD S-Runner or X-Runner
6 lug models only Front;Pre Runner
4WD;6 lug models only Front;Automatic Disconnecting Differential
4WD;6 lug models only Front;Automatic Disconnecting Differential Not fit 2WD S-Runner or X-Runner
6 lug models only Front;Pre Runner Not fit 2WD S-Runner or X-Runner
4WD;6 lug models only Front;Automatic Disconnecting Differential
4WD;6 lug models only Front;Automatic Disconnecting Differential Not fit 2WD S-Runner or X-Runner
6 lug models only Front;RWD Not fit 2WD S-Runner or X-Runner
4WD;6 lug models only Front
6 lug models only Front;RWD Not fit 2WD S-Runner or X-Runner
4WD;6 lug models only Front
6 lug models only Front;Pre Runner
6 lug models only Front;Pre Runner
6 lug models only Front;RWD Not fit 2WD S-Runner or X-Runner
4WD;6 lug models only Front
4WD;6 lug models only Front;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential;Front
6 lug models only Front;Pre Runner
6 lug models only Front;RWD Not fit 2WD S-Runner or X-Runner
4WD;6 lug models only Front
6 lug models only Front;RWD Not fit 2WD S-Runner or X-Runner
4WD;6 lug models only Front
6 lug models only Front;RWD Not fit 2WD S-Runner or X-Runner
4WD;6 lug models only Front
6 lug models only Front;Pre Runner Not fit 2WD S-Runner or X-Runner
6 lug models only Front;RWD Not fit 2WD S-Runner or X-Runner
4WD;6 lug models only Front
6 lug models only Front;RWD Not fit 2WD S-Runner or X-Runner
4WD;6 lug models only Front
6 lug models only Front;Pre Runner Not fit 2WD S-Runner or X-Runner
6 lug models only
6 lug models only Front;RWD
6 lug models only Front;RWD
6 lug models only Front;RWD
6 lug models only
6 lug models only Front;RWD
6 lug models only
6 lug models only Front;RWD
6 lug models only Front;RWD
6 lug models only
6 lug models only Front;RWD

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

4.8/5

Based on 19 reviews

584%
416%
30%
20%
10%

Obie

02/08/2025

So far so good!!!

zac

04/04/2025

I was very scared with the idea of having wheel spacers on my truck. After receiving these in the mail I felt comfortable with them on my truck. They are machined very wheel and fit perfectly. After running them I feel comfortable with them and feel safe having them. And the look it gave my truck was awesome.

FAQS

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

This depends on spacer type and thickness. Slip-on spacers may require sufficient additional thread engagement, while bolt-on designs may include separate hardware. Follow the product and vehicle requirements.

Stacking spacers is generally not recommended because it may affect seating and fastener engagement. Select a single spacer of the appropriate specification instead.
