1989-2024 Toyota 4Runner 4.0L/2.7L/3.4L/2.4L/3.0L/4.7L | 6x5.5" 106mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

1989-2024 Toyota 4Runner 4.0L/2.7L/3.4L/2.4L/3.0L/4.7L | 6x5.5" 106mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
94ISWSA184137US

Specifications

Brand
PHILTOP
Bolt Pattern
6x5.5"
Wheel Bolt Pattern
6x5.5"
Vehicle Bolt Pattern
6x5.5"
Thread Size
M12x1.5
Center Bore
106
Hub-Centric Lip
Yes
Thickness
2inch
Outside Diameter
176
Inside Diameter
4.17 in/106 mm
Lug Patterns
6
Type
Wheel Spacer
Items Included
4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Spacers Specification] --- Bolt Pattern: 6x5.5"(6x139.7mm) ; | Thickness: 2 inch(50.8mm) ; | Thread Pitch: M12x1.5 ; | Hub Bore: 106mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 6x5.5 Wheel Spacer set replacement for 1996-2015 4Runner; 2001-2015 Tacoma Crew Cab Pickup/Extended Cab Pickup Base/Pre Runner; 2000-2006 Tundra; 2004-2015 Tacoma Crew Cab Pickup Base; 2001-2007 Sequoia; 2001-2014 Tacoma Standard Cab Pickup Base; 2007-2014 FJ CRUI-SER; 2001-2010 Tacoma Standard Cab Pickup Pre Runner; 2015 Tacoma Crew Cab Pickup/Extended Cab Pickup TRD Pro; 2005-2013 Tacoma Extended Cab Pickup X-Runner; 2001-2003 Tacoma Extended Cab Pickup/

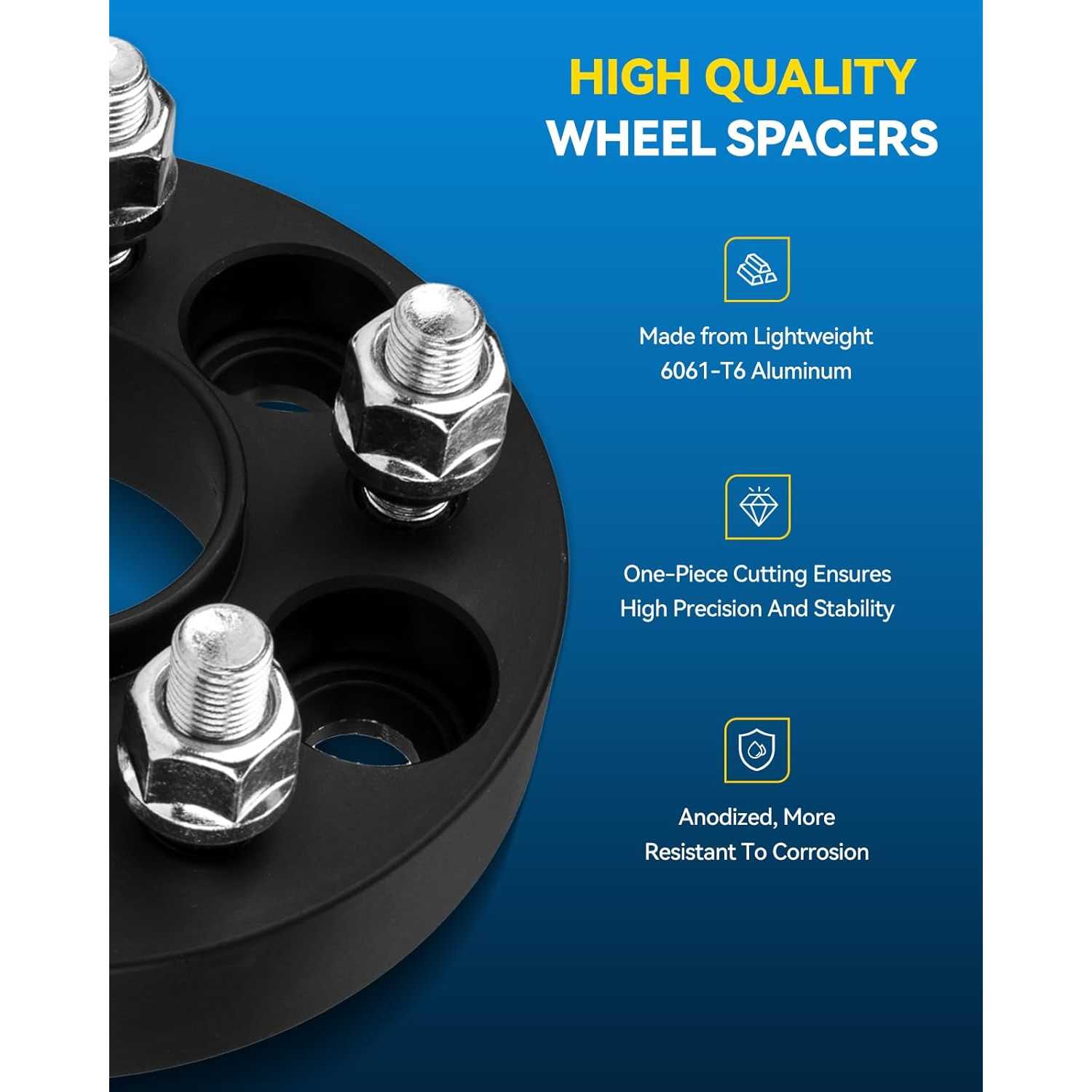

  • [High Quality] ---6x5.5 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 6x5.5 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2010 - 20212022 - 202320232014 - 20212022 - 20232010 - 20212022 - 20232003 - 20091996 - 199720231996 - 20002001198919891996 - 20022003 - 2022202320242003 - 20092020 - 20211989 - 199520101989 - 19951996 - 20022003 - 2022202320242003 - 20092018 - 2022202320242003 - 20092003 - 20092017 - 2022202320242018 - 2022202320242015 - 2022202320242022202320242010 - 20162021 - 20222020 - 20212007 - 20092010 - 2014200720081988 - 199219801982 - 19871993 - 19971984 - 198819881986 - 19871980 - 19831981 - 19951988 - 1995198519831981 - 19901988 - 19951986 - 19872001 - 20022003 - 20072001 - 20022003 - 20071994 - 1998199519981996 - 199719941995199519941995 - 19981995 - 19971998 - 20002001 - 200320041995 - 19971998 - 20002001 - 200320042005 - 20151995 - 19971998 - 20002001 - 200320042005 - 20151998199819981998 - 20002016 - 202220231998 - 20002001 - 200320042005 - 20151998 - 20002001 - 200320042005 - 20152001 - 200320042016 - 202220232016 - 202220231998 - 20001998 - 20002016 - 202220231995 - 19971998 - 20002016 - 202220232016 - 202220232017 - 2022202320152016 - 20222023202120232005 - 20132000 - 20022003 - 20042005 - 20062005 - 20062000 - 20022003 - 20062000 - 20022003 - 20042005 - 20062000 - 20022003 - 2006
MakeLexusLexusLexusLexusLexusLexusLexusLexusLexusToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelGX460GX460GX460GX460GX460GX460GX460GX470LX4504Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4Runner4RunnerFJ CruiserFJ CruiserFJ CruiserFJ CruiserLand CruiserLand CruiserLand CruiserLand CruiserPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupSequoiaSequoiaSequoiaSequoiaT100T100T100T100T100T100T100T100T100TacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundra
TrimBaseBaseBlack Line EditionLuxuryLuxuryPremiumPremiumBaseBase40th Anniversary EditionBaseBaseDLXDLXLimitedLimitedLimitedLimitedLimitedNightshadeSR5SR5SR5SR5SR5SR5SR5SR5SR5 PremiumSR5 PremiumSR5 PremiumSportSportTRD Off-RoadTRD Off-RoadTRD Off-RoadTRD Off-Road PremiumTRD Off-Road PremiumTRD Off-Road PremiumTRD ProTRD ProTRD ProTRD SportTRD SportTRD SportTrailTrailVentureBaseBaseTRD Special EditionTrail Teams Special EditionBaseBaseBaseBaseBaseBaseBase TurboDLXDLXDLXDLX TurboSR5SR5SR5SR5 TurboLimitedLimitedSR5SR5BaseBaseBaseDLXDXDXOne-Ton DLXSR5SR5BaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseDLXDLXDLXLimitedLimitedLimitedPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerPre RunnerS-RunnerS-RunnerSRSRSRSRSR5SR5SR5SR5SR5SR5SR5SR5TRD Off-RoadTRD Off-RoadTRD ProTRD ProTRD ProTRD SportTRD SportTrailTrail Special EditionX-RunnerBaseBaseBaseBaseLimitedLimitedSR5SR5SR5SR5SR5
Engine4.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.7L V84.5L L64.0L V62.7L L43.4L V62.4L L43.0L V63.4L V64.0L V64.0L V64.0L V64.7L V84.0L V62.4L L42.7L L43.0L V63.4L V64.0L V64.0L V64.0L V64.7L V84.0L V64.0L V64.0L V64.0L V64.7L V84.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L L64.2L L64.2L L64.5L L62.4L L43.0L V62.4L L42.2L L42.4L L43.0L V62.4L L42.2L L42.4L L43.0L V62.4L L44.7L V84.7L V84.7L V84.7L V82.7L L43.4L V63.4L V63.4L V63.0L V63.4L V63.4L V63.0L V63.4L V62.4L L42.4L L42.4L L42.4L L42.7L L42.7L L42.7L L42.7L L42.7L L43.4L V63.4L V63.4L V63.4L V64.0L V62.4L L42.7L L43.4L V63.4L V63.5L V63.5L V62.7L L42.7L L42.7L L42.7L L43.4L V63.4L V63.4L V64.0L V63.4L V63.4L V62.7L L42.7L L43.5L V63.5L V62.4L L42.7L L42.7L L42.7L L43.4L V63.4L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V64.0L V63.5L V63.5L V63.5L V63.5L V64.0L V63.4L V63.4L V64.0L V64.7L V84.7L V84.7L V83.4L V63.4L V64.0L V64.7L V84.7L V8
Note
6 Lug Vehicles ONLY Front
Front
Front
6 Lug Vehicles ONLY Front
Front
6 Lug Vehicles ONLY Front
Front
6 Lug Vehicles ONLY Front
6 Lug Vehicles ONLY
4WD;Front
4WD;6 Lug Vehicles ONLY Front
4WD;6 Lug Vehicles ONLY Front
--
4WD;6 Lug Vehicles ONLY Front
4WD;6 Lug Vehicles ONLY Front
4WD;Front
-
4WD;6 Lug Vehicles ONLY Front
4WD;6 Lug Vehicles ONLY Front
-
4WD;6 Lug Vehicles ONLY Front
-
4WD;6 Lug Vehicles ONLY Front
4WD;6 Lug Vehicles ONLY Front
4WD;Front
-
4WD;6 Lug Vehicles ONLY Front
4WD;6 Lug Vehicles ONLY Front
4WD;Front
-
4WD;6 Lug Vehicles ONLY Front
4WD;6 Lug Vehicles ONLY Front
4WD;6 Lug Vehicles ONLY Front
4WD;Front
-
4WD;6 Lug Vehicles ONLY Front
4WD;Front
-
4WD;6 Lug Vehicles ONLY Front
4WD;Front
-
4WD;6 Lug Vehicles ONLY Front
4WD;Front
-
4WD;6 Lug Vehicles ONLY Front
4WD;6 Lug Vehicles ONLY Front
4WD;6 Lug Vehicles ONLY Front
6 Lug Vehicles ONLY Front;RWD
6 Lug Vehicles ONLY
6 Lug Vehicles ONLY Front;RWD
6 Lug Vehicles ONLY Front;RWD
----
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 stud
6 Lug Vehicles ONLY
6 Lug Vehicles ONLY Front;RWD
6 Lug Vehicles ONLY
6 Lug Vehicles ONLY Front;RWD
---------
4WD;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential only fit 6 lug;Front
Front;Pre Runner only fit 6 lug
4WD;Automatic Disconnecting Differential only fit 6 lug;Front
4WD;6 Lug Vehicles ONLY Front;Automatic Disconnecting Differential only fit 6 lug
4WD;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential only fit 6 lug;Front
Front;Pre Runner only fit 6 lug
4WD;Automatic Disconnecting Differential only fit 6 lug;Front
4WD;6 Lug Vehicles ONLY Front;Automatic Disconnecting Differential only fit 6 lug
4WD only fit 6 lug;6 Lug Vehicles ONLY Front
4WD;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential only fit 6 lug;Front
Front;Pre Runner only fit 6 lug
4WD;Automatic Disconnecting Differential only fit 6 lug;Front
4WD;6 Lug Vehicles ONLY Front;Automatic Disconnecting Differential only fit 6 lug
4WD only fit 6 lug;6 Lug Vehicles ONLY Front
Front;Pre Runner only fit 6 lug
Front;Pre Runner only fit 6 lug
Front;Pre Runner only fit 6 lug
Front;Pre Runner only fit 6 lug
4WD only fit 6 lug;6 Lug Vehicles ONLY 6 lug only Front
4WD only fit 6 lug;Front
Front;Pre Runner only fit 6 lug
4WD;Automatic Disconnecting Differential only fit 6 lug;Front
4WD;6 Lug Vehicles ONLY Front;Automatic Disconnecting Differential only fit 6 lug
4WD only fit 6 lug;6 Lug Vehicles ONLY Front
Front;Pre Runner only fit 6 lug
4WD;Automatic Disconnecting Differential only fit 6 lug;Front
4WD;6 Lug Vehicles ONLY Front;Automatic Disconnecting Differential only fit 6 lug
4WD only fit 6 lug;6 Lug Vehicles ONLY Front
4WD;Automatic Disconnecting Differential only fit 6 lug;Front
4WD;6 Lug Vehicles ONLY Front;Automatic Disconnecting Differential only fit 6 lug
4WD only fit 6 lug;6 Lug Vehicles ONLY 6 lug only Front
4WD only fit 6 lug;Front
4WD only fit 6 lug;6 Lug Vehicles ONLY 6 lug only Front
4WD only fit 6 lug;Front
Front;Pre Runner only fit 6 lug
Front;Pre Runner only fit 6 lug
4WD only fit 6 lug;6 Lug Vehicles ONLY 6 lug only Front
4WD only fit 6 lug;Front
4WD;Automatic Disconnecting Differential;Except Automatic Disconnecting Differential only fit 6 lug;Front
Front;Pre Runner only fit 6 lug
4WD only fit 6 lug;6 Lug Vehicles ONLY 6 lug only Front
4WD only fit 6 lug;Front
4WD only fit 6 lug;6 Lug Vehicles ONLY 6 lug only Front
4WD only fit 6 lug;Front
4WD only fit 6 lug;6 Lug Vehicles ONLY 6 lug only Front
4WD only fit 6 lug;Front
4WD only fit 6 lug;6 Lug Vehicles ONLY Front
4WD only fit 6 lug;6 Lug Vehicles ONLY 6 lug only Front
4WD only fit 6 lug;Front
4WD only fit 6 lug;6 Lug Vehicles ONLY 6 lug only Front
4WD only fit 6 lug;Front
4WD only fit 6 lug;6 Lug Vehicles ONLY Front
6 Lug Vehicles ONLY
6 Lug Vehicles ONLY Front;RWD
6 Lug Vehicles ONLY Front;RWD
6 Lug Vehicles ONLY Front;RWD
6 Lug Vehicles ONLY
6 Lug Vehicles ONLY Front;RWD
6 Lug Vehicles ONLY
6 Lug Vehicles ONLY Front;RWD
6 Lug Vehicles ONLY Front;RWD
6 Lug Vehicles ONLY
6 Lug Vehicles ONLY Front;RWD

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.
