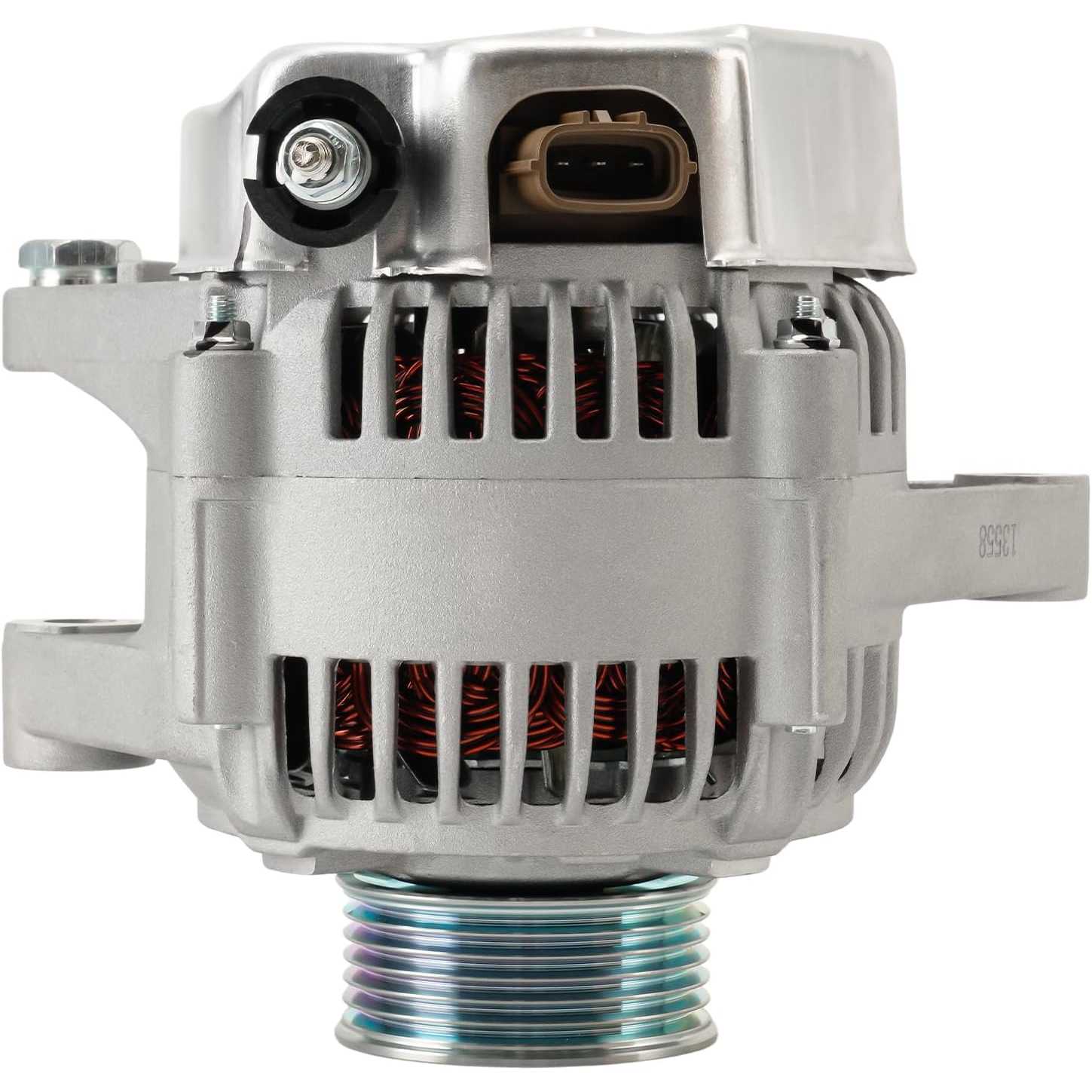

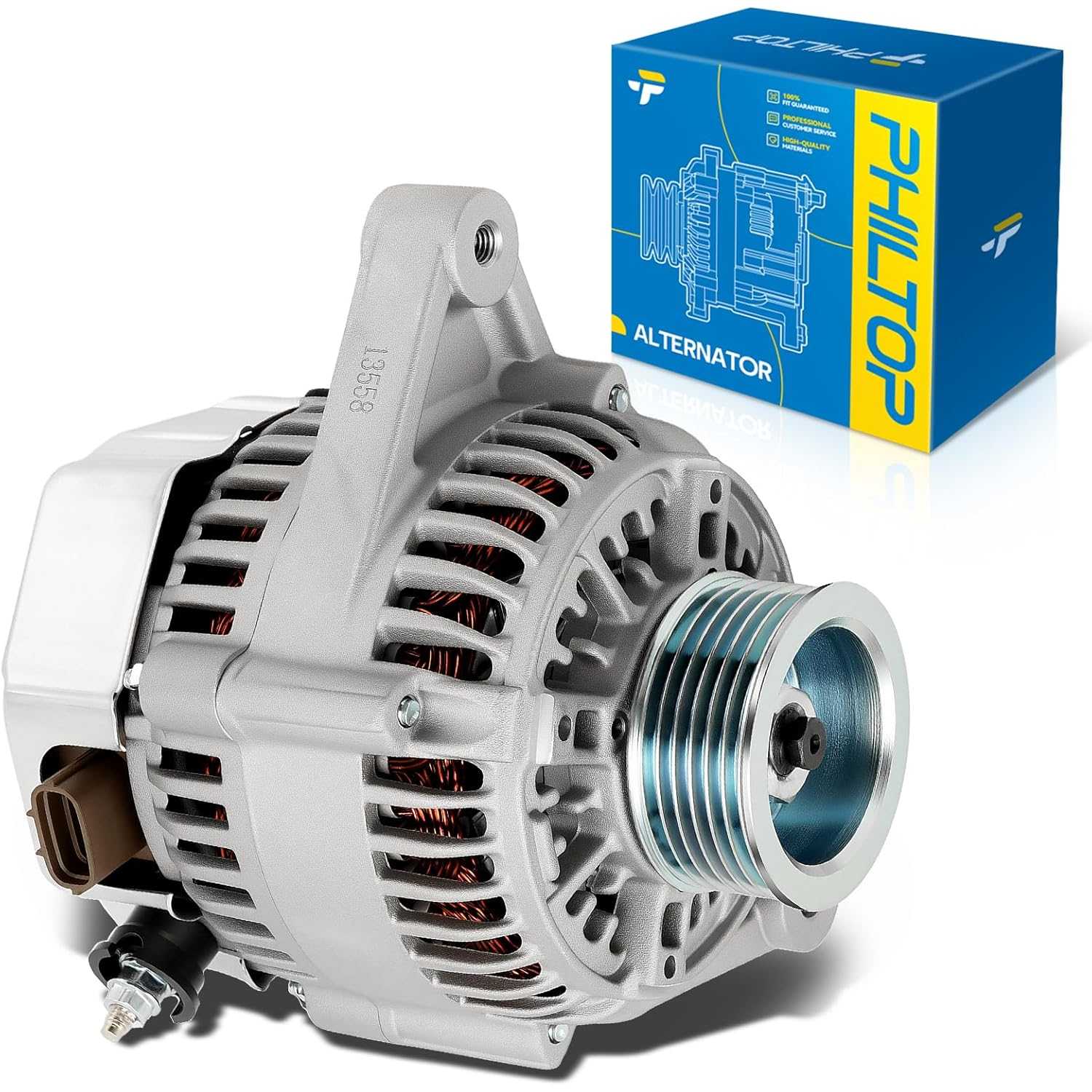

1995-1999 Toyota Avalon 3.0L V6 | 6-Groove Pulley 80A Alternator | 13558N - PHILTOP

1995-1999 Toyota Avalon 3.0L V6 | 6-Groove Pulley 80A Alternator | 13558N - PHILTOP

Pulley Grooves: S6

Amperage: 80 A

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4657ALT2955US

Specifications

Brand
PHILTOP
Pulley Grooves
S6
Amperage
80 A
Rotation Direction
CW
Regulator
IR
Fan Type
IF
Voltage
12 V
Material
Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included
1x Alternator 13558N 1x Manual
Warranty Period
2-Year
Part Number
13558N

Highlights

  • Compatibility: PHILTOP 13558N New Alternator compatible with 1995-1999 Avalon, 1994-1996 Camry 3.0L, 1994-1996 ES300
  • OEM Number: 13558N、270600A020、2706020160、19134292、2706020030、89037261、MPA13558、135588、88864449、19134219、2706020020、2706020010、13558、13558、13558、2706020020、2706020010、13747、13747、13747、13747、2706020120、2706020120、2706020070、90295232、270600A090、270600A090、2706020070、13747、10464205、270602002084、13558、13558、13558、13558、13558、270602001084
  • Alternator Specification: ①Amperage: 80A; ②Voltage: 12V; ③Pulley Class: S6; ④Rotation: CW(Clockwise); ⑤Specs for: IR/IF
  • Professional Alternator: PHILTOP alternator has undergone multiple professional tests, including a 2000-hour endurance test, voltage withstand test, vibration resistance test, 8-hour high/low temperature endurance test at operating temperatures ranging from -40°C to 105°C, and a 96-hour salt spray test. Engineered for exceptional reliability, it ensures a safe and stable power supply under any conditions.

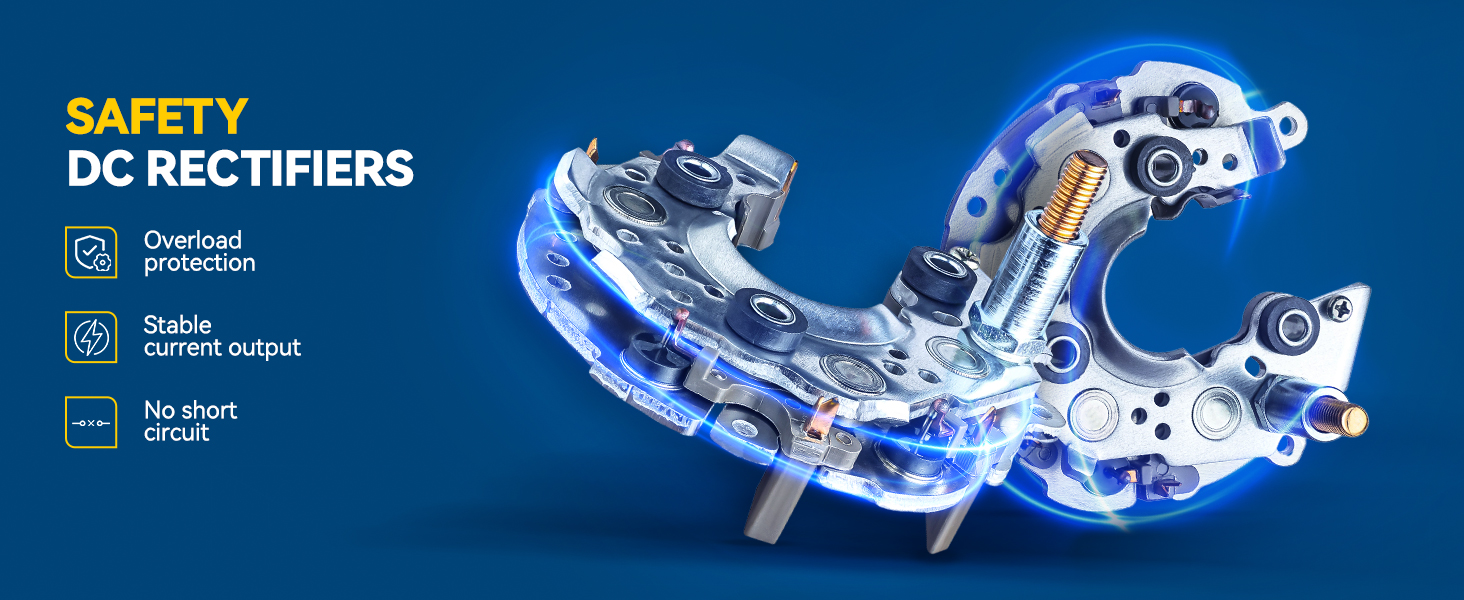

  • Safety & Stability: PHILTOP alternators feature an upgraded aluminum housing with superior heat dissipation and deformation resistance. Equipped with an OEM-compatible voltage regulator and overload protection, they comprehensively safeguard your vehicle's electrical system.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1994 - 19961995 - 199919951997 - 19991994 - 19961994 - 19961994 - 1996
MakeLexusToyotaToyotaToyotaToyotaToyotaToyota
ModelES300AvalonAvalonAvalonCamryCamryCamry
TrimBaseXLXLSXLSLESEXLE
Engine3.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V6
Note-------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

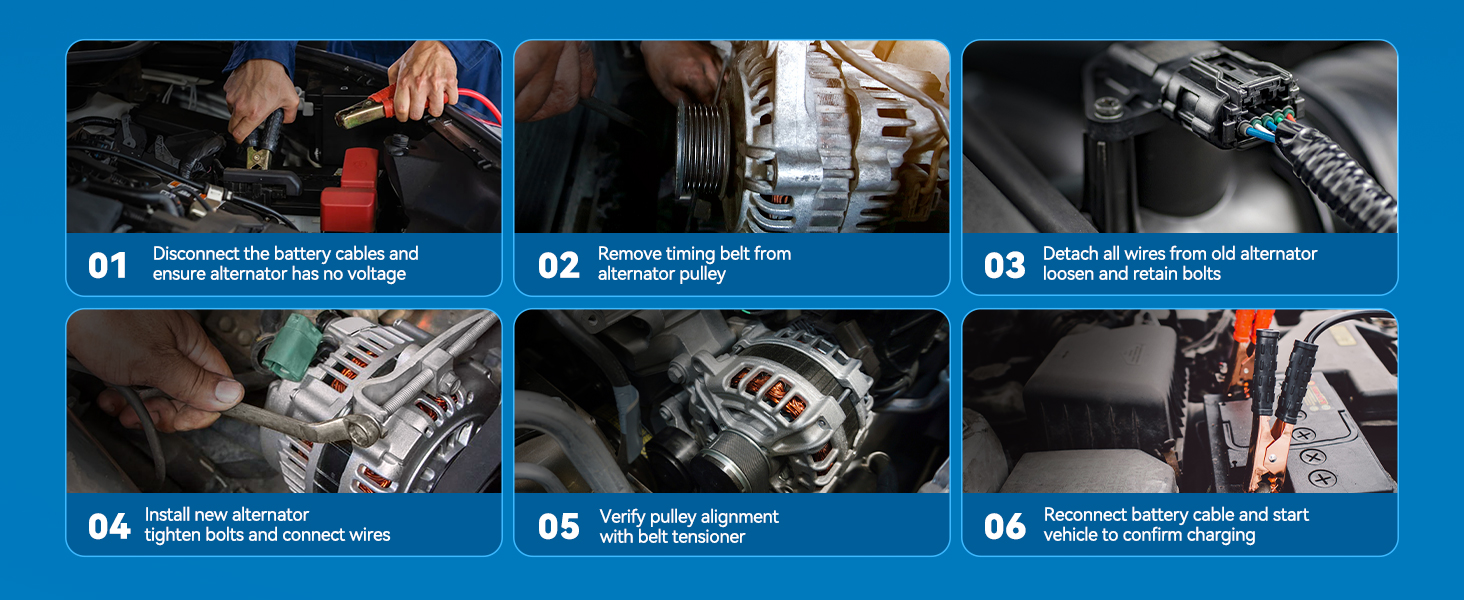

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

Alternator Replacement forAlternator Replacement for

Reviews

4.8/5

Based on 6 reviews

583%
417%
30%
20%
10%

Ashley_RoadTrip_56

02/22/2026

I noticed a big difference in how my Lexus runs after swapping this in. The electrical system is much more stable and I do not get any more dimming when the AC kicks on. Definitely worth every penny.

SarahDrives_62

12/24/2025

Great shipping speed and the part was packed very securely. It was a direct bolt-on for my Camry 3.0L and worked right out of the box. No more battery light on the dash!

FAQS

Our alternator is proven in extreme temperatures. Designed for powerful, efficient performance, its premium components ensure stable voltage, quiet operation, and a long service life.

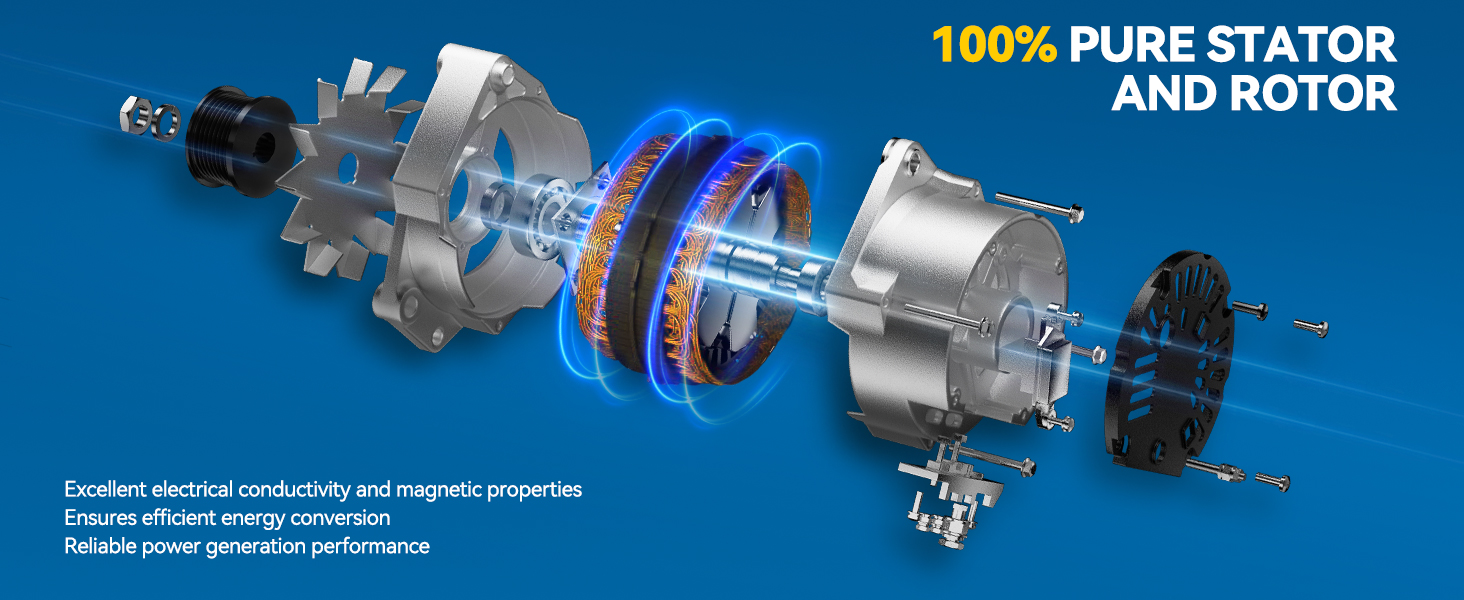

PHILTOP New Alternator feature factory-matched cores, stator and rotor are impregnated with insulating varnish. Rigorously tested to OE standards. This ensures secure bonding, stable high-speed operation, durability, and safety.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
