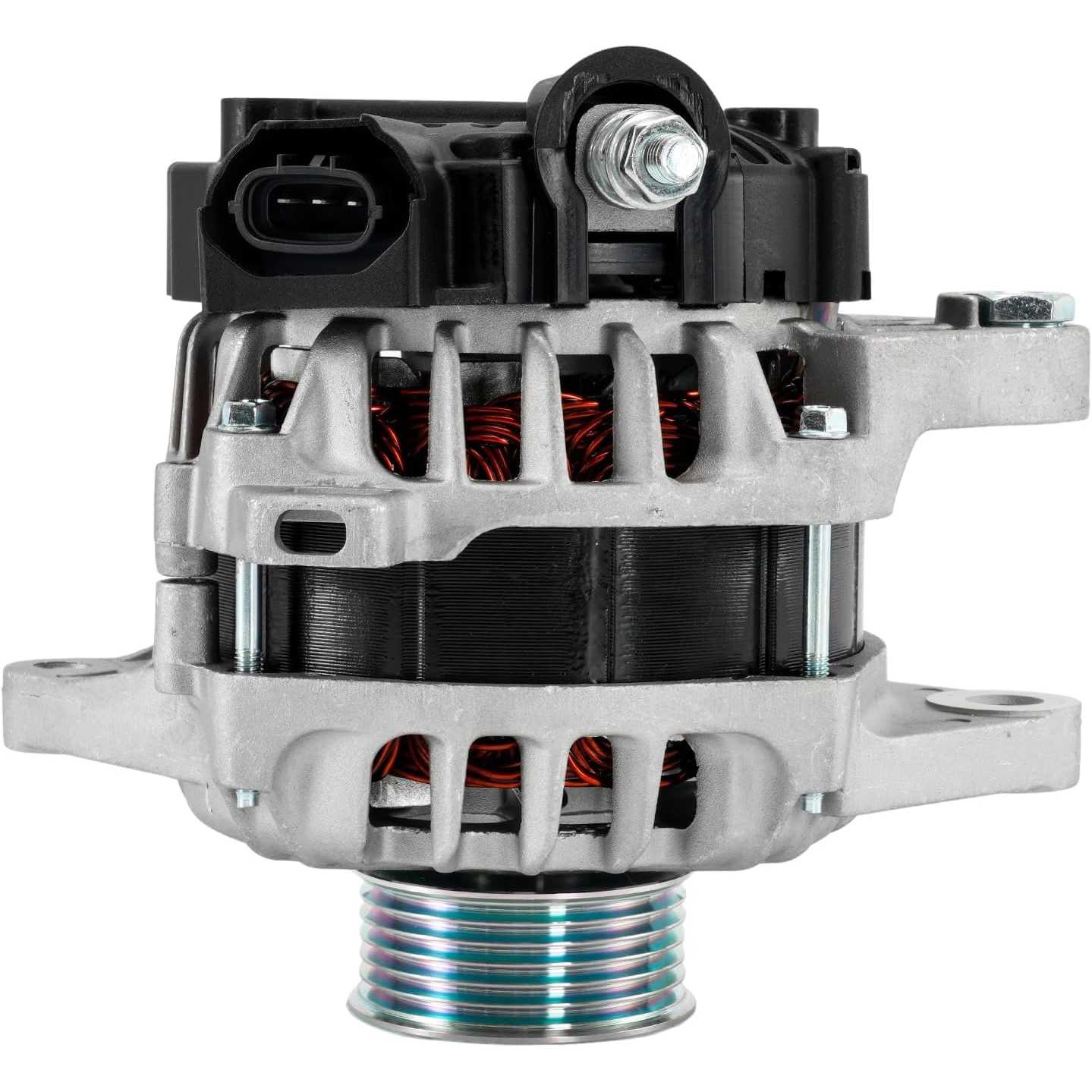

2012-2017 Hyundai Accent 1.6L L4 | 6-Groove Pulley 90A Alternator | 13209N - PHILTOP

2012-2017 Hyundai Accent 1.6L L4 | 6-Groove Pulley 90A Alternator | 13209N - PHILTOP

Pulley Grooves: S6

Amperage: 90 A

Built to Last

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7730ALT262SUS

Specifications

Brand
PHILTOP
Pulley Grooves
S6
Amperage
90 A
Rotation Direction
CW
Regulator
IR
Fan Type
IF
Voltage
12 V
Material
Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included
1x Alternator 13209N 1x Manual
Warranty Period
2-Year
Part Number
13209N

Highlights

  • Compatibility: PHILTOP 13209N New Alternator compatible with 2012-2017 Accent, 2013-2017 Veloster 1.6L, 2012-2013 Rio, 2012 Veloster
  • OEM Number: 13209N、13209、13209A、2086004、208778、208778A、2138546、2607372、2608483、2616741、373002B300、373002B300RU、373002B500、373002B510、AVA0170
  • Alternator Specification: ①Amperage: 90A; ②Voltage: 12V; ③Pulley Class: S6; ④Rotation: CW(Clockwise); ⑤Specs for: Valeo IR/IF
  • Professional Alternator: PHILTOP alternator has undergone multiple professional tests, including a 2000-hour endurance test, voltage withstand test, vibration resistance test, 8-hour high/low temperature endurance test at operating temperatures ranging from -40°C to 105°C, and a 96-hour salt spray test. Engineered for exceptional reliability, it ensures a safe and stable power supply under any conditions.
  • Safety & Stability: PHILTOP alternators feature an upgraded aluminum housing with superior heat dissipation and deformation resistance. Equipped with an OEM-compatible voltage regulator and overload protection, they comprehensively safeguard your vehicle's electrical system.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20152012 - 20152012 - 20142016 - 20172015 - 201720172012 - 20172014 - 201520172012 - 20132012 - 20132012 - 2013
MakeHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiKiaKiaKia
ModelAccentAccentAccentAccentAccentAccentVelosterVelosterVelosterRioRioRio
TrimGLSGSSESESportValue EditionBaseRE:FLEXValue EditionEXLXSX
Engine1.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L4
Note
Exc. Start/Stop Feature
Exc. Start/Stop Feature
Exc. Start/Stop Feature
Exc. Start/Stop Feature
Exc. Start/Stop Feature
Exc. Start/Stop Feature
Exc. Start/Stop Feature
Exc. Start/Stop Feature
Exc. Start/Stop Feature
Exc. Start/Stop Feature
Exc. Start/Stop Feature
Exc. Start/Stop Feature

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

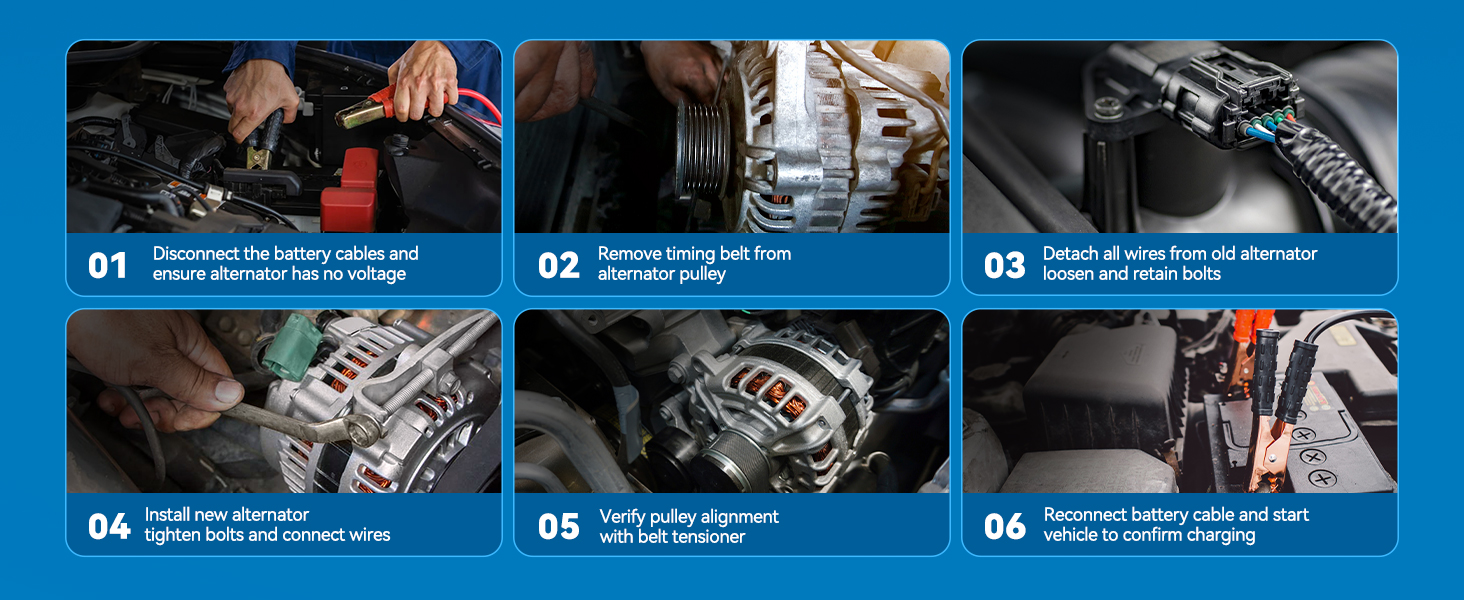

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

Alternator Replacement forAlternator Replacement for

Reviews

4.6/5

Based on 7 reviews

571%
414%
314%
20%
10%

RickFixIt_703

02/23/2026

The difference is night and day compared to my failing stock unit. My lights don't flicker anymore and the voltage is steady as a rock.

Steve_DIYer_652

03/07/2026

I was worried about ordering an alternator online, but this arrived in two days. Installation was very straightforward with no surprises.

FAQS

Please refer to the picture. Generally,our alternators do not include bolts or other accessories. It is recommended to make full use of the existing bolts and other accessories, which can be perfectly matched with the original accessories.

Our alternator is proven in extreme temperatures. Designed for powerful, efficient performance, its premium components ensure stable voltage, quiet operation, and a long service life.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
