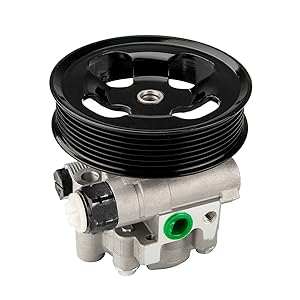

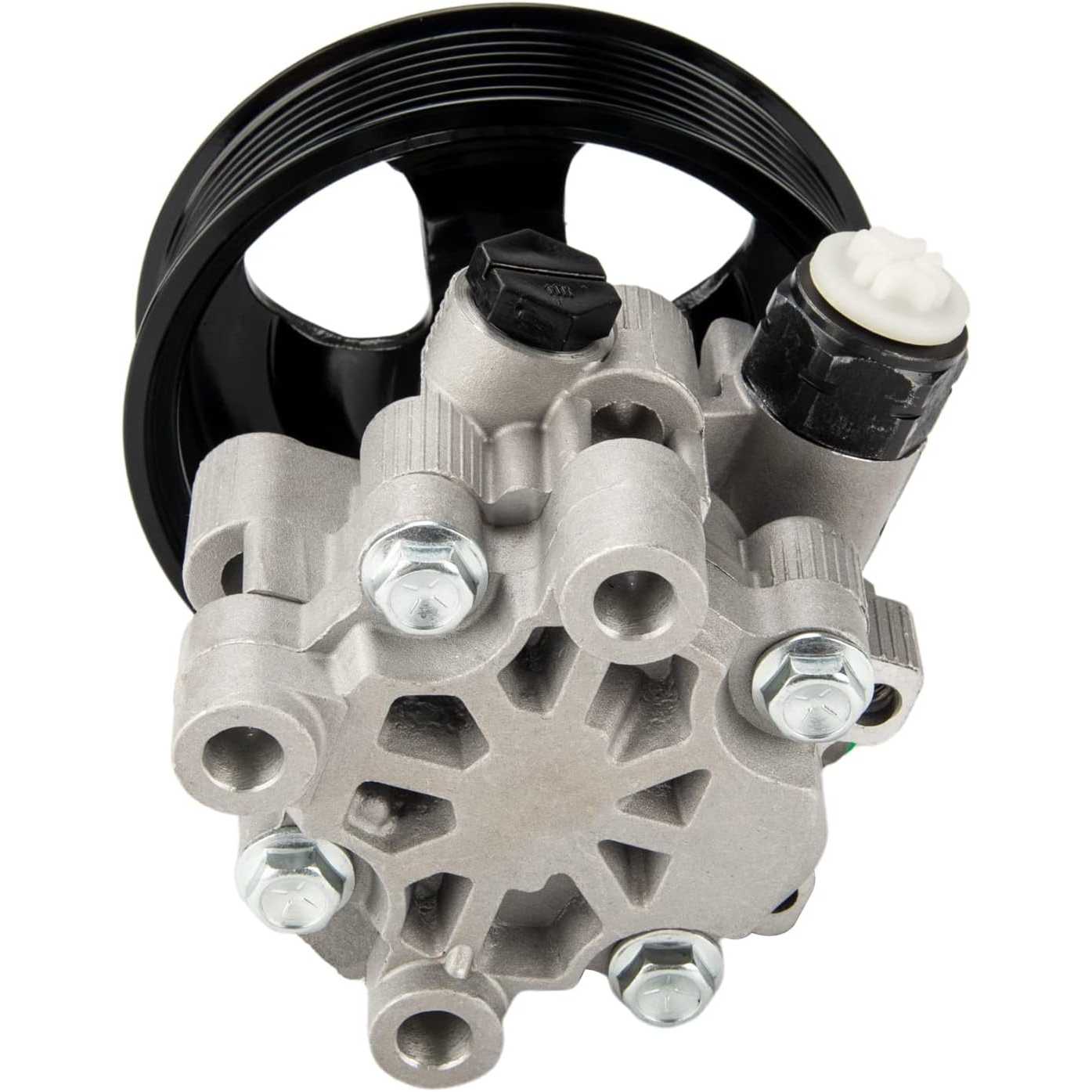

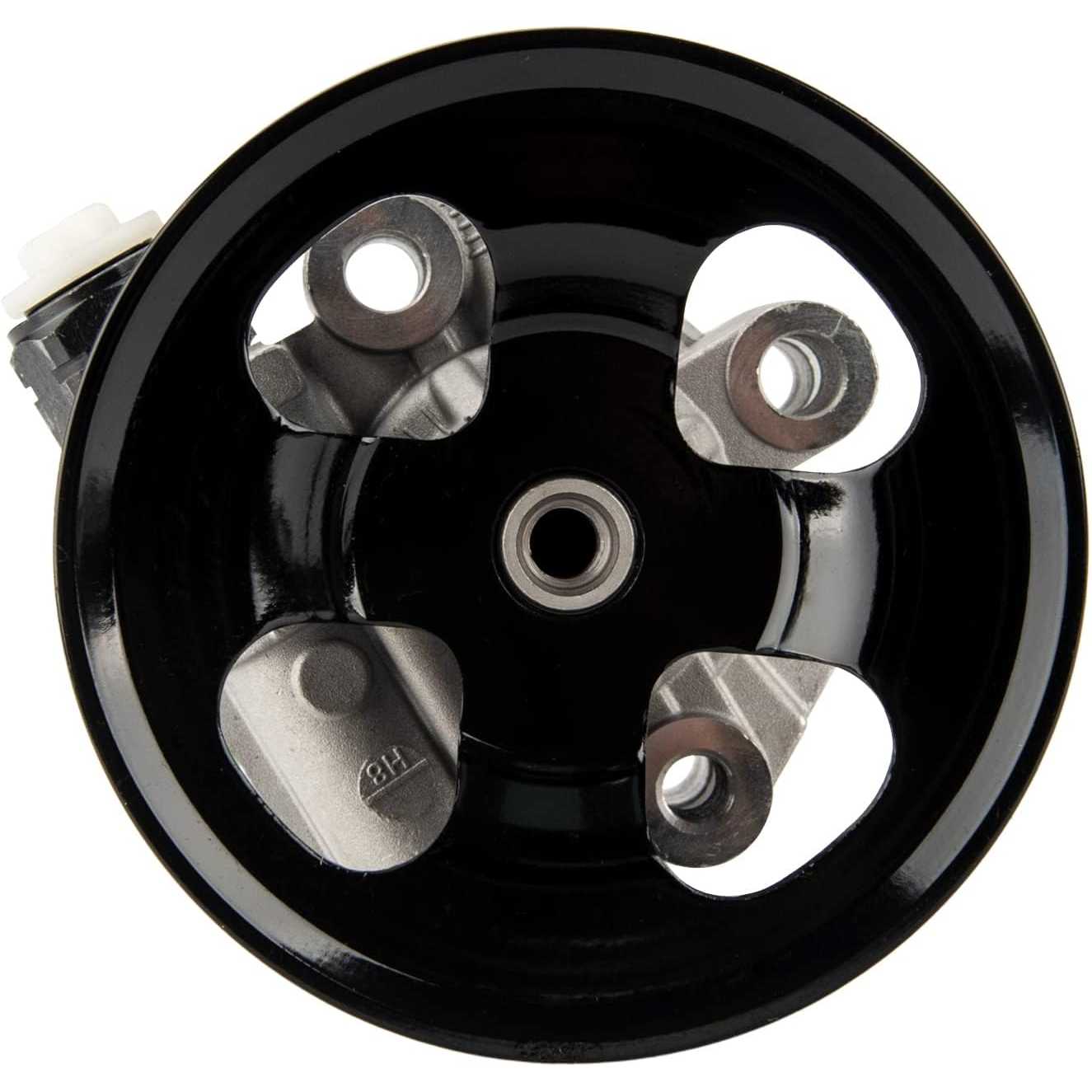

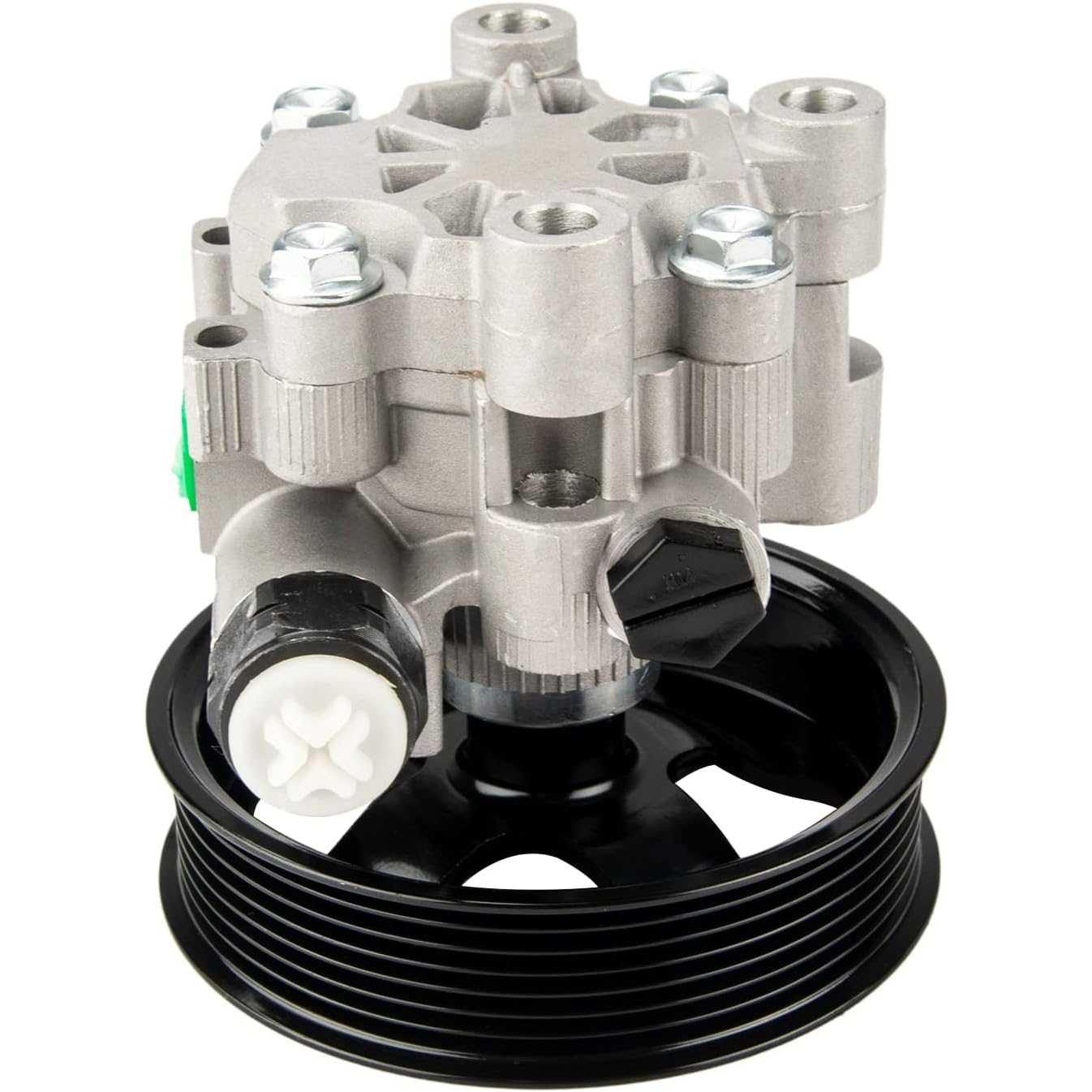

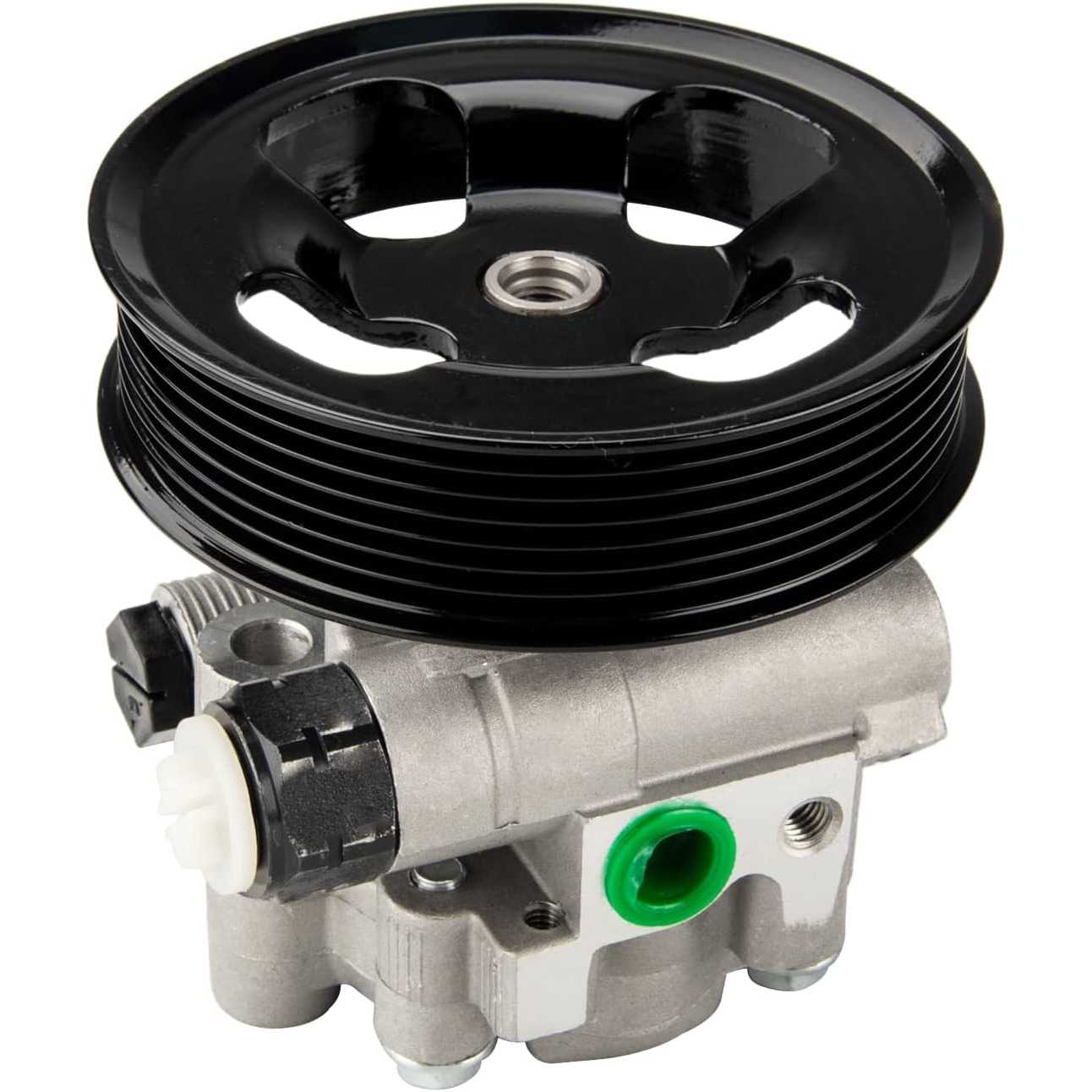

2007-2009 Toyota FJ Cruiser 4.0L | Power Steering Pump | 215363 - PHILTOP

2007-2009 Toyota FJ Cruiser 4.0L | Power Steering Pump | 215363 - PHILTOP

Complete Parts Range

Leak-Tested

Durable

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5723PSP1074US

Specifications

Brand
PHILTOP
Pulley Included
Yes
Reservoir Included
No
Pulley Attachment Type
Press-on
Outlet Connection Type
Threaded
Outlet Thread Size
16X1.5 in
Inlet Connection Type
Hose Barb
Drive Type
Engine
Material
Aluminium/Iron
Items Included

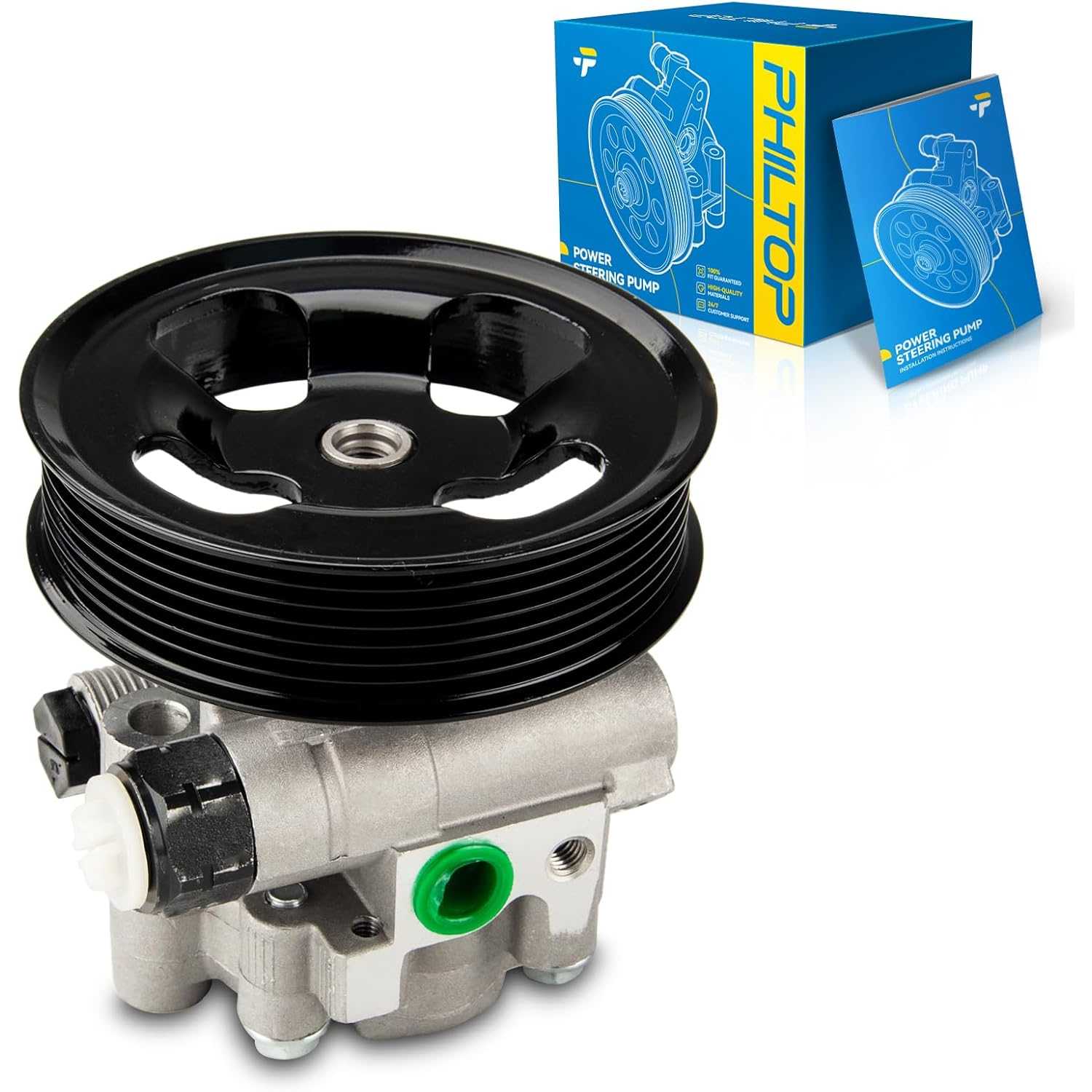

1x Power Steering Pump - 215363, 1x Manual
Warranty Period
2-Year
Part Number
215363

Highlights

  • (Fit Verification): Our products fit 4Runner 2003-2009 4.0L, FJ Cruiser 2007-2009, Sienna 2007-2010, Tundra 2005-2006 4.0L. but to perfectly fit your vehicle, you can use the year, make, and model in the 'Suncentautoconfirmedfit' filtering system in the upper left corner of the link to confirm compatibility.
  • (OEM Fit): 96-5363, 4431008020, 443100C050, 4431035660. Steering wheel pump can be installed easily without using complicated tools. Power assist pumps ia a great replacement that match the original parts.
  • (Material): Power steering reservoir built with premium quality material and multiple tests has been taken to ensure quality and durability with beautiful finish.Automotive steering system replacement parts maintain a good strength to give the parts long time performance.
  • (Installation): Before installing the power steering pump, it is highly recommended that the system be flushed. If there is noise after installing the steering pump, make sure that the air is expelled, the oil feed line is locked, the oil filter is not blocked, and the oil is clean and low viscosity.
  • (Function): Automotive steering system replacement parts assist you in solving the problems of leakage from old steering pump, difficult to turn or unresponsive steering wheel, groaning and squealing noises of the pump, when the vehicle starts.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2003 - 20092003 - 20092003 - 20092007 - 2009200720082007 - 20102007 - 20102007 - 20082007 - 20102005 - 20062005 - 2006
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
Model4Runner4Runner4RunnerFJ CruiserFJ CruiserFJ CruiserSiennaSiennaSiennaSiennaTundraTundra
TrimLimitedSR5SportBaseTRD Special EditionTrail Teams Special EditionCELELimitedXLEBaseSR5
Engine4.0L V64.0L V64.0L V64.0L V64.0L V64.0L V63.5L V63.5L V63.5L V63.5L V64.0L V64.0L V6
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0550-Power steering pressure sensor circuit — inspect the sensor connector and wiring.
  • P0551–P0553-Pressure sensor circuit range/performance or low/high input — check pressure, sensor signals, and wiring.
  • P0620-Generator control circuit — check the charging system and related wiring.
  • P0562-Low system voltage — check the battery, charging output, and power connections.

Codes alone do not confirm power steering pump failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Confirm fitment: Compare mounting points, pulley specifications, fluid ports, and any sensor connectors.
  • Inspect the system: Check fluid condition, hoses, seals, and the drive belt for leaks or damage.
  • Check the new pump: Inspect for shipping damage and confirm smooth pulley rotation where applicable.

Installation Steps

  • STEP 1 — Let the engine cool, disconnect the negative battery cable, and drain the power steering fluid.
  • STEP 2 — Photograph the belt routing and hose connections. Release belt tension and remove the belt from the pump.
  • STEP 3 — Disconnect hoses and any wiring. Cap open lines to keep out dirt, then remove the old pump.
  • STEP 4 — Clean or flush contaminated lines. Install the new pump with new specified seals and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses and wiring. Reinstall the belt with correct alignment and tension.
  • STEP 6 — Fill with the specified fluid and bleed the system using the vehicle-specific procedure. Never run the pump dry or hold the steering at full lock.

After Installation

  • Verify correct belt seating and secure hose connections.
  • With the engine idling, check for smooth steering assist without unusual noise or vibration.
  • Inspect the pump and lines for leaks.
  • Switch off the engine, allow the fluid to settle, and recheck the level.

Product Video

Product Description

1steering1

Reviews

4.6/5

Based on 7 reviews

571%
414%
314%
20%
10%

Ashley_RoadTrip_450

01/12/2026

Steering feels smooth and responsive again, exactly like it should. This pump totally solved my power steering issues. So happy with this purchase.

Kelly_SUV_Life_568

11/09/2025

My steering is so much better now, no more weird noises or difficulty turning. This pump fixed the exact issue I was having. It's a great replacement part.

FAQS

Mismatched high-pressure interface size, aging of sealing ring or gasket. The low-pressure pipe is damaged or loosened: Check whether the oil pipe is loose after tightening the bolts, and whether the gasket or seal is deformed.

1. The long storage time causes the vanes to be stuck by oil: Check for oil fluctuations in oil tank. 2. Faults of tie rods, ball cages, tires, steering gear: Check the relevant parts
