2011-2015 GMC Sierra 2500 HD 6.0L | Power Steering Pump w/Reservoir | 965001R - PHILTOP

2011-2015 GMC Sierra 2500 HD 6.0L | Power Steering Pump w/Reservoir | 965001R - PHILTOP

Complete Parts Range

Leak-Tested

Durable

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1602PSP4627US

Specifications

Brand
PHILTOP
Pulley Included
No
Reservoir Included
Yes
Pulley Attachment Type
Press-on
Outlet Connection Type
Threaded
Outlet Thread Size
16X1.5 in
Inlet Connection Type
Hose Barb
Drive Type
Engine
Material
Aluminium/Iron
Items Included

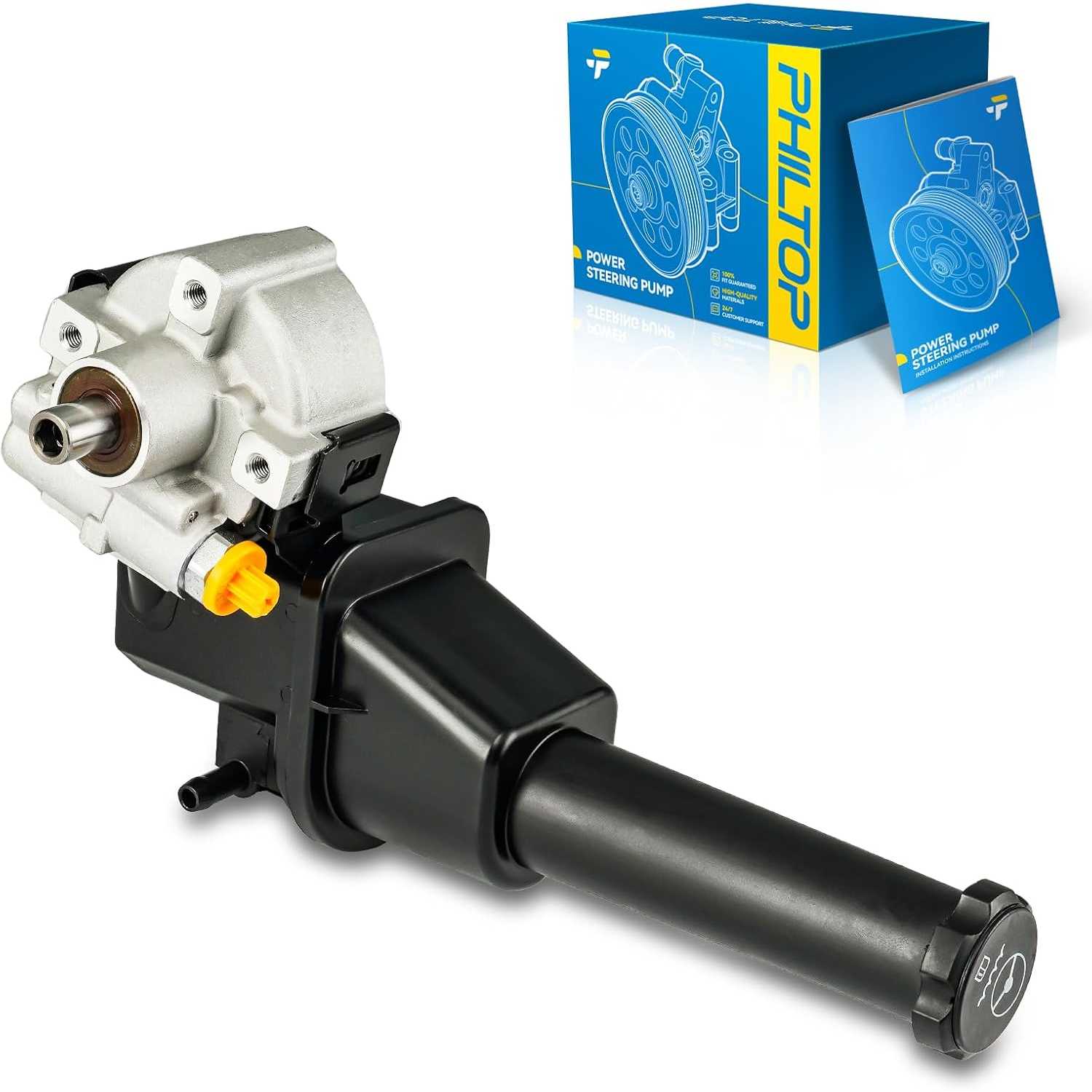

1x Power Steering Pump - 965001R, 1x Manual
Warranty Period
2-Year
Part Number
965001R

Highlights

  • (Vehicle Fitment)2011 2012 2013 2014 2015 Silverado 2500 HD/3500 HD 6.0L,2011-2015 Sierra 2500 HD/3500 HD 6.0L
  • (OE Replacement)96-5001R、20953569, Condition: Brand New (Not Remanufactured); Pulley Included: No, Reservoir Included: Yes, Inlet Attachement Type:Hose Barb, Outlet Attachment Type: Threaded, Pulley attachment types: Press-on, Outlet inner diameter size: 16X1.5
  • (Excellent Quality)The Power Steering Pump is mainly made of high-strength aluminum alloy or iron and other high-quality metal materials, with excellent corrosion resistance and service life; the internal key components are made of high-quality engineering plastics, and undergo strict material selection and processing technology to ensure a higher reliability.
  • (Reliable and Durable)The Power Steering Pump adopts advanced CNC machining technology, with strict tolerance control of each component and high assembly accuracy. It also adopts high-quality seals and lubrication system design to effectively prevent oil leakage and wear. Product performance indicators meet or exceed industry standards.
  • (Professional After-sales)Before placing the order,please check your car model in the Suncentauto Fitment Filter System in the top left corner,Do not count on year make and model only,view compatability tab including the notes.Any problem please free to contact us and you will get a satisfactory solution.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20152011 - 20152011 - 20152011 - 201520152011 - 20152011 - 20152011 - 201520152011 - 20152011 - 20152011 - 20152011 - 201420152011 - 20152011 - 20152011 - 20152011 - 2014
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMC
ModelSilverado 2500 HDSilverado 2500 HDSilverado 2500 HDSilverado 2500 HDSilverado 3500 HDSilverado 3500 HDSilverado 3500 HDSilverado 3500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 3500 HDSierra 3500 HDSierra 3500 HDSierra 3500 HDSierra 3500 HD
TrimHigh CountryLTLTZWTHigh CountryLTLTZWTBaseDenaliSLESLTWTBaseDenaliSLESLTWT
Engine6.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V8
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Included;with Seal Kit

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0550-Power steering pressure sensor circuit — inspect the sensor connector and wiring.
  • P0551–P0553-Pressure sensor circuit range/performance or low/high input — check pressure, sensor signals, and wiring.
  • P0620-Generator control circuit — check the charging system and related wiring.
  • P0562-Low system voltage — check the battery, charging output, and power connections.

Codes alone do not confirm power steering pump failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Confirm fitment: Compare mounting points, pulley specifications, fluid ports, and any sensor connectors.
  • Inspect the system: Check fluid condition, hoses, seals, and the drive belt for leaks or damage.
  • Check the new pump: Inspect for shipping damage and confirm smooth pulley rotation where applicable.

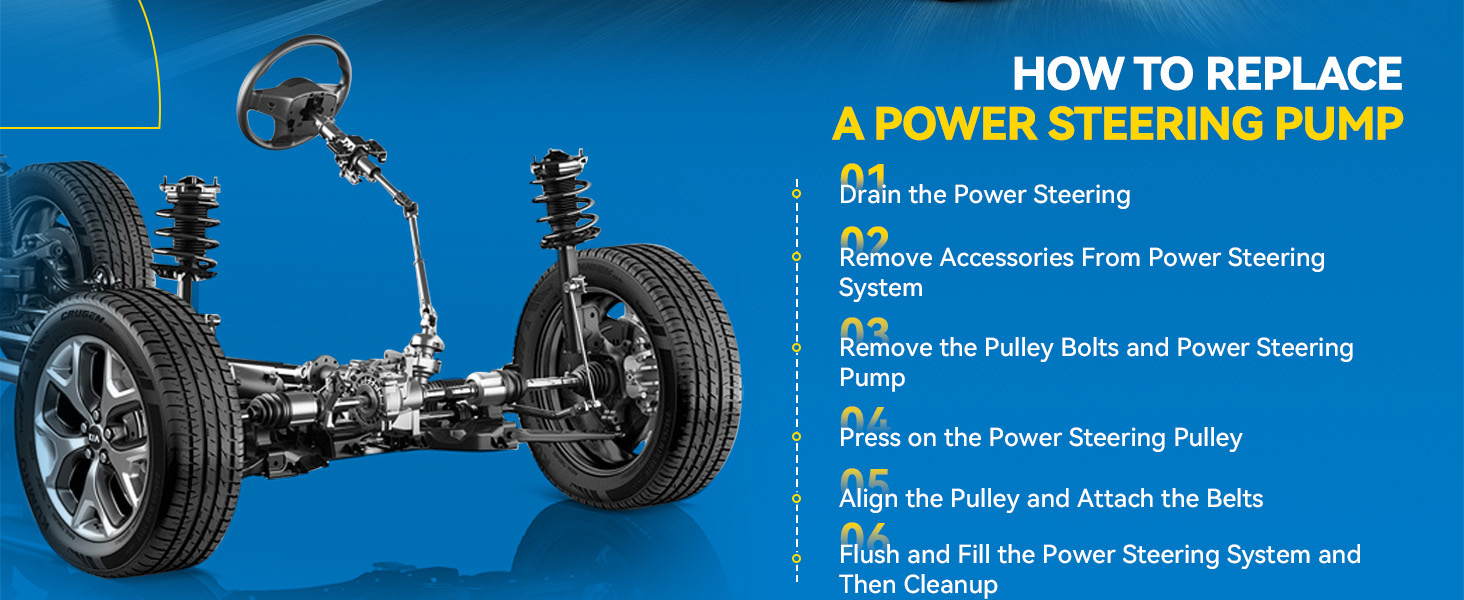

Installation Steps

  • STEP 1 — Let the engine cool, disconnect the negative battery cable, and drain the power steering fluid.
  • STEP 2 — Photograph the belt routing and hose connections. Release belt tension and remove the belt from the pump.
  • STEP 3 — Disconnect hoses and any wiring. Cap open lines to keep out dirt, then remove the old pump.
  • STEP 4 — Clean or flush contaminated lines. Install the new pump with new specified seals and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses and wiring. Reinstall the belt with correct alignment and tension.
  • STEP 6 — Fill with the specified fluid and bleed the system using the vehicle-specific procedure. Never run the pump dry or hold the steering at full lock.

After Installation

  • Verify correct belt seating and secure hose connections.
  • With the engine idling, check for smooth steering assist without unusual noise or vibration.
  • Inspect the pump and lines for leaks.
  • Switch off the engine, allow the fluid to settle, and recheck the level.

Product Video

Product Description

Power Steering PumpSteering Pump

Reviews

4.8/5

Based on 5 reviews

580%
420%
30%
20%
10%

DIY_Karen_358

10/19/2025

The craftsmanship on this pump is excellent. It's heavy duty and looks like a factory part. For the price, it's an unbelievable value. Very satisfied with the build quality.

CarGuy_John_476

12/31/2025

Super easy to install and arrived faster than I anticipated. Everything fit like a glove. The steering feels responsive and smooth again. Great job on the quick delivery!

FAQS

Mismatched high-pressure interface size, aging of sealing ring or gasket. The low-pressure pipe is damaged or loosened: Check whether the oil pipe is loose after tightening the bolts, and whether the gasket or seal is deformed.

1. The long storage time causes the vanes to be stuck by oil: Check for oil fluctuations in oil tank. 2. Faults of tie rods, ball cages, tires, steering gear: Check the relevant parts

1.Power steering fluid low: Check oil tank level. 2. Air in the boost system: Check the oil for air bubbles. 3. Aging pipes and clip: Check the aging of low pressure pipe. 4. Rotational system issues: Check associated axle clearance except crankshaft
