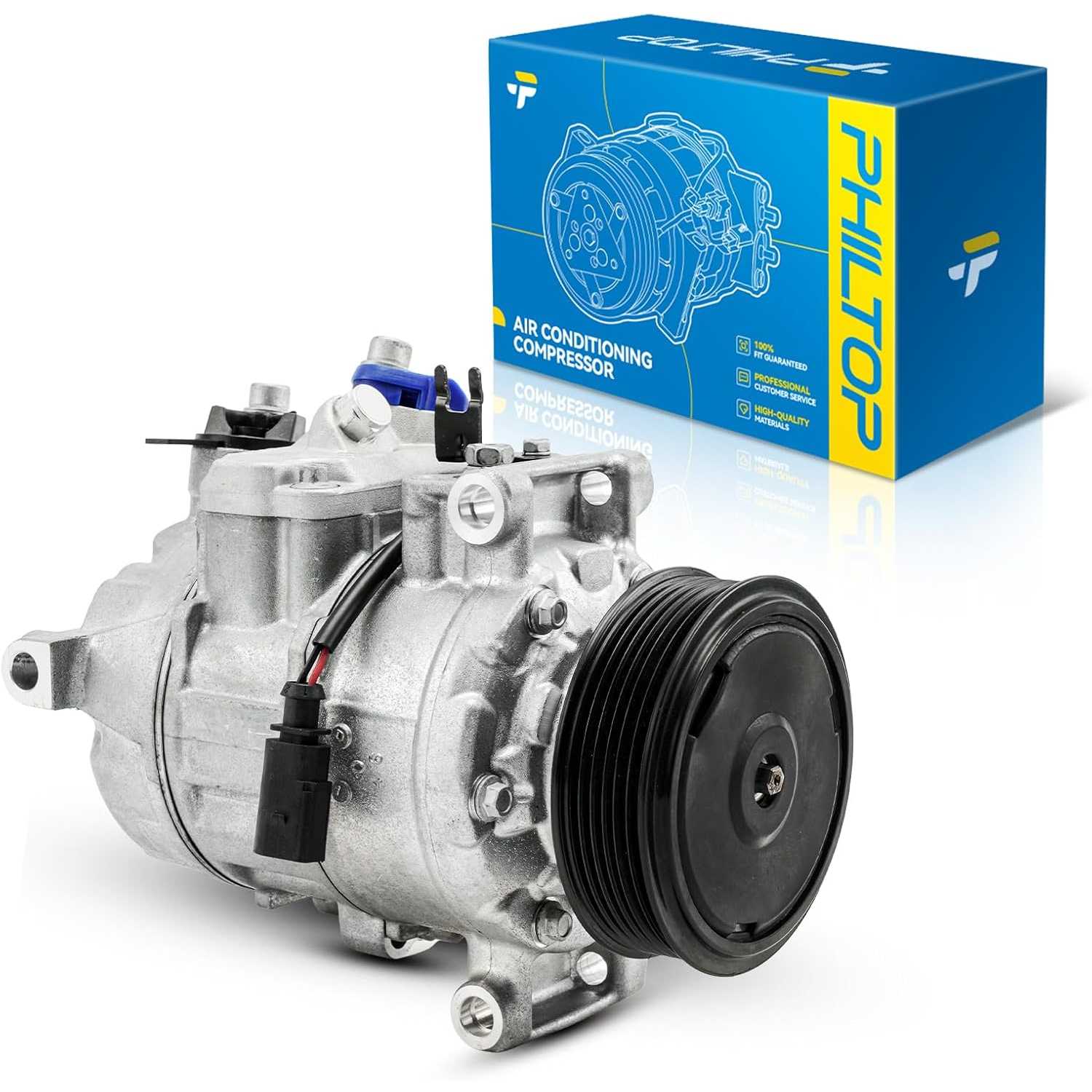

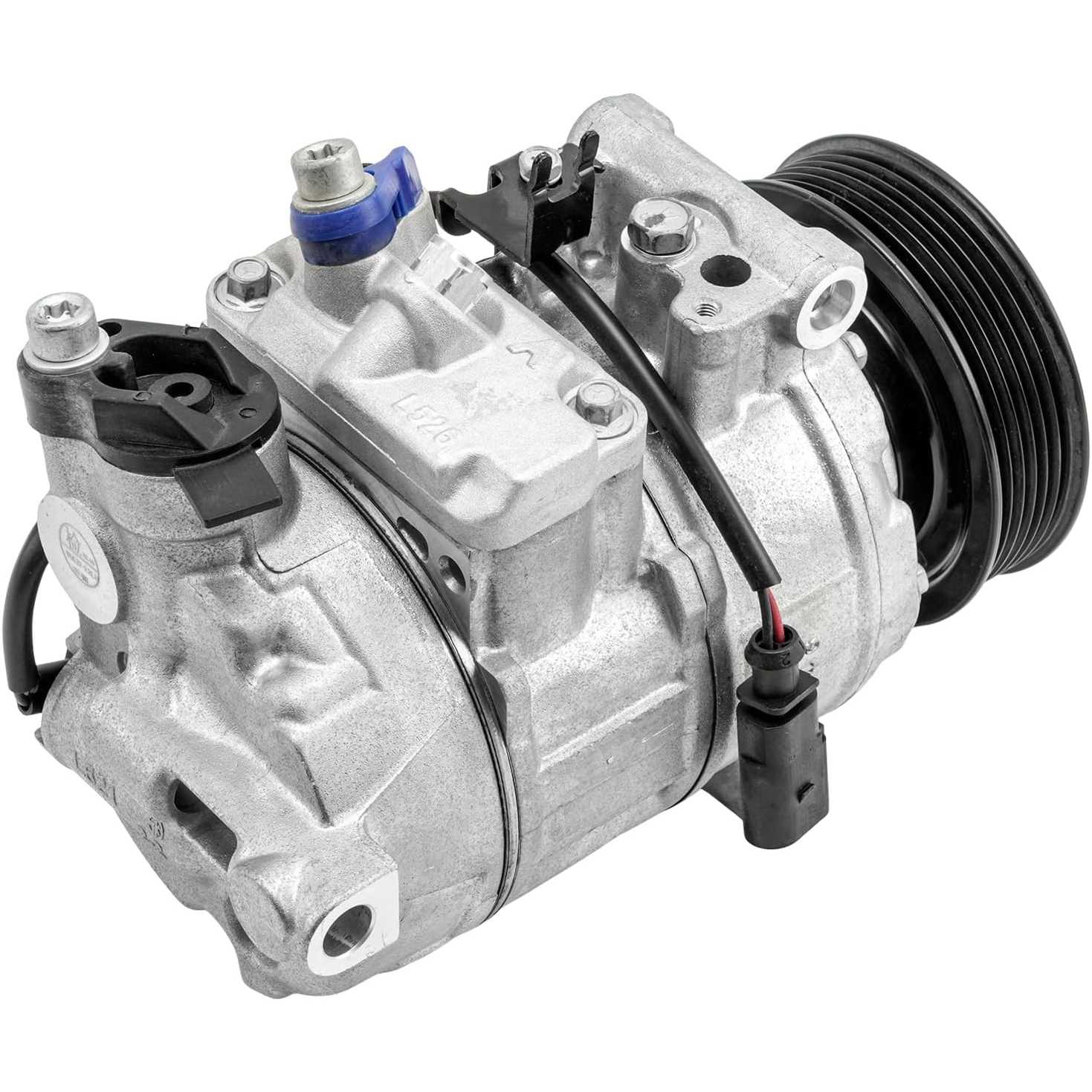

2018-2023 Porsche Macan 2.0L/3.0L/3.6L | 6SEU14C New A/C Compressor | OE#8K0260805E/98350 - PHILTOP

2018-2023 Porsche Macan 2.0L/3.0L/3.6L | 6SEU14C New A/C Compressor | OE#8K0260805E/98350 - PHILTOP

PAG

6SEU14C

R134a

4.2

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7909ACC324FUS

Specifications

Brand
PHILTOP
Oil Type
Pag 46
Compressor Type
6SEU14C
Belt Type
Multi-Groove Serpentine
Refrigerant Type
R134a

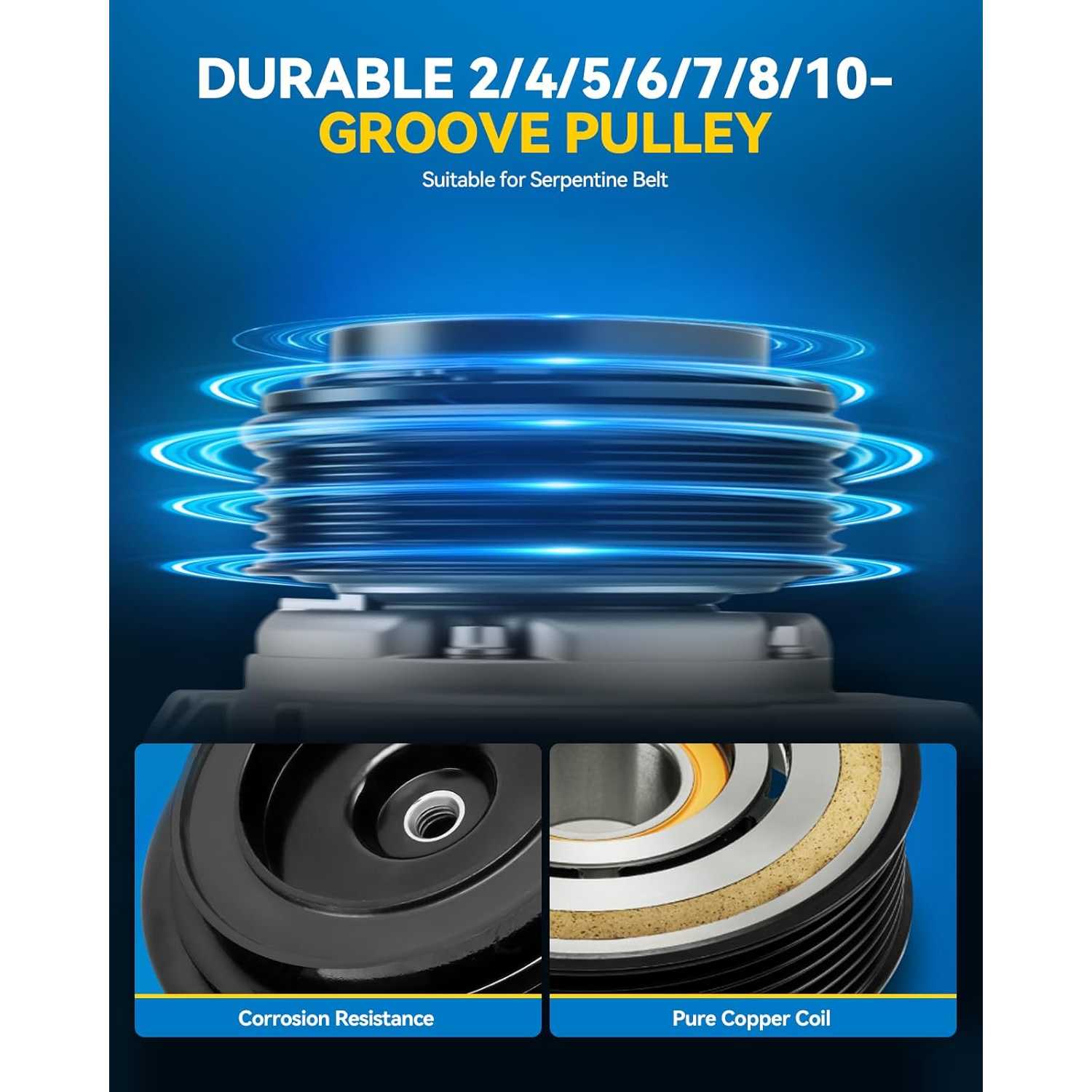

Pulley Groove Count
6
Items Included
1x A/C Compressors & Clutches - 98350,1x Manual
Material

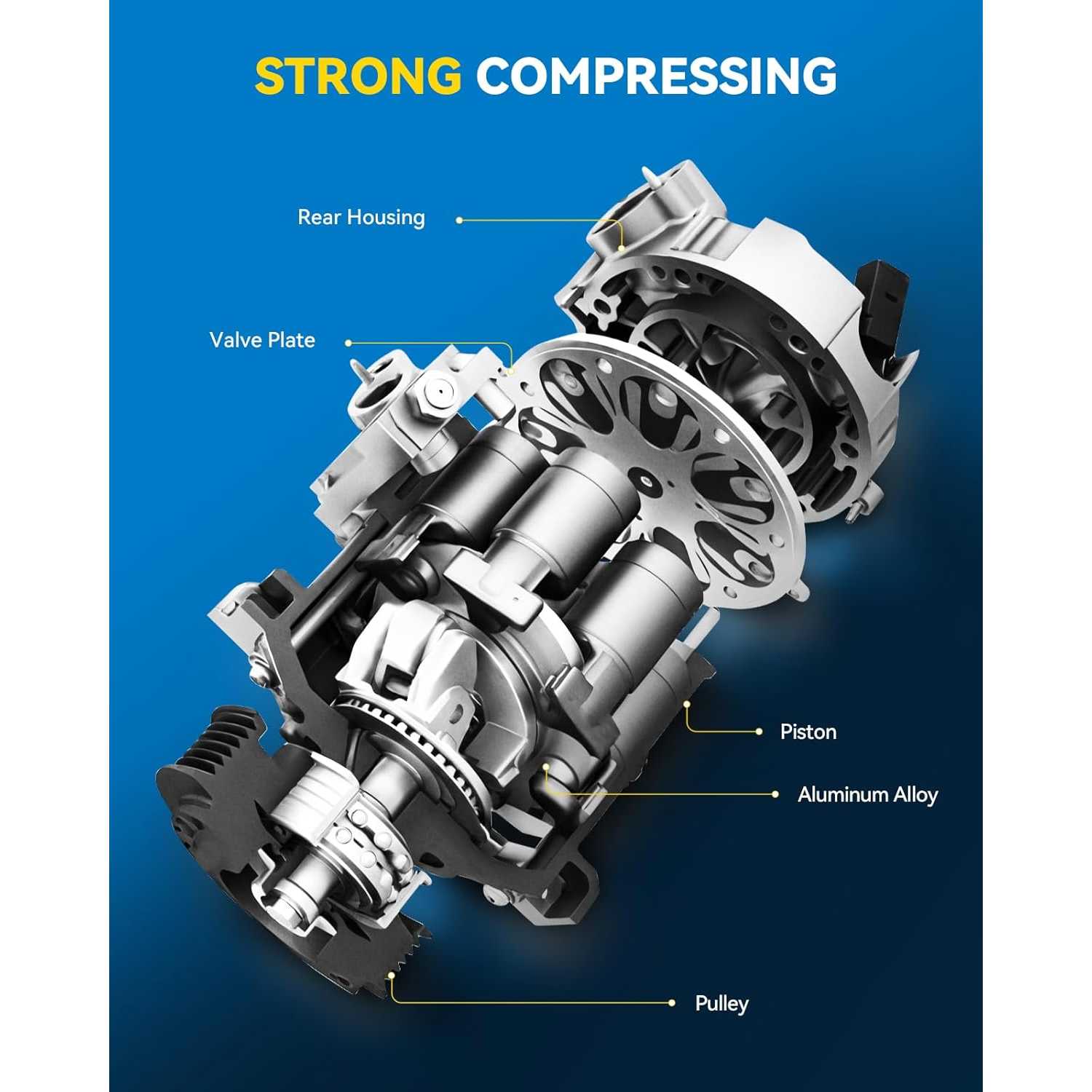

Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Noise Level Range
65-75 dB
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
Tangent Mount
Clutch Diameter
4 in/101.60 mm
Mounting Distance
1.22 in/30.99 mm
Maximum Working Pressure
22 bar
Warranty Period
2-Year
OE Number
8K0260805E,8K0260805L,8E0260805CB,8E0260805BJ,8E0260805BF,8E0260805BA,8E0260805BS,8T0260805N,8T0260805E,8K0260805M,4G0260805D,8E0260805AS
Part Number
98350,6512804,639883

Highlights

  • #3,112,599 in Automotive (See Top 100 in Automotive)
  • #11,990 in Automotive Replacement Air Conditioning Compressors

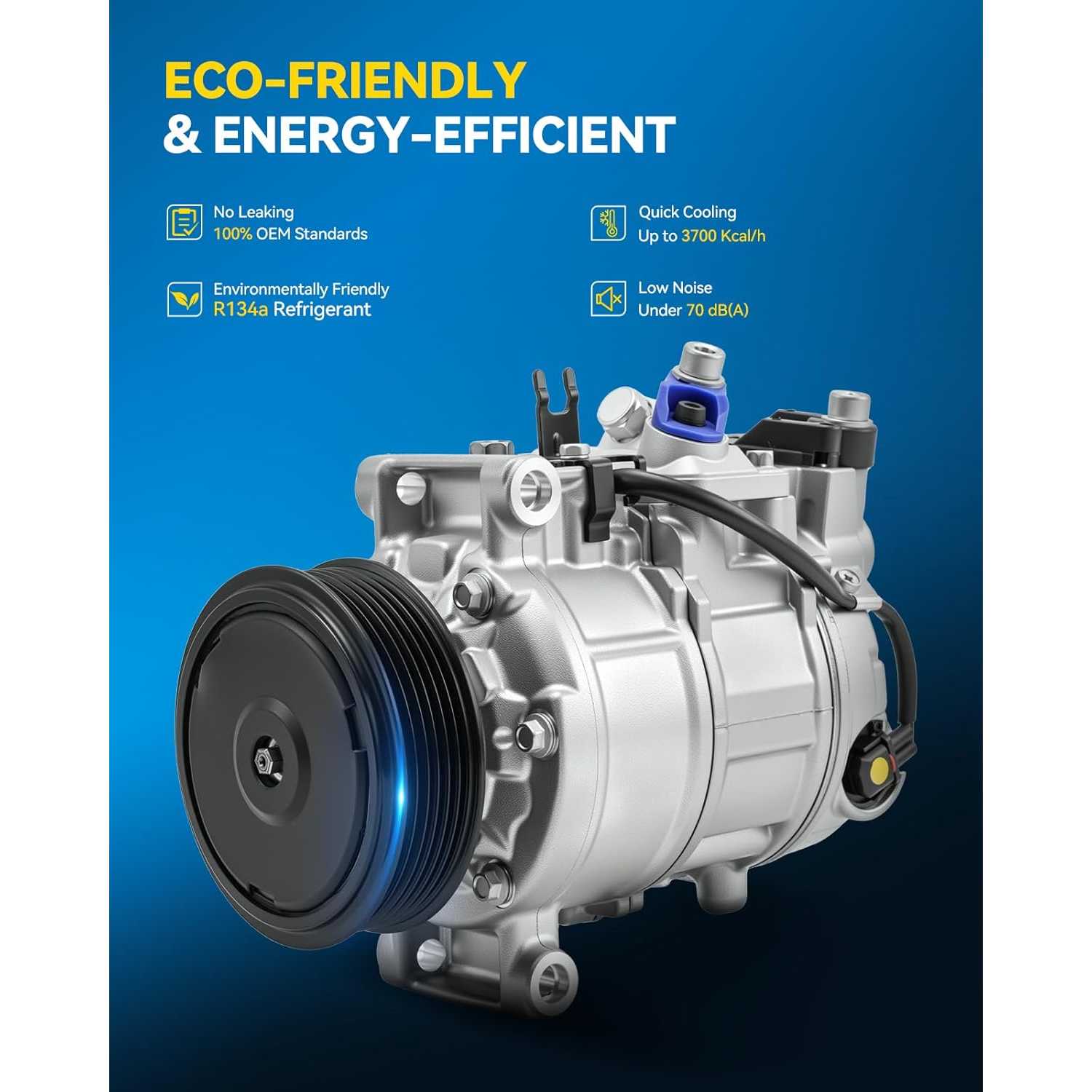

  • Ensures Fast Refrigeration And Defogging: ①Oil Type:PAG 46;②R-efrigerant Type:R134a;③Pulley Grooves: 6;④Pulley Diameter:4.00 inch ;⑤Compressor type:6SEU14C;⑥Pulley type:Multi-Groove Serpentine;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.
  • GUARANTEED COMPATIBILITY - AC Compressor replacement to 98350, 815543, 140287NEW, CS20080, 6512804, 639883, 6512405, 8E0260805AS, 8E0260805BA, 8E0260805BF, 8E0260805BJ, 8E0260805BS, 8E0260805CB, 8K0260805E, 8K0260805L
  • PERFECT FIT - A perfect fit for Q5 2013-2017 2.0T, A4 Quattro 2010-2015, Q5 2010-2012, A5 Quattro 2011-2017, A4 Quattro 2005-2006 2008-2009 2.0T, A4 2005 2010-2015, Ma-can 2018, Ma-can 2020 2022-2023 2.0T, Q3 Quattro 2015-2016, A4 2006 2008-2009 2.0T, allroad 2013-2016, A6 Quattro 2006, A4 Quattro 2004-2005 3.0L, A5 Quattro 2010 2.0T, Q3 2015-2016, A4 Quattro 2005 1.8T, A5 2010-2014, A4 2006 1.8T, A4 Quattro 2009 3.2L, A4 2004 3.0L, A6 2006, Q7 2013 3.0L
  • ENSURES FAST DEFOGGING AND DEFROSTING - Our air conditioning compressor is crucial for winter visibility. It drives the system to dehumidify the incoming air, quickly clearing frost and condensation from the windshield and windows, ensuring safer driving in cold and wet conditions
  • FULLY TESTED & EASY INSTALLATION - The ac compressor with clutch has been examined and tested carefully before its delivery. Air conditioning compressor is pre-filled with oil upon delivery, therefore, there is no need to add oil during initial use. Excessive oil addition may damage the ac compressor

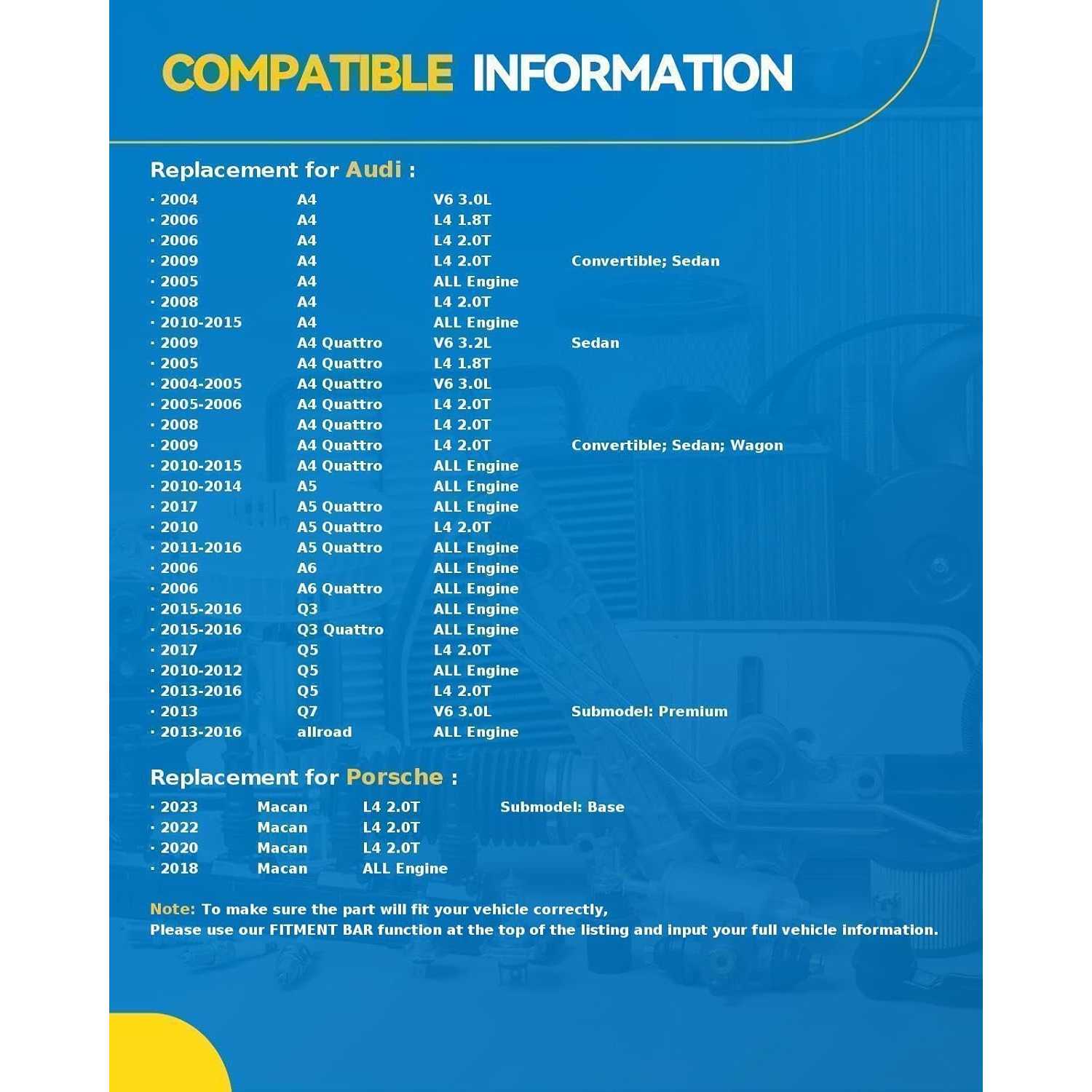

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20052005 - 201420042005 - 20062007 - 200920042015 - 20162015 - 2016201520052005 - 2012200420052005 - 201420042007 - 200920042015 - 20162015 - 201620152010 - 20142010 - 20142010 - 20142015 - 20162015 - 20162015201720062006200620062011 - 20172011 - 20172013 - 20162013 - 20162013 - 2015
MakeAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudi
ModelA4A4A4A4A4A4A4A4A4A4 QuattroA4 QuattroA4 QuattroA4 QuattroA4 QuattroA4 QuattroA4 QuattroA4 QuattroA4 QuattroA4 QuattroA4 QuattroA5A5 QuattroA5 QuattroA5 QuattroA5 QuattroA5 QuattroA5 QuattroA6A6 QuattroA6 QuattroA6 QuattroQ5Q5allroadallroadallroad
TrimBaseBaseBaseCabrioletCabrioletCabrioletPremiumPremium PlusPrestigeAvantAvantAvantBaseBaseBaseCabrioletCabrioletPremiumPremium PlusPrestigeCabrioletBaseCabrioletPremiumPremium PlusPrestigeSportBaseAvantBaseBasePremiumPremium PlusPremiumPremium PlusPrestige
Engine1.8L L42.0L L43.0L V61.8L L42.0L L43.0L V62.0L L42.0L L42.0L L41.8L L42.0L L43.0L V61.8L L42.0L L43.0L V62.0L L43.0L V62.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L43.2L V63.2L V63.2L V64.2L V82.0L L42.0L L42.0L L42.0L L42.0L L4
Note
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor
w/ 6SEU14C Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

compressorcompressor

Reviews

4.2/5

Based on 5 reviews

540%
440%
320%
20%
10%

Jennifer_Auto_778

02/21/2026

My AC was completely out, and this part fixed it completely. It's a night and day difference now. Glad I went with this one.

CarGuy_John_793

01/08/2026

Super easy to put in, honestly. Came pretty fast too, which was a nice surprise. My car is finally cool again, big relief!

FAQS

A/C compressor replacement usually requires refrigerant recovery, vacuum, measured charging, and contamination checks. Professional service is recommended when the required equipment or procedures are unavailable.

Check oil quantity, refrigerant charge, belt alignment and tension, mounting, and system pressure. Stop operating the A/C if severe noise or binding occurs and inspect the system.

Please do not install the product. Take photos of the item, packaging and shipping label, then contact Philtop customer support as soon as possible for assistance.
