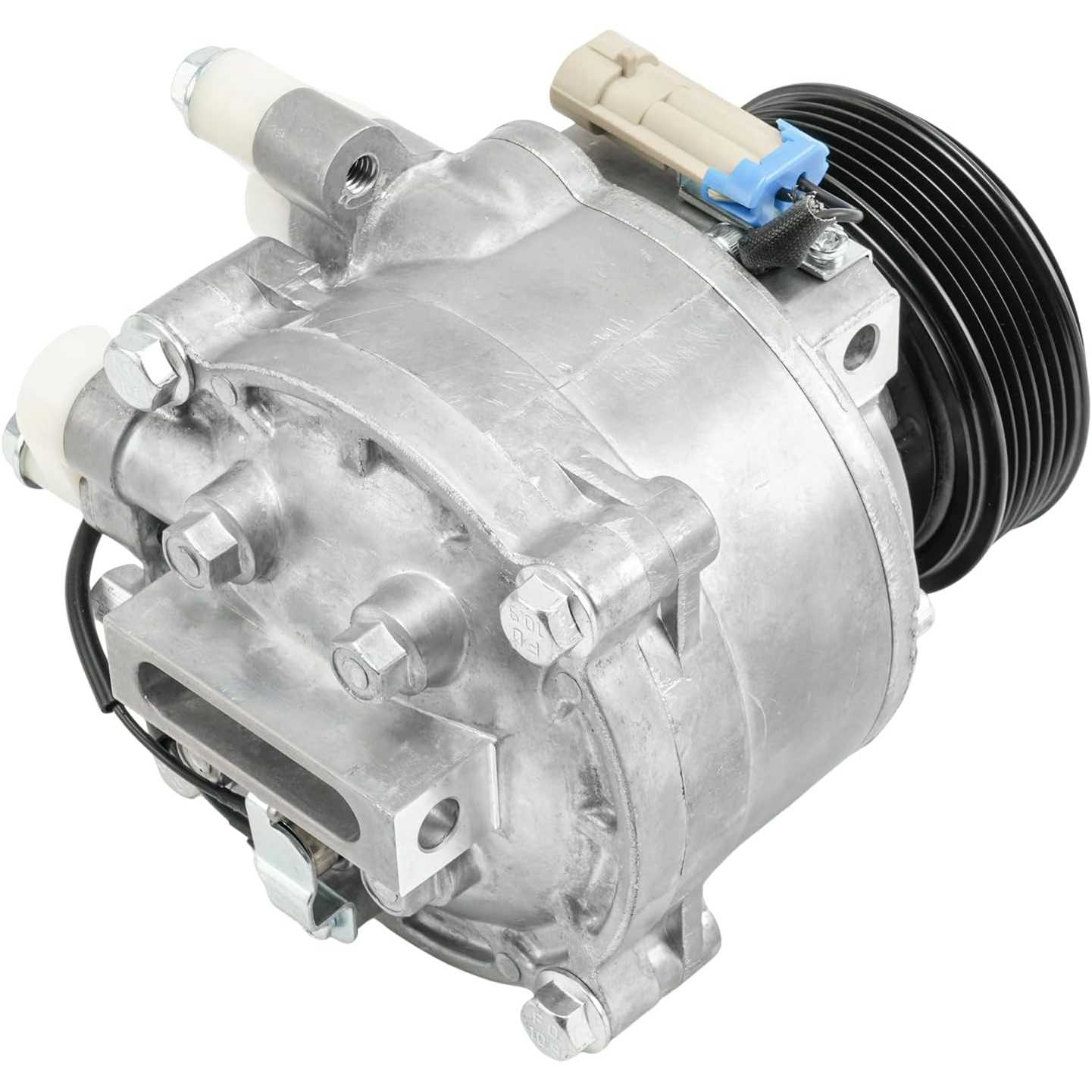

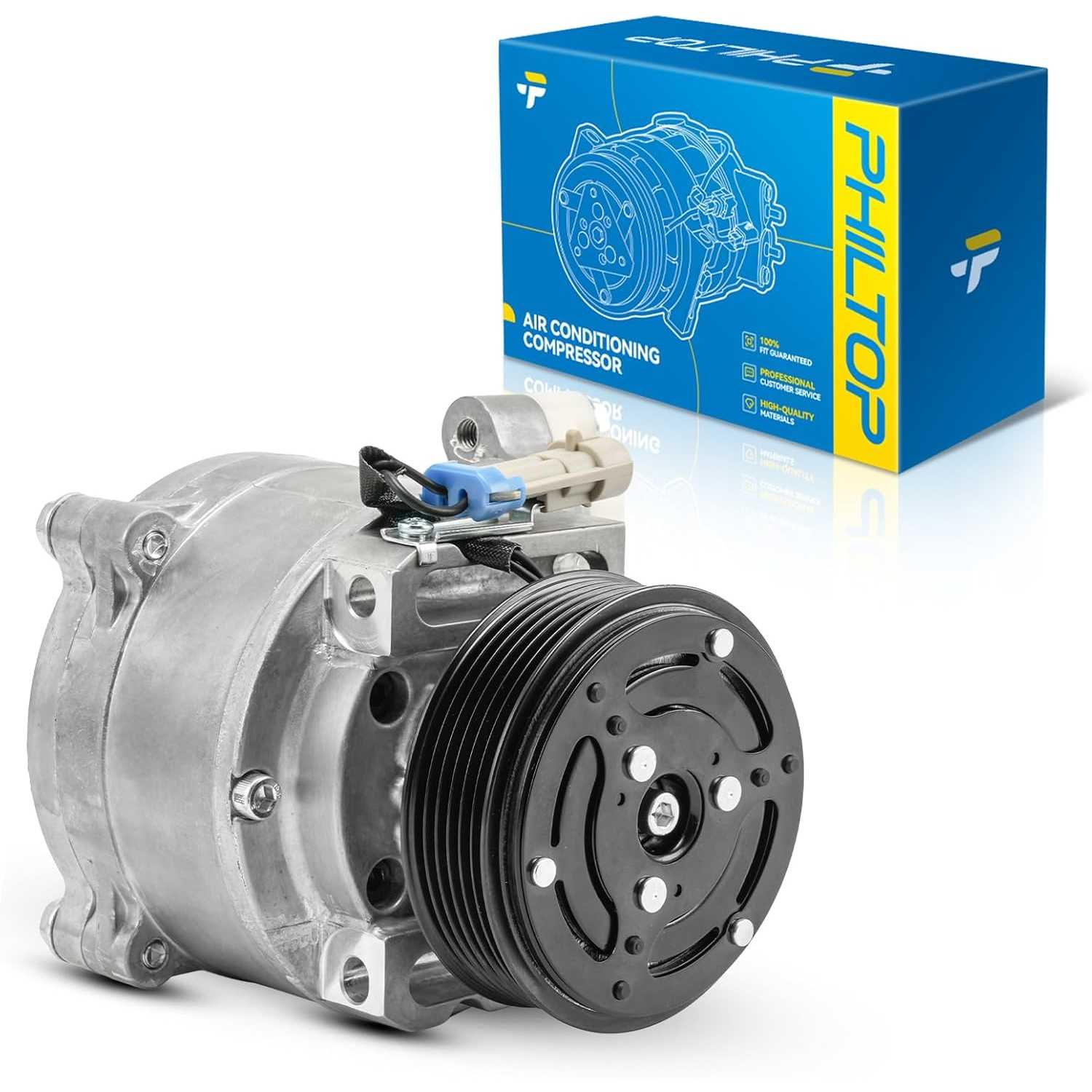

2015-2022 Chevrolet Trax 1.4L L4 | QS90 New A/C Compressor | 94517800/6513004 - PHILTOP

2015-2022 Chevrolet Trax 1.4L L4 | QS90 New A/C Compressor | 94517800/6513004 - PHILTOP

PAG

QS90

R-134a or R1234yf

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8720ACC330MUS

Specifications

Brand
PHILTOP
Oil Type
-
Compressor Type
QS90
Belt Type
Multi-Groove Serpentine
Refrigerant Type
R-134a or R1234yf
Pulley Groove Count
6
Items Included
1x A/C Compressors & Clutches - 98495,1x Manual
Material
Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Noise Level Range
65-75 dB
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
3 Tangent One On Rear Head
Clutch Diameter
3.72 in/94.49 mm
Mounting Distance
0.74 in/18.796 mm
Maximum Working Pressure
18 bar
Warranty Period
2-Year
OE Number
94517800,95370312,95932749,42783843,42623009,42698422,42456946
Part Number
6513004,98495

Highlights

  • Ensures Fast Refrigeration And Defogging: ①Oil Type:-;②R-efrigerant Type:R-134a or R1234yf;③Pulley Grooves: 6;④Pulley Diameter:3.72 inch ;⑤Compressor type:QS90;⑥Pulley type:Multi-Groove Serpentine;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.
  • GUARANTEED COMPATIBILITY - AC Compressor replacement to 98495, 6513004, 7422068, 42456946, 42623009, 42623328, 42698422, 42783843, 94517800, 95370312, 95932749, CO22301Z, 279018, A79018
  • PERFECT FIT - A perfect fit for Trax 2015-2022, Encore 2013-2022, Encore GX 2020-2021, Sonic 2013-2018 1.4T, Sonic 2019-2020
  • ENSURES FAST DEFOGGING AND DEFROSTING - Our air conditioning compressor is crucial for winter visibility. It drives the system to dehumidify the incoming air, quickly clearing frost and condensation from the windshield and windows, ensuring safer driving in cold and wet conditions
  • FULLY TESTED & EASY INSTALLATION - The ac compressor with clutch has been examined and tested carefully before its delivery. Air conditioning compressor is pre-filled with oil upon delivery, therefore, there is no need to add oil during initial use. Excessive oil addition may damage the ac compressor

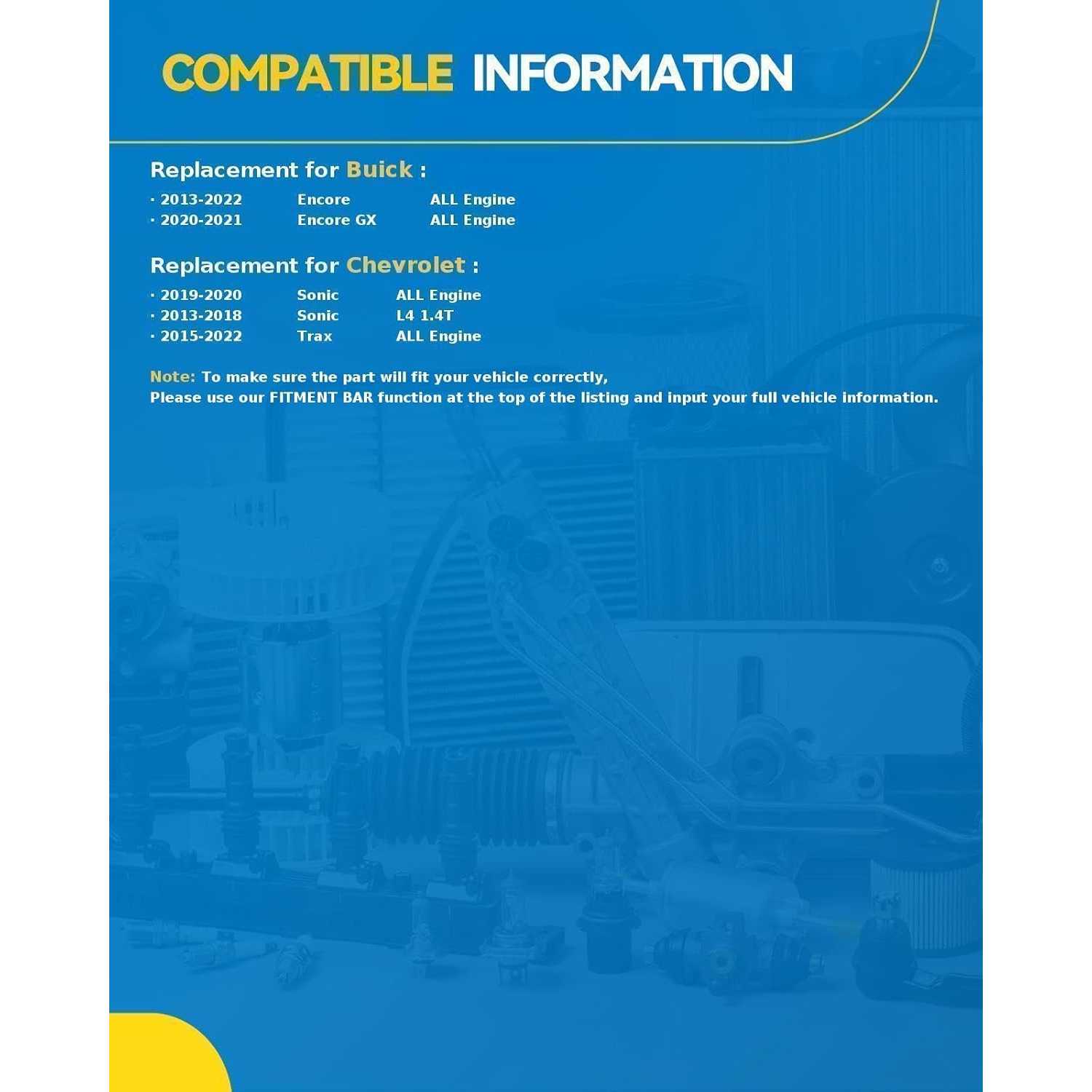

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2013 - 20212013 - 20162017 - 20202013 - 20162017 - 20222017 - 20182013 - 20182016 - 20202020 - 20212020 - 20212020 - 20212020 - 20212020 - 20212020 - 20212019 - 20202013 - 20202013 - 20162017 - 20202013 - 20162015 - 20222015 - 20222015 - 20162017 - 2020
MakeBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevrolet
ModelEncoreEncoreEncoreEncoreEncoreEncoreEncoreEncoreEncore GXEncore GXEncore GXEncore GXEncore GXEncore GXSonicSonicSonicSonicSonicTraxTraxTraxTrax
TrimBaseConvenienceEssenceLeatherPreferredPreferred IIPremiumSport TouringEssenceEssencePreferredPreferredSelectSelectLSLTLTZPremierRSLSLTLTZPremier
Engine1.4L L41.4L L41.4L L41.4L L41.4L L41.4L L41.4L L41.4L L41.2L L31.3L L31.2L L31.3L L31.2L L31.3L L31.4L L41.4L L41.4L L41.4L L41.4L L41.4L L41.4L L41.4L L41.4L L4
Note
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor
w/ QS90 Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.

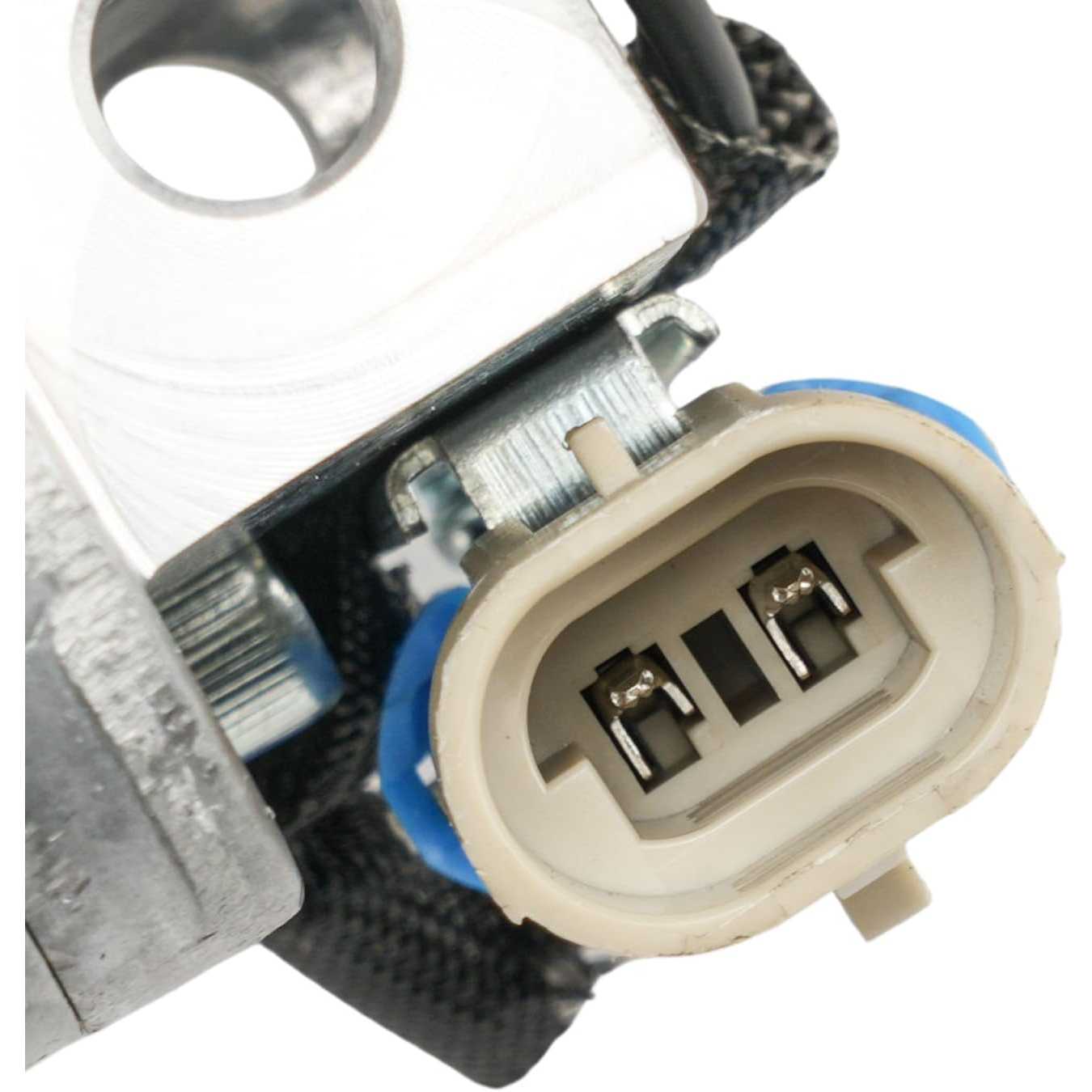

  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

compressorcompressor

Reviews

4.5/5

Based on 2 reviews

550%
450%
30%
20%
10%

DaveTheMechanic_943

04/30/2026

This compressor arrived super fast and was a breeze to install on my Chevy Trax. The AC is blowing cold air again, which is amazing. Highly recommend for the quick shipping and easy installation.

Rob_HomeGarage_927

03/25/2026

Good quality part for the price. It was missing one small piece, but I contacted customer service and they sent it out right away, so that was great. The AC is working perfectly now.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

The system normally needs to be properly evacuated and leak-tested before charging. A/C service equipment and refrigerant handling should follow local requirements.

Possible causes include low refrigerant pressure, a fuse or relay issue, wiring, control logic, a pressure sensor, or clutch-related conditions. Diagnose the control circuit before replacing parts.
