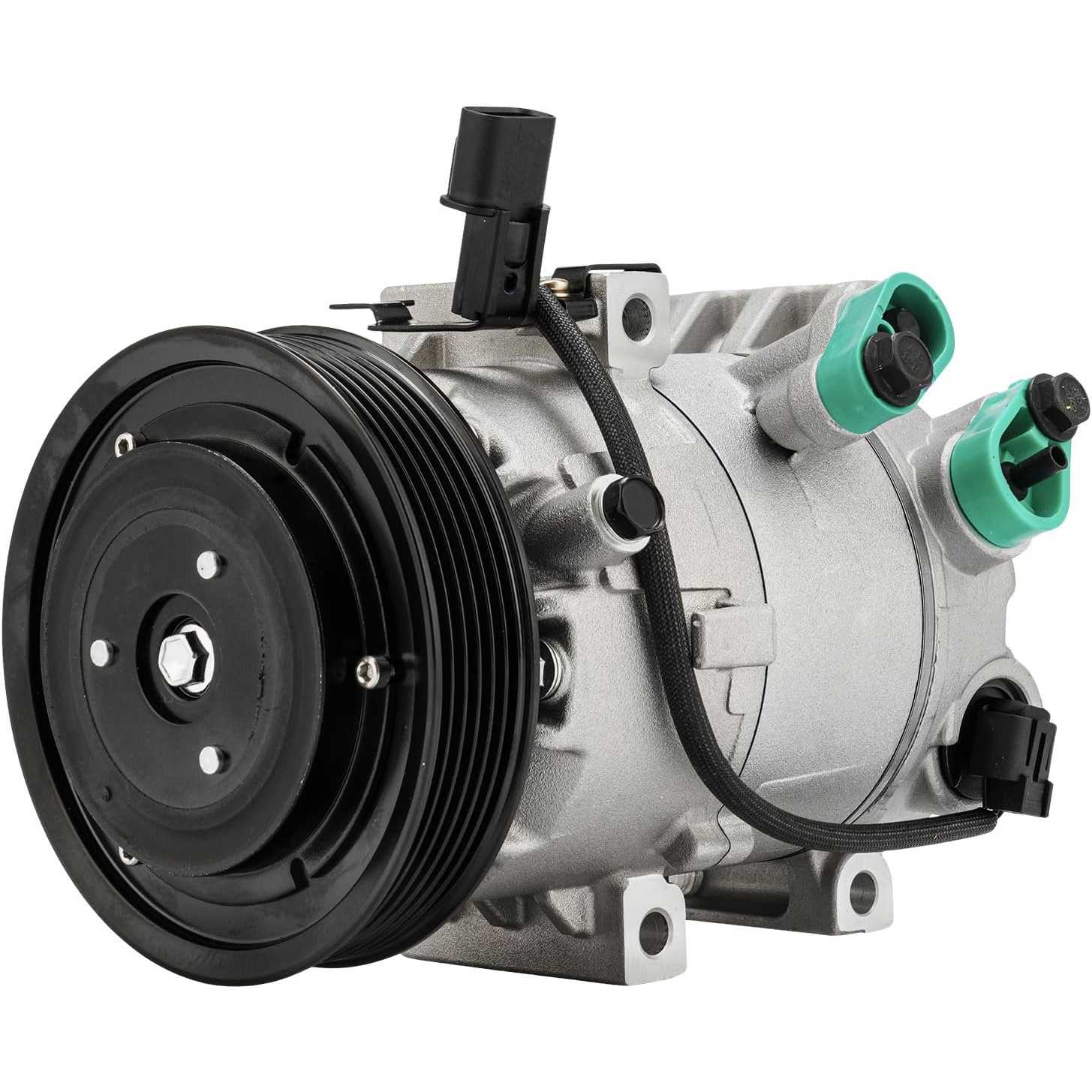

2017-2020 Hyundai Elantra 1.6L L4 | New A/C Compressor | OE#97701A5501/168306 - PHILTOP

2017-2020 Hyundai Elantra 1.6L L4 | New A/C Compressor | OE#97701A5501/168306 - PHILTOP

PAG

VS14E

R-134a or R1234yf

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4576ACC464YUS

Specifications

Brand
PHILTOP
Oil Type
-
Compressor Type
VS14E
Belt Type
Multi-Groove Serpentine
Refrigerant Type
R-134a or R1234yf

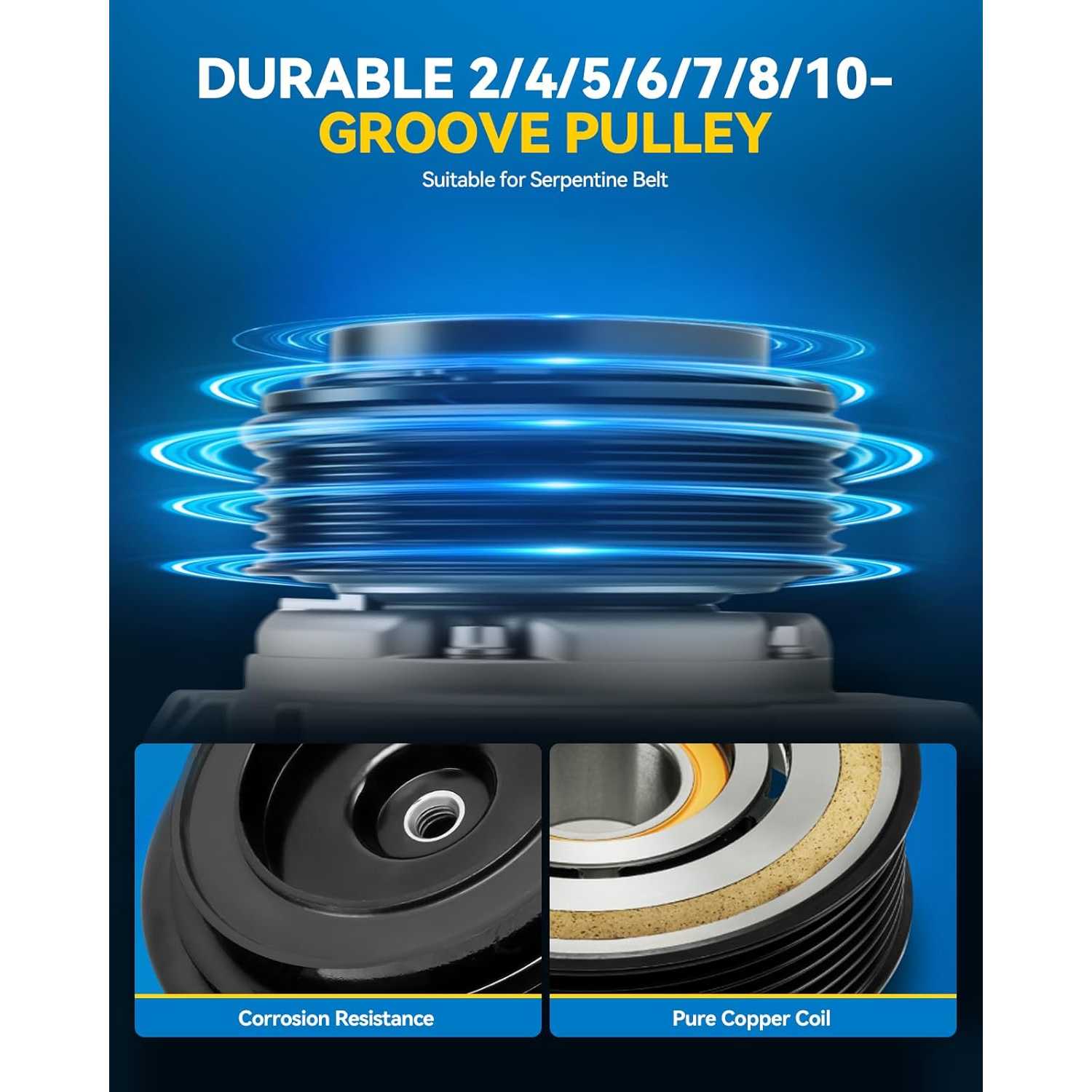

Pulley Groove Count
6
Items Included

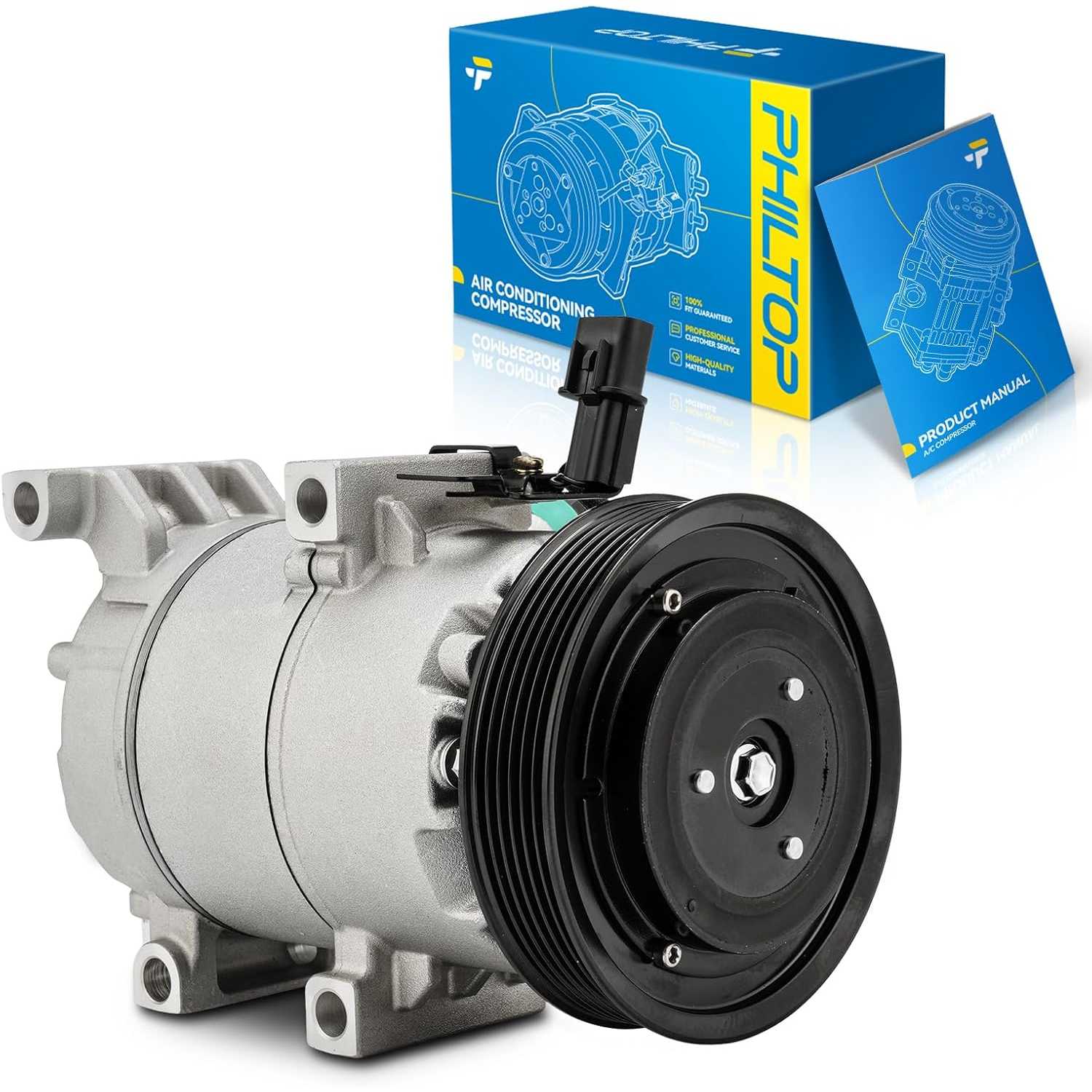

1x A/C Compressors & Clutches - 168306,1x Manual

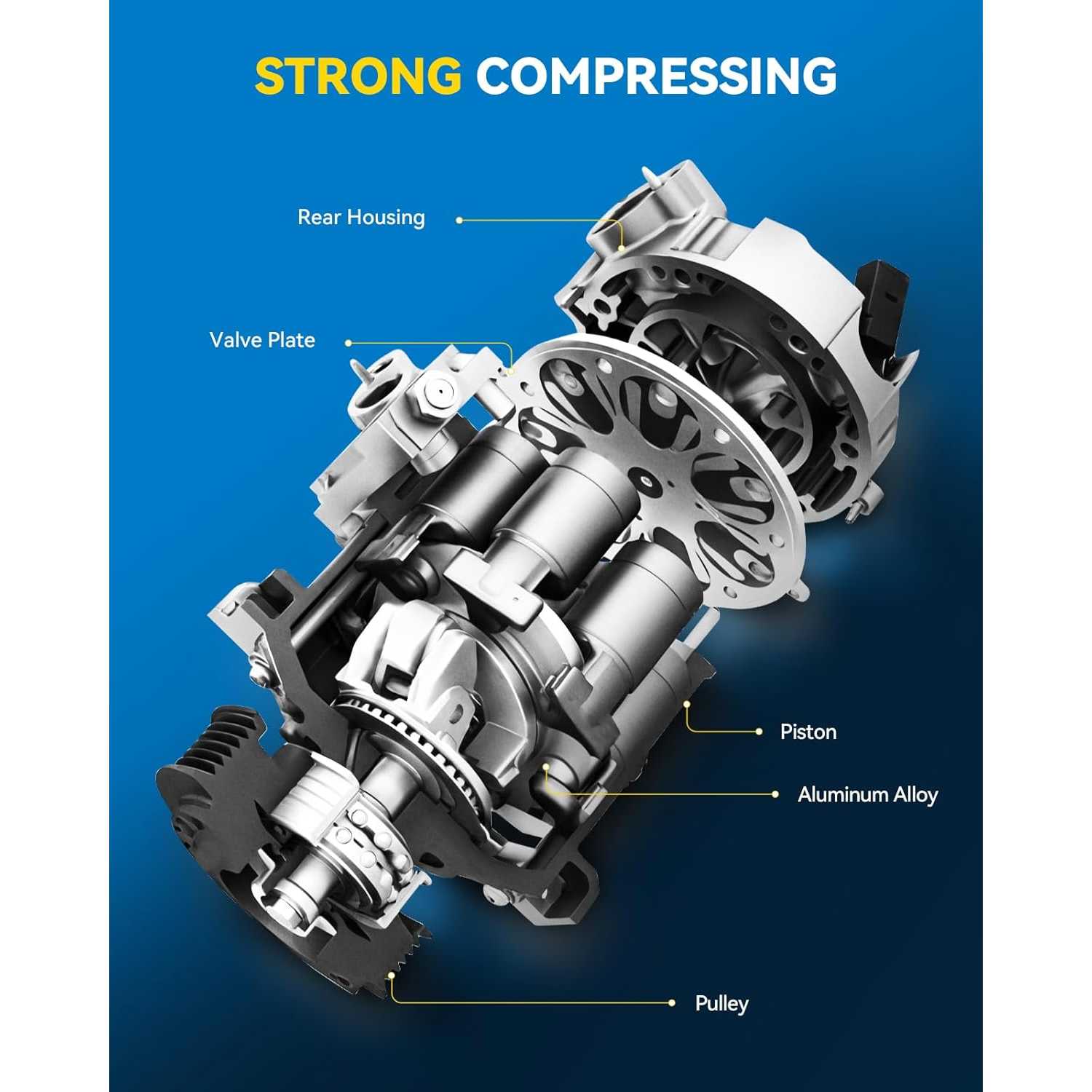

Material
Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Noise Level Range
65-75 dB
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
Tangent Mount
Clutch Diameter
4.86 in/123.44 mm
Maximum Working Pressure
20 bar
Warranty Period
2-Year
OE Number
97701A5501,97701A5502,97701A5502RU,97701F2500
Part Number
168306,141207NC,6513204,2020793,C3208

Highlights

  • GUARANTEED COMPATIBILITY - Replaces OEM part numbers 168306, 6513204, 141207NC, 97701A5501, 97701A5502, 97701A5502RU, 97701A6502, 97701F2500, CO29273AN, CO29273C, CO29273ZI, CO11571AN, C3208, 277027. Verify your vehicle info using the Suncentauto compatibility checker.
  • PERFECT FIT - A perfect fit for Kia Soul 2014-2019, for Hyundai Elantra 2017-2020 1.6T, for Forte5 2014-2018 1.6T, for Koup 2014-2016 1.6T, for Elantra GT 2019-2020 1.6T. Please confirm your vehicle details and old part number before ordering.
  • ENSURES FAST DEFOGGING AND DEFROSTING - Our air conditioning compressor is crucial for winter visibility. It drives the system to dehumidify the incoming air, quickly clearing frost and condensation from the windshield and windows, ensuring safer driving in cold and wet conditions.
  • FULLY TESTED & EASY INSTALLATION - The ac compressor with clutch has been examined and tested carefully before its delivery. Air conditioning compressor is pre-filled with oil upon delivery, therefore, there is no need to add oil during initial use. Excessive oil addition may damage the ac compressor
  • LOW NOISE & LOW FUEL CONSUMPTION - AC compressor works excellent and has low noise with a better experience. With a lower load factor, low power will be input when driving at high speed, which increases fuel economy and makes operation smoothly

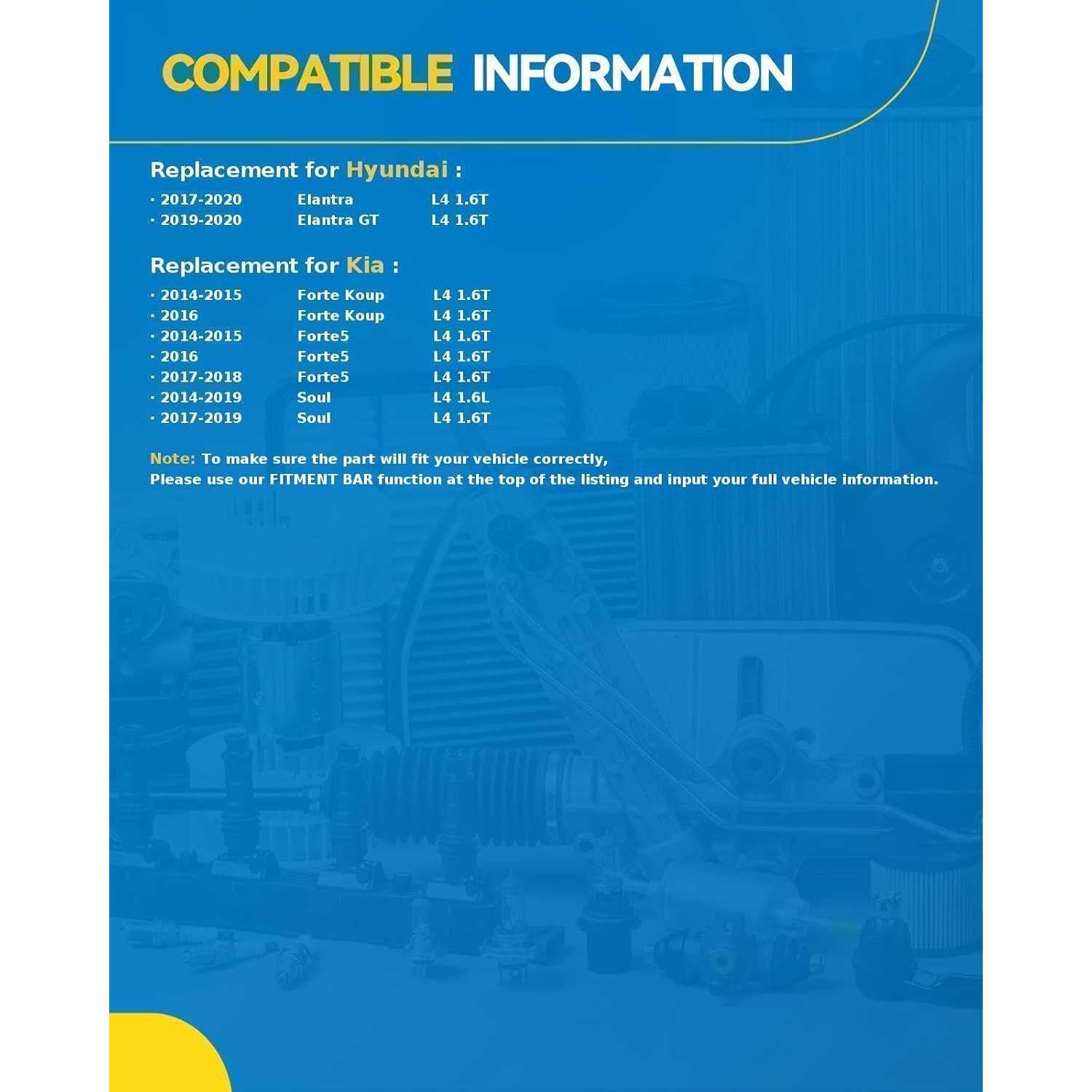

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2017 - 20202019 - 20202014 - 201520162014 - 201520162017 - 20182017 - 20192014 - 2019
MakeHyundaiHyundaiKiaKiaKiaKiaKiaKiaKia
ModelElantraElantra GTForte KoupForte KoupForte5Forte5Forte5SoulSoul
TrimSportN LineSXSXSXSXSX!Base
Engine1.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L4
Note
w/ VS14E Compressor
w/ VS14E Compressor
w/ VS14E Compressor
w/ ATC; w/ VS14E Compressor
w/ VS14E Compressor
w/ ATC; w/ VS14E Compressor
-
w/ VS14E Compressor
w/ VS14E Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

Reviews

4.6/5

Based on 5 reviews

560%
440%
30%
20%
10%

Nancy_FirstCar_89

11/16/2025

My Elantra was blowing warm air, and this compressor fixed it right up. The AC is ice cold now, and I couldn't be happier. Huge improvement!

Ashley_RoadTrip_578

04/23/2026

This compressor is solid! For the price, the quality is outstanding. It feels like a factory part and performs just as well. Great deal.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Some applications may specify rotating the compressor by hand before start-up or using a particular initial operating procedure. Follow the instructions supplied with the part and the vehicle service information.

Confirm that the compressor is the source of the problem and inspect the belt drive, electrical circuit, refrigerant charge, leaks, and other A/C components. Similar symptoms may have different causes.
