2009-2010 Dodge Challenger 3.5L | 10S17C New A/C Compressor | OE#55111409AD/98389 - PHILTOP

2009-2010 Dodge Challenger 3.5L | 10S17C New A/C Compressor | OE#55111409AD/98389 - PHILTOP

PAG

10S17C

R134a

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3151ACC325RUS

Specifications

Brand
PHILTOP
Oil Type
Pag 46
Compressor Type
10S17C
Belt Type
Multi-Groove Serpentine
Refrigerant Type
R134a

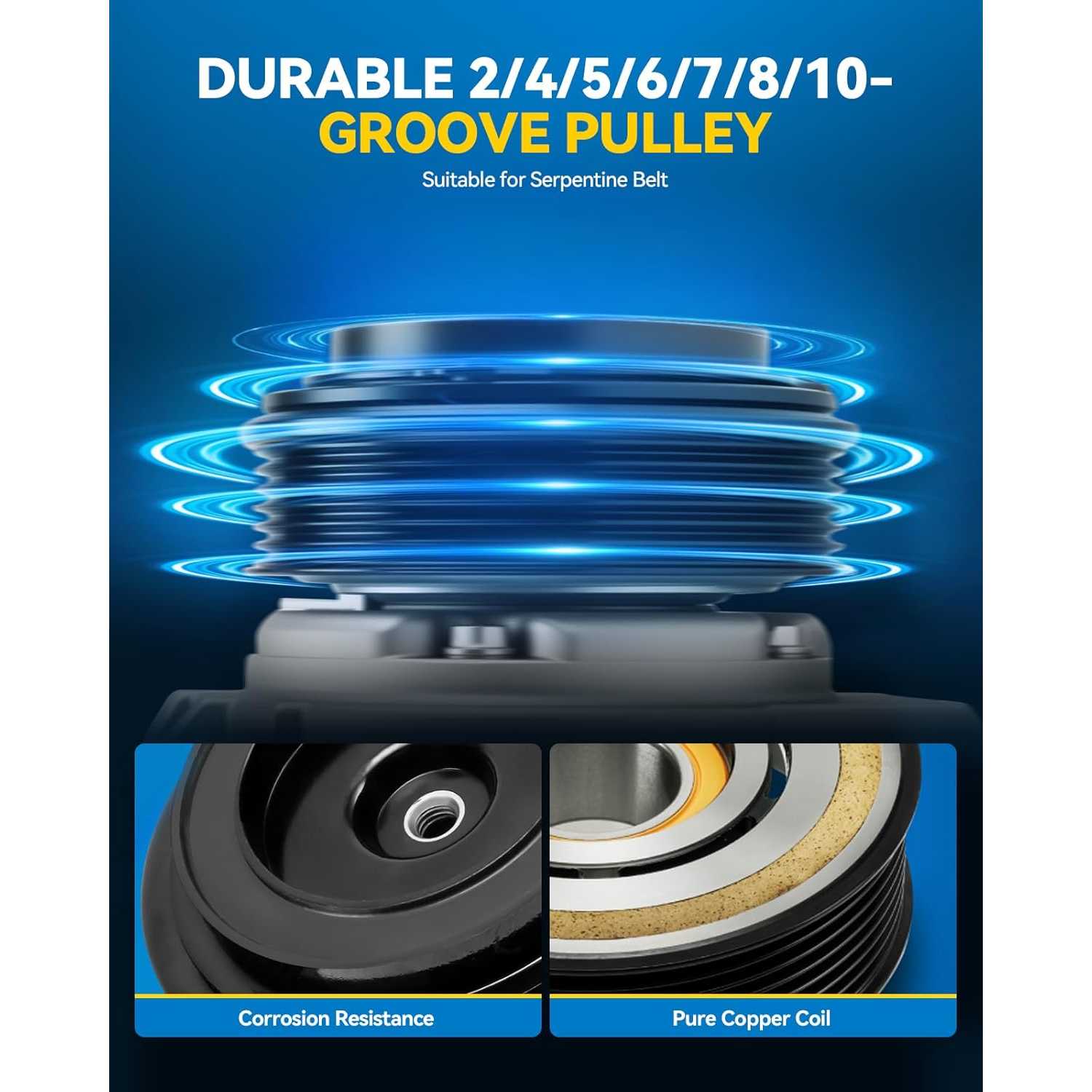

Pulley Groove Count
6
Items Included
1x A/C Compressors & Clutches - 98389,2x O-Ring,1x Manual
Material

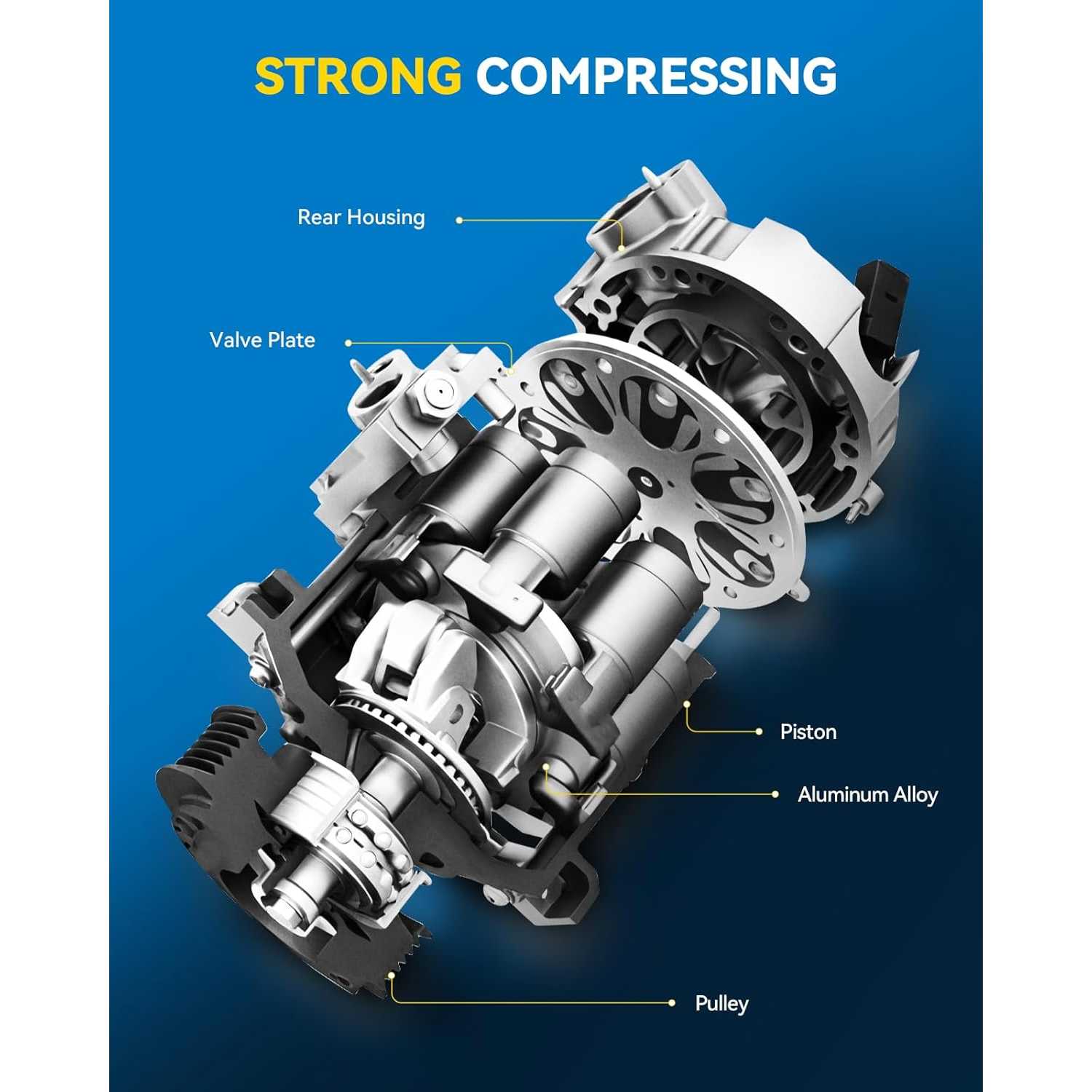

Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Noise Level Range
65-75 dB
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
Tangent Mount
Clutch Diameter
4.88 in/123.95 mm
Mounting Distance
0.61 in/15.49 mm
Maximum Working Pressure
22 bar
Warranty Period
2-Year
OE Number
55111409AD,RL111409AD,5511418AB,R5111409AD,55111409AC,55111409AB,55111418AB,RL111418AC,55111418AC,R5111418AC,55111418AD
Part Number
98389,6512274,140357NEW,639845,815612,0610252,140357,2021906,140357C,140357NIP,C1752,2021788,2041654,5512274,2021788R,4710812,2021906AM,2021788AM,ACP012350,TEM275722

Highlights

  • GUARANTEED COMPATIBILITY - Replaces OEM part numbers 55111418AB,RL111418AC,55111418AC,R5111418AC,140357,6512274,2021906,140357NEW,55111409AD,639845,RL111409AD,4710812,140357C,CO30001C,5511418AB,55111418AD,4471806890,140357NIP,C1752,2021788,2041654,5512274,2021788R,140357NC,7512274,815612,2021906AM,98389,0610252,R5111409AD,55111409AC,55111409AB,2021788AM,ACP012350,TEM275722,610252,CO11191O,275722,AC1208307,208307,11198389,CWK639845,CO20026C,A75722
  • PERFECT FIT - A perfect fit for Dodge Charger/Challenger 2007-10 3.5L, Magnum 2007-08 3.5L; for Chrysler 300 2007-10 3.5L. Please confirm your vehicle details and old part number before ordering.
  • PREMIUM ALUMINUM MATERIAL - This ac air compressor is a replacement compressor and clutch. Its main body is made of high-strength aluminum material, which is durable, rigid, and wearable. It will not crack, break, or leak. Such high-quality ensures a long-time use for each compressor kit
  • FULLY TESTED & EASY INSTALLATION - The ac compressor with clutch has been examined and tested carefully before its delivery. Air conditioning compressor is pre-filled with oil upon delivery, therefore, there is no need to add oil during initial use. Excessive oil addition may damage the ac compressor
  • LOW NOISE & LOW FUEL CONSUMPTION - AC compressor works excellent and has low noise with a better experience. With a lower load factor, low power will be input when driving at high speed, which increases fuel economy and makes operation smoothly

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 2010201020092007 - 20102009 - 201020072007 - 20102007 - 20102007 - 20102007 - 20082007 - 2008
MakeChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodge
Model300300300300ChallengerChargerChargerChargerChargerMagnumMagnum
TrimLimitedSSignature SeriesTouringSEBasePursuitSESXTSESXT
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note
w/ 10S17C Compressor
w/ 10S17C Compressor
w/ 10S17C Compressor
w/ 10S17C Compressor
w/ 10S17C Compressor
w/ 10S17C Compressor
w/ 10S17C Compressor
w/ 10S17C Compressor
w/ 10S17C Compressor
w/ 10S17C Compressor
w/ 10S17C Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

PHILTOP 98555 Air Conditioning AC Compressor for Civic 2006 2007 2008 2009 2010 2011 1.8LPHILTOP A/C Compressor

Reviews

4.4/5

Based on 5 reviews

560%
420%
320%
20%
10%

DIY_Karen_273

02/27/2026

I'm really impressed with the solid feel and performance of this AC compressor. It's a high-quality part for a very reasonable price. Definitely a great value buy.

Steve_DIYer_818

11/29/2025

Installation was surprisingly straightforward, and the part showed up really quickly. My Dodge Challenger is finally cool inside again, which is a huge relief. Great part and fast service.

FAQS

Warranty coverage and duration may vary by product. For specific warranty period details by product category, please refer to our Warranty & Returns Policy page. Damage related to incorrect fitment, installation or other vehicle problems may require further review.

Some applications may specify rotating the compressor by hand before start-up or using a particular initial operating procedure. Follow the instructions supplied with the part and the vehicle service information.

Confirm that the compressor is the source of the problem and inspect the belt drive, electrical circuit, refrigerant charge, leaks, and other A/C components. Similar symptoms may have different causes.
