2006-2010 Chrysler 300 2.7L V6 | 10S17C New A/C Compressor | OE#55111034AA/98309 - PHILTOP

2006-2010 Chrysler 300 2.7L V6 | 10S17C New A/C Compressor | OE#55111034AA/98309 - PHILTOP

PAG

10S17C

R134a

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3412ACC3161US

Specifications

Brand
PHILTOP
Oil Type
Pag 46
Compressor Type
10S17C
Belt Type
Multi-Groove Serpentine
Refrigerant Type
R134a

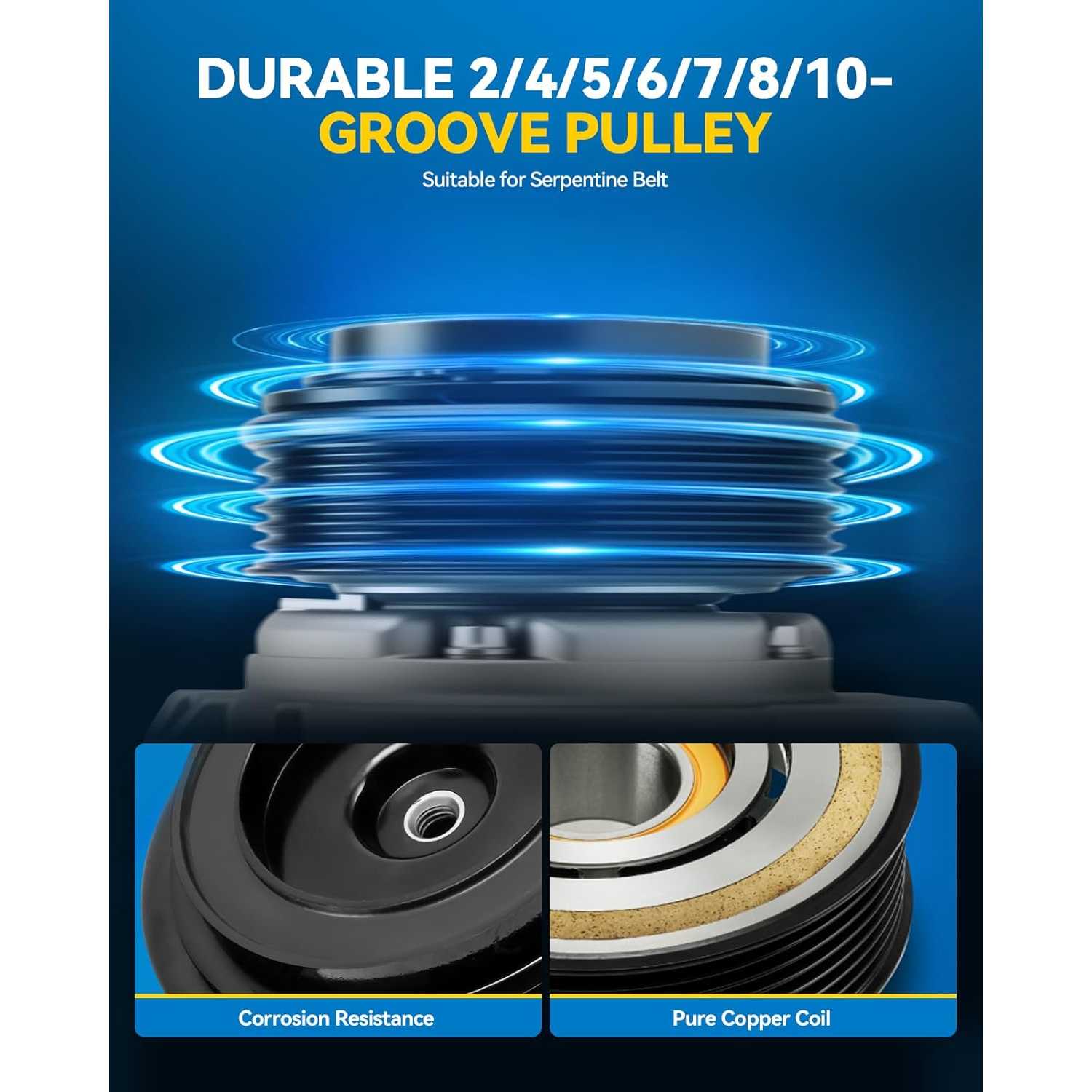

Pulley Groove Count
6
Items Included

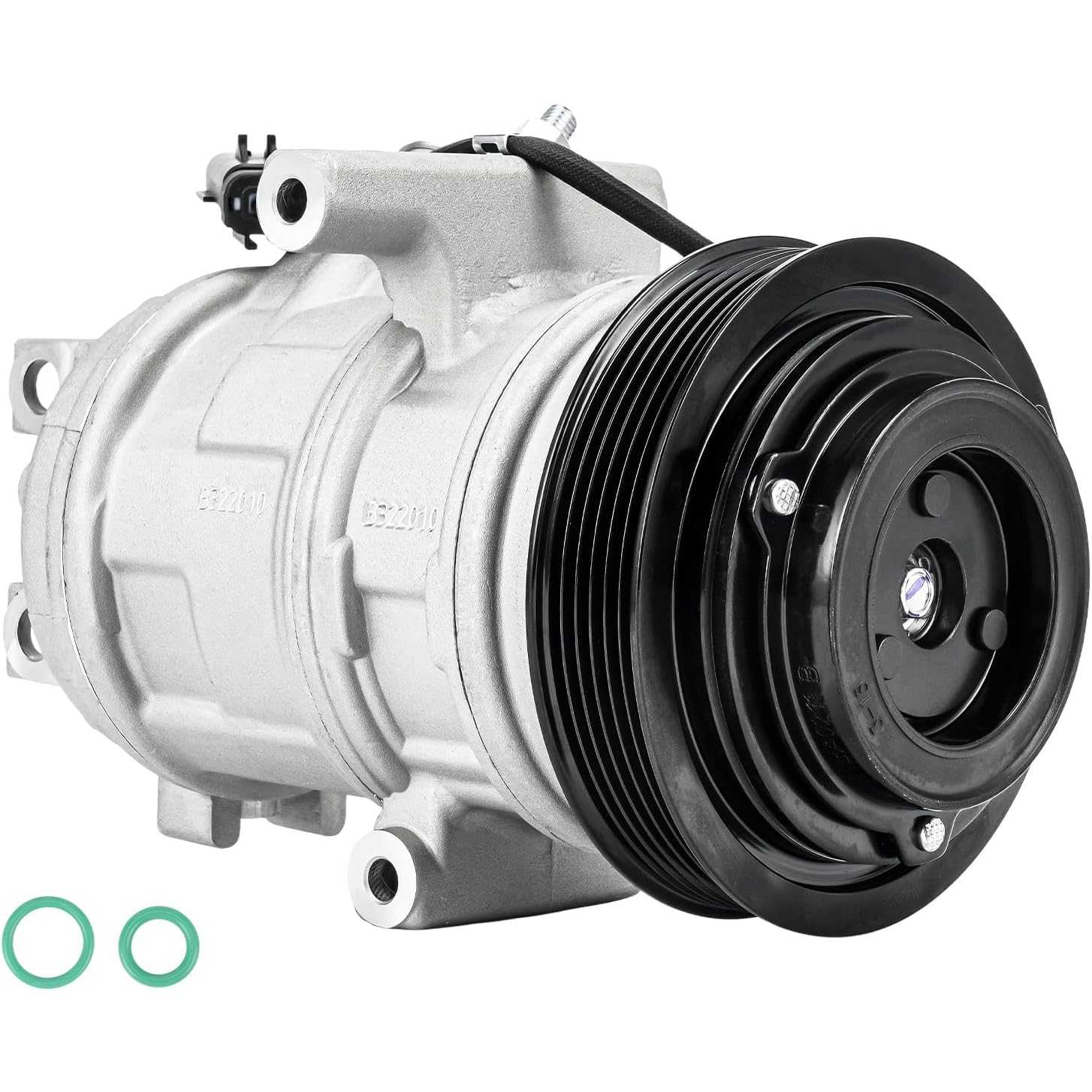

1x A/C Compressors & Clutches - 98309,2x O-Ring,1x Manual
Material

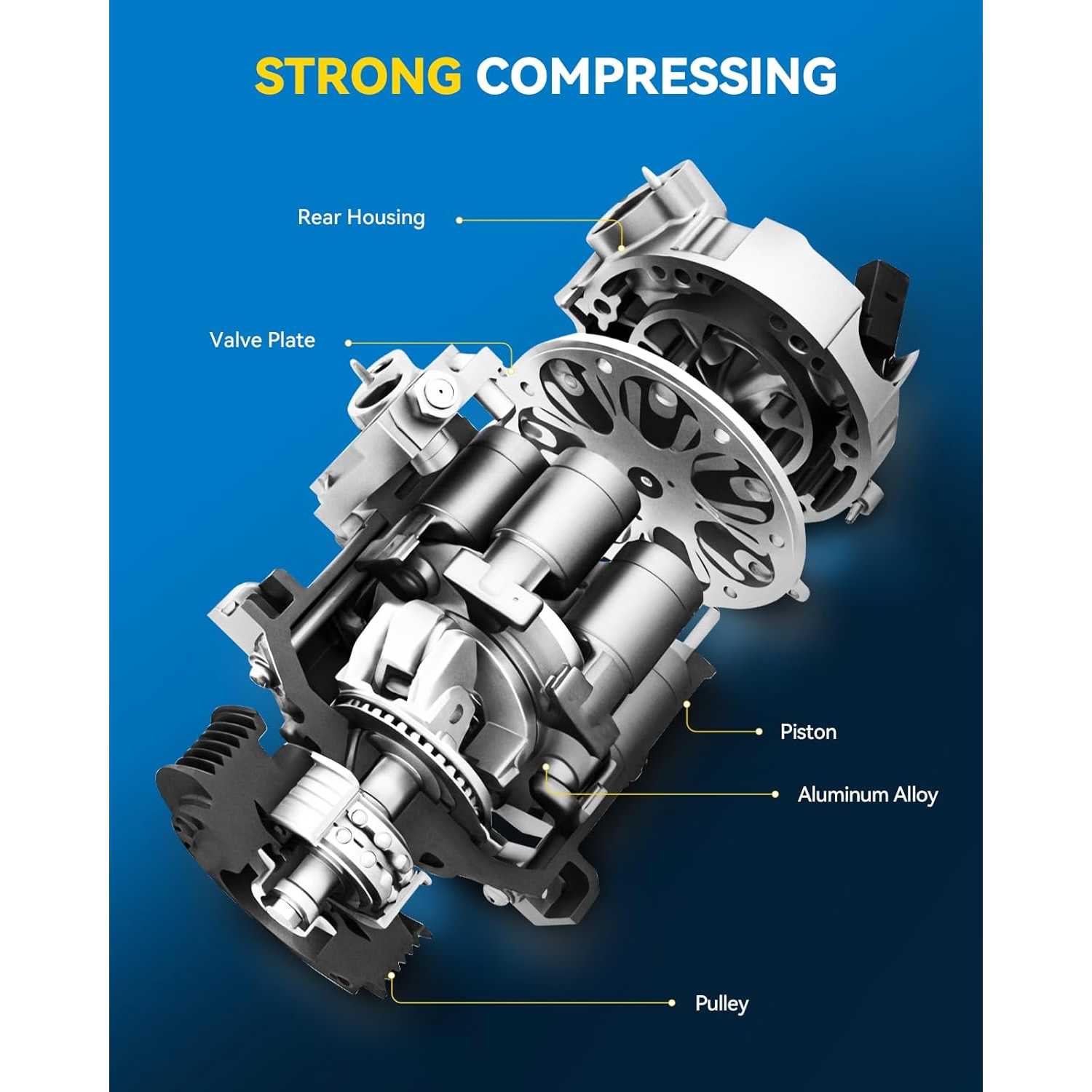

Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Noise Level Range
65-75 dB
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
Tangent Mount
Clutch Diameter
5.13 in/130.30 mm
Mounting Distance
2.26 in/57.4 mm
Maximum Working Pressure
15.5 bar
Warranty Period
2-Year
OE Number
55111034AA,R5111034AB,55111034AB,RL111034AB,55111034AC
Part Number
98309,639387,6512607,0610123,2021905AM,2021905,1448N,5512607,7512215,158352,2021905R,5512626,6512626,1937X,TEM275806

Highlights

  • #3,827,491 in Automotive (See Top 100 in Automotive)
  • #14,988 in Automotive Replacement Air Conditioning Compressors
  • Ensures Fast Refrigeration And Defogging: ①Oil Type:PAG 46;②R-efrigerant Type:R134a;③Pulley Grooves: 6;④Pulley Diameter:5.13 inch ;⑤Compressor type:10S17C;⑥Pulley type:Multi-Groove Serpentine;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.
  • Widely Compatible: PHILTOP AC Compressor with Clutch Compatible with300 2006-2010 2.7L, Charger 2006-2010 2.7L, Magnum 2006-2008 2.7L.Please confirm your vehicle details and old part number before ordering.
  • Guaranteed Compatibility : Replaces OEM part numbers:98309,55111034AA,5512607,7512215,158352,2021905R,7512626,7512607,639387,R5111034AB,55111034AB,RL111034AB,55111034AC,5512626,6512626,2021905,4710809,1448N,2021905AM,6512607,0610123,1937X,TEM275806,AC1208306,CO20027C,11198309,275806,CWK639387,CO30002C,208306,A75806.Verify your vehicle info using the Suncentauto compatibility checker.
  • ENSURES FAST DEFOGGING AND DEFROSTING - Our air conditioning compressor is crucial for winter visibility. It drives the system to dehumidify the incoming air, quickly clearing frost and condensation from the windshield and windows, ensuring safer driving in cold and wet conditions
  • FULLY TESTED & EASY INSTALLATION - The ac compressor with clutch has been examined and tested carefully before its delivery. Air conditioning compressor is pre-filled with oil upon delivery, therefore, there is no need to add oil during initial use. Excessive oil addition may damage the ac compressor

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2006 - 20072008 - 200920102006 - 20072007 - 20102006 - 2008
MakeChryslerChryslerChryslerDodgeDodgeDodge
Model300300300ChargerChargerMagnum
TrimBaseLXTouringBaseSESE
Engine2.7L V62.7L V62.7L V62.7L V62.7L V62.7L V6
Note
w/ 10S17C Compressor
w/ 10S17C Compressor
w/ 10S17C Compressor
w/ 10S17C Compressor
w/ 10S17C Compressor
w/ 10S17C Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.

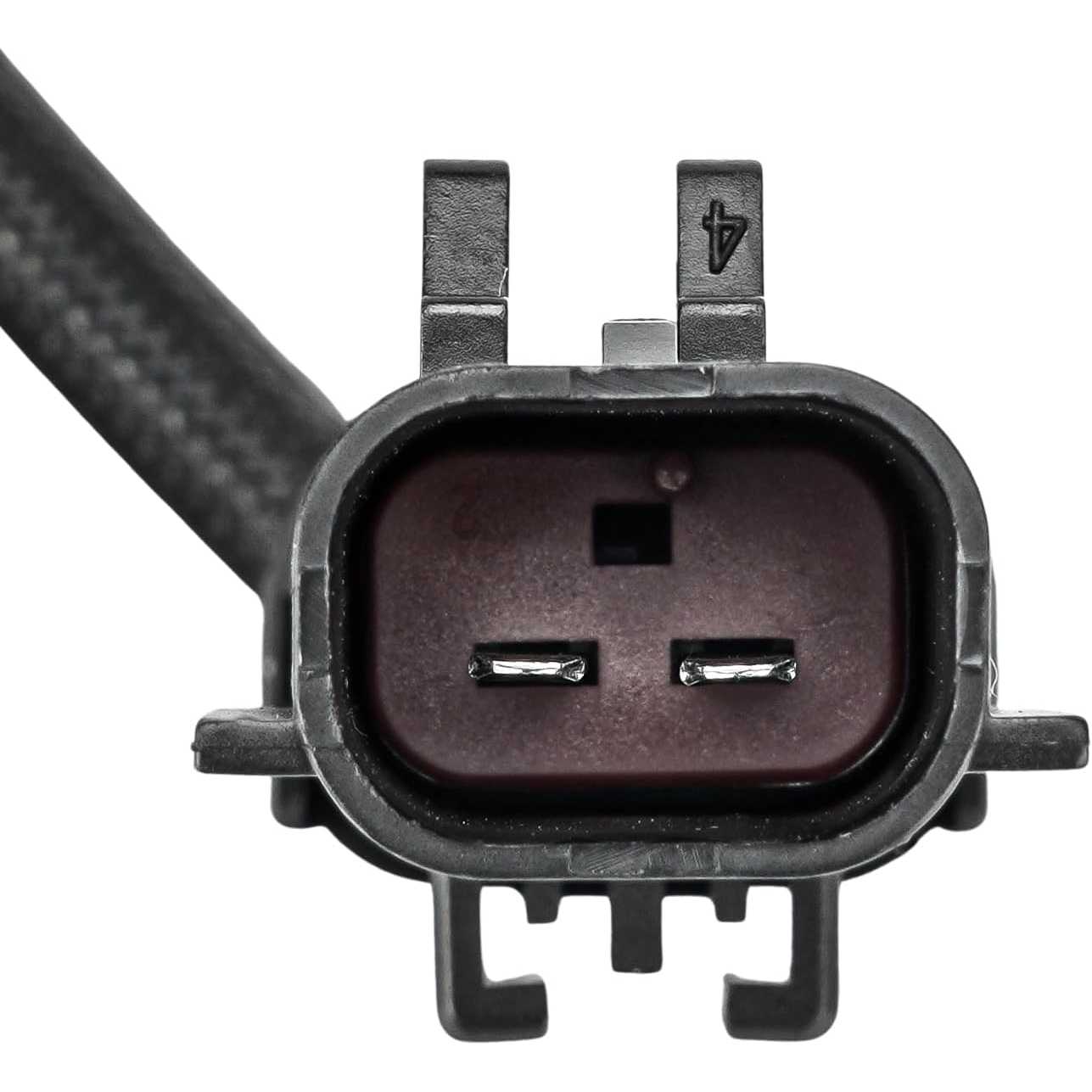

  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

PHILTOP 98555 Air Conditioning AC Compressor for Civic 2006 2007 2008 2009 2010 2011 1.8LPHILTOP A/C Compressor

Reviews

4.6/5

Based on 10 reviews

570%
420%
310%
20%
10%

Laineth delgado

09/08/2026

Verified buyer

Excelente producto, funciona perfecto, lo recomiendo al 100%

Chris_GearHead_360

01/24/2026

My AC was completely out, so I replaced it with this. Now it's blowing nice and cold air, a huge improvement! Definitely fixed the issue.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Oil content varies by compressor. Check the product label or instructions before installation and adjust the oil type and quantity according to the vehicle service specification.

Use only the refrigerant and oil type specified for the vehicle and compressor. Mixing incompatible fluids may affect lubrication and system performance.
