2017-2019 Mercedes-Benz E300 2.0L | 7SAS17C New A/C Compressor | OE#0008303702/198322 - PHILTOP

2017-2019 Mercedes-Benz E300 2.0L | 7SAS17C New A/C Compressor | OE#0008303702/198322 - PHILTOP

PAG

7SAS17C

R-134a or R1234yf

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5490ACC484LUS

Specifications

Brand
PHILTOP
Oil Type
-
Compressor Type
7SAS17C
Belt Type
Multi-Groove Serpentine
Refrigerant Type
R-134a or R1234yf

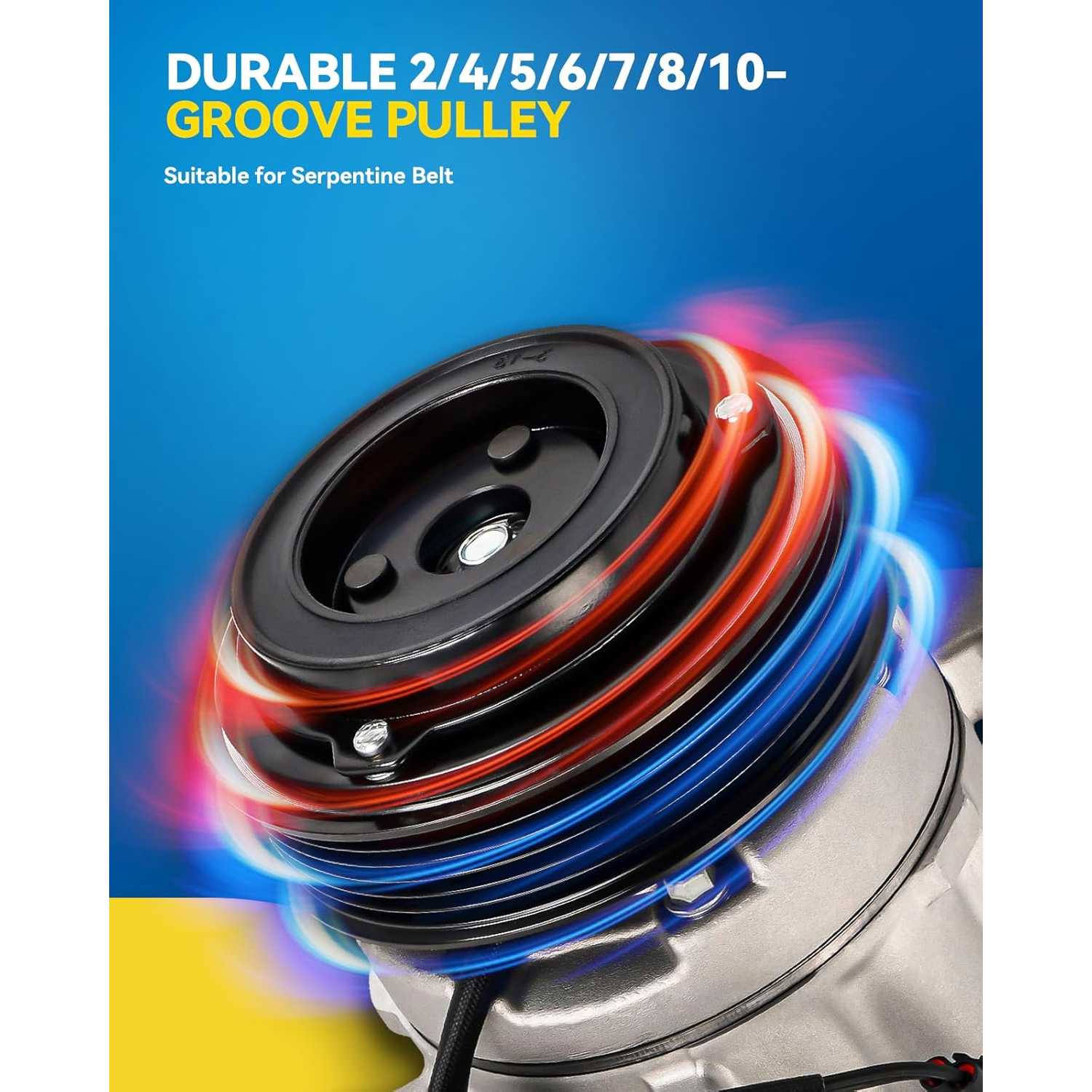

Pulley Groove Count
6
Items Included

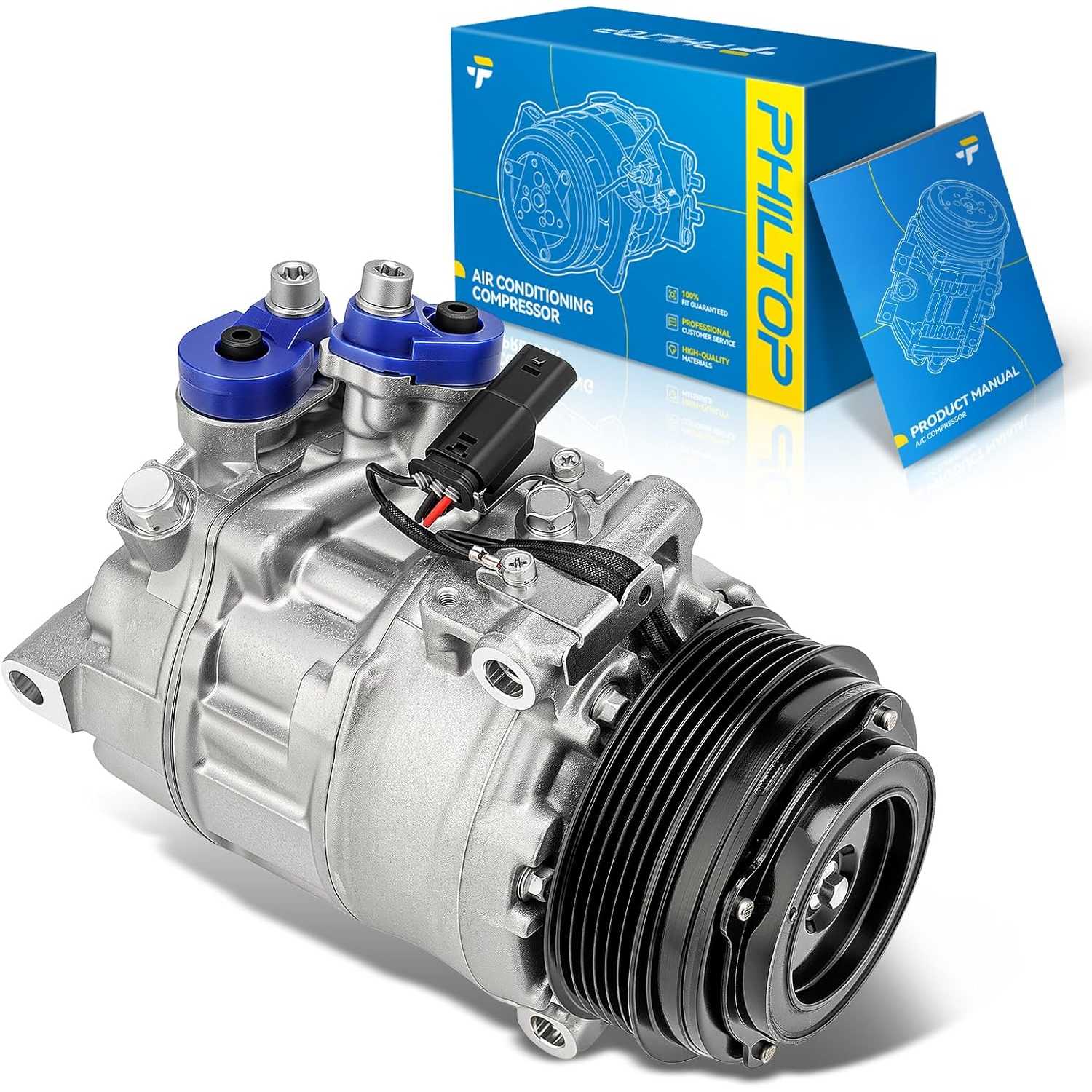

1x A/C Compressors & Clutches - 198322,1x Manual
Material
Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Noise Level Range
65-75 dB
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
Tangent Mount
Clutch Diameter
4.33 in/109.98 mm
Maximum Working Pressure
20 bar
Warranty Period
2-Year
OE Number
0008303702,0008307100
Part Number
198322,6513345

Highlights

  • #132,871 in Automotive (See Top 100 in Automotive)
  • #185 in Automotive Replacement Air Conditioning Compressors
  • Ensures Fast Refrigeration And Defogging: ①Oil Type:-;②R-efrigerant Type:R-134a or R1234yf;③Pulley Grooves: 6;④Pulley Diameter:4.33 inch ;⑤Compressor type:7SAS17C;⑥Pulley type:Multi-Groove Serpentine;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.
  • Widely Compatible: PHILTOP AC Compressor with Clutch Compatible withGLE350 2016-2018, 2020-2022, E300 2017-2019, GLS450 2017-2019, C300 2018, Metris 2016-2021, S550 2016-2017, E400 2017-2018, C43 AMG 2017-2021, GLC43 AMG 2017-2022, Sprinter 2500 2019-2021 2.0T, 2020-2021 2.1T, E450 2019, GLS550 2017-2019, GL450 2016, GLE400 2016-2017, 2019, GLE450 AMG 2016, C450 AMG 2016, E43 AMG 2017-2018, E63 AMG S 2018-2019, Sprinter 1500 2019-2021, S63 AMG 2016-2017, E53 AMG 2019, C400 2015, GLS63 AMG 2018-2019, GL550 2016, C63 AMG S 2018, GLE300d 2016-2017, GLE550e 2016-2018, C350e 2018, C63 AMG 2018, Sprinter 3500 2020-2021 2.1T, S65 AMG 2017, E550 2017, Maybach S550 2017, Sprinter 3500XD 2020-2021 2.1
  • Guaranteed Compatibility : Replaces OEM part numbers:0038302060,003830206080,A0008307100,0008307802,0008303702,198322,6513345,276285,A76285,ME0008303702,7513345,0008303202,0008303104,0008307100,A0008303702,000830320280,8307100,8303702,GE4471609753,C3440.Verify your vehicle info using the Suncentauto compatibility checker.
  • Fully Tested & Easy Installation: The ac compressor with clutch has been examined and tested carefully before its delivery. Air conditioning compressor is pre-filled with oil upon delivery, therefore, there is no need to add oil during initial use. Excessive oil addition may damage the ac compressor.
  • Low Noise & Low Fuel Consumption: AC compressor works excellent and has low noise with a better experience. With a lower load factor, low power will be input when driving at high speed, which increases fuel economy and makes operation smoothly.

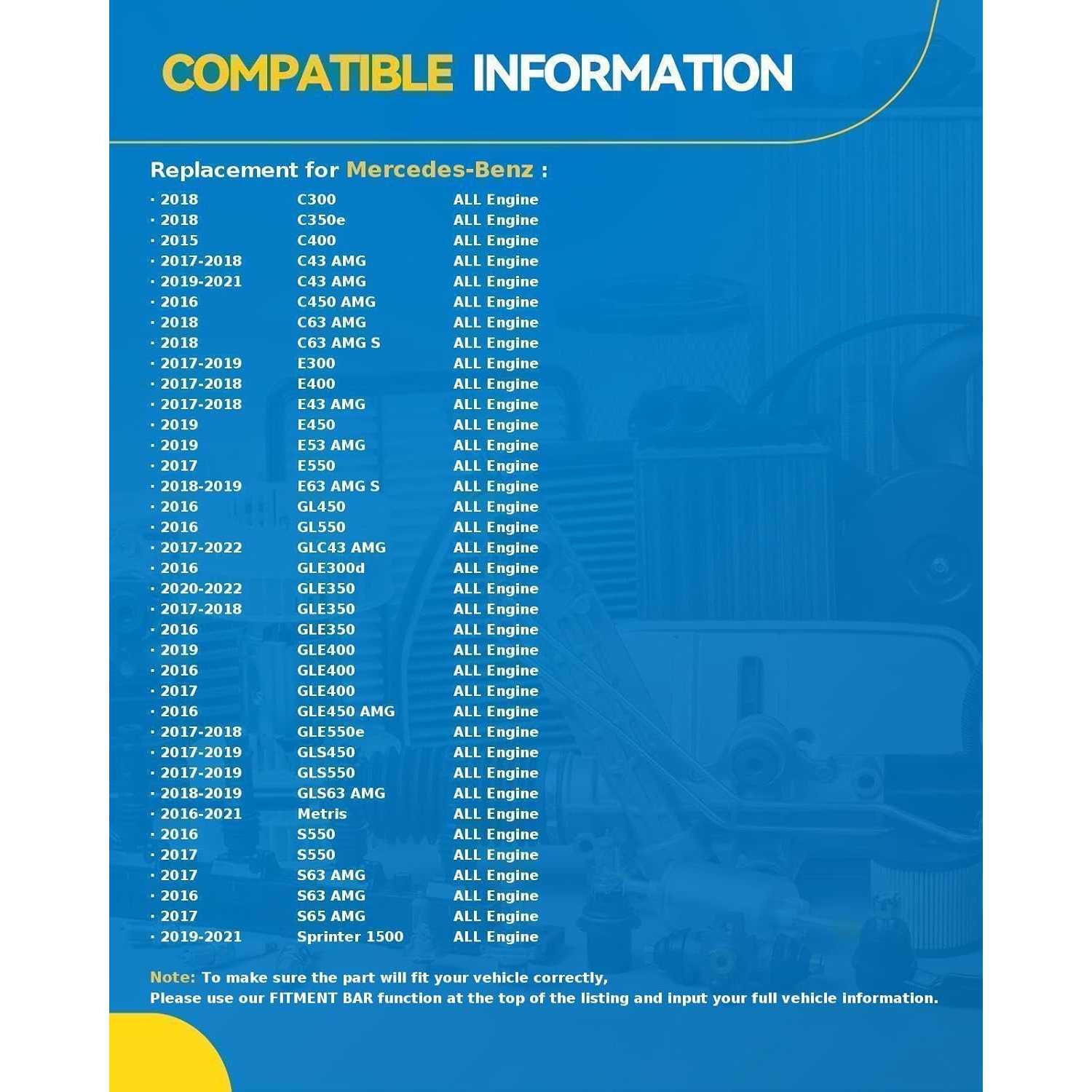

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20182018201820152017 - 20212016201820182017 - 20192017 - 20192017 - 20182017 - 20182017 - 2018201920192019201720182019201620162017 - 2022201620172020 - 20222016 - 20182020 - 20222016 - 20182016 - 201720192017 - 2019201620162017 - 20182018 - 20192018 - 20192017 - 20192017 - 20192018 - 201920172016 - 2021201620172016201720172016 - 201720172019 - 20212019 - 20212020 - 20212020 - 20212020 - 2021
MakeMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-Benz
ModelC300C300C350eC400C43 AMGC450 AMGC63 AMGC63 AMG SE300E300E400E400E43 AMGE450E450E53 AMGE550E63 AMG SE63 AMG SGL450GL550GLC43 AMGGLE300dGLE300dGLE350GLE350GLE350GLE350GLE400GLE400GLE43 AMGGLE450 AMGGLE550eGLE550eGLE63 AMGGLE63 AMG SGLS450GLS550GLS63 AMGMaybach S550MetrisS550S550S550S550S600S63 AMGS65 AMGSprinter 1500Sprinter 2500Sprinter 2500Sprinter 3500Sprinter 3500XD
Trim4MaticBaseBase4Matic4Matic4MaticBaseBase4MaticBase4MaticBase4Matic4MaticBase4MaticBase4Matic4Matic+4Matic4Matic4Matic4Matic4Matic4Matic4MaticBaseBase4Matic4Matic4Matic4Matic4Matic4Matic4Matic4Matic4Matic4MaticBase4MaticBase4Matic4MaticBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine2.0L L42.0L L42.0L L43.0L V63.0L V63.0L V64.0L V84.0L V82.0L L42.0L L43.0L V63.0L V63.0L V63.0L V63.0L V63.0L L64.7L V84.0L V84.0L V83.0L V64.7L V83.0L V62.1L L42.1L L42.0L L43.5L V62.0L L43.5L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V65.5L V85.5L V83.0L V64.7L V85.5L V84.7L V82.0L L44.7L V84.7L V84.7L V84.7L V86.0L V125.5L V86.0L V122.0L L42.0L L42.1L L42.1L L42.1L L4
Note
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
2017-2018 w/ Rear AC; w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
Heavy Duty; w/ 7SAS17C Compressor
Start/Stop Feature; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
Start/Stop Feature; w/ Magnetic Coupling; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
Start/Stop Feature; w/ Magnetic Coupling; w/ 7SAS17C Compressor
Start/Stop Feature; w/ Magnetic Coupling; w/ 7SAS17C Compressor
Start/Stop Feature; w/ Magnetic Coupling; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
Start/Stop Feature; w/ 7SAS17C Compressor
Start/Stop Feature; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
w/ Rear AC; w/ 7SAS17C Compressor
Start/Stop Feature; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
Start/Stop Feature; w/ 7SAS17C Compressor
w/ Magnetic Coupling; w/ 7SAS17C Compressor
To 09/2/2016; w/ Magnetic Coupling; w/ 7SAS17C Compressor
Start/Stop Feature; w/ Magnetic Coupling; w/ 7SAS17C Compressor
To 09/2/2016; w/ Magnetic Coupling; w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor
w/ 7SAS17C Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

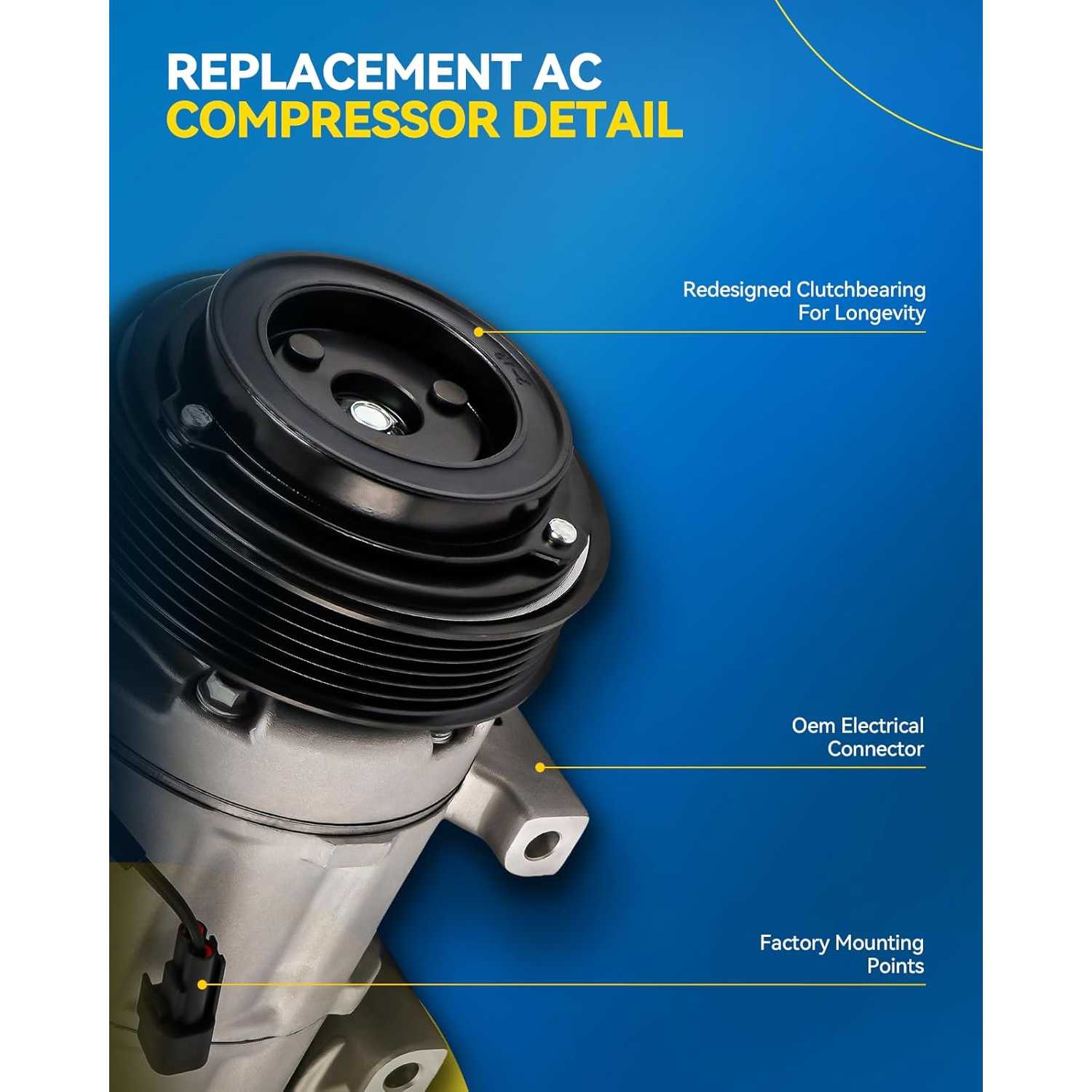

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

PHILTOP AC CompressorAC Compressor

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

DIY_Karen_994

11/03/2025

Installation was surprisingly easy, and the shipping was super fast. I had it installed and the AC blowing cold within a couple of hours.

DaveTheMechanic_605

01/06/2026

My AC was barely producing cold air, but this compressor fixed it right up. It's freezing in my Benz now! A huge improvement.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Flushing may be needed if the previous compressor failed internally or debris is present. Some components cannot be flushed and may need replacement; follow the vehicle service procedure.

Replacement may be recommended after certain compressor failures or when the system has been open. Requirements vary by vehicle and the cause of failure.
