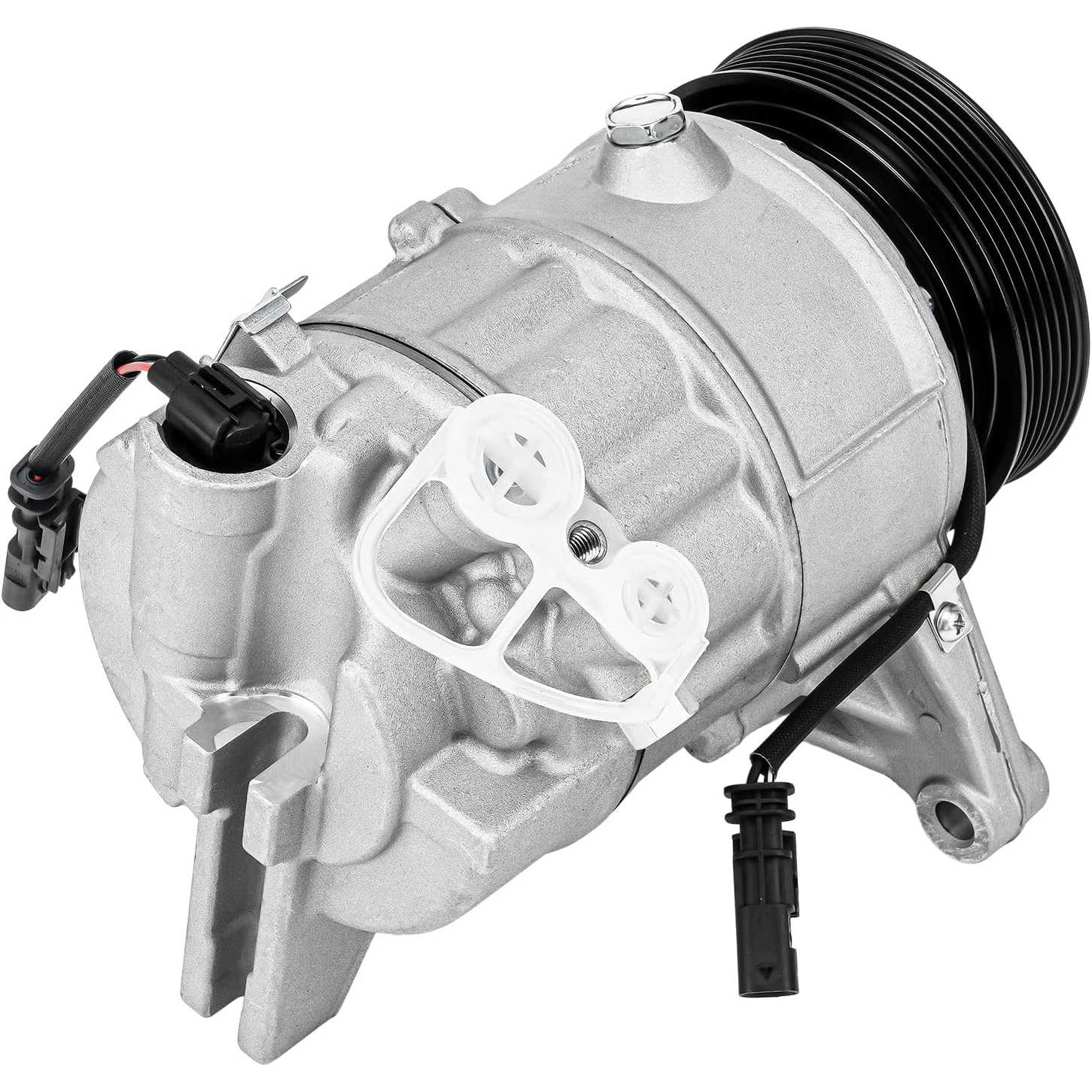

2014 Chevrolet Impala Limited 3.6L V6 | CVC New A/C Compressor | OE#23414001/68221 - PHILTOP

2014 Chevrolet Impala Limited 3.6L V6 | CVC New A/C Compressor | OE#23414001/68221 - PHILTOP

PAG

Cvc

R-134a or R1234yf

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4577ACC275UUS

Specifications

Brand
PHILTOP
Oil Type
-
Compressor Type
Cvc
Belt Type
Multi-Groove Serpentine
Refrigerant Type
R-134a or R1234yf

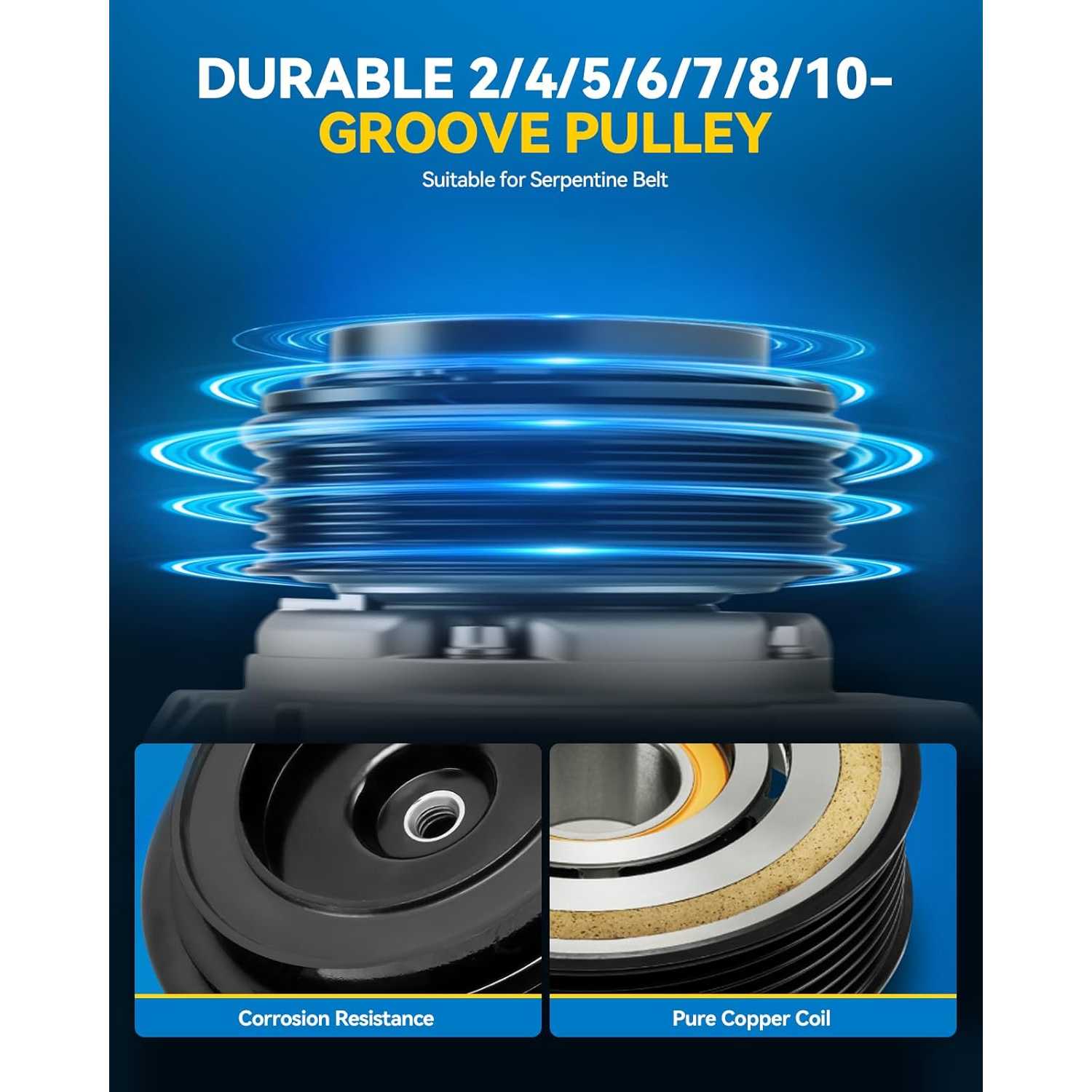

Pulley Groove Count
6
Items Included
1x A/C Compressors & Clutches - 68221,2x Seal,1x Manual
Material

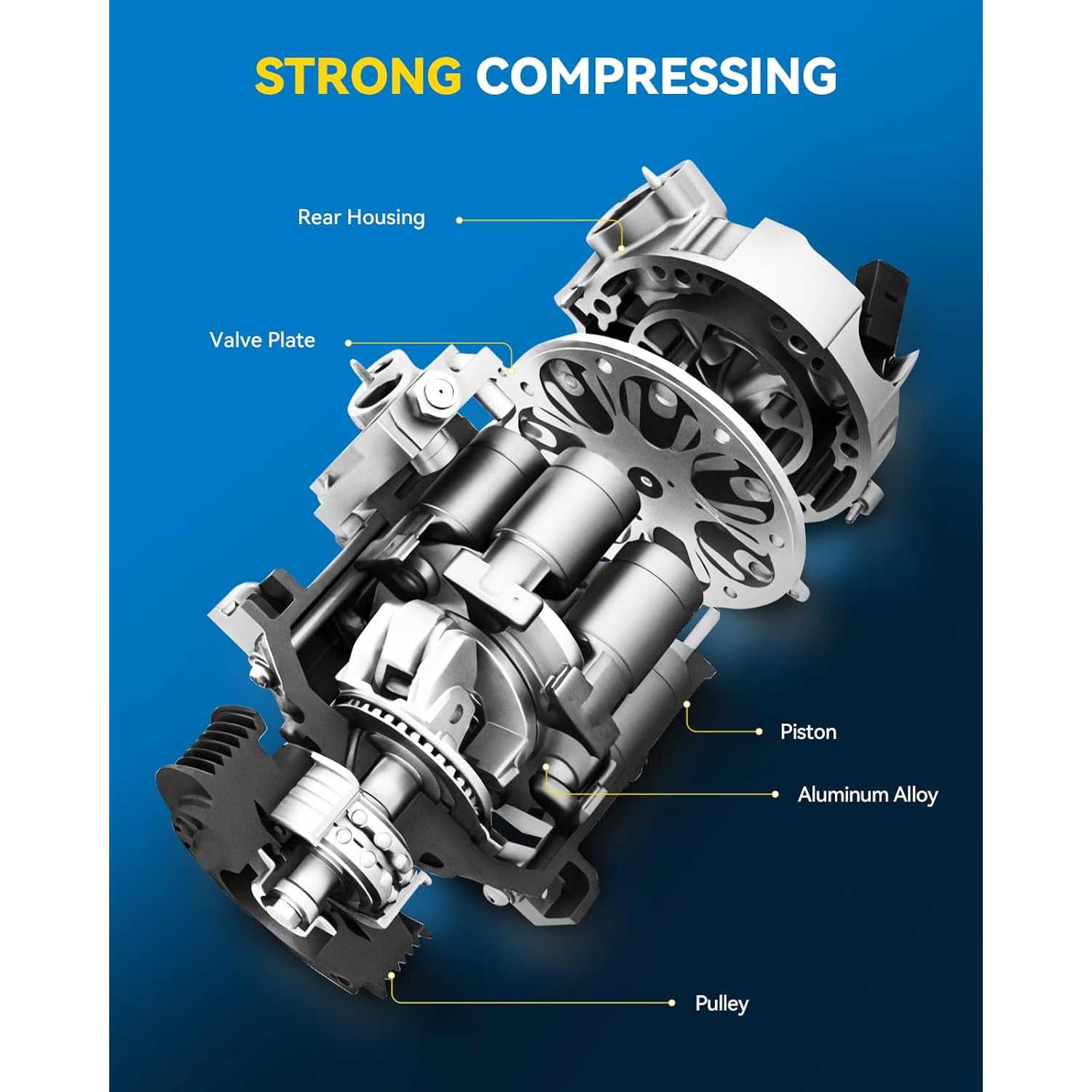

Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Noise Level Range
65-75 dB
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
2 Ear & 1 Tangent
Clutch Diameter
4.69 in/119.13 mm
Mounting Distance
1 in/25.4 mm
Maximum Working Pressure
22 bar
Warranty Period
2-Year
OE Number
23414001,23314079,23493251,23314080,23105377,84378272,22796879,84378274,84071725,84441489,23105379,23414000,22796877,84071723,23380422,84092955
Part Number
68221,6513006,621021

Highlights

  • #2,050,892 in Automotive (See Top 100 in Automotive)
  • #7,881 in Automotive Replacement Air Conditioning Compressors
  • Ensures Fast Refrigeration And Defogging: ①Oil Type:-;②R-efrigerant Type:R-134a or R1234yf;③Pulley Grooves: 6;④Pulley Diameter:4.69 inch ;⑤Compressor type:CVC;⑥Pulley type:Multi-Groove Serpentine;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.
  • Widely Compatible: PHILTOP AC Compressor with Clutch Compatible withImpala 2016-2018, 2020, 2014-2015, 2019 3.6L, LaCrosse 2016, 2013-2015 3.6L, XTS 2016, 2013-2015 3.6L, 2014, 2017-2019 3.6T, Terrain 2015-2017 3.6L, Impala Limited 2014, Equinox 2016-2017 3.6L.Please confirm your vehicle details and old part number before ordering.
  • Guaranteed Compatibility : Replaces OEM part numbers:23414001,23314079,23493251,23314080,23105377,84378272,22796879,6513006,20932037,84378274,1422241,22986911,84071725,84441489,23105379,23414000,22796877,84071723,1522241,23380422,84092955,1522290,1522289,7513006,1522325,84381701,23310402,22780226,C2754,2020768,68221,621021,AC1705815,T68221,7513227,274517,2020768AM,705815,CO22289C,A74517,68201044.Verify your vehicle info using the Suncentauto compatibility checker.
  • ENSURES FAST DEFOGGING AND DEFROSTING - Our air conditioning compressor is crucial for winter visibility. It drives the system to dehumidify the incoming air, quickly clearing frost and condensation from the windshield and windows, ensuring safer driving in cold and wet conditions
  • FULLY TESTED & EASY INSTALLATION - The ac compressor with clutch has been examined and tested carefully before its delivery. Air conditioning compressor is pre-filled with oil upon delivery, therefore, there is no need to add oil during initial use. Excessive oil addition may damage the ac compressor

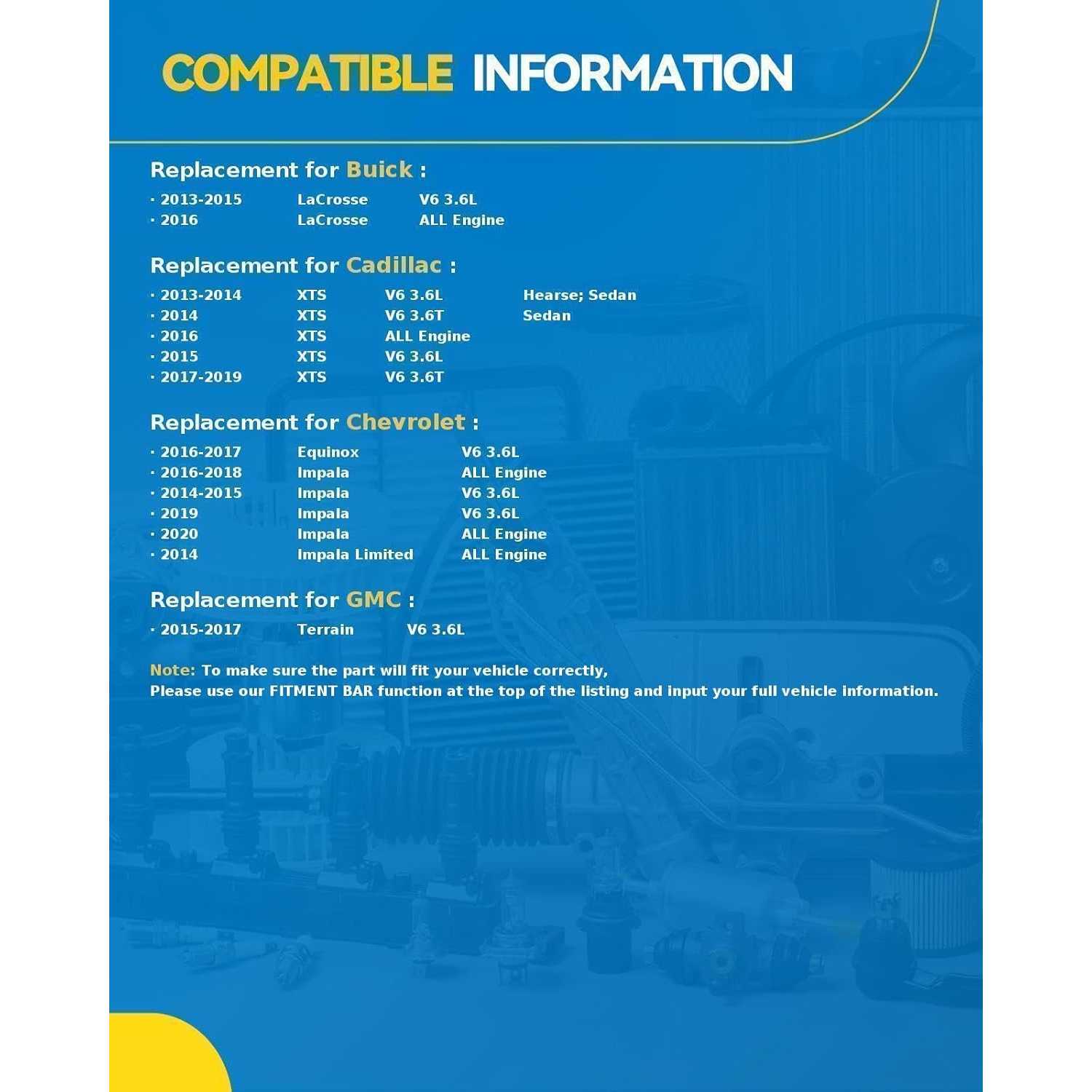

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20162013 - 201620162013 - 20162013 - 2016201620132013 - 20162013 - 20162013 - 20162013 - 20162013 - 201620142016 - 20192014201620172016 - 2017201620172016 - 20182015 - 201820192016 - 20182014 - 20182019 - 202020162014 - 20162017 - 20182019 - 202020142014201420142015 - 20172015 - 20172015 - 2017
MakeBuickBuickBuickBuickBuickBuickBuickCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMC
ModelLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseXTSXTSXTSXTSXTSXTSXTSXTSXTSXTSEquinoxEquinoxEquinoxImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpala LimitedImpala LimitedImpala LimitedImpala LimitedTerrainTerrainTerrain
TrimBaseBaseLeatherLeatherPremiumSport TouringTouringBaseLiveryLuxuryPlatinumPremiumVsport PlatinumVsport PlatinumVsport PremiumVsport PremiumVsport Premium LuxuryLTLTZPremierLSLSLSLTLTLTLTZLTZPremierPremierLSLTLTZPoliceDenaliSLESLT
Engine2.4L L43.6L V62.4L L43.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V62.5L L43.6L V63.6L V62.5L L43.6L V63.6L V62.5L L43.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V6
Note
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
-
w/ CVC Compressor
w/ CVC Compressor
-
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
-
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor
w/ CVC Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

Reviews

4.7/5

Based on 7 reviews

571%
429%
30%
20%
10%

Giovanny ramirez

05/17/2026

Verified buyer

Excelente

Lisa_CivicDriver_91

01/28/2026

This compressor is well-made and feels very durable. Considering the cost, the quality is outstanding. A great replacement part that won't break the bank.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Some applications may specify rotating the compressor by hand before start-up or using a particular initial operating procedure. Follow the instructions supplied with the part and the vehicle service information.

Confirm that the compressor is the source of the problem and inspect the belt drive, electrical circuit, refrigerant charge, leaks, and other A/C components. Similar symptoms may have different causes.
