2011-2023 Dodge Charger 3.6L V6 | 6-Groove Pulley 220A Alternator | OE#4801865AC/AL6491X - PHILTOP

2011-2023 Dodge Charger 3.6L V6 | 6-Groove Pulley 220A Alternator | OE#4801865AC/AL6491X - PHILTOP

Pulley Grooves: SC6

Amperage: 220 A

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5189ANR364EUS

Specifications

Brand
PHILTOP
Pulley Grooves
SC6
Amperage
220 A
Rotation Direction
CW
Regulator
ER
Fan Type
IF
Voltage
12 V
Material
Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included
1x Alternator 11592N 1x Manual
Warranty Period
2-Year
OE Number
4801865AC,56029649AA,56029649AB,4801865AE,04801865AC
Part Number
AL6491X,2101183,2100769

Highlights

  • Reference Alternators Part Number: 4801865AC, 56029649AA, 56029649AB, 4801865AE, 04801865AE, 2101183, 04801865AC, 68391579AB, 2100769, AL6491X
  • Automotive alternator specifications: Amperage Rating -220Amp,Voltage -12 Volt,Groove Pulley-SC6,Rotation-CW,Specs For-,Design-ER/IF,Plug Clock-6
  • Compatibility:2011-2021 Grand Cherokee 3.6L,2011-2023 Charger 3.6L,2011-2015, 2017-2023 Durango 3.6L,2013-2015, 2017-2018 1500 3.6L,2019-2023 1500 Classic 3.6L,2022 Grand Cherokee WK
  • OEM Standards: Designed to meet rigorous OEM specifications, the PHILTOP Car Alternator is crafted from premium-grade materials and undergoes exhaustive quality testing. Leveraging cutting-edge energy conversion technology, it minimizes power loss to boost fuel efficiency and extend battery lifespan. Its robust construction ensures reliable operation under extreme temperatures, vibrations, and harsh driving conditions, delivering unmatched durability and longevity.
  • Note:If your car has problems like starting difficulty, lack of power, increased fuel consumption, charging system failure, or strange noises, replace the alternator promptly. Before installation, verify your vehicle make, model, year, engine, and OEM part number. Note that the alternator's appearance may differ from your original part, but it is typically fully interchangeable and compatible in function and fitment. If in doubt, send us a photo to confirm; if in doubt, send us a photo to confirm.

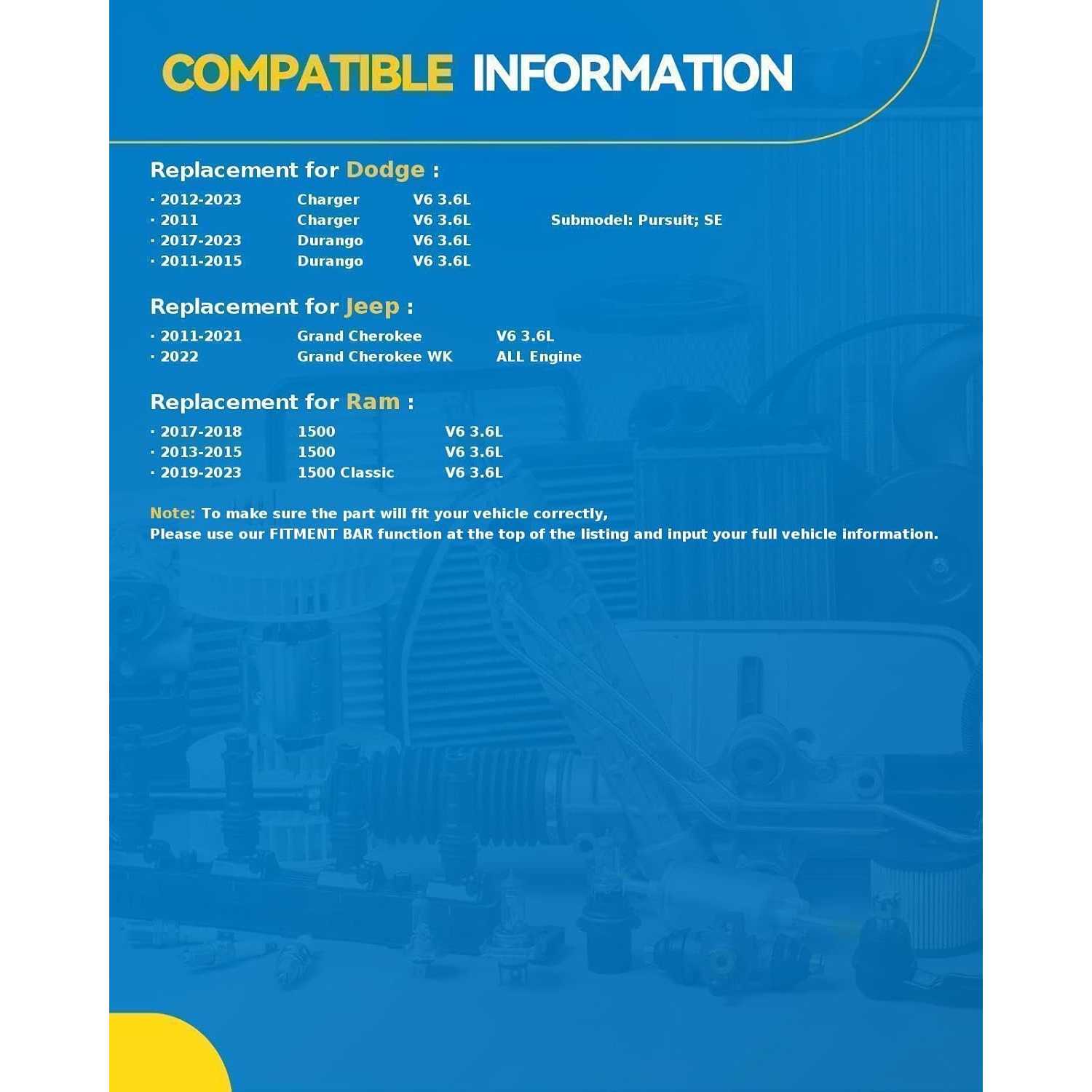

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2018 - 202320182011 - 20232011 - 20172012 - 20232012201820182011 - 20152017 - 20232011 - 201320112017 - 20232020 - 2023202320112014 - 20152019 - 20232014 - 20152012 - 20152017 - 20232018 - 202120232012 - 20152017 - 2020201620212018 - 20202018 - 20212011 - 2020202120212011 - 20212019 - 20212011 - 202120122014 - 20212017 - 20212019 - 20202022202220222014 - 20152017 - 20182014 - 20152017 - 20182013 - 20152014 - 20152017 - 20182014 - 20152017 - 20182013 - 201520152017 - 20182013 - 20152017 - 20182017 - 20182013 - 20152017 - 201820192019 - 202220192019 - 20222019 - 20232019 - 2023
MakeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRam
ModelChargerChargerChargerChargerChargerChargerChargerChargerDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand Cherokee WKGrand Cherokee WKGrand Cherokee WK150015001500150015001500150015001500150015001500150015001500150015001500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic
TrimGTGT PlusPursuitSESXTSXT PlusSXT PlusSXT Plus LeatherCitadelCitadelCrewExpressGTGT PlusGT PremiumHeatLimitedPursuitRallyeSXTSXTSXT PlusSXT PlusSpecial ServiceSpecial Service75th Anniversary80th AnniversaryAltitudeHigh AltitudeLaredoLaredo ELaredo XLimitedLimited XOverlandOverland SummitSummitTrailhawkUplandLaredo ELaredo XLimitedBig HornBig HornExpressExpressHFELaramieLaramieLone StarLone StarOutdoorsmanRebelRebelSLTSLTSportTradesmanTradesmanBig HornExpressLone StarSLTTradesmanWarlock
Engine3.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V6
Note-----------------------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

Reviews

4.8/5

Based on 20 reviews

585%
410%
35%
20%
10%

Customer photos and videos

DB

07/26/2026

Verified buyer

PHILTOP 110A Alternator arrived quickly and well packaged. It was exactly as pictured and described. It was a perfect fit and replacement for my Taurus. Installation was quick and easy. It has a good weight and seems to be as good or better than the OEM I pulled out. It is functioning perfectly and has done so for over 500 miles now, as I wanted to wait before reviewing. I am very happy with it. If that should change I will update accordingly.

Gloria Deo

08/12/2026

Verified buyer

This PHILTOP alternator is a practical replacement for the listed 7.3L Super Duty and Excursion applications. The 110-amp output is appropriate for the factory-style electrical system, and the housing, pulley, and mounting layout are designed for a direct replacement rather than a custom installation. The build looks substantial, with visible copper windings and a compact design that fits the engine bay without unnecessary bulk. For an older work truck that needs dependable charging again, this is a straightforward option that avoids paying much more for a remanufactured unit. Fitment is the one thing to verify carefully before ordering. The listing is specific to certain 1999-2001 F-250, F-350, F-450, F-550 and 2000-2001 Excursion 7.3L applications, so matching the original part number and pulley configuration is important. With the correct application, this is an easy replacement to recommend.

FAQS

Our alternator is proven in extreme temperatures. Designed for powerful, efficient performance, its premium components ensure stable voltage, quiet operation, and a long service life.

PHILTOP New Alternator feature factory-matched cores, stator and rotor are impregnated with insulating varnish. Rigorously tested to OE standards. This ensures secure bonding, stable high-speed operation, durability, and safety.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
