2004-2008 Acura TSX 2.4L | 7-Groove Pulley 105A Alternator | 13980N - PHILTOP

2004-2008 Acura TSX 2.4L | 7-Groove Pulley 105A Alternator | 13980N - PHILTOP

Pulley Grooves: S7

Amperage: 105 A

Built to Last

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8482ANR203HUS

Specifications

Brand
PHILTOP
Pulley Grooves
S7
Amperage
105 A
Rotation Direction
CW
Regulator
IR
Fan Type
IF
Voltage
12 V
Material

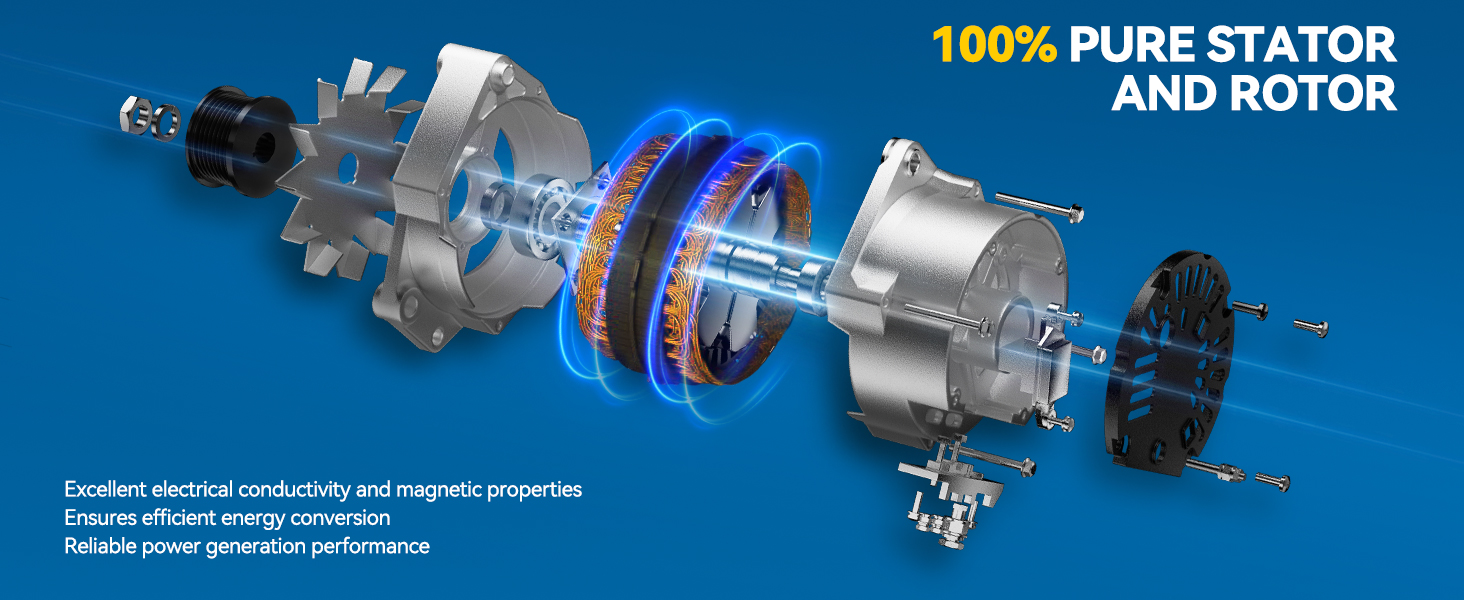

Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included
1x Alternator 13980N 1x Manual
Warranty Period
2-Year
Part Number
13980N

Highlights

  • Vehicle Compatibility: New Alternator Replacement for 2003-2007 Accord 2.4L, 2007-2009 CR-V, 2003-2009 Element, 2004-2008 TSX, 2006-2010 Civic 2.0L. Please make sure whether the alternator fits your car before placing order.
  • OE-Quality: Automotive Alternator Replace OE part number#13980N 31100-RAA-A03 31100-RAA-A03RM 31100-RAA-A04 31100-RAA-A05 31100-RTA-003 31100-RTA-013 31100-RTA-023 CSD73 31100-RAA-A01 CSC29 104210-3290 104210-3291 104210-3292 104210-3293. Alternator manufactured to OE specification to match the fit form and function of the factory design alternator. ISO/TS 16949 certified.
  • Easy to install: The alternator features a direct fit factory OE design that is easy to install and requires no modifications to your vehicle. Installing the alternator is a breeze, thanks to its user-friendly design. With detailed instructions and all the necessary mounting hardware included, you can quickly and effortlessly swap out your old alternator for our high-quality replacement.
  • Pretty Performance: The alternators with stand rigorous use and daily wear and tear, and maintain good strength to keep the product performing for a long time. It features enhanced durability and resistance to heat, vibration, and wear, ensuring a longer lifespan compared to standard alternators.
  • Reliable performance: Alternator's high quality bearings with high temperature lubricants and double lip rubber seals reduce friction, vibration and noise. The alternator provides high output power, ensuring that your vehicle's electrical system operates at its optimal level. The alternator will keep your vehicle powered, even under demanding conditions.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 20082003 - 20052003 - 200720072003 - 20072006200520072006 - 20072007 - 20092007 - 20092007 - 200920082006 - 20102003 - 20042003 - 20092004 - 20092007 - 2009
MakeAcuraHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHonda
ModelTSXAccordAccordAccordAccordAccordAccordAccordAccordCR-VCR-VCR-VCivicCivicElementElementElementElement
TrimBaseDXEXEX-LLXLX Special EditionSESpecial EditionValue PackageEXEX-LLXMUGEN SiSiDXEXLXSC
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.0L L42.0L L42.4L L42.4L L42.4L L42.4L L4
Note------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

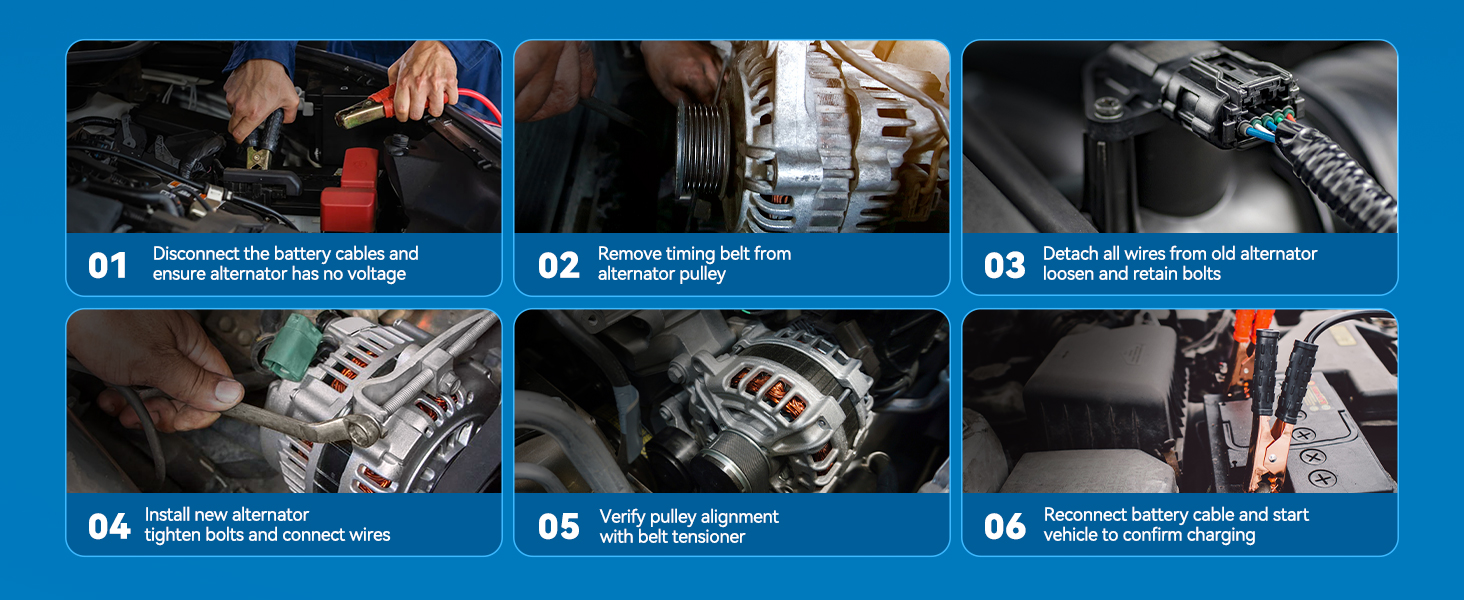

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

Alternator Replacement forAlternator Replacement for

Reviews

4.5/5

Based on 8 reviews

563%
425%
313%
20%
10%

Blackcat

04/27/2026

Verified buyer

Installed on 2005 Pontiac G-6. Fit like it should for a better price than anywhere else I could find

erica sandler

04/14/2026

Verified buyer

1996 honda accord LXDay 1, installed no problem and working great! Will update with any changes! Thank you!

FAQS

Easy to install. To ensure safety and correct installation, which varies by vehicle, professional tools are required. Consult our included manual and video guide.

PHILTOP Alternator are specifically designed for [specific vehicle models]. You can check the vehicle compatibility and product images on this page, or reach out for confirmation to ensure a perfect match.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
