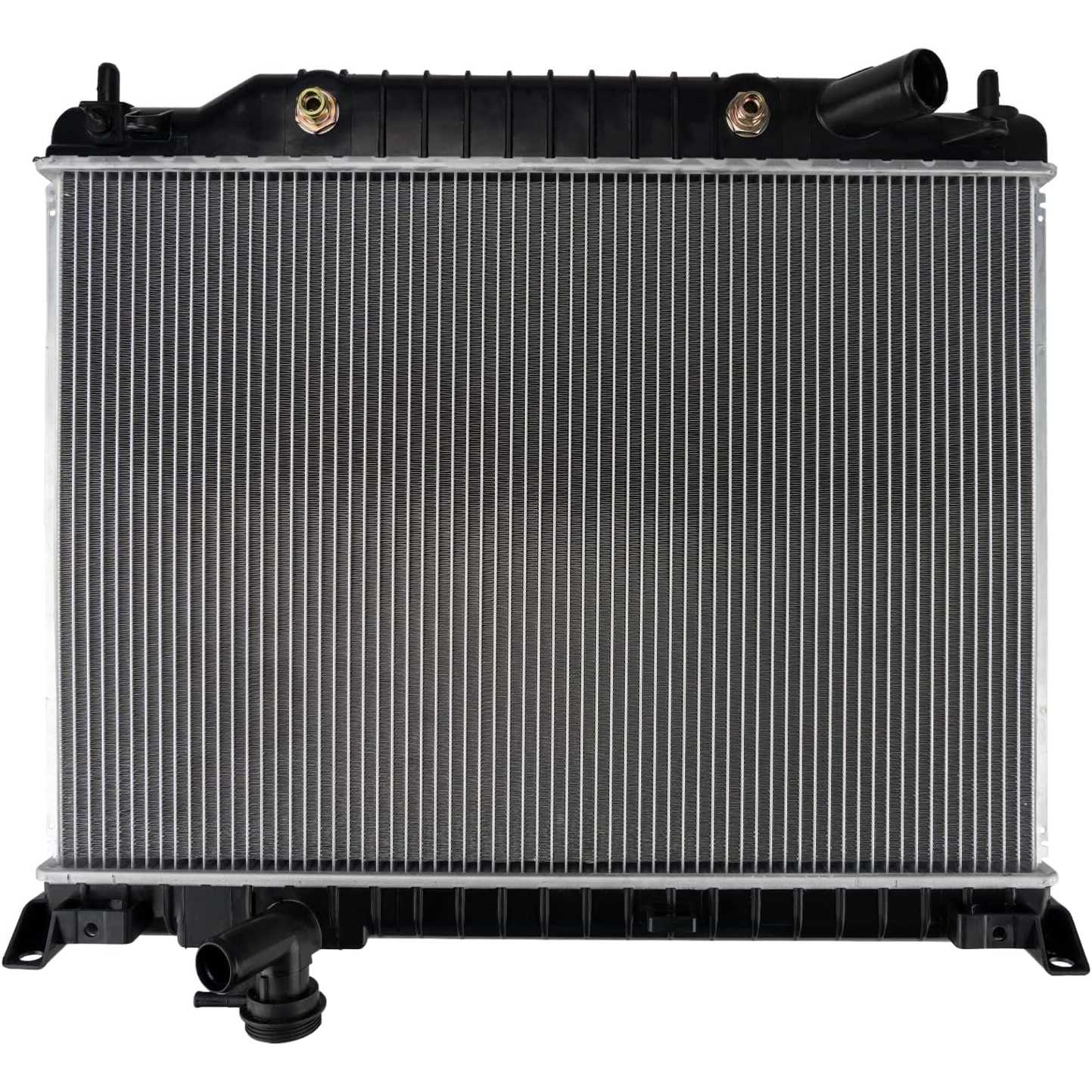

2002-2009 Chevrolet Trailblazer 4.2L L6 | Aluminum 1" Radiator | OE#52381210/CU2458 - PHILTOP

2002-2009 Chevrolet Trailblazer 4.2L L6 | Aluminum 1" Radiator | OE#52381210/CU2458 - PHILTOP

Leak-Resistant

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6463CFK130UUS

Specifications

Brand
PHILTOP

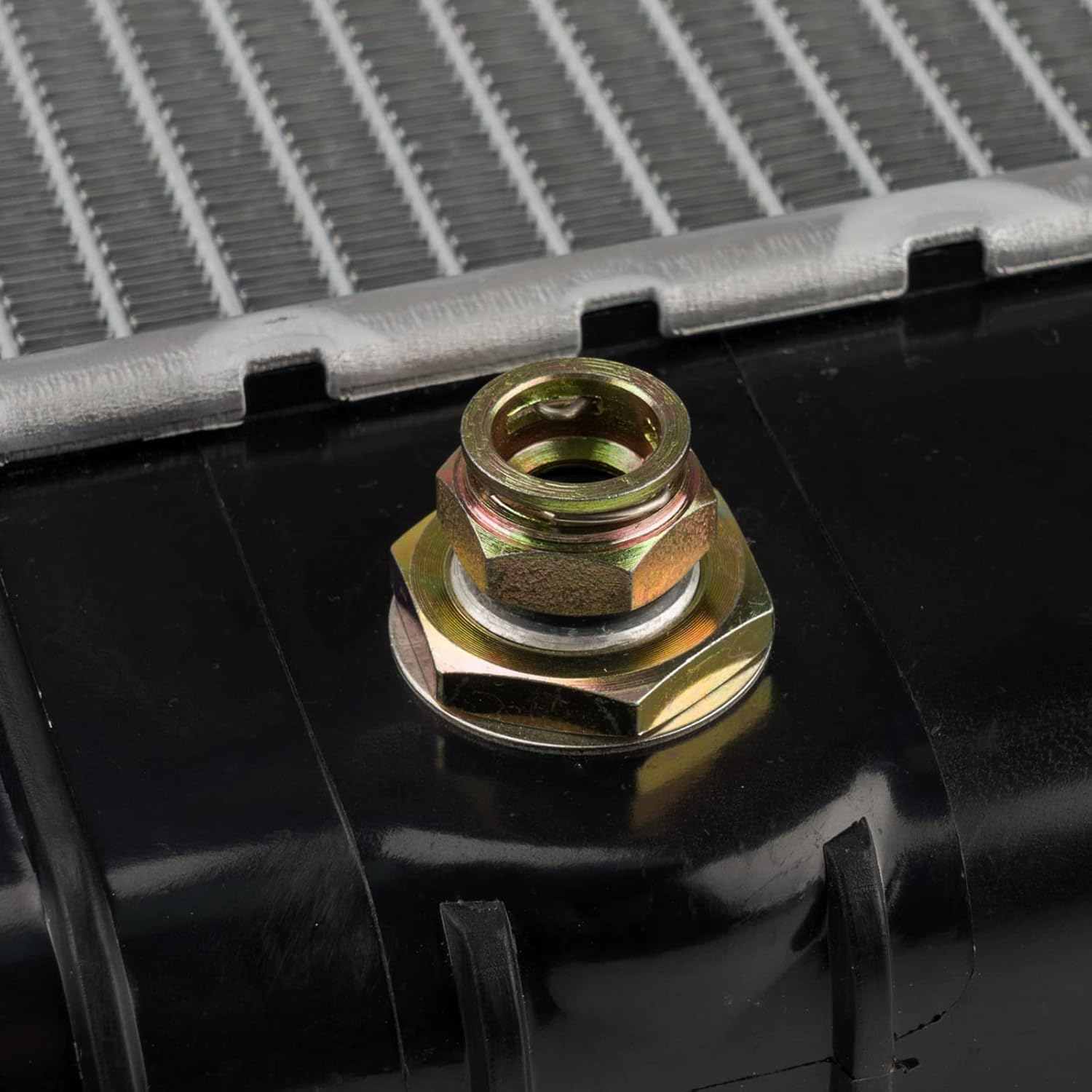

Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
27-1/16 in
Core Height
17-15/16 in
Radiator Cap Included
No
Inlet Diameter
1-5/16 in
Outlet Diameter
1-9/16 in
Items Included
1x Radiator - CU2458, 1x Instruction Manual
Mounting Type
Top Flange / Bottom Pin
Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
52381210,15196385,15179051,15162212,8151790510,52485546,15072397,8151963850,8151622120,8524855460
Part Number
CU2458,2219012,2458C,735011,412458,432403,REA412458A,KLI2458,69211,9630,21452,SBR2458,CRS2458,PR2458A,PR2458KA,40980,CUC2458,0R002458A2CM,AM2458,NR2458B,CR2458,56557,VS2458,BES2458,C2458,1981201015

Highlights

  • Direct Compatible with :2002-2005 Trailblazer, 2006-2009 Trailblazer 4.2L, 2005-2009 Envoy 4.2L, 2002-2004 Envoy, 2003-2006 Trailblazer EXT 4.2L, 2003-2006 Envoy XL 4.2L, 2004-2007 Rainier 4.2L, 2002-2004 Bravada, 2004-2005 Envoy XUV 4.2L, 2003-2006 Ascender 4.2L, 2002 Trailblazer EXT, 2005-2009 9-7x 4.2L, 2002 Envoy XL, 2007-2008 Ascender
  • OEM Part Number: 15072397, 15162212, 15179051, 15196385, 52485546, 8151622120, 8151790510, 8151963850, 8524855460
  • Dimension - Core Width: 27-1/16 in Core Height: 17-15/16 in Core Thickness: 1 in Inlet Diameter: 1-5/16 in Outlet Diameter: 1-9/16 in
  • IATF16949 Certification: Designed with outstanding durability, in compliance with the original specifications, and suitable for direct replacement.

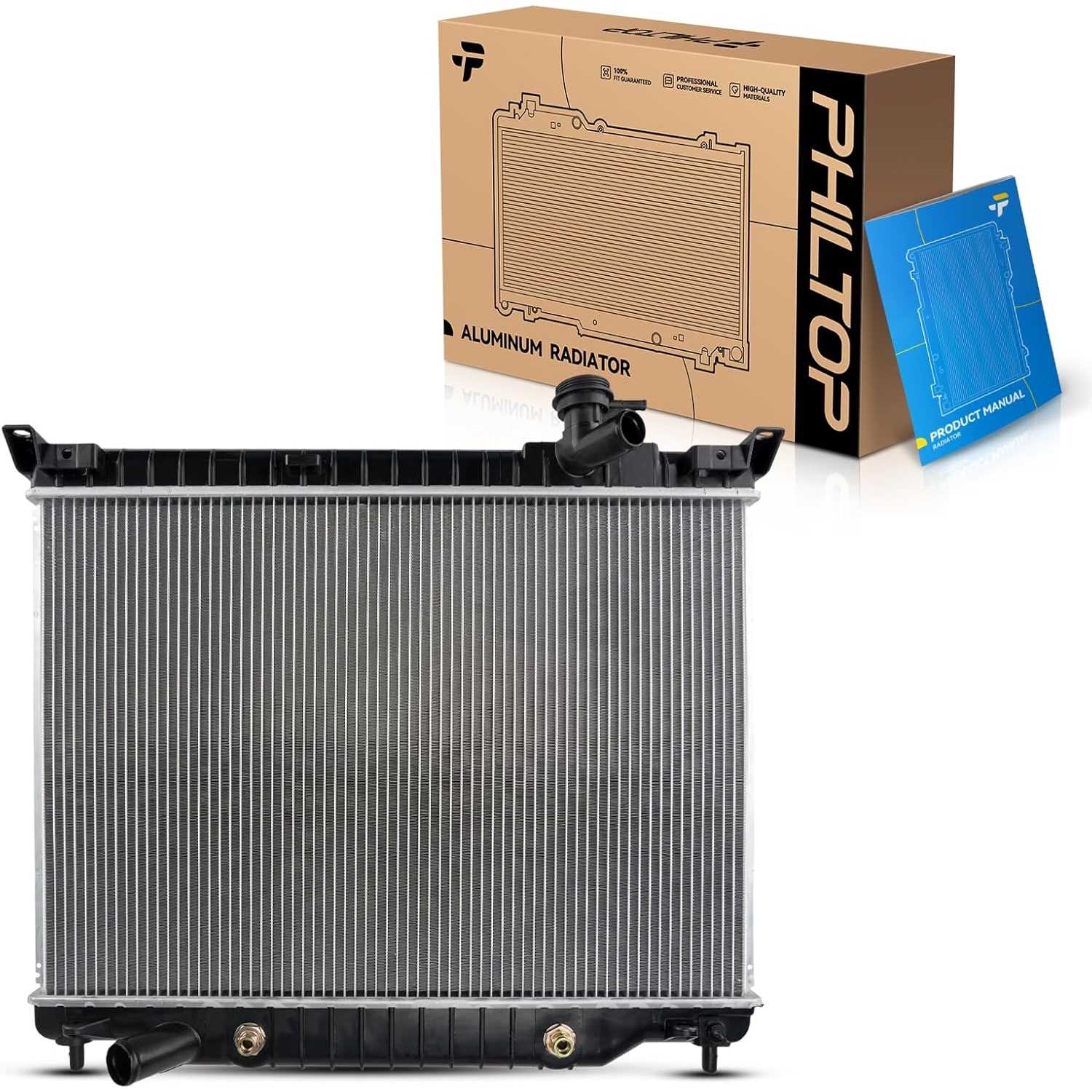

  • Enhanced Package: Package come with 1x PHILTOP Radiator Complete Radiator and. Fixed foam in four corners for the purpose of fixing the radiator, no bending and no damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 20072004 - 200520082002 - 20072002 - 20092002 - 20032002 - 20042003 - 20062002 - 20062002 - 20042002 - 20092002 - 20092002 - 20062002 - 20062004 - 20052004 - 2005200320062003 - 200620032004 - 20052007 - 20082002 - 20042006 - 20092005
MakeBuickBuickChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuOldsmobileSaabSaab
ModelRainierRainierTrailblazerTrailblazerTrailblazerTrailblazerTrailblazerTrailblazer EXTTrailblazer EXTTrailblazer EXTEnvoyEnvoyEnvoy XLEnvoy XLEnvoy XUVEnvoy XUVAscenderAscenderAscenderAscenderAscenderAscenderBravada9-7x9-7x
TrimCXLCXL PlusBaseLSLTLTZNorth FaceLSLTNorth FaceSLESLTSLESLTSLESLTBaseBaseLSLimitedSSBase4.2iLinear
Engine4.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L6
Note
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

PHILTOP radiatorradiators

Reviews

4.6/5

Based on 9 reviews

567%
422%
311%
20%
10%

CarGuy_John_917

01/23/2026

Super easy to install, took me maybe an hour. Everything lined up perfectly, and the shipping was lightning fast. Arrived sooner than I expected.

Mike from Texas_45

01/14/2026

For the price, the craftsmanship on this radiator is fantastic. It feels very sturdy and looks great. Definitely a great value.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Many cooling systems require bleeding after refilling to remove trapped air. Follow the procedure specified for the vehicle.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.
