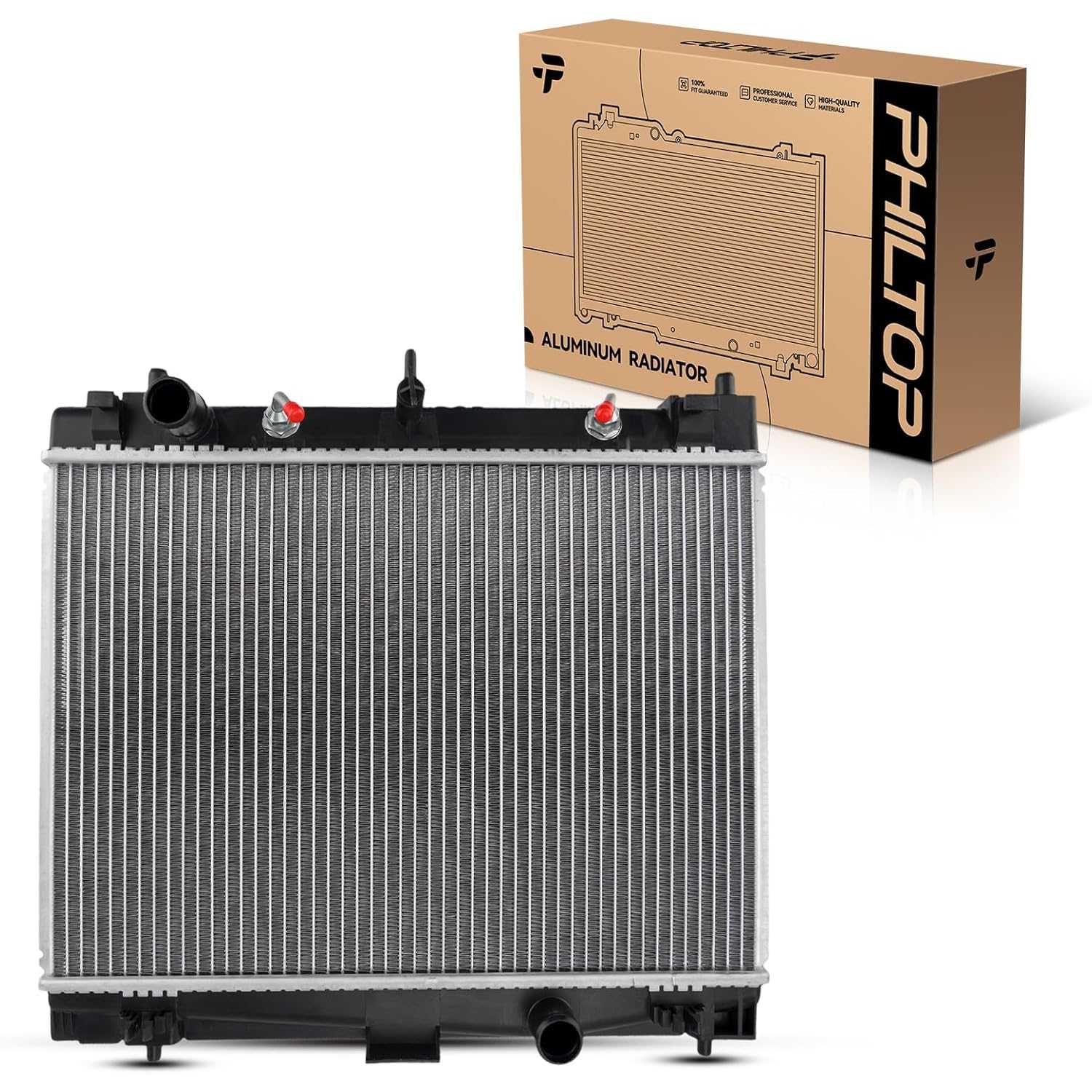

2007-2016 Toyota Yaris 1.5L L4 | Aluminum 5/8" Radiator | OE#164000M330/CU2890 - PHILTOP

2007-2016 Toyota Yaris 1.5L L4 | Aluminum 5/8" Radiator | OE#164000M330/CU2890 - PHILTOP

Leak-Resistant

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1246CFK152KUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
5/8 in
Core Width
19-3/16 in
Core Height
13-3/4 in
Radiator Cap Included
No
Inlet Diameter
1-1/4 in
Outlet Diameter
1-1/4 in
Items Included
1x Radiator - CU2890, 1x Instruction Manual
Mounting Type
Top / Bottom Post
Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
164000M330,164000M320,1640021300,1640021270,1640021371,1640021381,16410AZ029
Part Number
CU2890,2213112,2213111,412890,701568,2890C,412889,2890,3111,SBR2890,2889,8595,434017,A2890,KLI2890,REA412890A,PR2890A,BES2890,35977AU,1981202481,CRS2890,CUC2890,0R002890A1CM,36027AU,AM2889,NR2890A,64682,CR2889,CR2890,56628,PR2890KA,220301800,AM2890

Highlights

  • Vehicle Fitment For: 2007-2016 Yaris, 2008-2014 xD
  • Reference Number: 1640021270, 1640021300, 1640021371, 1640021381, 16410AZ029, 16410AZ036, CU2889
  • Enhanced Package: Package come with 1x PHILTOP Radiator Complete Radiator and. Fixed foam in four corners for the purpose of fixing the radiator, no bending and no damage.
  • High-Efficiency Cooling: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • IATF16952 Certification: Authoritative certification, quality assurance

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2008 - 20142007 - 20122012 - 20162012 - 20162007 - 20092012 - 2016
MakeScionToyotaToyotaToyotaToyotaToyota
ModelxDYarisYarisYarisYarisYaris
TrimBaseBaseLLESSE
Engine1.8L L41.5L L41.5L L41.5L L41.5L L41.5L L4
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

RADIATOR11

Reviews

4.9/5

Based on 14 reviews

593%
47%
30%
20%
10%

Linda

02/24/2026

Verified buyer

Great quality

Robert O. Walker, Sr.

11/17/2025

Verified buyer

Exact fit

FAQS

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.

Some radiators include transmission-cooler connections. Check the specifications and compare the fittings with the original radiator.

A flush may help remove old coolant and debris when contamination is present. Follow the vehicle manufacturer’s service procedure.
