2000-2011 Chevrolet Impala 3.5L | Front Driver Side CV Axle Shaft | 661255 - PHILTOP

2000-2011 Chevrolet Impala 3.5L | Front Driver Side CV Axle Shaft | 661255 - PHILTOP

Front Left

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9295SHA467DUS

Specifications

Brand
PHILTOP
Position
Front Left
ABS Ring Included
No
Quantity
1

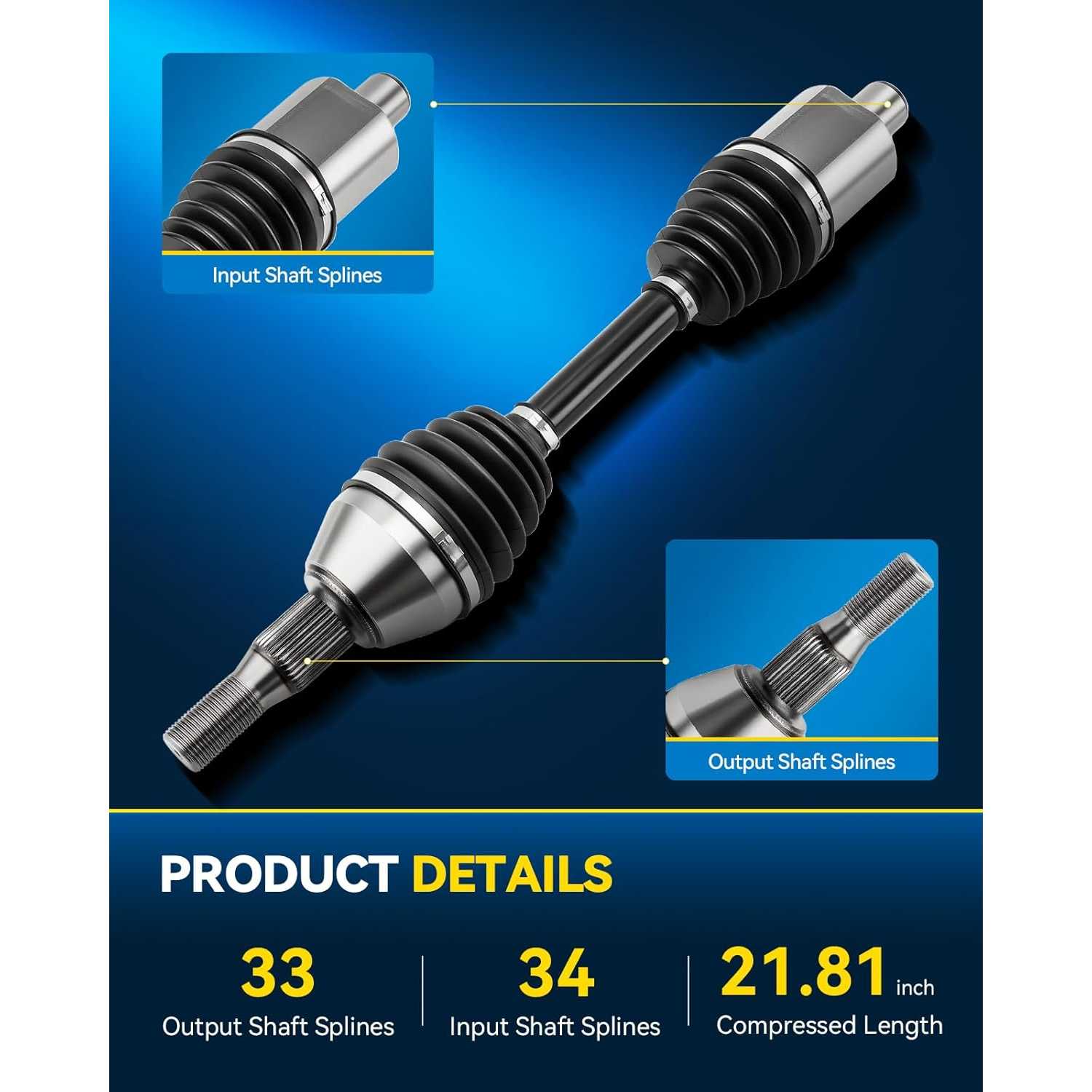

Input Shaft Spline Count
34

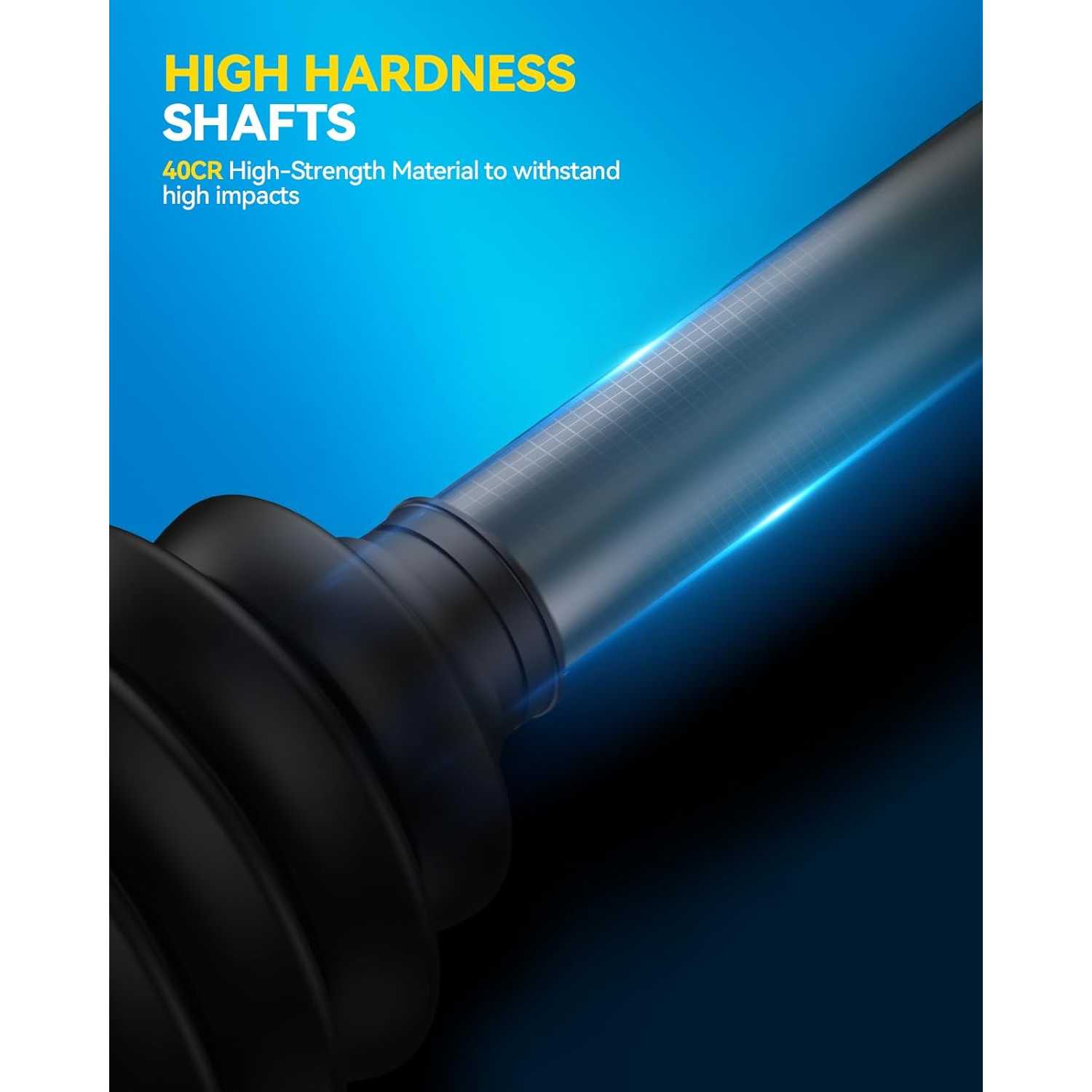

Material

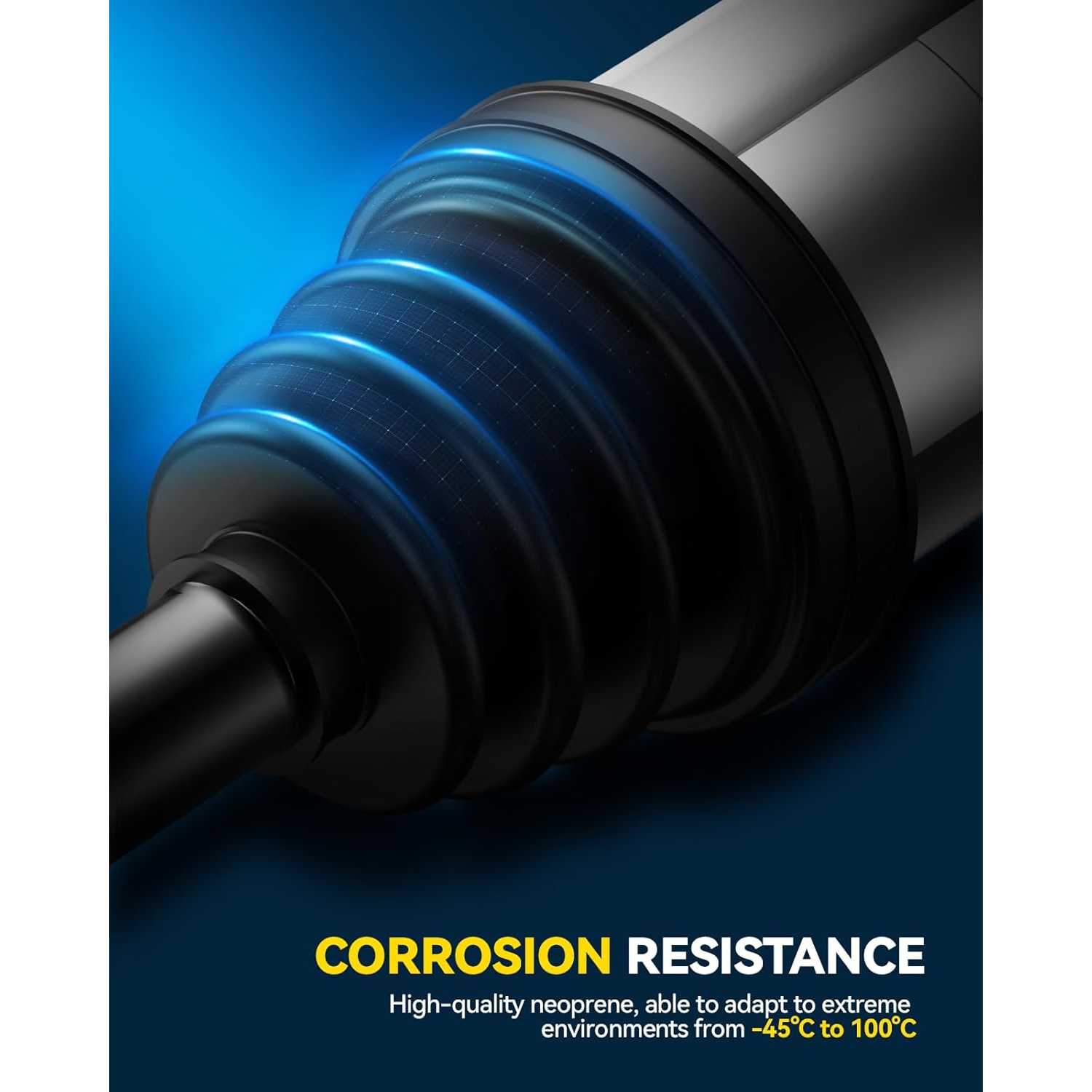

SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
33
Items Included

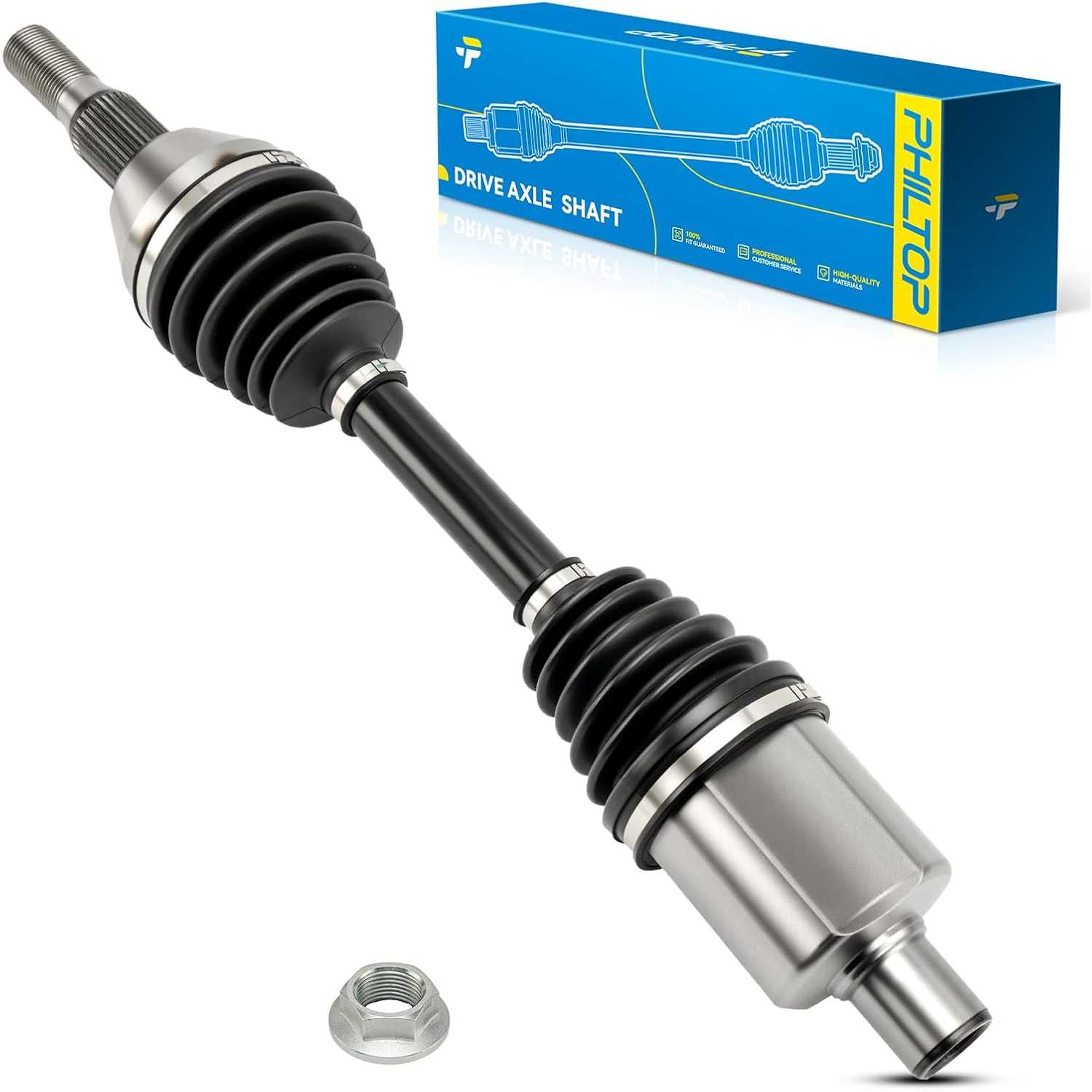

1x Front Left Cv Axle Shaft - 66-1255
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
661255

Highlights

  • Fitment: CV Axle Front Left for 2000-2005 Century, 2001-2005 LeSabre, 2005-2009 LaCrosse 3.6/3.8L, 2006-2008 Lucerne 3.8L, 1997-1999 Park Avenue, 2000-2005 Park Avenue Base, 1997-2004 Regal(1997 Only fits GS), 1997-1999 Riviera, 2000-2003 Impala, 2004-2005 Impala Base/LS/Police, 2006-2011 Impala 3.5/3.9L, 2000-2004 Monte Carlo(2004 Only fits 3.4L), 2005-2005 Monte Carlo LS/LT, 2006-2007 Monte Carlo 3.5/3.9L, 1999-2005 Venture, 2001-2002 Aurora 3.5L, 1998-2002 Intrigue, 1999-2004 Silhouette, 2000-2005 Bonneville SE/SLE, 1997-1999 Grand Prix 3.8L(Except 1997 SE), 2000-2004 Grand Prix, 2005-2008 Grand Prix 3.8L, 1999-2005 Montana 3.4L
  • Reference Number: 26054707, 20859642, 26073371, APCVA024, 26054579, 26073386, 26073399, 66-1255HD, 26073398, 26063207, 26073387, 26073391, 88965659, 26054529, APCVA024MF, 88965657, 26063202,10399689.
  • Reliably: Enjoy a smoother, more reliable ride with our high-quality CV axles. The high quality materials and excellent performance of our half shafts provide reliable support for your vehicle!

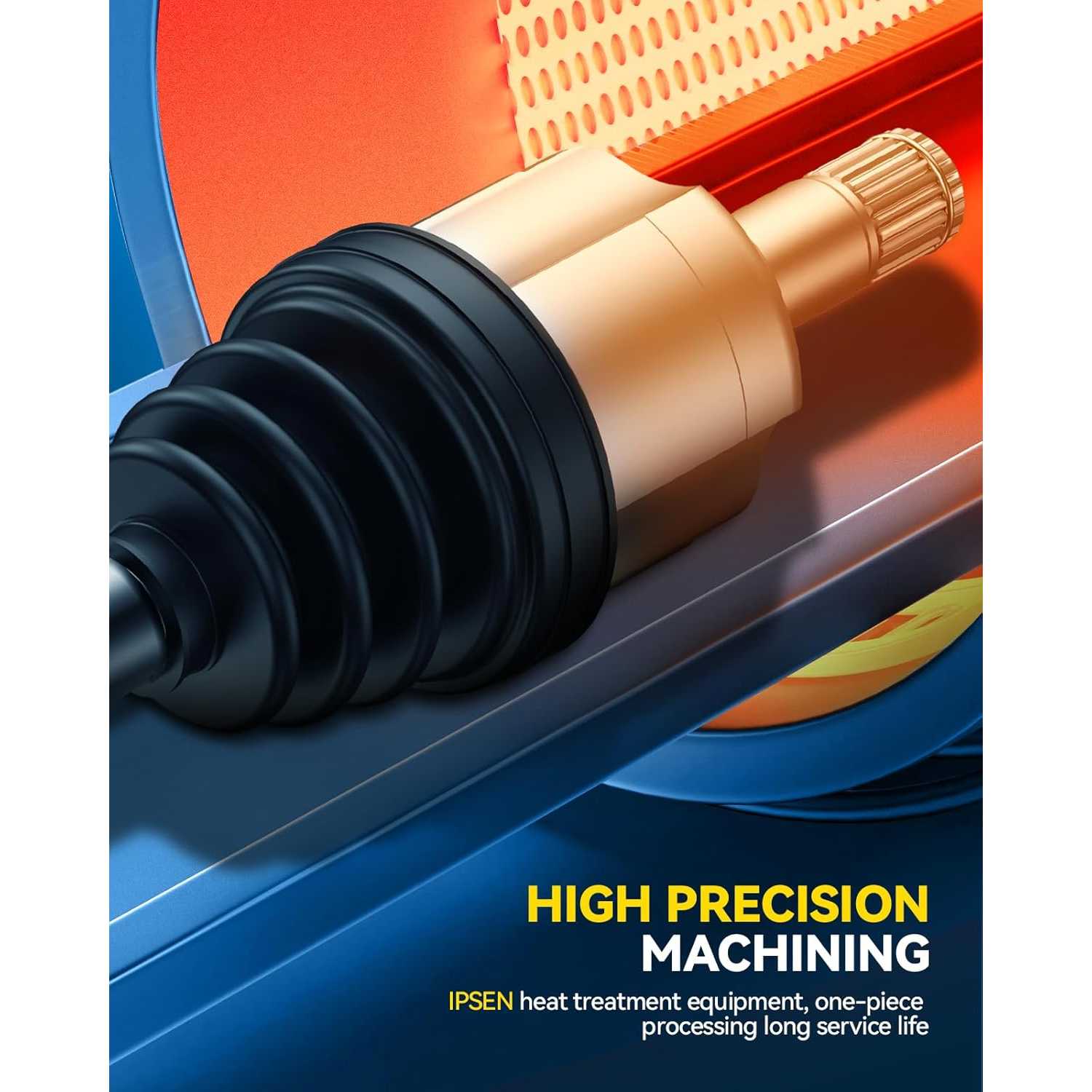

  • High Quality: Half shafts are 100% ground to improve ball path and surface finish and extend product life.CV shafts are normalised to ensure stability in subsequent machining.

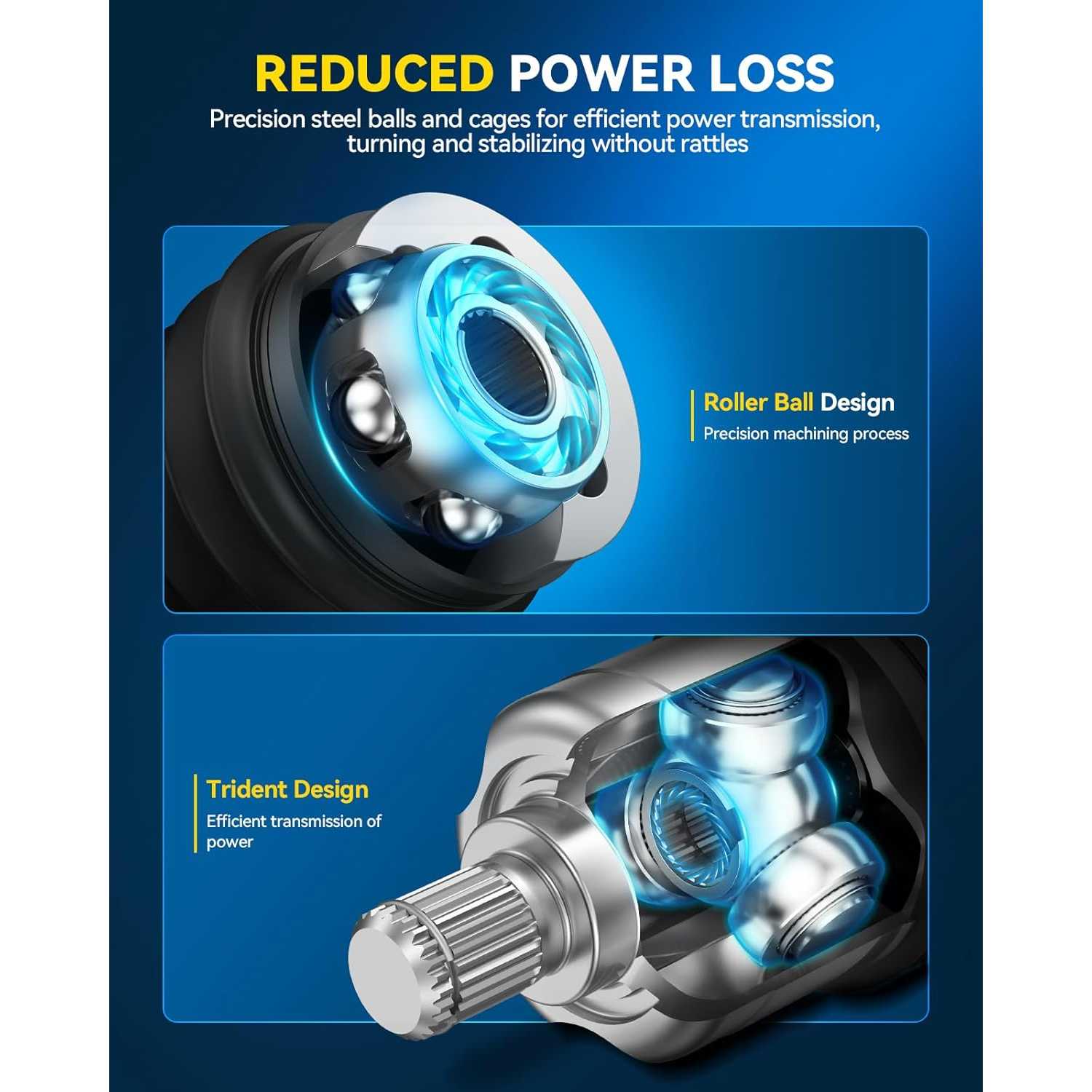

  • Function: Half shafts for equal speed power transmission and wheel steering through pendulum angle.CV axles are designed in strict accordance with OE standards, with 100% inspection of key mating dimensions.

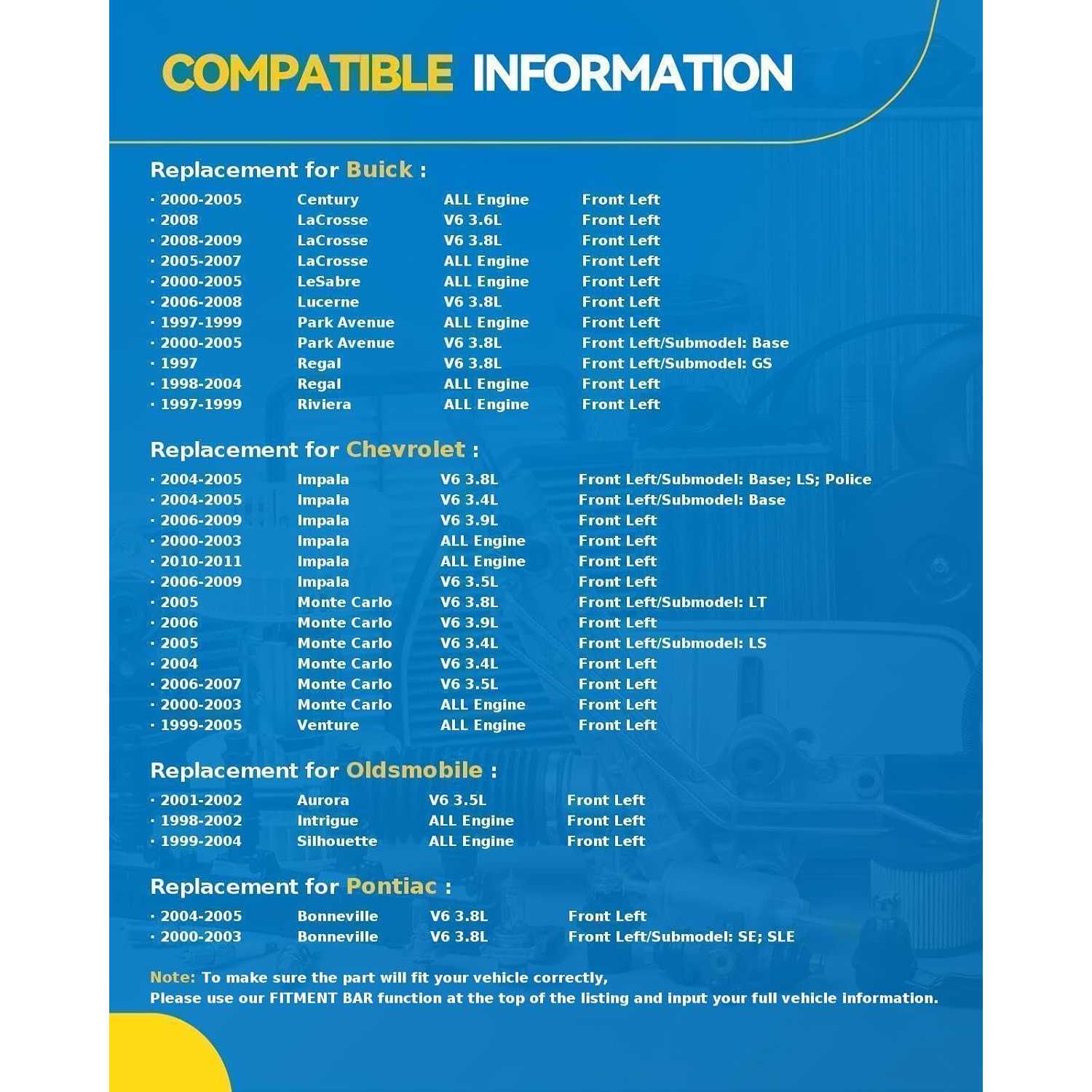

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2000 - 20052000 - 20022004 - 200520052005 - 20092005 - 20092005 - 20082000 - 20052000 - 20052006 - 20082006 - 20081997 - 20051997 - 199919981997 - 200420001998 - 200420001997 - 199920082000 - 20052000 - 20052006 - 20112000 - 20052010 - 201120032006 - 20112006 - 20092006 - 20112003 - 20052006 - 20112000 - 20052006 - 2007200320032006 - 20072005200620062000 - 200320022002200320031999 - 200020021999 - 20052000 - 20052000 - 20052000 - 20032000 - 20032001 - 200219981999 - 20021998 - 19991999 - 200219981999 - 200219991999 - 20041999 - 200419991999 - 20042000 - 20052000 - 20052005 - 20081998 - 20032005 - 2007200420041997 - 20052000 - 20031998 - 20021999 - 2005
MakeBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobilePontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiac
ModelCenturyCenturyCenturyCenturyLaCrosseLaCrosseLaCrosseLeSabreLeSabreLucerneLucernePark AvenuePark AvenueRegalRegalRegalRegalRegalRivieraImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloVentureVentureVentureVentureVentureVentureVentureAuroraIntrigueIntrigueIntrigueIntrigueIntrigueIntrigueIntrigueSilhouetteSilhouetteSilhouetteSilhouetteBonnevilleBonnevilleGrand PrixGrand PrixGrand PrixGrand PrixGrand PrixGrand PrixGrand PrixGrand PrixMontana
TrimCustomLimitedLimitedSpecial EditionCXCXLCXSCustomLimitedCXCXLBaseUltra25th Anniversary EditionGSGSELSLSEBase50th Anniversary EditionBaseBaseLSLSLSLS SportLTLTLTZPolicePoliceLSLSLS CompetitionLS SportLTLTLTLTZSSSS 35th Anniversary EditionSS Dale Earnhardt Signature EditionSS High SportSS Pace CarBaseBaseLSLTPlusValueWarner Bros.BaseBaseGLGLGLSGLSGXGXGLGLSGSPremiereSESLEBaseGTGTGT1GT2GTPSESEBase
Engine3.1L V63.1L V63.1L V63.1L V63.8L V63.8L V63.6L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.5L V63.4L V63.8L V63.5L V63.8L V63.9L V63.8L V63.5L V63.9L V63.9L V63.8L V63.9L V63.4L V63.5L V63.4L V63.4L V63.5L V63.8L V63.9L V63.9L V63.8L V63.8L V63.8L V63.8L V63.8L V63.4L V63.4L V63.4L V63.4L V63.4L V63.4L V63.4L V63.5L V63.8L V63.5L V63.8L V63.5L V63.8L V63.5L V63.8L V63.4L V63.4L V63.4L V63.4L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.1L V63.8L V63.4L V6
Note--------------------------------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.7/5

Based on 6 reviews

567%
433%
30%
20%
10%

Mysticspiral

09/15/2026

Verified buyer

As expected

Janet L. Cotham

08/02/2025

Verified buyer

Exactly as described. Installed in under an hour—great shafts

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
