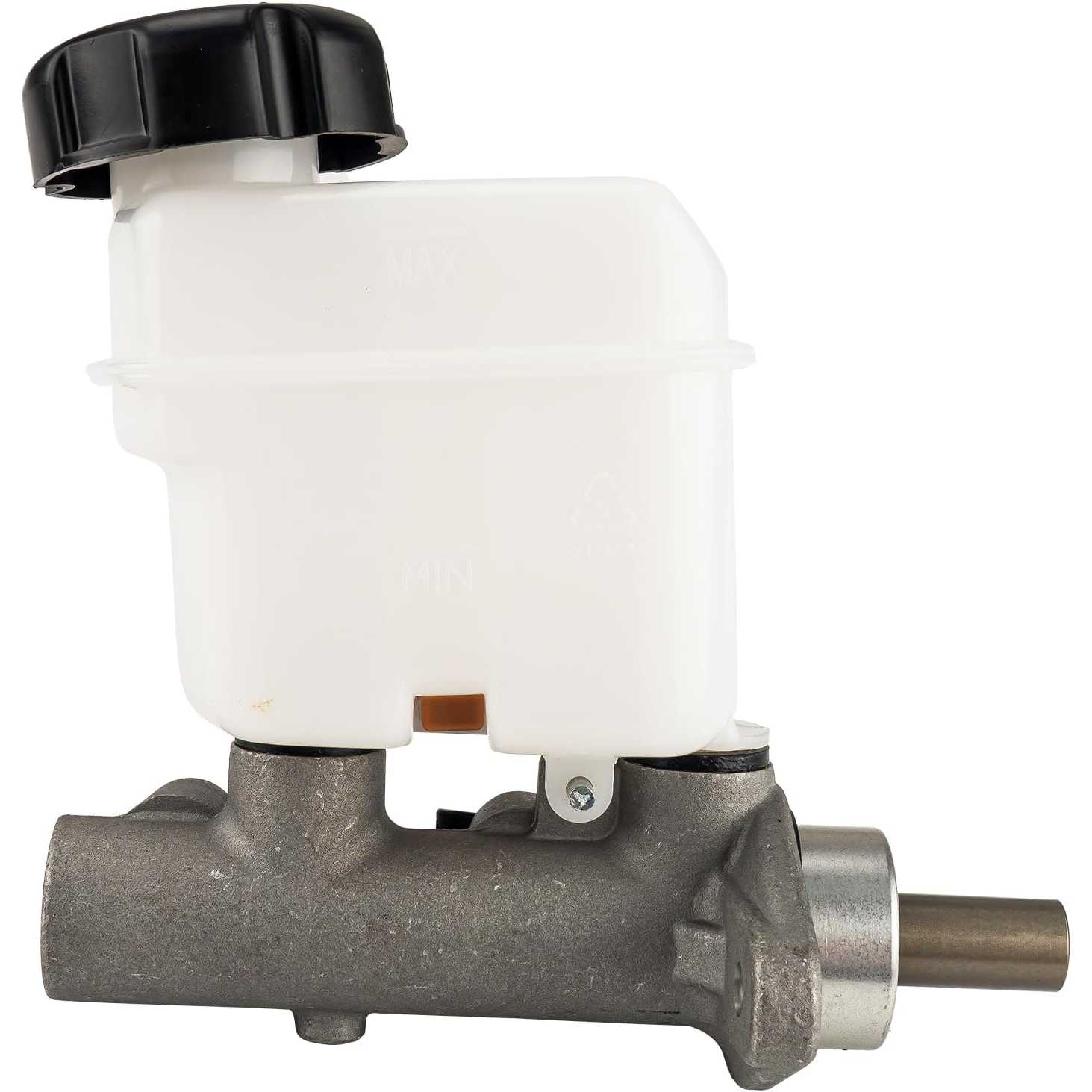

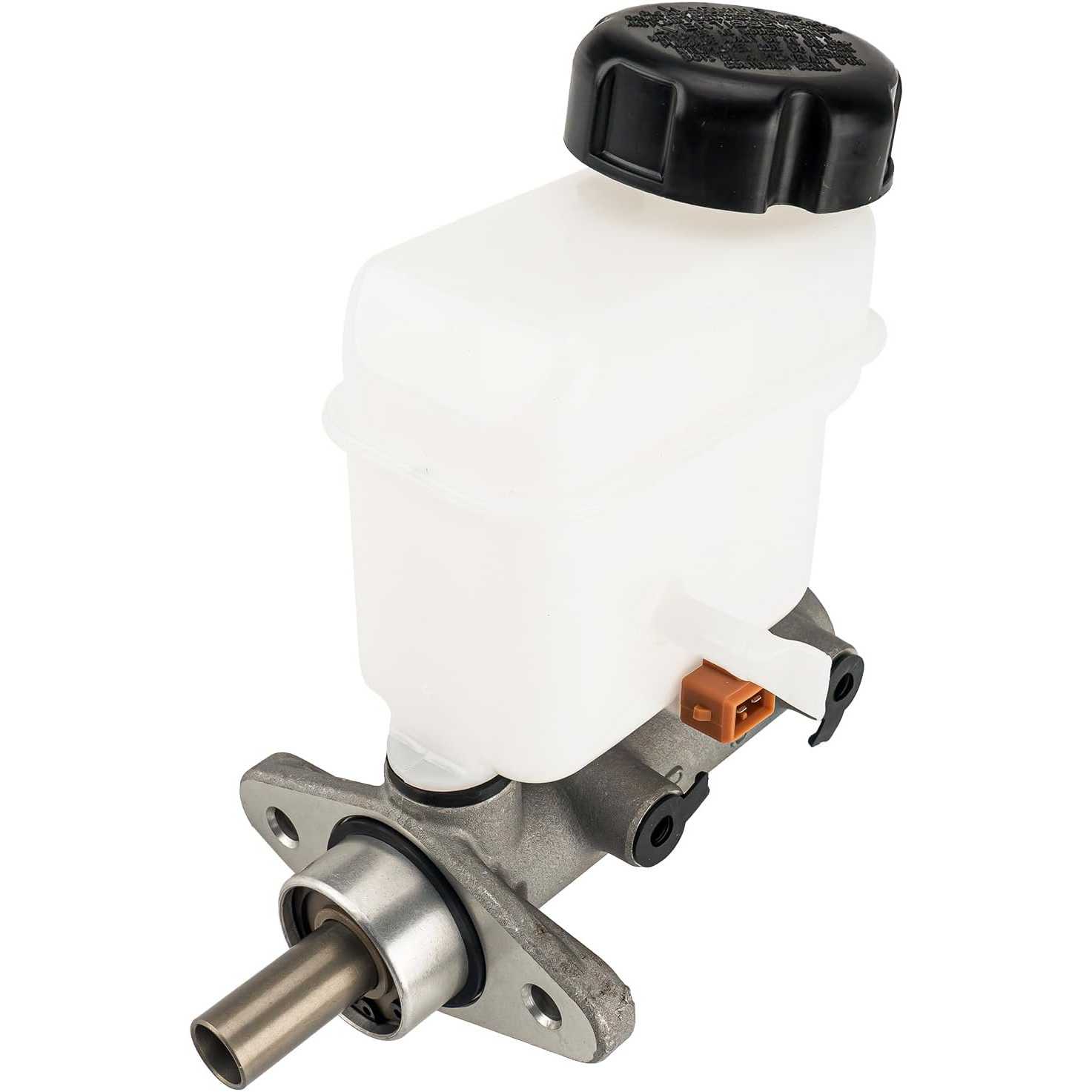

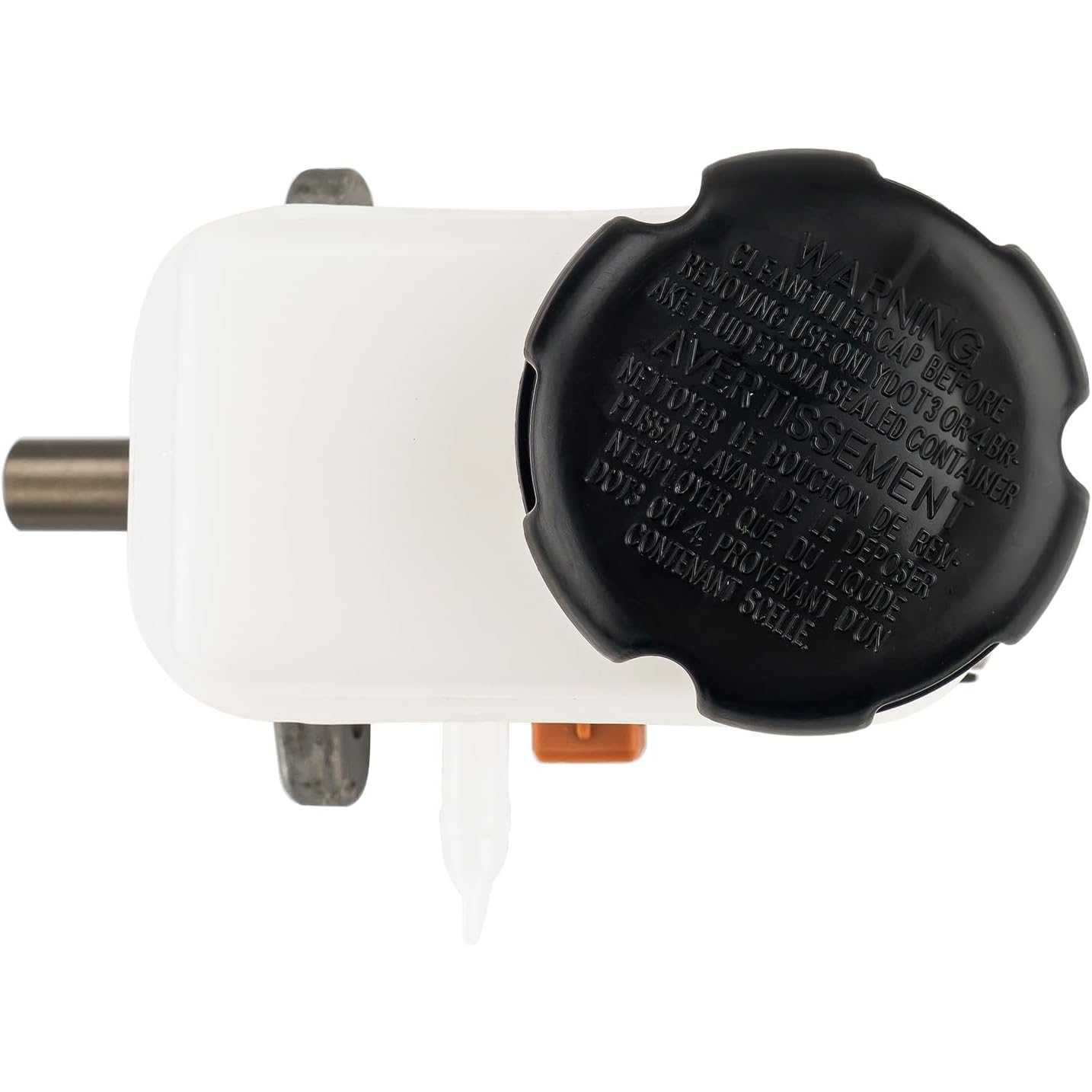

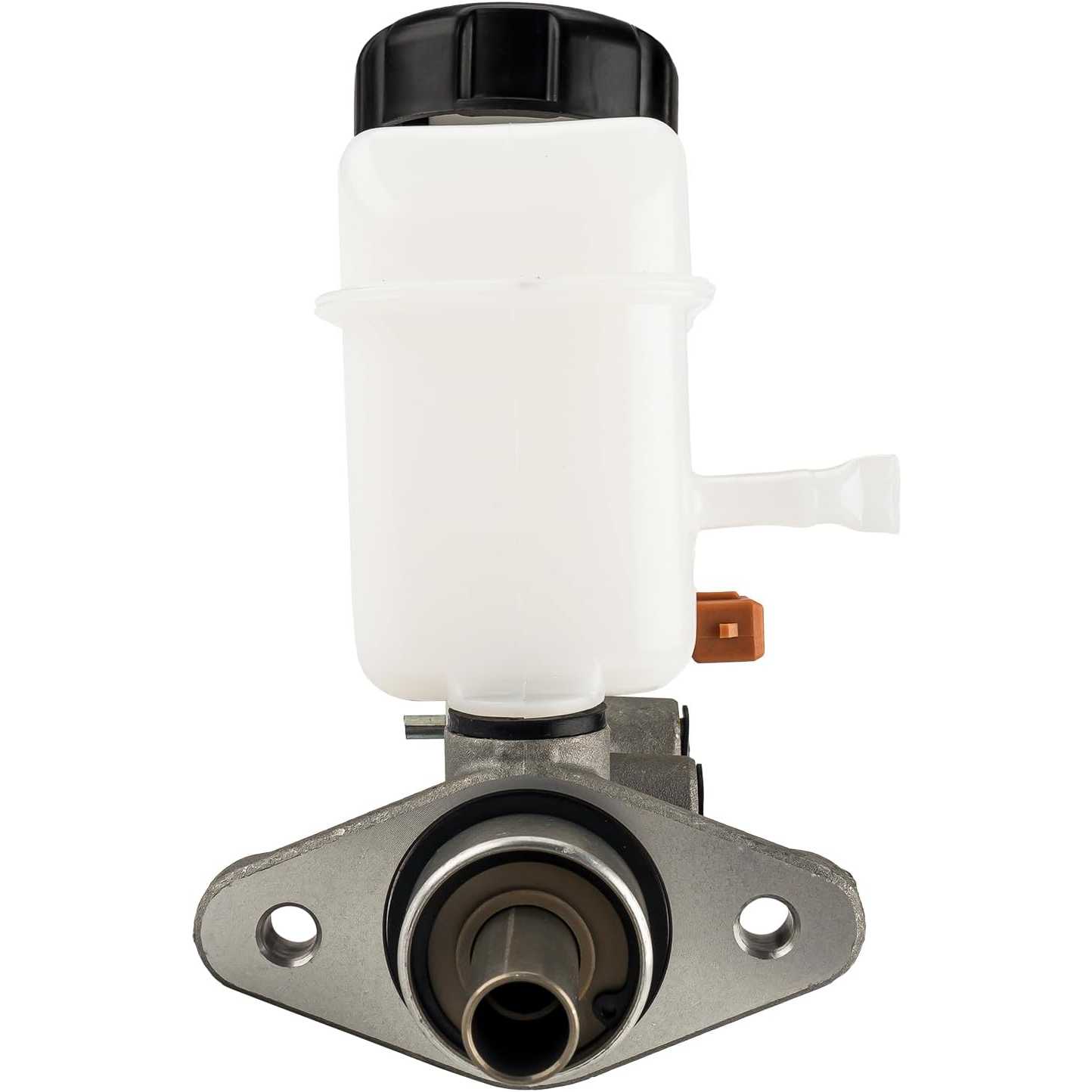

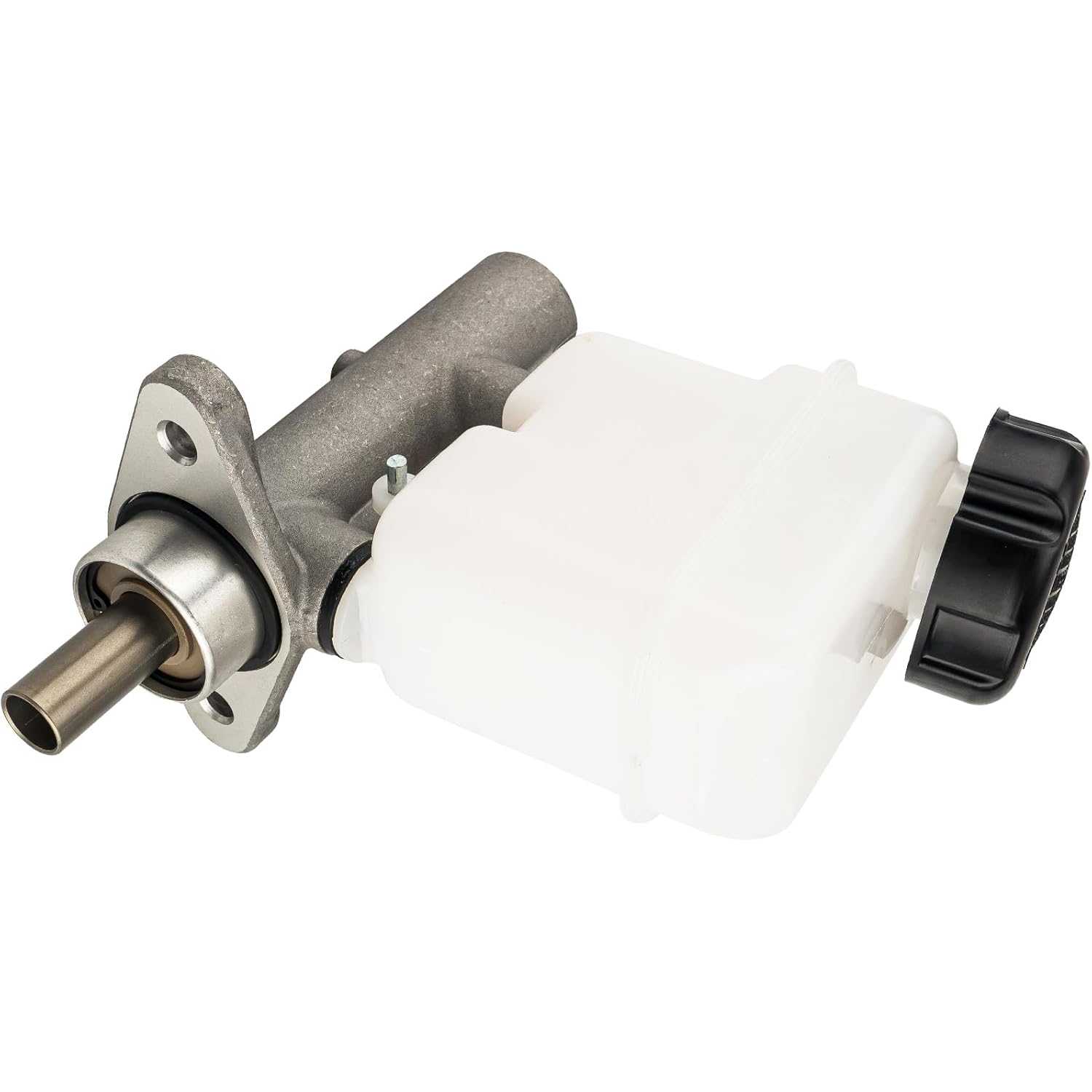

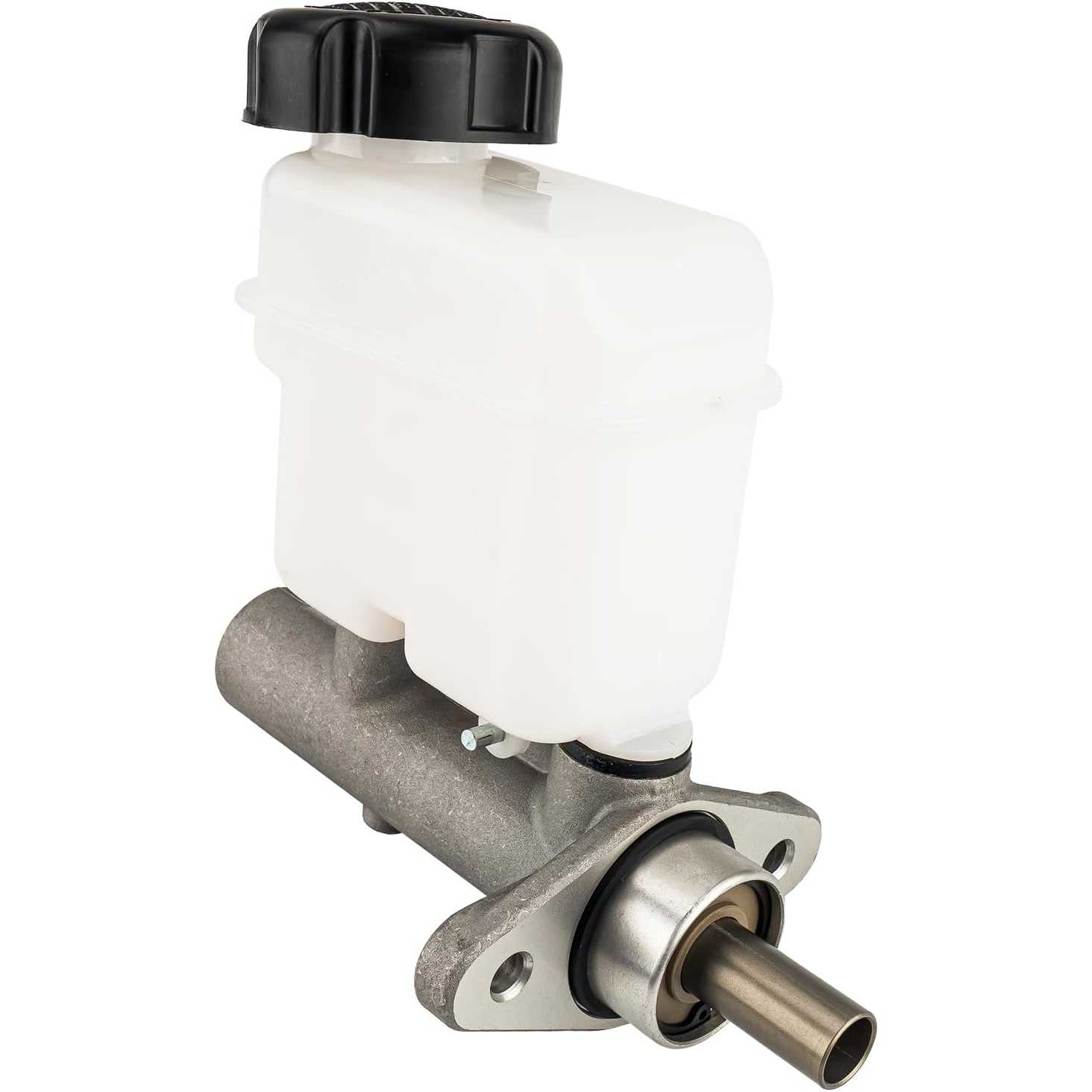

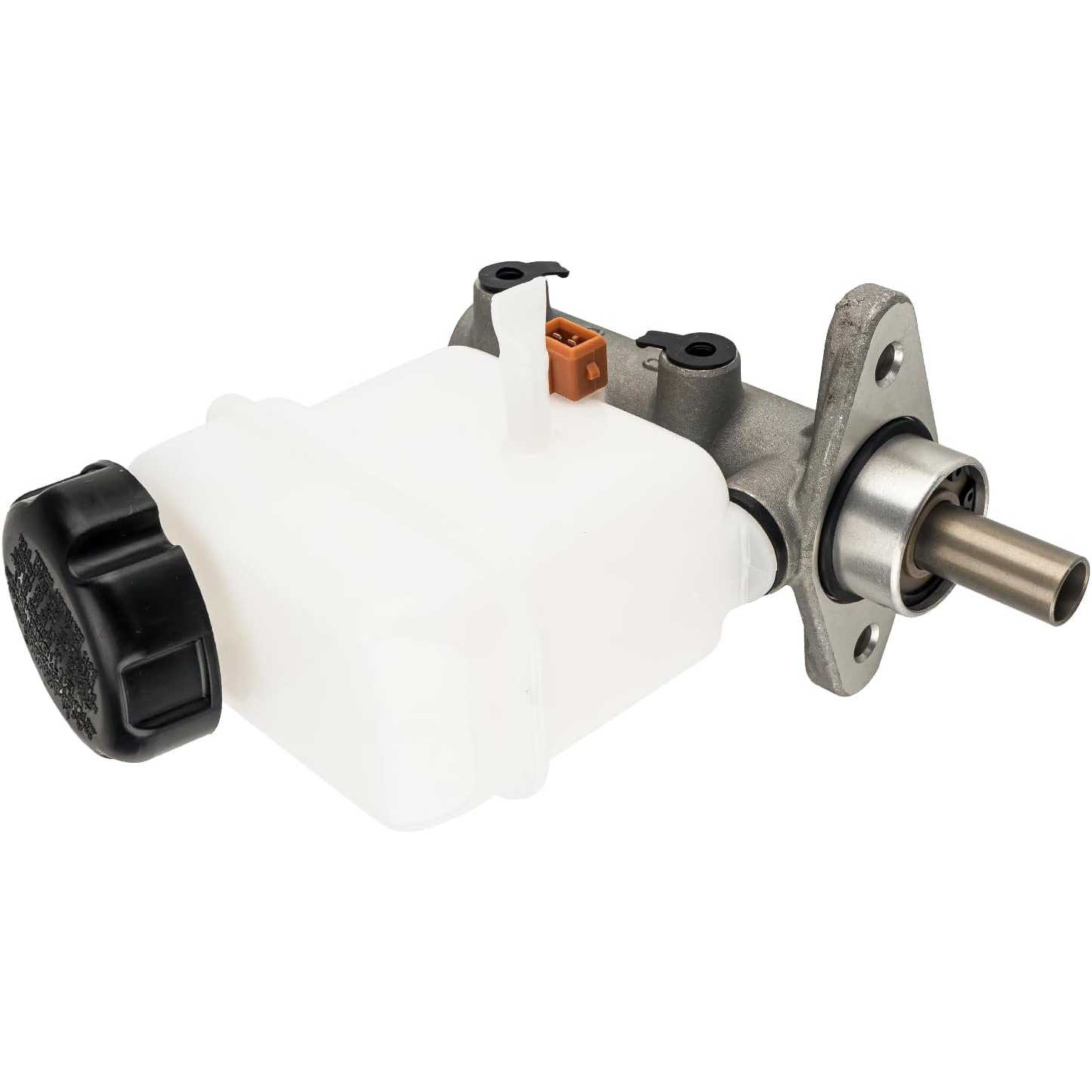

2006-2009 Hyundai Santa Fe 2.7L V6/3.5L V6/3.3L V6 | 1.063 in Brake Master Cylinder w/Reservoir w/Sensor | M630672 - PHILTOP

2006-2009 Hyundai Santa Fe 2.7L V6/3.5L V6/3.3L V6 | 1.063 in Brake Master Cylinder w/Reservoir w/Sensor | M630672 - PHILTOP

Sensor Included

Reservoir Included

Leak-Resistant Seal

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9580BMC0242US

Specifications

Brand
PHILTOP
Bore Diameter
1.063 in
Outlet Count
2
Rearward Outlet Size
M12 X 1.0
Reservoir Included
Yes
Secondary Outlet Thread Size
M12 X 1.0
Sensor Included
Yes
Items Included
1x Master Cylinder - M630672
Material
Aluminum
Quantity
1
Warranty Period
2-Year
Part Number
M630672

Highlights

  • [FITMENT]: This Aluminium brake master cylinder with reversior replacement for 2007-2009 Hyundai Santa Fe.
  • [OE NUMBER]: This PHILTOP Aluminium brake master cylinder with reversior replaces OE#: M630672, 585102B800.
  • [SPECIFICATION]: Package Includes: 1x Master Cylinder - M630672, Reservoir Included: Yes, Sensor Included: Yes, Material: Aluminum, Number of Outlets: 2, Rearward Outlet Size: M12 X 1.0, Secondary Outlet Thread Diameter: M12 X 1.0, Master Cylinder Bore Diameter: 1.063 in.

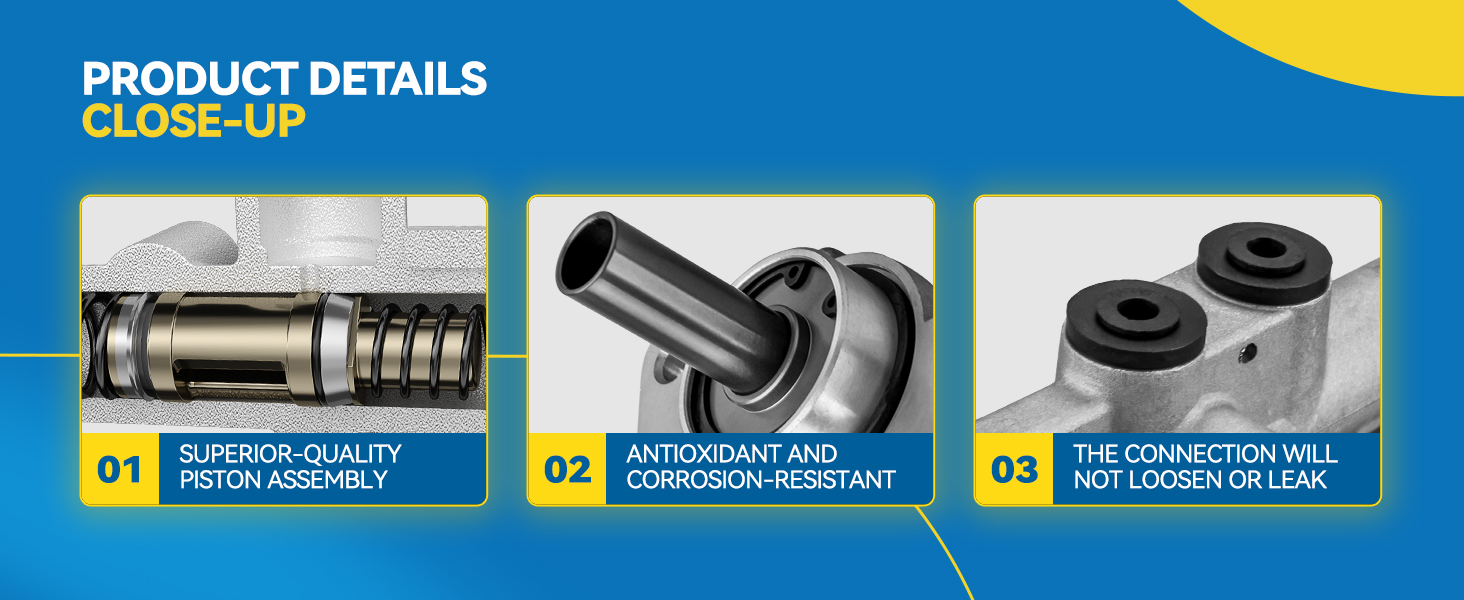

  • [PRECISE REPLACEMENT]: PHILTOP Brake Master Cylinder Assembly are made entirely of new materials, not remanufactured, to ensure highest quality and safety; cylinder housing is constructed to match the casting material of the original part and ensure similar performance.
  • [ALL CLIMATE RELIABLE]: Built for real-world extremes, it delivers dependable braking whether on a freezing -40℃ morning or during demanding drives in 150℃ engine heat, eliminating performance fade and cold-start issues.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2006 - 200920062007 - 200920062007 - 2009
MakeHyundaiHyundaiHyundaiHyundaiHyundai
ModelSanta FeSanta FeSanta FeSanta FeSanta Fe
TrimGLSGLSLimitedLimitedSE
Engine2.7L V63.5L V63.3L V63.5L V63.3L V6
Note-----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Installation Steps

  • Step-1: Remove the Old Unit: Extract the brake fluid, disconnect the brake lines and cap all openings immediately to prevent air and contamination from entering.
  • Step-2: Inspect the Booster: Remove the old master cylinder. Inspect the booster push rod, seal and mounting surface for wear, deformation or fluid leakage.
  • Step-3: Bench-Bleed the New Master Cylinder: Bench-bleed the new master cylinder with fresh, vehicle-approved brake fluid until no air bubbles remain. Follow the product instructions or vehicle service manual.
  • Step-4: Install the New Unit: Align the master cylinder with the booster push rod. Hand-start the mounting nuts, then tighten them evenly to the specified torque. Do not force the master cylinder into position.
  • Step-5: Reconnect the Brake Lines: Hand-start each brake-line fitting to prevent cross-threading, then tighten it to the vehicle manufacturer’s specification.
  • Step-6: Fill and Bleed the Brake System: Fill the reservoir with fresh brake fluid to the MAX line. Bleed the complete brake system in the sequence specified by the vehicle service manual. Keep the fluid level above MIN throughout the process. ABS/ESP systems may require a scan tool.

After Installation

  • Bleed the complete brake system after installation, following the sequence specified in the vehicle service manual. Keep the reservoir above MIN throughout the process.
  • Refill the brake fluid to the MAX line after bleeding.
  • With the engine off, pump the brake pedal until it feels firm with normal travel.
  • Check the brake-line fittings and master-cylinder-to-booster surface for leaks.
  • Confirm that the brake and ABS warning lights are off.
  • Perform a low-speed road test and confirm effective, straight braking.
  • Recheck the fluid level and all connections after the road test.

Product Video

Product Description

14

Reviews

4.7/5

Based on 6 reviews

567%
433%
30%
20%
10%

sayed.j

08/10/2025

Verified buyer

Solved the brake fade issues in my 2007 Santa Fe. The aluminum body resists corrosion better than OEM.

DIY_Karen_494

11/15/2025

This master cylinder fixed my braking problems instantly. The pedal feels strong and reliable now. It was a simple swap and well worth the cost.

FAQS

Port location and thread size can vary between applications that otherwise look similar. Compare the new unit with the original and do not force or reshape lines unless the service procedure allows it.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.
