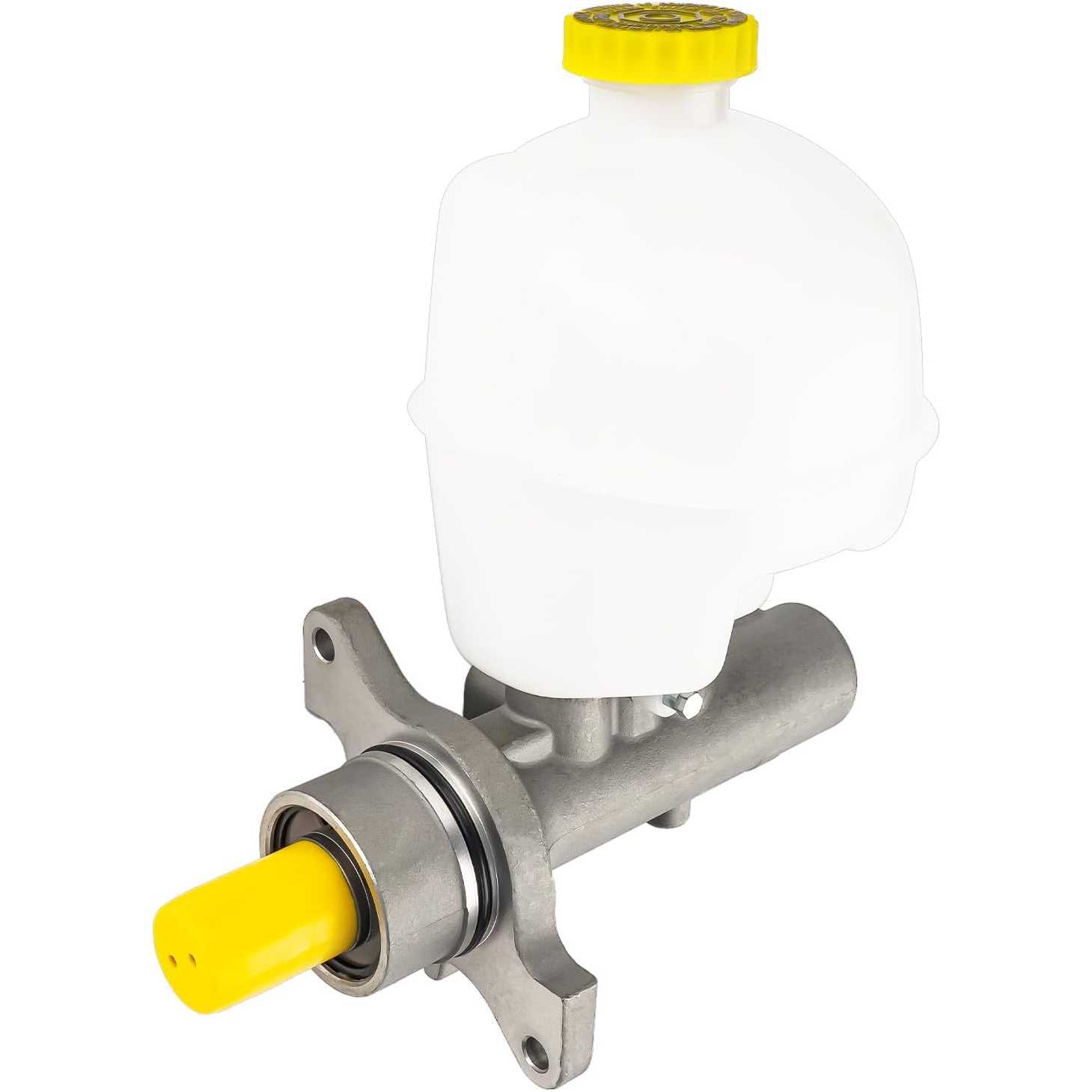

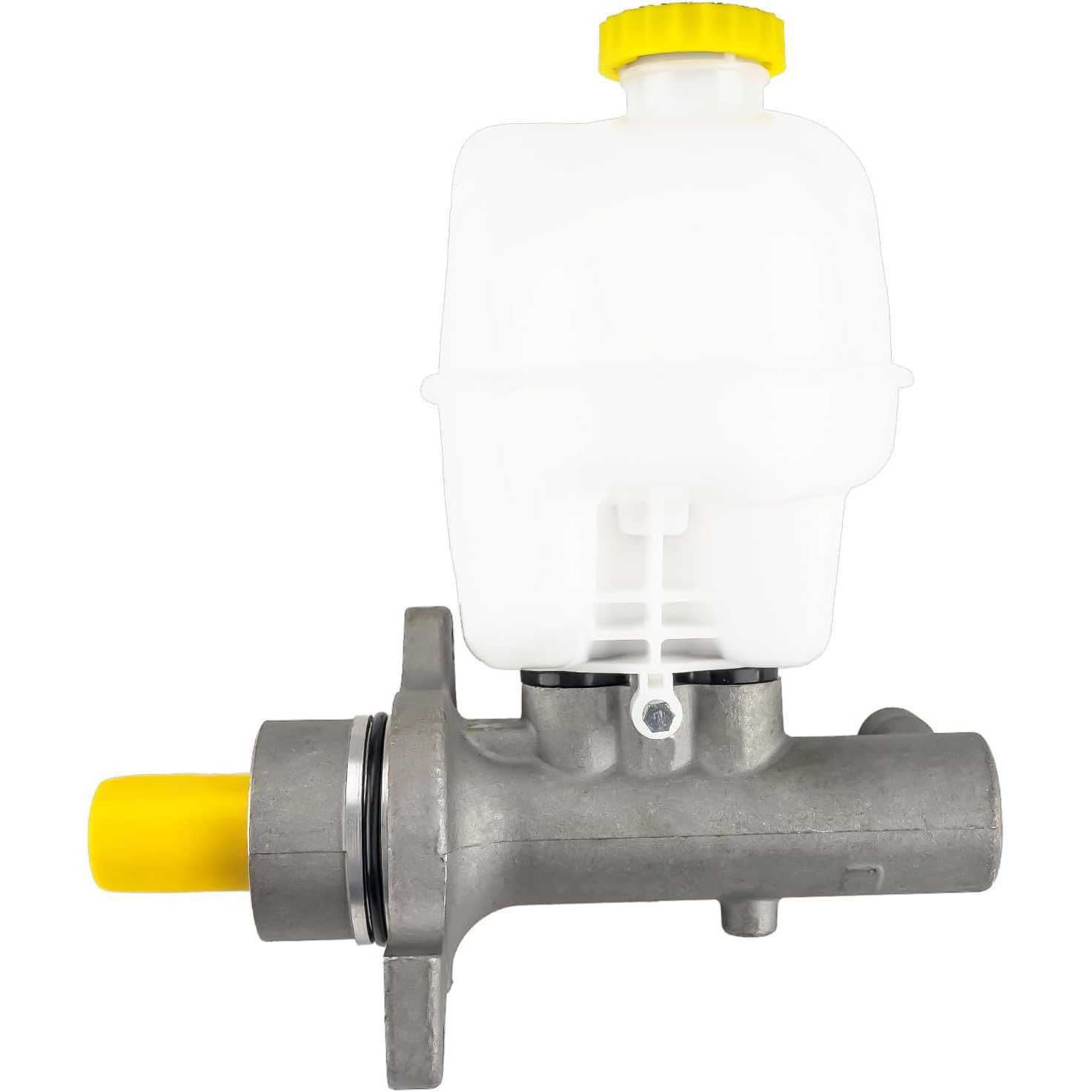

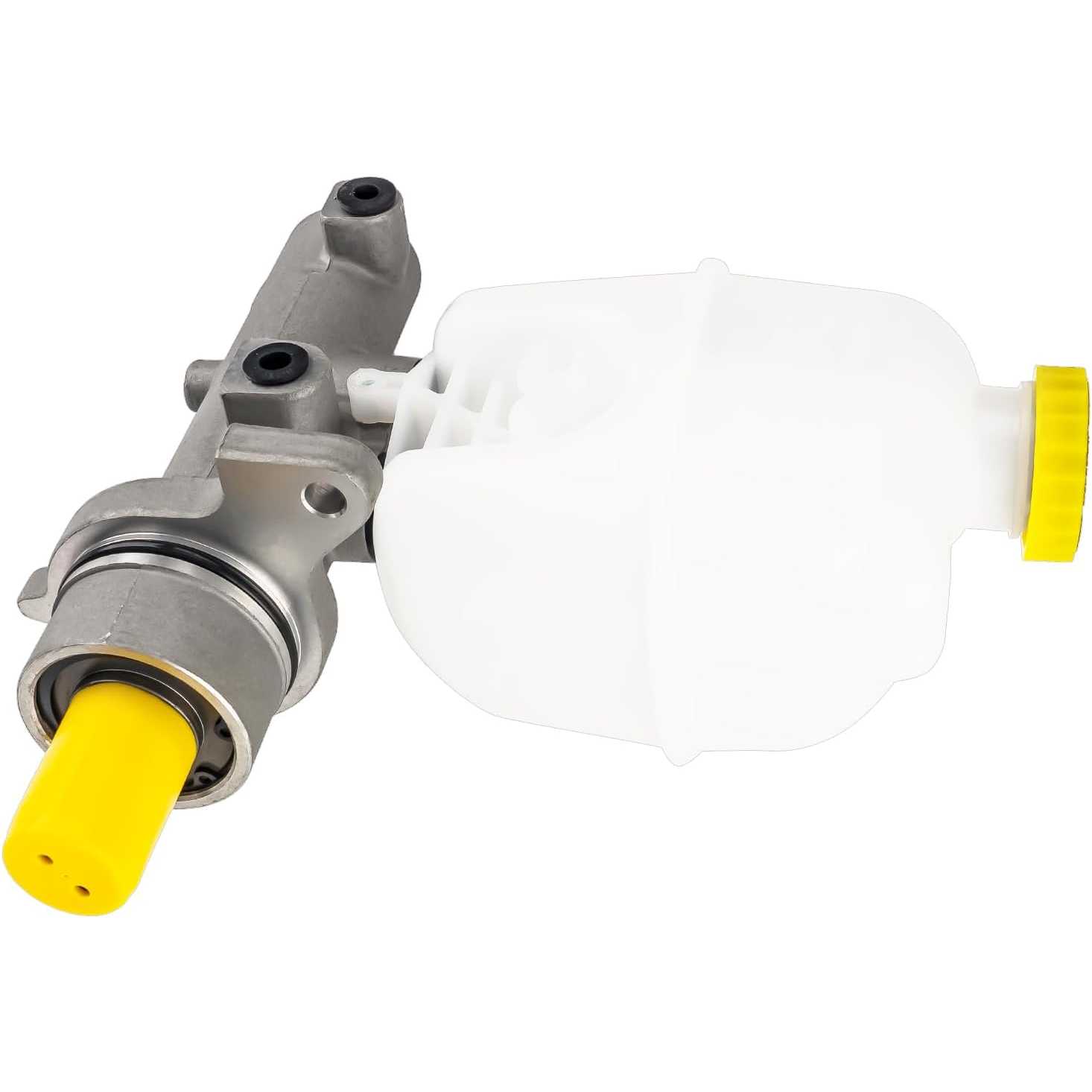

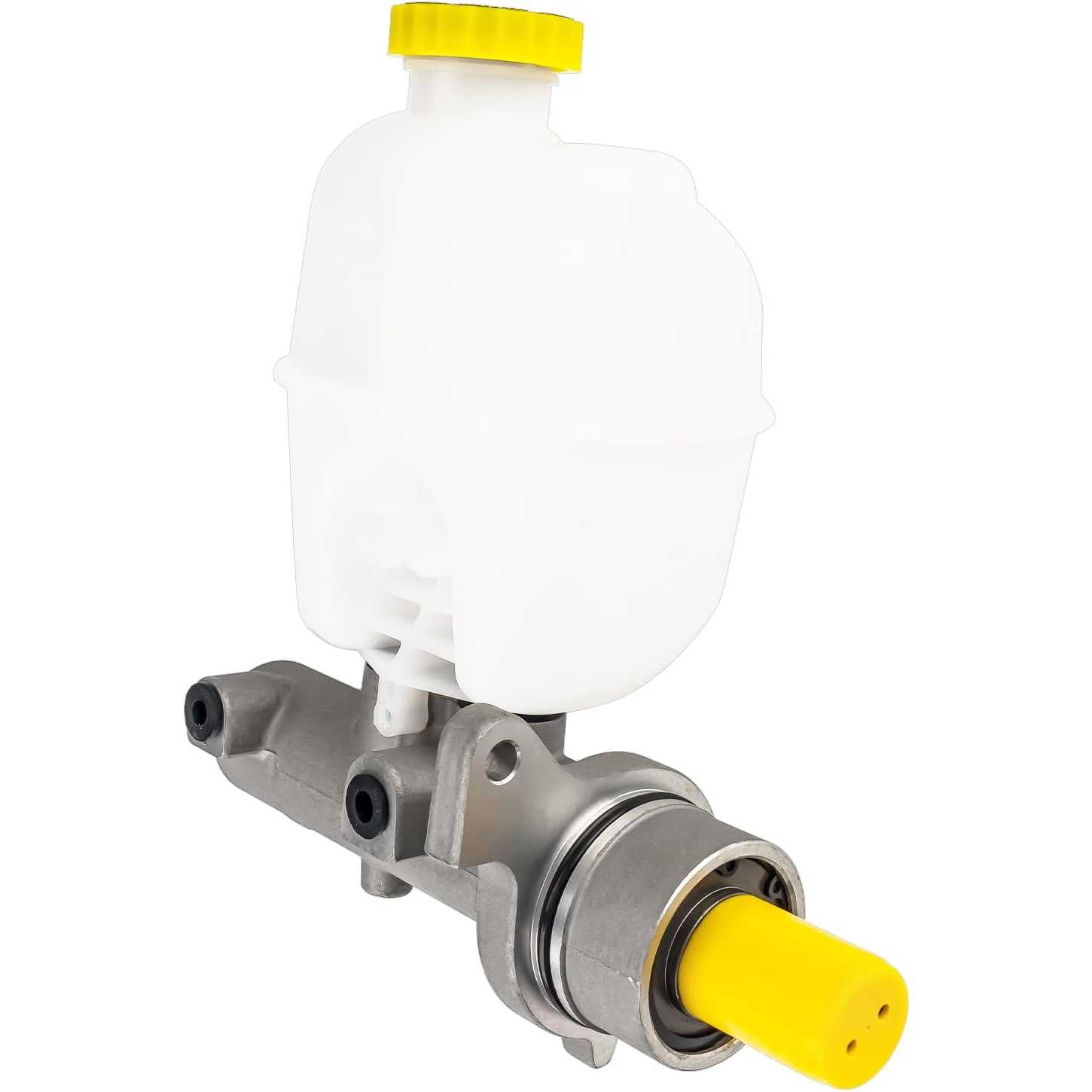

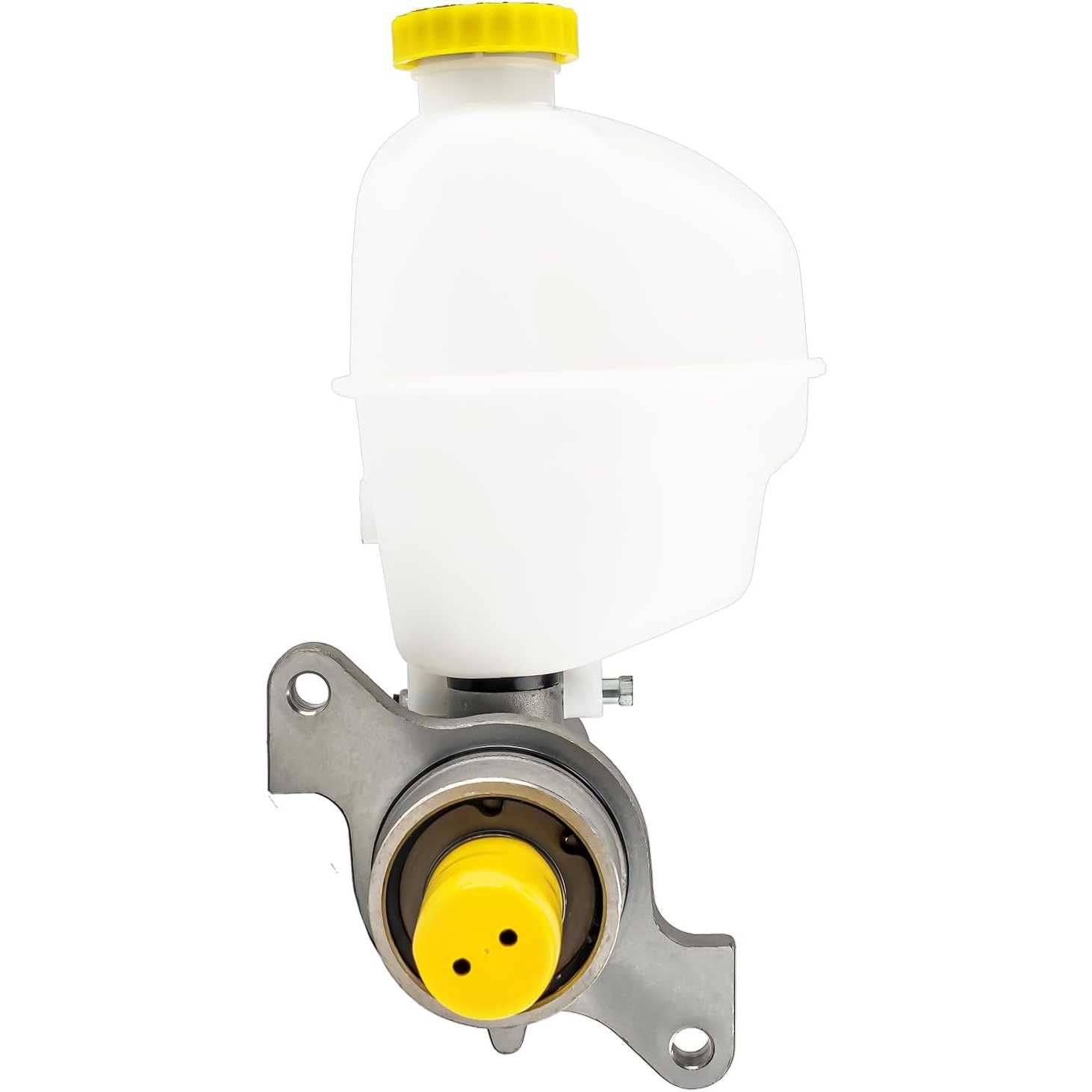

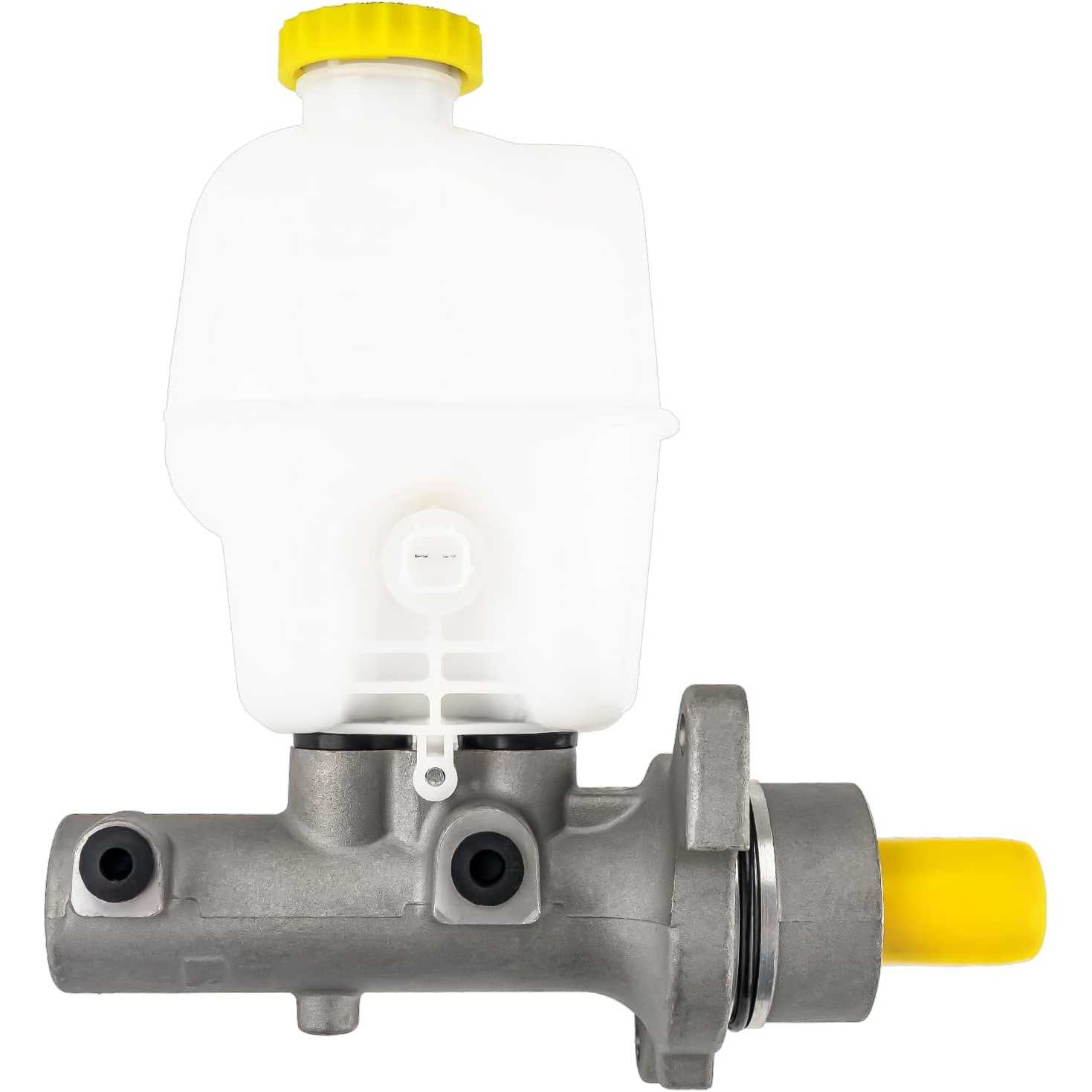

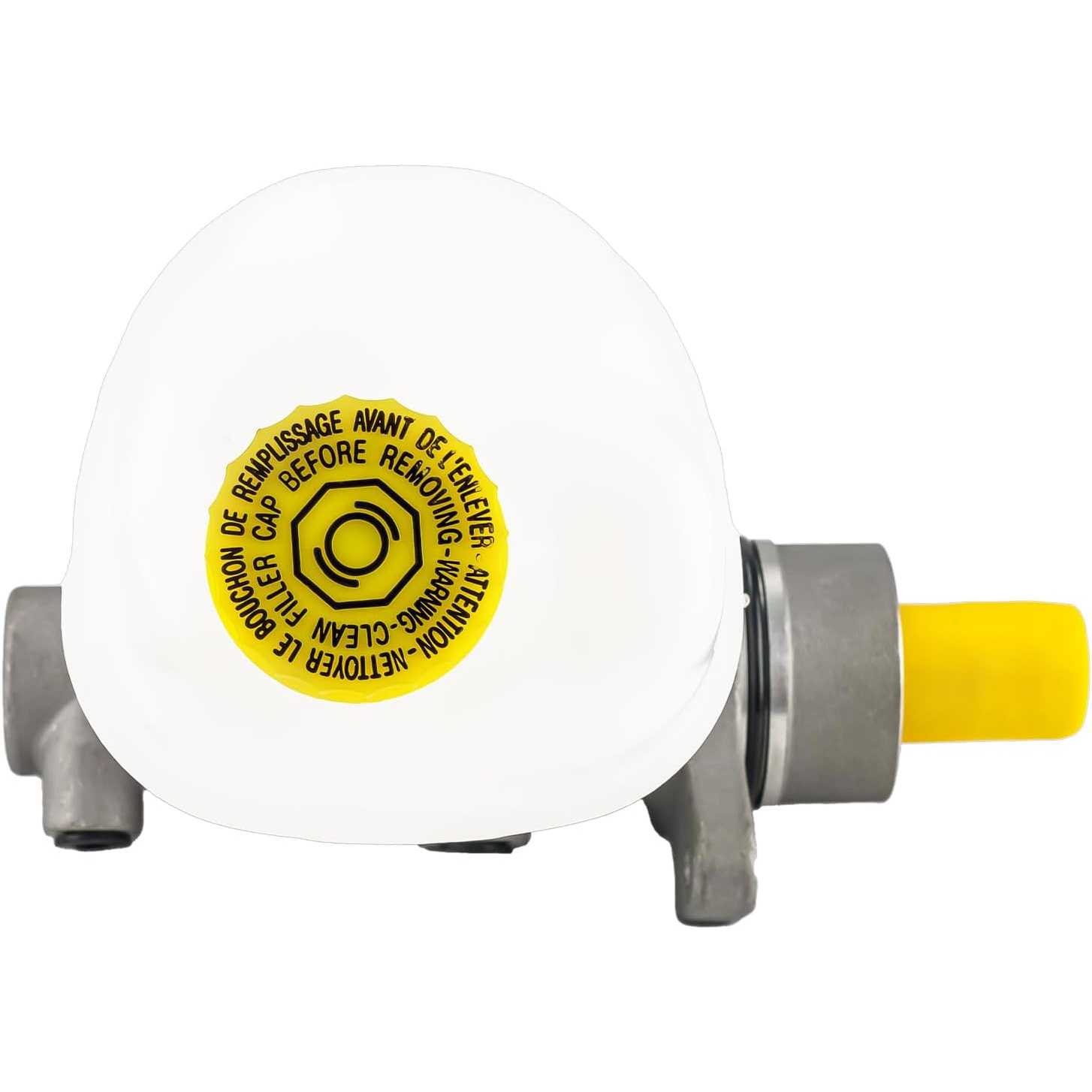

2007-2018 Dodge Ram 1500 3.0L/3.6L/3.7L/4.7L/5.7L | 1.25 in Brake Master Cylinder w/Sensor w/Reservoir | M630498 - PHILTOP

2007-2018 Dodge Ram 1500 3.0L/3.6L/3.7L/4.7L/5.7L | 1.25 in Brake Master Cylinder w/Sensor w/Reservoir | M630498 - PHILTOP

Sensor Included

Reservoir Included

Leak-Resistant Seal

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7909BMC021LUS

Specifications

Brand
PHILTOP
Bore Diameter
1.25 in
Outlet Count
2
Rearward Outlet Size
1/2-20
Reservoir Included
Yes
Secondary Outlet Thread Size
7/16-24
Sensor Included
Yes
Items Included
1x Master Cylinder - M630498
Material
Aluminum
Quantity
1
Warranty Period
2-Year
Part Number
M630498

Highlights

  • [FITMENT]: This Aluminium brake master cylinder with reversior replacement for 2011-2018 Ram 1500, 2007-2010 Dodge Ram 1500, 2019 Ram 1500 Classic.
  • [OE NUMBER]: This PHILTOP Aluminium brake master cylinder with reversior replaces OE#: M630498, 68000908AA, 68000910AA.
  • [SPECIFICATION]: Package Includes: 1x Master Cylinder - M630498, Reservoir Included: Yes, Sensor Included: Yes, Material: Aluminum, Number of Outlets: 2, Rearward Outlet Size: 1/2-20, Secondary Outlet Thread Diameter: 7/16-24, Master Cylinder Bore Diameter: 1.25 in.
  • [PRECISE REPLACEMENT]: PHILTOP Brake Master Cylinder Assembly are made entirely of new materials, not remanufactured, to ensure highest quality and safety; cylinder housing is constructed to match the casting material of the original part and ensure similar performance.
  • [ALL CLIMATE RELIABLE]: Built for real-world extremes, it delivers dependable braking whether on a freezing -40℃ morning or during demanding drives in 150℃ engine heat, eliminating performance fade and cold-start issues.

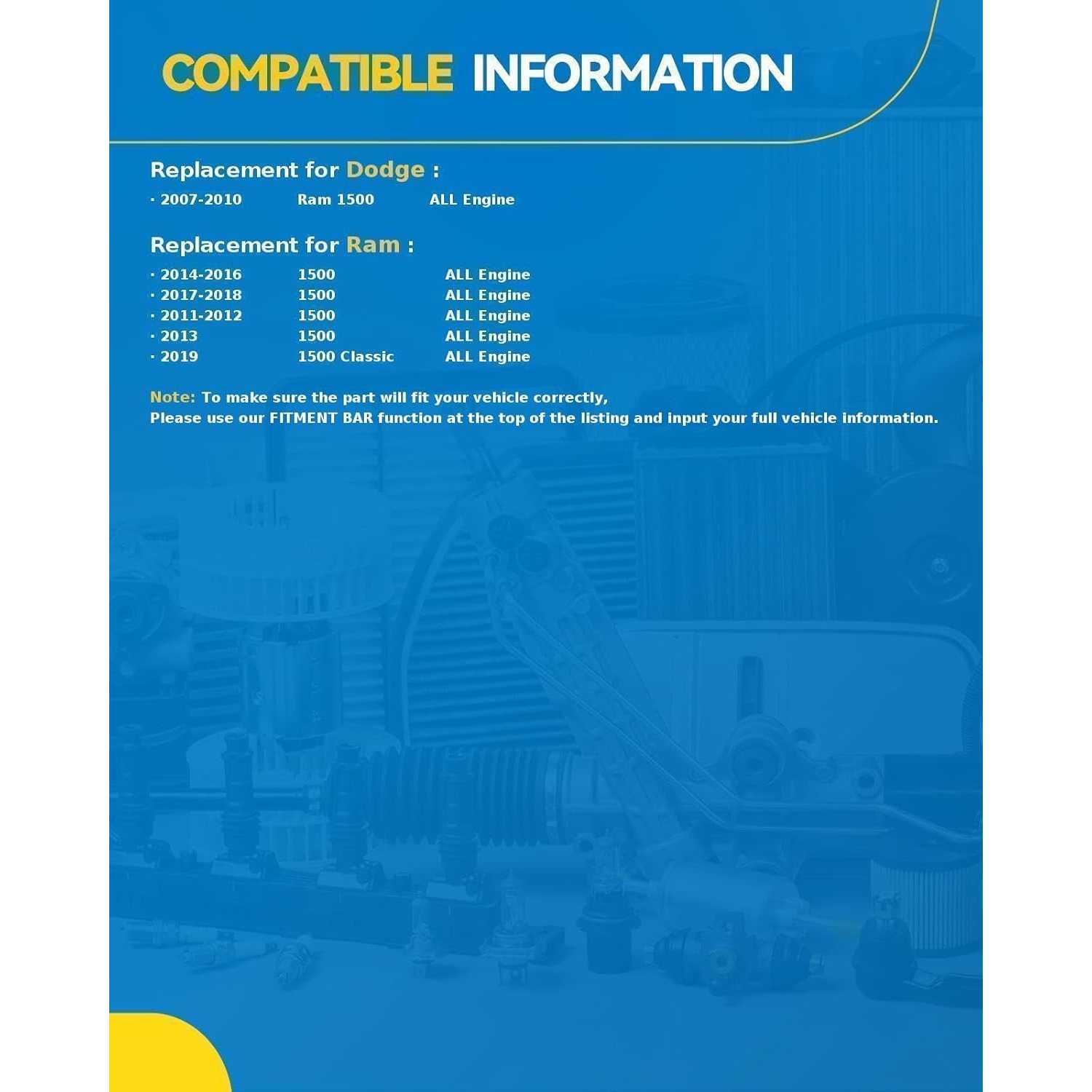

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20072007 - 20102007 - 20102007 - 20102007 - 20102007 - 20102007 - 201020082008200820072009 - 20102009 - 20102009 - 201020072009 - 201020072009 - 20102014 - 20182014 - 201820112011 - 20122013 - 20182014 - 201820122013 - 20182016 - 20182013 - 201620142014 - 20182014 - 20182011 - 20122013 - 20182014 - 20152014 - 20152014 - 20182011 - 20122013 - 20182015 - 20182015 - 20182014 - 20182014 - 20182014 - 20182014 - 20162013 - 20162011 - 20122011 - 20122013 - 201620132015 - 20182015 - 20182014 - 20182013 - 20182011 - 201220132011 - 20122013 - 20182011 - 20122011 - 20122011 - 20122014 - 201820182017 - 20182011 - 20122013 - 20182014 - 20182013 - 2018201220132011 - 20122013 - 201820122019201920192019201920192019201920192019201920192019201920192019
MakeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRam
ModelRam 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 15001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic
TrimLaramieLaramieSLTSLTSTSTSTSXTSXTSXTSportSportTRXTRXTRX4TRX4TRX4TRX4Big HornBig HornBig HornBig HornBig HornExpressExpressExpressHFEHFEHFELaramieLaramieLaramieLaramieLaramie LimitedLaramie LimitedLaramie LonghornLaramie LonghornLaramie LonghornLimitedLimitedLone StarLone StarLone StarOutdoorsmanOutdoorsmanOutdoorsmanOutdoorsmanOutdoorsmanR/TRebelRebelSLTSLTSLTSLTSLTSLTSTSTSTSpecial ServiceSportSportSportSportTradesmanTradesmanTradesmanTradesmanTradesmanTradesmanTradesman HDBig HornBig HornExpressExpressLaramieLone StarLone StarSLTSLTSLTSpecial ServiceTradesmanTradesmanTradesmanWarlockWarlock
Engine4.7L V85.7L V84.7L V85.7L V83.7L V64.7L V85.7L V83.7L V64.7L V85.7L V85.7L V85.7L V84.7L V85.7L V84.7L V84.7L V85.7L V85.7L V83.0L V63.6L V64.7L V85.7L V85.7L V83.6L V65.7L V85.7L V83.0L V63.6L V65.7L V83.0L V63.6L V65.7L V85.7L V83.0L V65.7L V83.0L V65.7L V85.7L V83.0L V65.7L V83.0L V63.6L V65.7L V83.0L V63.6L V64.7L V85.7L V85.7L V85.7L V83.6L V65.7L V83.0L V63.6L V64.7L V84.7L V85.7L V85.7L V83.7L V64.7L V85.7L V85.7L V83.0L V63.6L V65.7L V85.7L V83.0L V63.6L V64.7L V84.7L V85.7L V85.7L V85.7L V83.6L V65.7L V83.6L V65.7L V83.0L V63.6L V65.7L V83.0L V63.6L V65.7L V85.7L V83.0L V63.6L V65.7L V83.6L V65.7L V8
Note
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
--
Bore: 1.25 In.
Bore: 1.25 In.
--
Bore: 1.25 In.
------
Bore: 1.25 In.
----
Bore: 1.25 In.
--------
Bore: 1.25 In.
Bore: 1.25 In.
------
Bore: 1.25 In.
-
Bore: 1.25 In.
-
Bore: 1.25 In.
Bore: 1.25 In.
Bore: 1.25 In.
---
Bore: 1.25 In.
---
Bore: 1.25 In.
-
Bore: 1.25 In.
-
Bore: 1.25 In.
----------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Installation Steps

  • Step-1: Remove the Old Unit: Extract the brake fluid, disconnect the brake lines and cap all openings immediately to prevent air and contamination from entering.
  • Step-2: Inspect the Booster: Remove the old master cylinder. Inspect the booster push rod, seal and mounting surface for wear, deformation or fluid leakage.
  • Step-3: Bench-Bleed the New Master Cylinder: Bench-bleed the new master cylinder with fresh, vehicle-approved brake fluid until no air bubbles remain. Follow the product instructions or vehicle service manual.
  • Step-4: Install the New Unit: Align the master cylinder with the booster push rod. Hand-start the mounting nuts, then tighten them evenly to the specified torque. Do not force the master cylinder into position.
  • Step-5: Reconnect the Brake Lines: Hand-start each brake-line fitting to prevent cross-threading, then tighten it to the vehicle manufacturer’s specification.
  • Step-6: Fill and Bleed the Brake System: Fill the reservoir with fresh brake fluid to the MAX line. Bleed the complete brake system in the sequence specified by the vehicle service manual. Keep the fluid level above MIN throughout the process. ABS/ESP systems may require a scan tool.

After Installation

  • Bleed the complete brake system after installation, following the sequence specified in the vehicle service manual. Keep the reservoir above MIN throughout the process.
  • Refill the brake fluid to the MAX line after bleeding.
  • With the engine off, pump the brake pedal until it feels firm with normal travel.
  • Check the brake-line fittings and master-cylinder-to-booster surface for leaks.
  • Confirm that the brake and ABS warning lights are off.
  • Perform a low-speed road test and confirm effective, straight braking.
  • Recheck the fluid level and all connections after the road test.

Product Video

Product Description

14

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

CarGuy_John_626

03/10/2026

This master cylinder is really well put together, feels like a premium part. For the price, it's an absolute steal. Fantastic value.

Jason_Trucks_134

04/14/2026

My Ram's brakes feel completely different now, so much more solid. This part fixed the mushy pedal issue I was having. Highly satisfied.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

It may be possible when the design matches and the reservoir is undamaged. Use suitable new seals where required and inspect the connection for leaks.

Remaining air, an external leak, incorrect pushrod clearance, flexible hose expansion, caliper issues, or an ABS bleeding requirement may contribute to a soft pedal.
