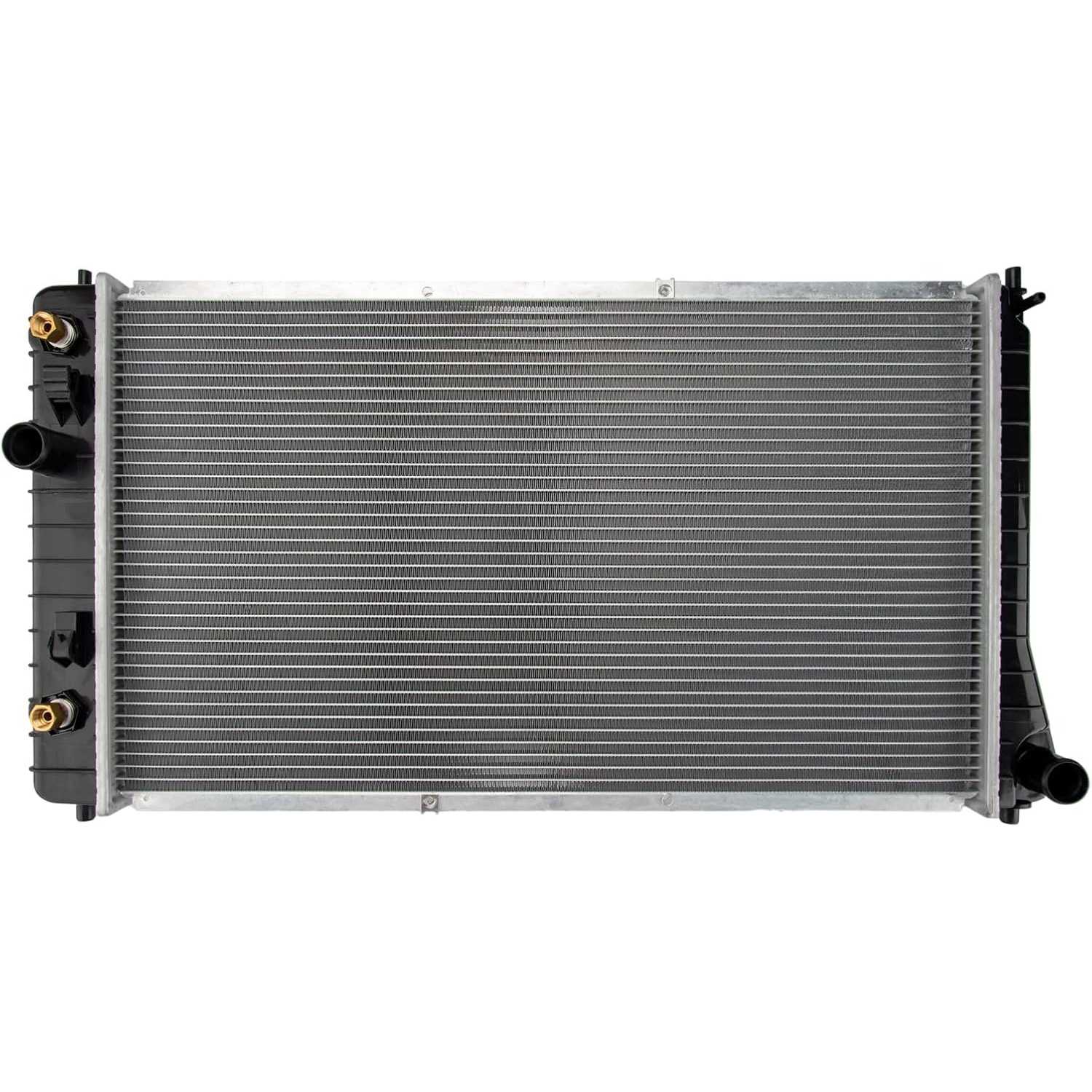

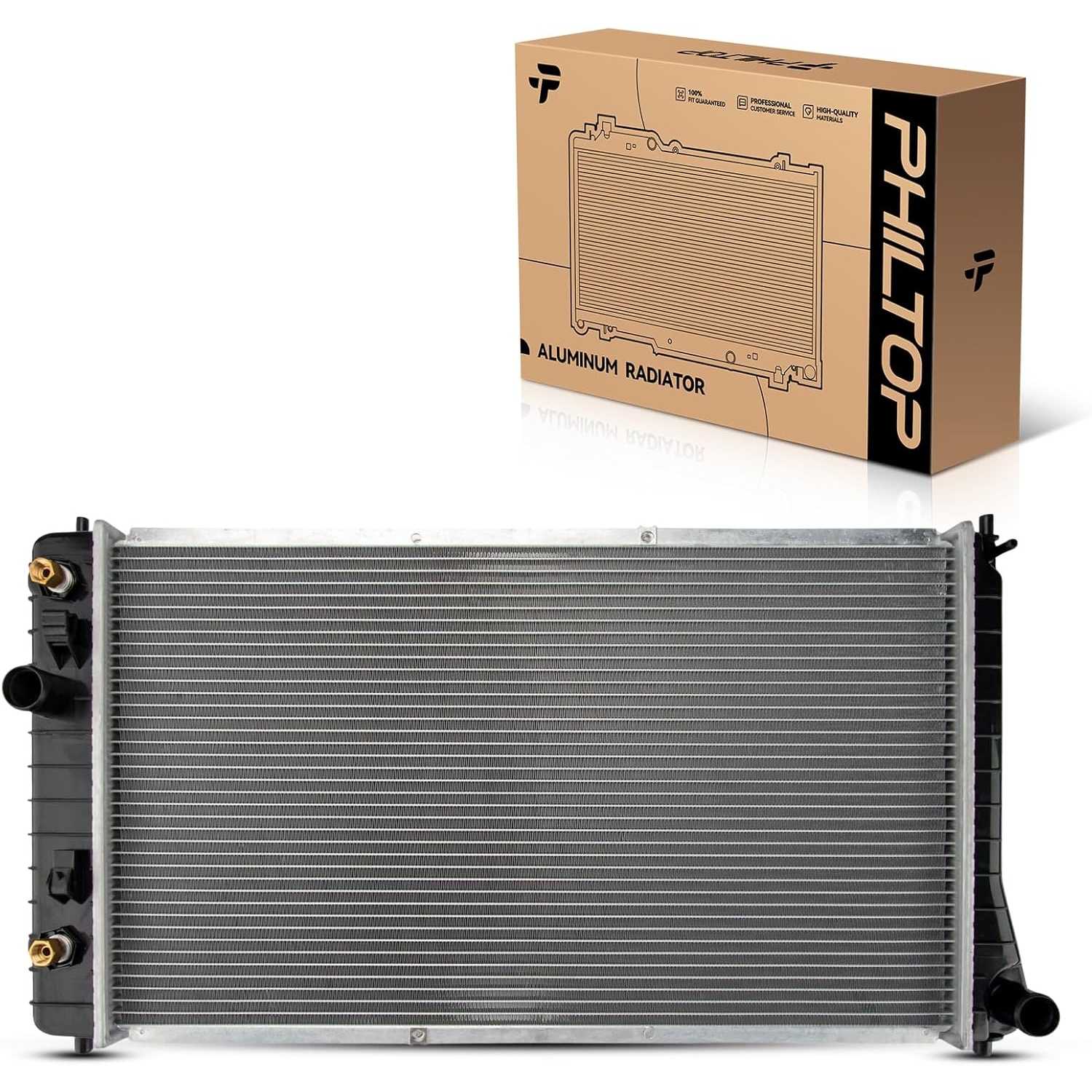

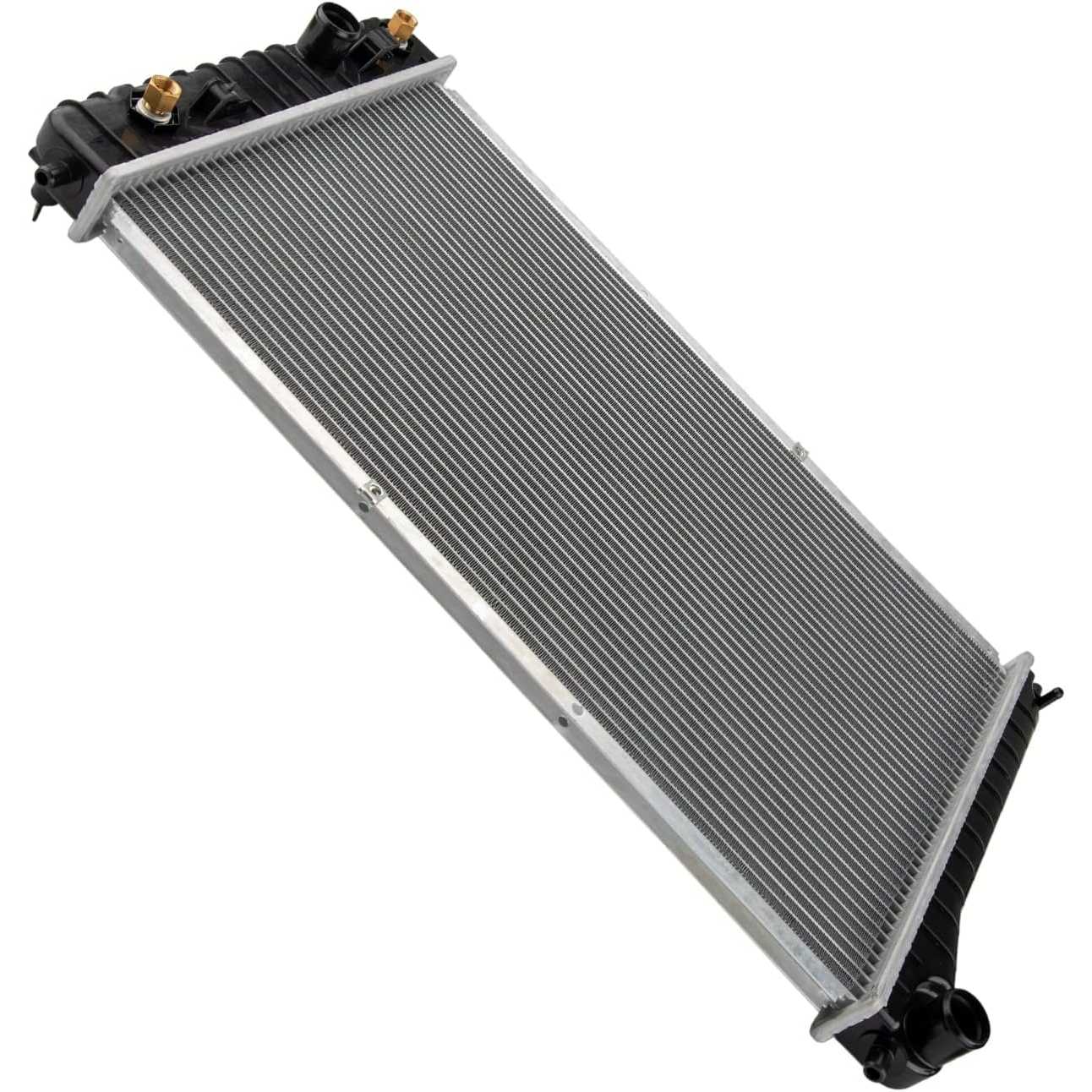

1995-2002 Chevrolet Cavalier 2.2L L4 | Aluminum 3/4" Radiator | OE#52470925/CU1687 - PHILTOP

1995-2002 Chevrolet Cavalier 2.2L L4 | Aluminum 3/4" Radiator | OE#52470925/CU1687 - PHILTOP

Leak-Resistant

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8808CFK091ZUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
25-15/16 in
Core Height
15 in
Radiator Cap Included
No
Inlet Diameter
1-5/16 in
Outlet Diameter
1-5/16 in
Items Included
1x Radiator - CU1687, 1x Instruction Manual
Mounting Type
Top / Bottom Pin
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
52470925,52470926,52468360,52463624,52471112,52477185,52470119,52470924,89018667,52471111,52471113,52477186,93426178,93426180
Part Number
CU1687,2219004,411687,1687C,2006,GM3010181,GM3010117,A1687,431404,60917,9639,CRS1687,438096,20962,GM3010182,KLI1687,REA411687A,20963,GM3010167,SBR1687,PR1687A,RA1687C,21611,AM1687,NR1687A,CR1687,56522,GM3010183,GM3010184,RA1687,RA1108,9270,0R001687A2CM,BES1687,CUC1687,1981200790

Highlights

  • Compatible with: 1995-2002 Cavalier, 1995-2001 Sunfire, 2002 Sunfire 2.2L, 2002 Sunfire 2.4L
  • OEM Replacement.: 52463624, 52468360, 52470119, 52470924, 52470926, 52471111, 52471112, 52471113, 52477185, 52477186, 89018667, 93426178, 93426180
  • IATF16949 Certification: Designed with outstanding durability, in compliance with the original specifications, and suitable for direct replacement.
  • High-Efficiency Cooling: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • Easy and Quick to Install - Direct bolt-on OE fitment or replacement for factory unit, fast and easy installation without any drilling or modification.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1995 - 200120021995 - 2001200219951996 - 20012002200220021997 - 199919951996 - 20012002200219951996 - 200120021995 - 2001200219951996 - 20012002
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiac
ModelCavalierCavalierCavalierCavalierCavalierCavalierCavalierCavalierCavalierCavalierCavalierCavalierCavalierSunfireSunfireSunfireSunfireSunfireSunfireSunfireSunfireSunfire
TrimBaseBaseLSLSLSLSLSLS SportLS SportRSZ24Z24Z24GTGTGTGTSESESESESE
Engine2.2L L42.2L L42.2L L42.2L L42.3L L42.4L L42.4L L42.2L L42.4L L42.2L L42.3L L42.4L L42.4L L42.2L L42.3L L42.4L L42.4L L42.2L L42.2L L42.3L L42.4L L42.4L L4
Note
Radiator Cap Is Required
Early Model;Radiator Cap Is Required;w/ Passenger Side Hose on Bottom
Radiator Cap Is Required
Early Model;Radiator Cap Is Required;w/ Passenger Side Hose on Bottom
Radiator Cap Is Required
Radiator Cap Is Required
Early Model;Radiator Cap Is Required;w/ Passenger Side Hose on Bottom
Early Model;Radiator Cap Is Required;w/ Passenger Side Hose on Bottom
Early Model;Radiator Cap Is Required;w/ Passenger Side Hose on Bottom
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Early Model;Radiator Cap Is Required;w/ Passenger Side Hose on Bottom
Early Model;Radiator Cap Is Required;w/ Passenger Side Hose on Bottom
Radiator Cap Is Required
Radiator Cap Is Required
Early Model;Radiator Cap Is Required;w/ Passenger Side Hose on Bottom
Radiator Cap Is Required
Early Model;Radiator Cap Is Required;w/ Passenger Side Hose on Bottom
Radiator Cap Is Required
Radiator Cap Is Required
Early Model;Radiator Cap Is Required;w/ Passenger Side Hose on Bottom

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

radiatorradiator

Reviews

4.7/5

Based on 9 reviews

578%
411%
311%
20%
10%

Placeholder

12/23/2025

Verified buyer

Came as ordered 👍

LA' Quita

11/12/2025

Verified buyer

Perfect fit

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.

Some radiators include transmission-cooler connections. Check the specifications and compare the fittings with the original radiator.
